FPV Flight Controller
What is a FPV Flight Controller?
A FPV flight controller is the central processor of a drone. It receives data from sensors, interprets pilot inputs from the radio transmitter, and sends commands to the ESCs to control motor speed.
In simple terms, the flight controller is the brain of your FPV drone. It keeps the quad stable, processes flight algorithms, and enables advanced features like GPS rescue, RPM filtering, and precise flight tuning.
Modern FPV drone flight controllers run firmware such as Betaflight, INAV, or ArduPilot, giving pilots powerful control over flight behavior, responsiveness, and system monitoring.
Whether you are building a freestyle quad, racing drone, or cinematic FPV rig, choosing the right drone flight controller is essential for reliable performance and smooth flight characteristics.
New to flight controllers? Dive into our latest guide on FPV drone flight controllers.
Common Types of FPV Flight Controllers
FPV flight controllers are typically categorized by the microprocessor used on the board. The two most common options today are F4 (F405) and F7 flight controllers.

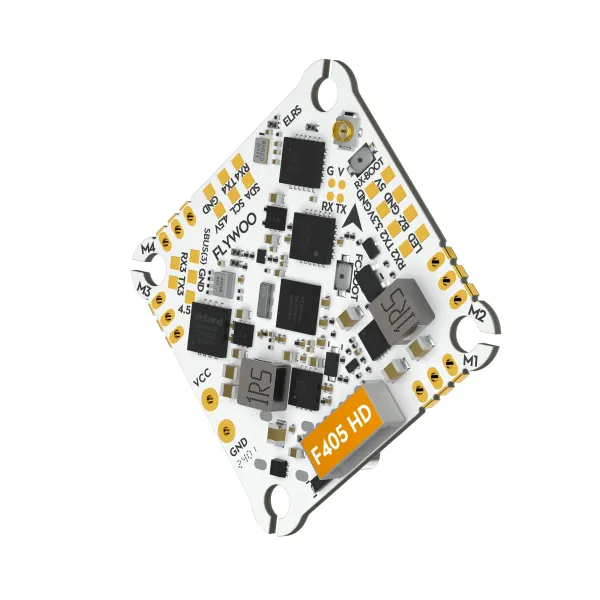

F405 Flight Controller
The F405 flight controller is one of the most popular choices for beginner and intermediate FPV builds. It offers reliable processing power while remaining affordable and easy to configure.
Typical advantages include:
● Stable performance with Betaflight
● Lower cost compared to high-end processors
● Compatible with most freestyle and racing builds
Many 5-inch freestyle drones still use F405 boards because they provide all the performance needed for smooth and responsive flying.

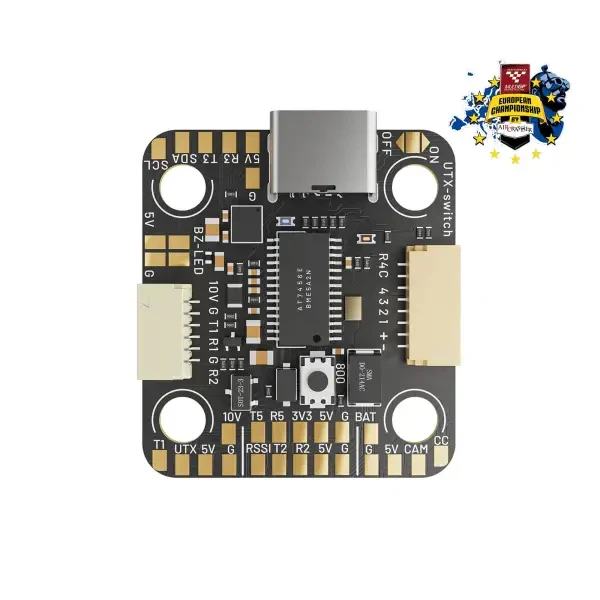

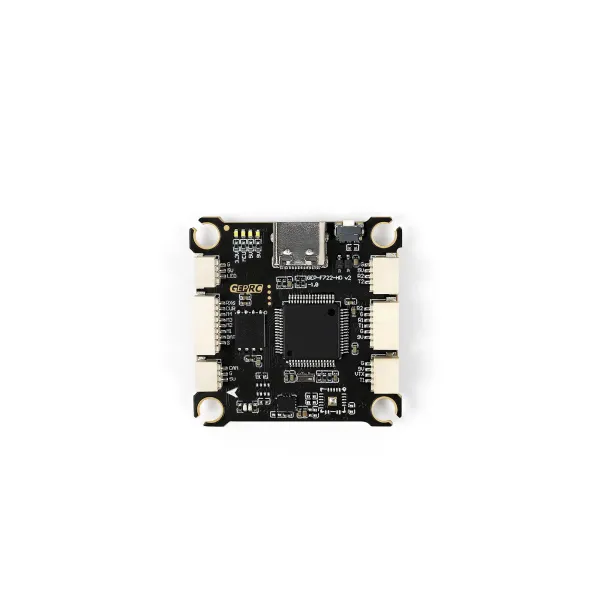

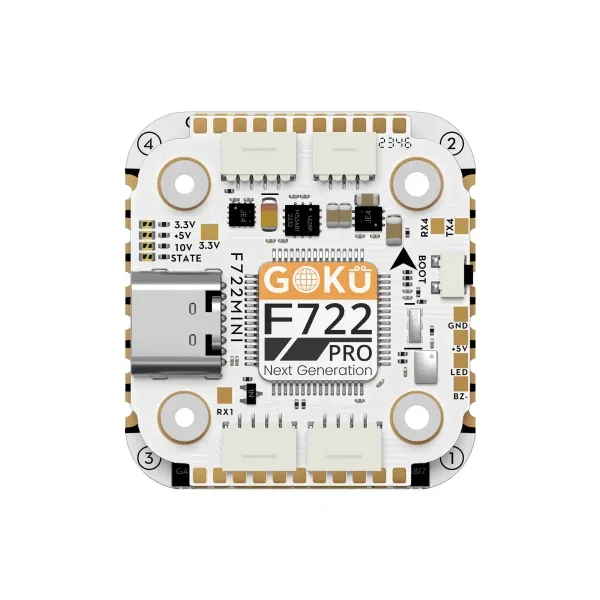

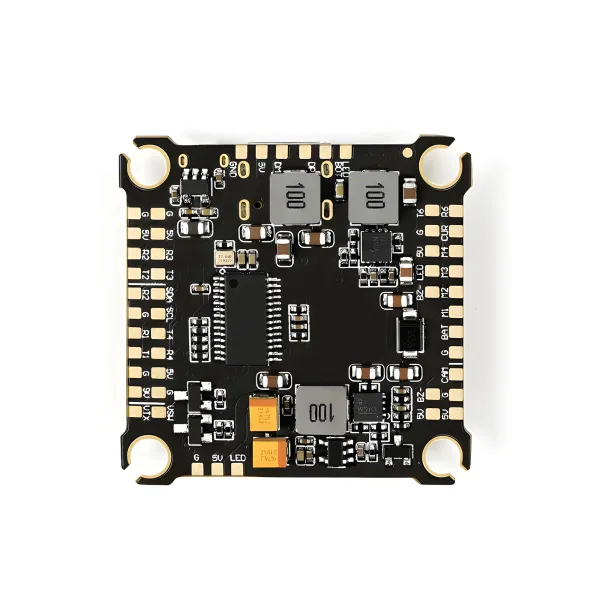

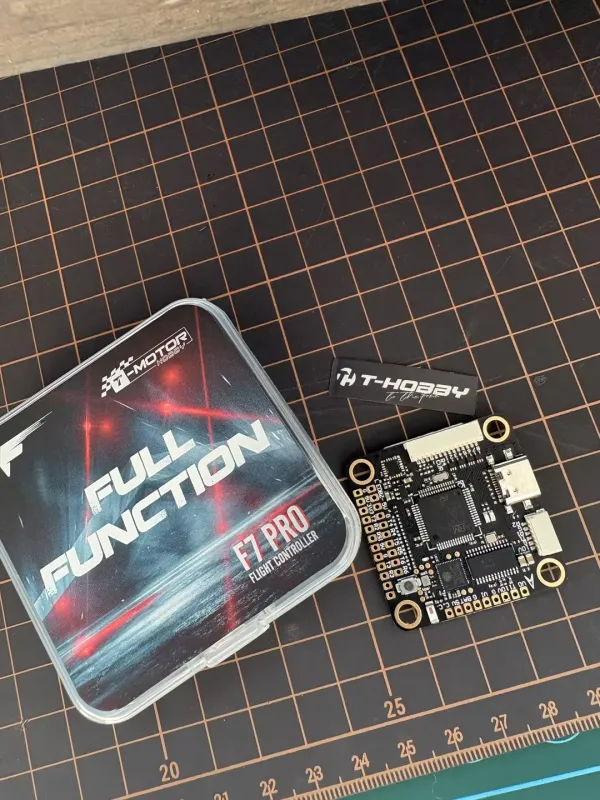

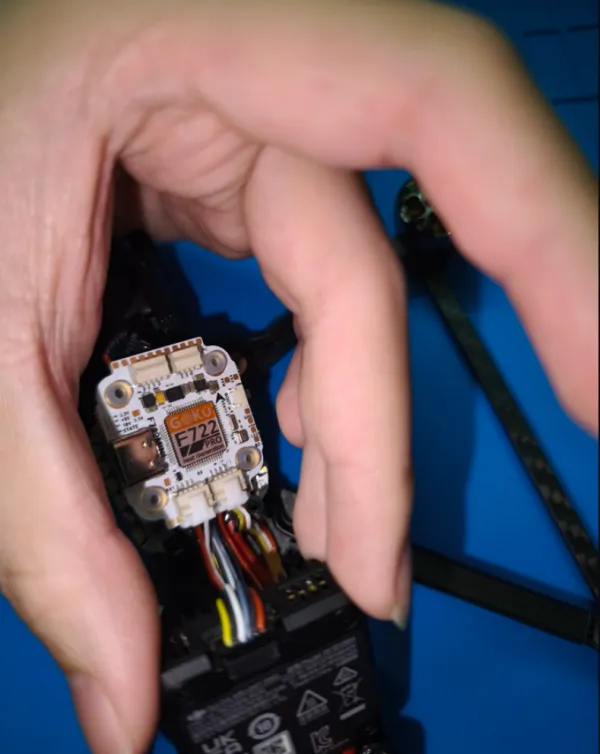

F7 Flight Controller
The F7 flight controller is designed for more advanced builds and pilots who want maximum processing power and expandability.
Key benefits include:
● Faster processor and better multitasking
● More UART ports for peripherals (GPS, DJI Air Unit, receivers)
● Improved compatibility with modern ESC protocols
● Better performance when using features like RPM filtering
For complex builds such as long-range FPV drones or cinematic rigs, an F7 board provides the additional resources required for multiple accessories.
Common Flight Controller Mounting Sizes
Flight controllers come in several mounting patterns to match different FPV frames and stack configurations.
| Mount Size | Typical Drone Size |
|---|---|
| 16×16mm | Tiny whoops and micro drones |
| 20×20mm | 3–4 inch freestyle drones |
| 30×30mm | 5 inch racing and freestyle drones |

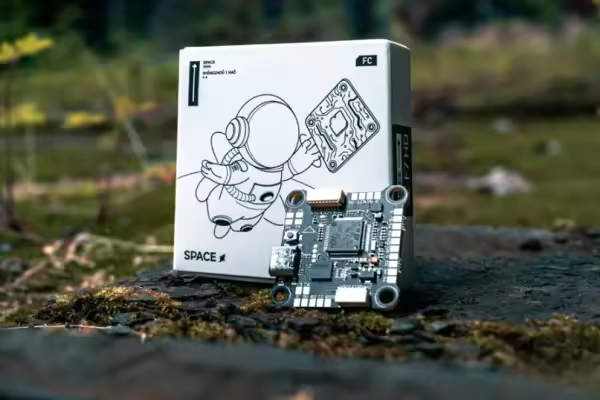

Key Features to Look for in a Drone Flight Controller
When choosing an FPV flight controller, experienced pilots typically look for the following features:
● Processor type: F405 and F7 processors provide different levels of computing power.
● Number of UART ports: More UARTs allow connection of devices such as GPS modules, digital FPV systems, telemetry radios, and receivers.
● Gyroscope quality: High-quality gyro sensors improve flight stability and allow smoother tuning.
● Firmware compatibility: Most FPV pilots use Betaflight, which offers advanced flight tuning, filtering, and performance optimization.
Recommended Flight Controllers for Different Drone Sizes
Choosing the right FPV drone flight controller also depends on the drone's size and build type.
| Drone Size | Recommended Flight Controller |
|---|---|

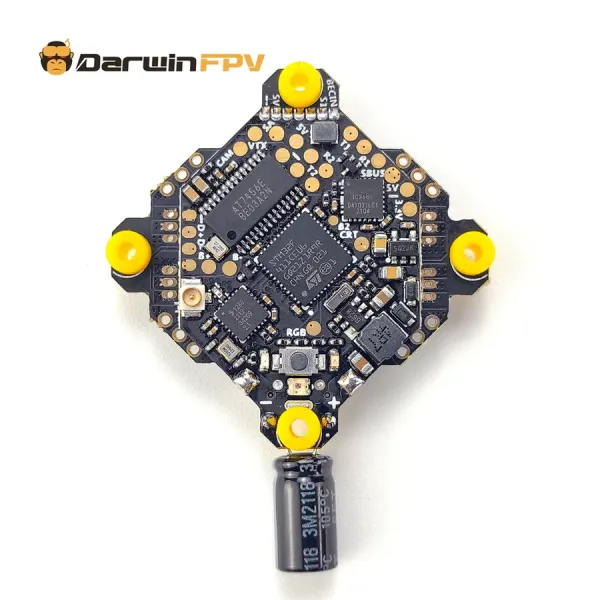

| 2–3 inch micro drones | F4 / lightweight AIO flight controller |
| 3–4 inch freestyle drones | F405 flight controller |
| 5 inch freestyle or racing drones | F405 or F7 flight controller |
| 6–7 inch long-range drones | F7 flight controller |

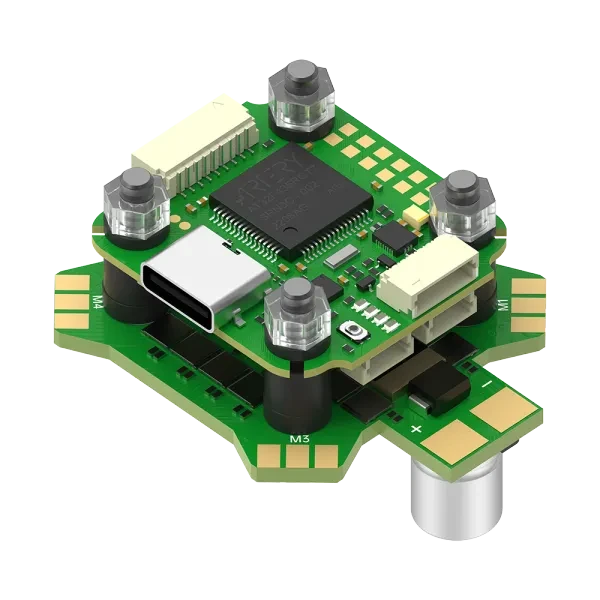

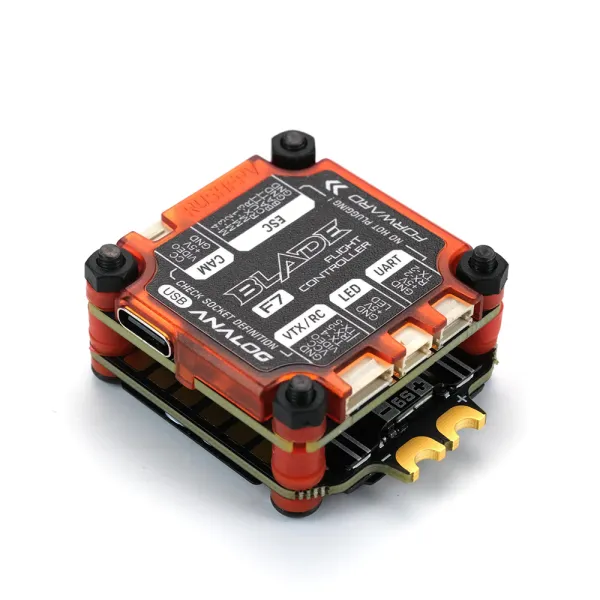

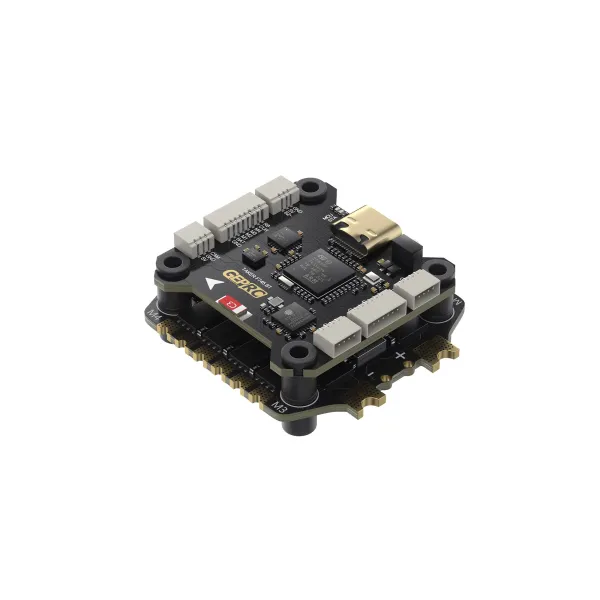

For most modern freestyle builds, an F405 or F7 flight controller paired with a 4-in-1 ESC stack provides the best balance of performance and reliability.
FAQ – FPV Flight Controller
What is the difference between F405 and F7 flight controllers?
The main difference between an F405 flight controller and an F7 flight controller is processing power and connectivity. F7 boards have faster processors and more UART ports, which makes them better for advanced builds with GPS, digital FPV systems, and telemetry. F405 boards are more affordable and still provide excellent performance for most freestyle drones.
Which flight controller is best for a 5-inch FPV drone?
Most 5-inch FPV drones use either an F405 or F7 flight controller paired with a 4-in-1 ESC stack. An F405 board is usually sufficient for freestyle and racing builds, while an F7 flight controller is recommended if you plan to add GPS, long-range systems, or multiple accessories.
Can any flight controller work with any ESC?

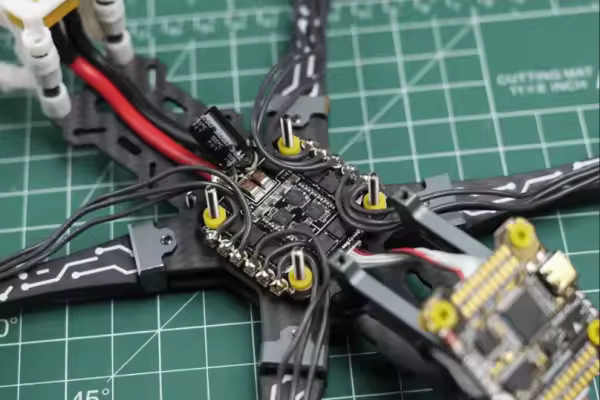

Most modern FPV flight controllers are compatible with standard ESC protocols such as DSHOT300 and DSHOT600. However, the ESC and flight controller must share the same mounting pattern and wiring layout. Many FPV pilots use a matched FC + 4-in-1 ESC stack to simplify installation and ensure compatibility.
