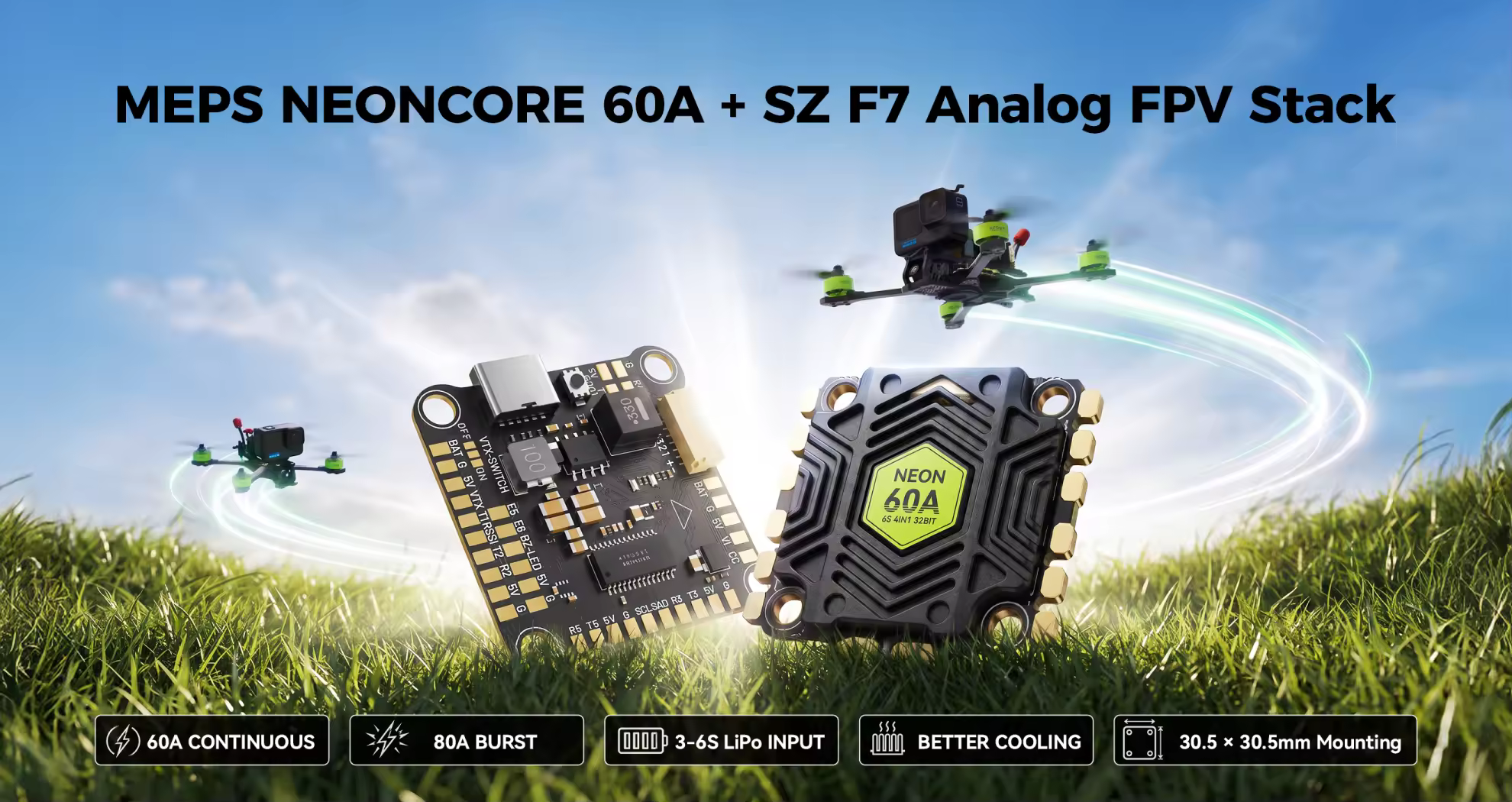

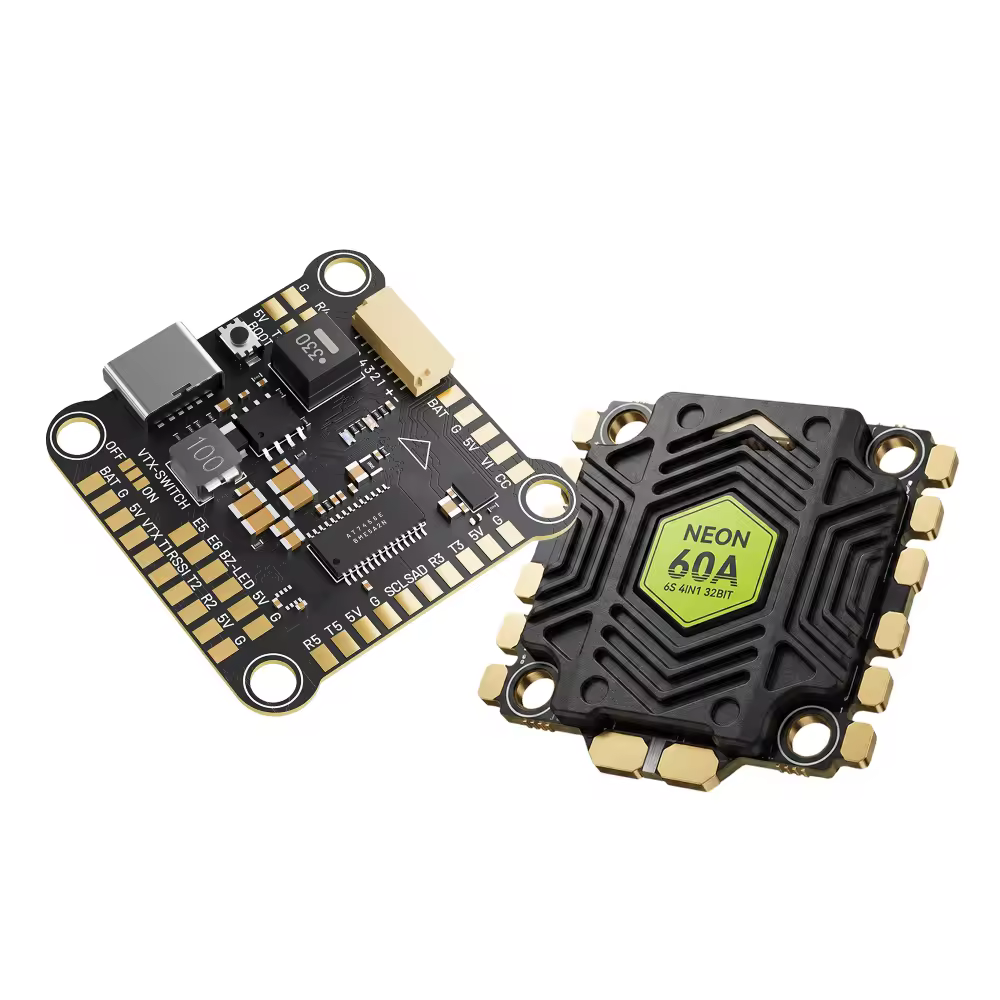

MEPS NEONCORE 60A + SZ F7 Analog FPV Stack - 30.5x30.5mm, 3-6S

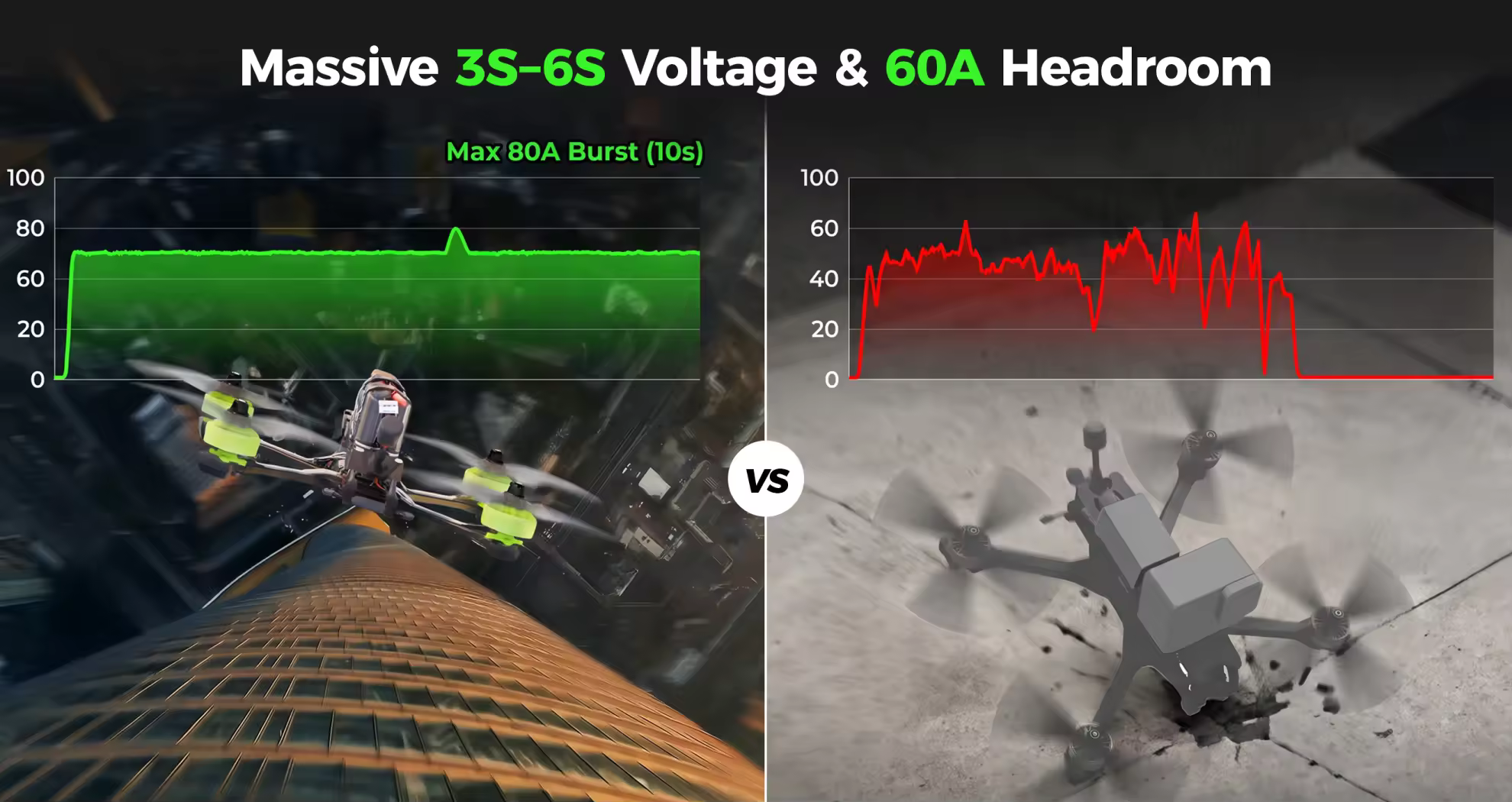

Massive 3S–6S Voltage & 60A Headroom

When learning freestyle moves or recovering from low dives, undersized 45A/50A ESCs overheat and desync. The MEPS NEONCORE 60A ESC is built with heavy-duty electrical headroom:

●60A Continuous / 80A Burst (10s): Powers high-KV 2207 and 2306 motors effortlessly, eliminating throttle lag and power sagging.

●3S to 6S LiPo Capability: 3S to 6S LiPo Capability: Supports 3S to 6S LiPo batteries, giving beginners the flexibility to start with a smoother 4S setup or move to a higher-performance 6S 5-inch build as their skills progress.

●Low-ESR Filtering: Includes a 35V 1000µF low-ESR capacitor to smooth ripple voltage and keep your FPV video feed clean.

Designed to Manage Heat Under Load

Excessive heat leads to thermal throttling and inaccurate sensor data. This esc fpv board features a custom-machined CNC aluminum alloy heatsink paired with high-efficiency thermal interface pads:

●Active Heat Dissipation: Rapidly transfers heat away from the critical MOSFETs, keeping operating temperatures significantly lower during back-to-back battery rips.

●Precise Telemetry Accuracy: By keeping internal components well below thermal thresholds, the onboard current and voltage sensors maintain rock-solid accuracy. You get reliable, real-time mAh consumption and voltage data on your FPV OSD without temperature-induced drifting.

Give the heatsink room to breathe, and leave enough clearance between the ESC and flight controller when assembling the stack.

F7 Control for a Build You Can Grow Into

The MEPS F7 Analog Flight Controller uses an STM32F722 processor and includes analog OSD, a UART-controlled VTX switch, and 16MB Blackbox logging.

For a new pilot, these features are not about making the drone fly faster. They are about making the build easier to understand as you learn Betaflight.

Analog OSD can display important flight information in compatible analog goggles. Blackbox logging gives you a useful tool for diagnosing vibration, tuning issues, or unusual flight behavior after you gain more experience.

Extra Protection for Real-World Practice

Learning new tricks comes with rough landings. From tumbles across dirt to unexpected contact with damp grass, outdoor practice puts your electronics through more than clean flights.

The MEPS NEONCORE combines a CNC aluminum housing with factory-applied conformal coating to give the ESC two layers of protection:

●Added impact protection. The aluminum housing helps shield vulnerable board components from debris and incidental contact during rough landings.

●Added moisture resistance. The protective coating helps reduce exposure to moisture from dew, damp grass, and light splashes.

It’s a practical combination for pilots putting in regular stick time and learning their next move.

The ESC is not crash-proof or waterproof. After a wet or muddy landing, disconnect the battery, then clean, dry, and inspect the quad before powering it again.

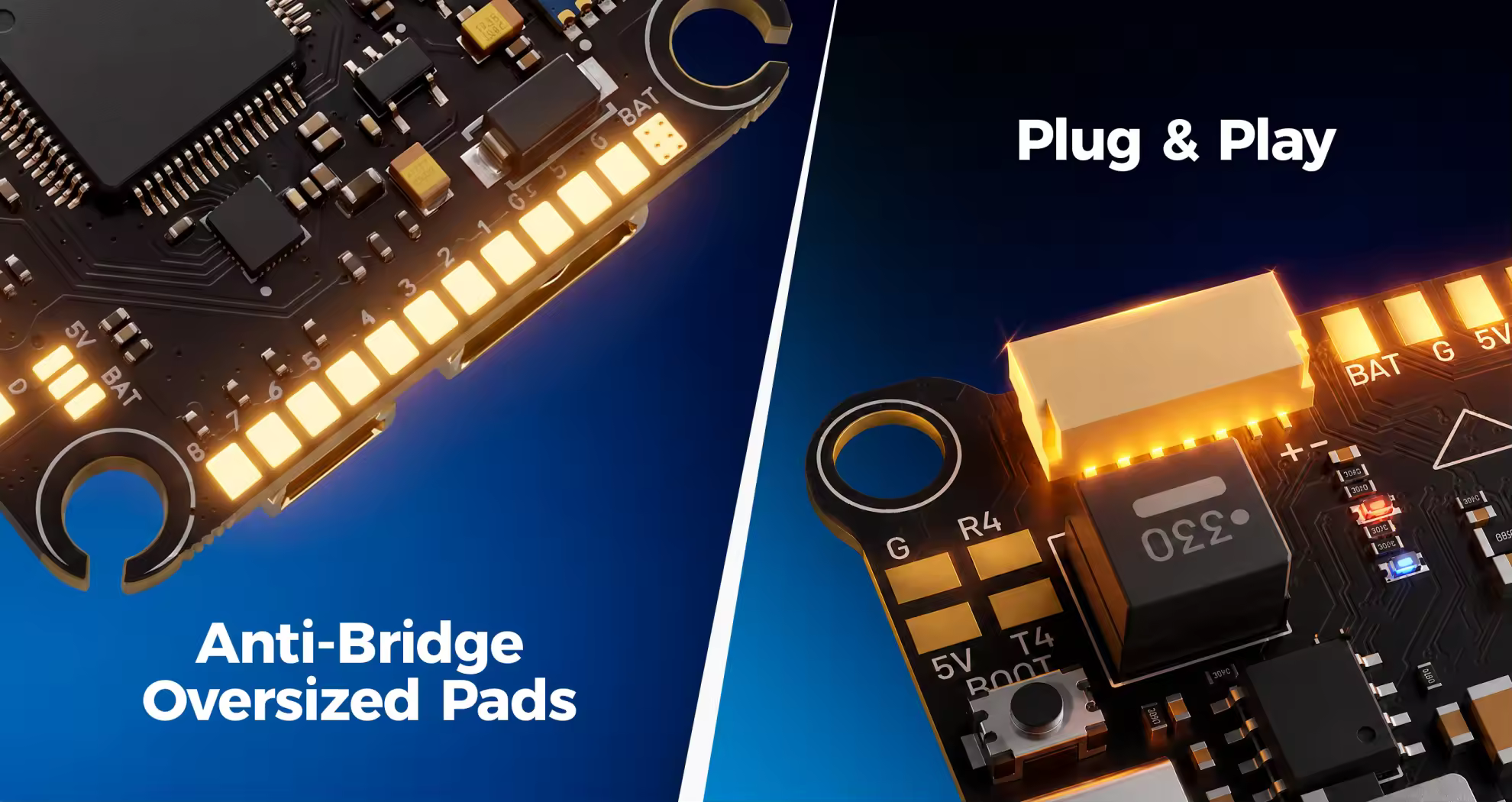

Direct FC Plug & Oversized Beginner-Friendly Solder Pads

Whether you are a beginner looking for a hassle-free setup or a seasoned pilot who demands a custom wired layout, this stack adapts to your building style.

Solder-Free Plug & Play: Along with direct receiver plug support, it enables a solder-free setup for faster assembly and cleaner wiring.

Anti-Bridge Traditional Pads: Prefer traditional welding? We've got you covered. The reserved motor and power pads feature oversized spacing and physical isolation, making soldering effortless and completely eliminating the risk of accidental solder bridges.

One Stack, One Clear Build Path

The value of this stack is not simply that it includes an ESC and a flight controller. It combines the parts that matter most in a first 5-inch analog build:

● A 60A 4-in-1 ESC with room for 4S and 6S setups

● An F7 analog flight controller with OSD and Blackbox logging

● A shared 30.5 x 30.5 mm full-size stack format

● A layout that is easier to wire, inspect, and repair

Together, they give a beginner a cleaner and more understandable starting point than mixing unrelated parts with different layouts, unclear wiring, or limited upgrade potential.

NEONCORE 60A ESC Wiring Diagram

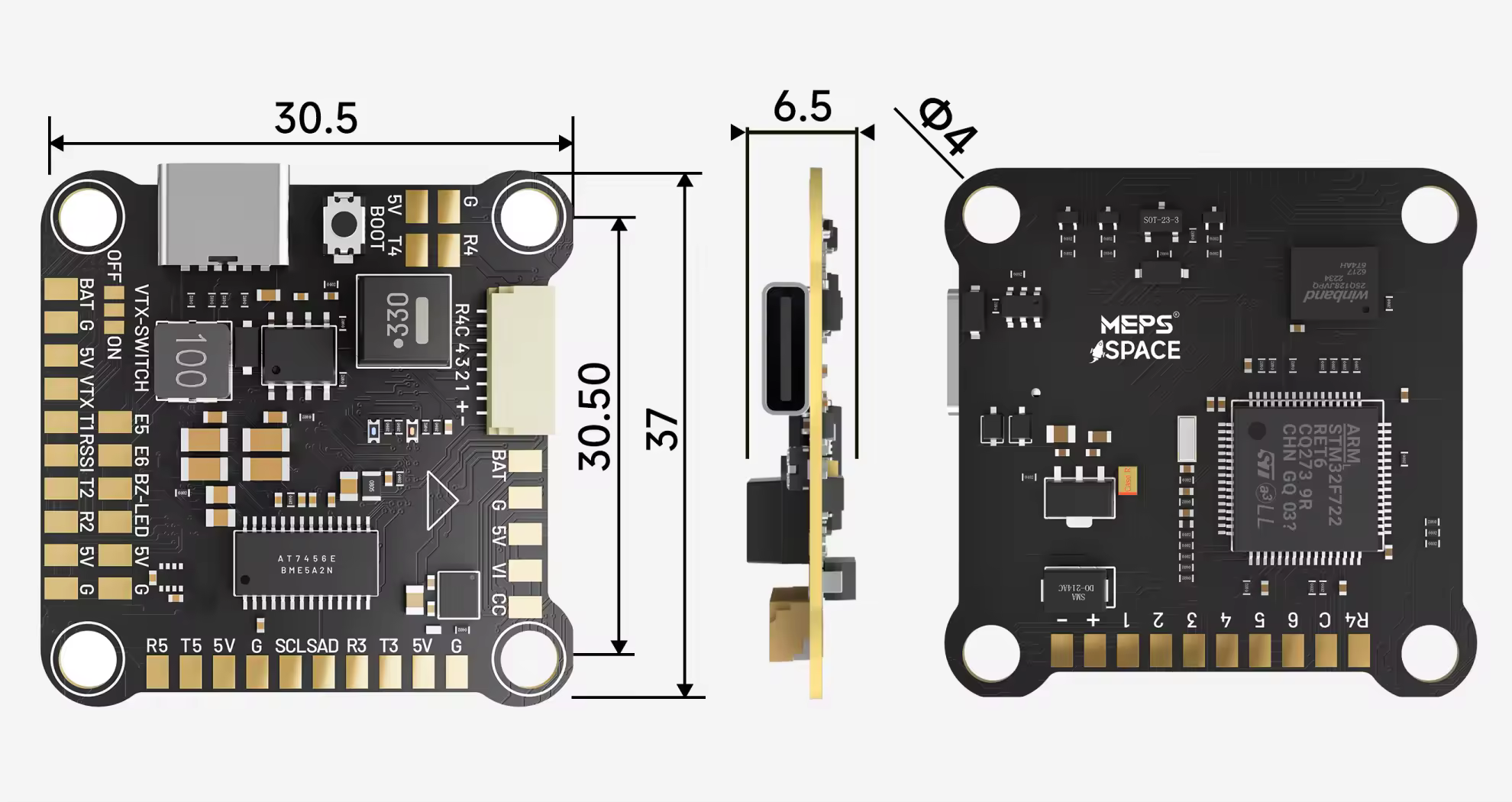

MEPS SZ F7 Analog FC Wiring Diagram

Betaflight Setup & Tuning Reference

Copy and paste these verified settings into your Betaflight Configurator for an optimal out-of-the-box flight feel:

# ESC Protocol Configuration

ESC/Motor Protocol: DSHOT600

Bidirectional DShot: Enabled (for RPM Filtering)

Motor Poles: 14 (Standard for 22xx/23xx 5-inch motors)

# Power & Battery Current Meter Settings

Battery Current Scale: 180

Battery Current Offset: 0

Current Sensor Source: Onboard ESC Sensor

Specifications

NEONCORE 60A ESC

MEPS SZ F7 Analog FC

Size Chart

NEONCORE 60A ESC

MEPS SZ F7 Analog FC

Recommendation

Recommendation Parts

● MEPS NEON 2306 V2 High-Efficiency Brushless Motor for 5'' Freestyle FPV Drone

● T-HOBBY Velox F7 SE Flight Controller - 30.5x30.5 F7 FC for FPV Drones

● RadioMaster TX15 Max Radio Controller – STM32 H7 Chip,Dual-Band ELRS (2.4G/900M)

● iFlight Skyviz Analog FPV Goggles with Dual OLED & Built-in Receiver

● MEPS SZ4942 3-Blade Propeller

● Boslipo P7 Version 1300mAh 150C 4/6/8S FPV Battery

Package

1 x MEPS NEONCORE 60A ESC

1 x MEPS SZ F7 Analog FC
