Buying Guide: HDZero AIO15 15A Digital FPV AIO
When building a compact digital FPV drone, choosing the right AIO flight controller can make a big difference in weight, installation, and overall flight performance.

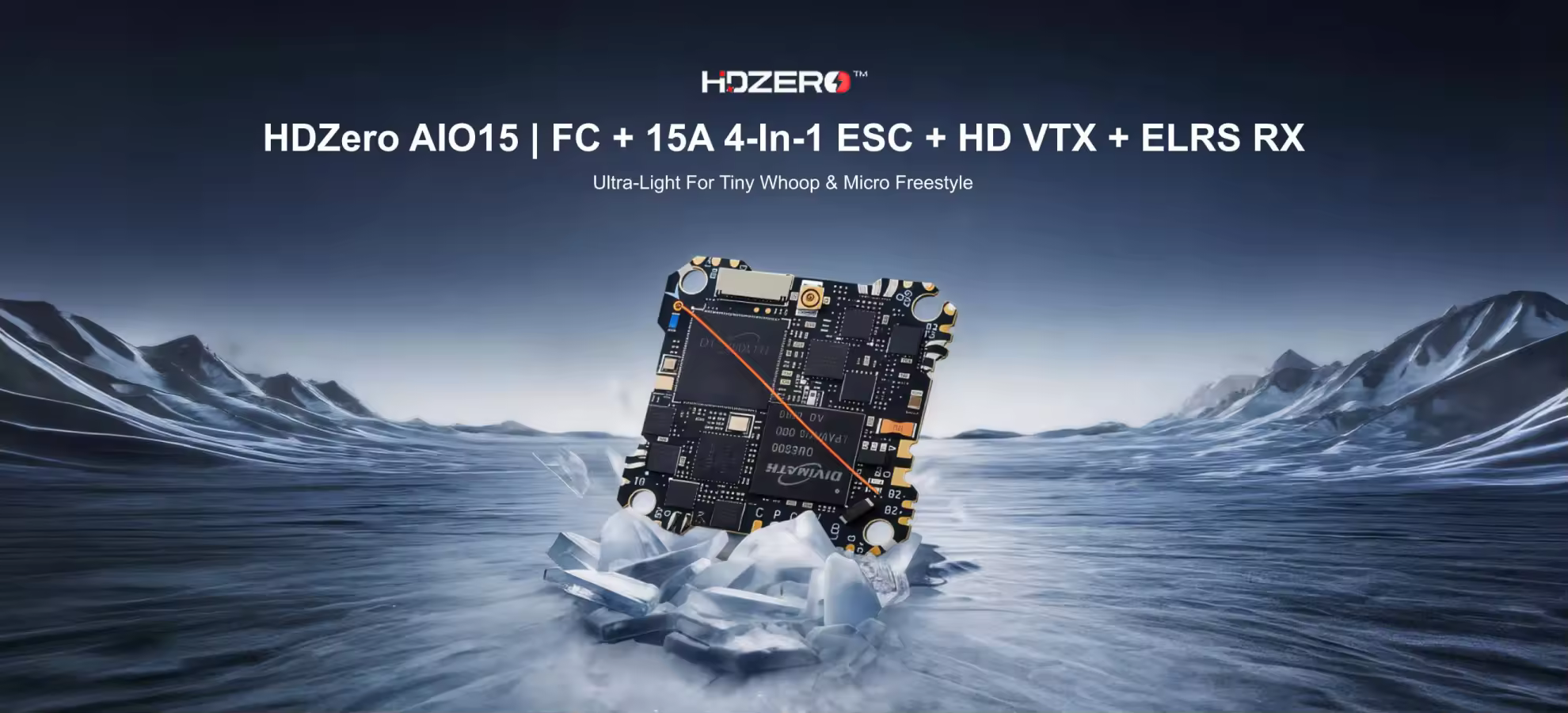

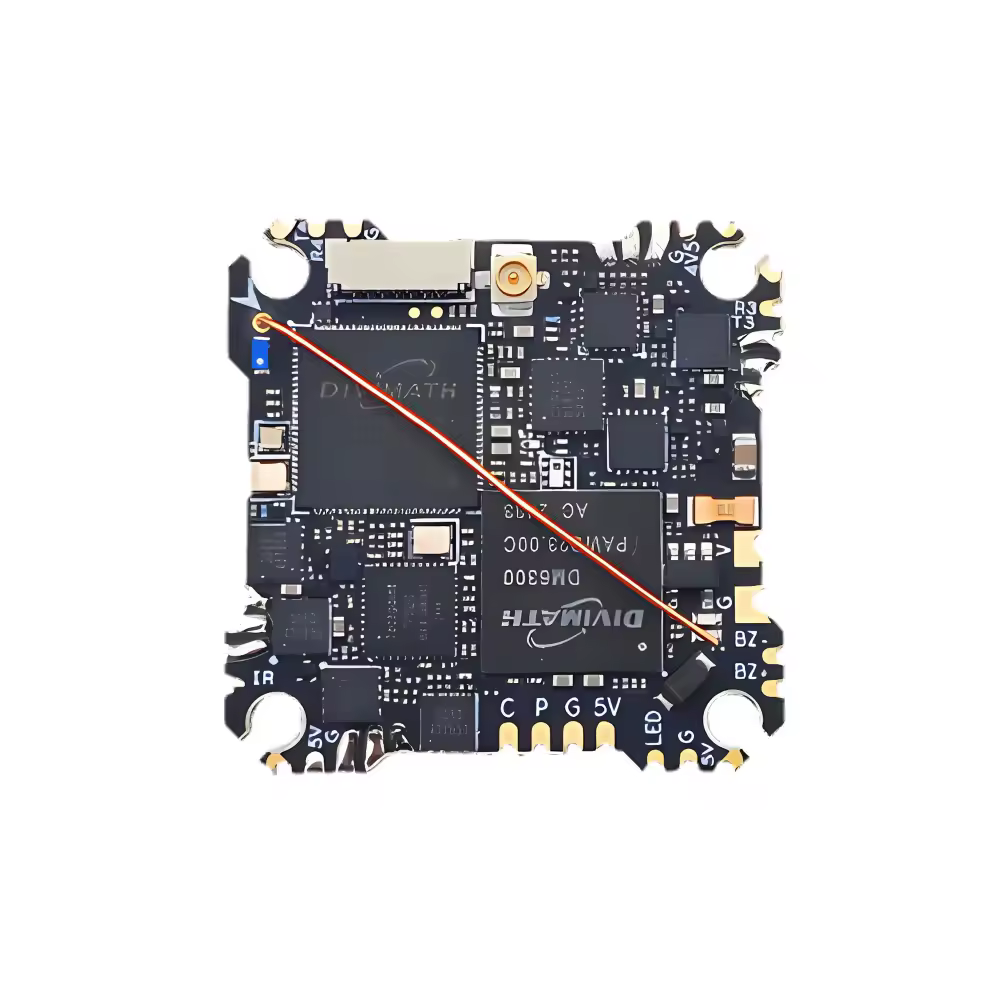

The HDZero AIO15 Digital FPV AIO Flight Controller combines the flight controller, 15A 4‑in‑1 ESC, HDZero digital VTX, and ExpressLRS receiver into one compact board. Compared with traditional builds that require separate components, the AIO15 simplifies installation and saves valuable space for small FPV drones.
Designed for 2S–3S micro FPV builds, it is a strong choice for pilots building HDZero Tiny Whoops, 2–2.5 inch micro freestyle drones, and lightweight Toothpick FPV drones.
Why Choose the HDZero AIO15?
The main advantage of the HDZero AIO15 is its all‑in‑one digital FPV design.
For small drones, installing a separate flight controller, ESC, receiver, and HDZero VTX can quickly increase weight and make wiring more difficult. The AIO15 combines these components into one board, helping builders create cleaner and more compact FPV setups.
Compared with lightweight 1S AIO boards, the HDZero AIO15 provides:
● Higher 15A ESC capability for more demanding micro builds
● 2S–3S battery support for wider build options
● Integrated HDZero digital video system
● Built‑in ELRS receiver for simplified installation
It is ideal for pilots who want digital FPV performance without adding multiple electronics modules.
Application & Build Recommendation
The HDZero AIO15 works best in lightweight micro FPV platforms where space and weight are limited.
| Build Type | Recommended Setup | Best For |
|---|
| HDZero Freestyle Whoop | 80mm frame + 1002/1103 motors + 2S LiPo | Indoor flying, backyard freestyle |
| 2–2.5" Micro Freestyle | 1103/1104 motors + 2S–3S LiPo | Outdoor micro freestyle |
| Lightweight Toothpick | 1202.5/1204 motors + 3S LiPo | Fast lightweight builds |
Recommended Component Matching
For 2–2.5 inch Micro Freestyle:
● HDZero AIO15
● 1103 / 1104 Micro Motors
● Lightweight 2–2.5 inch propellers
● 2S–3S LiPo battery
This setup provides a good balance between digital video, responsiveness, and flight time.
For lightweight Whoop builds:
● HDZero AIO15
● 1002–1103 Micro Motors
● 2S battery
● Lightweight frame
This keeps the drone compact while adding the advantage of HDZero digital video.
For 3 inch Toothpick builds:
The AIO15 can support lightweight 3 inch builds, but the total aircraft weight should be controlled. A heavier frame or oversized motor may reduce the benefits of an AIO design.
HDZero AIO15 vs Other 15A Micro AIO Controllers
Different 15A AIO flight controllers are designed for different applications. The main difference is not only ESC current, but also the integrated features and target build style.
| Feature | HDZero AIO15 | DarwinFPV F411 15A AIO | T‑HOBBY F411 1S 6A Bluejay AIO |
|---|
| Target Build | Digital Micro FPV | Tiny Whoop / Toothpick | Ultra‑light 1S Whoop |
| Battery Support | 2S–3S | 1S–3S | 1S |
| ESC Rating | 15A | 15A | 6A |
| Digital VTX | Integrated HDZero | No | No |
| ELRS Receiver | Integrated | Integrated / Optional | Integrated |
| Best Advantage | Complete HDZero Digital System | Flexible Micro AIO | Lightweight 1S Platform |
Which One Should You Choose?
Choose HDZero AIO15 if:
● You want an integrated HDZero digital FPV system
● Your build uses 2S–3S batteries
● You are building Whoop, Toothpick, or Micro Freestyle drones
● You want a cleaner installation with fewer components
Choose another micro AIO controller if:
● You mainly build 1S lightweight drones
● You already have a separate VTX system
● Minimum weight is more important than digital integration
Final Verdict
The HDZero AIO15 Digital FPV AIO Flight Controller is designed for pilots who want a compact and complete digital FPV solution for small drones.
By combining FC, 15A ESC, HDZero VTX, and ELRS receiver into one board, it reduces build complexity while providing enough power capability for modern 2S–3S micro FPV platforms.
For HDZero Freestyle Whoops, 2–2.5 inch Micro Freestyle drones, and lightweight Toothpick builds, the HDZero AIO15 offers a practical balance of performance, integration, and installation convenience.
