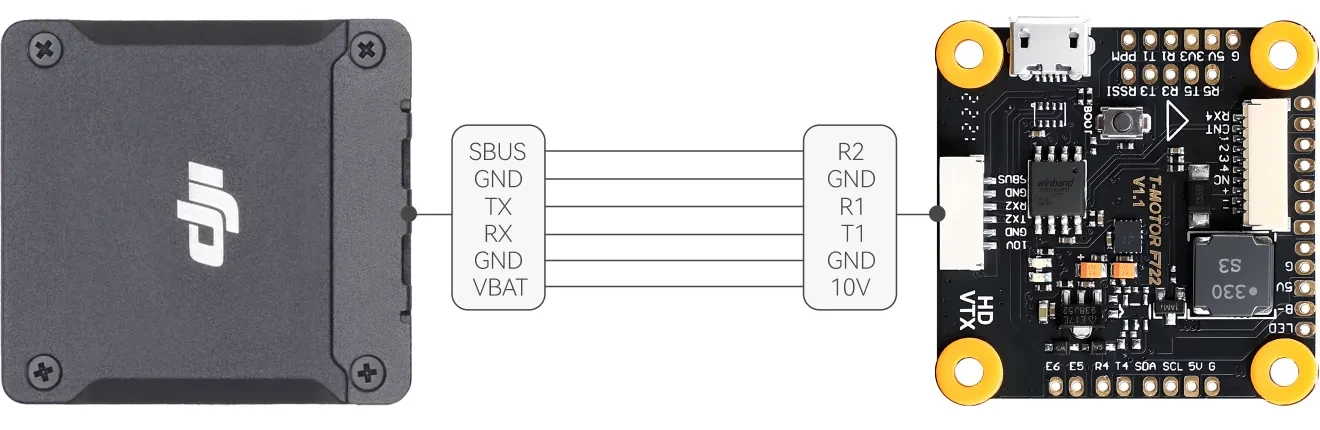

F7 HD Flight Controller for DJI FPV Systems

The T-HOBBY F7 HD Flight Controller is designed specifically for DJI FPV VTX systems, delivering stable HD video transmission and precise flight control for FPV pilots who demand reliability.

Clean Layout for Reliable HD Performance

WA thoughtfully engineered power and signal layout minimizes electrical interference between components, improving overall system stability and reducing HD video noise during high-load flights.

Flexible 2–6S Power with Quick VTX Control

Built to support a wide 2–6S LiPo voltage range, this F7 HD flight controller adapts effortlessly to both racing and freestyle 5-inch FPV drone builds, giving pilots the freedom to tune for power or efficiency. The integrated VTX switch function allows fast on-field adjustments without complex rewiring, reducing downtime and keeping your setup clean, responsive, and ready to fly.

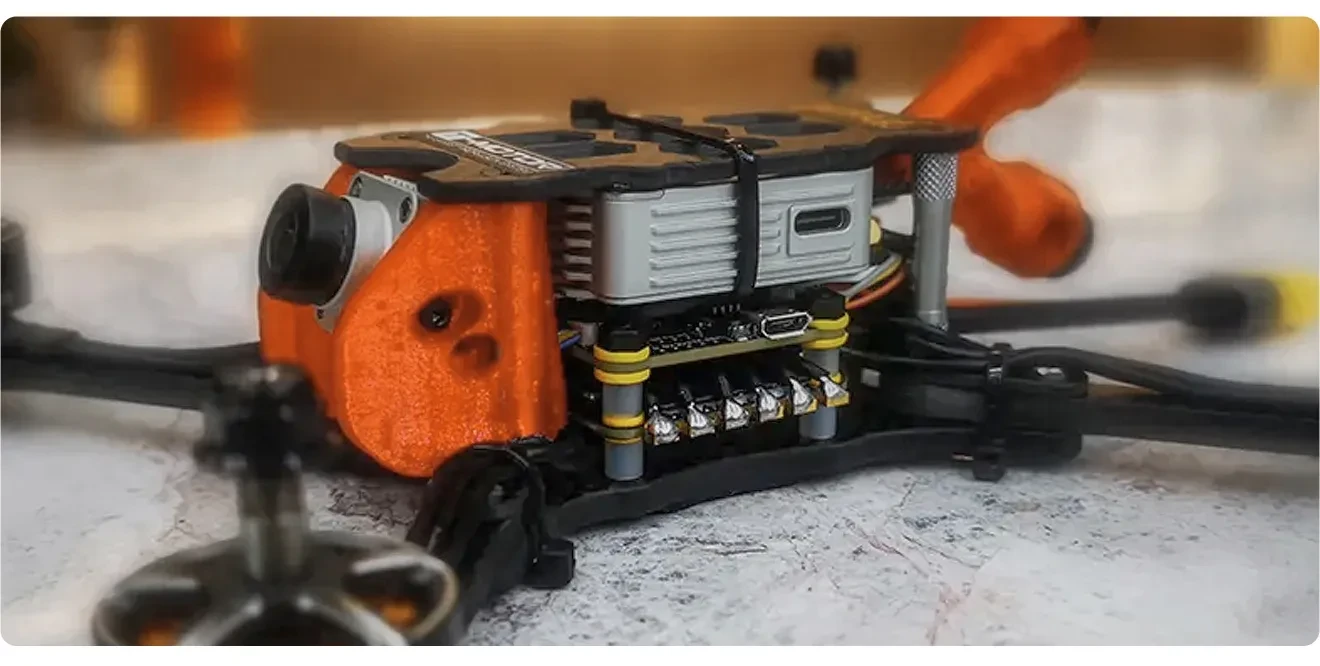

Standard 30.5×30.5 Mounting for Full-Size FPV Builds

With a 30.5×30.5 mounting pattern, this flight controller fits most 5-inch FPV frames, making it ideal for full-size digital FPV drone builds.

T-Hobby F7 HD Buying Guide: A Cleaner Digital FPV Build

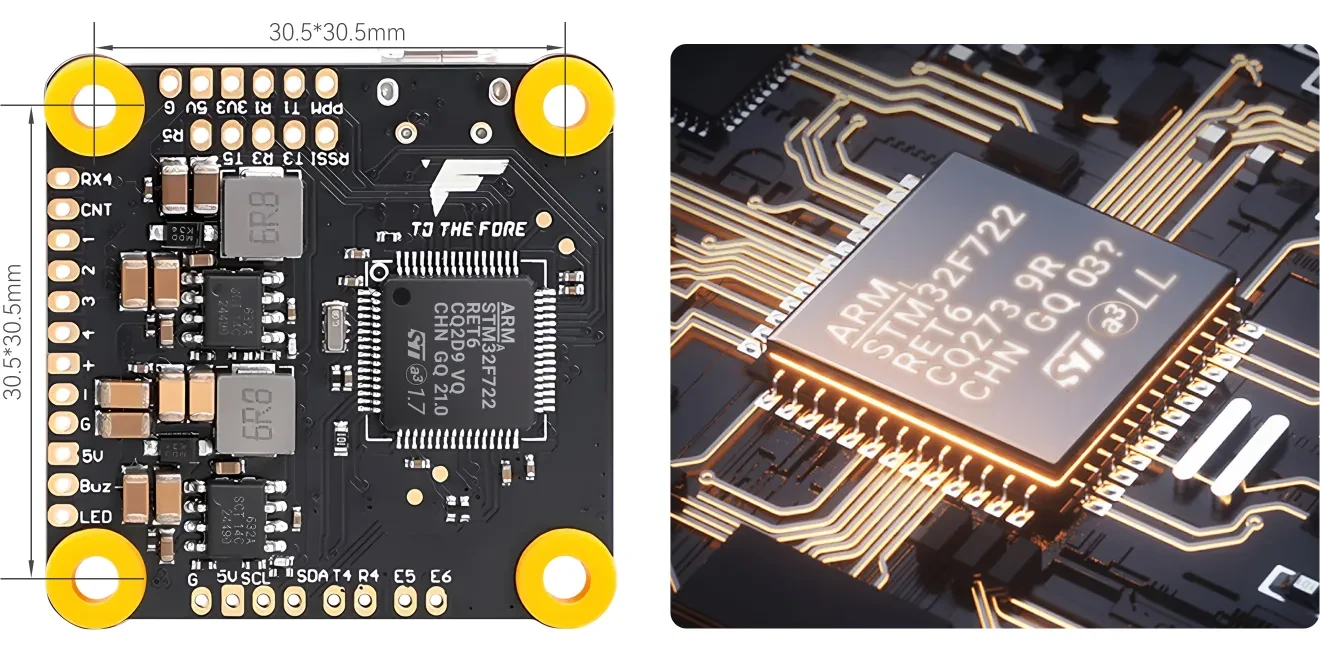

The T-Hobby F7 HD, also known as the T-Motor F7 HD, is a 30.5×30.5mm flight controller designed for pilots building a clean digital FPV quad. Its dedicated digital VTX connector, matching ESC port and onboard 10V power supply reduce wiring work while the STM32F722 processor provides enough performance for modern Betaflight features.

MEPSKING Expert Build and Flight Assessment

In the build test, the F7 HD was paired with a T-Motor 4-in-1 ESC and digital video system. Almost every flight-controller connection used a labelled cable; the main soldering work was limited to the ESC’s motor wires and XT60 lead. The complete quad was assembled in approximately 90 minutes, supporting our MEPSKING assessment that installation convenience is the strongest reason to buy this board.

The hardware operated reliably, but the heavy test quad felt soft and showed pitch wobble on its original default tune. After changing the flight-control tune, it became substantially more locked in. The practical lesson is important: easy wiring does not eliminate the need to check filters, PID settings, frame resonance and total takeoff weight.

What the F7 HD Offers

The BMI270 gyro has a practical 3.2kHz loop limit, but it is known for dependable noise handling. For most freestyle and racing pilots, clean gyro data and a stable tune matter more than advertising the highest possible loop frequency. The board also provides 16MB Blackbox storage, five UARTs, six motor outputs, I2C access and 5V/2A plus 10V/2A BEC outputs.

T-Motor F7 HD vs VELOX Cine F7

Choose the F7 HD when you are building a conventional digital FPV quad and value a proven BMI270 platform with straightforward wiring. The VELOX Cine F7 is the more flexible option for eight-motor aircraft, analog video, altitude sensing or pilots who specifically want USB-C.

Installation Notes Before Powering Up

Confirm the pinout of every ESC and digital VTX cable instead of assuming that matching plugs have matching wiring. Product revisions may use different connector layouts. Select the TMOTORF7 Betaflight target, verify board orientation and motor order, then assign the correct UART for MSP and receiver communication.

The 5V rail is not powered from USB on this version, so some connected peripherals require main battery power during configuration. This can also power the digital VTX; use the onboard VTX switch where applicable, provide airflow and avoid leaving the aircraft powered on the bench for extended periods. Perform the first LiPo power-up through a smoke stopper.

Final Purchase Recommendation

Buy the T-Hobby F7 HD flight controller if you want a reliable 30×30 F7 board for a 5-inch digital racing or freestyle quad and prefer connector-based installation over soldering every peripheral. Choose the MEPS F7 Analog Flight Controller instead if you need an onboard analog OSD chip.

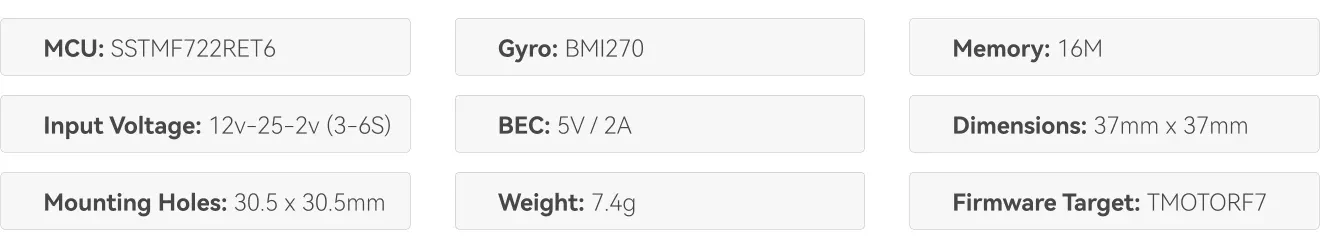

Specifications

Recommended Pairings

● MEPS SZ5145 3-Blade FPV Drone Propeller

● T-Hobby F60PRO V 2207.5 Motor – 1750KV/1950KV/2020KV for 5-Inch FPV

● T-Hobby F80 Pro 2408 Motor – High-Torque Option for Heavy 5-Inch Builds

● T-Hobby F55A ProII 55A 3–6S AM32 4-in-1 ESC – EU Stock

● Tattu R-Line V6 1480mAh 160C 6S Battery with XT60

● TBS Smoke Stopper XT30/XT60 – First Power-Up Short-Circuit Protection

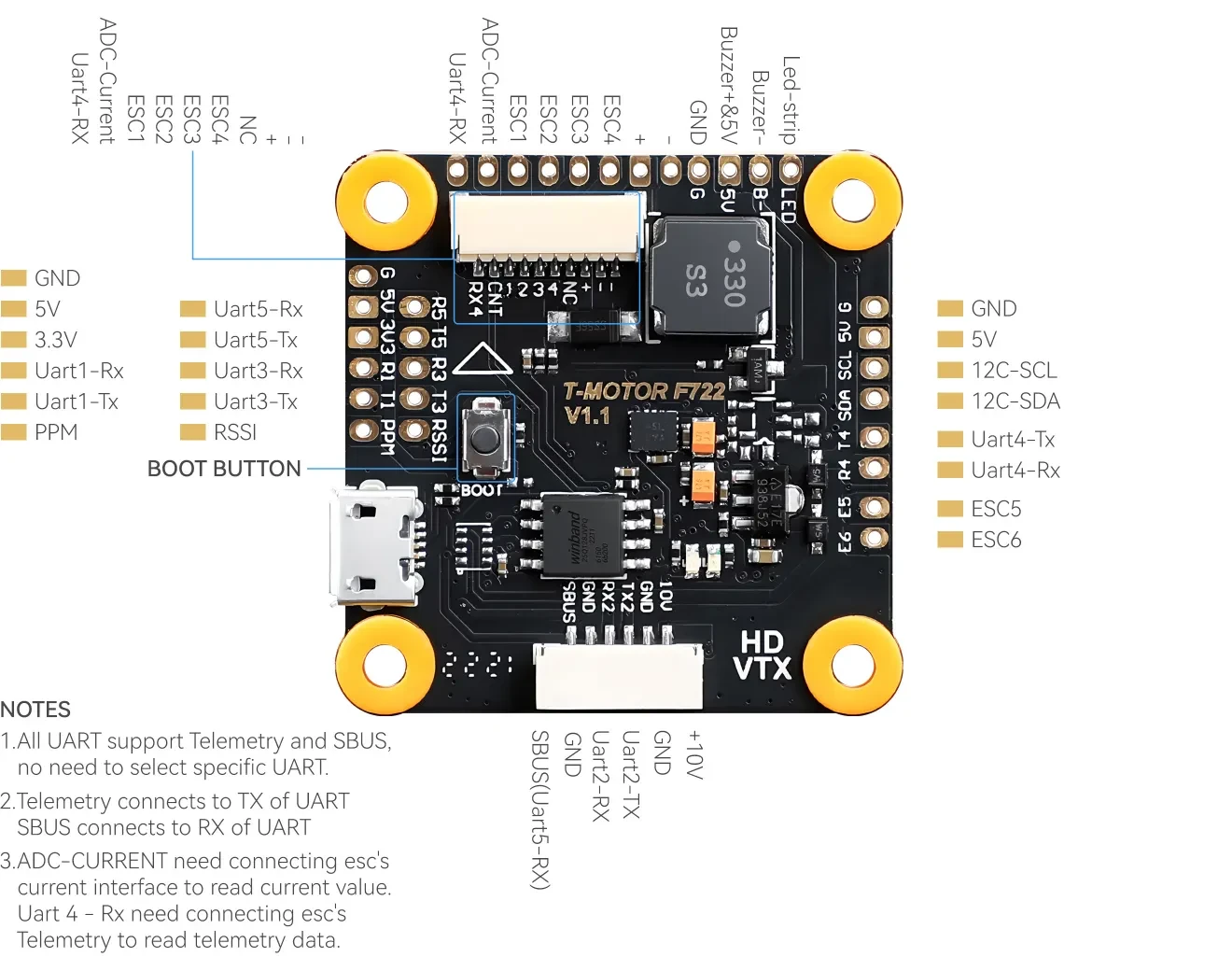

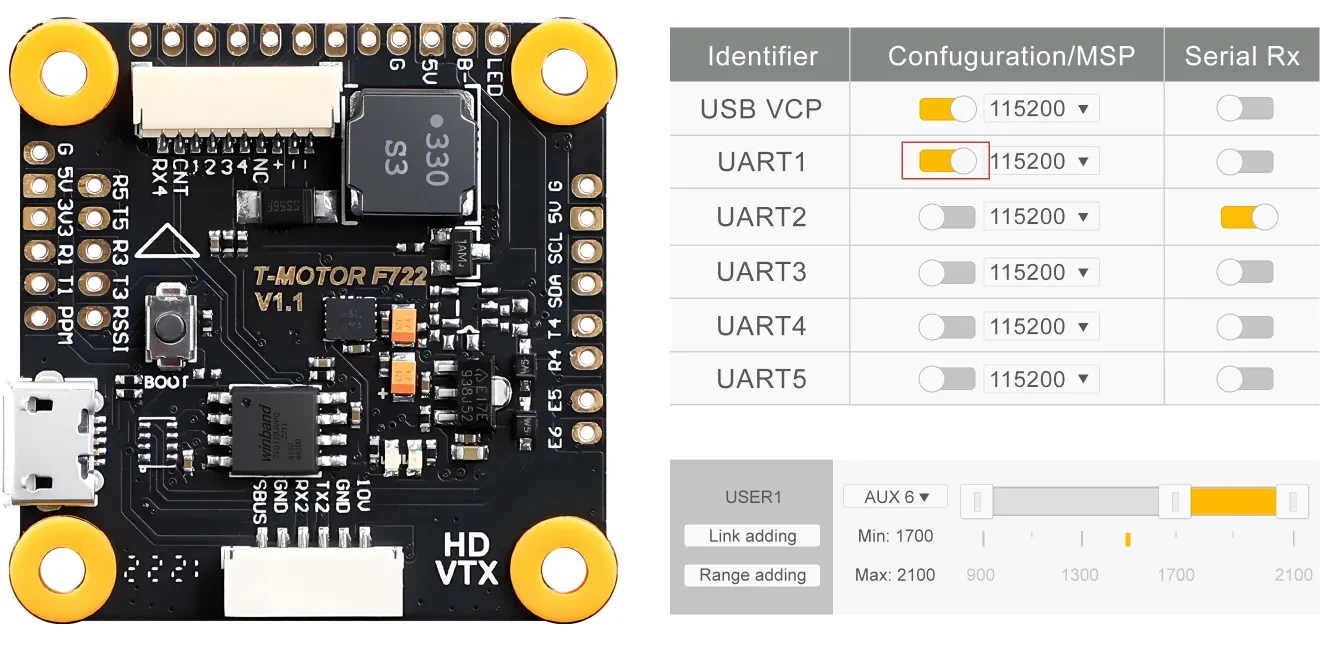

Interface Definition Figure

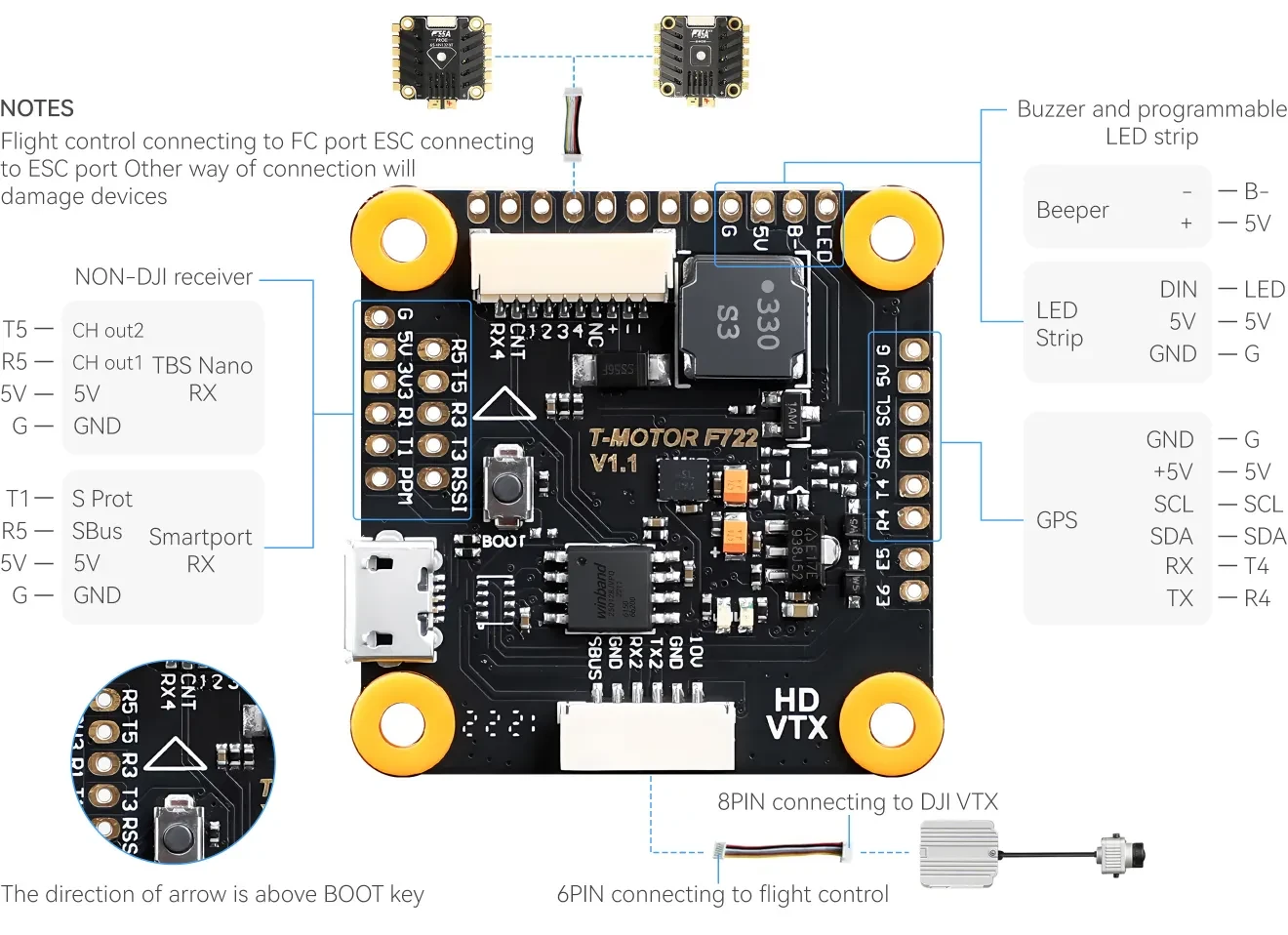

Connection Diagram

Recommendations

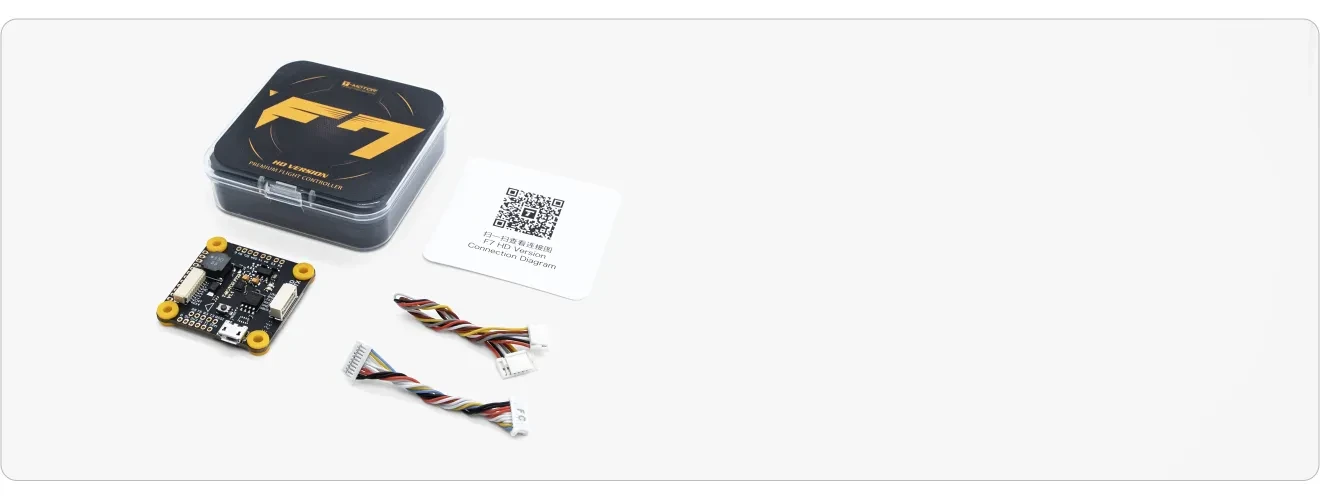

Package Included

1* T-HOBBY F7 HD FPV Flight Controller
