Q: What is the Axisflying Argus PRO Plug and Play stack?

A: The Axisflying Argus PRO stack is a plug-and-play flight controller & 4-in-1 ESC combo featuring an F7 FC + 55A/65A ESC designed for 5″–6″ high-performance FPV drones.

Q: Is this stack compatible with 5″ freestyle and racing drones?

A: Yes — the plug-and-play design and high current rating make it ideal for 5″ freestyle, racing and 6S high-power builds.

Q: What FC processor does the Argus PRO use?

A: It uses a powerful STM32F722 (F7) flight controller chip, ensuring smooth flight control and advanced Betaflight features.

Q: What ESC current ratings are available?

A: The Argus PRO stack comes in 55A or 65A ESC versions, giving flexibility based on motor/prop setups and flying style.

Q: Is Axisflying Argus PRO plug-and-play?

A: Yes — it comes pre-soldered and ready to install, significantly reducing build time and wiring complexity.

Q: Does this stack support BLHeli_32 ESC firmware?

A: Yes — the ESC runs BLHeli_32, offering smooth throttle response and features like bidirectional DShot and telemetry.

Q: Is this stack suitable for 6S LiPo batteries?

A: Yes — with high-current ESC ratings and F7 processing, it handles 4S–6S LiPo setups well.

Q: Does the Argus PRO stack support advanced Betaflight features?

A: Yes — F7 FC provides features like blackbox logging, RPM filter support, 32 kHz gyro + high PWM for precision tuning.

Q: What frame size is recommended?

A: Best for 30.5×30.5 mm stack spacing frames, typically 5″–6″ FPV builds.

Q: Does this stack reduce wiring errors?

A: Yes — the plug-and-play layout greatly reduces wiring mistakes and simplifies installation, even for less experienced builders.

Q: Is this stack good for freestyle flying?

A: Yes — smooth throttle, high current headroom, and F7 performance make it ideal for freestyle and trick flying.

Q: Can I use this stack for racing?

A: Yes — with responsive ESCs and F7 FC, it delivers quick throttle response and stability for racing.

Q: What motors pair well with this stack?

A: Pair with 2207, 2306, or similar 5″ motors on 4S–6S LiPo for balanced power and efficiency.

Q: Does this stack support telemetry?

A: Yes — with BLHeli_32 and Betaflight telemetry, you can monitor current, voltage, ESC temp, and motor RPM.

Q: How does this stack perform thermally?

A: High-quality MOSFETs and optimized board layout improve heat dissipation and stability during sustained flights.

Q: What support does MEPSKING provide?

A: MEPSKING offers wiring guidance, setup assistance, tuning tips, and warranty support for manufacturing defects.

New

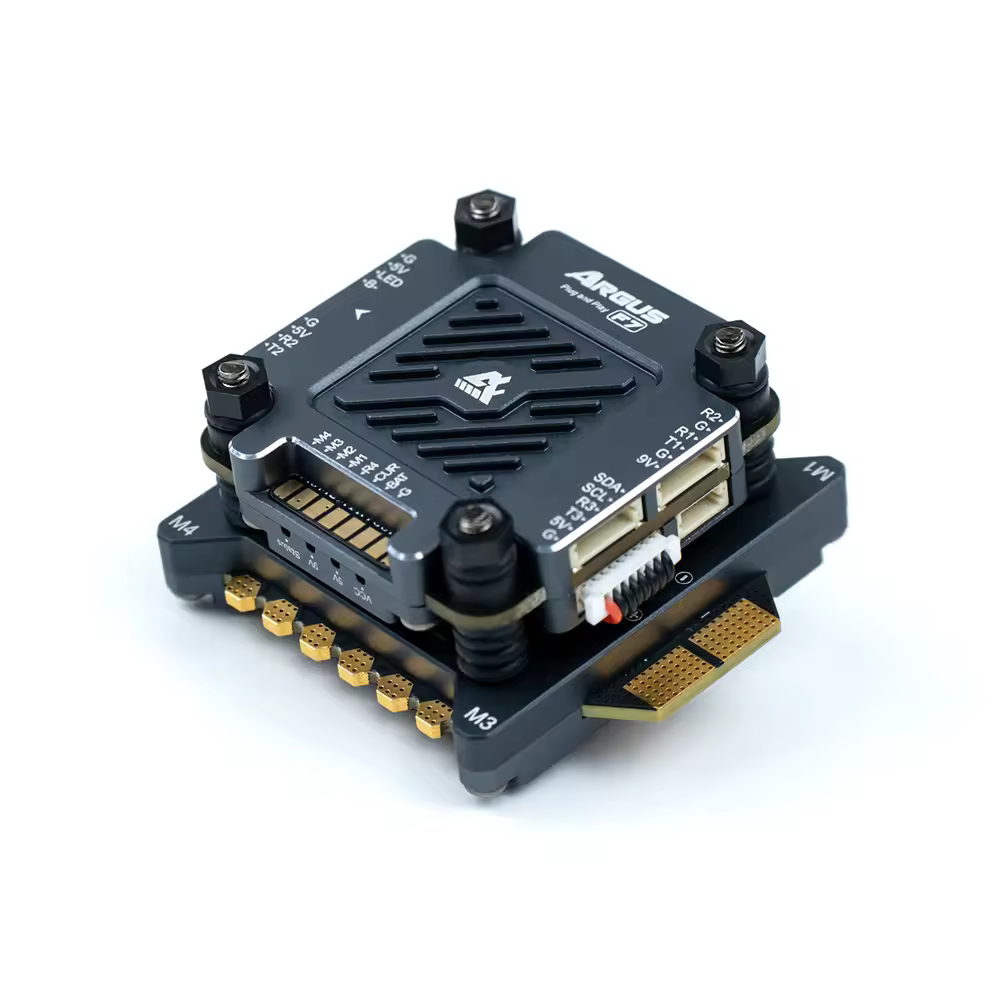

Axisflying Argus PRO Plug and Play Stack F7 & 55A/65A

Axisflying

Flash Sale

08:03:38

$ 135.90 ~~$176.90~~

-23%

4.9 | 113Sold

Options (2)

Quantity

Add-ons

Bundle and save up to $0.33 on gear — upgrade your setup for less.

MEPS NEON 2207 V2 Brushless Motor Powerful Thrust Crash‑Resistant for 5'' Freestyle FPV Drone
1950KV / Fluorescent green
$10.66 Save $0.33

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Premium F7 Flight Controller：STM32F7-series MCU, high-speed processing for responsive flight control and advanced filtering.
High-Current 4-in-1 ESC：55A or 65A continuous, robust power for motors on 4S-6S batteries with smooth throttle response.
Integrated Plug-and-Play Design: Pre-configured wiring, soldering for quick, clean builds and reducing installation errors.
Advanced Flight Sensor Suite: Latest-gen gyro, low-noise data capture for stable, precise aircraft handling.
Comprehensive Connectivity：Multiple UARTs & BEC outputs, easy expansion with VTX, RX, GPS, and other peripherals.

Payment | Every order you place with us is safe & secure

Buying Guide: Which FPV Stack Should You Choose?

The Axisflying Argus PRO Stack is built for pilots who want a powerful 6S-compatible stack without making installation unnecessarily complicated. With an STM32F722 flight controller, ICM42688P gyro, 55A or 65A ESC options, and Plug & Play support for DJI O3/O4, it is particularly well suited to modern 5-inch and 6-inch freestyle or cinematic builds.

MEPSKING Expert Comparison

Specification	Axisflying Argus PRO Stack	T-HOBBY V70A SE 8S Stack	Flywoo GOKU F722 Pro V2 55A Stack
Best For	Freestyle / Cinematic / Easy installation	High-power freestyle / 8S builds / Cinelifter	Freestyle / Racing / DJI O3-O4 builds
Mounting Pattern	30.5×30.5mm	30.5×30.5mm	30.5×30.5mm
Flight Controller MCU	STM32F722	STM32F722	STM32F722
Gyroscope	ICM42688P	ICM42688P	ICM42688P
ESC Current Rating	55A / 65A Continuous	70A Continuous	55A Continuous
ESC Firmware	BLHeli_32	AM32	BLHeli_32
Input Voltage	3S–6S LiPo	4S–8S LiPo	3S–6S LiPo
PWM Frequency	Up to 128KHz	Up to 128KHz	Up to 128KHz
BEC Output	5V / 9V	5V / 10V	5V / 9V
DJI O3/O4 Support	Plug & Play	Compatible	Plug & Play
Blackbox	Yes	128MB	128MB
Current Sensor	Yes	Yes	Yes
GPS Support	Yes	Yes	Yes
Recommended Frame Size	5" / 6"	5" / 6" / 7" / Cinelifter	5" / 6"
Main Advantage	Easy installation + 55A/65A options + DJI Plug & Play	Higher power + 8S support	Proven 6S freestyle platform

Why Choose the Argus PRO?

The biggest advantage of the Argus PRO is not simply its F7 processor or current rating, but the combination of power, compatibility, and installation convenience.

For a typical 5-inch or 6-inch 6S build, the 55A version already provides substantial current headroom for freestyle and cinematic flying. If you are using more aggressive motors, heavier propellers, or a heavier build, the 65A version gives additional ESC current capacity.

The Plug & Play DJI O3/O4 design is another important advantage. Instead of treating the video system as a separate installation problem, the Argus PRO is designed around modern DJI digital FPV setups, making it a convenient choice for pilots building an O3/O4-equipped drone.

How Does It Compare?

Choose the Axisflying Argus PRO if your priority is a straightforward 5-inch or 6-inch 3S-6S build with DJI O3/O4 compatibility and flexible 55A/65A ESC options.

Choose the T-HOBBY V70A SE when you need higher power capability or want to build an 8S, 7-inch, or cinelifter-style aircraft. Its 70A ESC and 4S-8S input range make it the better choice for larger high-power platforms.

Choose the Flywoo GOKU F722 Pro V2 55A if you want a proven 6S freestyle platform with a 55A ESC and DJI O3/O4 support, particularly when maximum installation convenience is less important than a straightforward conventional stack setup.

MEPSKING Purchase Verdict

The Axisflying Argus PRO Stack is a strong all-around choice for pilots building a modern 5-inch or 6-inch FPV drone. Its F7 flight controller, ICM42688P gyro, 3S-6S support, DJI O3/O4 Plug & Play compatibility, and 55A/65A ESC choices make it particularly attractive when you want a powerful setup without unnecessary installation complexity.

Choose 55A for a balanced 5-inch setup. Choose 65A for higher-current builds. Choose T-HOBBY V70A SE for 8S and larger aircraft. Choose Flywoo GOKU F722 Pro V2 for a conventional 6S freestyle solution.

Description

*Forword

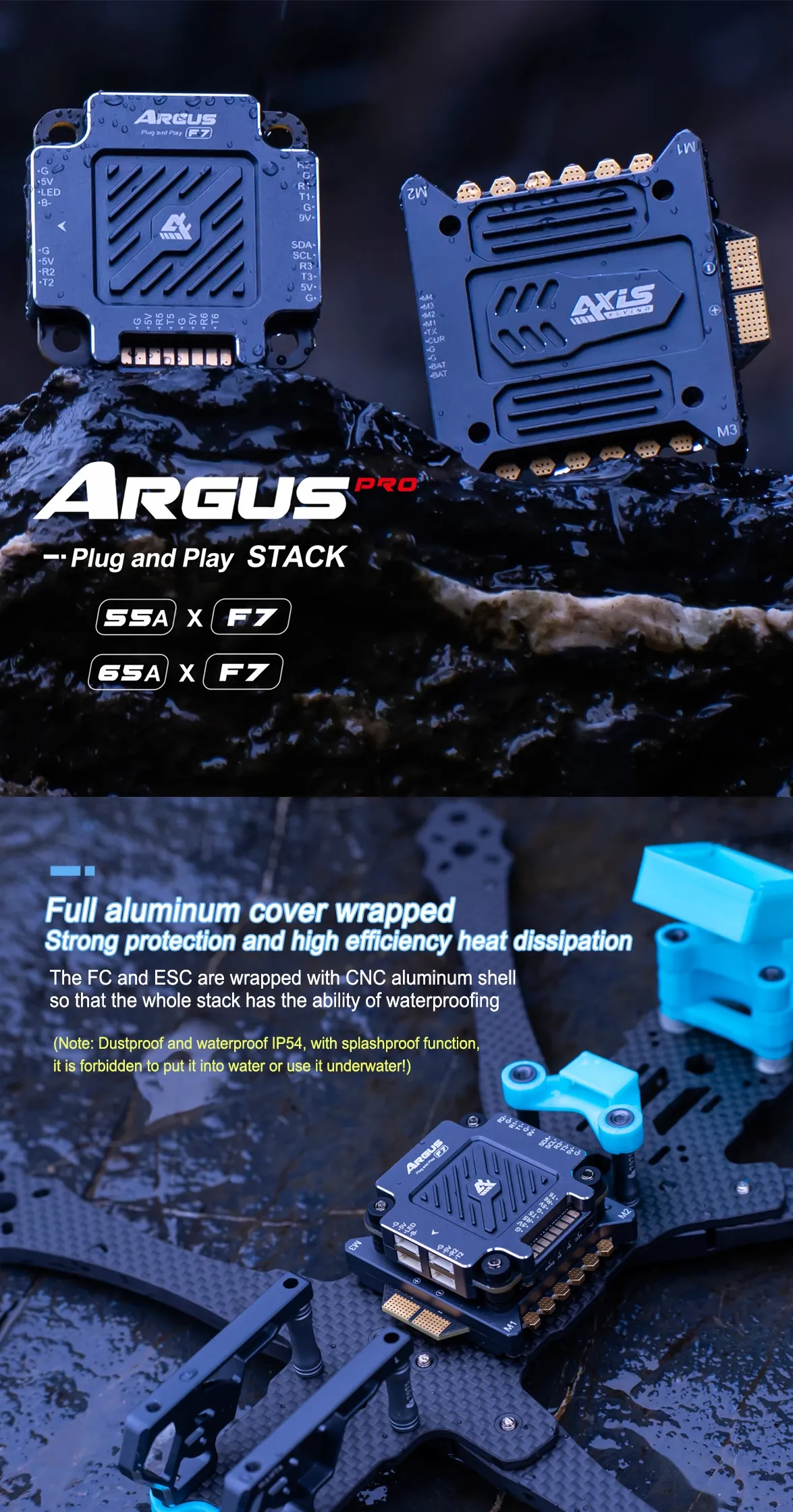

- Plug and Play Argus is axisflying electronic series that include ESC, FC and stack. Argus PRO series adopt full aluminum cover wrapped that can get IP54 to protect PCB. Argus series is PCB electronic only. There are 2 kinds of ESC 55A and 65A. The FC is F722 that can support X8

*Feature

- Dustproof and waterproof IP54, with splashproof function, it is forbidden to put it into water or use it underwater!

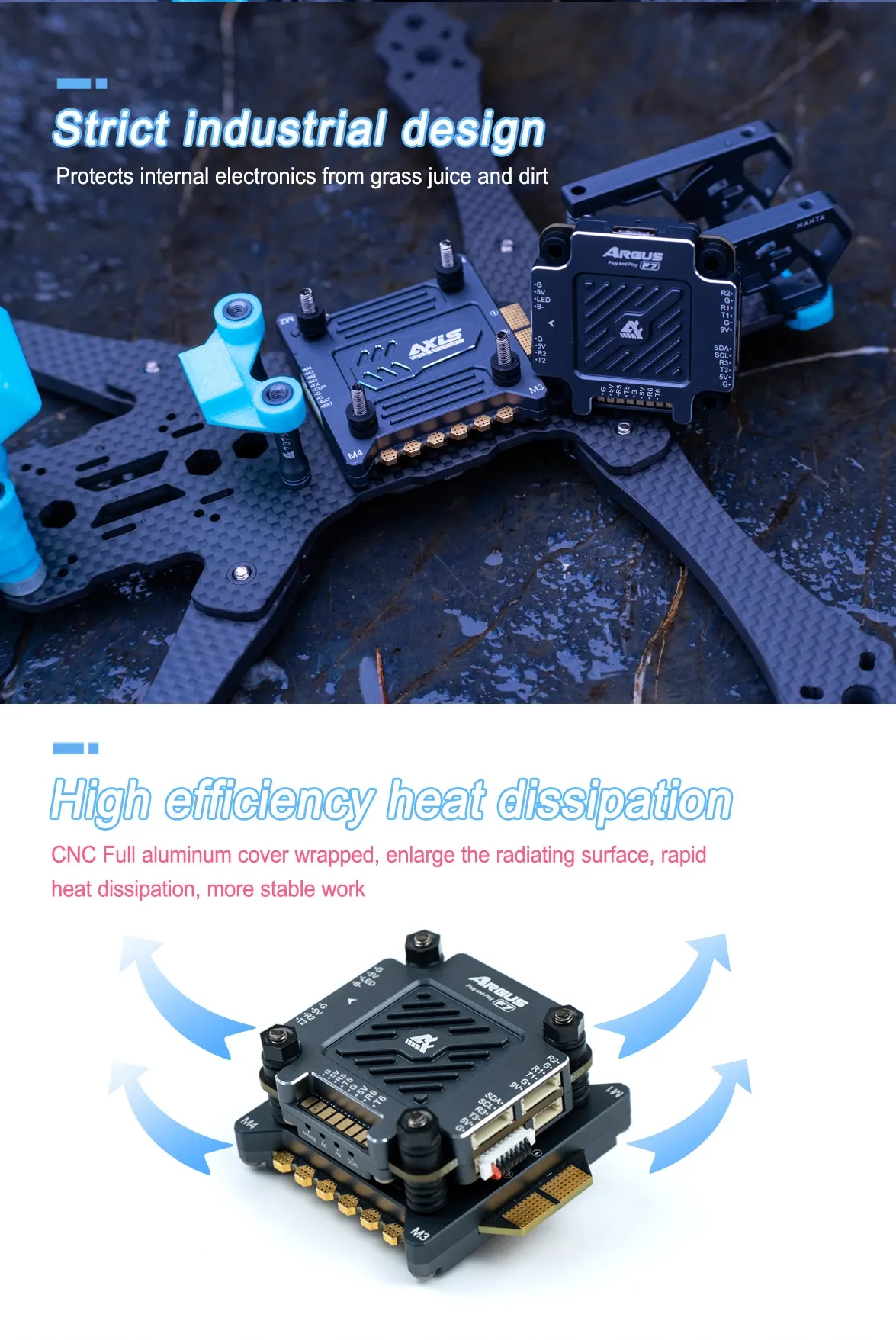

- CNC Full aluminum cover wrapped, enlarge the radiating surface, rapid heat dissipation, more stable work.

- High-quality and large-size MOSFETs are selected, with low internal resistance and low heat generation, plus CNC heat dissipation aluminum cover, Even if the throttle is used for a long time, it is not afraid of overheating, which brings more stable power performance.

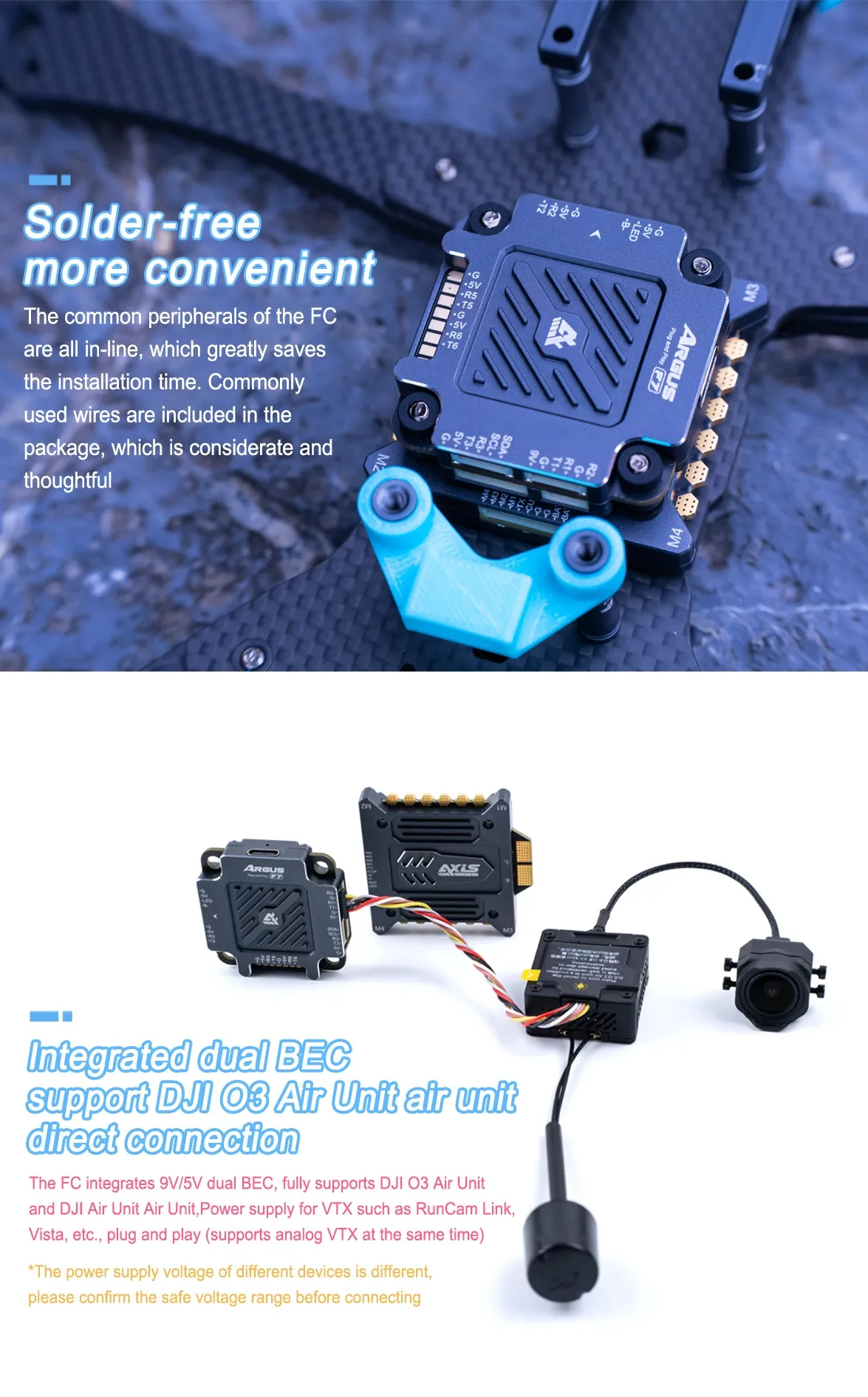

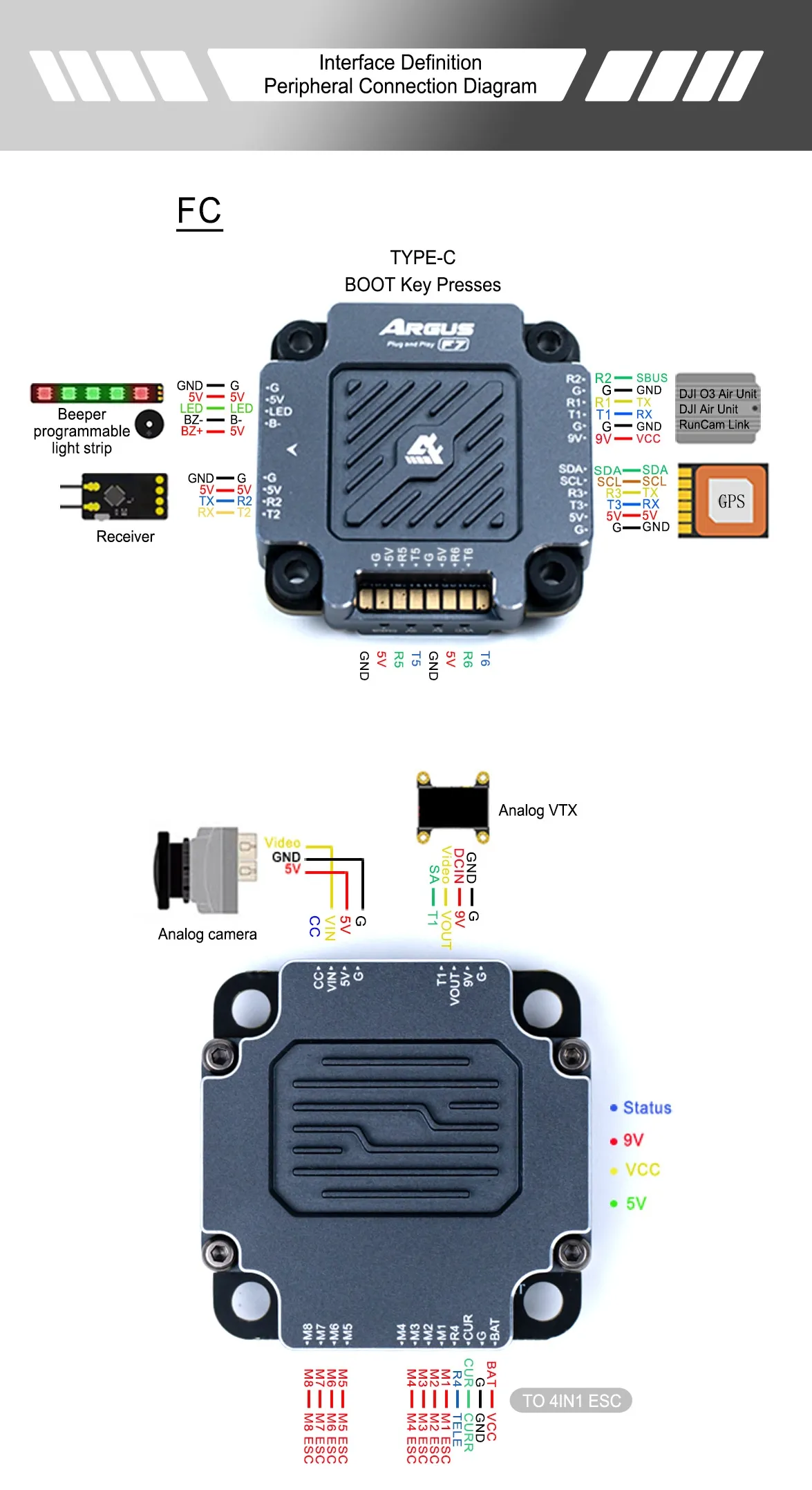

- No welding, more peace of mind. With this FC, HD Air unit, analog camera, GPS and other common peripherals all support direct plug-in.

- Integrated dual BEC, support DJI O3 Air Unit air unit direct connection.

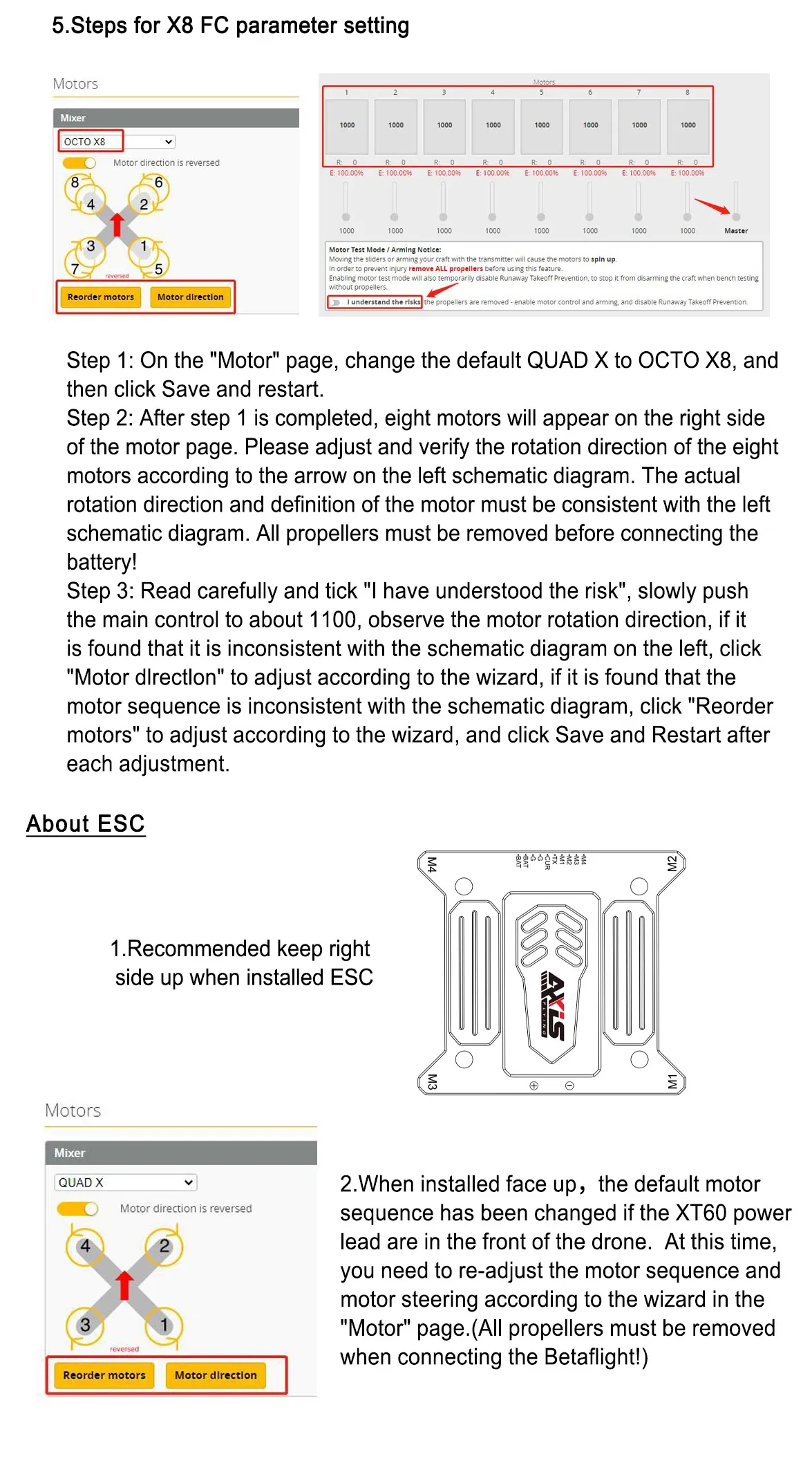

- The FC supports up to 8 motor outputs, easily build your X8 drone

- Quickly check the working status of the FC by turning on and off the corresponding status indicator light

- The FC supports INAV now.

*Function

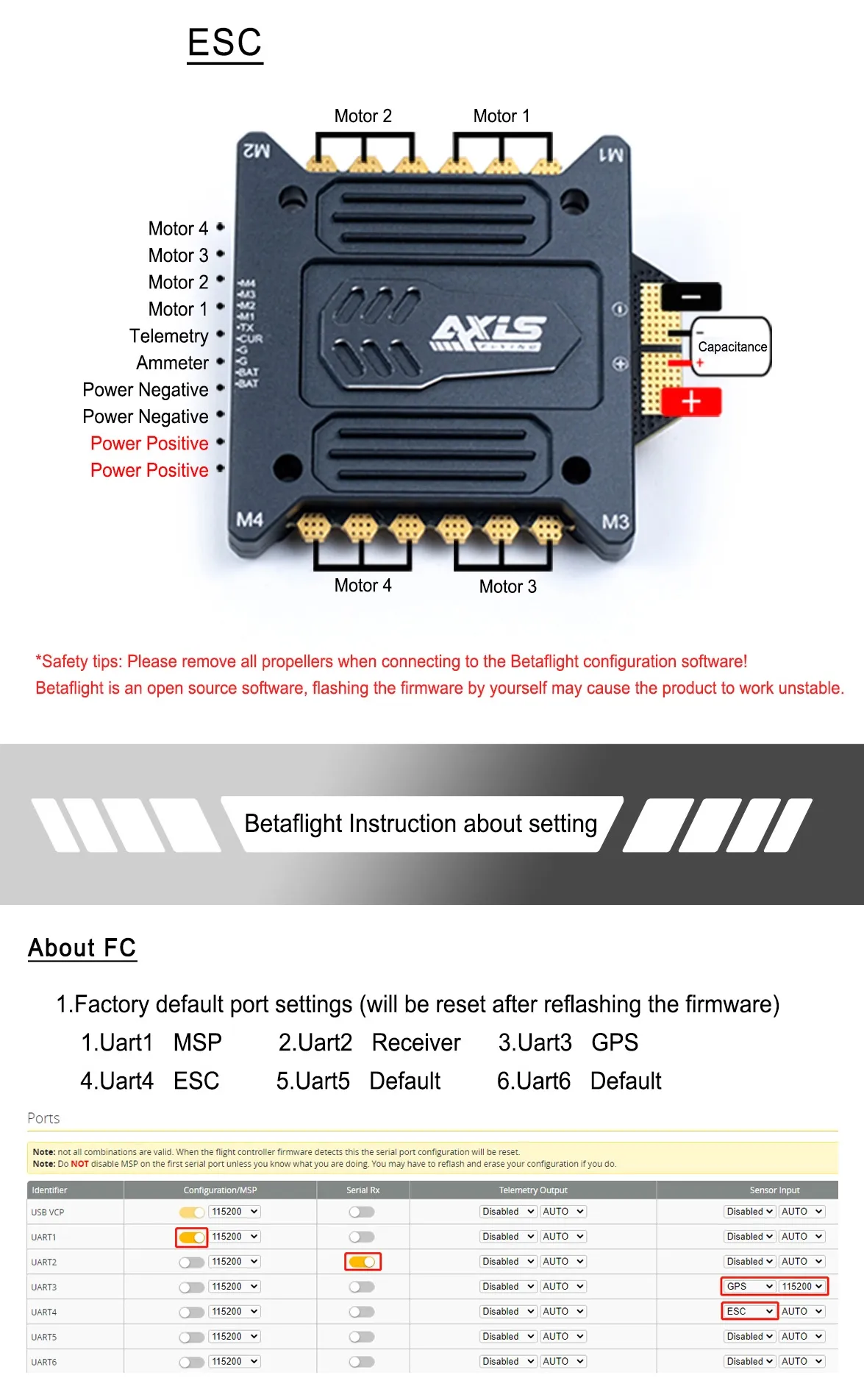

- 96Khz 55A and 65A AM_32bit 3-6S ESC / STM32F722 FC

- ICM 42688P

- Blackbox Flash 16MB

- UART ports: 4

- BEC :5V @2A and 9V@2A

- ESC SENSOR Supported

- HD/Analog Supported

- RGB LED Strip / Beeper Supported

- GPS Supported

- X8 PWM Supported

- Plug and Play Support

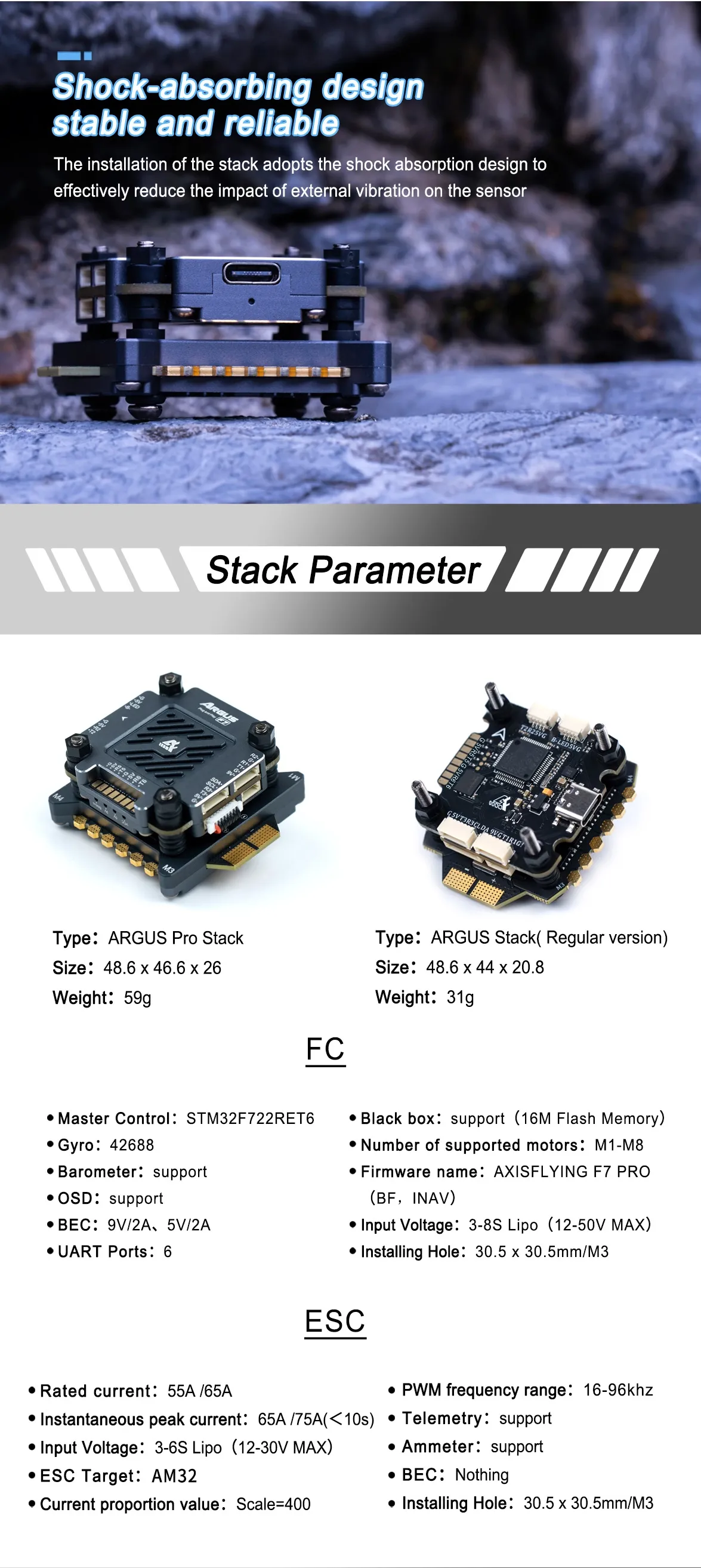

*Specs

Argus 55A / 65A PRO STACK

- Size: 48.6*46.6*26 mm / Weight: 59g / Mounting Holes: M3-30.5*30.5mm

Recommended Parts

● T-HOBBY V2812 / V3120 High Power FPV Motor

● T-HOBBY cinematic 8.5 9.5 10.5 Cinelifter FPV Drone Propeller-Glass Fiber Nylon（SET OF 2）

● RadioMaster TX16S MK3 MAX Radio Controller – Dual-Band ELRS/M2, H7 Power & Full-Size Control

● HDZero 2 FPV Goggles Ultra-Low Latency HD Vision for Immersive Drone Racing
