Buying Guide: GEPRC GEP-F722-45A AIO V2
Choosing the right flight controller and ESC setup is an important part of any FPV build. For pilots building compact cinewhoops, lightweight freestyle quads, or 3–5 inch FPV drones, an AIO board can reduce wiring complexity and save valuable space and weight.

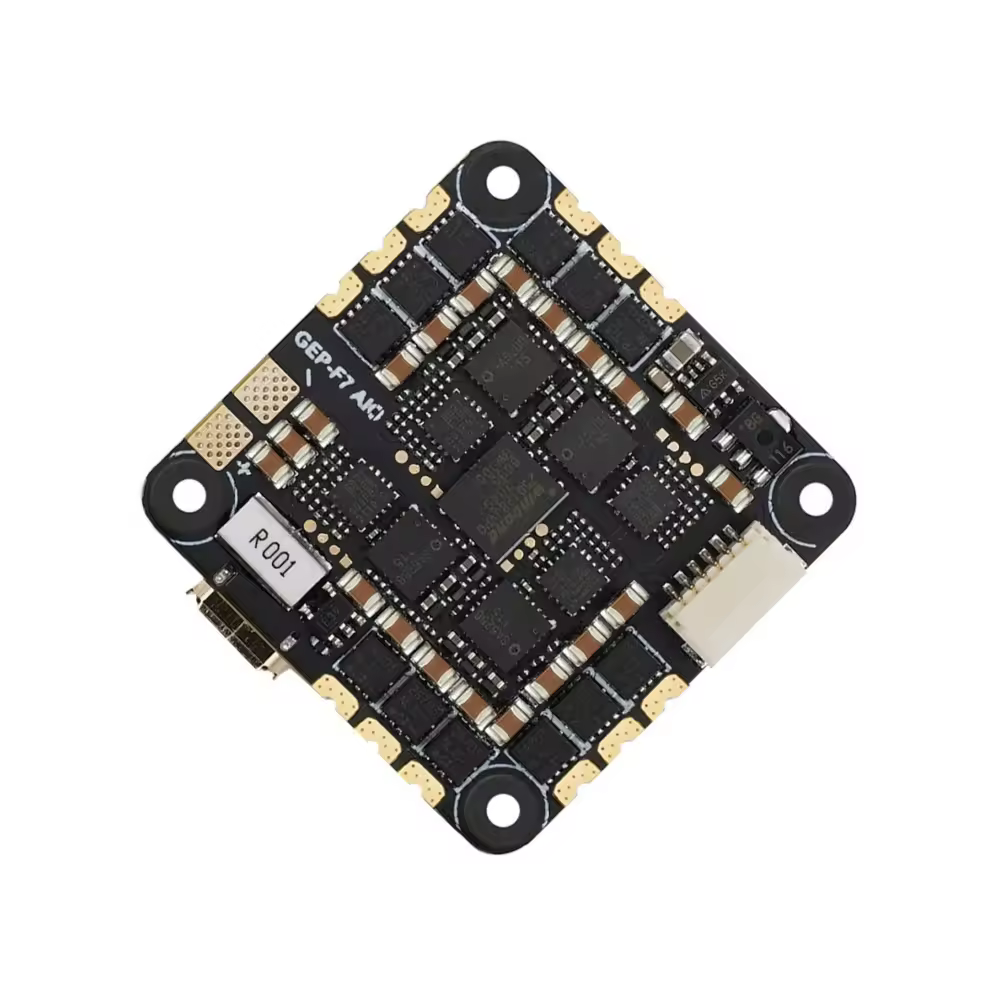

The GEPRC GEP-F722-45A AIO V2 combines an STM32F722 flight controller and a 45A 4-in-1 ESC on a single board. With 2–6S support, five full UART ports, a 42688 gyro, and a dedicated connector for the DJI Air Unit, it is designed for pilots who need strong processing performance and flexible expansion in a compact 25.5×25.5mm mounting format.
Why Choose an AIO Board?
| Feature | AIO Board | Traditional Stack |
|---|
| Design | Integrated FC + ESC | Separate FC + ESC |
| Weight | Lower | Usually Higher |
| Wiring | Cleaner and Simpler | More Connections Required |
| Best For | Compact and Lightweight Builds | Larger or High-Power Builds |
| Repair | Entire Board May Need Replacement | Individual Parts Can Be Replaced |
Key Things to Check Before Choosing This AIO
1. ESC Current Rating
The GEP-F722-45A AIO V2 provides 45A continuous current and up to 55A burst current for 10 seconds. This makes it suitable for many 3–5 inch FPV builds using 2–6S batteries, but your motor and propeller combination should always be checked to ensure the expected current draw stays within the ESC's limits.
2. Frame Mounting Pattern
This board uses a 25.5×25.5mm mounting pattern. Before purchasing, make sure your frame supports this mounting format or can accommodate it with suitable hardware.
3. Peripheral Requirements

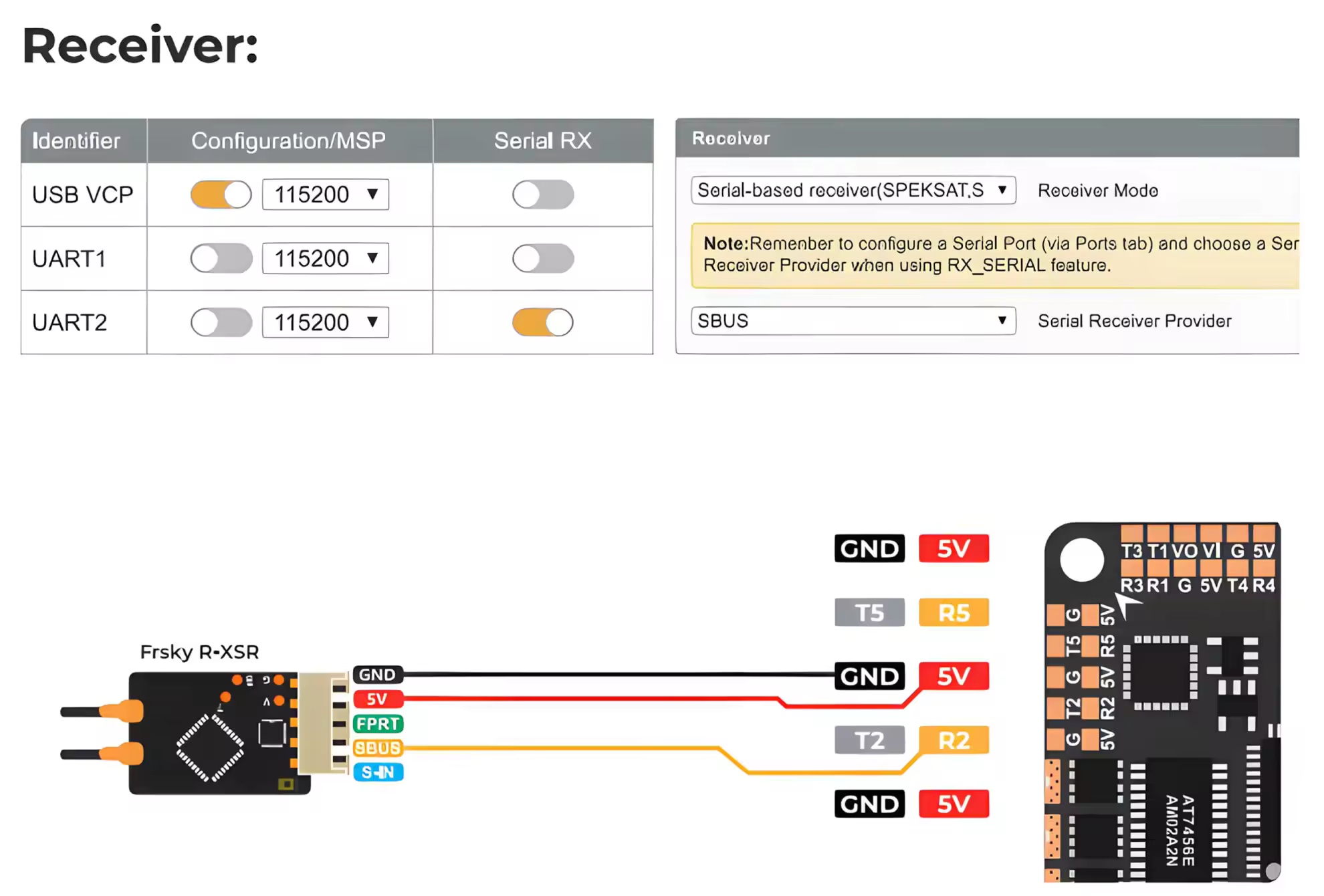

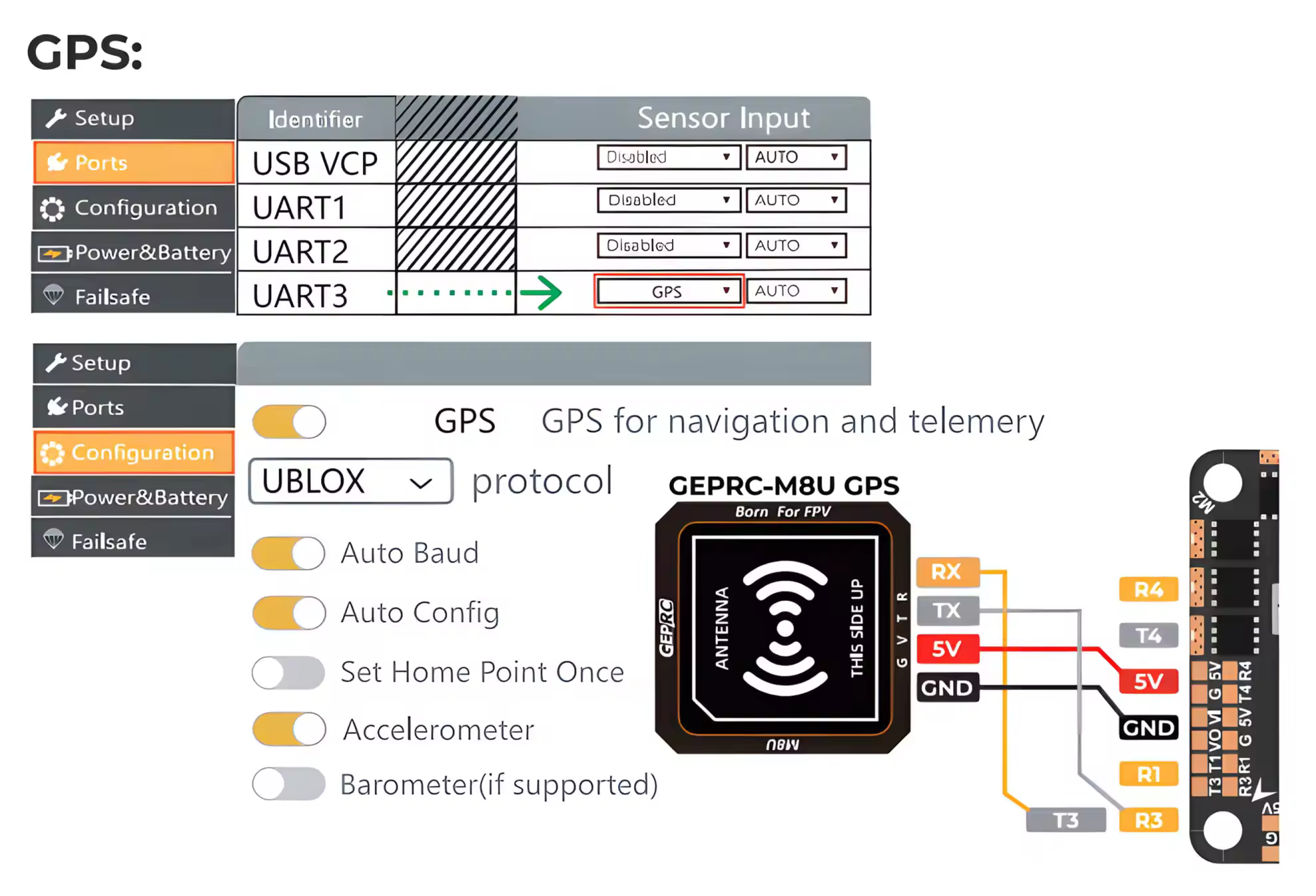

The F722 processor and five full UART ports provide more flexibility for connecting peripherals such as receivers, GPS modules, digital VTX systems, and other accessories. If your build requires multiple external devices, available UART resources are an important consideration.
What Is the GEPRC GEP-F722-45A AIO V2 Suitable For?
With its F722 MCU, 45A ESC output, 2–6S compatibility, and compact AIO design, this board is particularly suitable for:
● 3–4 inch Cinewhoops
● Lightweight 3–5 inch freestyle builds
● Compact 6S FPV builds requiring higher ESC current capability
● Digital FPV builds using compatible DJI Air Unit systems
Key Reasons to Choose the GEP-F722-45A AIO V2
● F722 Processing Power: The STM32F722 MCU provides strong processing capability for modern FPV builds and offers more flexibility when running multiple peripherals.
● 45A ESC for 2–6S Builds: Supports 45A continuous current and 55A burst current, making it suitable for a wide range of compact freestyle and cinewhoop configurations.
● Five Full UART Ports: Offers more connection options for receivers, GPS, VTX systems, and other external devices.

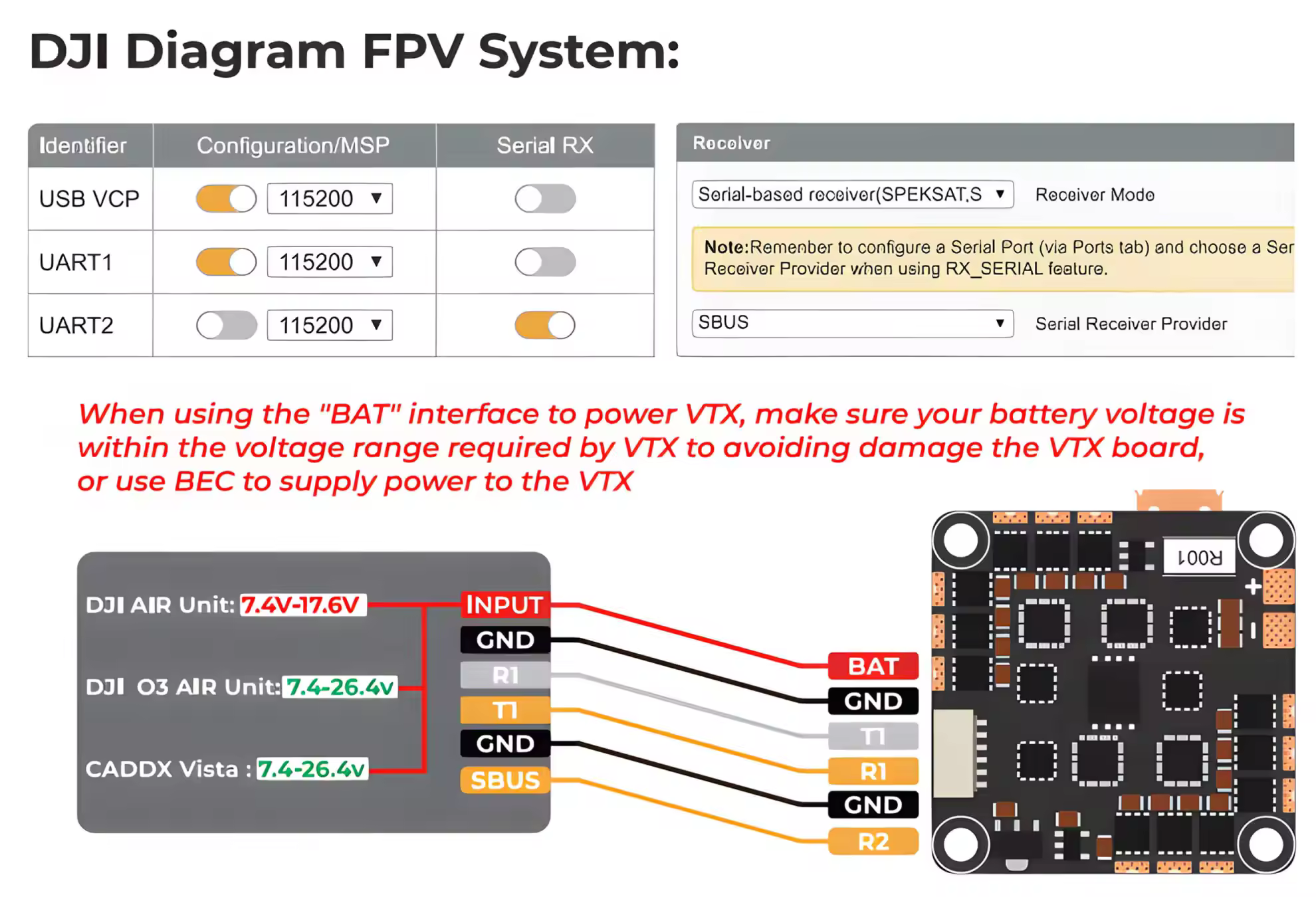

● DJI Air Unit Connector: Includes a dedicated 6-pin connector designed to simplify compatible DJI Air Unit installation.
● Compact AIO Layout: At approximately 8.8g with a 25.5×25.5mm mounting pattern, it helps reduce wiring and save space compared with a traditional FC and ESC stack.
