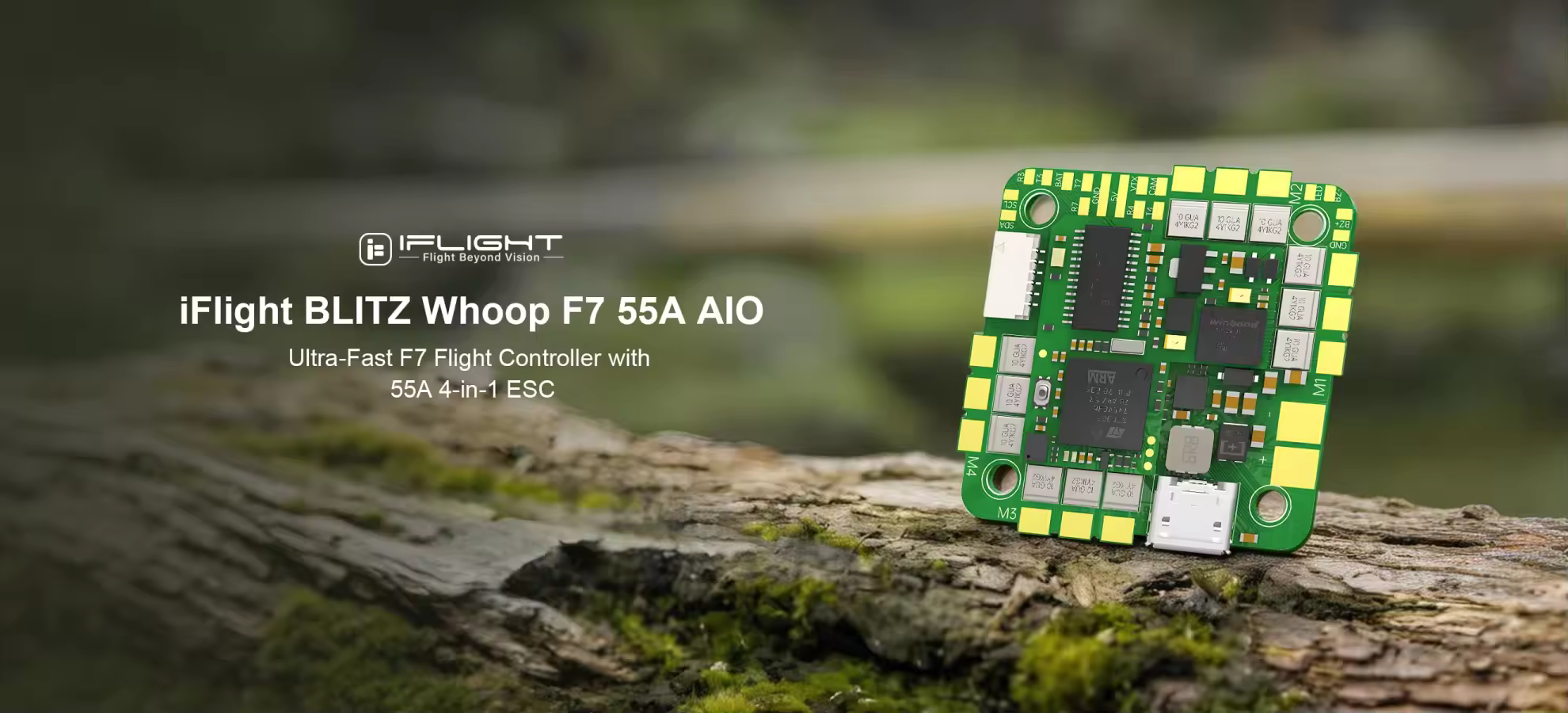

NewiFlight BLITZ Whoop F7 Lightweight 55A AIO ICM42688

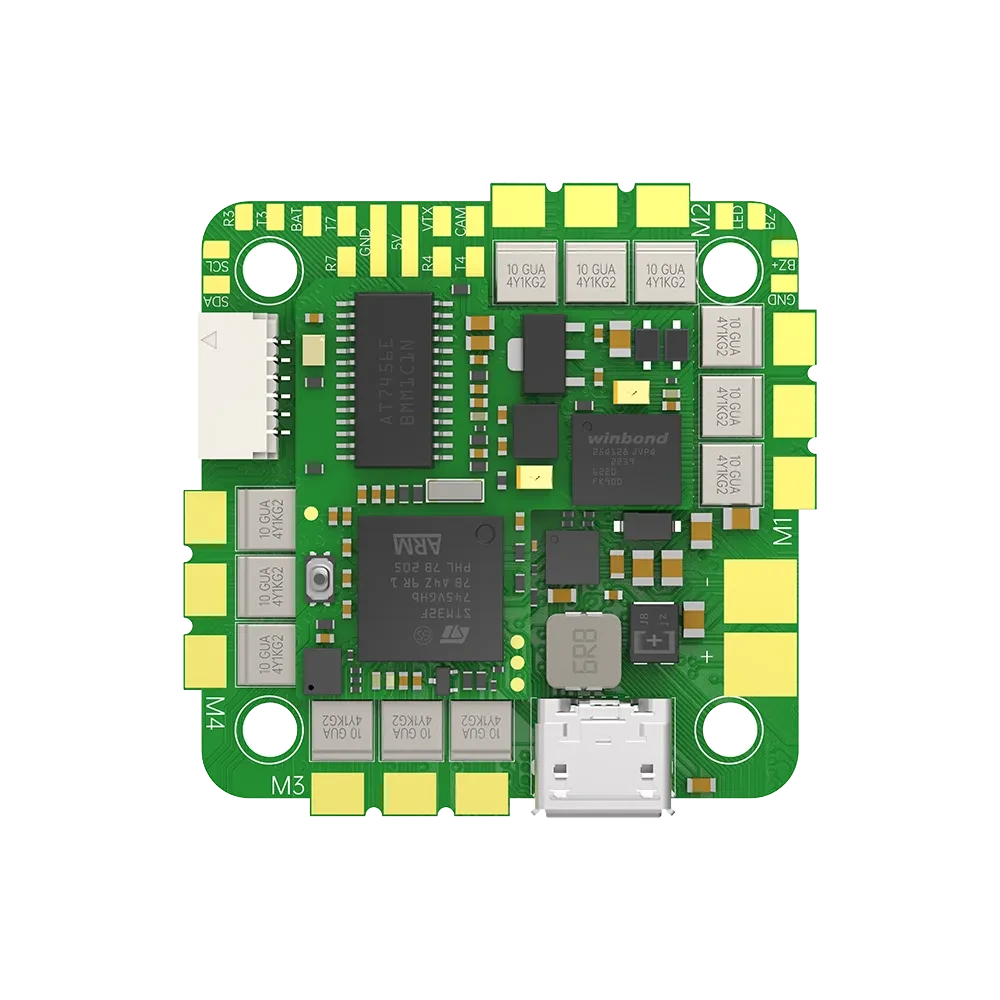

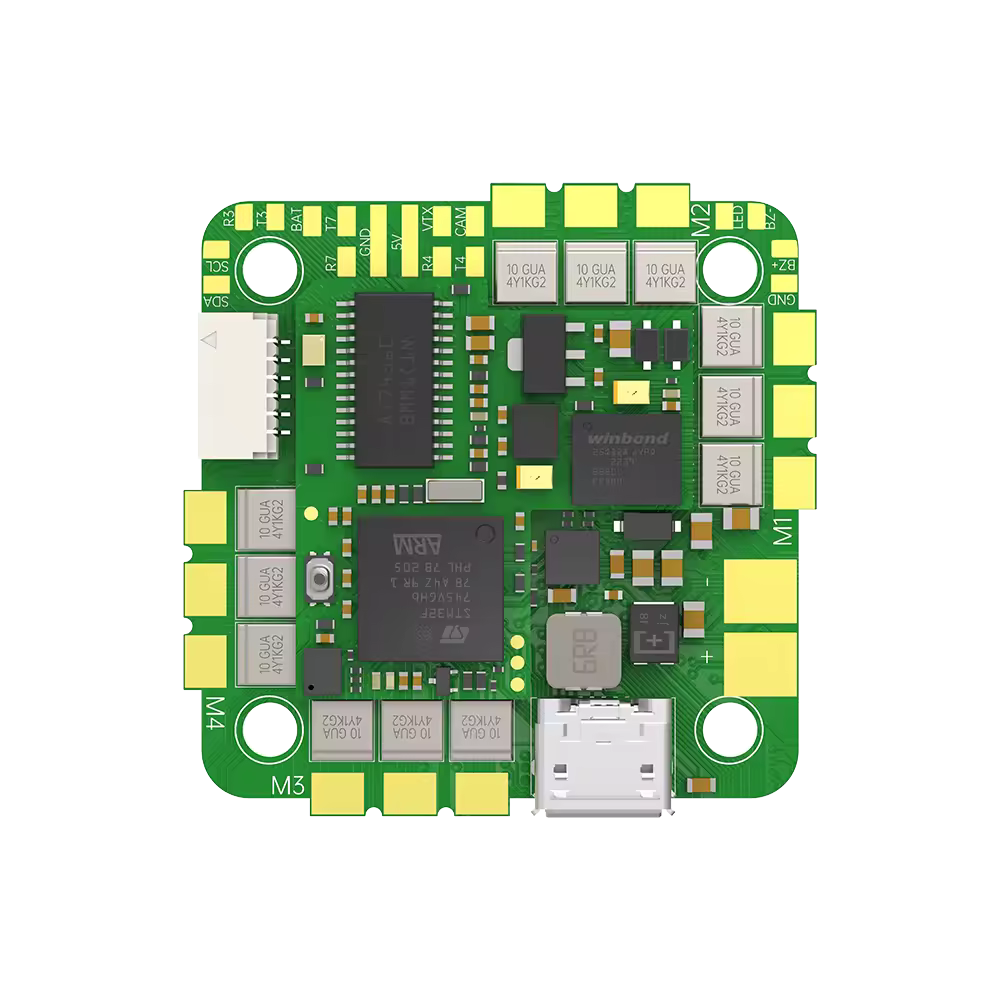

The iFlight BLITZ Whoop F7 AIO is a high-performance all-in-one flight controller designed for powerful whoop and compact FPV builds. Featuring a STM32F745 processor paired with a 55A 4-in-1 ESC, it delivers fast processing speed, precise control, and reliable power handling. With 2–6S LiHV support, 16MB blackbox storage, integrated OSD, and advanced gyro sensors, this AIO board provides stable flight performance while keeping wiring simple and weight minimal. Ideal for pilots seeking clean builds, strong ESC output, and professional-level tuning flexibility.

iFlight
Pilot RecommendedCommunity FavoriteHigh Repurchase Rate
$ 119.99 $235.99
-49%
5.0 | 0Sold
Options (1)
BLITZ F7 AIO V1 1 1
F7 AIO
$8 Off Orders $109+
$20 Off Orders $199+
Get
Quantity
web upgrade love pc details
In Stock Expected ship within 5 days after order.
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● Advanced F7 All-In-One Design – Combines STM32F745 flight controller and 55A 4-in-1 ESC into a compact board, reducing wiring complexity and overall weight.

● High-Performance Processing – Powered by BGA STM32F745 (216MHz) with ICM42688 gyro and DPS310 barometer for precise and stable flight performance.

● Built-In 16MB Blackbox & OSD – Integrated blackbox storage for flight data logging and AT7456E OSD for real-time telemetry display.

● Wide 2–6S LiHV Support – Compatible with 2–6S batteries, featuring 5V/2A BEC output and bidirectional DShot for smooth and responsive throttle control.

● Whoop-Ready Features – Supports WS2812 LED, buzzer, Smartaudio/IRC-Tramp VTX control, and separable FC & ESC board structure for easier maintenance.

FC Specifications：

MCU: BGA-STM32F745

Gyro: ICM42688

Blackbox: 16MB Onboard Flash

BEC output: 5V 2.5A

WS2812 LED Strip: Yes

Buzzer: Yes

Barometer: DPS310

Connector: Micro-USB

OSD: IFLIGHT OSD (AT745E）

FC Firmware：IFLIGHT_BLITZ_F7_AIO

Mounting pattern: 25.5*25.5mm φ3mm

Dimensions: 35*35mm

Weight: 10.5g

BEC: 5V 2A / 3A

Input voltage: 2-6S, support LIHV battery

Smartaudio / IRC Tramp VTX protocol supported


ESC Specifications：


ESC MCU: BB21

Driver: FD6288

Input voltage: 2-6S Support LIHV battery

Output current: 55A, peak value 65A (10 seconds)

ESC firmware: Q-H-40 - Bluejay, 0.16, 24kHz

Current sensor: ratio 200 (1/10mV/A)

BEC: NO

ESC Telemetry: NO

Bidirectional DShot: Yes(need to use Bluejay firmware)

Supports DShot DShot150/300/600/MultiShot/ OneShot etc.


Packing List：

1 x BLITZ F7 AIO

2 x Capacitor 470uF/35V

1 x XT30U Male 18AWG cable 70mm

1 x 1.0-7P cable 50mm-28mm

1 x 1.0-7P cable 50mm

4 x M2 silicon grommets

8 x M2*12mm screws

8 x M2 Transparent Nylon Nut

10 x 0.8mm black Heat shrink tube 10mm

Note

iFlight product is for fun purposes only and does not support autonomous flight.


FAQ Feel free to ask us any questions
ASK A QUESTION
Q: What battery range does the BLITZ Whoop F7 AIO support?
Ｑ：Is this AIO suitable for high-KV motors and aggressive flying?
