Buying Guide: Happymodel SuperX HD ELRS 1-2S AIO F411 FC 12A ESC
Choosing an AIO flight controller for a micro FPV drone is mainly about finding the right balance between power, weight, video system, and build space. The Happymodel SuperX HD ELRS combines the FC, 4‑in‑1 ESC, and ExpressLRS receiver on one board, making it designed for compact 1S and 2S FPV builds.
Instead of choosing an AIO based only on its processor or ESC rating, consider how the board fits the complete drone build.
What Should You Consider When Choosing an AIO?
Battery and Motor Matching
Start with the battery voltage and motor combination. The SuperX supports 1–2S LiPo/LiHV, making it suitable for both lightweight 1S Whoops and more powerful 2S micro builds.
For 1S, prioritize low weight and efficient motors. For 2S, use motors and propellers specifically suited to 2S and avoid combinations that place excessive load on the 12A ESC.
ESC Capacity
The SuperX uses a 12A 4‑in‑1 BLHeli_S ESC, with 12A continuous current and 15A peak current for up to 3 seconds.
This makes the board a natural match for small motors and lightweight micro drones. If your build requires substantially more motor power, a higher‑current AIO would be more appropriate.
Video and Receiver Requirements
The SuperX is designed for HD FPV applications and includes a built‑in 2.4GHz ELRS receiver. It does not include an analog Betaflight OSD chip, keeping the board focused on digital micro builds.
For pilots already using an ELRS radio, the integrated receiver means there is no need to install a separate receiver, which is particularly useful when space is limited.
Why Choose the Happymodel SuperX HD ELRS?
The SuperX is most valuable when simplicity and compactness are more important than maximum processing power.

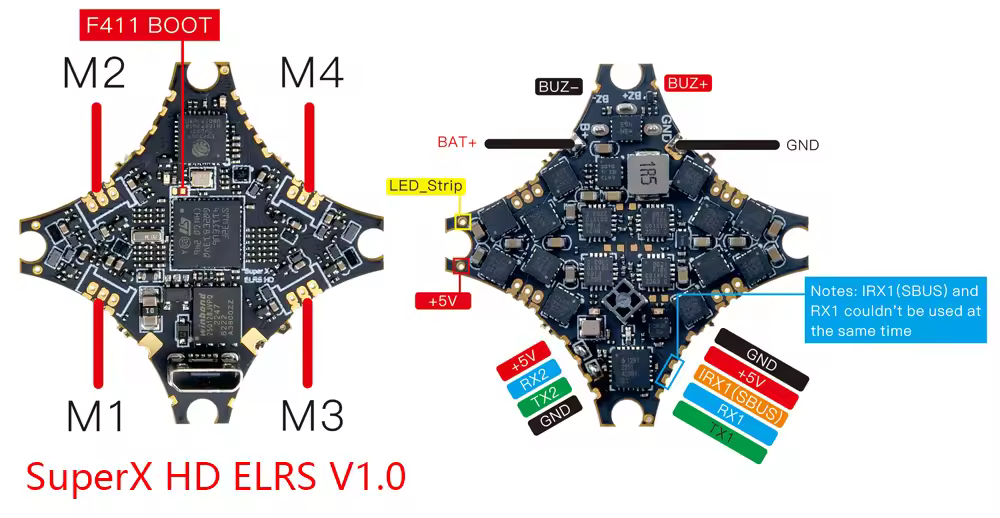

Its main hardware is integrated into a single board:
F411 Flight Controller + 12A 4‑in‑1 ESC + 2.4GHz ELRS Receiver
It also supports Betaflight 4.4.2, DShot300, Bluejay ESC firmware, voltage detection, current monitoring, and ELRS firmware updates through Wi‑Fi or Betaflight passthrough.
This combination makes it particularly suitable for:
● HD Whoops
● Lightweight 1S micro FPV drones
● 2S micro builds
● Toothpick‑style builds where space and weight are limited
Recommended SuperX Build Combinations
The AIO should be paired with motors, propellers, and batteries according to the intended flying style.
1S HD Whoop — Lightweight & Responsive
Recommended combination:
Happymodel SuperX HD ELRS + T‑HOBBY M0803II 22000KV Motor + MEPS SZ1218 props + 1S LiPo/LiHV battery. This combination is aimed at a lightweight Whoop where low weight and quick throttle response are more important than maximum flight time.
The T‑HOBBY M0803II 22000KV and MEPS SZ1218 are also listed by the product page as recommended add‑ons for the SuperX.
2S Micro Build — More Power
For a 2S build, choose a motor KV and propeller combination designed for 2S operation.
Compared with a lightweight 1S setup, the goal here is to gain stronger acceleration while keeping the total motor load appropriate for the 12A ESC.
A good 2S combination should therefore focus on:
● 2S‑compatible motors + lightweight props + efficient frame + moderate power demand
HD Micro Build — Check VTX Power First
When using the SuperX for an HD build, the VTX should be selected according to the AIO's available power output.
The board provides a 5V 1.5A maximum BEC, so check the HD VTX's required voltage and current before connecting it.
This is especially important for digital systems with higher power requirements.
SuperX HD ELRS vs Other 1–2S AIOs
The three boards serve different build priorities, so the best choice depends mainly on the video system and level of hardware integration you need.

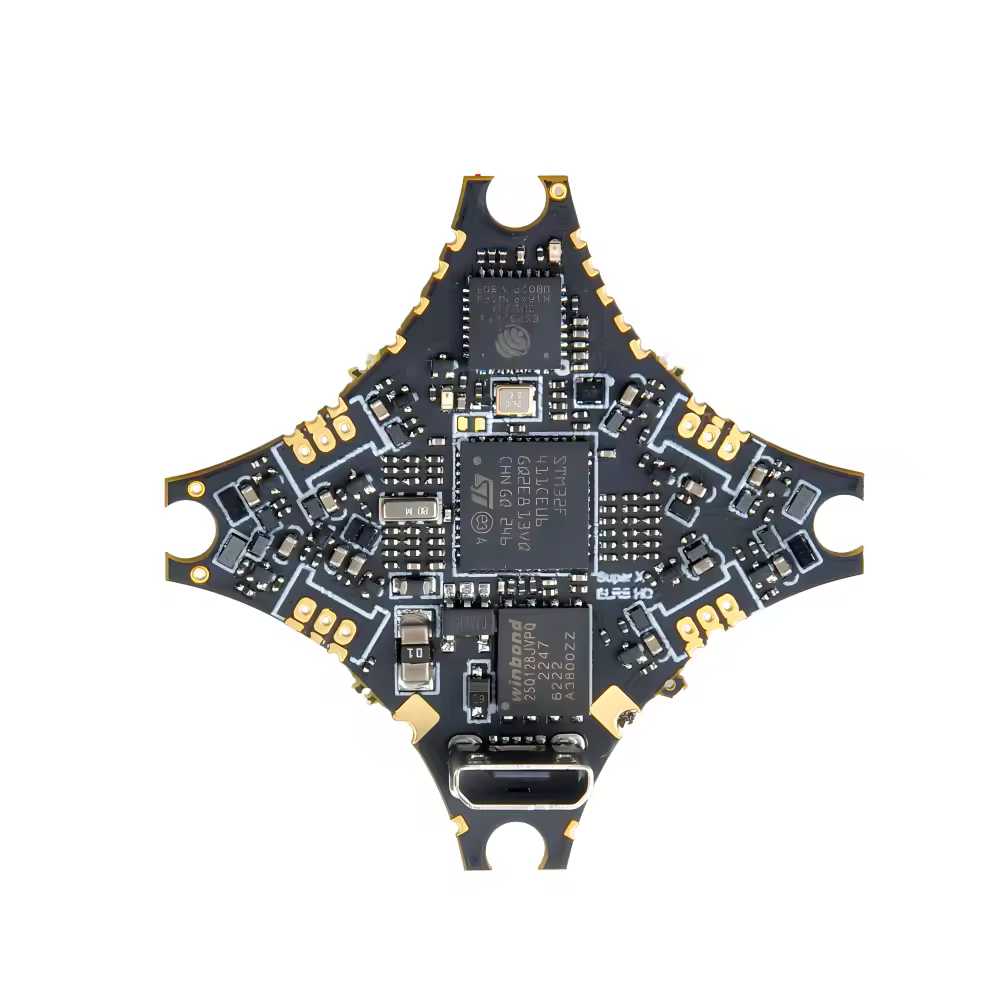

| Feature | Happymodel SuperX HD ELRS | Happymodel X12 5‑in‑1 AIO | Flywoo GOKU F405 HD V2 AIO |
|---|
| Main Positioning | HD Whoop / Micro FPV | Analog Whoop | Advanced HD Micro |
| Battery | 1–2S | 1–2S | 1–2S |
| ESC | 12A 4‑in‑1 | 12A 4‑in‑1 | 12A 4‑in‑1 |
| Receiver | Built‑in ELRS | ELRS / FrSky / PNP | ELRS |
| Video | HD‑focused | Built‑in Analog VTX | HD‑focused |
| MCU | F411 | F411 | F405 |
| Key Strength | Compact HD + ELRS integration | 5‑in‑1 analog integration | More FC resources & HD support |
Who Is the SuperX HD ELRS For?
The SuperX is a good choice if most of the following describe your build:
● You are building a 1S or 2S micro FPV drone.
● You want an HD video setup.
● You use 2.4GHz ELRS.
● You want to avoid installing a separate receiver.
● Your motors are appropriate for a 12A ESC.
● You want to keep the electronics compact and wiring simple.
If your build meets these requirements, there is little reason to add a separate FC, ESC, and receiver. The integrated design of the SuperX keeps the electronics simple while leaving more room for the rest of the micro build.
Final Recommendation
The Happymodel SuperX HD ELRS 1‑2S AIO F411 FC 12A ESC is best suited to compact HD Whoops and lightweight 1S/2S micro FPV builds.
Its strongest advantage is the combination of F411 FC, 12A 4‑in‑1 ESC, and built‑in ELRS receiver on a single board. For a lightweight 1S build, the T‑HOBBY M0803II 22000KV + MEPS SZ1218 combination provides a practical starting point. For 2S, select the motor and propeller according to the battery voltage and keep the power demand within the AIO's capabilities.
