What motor size is best for a 7-inch long range FPV drone?

A 2806.5 or 2807 motor is a common starting point for a 7-inch long range drone. These motors provide enough torque for larger propellers without adding the weight of a heavy-lift motor. For a heavier battery, action camera or 7.5-inch propeller, consider a 2808 or 2809 motor.

What KV motor should I use for a 7-inch 6S FPV drone?

Approximately 1200-1500KV is the common range for a 7-inch 6S build. Choose around 1300KV when efficient cruising and flight time are the priority. Choose closer to 1500KV when you want stronger acceleration and more throttle response, provided the motor is tested for your propeller.

What motor size is suitable for an 8-inch cinematic FPV drone?

Start with a 2810, 2812 or 3008 motor for an 8-inch cinematic build. A 2810 suits relatively light camera platforms, while a 2812 provides more torque for heavier batteries and action-camera payloads. Check the exact motor’s 6S test data before selecting an 8-inch propeller.

Is a lower-KV motor always better for long range?

No. Lower KV can reduce RPM and current when properly matched, but KV alone does not determine efficiency. A motor with excessively low KV may need more throttle to maintain cruise speed. Compare the complete combination of motor size, KV, voltage, propeller, aircraft weight and tested efficiency.

Should I use two-blade or three-blade propellers for long range?

Two-blade propellers generally create less drag and are a good choice when maximum cruising efficiency is the priority. Three-blade propellers provide more grip, smoother handling and better control in wind, but normally draw more current. Choose two blades for light endurance builds and three blades for cinematic stability or additional payload.

Is Li-ion or LiPo better for a long range FPV drone?

Choose Li-ion for steady cruising when energy capacity and flight time matter more than aggressive throttle use. Choose LiPo when the drone carries more payload, flies in stronger wind or needs repeated acceleration. Always confirm that the battery’s continuous current capability can support the motor and propeller combination.

Can I use a 2806.5 motor with 7-inch propellers?

Yes, a 2806.5 motor is widely used with 7-inch propellers, but the exact KV and propeller pitch must be compatible with the selected battery voltage. A low-pitch propeller is generally easier on the motor and ESC. Start with the propeller shown in the manufacturer’s test data or product recommendation.

Do I need a 60A ESC for a 7-inch long range build?

A 50A to 60A ESC is a common starting point, but the correct rating depends on the motor’s tested current with the exact voltage and propeller. The ESC should have sufficient current headroom rather than operating continuously near its limit. A 60A 6S ESC is a practical choice for MEPS SZ2806.5 1300KV motors when using an approved 7-inch propeller.

What ESC should I use for an 8-inch cinematic motor?

Check the highest tested current of the exact motor, KV, voltage and propeller combination. A 60A ESC may work with a conservative lower-KV setup, while a 70A ESC provides more headroom for higher-load 8-inch tri-blade propellers. For example, published V2812 1155KV testing reaches approximately 63A with an HQ8045 tri-blade, making a 70A-class ESC the more appropriate starting point.

Why do my long range FPV motors get hot?

Common causes include excessive propeller pitch, too much KV for the battery voltage, high aircraft weight, poor tuning, damaged bearings or motor screws touching the windings. Perform a short low-altitude test and check motor and ESC temperatures before longer flights. If the motors heat rapidly, stop and verify the power system instead of continuing to fly.

Shop Long Range FPV Motors

Shop long range FPV motors for ultralight 4-inch, 6–7-inch cruising and 7–10-inch cinematic builds. Compare motor size, KV, voltage, propeller compatibility and tested current before choosing your power system.

Find the Right Long Range FPV Motor

A long range FPV motor is selected as part of a matched propulsion system. Low KV alone does not make a motor efficient. The motor must turn the chosen propeller efficiently at the planned battery voltage and aircraft weight without exceeding motor, battery or ESC current and temperature limits.

FPV Build	Main Priority	Motor Starting Point	Typical 6S KV Starting Point	Products to Compare
3–5 inch ultralight	Low weight and endurance	2004–2203.5	1500–1800KV	MEPS SZ2004, NEON 2203.5
5–6 inch cruising	Efficiency with stronger prop control	2408	Around 1700–2000KV	MEPS SZ2408
6–7 inch long range	Efficient cruising and predictable handling	2806.5	Around 1300–1500KV	SZ2806.5, F90
7–8 inch cinematic	Battery and camera payload	2808–2812	Around 900–1350KV	NEON 2810, V2812, F100
8–10 inch heavy build	High torque and payload control	2812–3115	Product-specific	28/31 Series, V3115

For more options across 5-inch, freestyle, racing, micro and long-range builds, browse all FPV drone motors.

-23%

MEPS NEON 2810 Long Range Flights FPV Motor for 7-8 inch Cinematic Drone 1180KV/1350KV

$24.99

T-Hobby V2812 Cinelifer Motor 925KV/1155KV

-41%

T-HOBBY Velox V2812 Cinelifer Motor for FPV Long Range

$26.90

-28%

MEPS NEON 2812 Brushless Motor for 8-Inch FPV Cinematic & Long Range Drones

$19.50

-14%

T-HOBBY Cinematic Power Combo V2812/V3120 | 8"-10" FPV Drone Kit

$431.70

-36%

28 / 31 Series 2810 2812 3115 3-6S Brushless Motor

$17.90

-40%

MEPS NEON 3115 Drone Motor for 8-10 inch Cinematic FPV Drone 1050KV

$29.90

-23%

T-HOBBY V3115 Smooth FPV Cinematic Motor for 7-10 inch Heavy Drone

$45.90

brotherhobby tornado t5 3115 pro drone motor2

BrotherHobby Tornado T5 3115 Pro Motor for 8-12 inch FPV drone

$199.00

Ultralight 3–5 Inch Long Range Motors

Choose lightweight 2004–2203.5 motors for compact endurance builds where low motor weight and efficient cruising matter more than maximum thrust.

-25%

T-HOBBY F1404 Long Range FPV Motor for Micro Cinematic Drones-Ultralight & Crash-Resistant

$14.90

-35%

MEPS NEON 2207 V2 Brushless Motor Powerful Thrust Crash‑Resistant for 5'' Freestyle FPV Drone

$10.99

t hobby velox v2306 v3 fpv drone motor 1950kv

-42%

T-HOBBY Velox V2306 V3.0 FPV Drone Motor for Freestyle

$13.90

-23%

MEPS SZ2004 V2 FPV Drone Motor for 3.5inch Cinewhoop Long-Range 1800KV/3000KV

$16.90

GEPRC GR2004 Motor

$20.99

-9%

T-HOBBY F2203.5 Racing Whoop Brushless Motor for Cinewhoop FPV Drones

$19.90

-20%

MEPS SZ2104 Ultralight Efficient Motor for 3-4 Inch Freestyle & Cinematic FPV Drone 1800KV/3000KV

$13.50

4%

GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor for FPV Drone

$23.99

-7%

GEPRC SPEEDX2 2107.5 Motor 1960KV FPV Drone

$24.99

6–7 Inch Long Range Motors

Shop 2408 and 2806.5 motors for efficient 6S cruising, larger propellers and stable long-range flight.

-50%

T-HOBBY F90 2806.5 Brushless Long Range Motor for Cinelifter X8 FPV Drones

$26.90

-10%

T-HOBBY Velox V2808 Long-range or Cinematic Motor for FPV drone

$27.90

-12%

MEPS SZ2806.5 FPV Motor for 6-8inch Long Range Drone 1300KV/1800KV

$28.90

-37%

MEPS SZ2408 5-6” FPV Brushless Motor – Freestyle & Long-Range 1900KV/2500KV

$16.90

-15%

T-HOBBY Cine 60 6S Motor For 6'' X4 Cinematic FPV Drone

$55.90

GEPRC SPEEDX2 2809 V1.1 FPV Drone Motor

$30.99

7–8 Inch Long Range and Cinematic Motors

Compare 2808–2812 motors for heavier batteries, HD cameras and smoother control with 7–8-inch propellers.

-10%

T-HOBBY Velox V2808 Long-range or Cinematic Motor for FPV drone

$27.90

-41%

T-HOBBY Velox V2812 Cinelifer Motor for FPV Long Range

$26.90

MEPS NEON 2810 Long Range Flights FPV Motor for 7-8 inch Cinematic Drone 1180KV/1350KV

$24.99

-28%

MEPS NEON 2812 Brushless Motor for 8-Inch FPV Cinematic & Long Range Drones

$19.50

-46%

MEPS SZ2808 FPV Motor for 6-8inch Long Range Drone 1350KV/1900KV

$19.90

GEPRC SPEEDX2 2809 V1.1 FPV Drone Motor

$30.99

8–10 Inch Heavy-Lift Motors

Choose higher-torque motors only after confirming aircraft weight, propeller load, voltage, tested current and ESC capacity.

-23%

T-HOBBY V3115 Smooth FPV Cinematic Motor for 7-10 inch Heavy Drone

$45.90

-41%

T-HOBBY Velox V2812 Cinelifer Motor for FPV Long Range

$26.90

-28%

MEPS NEON 2812 Brushless Motor for 8-Inch FPV Cinematic & Long Range Drones

$19.50

-40%

MEPS NEON 3115 Drone Motor for 8-10 inch Cinematic FPV Drone 1050KV

$29.90

-6%

T-HOBBY CINE66 PRO 8-9.5 Inch FPV Cinematic Brushless Motor-3.7kg+Thrust

$65.90

-36%

28 / 31 Series 2810 2812 3115 3-6S Brushless Motor

$17.90

GEPRC SPEEDX2 2809 V1.1 FPV Drone Motor

$30.99

Build a Long Range FPV Power System

Why This Setup Works: The 2806.5 1300KV motors provide the torque needed for 7-inch propellers without unnecessary motor weight. Low-pitch props reduce power demand during cruising, while the 6S Li-ion battery prioritizes energy capacity and flight time. The 60A ESC adds electrical headroom, and the F7 HD flight controller supports GPS, receivers and digital video systems.

What's Included:

✓ Motors: MEPS SZ2806.5 FPV Motors 1300KV ×4

✓ Flight Controller: MEPS SZ F7 HD Flight Controller

✓ ESC: MEPS SZ 60A 4-in-1 ESC

✓ Propellers: HQProp DP 7×3.5×3 V1S

✓ Battery: iFlight Fullsend 6S 4000mAh Li-ion

✓ Battery Alternative: 6S 2600–3500mAh LiPo

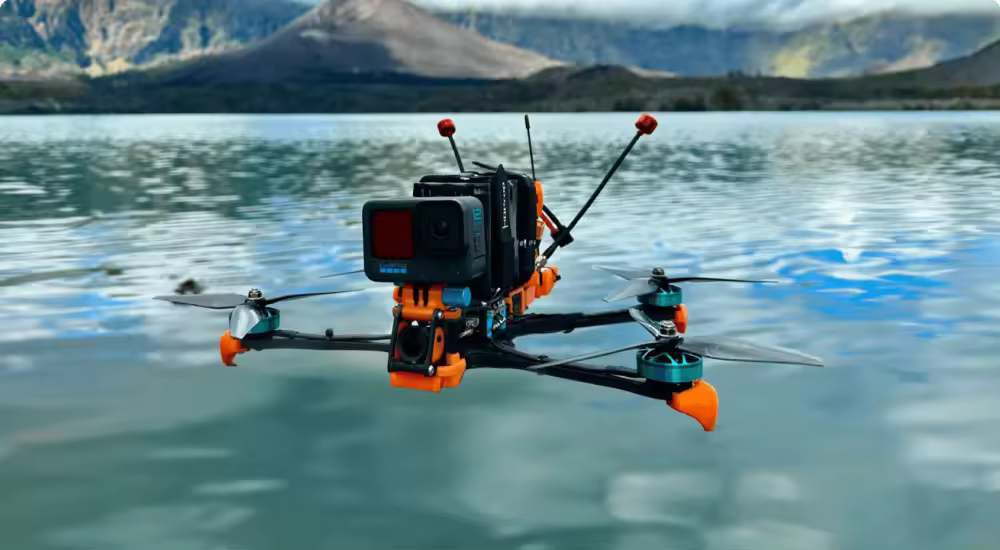

7 Inch 6S Endurance Setup

MEPS SZ2806.5 FPV Motor for 6-8inch Long Range Drone 1300KV/1800KV

$0.00

T-HOBBY F7 PRO Flight Controller WiFi+Bluetooth For FPV Drones

$0.00

New MEPS NEONCORE 60A 4-In-1 FPV ESC-30.5x30.5mm

$0.00

New iFlight Fullsend 6S 4000mAh Li-Ion 17.5C Battery with XT60 Plug for Long-Range

$0.00

Total: $0.00

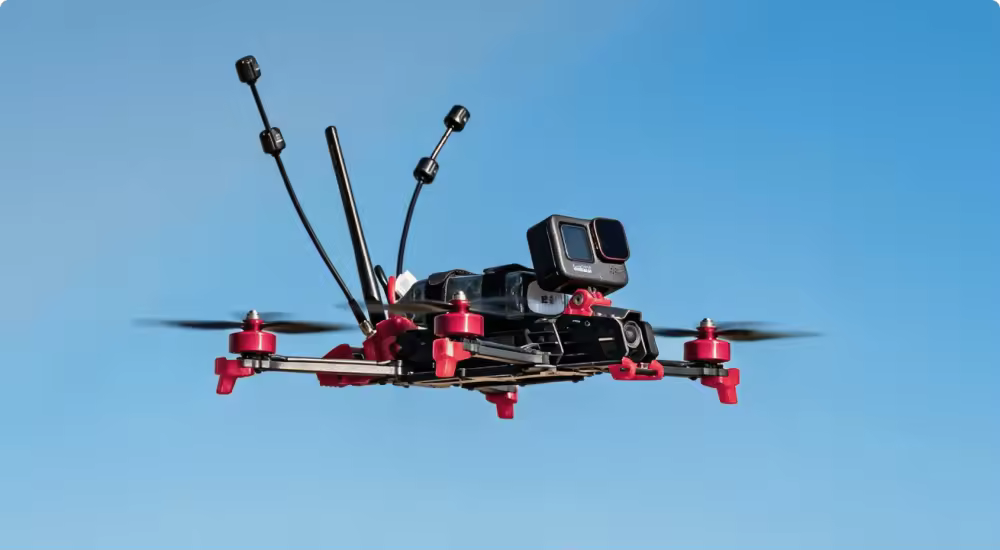

Why This Setup Works： The 2812 stator provides stronger low-end torque for 8-inch propellers, action cameras and heavier cinematic builds. The 1150KV option keeps smooth throttle control on 6S while retaining useful lift reserve. A 70A stack provides more current headroom, and the 8045 tri-blade propellers prioritize grip and stable camera movement.

What's Included:

✓ Motors: MEPS NEON 2812 Motors 1150KV×4

✓ FC and ESC Stack: T-HOBBY C80A-4IN1-8S 80A ESC + F7 SE FC Stack

✓ Propellers: MEPS 8045 FPV Propellers

✓ Battery: Boslipo P7 6S 2200mAh LiPo

✓ Battery Alternative: 6S 2800–3300mAh High-C LiPo
