Q: What is the T-HOBBY V5315 motor designed for?

A: The T-HOBBY Velox V5315 cinematic FPV motor is designed for 13–15 inch cinelifter and heavy-lift FPV drones, optimized for high payload and long-range cinematic filming.

Q: What drone configurations are compatible with V5315?

A: It is ideal for X4 and X8 cinematic drone setups using 13–15 inch propellers, especially professional filming rigs.

Q: What makes V5315 different from smaller motors?

A: It delivers extreme torque and high efficiency at low RPM, making it suitable for heavy payload stability rather than agility.

Q: What KV options are available?

A: The motor is available in 300KV and 500KV versions, tuned for different payload and voltage requirements.

Q: Which KV is best for heavy lift drones?

A: The 300KV version is best for heavy payload X8 and long-range cinematic rigs.

Q: Is 500KV suitable for cinematic drones?

A: Yes — it is better for lighter 13–15 inch setups requiring slightly more responsiveness.

Q: What battery is recommended for V5315?

A: It supports 8–12S LiPo systems, with 12S preferred for maximum efficiency and smooth throttle control.

Q: What propellers work best?

A: It is designed for 13–15 inch carbon fiber propellers for maximum thrust and stability.

Q: What payload can V5315 handle?

A: It is widely used for 6–10kg payload cinematic rigs depending on build configuration.

Q: Is this motor good for long-range FPV?

A: Yes — its low KV design ensures excellent efficiency for long flight times and extended range missions.

Q: Does it support smooth cinematic footage?

A: Yes — it provides ultra-stable throttle response and low vibration output for professional video capture.

Q: What ESC is recommended?

A: A 80A–120A high-voltage ESC (8–12S capable) is recommended for safe operation.

Q: Is V5315 suitable for beginners?

A: No — it is strictly for advanced cinematic builders and professional UAV operators.

Q: Does it overheat during heavy load?

A: No — it uses optimized electromagnetic design and large thermal mass for heat stability under load.

Q: What are common setup mistakes?

A: Incorrect KV selection, underpowered ESC, or using smaller props can reduce efficiency and cause instability.

Q: What support does MEPSKING provide?

A: MEPSKING provides technical support, installation guidance, and warranty coverage for manufacturing defects.

T-HOBBY Velox V5315 8-12S Motor For 13-15 Inch Cinelifter

T-HOBBY

Flash Sale

09:12:02

$ 55.86 ~~$79.90~~

-30%

4.8 | 191Sold

Options (2)

Quantity

Add-ons

Bundle and save up to $3.30 on gear — upgrade your setup for less.

T‑HOBBY C80A 80A 5‑12S Cinematic FPV ESC – Ultra‑Smooth Throttle for Heavy‑Lift & Cine Drone Pilots
80A Cinematic Esc
$106.60 Save $3.30

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Robust Power: Delivers 6.5kg+ max thrust and 3–6kg continuous output for heavy cinematic drones.
Long-Range Performance: Achieves over 15km flight range even with 7kg payload for reliable endurance.
Optimized Efficiency: Unique electromagnetic design ensures stable power and smooth operation under load.
Versatile Compatibility: Supports Cine13–15 inch and M6 single-hole props with adaptive top bell design.
Precision Engineering: Features M4 mounting holes and flush shaft screws for secure, flexible installation.

Payment | Every order you place with us is safe & secure

The King of Range Under Heavy Load

With a unique electromagnetic optimization design, the V5315 motor achieves an exceptional range of over 15km even with a 7kg payload, ensuring smooth and efficient aerial filming. Tested on an X4 drone with a 15.2kg takeoff weight using V5315 300KV motors, Cine1510-3 props, and a 12S 20,000mAh battery, it delivers over 15 minutes of flight time and remarkable endurance performance.

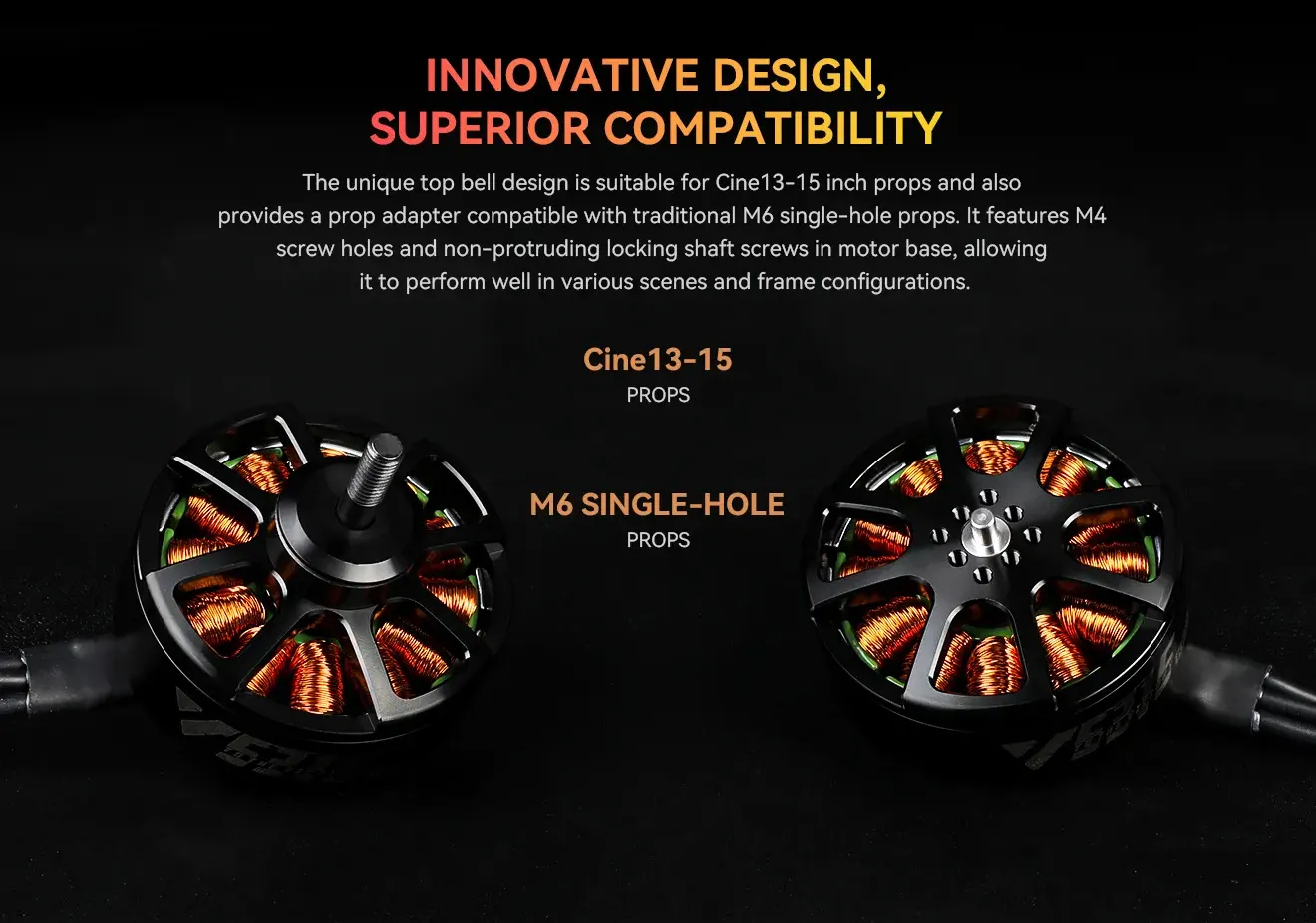

Innovative Design, Superior Compatibility

The V5315 motor features a uniquely engineered top bell compatible with Cine13–15 inch propellers and includes an adapter for traditional M6 single-hole props. With M4 mounting holes and flush locking shaft screws, it ensures easy installation and stable performance across different frames and flight setups.

T-HOBBY V5315 Buying Guide

The T-HOBBY V5315 is a large-format cinematic FPV motor designed for 13–15 inch Cinelifters and heavy-lift X4 or X8 platforms. With 300KV and 500KV options, it is built for high-payload applications where stable lift, low-RPM torque, and efficient operation matter more than lightweight freestyle performance.

Choose the Right KV for Your Battery

Version	Recommended Voltage	Typical Use	Why Choose It
V5315 KV500	8S LiPo	13–15" X4/X8 cinematic builds	High-efficiency 8S setup with strong heavy-lift capability
V5315 KV300	12S LiPo	Heavy-lift and professional cinematic rigs	Lower KV and higher voltage for large-load applications

Important: The KV500 version is optimized for 8S and the KV300 version is optimized for 12S. Choose the motor according to your complete power-system voltage rather than KV alone.

What Makes the V5315 Suitable for Heavy-Lift FPV?

Large 5315 motor size: Designed around large 13–15 inch propellers and heavy cinematic platforms.
High thrust capability: The KV500 version reaches up to 8,166g maximum thrust in the manufacturer's test data, while the KV300 version reaches up to 8,600g.
12N14P configuration: Provides the torque characteristics needed for large propellers and high-load operation.
Professional bearing: Uses an imported 606-ZZ bearing for smooth operation.
Flexible prop mounting: The top bell supports T-Motor Cine propellers and includes an adapter for traditional M6 single-hole propellers.

Check Your Propeller and ESC

The V5315 is not a general-purpose FPV motor. It is designed around large 13–15 inch propellers, so the motor, propeller, ESC, battery, and frame should be selected as one complete power system.

Component	What to Check
Propeller	Use a 13–15 inch propeller matched to the selected KV and voltage.
ESC	Use an ESC rated for the system voltage and the motor's current requirements. T-HOBBY recommends its C80A 5–12S single ESC for the KV300 test setup.
Battery	KV500: 8S LiPo. KV300: 12S LiPo.
Frame	Best suited to large X4 or X8 cinematic/heavy-lift frames.

Which V5315 Should You Choose?

Choose the KV500 if your build is based on an 8S power system and you want a high-power 13–15 inch cinematic platform.

Choose the KV300 if you are building around 12S for heavier cinematic payloads and long-duration heavy-lift applications.

For either version, do not select the motor independently. Match the KV, battery voltage, propeller, ESC, and frame as a complete system to keep the large propeller and heavy payload under control.

Specifiction

Type	V5315	Motor Dimension	Φ62*44.7mm
Magnet	Galvanized Arc Magnet	Coil insulation test	500V withstand voltage test(3s)
Waterproof and dustproof class	/	Configuration	12N14P
Dynamic balance requirements standards	≤5mg	Bearings	Imported 606-ZZ
Shaft Diameter	4mm	Lead	14AWG*600mm
Screw Diameter	Φ30-M4-4	Prop Adapter Shaft Thread	Φ15/Φ12-M3-4/M6 (with prop adaptor)
Packing Size	12010045mm	Packing Weight	420g

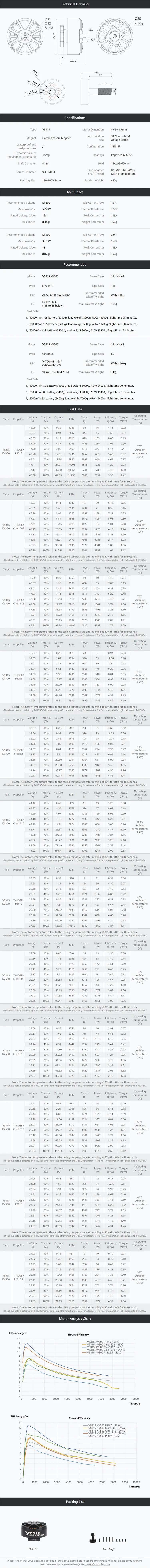

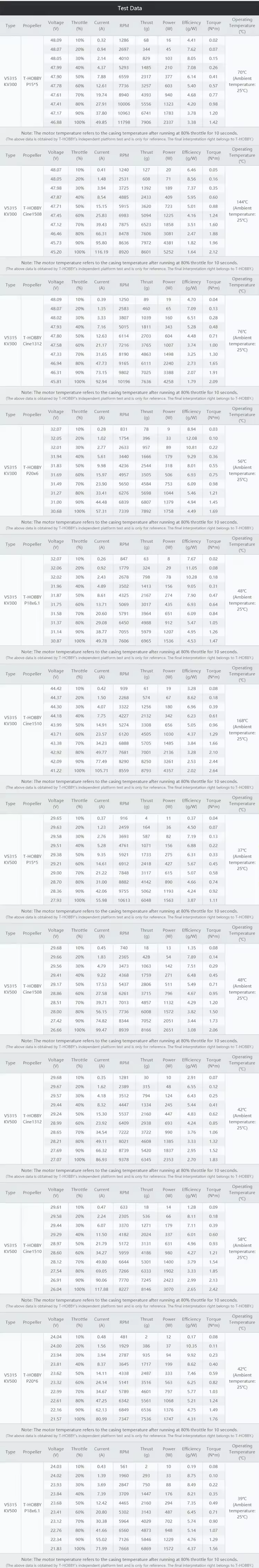

Tech Specs
Recommended Voltage	KV300	Idle Current(10V)	1.8A
Max Power(1s)	5252W	Internal Resistance	32mΩ
Rated Voltage (Lipo)	12S	Peak Current(1s)	116A
Max Thrust	8600g	Weight (inc.cable)	390g
Recommended Voltage	KV500	Idle Current(10V)	2.9A
Max Power(1s)	3070W	Internal Resistance	15mΩ
Rated Voltage (Lipo)	8S	Peak Current(1s)	116A
Max Thrust	8166g	Weight (inc.cable)	390g

Recommended
Motor	V5315 KV300	Frame Type	15 Inch X4
Prop	Cine1510	Lipo Cells	12S
ESC	C80A 5-12S Single ESC	Recommended takeoff weight	Within 9kg
FC	F7 Pro+BEC (12S to 8S below)	Max Takeoff Weight	16kg
Test Data: 1、10000mAh 12S battery (5200g), load weight 3000g, AUW 11200g, flight time 28 minutes. 2、20000mAh 12S battery (5200g), load weight 5000g, AUW 13200g, flight time 20 minutes. 3、8000mAh 12S battery (5200g), load weight 7000g, AUW 15200g, flight time 15 minutes.
Motor	V5315 KV500	Frame Type	15 Inch X4
Prop	Cine1508	Lipo Cells	8S
ESC	V-70A-4IN1-8S/ C-80A-4IN1-8S	Recommended takeoff weight	Within 10kg
FC	Velox F7 SE 8S/F7 Pro	Max Takeoff Weight	18kg
Test Data: 1、10000mAh 8S battery (3400g), load weight 3000g, AUW 9400g, flight time 20 minutes. 2、20000mAh 8S battery (3400g), load weight 5000g, AUW 11400g, flight time 16 minutes. 3、8000mAh 8S battery (3400g), load weight 7000g, AUW 13400g, flight time 10 minutes.
