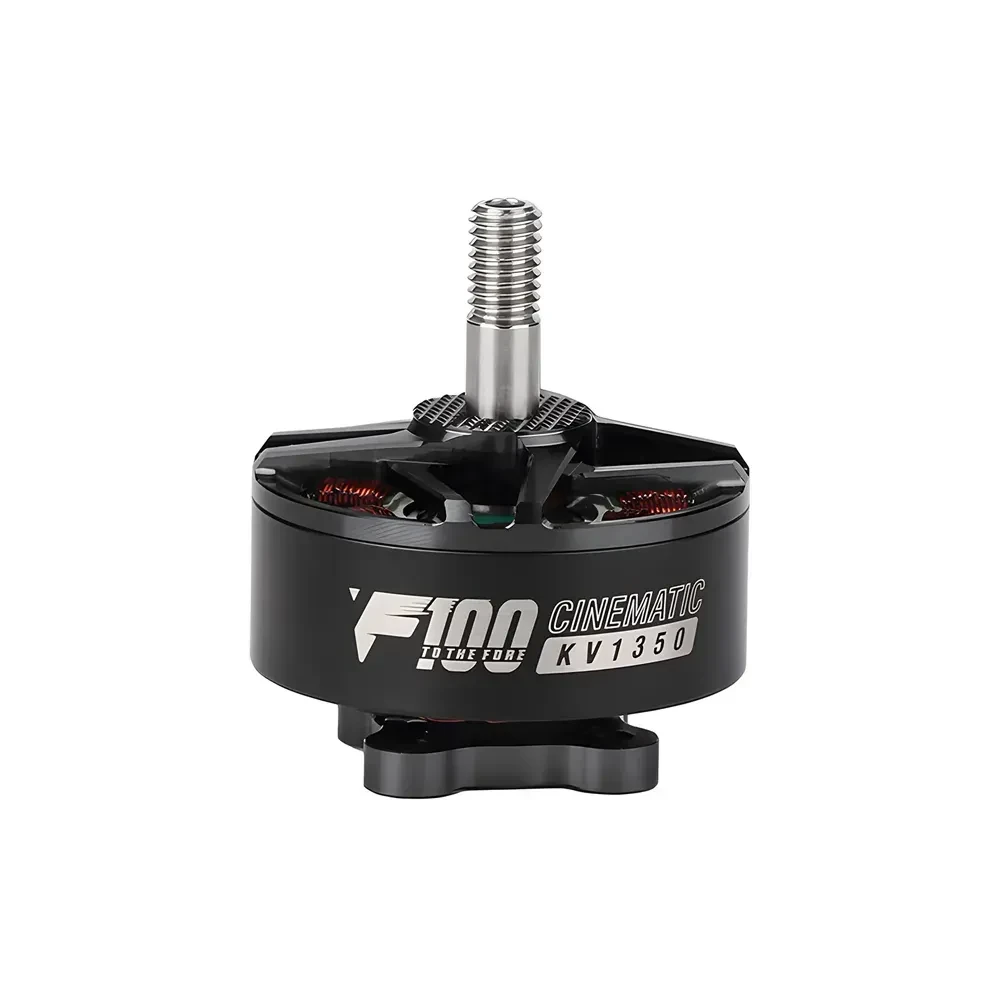

T-HOBBY F100 2810 FPV Cinematic Brushless Motor for 7-8 inch Cinematic Drones

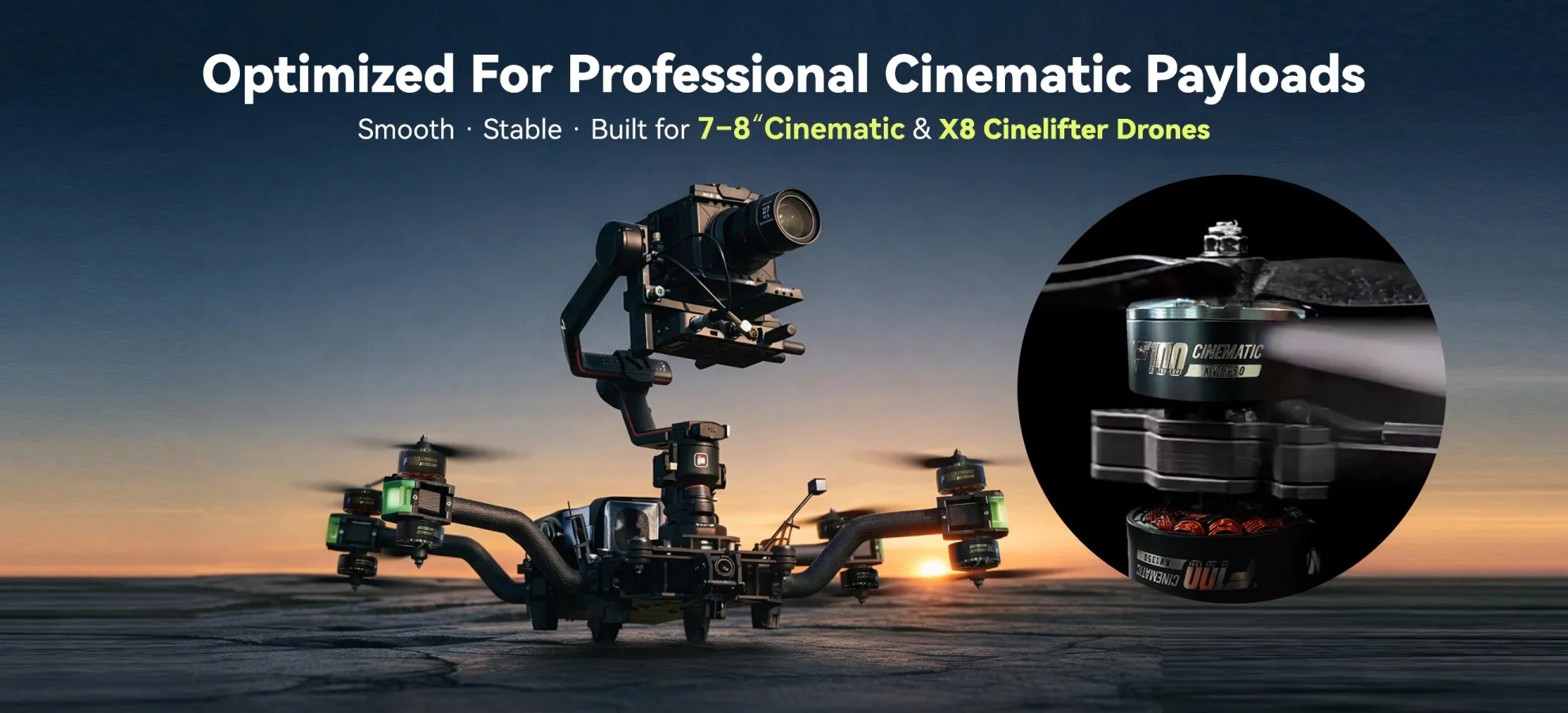

Optimized for Professional Cinematic Payloads

Smooth · Stable · Built for 7–8” Cinematic & X8 Cinelifter Drones.

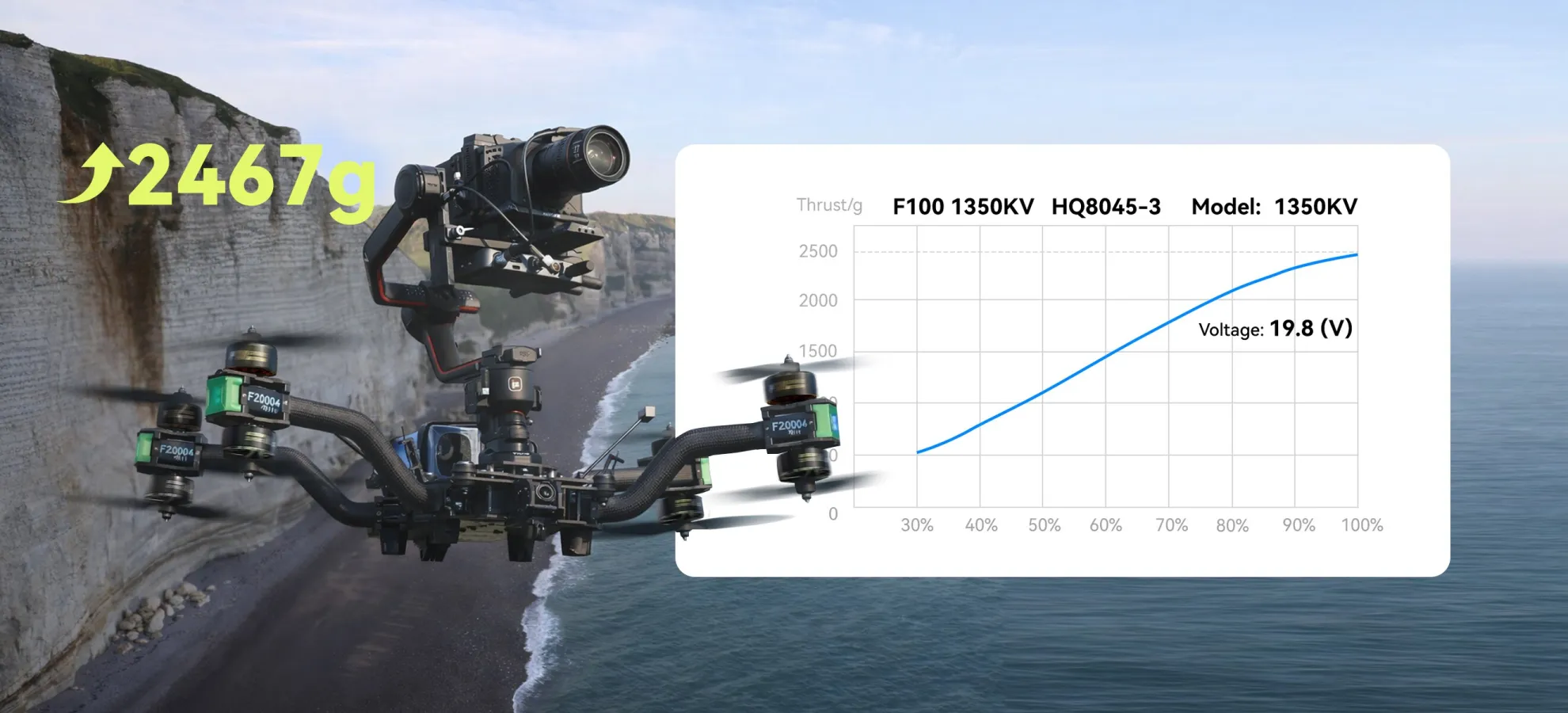

2467g Max Thrust for Cinematic

The T-Hobby F100 2810 motor delivers industry-leading 2467g thrust, enabling heavy camera setups and diverse shooting styles for professional 7-8" cinematic drones.

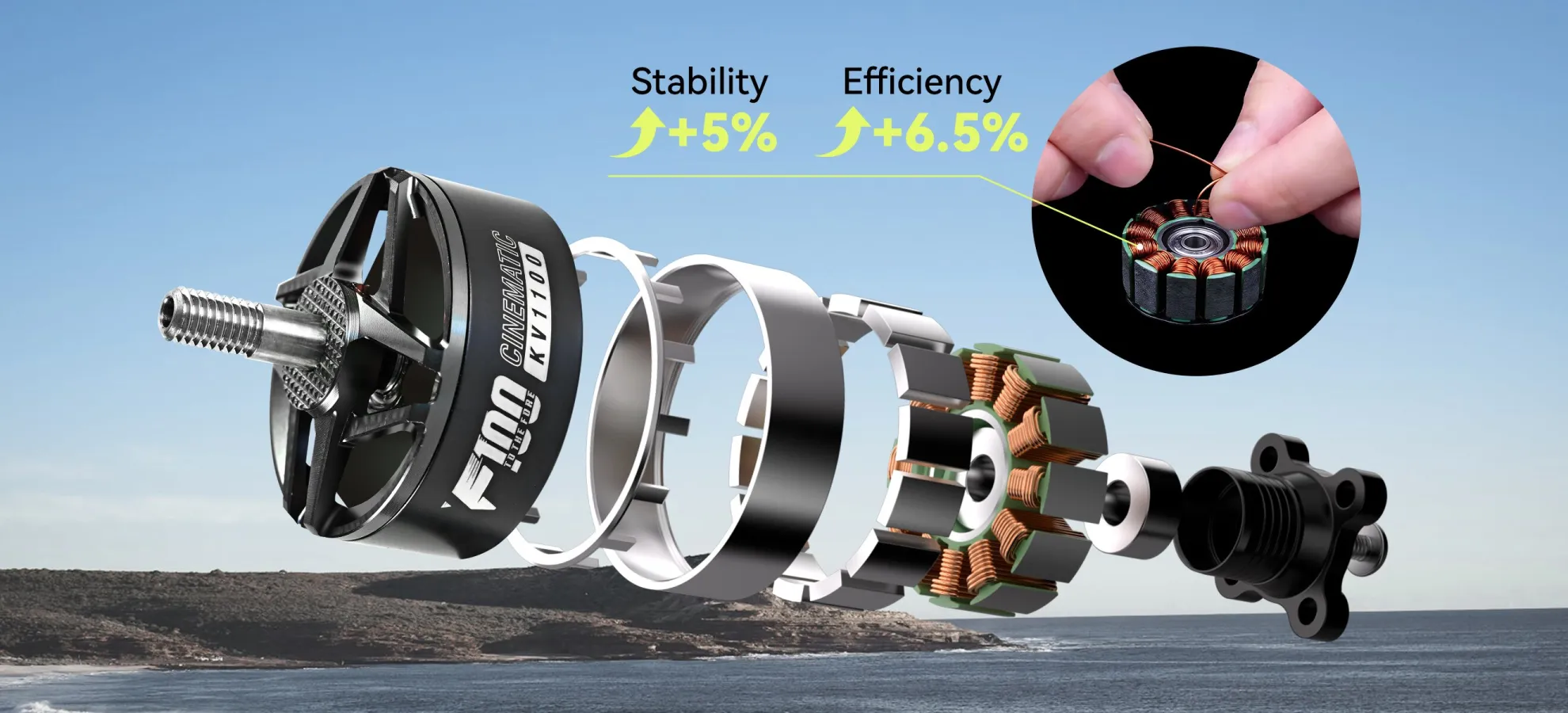

Efficient & Reliable Performance

With strong stator magnets and optimized winding, the motor provides efficient, consistent power output over long flights.

Design: Precision Unibell structure for better balance and reduced vibration

Winding: Hand-wound copper coils, stability +5%, efficiency +6.5%

Magnets: High-strength stator magnets for consistent torque

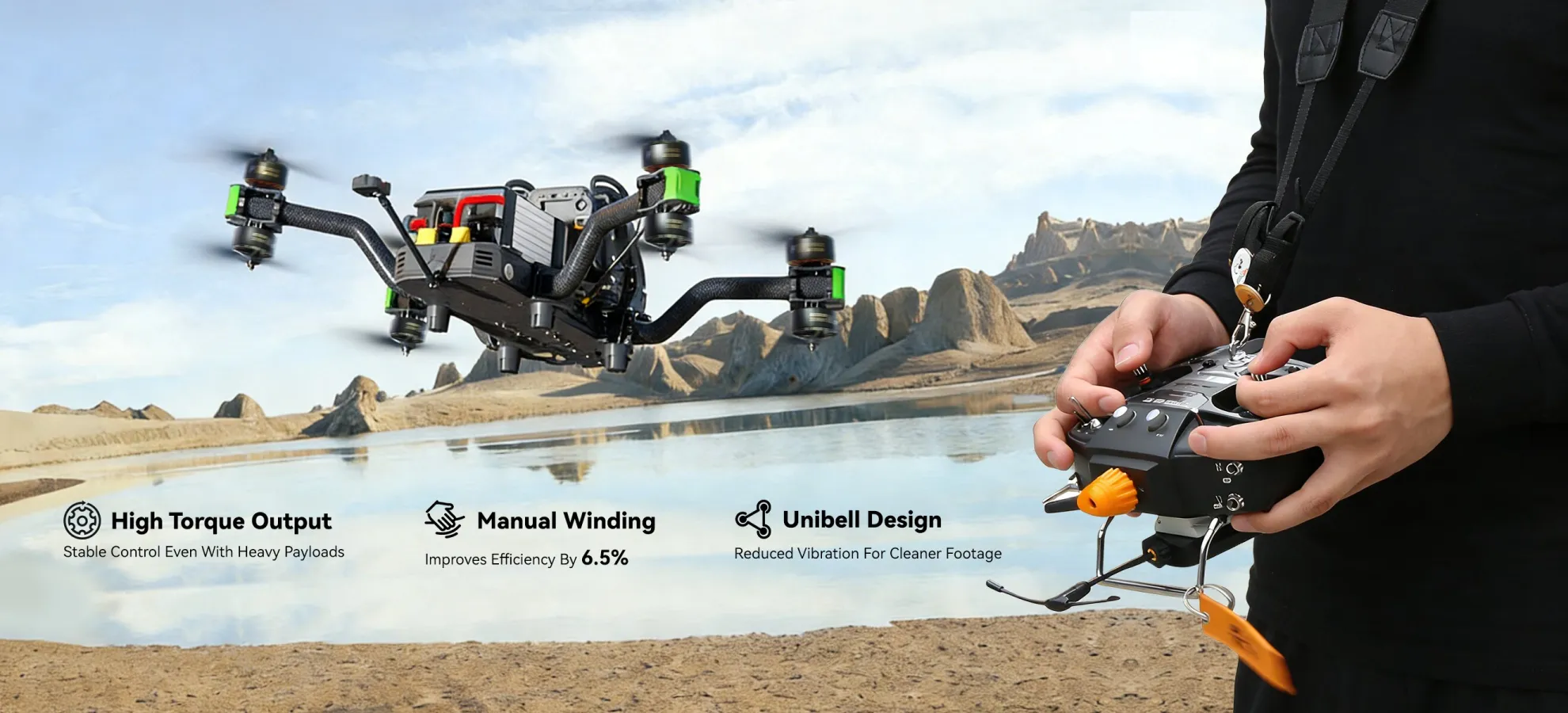

Precision Power for Cinematic Maneuvers

With an optimized winding layout and a precision unibell design, the T-hobby F100 2810 motor delivers smooth, predictable throttle control and strong, stable lift for heavy HD camera setups. The efficient design reduces battery stress during long filming sessions, while the low-vibration structure helps minimize jello and micro-shakes, giving you cleaner, more professional cinematic footage.

Pro-Grade Cinematic Motor

F100 2810 delivers precision power and ultra-smooth operation, engineered specifically for professional 7-8" cinematic drones. Its robust black housing and optimized propeller grip ensure reliable performance in demanding shoots

T-HOBBY F100 2810 FPV Cinematic Motor Buying Guide

The T-HOBBY F100 2810 FPV Cinematic Brushless Motor is a high-power motor designed for 7–8 inch cinematic FPV drones, Cinelifter X8 builds and long-range platforms carrying HD cameras. Available in 1100KV and 1350KV, the F100 2810 combines a large 28mm stator, smooth low-throttle control and strong high-throttle power. With a published maximum thrust of approximately 2467g per motor, it is built for cinematic platforms where stable lift, payload capability and predictable throttle response are more important than lightweight freestyle performance.

Why Choose the F100 2810 for 7–8 Inch Cinematic Drones?

A 7–8 inch cinematic drone has very different propulsion requirements from a 5-inch freestyle or racing quad.

Larger propellers and heavier camera equipment require more torque and sustained thrust. At the same time, cinematic pilots usually want smooth throttle control rather than an extremely aggressive motor response.

The F100 2810 addresses these requirements with a 28mm stator diameter and 10mm stator height, combined with relatively low KV options.

F100 2810 vs Other 7–8 Inch Motors Available at MEPSKING

Recommended 7–8 Inch Cinematic Setup

Choosing the Right Battery

F100 2810 for X8 Cinelifter Builds

The F100 2810 is particularly interesting for X8 Cinelifter configurations.

An X8 uses eight motors, allowing the aircraft to generate substantial total lift from a relatively compact frame. This architecture is often used when carrying heavier camera equipment.

T-HOBBY specifically lists 7–8 inch X8 frames as a recommended application for the F100 2810.

For an X8 build, however, motor selection is only one part of the system.

You also need to consider:

Eight-motor ESC architecture, total aircraft weight, camera payload, propeller clearance, battery capacity, flight controller configuration, cooling, redundancy and safety, total power consumption.

The F100's high thrust makes it appropriate for this type of platform, but the complete aircraft must still be designed around the intended payload.

Final Recommendation

The T-HOBBY F100 2810 is designed around a very specific job: powering large 7–8 inch cinematic and Cinelifter drones that need strong, stable and predictable propulsion.

Its combination of a 2810 stator, 1100KV / 1350KV options, Unibell construction and approximately 2467g published maximum thrust makes it particularly suitable for heavy cinematic platforms.

For most 7–8 inch 6S cinematic builds, the 1100KV version is the safer starting point when smoothness, efficiency and flight endurance are the priority.

Choose 1350KV when you want stronger throttle response and more dynamic cinematic performance.

A straightforward reference setup is:

F100 2810 1100KV + 6S 5200mAh battery + 7–8" propellers + high-current 6S ESC + 7–8" cinematic/X8 frame

For pilots carrying heavier camera equipment or building a professional-style Cinelifter, the F100 2810 offers the power reserve and motor size needed to move beyond conventional 7-inch long-range builds.

The key is to match the KV, propeller, battery, ESC and total takeoff weight as one complete propulsion system rather than selecting the motor in isolation.

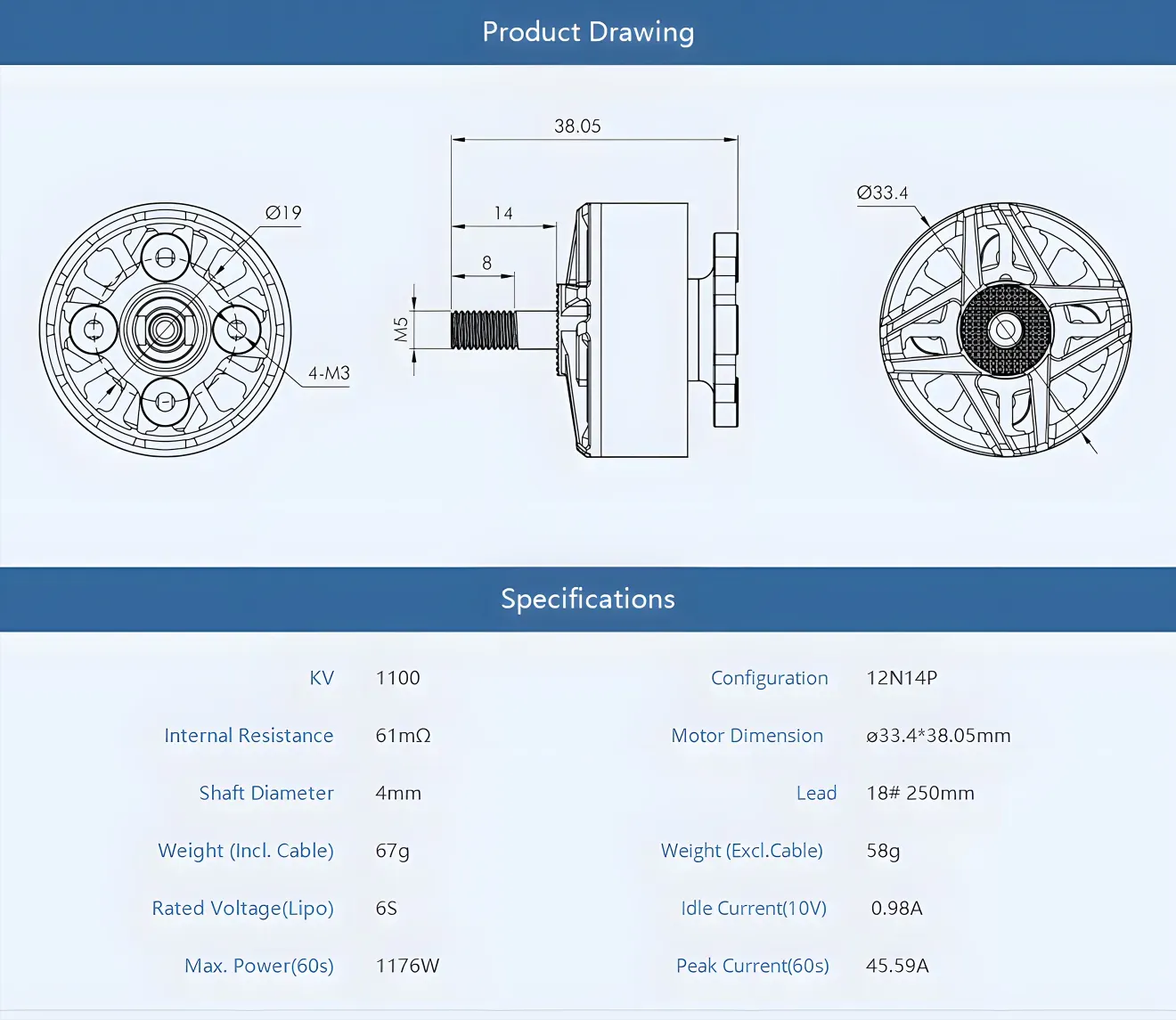

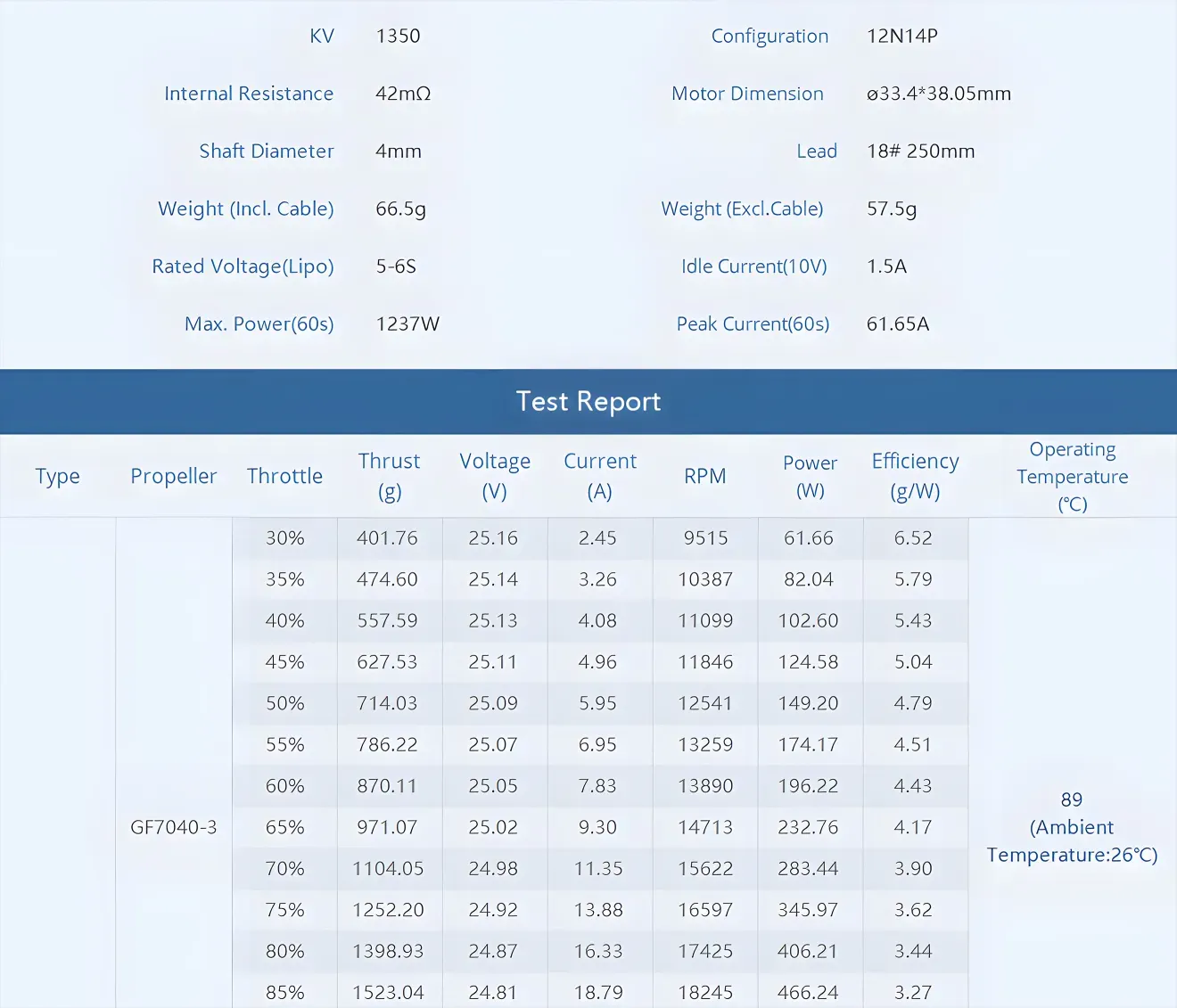

Specifications
