Buying Guide: Choose the Right Setup for T-HOBBY Cine99 4220
The T-HOBBY Cine99 4220 350KV is built for large cinematic and long-range FPV drones where smooth control, high torque, payload capacity, and flight efficiency matter more than aggressive acceleration.
With a 4220 stator and low 350KV rating, Cine99 is designed to turn larger propellers efficiently and provide the torque needed for heavy cinematic builds. Each motor can produce 8kg+ of maximum thrust, making it suitable for demanding camera and payload configurations.
Is the Cine99 4220 350KV Right for Your Drone?
Choose the Cine99 if your build matches most of the following:
-Drone size: Large cinematic or long-range FPV
-Typical frame class: Approximately 13–18 inches
-Flying style: Cinematic filming, long range, heavy lift
-Priority: Smoothness, stability, torque, and endurance
-Payload: Camera, gimbal, action camera, or other heavy equipment
-Battery: 6S–8S setups, depending on the complete power system
-Propeller: Large-diameter, relatively low-pitch propellers
It is not intended for typical 3–5 inch racing or freestyle builds. The 350KV winding is optimized for large-propeller, high-torque applications rather than high-RPM racing performance.
How Many Motors Do You Need?
For a conventional quadcopter:
4 × Cine99 4220 350KV motors
For larger heavy-lift platforms:
6 × Cine99 motors for a hexacopter
8 × Cine99 motors for an octocopter
For professional cinematic builds, using multiple motors can provide additional lifting capacity and power redundancy. Always size the total propulsion system according to your aircraft's all-up weight, propeller choice, battery voltage, and desired thrust-to-weight ratio.
Choose Your Propellers Carefully

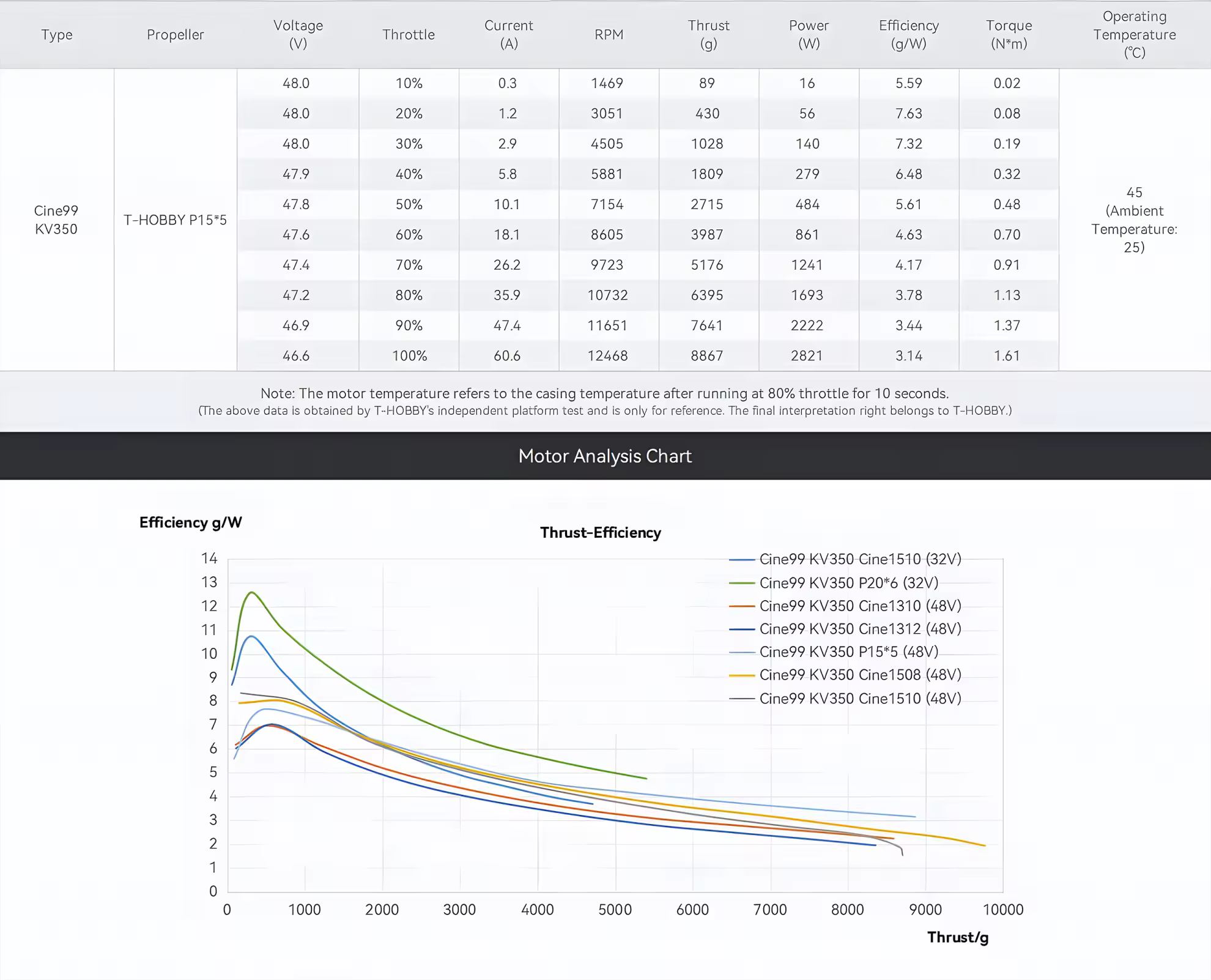

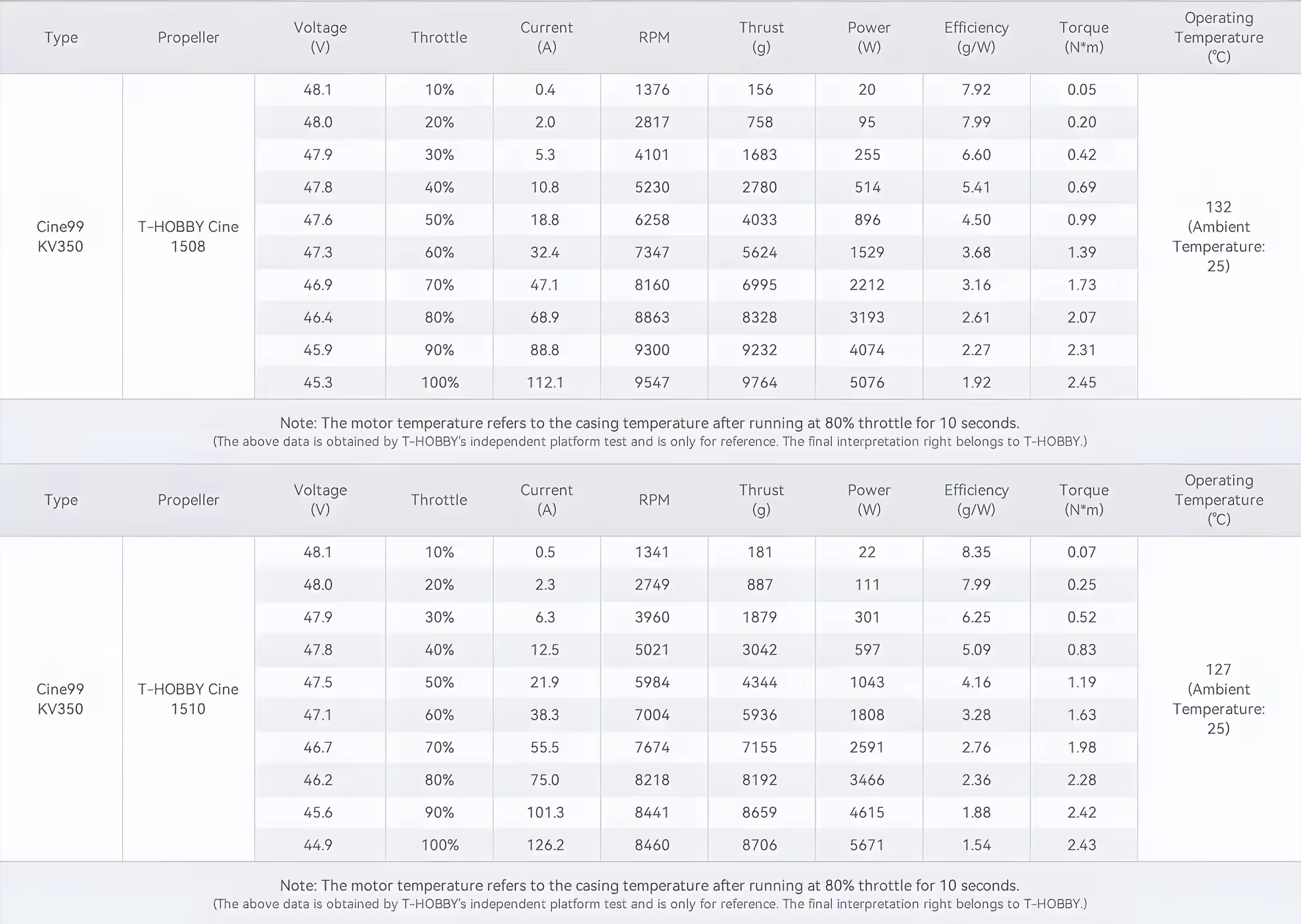

Cine99's low 350KV rating is designed around larger propellers. T-HOBBY recommends applications using approximately:
15 × 5
16 × 5.4
18 × 6
Larger propellers can provide the low-speed thrust and efficiency needed for cinematic flight, but the final propeller choice should always be checked against the motor's voltage, current, ESC rating, frame clearance, and flight-controller configuration.
Tip: Do not select a propeller based on diameter alone. Pitch, blade design, propeller material, battery voltage, and aircraft weight all affect current draw and flight performance.
Choose the Right Battery
Cine99 is intended for high-voltage, large-aircraft power systems. A suitable starting range is: 6S–8S LiPo. Approximately 4000–8000mAh. The correct battery depends heavily on your aircraft's total weight and propulsion configuration.
For longer cinematic flights, prioritize:
-Adequate voltage for the selected motor/prop combination
-Sufficient capacity for your target flight time
-High enough discharge capability for peak current
-Reasonable battery weight
A larger battery does not automatically mean longer flight time. Once battery weight becomes excessive, the additional capacity can be offset by the extra lift required.

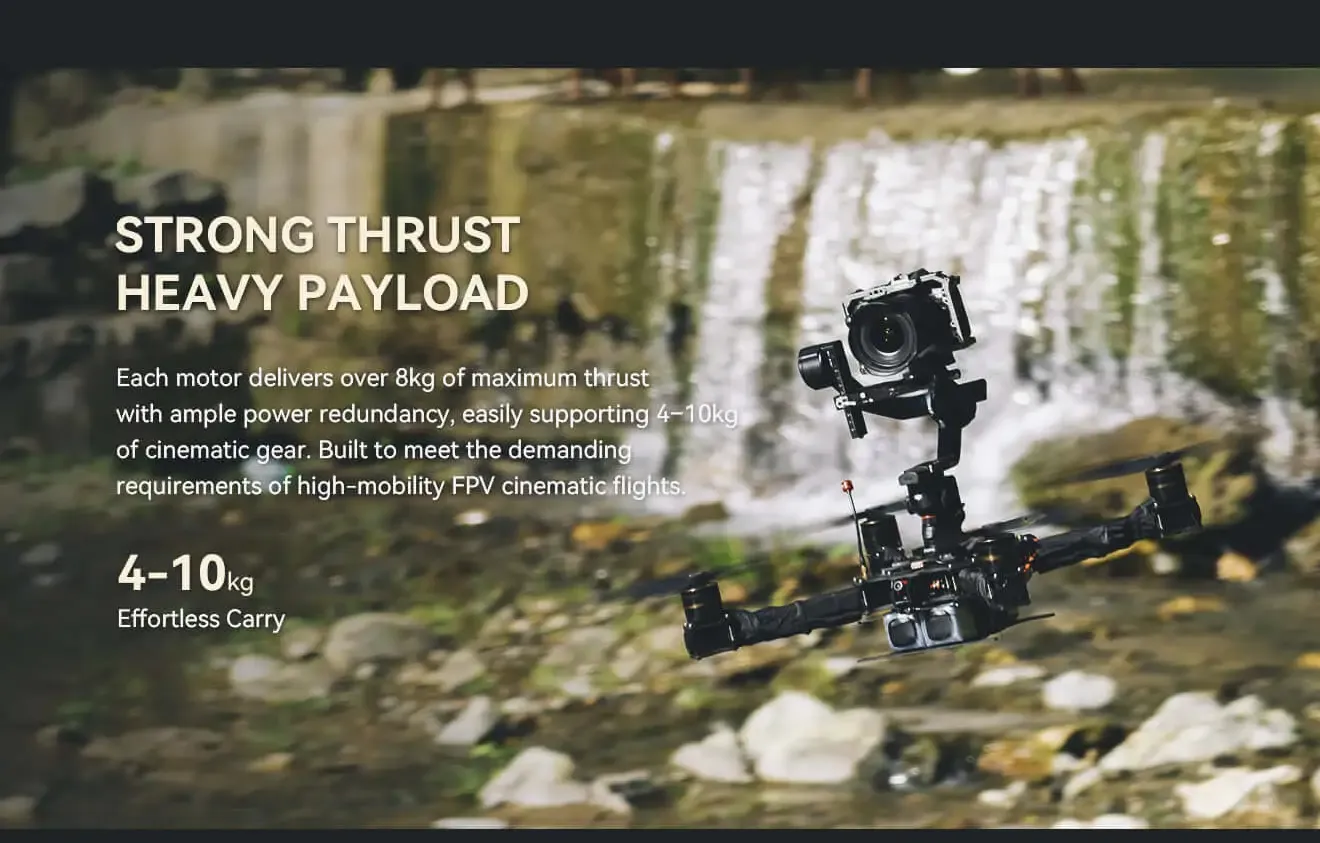

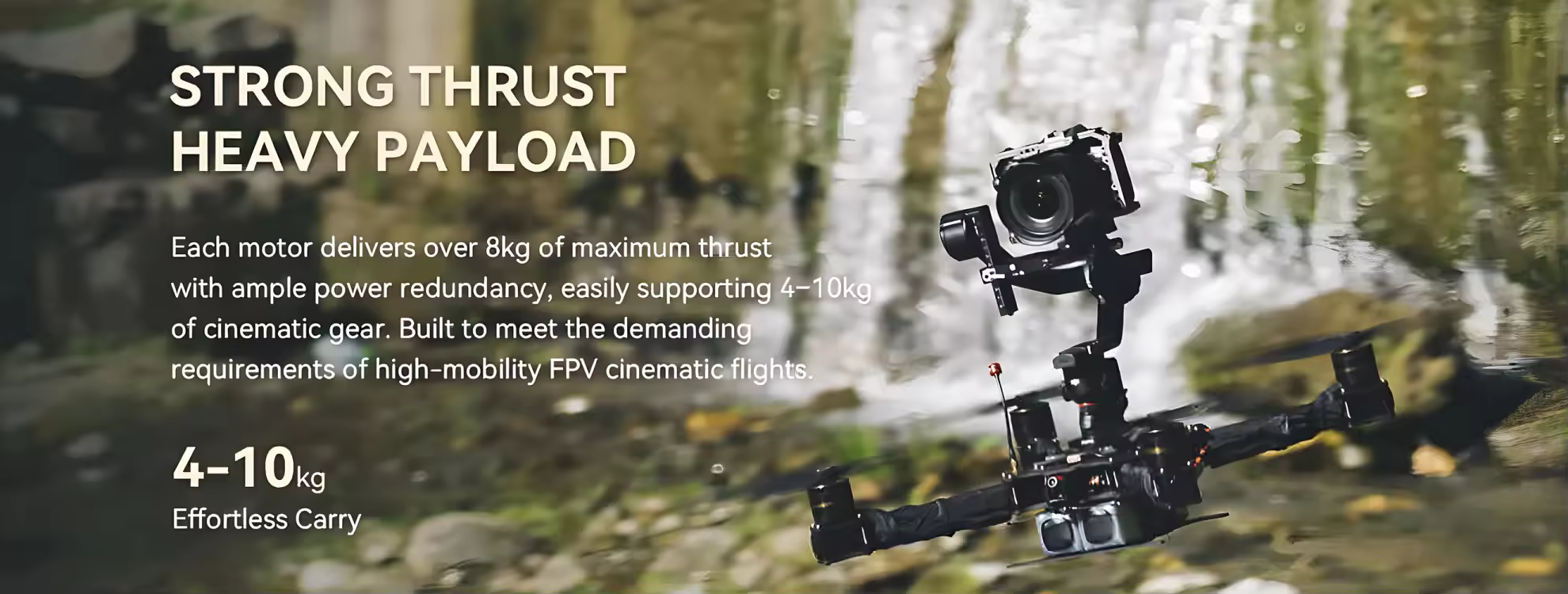

What Payload Can Cine99 Handle?
Cine99 is designed for cinematic aircraft carrying substantially more than a typical action-camera FPV drone.
The manufacturer specifies 4–10kg cinematic payload applications, while each motor is rated for 8kg+ maximum thrust. These figures should not be interpreted as a recommendation to operate continuously at maximum thrust. Real-world payload capability depends on the number of motors, propellers, battery, aircraft weight, altitude, temperature, and required safety margin.
Suitable applications include:
-GoPro or action cameras
-Insta360 cameras
-Professional cinema cameras
-Gimbal-mounted camera systems
-Long-range cinematic platforms
-Heavy-lift FPV filming rigs
