GEPRC EM4214 660KV Motor Buying Guide
The GEPRC EM4214 660KV is a large-format brushless motor designed for 6S long-range FPV, heavy-lift, and cinematic platforms. With a 42mm stator, 660KV winding, and support for 12–14 inch propellers, it is built for applications where high torque and sustained thrust are more important than lightweight freestyle performance.
Who Is the EM4214 660KV For?
This motor is a good fit for pilots building 12–14 inch long-range FPV drones, aerial photography platforms, or larger cinematic rigs running a 6S LiPo system. Its large stator and high-torque magnetic design are intended to handle large propellers and heavier aircraft.
| Specification | EM4214 660KV | What It Means for Your Build |
|---|
| KV | 660KV | Suitable for large-prop 6S applications |
| Battery | 6S LiPo / 25.2V | Use a 6S power system |
| Propeller | 12–14 inch | Designed for large long-range props |
| Peak Current | 90A | Requires a properly rated high-current ESC |
| Max Power | 2120W | Provides substantial power for large aircraft |
| Motor Weight | 246g incl. wire | Designed for larger builds rather than lightweight quads |
Why 660KV for a 6S Long-Range Build?
KV indicates the motor's theoretical unloaded RPM per volt. A 660KV motor is intended for relatively large propellers when paired with 6S voltage. Instead of using a high-KV motor with a small propeller, the EM4214 combines a lower KV winding with a much larger motor stator to produce the torque required for 12–14 inch propellers.
For this motor, the key point is not simply choosing a low KV. The 660KV + 6S + 12–14 inch propeller combination should be considered as one complete power-system setup.
Match the Motor with the Right ESC and Propeller
The EM4214 can draw up to 90A peak current, so the ESC should be selected with sufficient current headroom. GEPRC recommends an 80–100A ESC for this motor.
| Component | Recommended Setup | Key Point |
|---|
| Battery | 6S LiPo | The motor is specified for 25.2V 6S input |
| Propeller | 12–14 inch | Stay within the manufacturer's recommended range |
| ESC | 80–100A | Provides appropriate current capacity for the motor |
| Frame | 12–14 inch long-range / cinematic | The motor is too large for typical 5–7 inch builds |
Installation and Compatibility

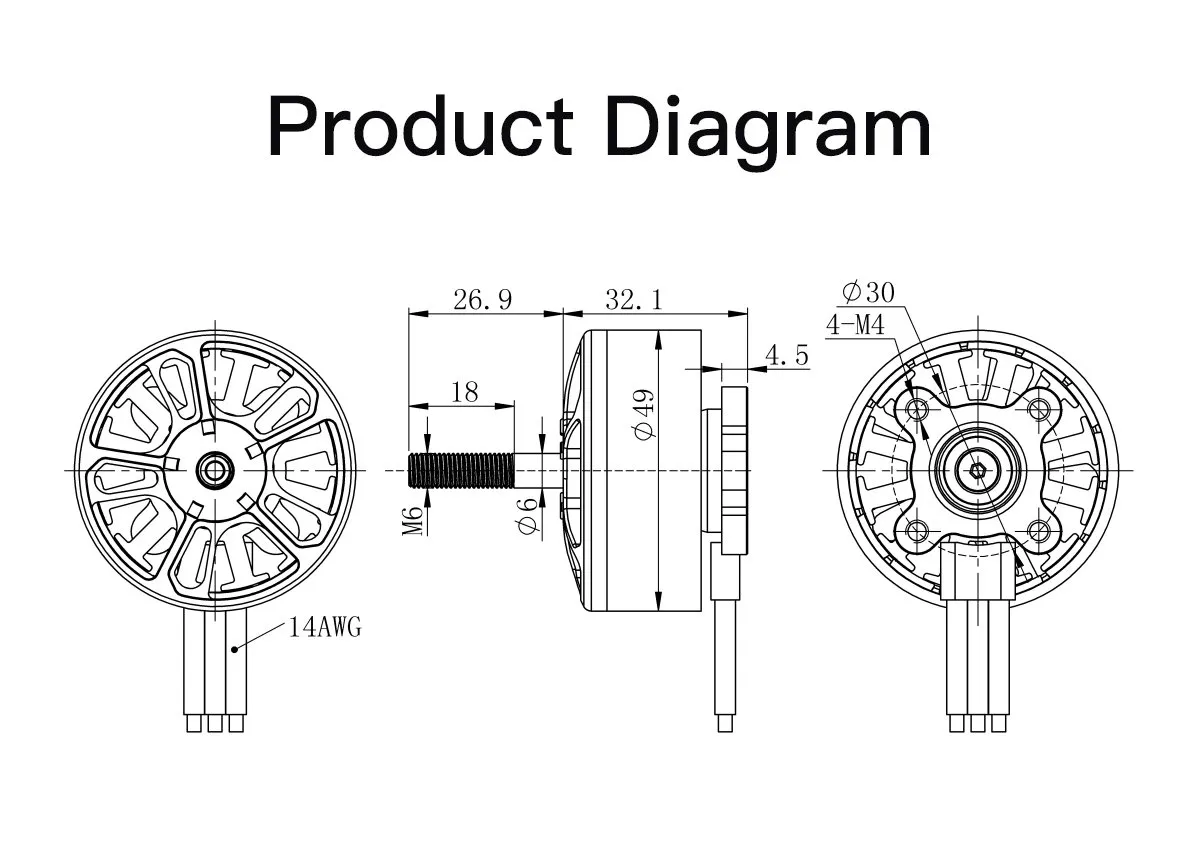

The EM4214 uses a 6mm shaft and a 30 × 30mm mounting pattern. It comes with an 800mm 14AWG motor lead, giving you plenty of cable length for larger frames where the motors are positioned far from the center electronics.
The motor uses a high-strength M6 steel shaft, N52H magnets, NMB bearings, and a 12N14P configuration. These specifications are suited to the mechanical and torque requirements of large-propeller FPV builds.
Is the EM4214 660KV Right for Your Build?
| Your Build | EM4214 660KV |
|---|
| 12–14" 6S long-range | Excellent fit |
| Large cinematic platform | Good fit |
| Heavy-lift 6S build | Good fit |
| 5" freestyle FPV | Not suitable |
| Small 4–7" long-range build | Oversized |
Bottom line: Choose the GEPRC EM4214 660KV when you are building a large 6S, 12–14 inch FPV platform and need a motor designed around large propellers, high torque, and substantial power output. For smaller long-range builds, a smaller motor will generally be a more appropriate choice.
