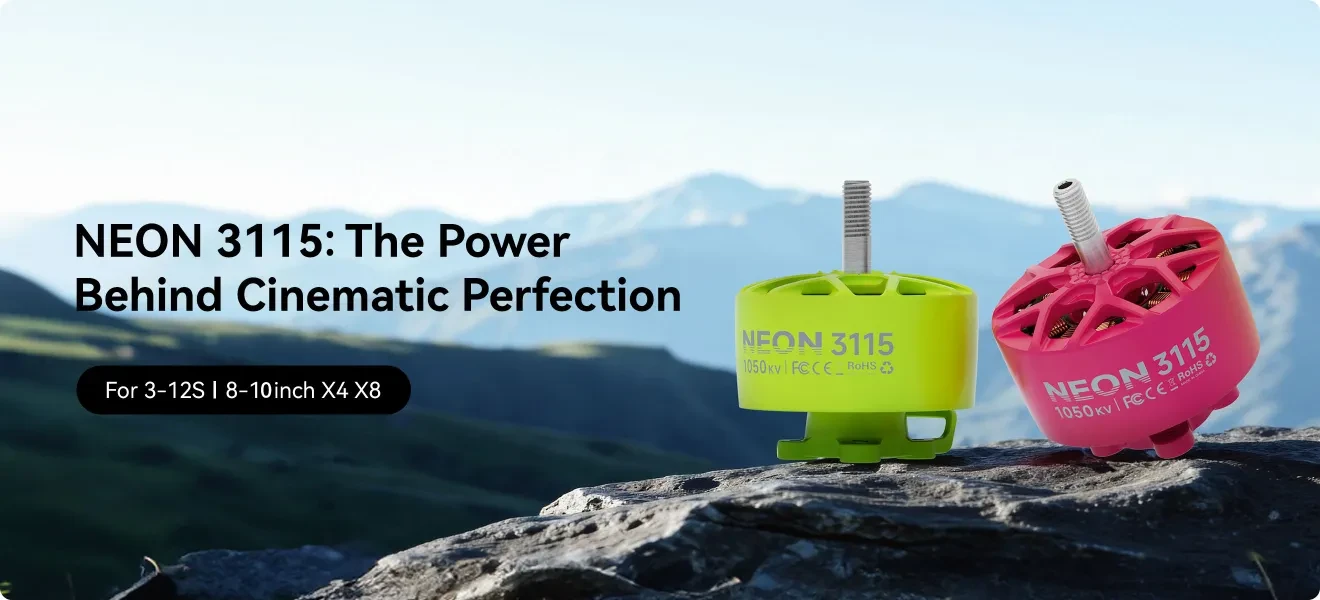

MEPS NEON 3115 Drone Motor for 8-10 inch Cinematic FPV Drone 1050KV

Cinema-Grade Powerhouse, Built for Stability

Designed specifically for 8-10" cinematic FPV drones. The large 3115 stator and tuned 1050KV rating provide a stable, powerful foundation for heavy camera payloads, making it the ideal choice for professional aerial filming

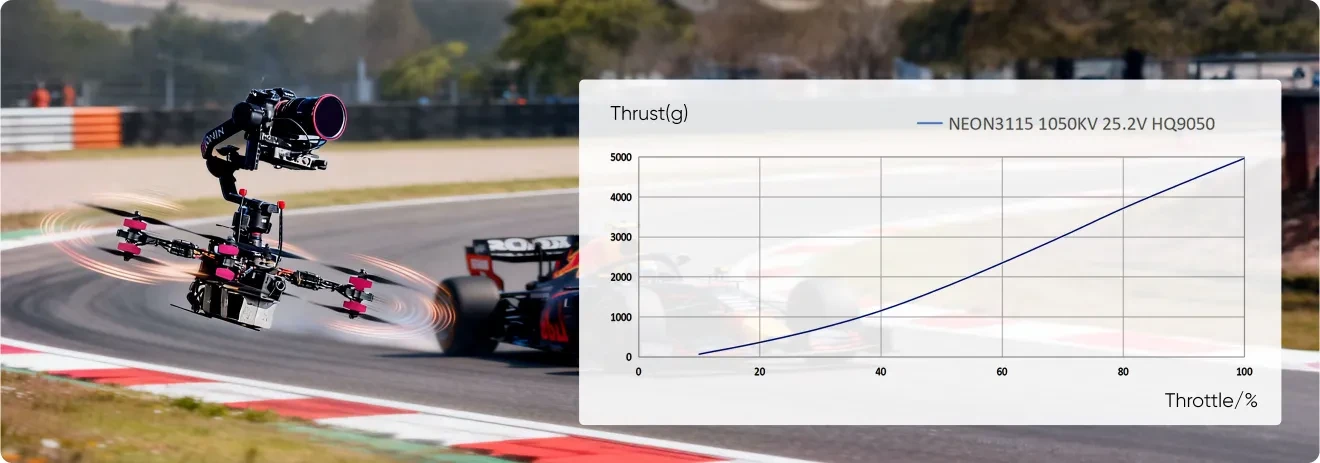

Stable Power: Eliminates Jitter for Buttery-Smooth Footage

Our unique design delivers unmatched rotational stability, eliminating high-frequency vibrations at the source. This means you get perfectly smooth, cinematic-quality video straight from the camera, every time.

Ultra-Quiet Operation for Pristine Audio

The NEON 3115 significantly reduces operational motor noise, allowing your drone to fly "stealthier". Capture clean ambient sound in audio-sensitive shooting environments, enhancing the overall quality of your production.

Fly Longer, Film Stronger: Optimized for 8-10" Drones

Our 20% lighter design extends flight time, while 31% increased thrust ensures rock-solid stability with heavy cameras.  The NEON 3115 is engineered as the perfect balance of power and efficiency for 6-8S long-range and cinematic FPV builds.

Built to Endure: 30% Longer Lifespan, Premium Components

The NEON 3115 is engineered for maximum durability. Featuring a robust 6082 aluminum alloy shell, top-tier magnets, NMB bearings, and a precision solid shaft, it's built to withstand the rigors of FPV. Experience a proven 30% increase in service life for unwavering performance, flight after flight.

Buying Guide: MEPS NEON 3115 Motor

Real-World Test & Spec Comparison

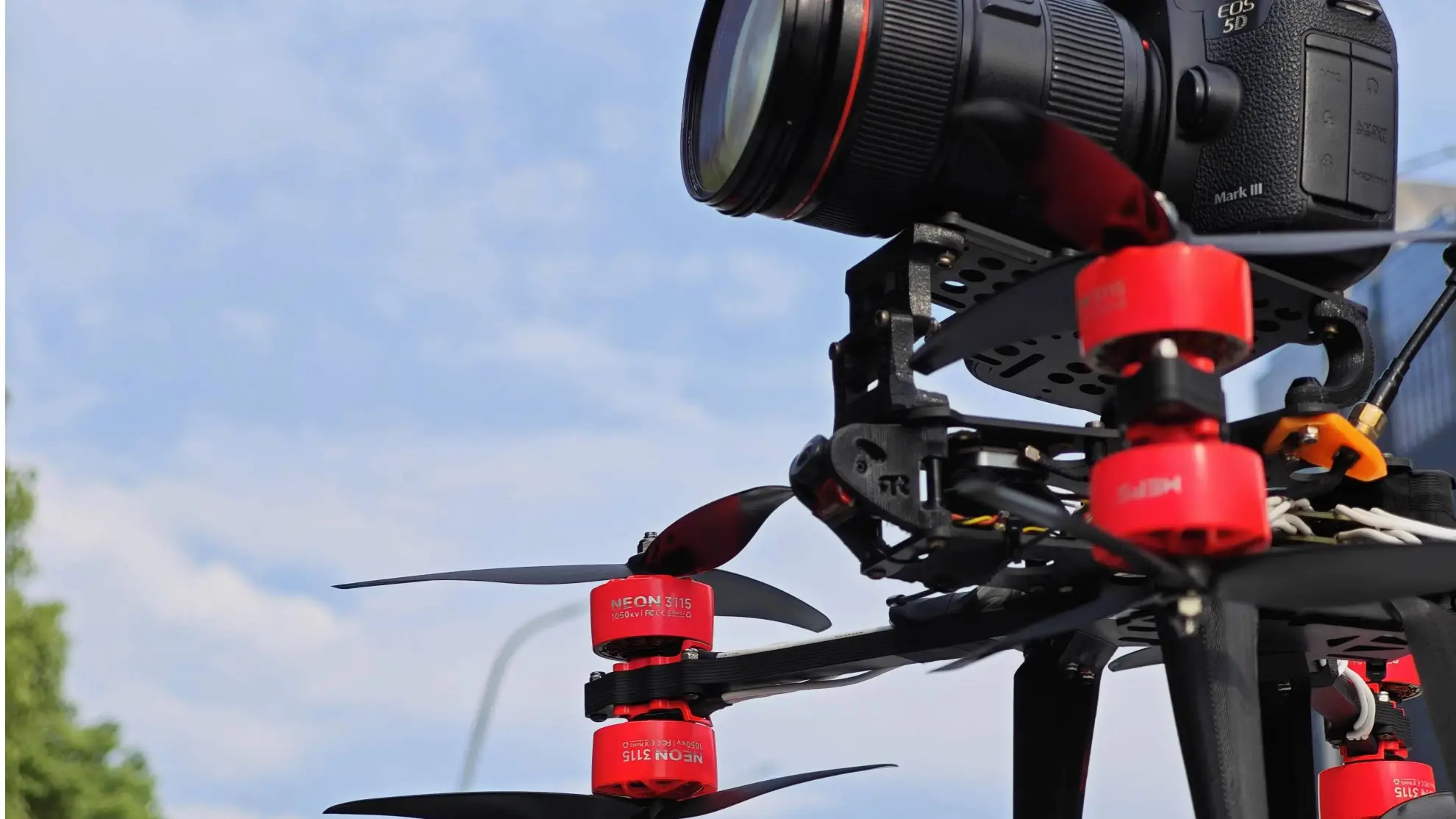

Building an extra-large 10-inch Long Range (LR) or heavy-lift cinematic FPV drone demands incredible thermal efficiency, extreme crash resistance, and massive thrust reserves. The MEPS NEON 3115 Motor is engineered specifically to conquer heavy payloads, strong high-altitude winds, and extended cruise times without thermal fade.Here is your ultimate buyer’s guide covering real-world field-test performance, ideal component pairings, and a head-to-head comparison against the T-Hobby V3115.

Real-World Field Test Performance Highlights

Based on intensive flight testing on 10-inch frames (carrying 5000mAh 6S LiPo, action cameras, and 2.5W high-power Analog/O4 Lite VTX systems):Monster Thrust Reserves (3.3kg+ per motor): The 1050KV variant running on 6S with 1045 propellers outputs over 3300g of peak thrust per axis (13.2kg+ total thrust), offering unmatched punch-out recovery and resistance against strong crosswinds.Jet-Like Flight Dynamics & Zero Jitter: Delivers a butter-smooth "creamy" flight profile during slow-speed cruising. Precision dynamic balancing keeps frame resonance ultra-low, allowing for clean HD footage that requires minimal Gyroflow stabilization.1050KV vs. Traditional 900KV Advantage: Raising the KV slightly from 900KV to 1050KV unlocks responsive freestyle agility on a 10-inch platform while maintaining exceptional cruise power efficiency.Heavy-Lift Compatibility: Smoothly handles large 6S 5000mAh LiPo packs (via XT90 connectors) or custom 9000mAh Li-ion battery packs for maximum flight time.

Recommended 10-Inch Long Range Hardware Setup

To get the absolute most out of your MEPS NEON 3115 motors, pair them with these field-tested component standards:

● Flight Controller & ESC Stack: F7 / H7 Flight Controller paired with a 60A 4-in-1 ESC running BLHeli_32 / AM32 (e.g., MEPS NEONCORE 60A Stack, iFlight BLITZ E65,T-HOBBY C80A 80A ESC).

● Frame Compatibility: 10-inch Long Range Frames with 19x19mm motor mounting patterns (e.g., iFlight Helion 10, Mark4 10", GepRC Crocodile10).

● Propellers: 10-inch props (e.g., HQProp 1045 / Gemfan 1050 bi-blade or tri-blade propellers).

● Battery & Connector: 6S 5000mAh 70C+ LiPo or 6S 9000mAh Li-ion pack equipped with low-resistance XT90 connectors to handle prolonged high-amp draws smoothly.

Radio & Video Link: 868MHz / 915MHz / 2.4G ELRS Diversity receiver paired with a high-power VTX system (e.g., Rush Max Solo 2.5W Analog VTX or DJI O4 Lite / O3 Air Unit).

Why Choose the MEPS NEON 3115?

The MEPS NEON 3115 1050KV isn't just about raw power—it’s a jet-like platform for ultra-smooth 10-inch cruising. It provides the exact thrust reserves needed to fly through strong winds, pull out of dives effortlessly, and protect your rig on long-distance exploration."If you are stepping up from 7" to 10" rigs and need reliable 3300g+ thrust per motor, low motor heat, and total throttle precision, the MEPS NEON 3115 stands out as an exceptional, high-value 5-star choice for 2026 heavy-lift builds.

💡 Pro Pilot Tip: When running heavy 10-inch builds, always upgrade your power leads and main battery connectors to XT90. This prevents connector overheating during long high-throttle cruises while ensuring maximum current transfer to your 60A ESC stack.

MEPS NEON 3115  vs. T-Hobby V3115

(Test Data: 1050KV+HQ1045 Prop）

Specifications

Recommended Parts

● T-HOBBY C80A-4IN1-8S 80A ESC Dual MOSFET for FPV Drone

● T-HOBBY Velox F7 SE Flight Controller - 30.5x30.5 F7 FC for FPV Drones

● MEPS 8045 FPV Propeller for 8 inch FPV Drone

Size Chart

Recommendations

Package Included

Data Test
