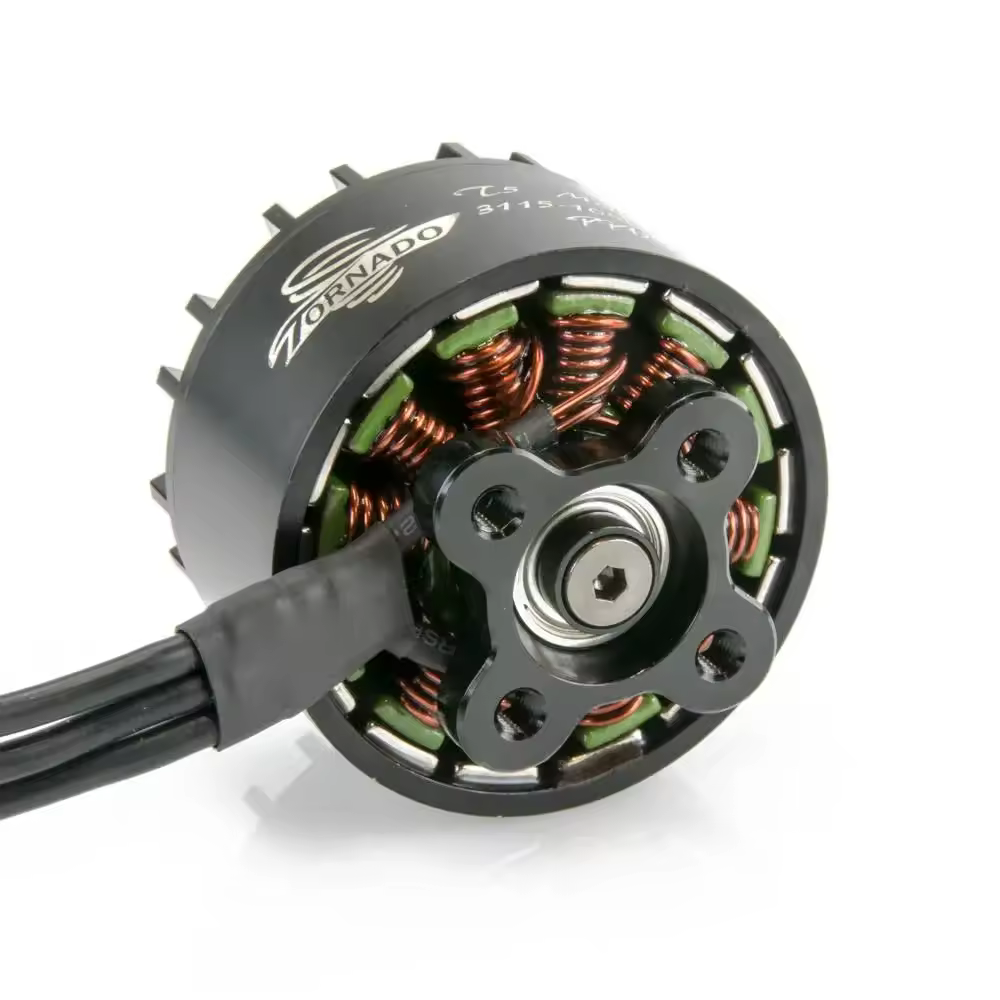

BrotherHobby Tornado T5 3115 Pro Motor for 8-12 inch FPV drone

Specifications

KV: 480KV / 640KV / 900KV / 1050KV

Base casing: Al 7075

Stator: 0.2mm Kawasaki silicon steel

Configuration: 12N14P

Prop Adapter Shaft Thread: M5

Shaft: Titanium Alloy hollow shaft

No.of Cells(Lipo): 5-8S

Bolt Pattern: M3 (19X19mm)

Bearings: Japanese NMB 11mm X 5mm X 5 mm

Rotor: N52H arc magnets

Weight: 116g with 30cm SR wires

Wire AWG: 16AWG 30cm length

Bell cap: Al 7075

Buyer’s Guide:  BrotherHobby Tornado T5 3115 Pro Motor

When engineering an 8-inch to 12-inch heavy-lift cinema platform, an X8 industrial rig, or an ultra-long-range exploration drone, low-RPM authority, magnetic saturation headroom, and mechanical stiffness are paramount. The BrotherHobby Tornado T5 3115 Pro Motor combines an oversized 3115 stator, premium 7075-grade aircraft aluminum casing, and a hollow titanium alloy shaft to deliver cinema-grade thrust stability and vibration suppression under multi-kilogram camera payloads.

Pilot Flight Impressions

"Putting the Tornado T5 3115 Pro motors on an 8S 10-inch mountain exploration rig completely transformed how the aircraft manages heavy crosswinds and full-throttle climbs. The 31mm wide stator provides instantaneous throttle grab—hauling a cinema camera and large battery packs feels effortless, with zero hesitation when pulling out of rapid descents or popping over ridgelines. Because BrotherHobby balanced these bells down to microscopic tolerances and paired them with oversized Japanese NMB bearings, mechanical jitter is practically nonexistent, which leaves the HD video feed crystal clear and saves hours of tuning out low-frequency oscillations in Gyroflow. Even after long flights pushing 10-inch carbon props through high-altitude winds, the stator bell lands barely lukewarm thanks to the efficient 0.2mm Kawasaki steel laminations, and the hollow titanium shaft shrugs off hard turf landings without bending."

Recommended Ecosystem & Hardware Pairings

● Flight Controller & ESC Stack: 60A–80A 4-in-1 ESC Stack or individual ESCs supporting 6S–8S LiPo with STM32F722/H7 processing (e.g., T-HOBBY V70A SE 8S Stack, Flywoo GOKU F722 Pro V2 55A Stack).

● Propellers: 8-inch to 11-inch Heavy-Duty Carbon/Polycarbonate Propellers (e.g., HQProp 9x5x3, 10x4.5x3, 1050 bi-blade, or Gemfan 1050).

● Batteries & Connectors:

        ● 6S–8S High-Capacity LiPo: 6S/8S 4500mAh–6000mAh packs equipped with low-resistance XT90 connectors.

        ● Long-Range Li-Ion: 6S2P–8S2P 8000mAh–9000mAh 21700 packs (e.g., iFlight Fullsend 6S 8000mAh Li-Ion).

● Frames: 8-inch to 12-inch Long-Range and Cinelifter Carbon Frames (e.g., iFlight Helion 10, Mark4 10", GepRC Crocodile10).

● FPV & HD Systems: DJI O3 Air Unit, Walksnail Avatar HD Pro, or high-power analog video links with GPS rescue modules.

BrotherHobby Tornado T5 3115 Pro vs. MEPS NEON 3115

Selection Summary

● Choose the BrotherHobby Tornado T5 3115 Pro if: You are building an 8S high-voltage 9"–11" Cinelifter or an X8 heavy-payload platform where having multiple KV options (from 480KV to 1050KV), 7075 aircraft aluminum construction, and a hollow titanium shaft is critical for handling extreme structural stress and multi-kilogram camera rigs.

● Choose the MEPS NEON 3115 if: You are setting up a standard 6S 8"–10" long-range cinematic cruiser or heavy freestyle drone. Its factory 1050KV profile is pre-tuned for 6S LiPo/Li-Ion packs, delivering low resonance, smooth low-end cruising, and an agile weight-to-thrust balance without requiring high-voltage battery architecture.
