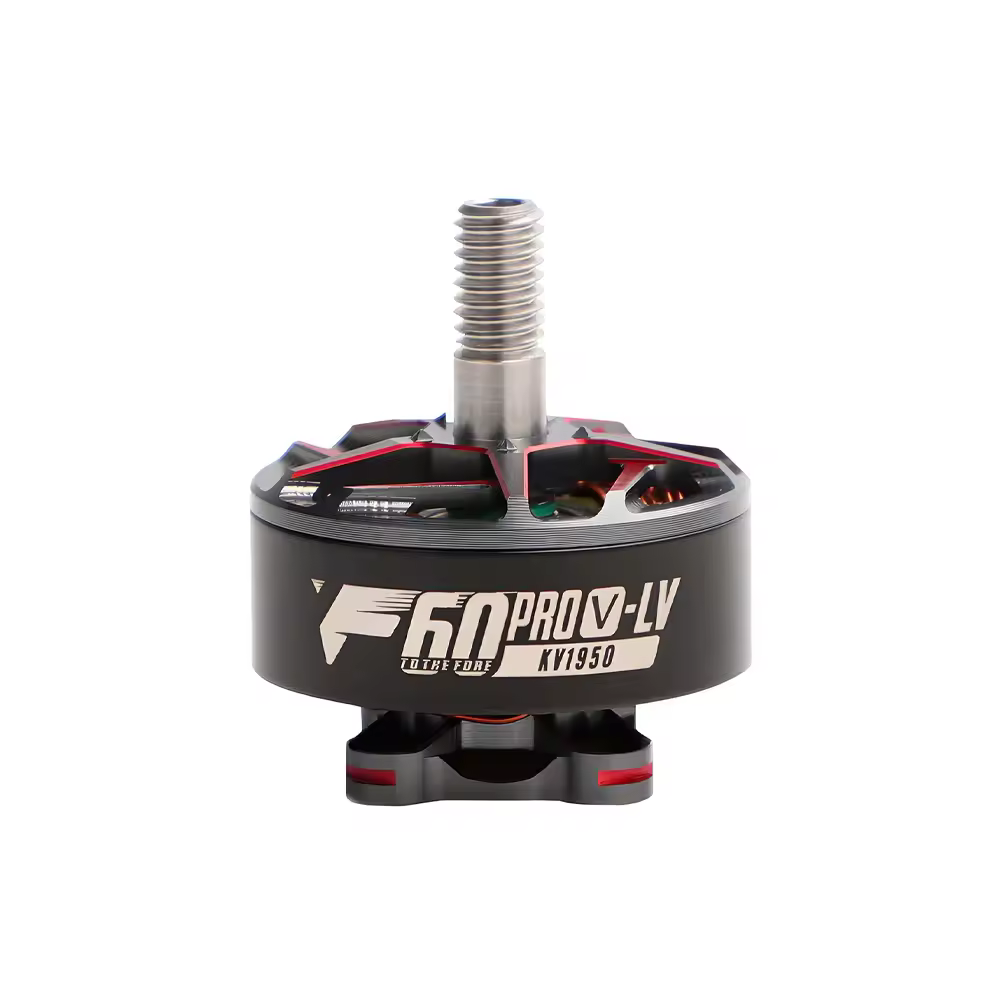

T-Hobby F60PROV-LV 2207.5 Brushless Racing Motor Side

T-HOBBY F60PROV-LV 2207.5 Brushless Racing Motor for 5 inch FPV Drones

About F60PROV-LV 2207.5 Brushless Racing Motor

The F60PROV-LV 2207.5 Brushless Racing Motor is engineered for 5-inch FPV racing drones, delivering supreme power with minimum weight to push your flying limits. Featuring a lightweight hollow stator seat and motor shaft design, this motor reduces weight by 5.7% compared to standard models, ensuring lightning-fast responsiveness and quicker acceleration.


Custom-designed nuts protect the titanium alloy shaft threads, enhancing durability and reliability under extreme racing conditions. Equipped with high-temperature-resistant EZO bearings and military-grade 220°C enameled wire, the F60PROV-LV stands up to intense heat and prolonged use.


Choose from powerful KV1950 for supreme all-around power or KV2020 for limit-breaking speed. Break the shackles of weight and fly faster with the F60PROV-LV — optimized for maximum velocity and shortest response time.


Check out our FPV racing motors, all FPV Motors Collection and the rest of our T-Hobby Products!

T-HOBBY
$30 Off Orders $499+
$15 Off Orders $249+
Collect
$ 23.90 $32.90
-27%
5 | 246Sold
Options (2)
Add-ons
Bundle and save up to $7.48 on gear — upgrade your setup for less.
  • meps f405 60a stack esc
    MEPS NEONCORE 60A 4-In-1 FPV ESC-30.5x30.5mm
    NEON 60A ESC
    $61.74 Save $3.25
  • t hobby pacer g4 alpha fc back
    T-HOBBY Pacer G4 Alpha FC HD / Analog 30.5x30.5
    Pacer G4 HD
    $92.06 Save $3.84
  • MEPS SZ4942 PROPELLER GREY
    MEPS SZ4942 3-Blade Propeller for 5 inch FPV Lightweight
    Clear Grey / 8pcs
    $4.51 Save $0.39
fall into big savings pc gift
In Stock Expected ship within 48 hours after order.
FedEx
USPS
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • Hollow stator seat and motor shaft design cut weight by 5.7%, making your drone lighter and faster.
  • Lower all-up weight (AUW) means quicker throttle response and sharper flight control.
  • Special nuts protect shaft threads for improved durability and longer motor life.
  • Military-grade 220°C enameled wire and EZO bearings ensure performance under intense heat.
  • KV1950 for supreme power with minimal weight or KV2020 for breaking speed limits.
Payment | Every order you place with us is safe & secure
Share
t hobby f60prov lv 2207.5 brushless racing motor

KV Options for Every Racer

KV1950 for supreme power with minimal weight or KV2020 for breaking speed limits.

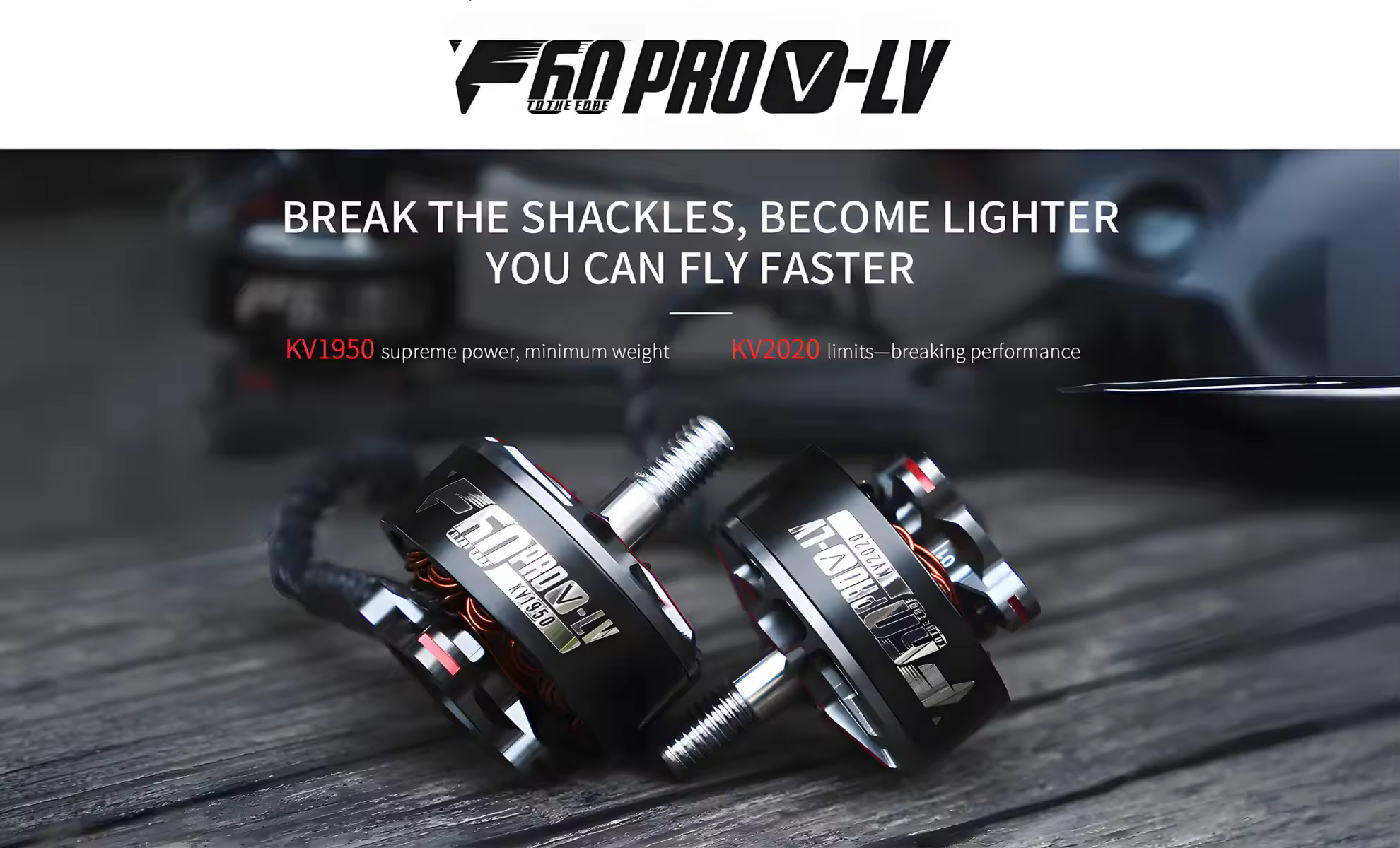

t hobby f60prov lv 2207.5 motor two kv options

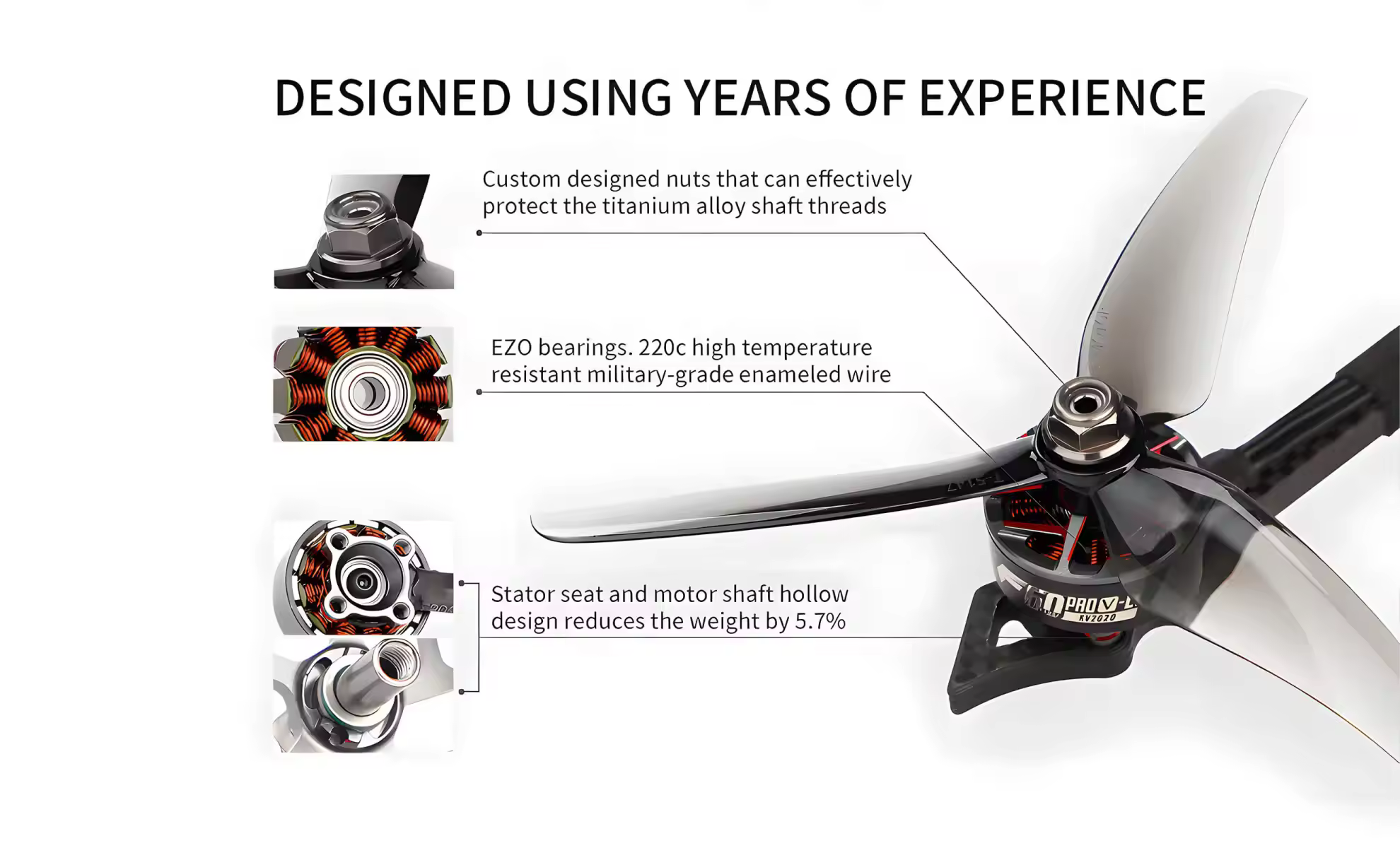

Durable & Lightweight Design

Featuring a hollow stator seat and motor shaft that reduce weight by 5.7%, combined with military-grade 220°C enameled wire, EZO bearings, and custom-designed nuts to effectively protect the titanium alloy shaft threads-ensuring exceptional performance, durability, and heat resistance under extreme racing conditions.

durable and lightweight design

Lightning Fast Responsiveness

Lower all-up weight (AUW) means quicker throttle response and sharper flight control.

extreme weight reduction lightning fast responsiveness

T-Hobby F60PRO V-LV 2207.5 Motor Buying Guide

The T-Hobby F60PRO V-LV is a lightweight 2207.5 motor developed for high-speed 5-inch FPV racing. Both the 1950KV and 2020KV versions are designed for 6S power, but they target slightly different pilots and throttle preferences.

MEPSKING Expert Flight-Test Assessment

After testing, our MEPSKING expert impression is that the most noticeable feature of the 2020KV version is its immediate high-RPM response. Compared with the 1750–1850KV motors previously used by the reviewer, it produced clearly stronger acceleration, higher speed and a sharper motor sound under full throttle.

The throttle feels more sensitive, particularly in the upper range. This helps an experienced racer make rapid corrections and accelerate hard between gates, but it also makes the quad less forgiving. The lighter motor structure contributes to quicker RPM changes, while the EZO bearings and heat-resistant windings are valuable during repeated high-load runs.

F60PRO V-LV vs Standard F60PRO V

ComparisonF60PRO V-LVStandard F60PRO V
StructureHollow stator base and shaftConventional full structure
WeightApproximately 32gAbout 5.7% heavier
Flight CharacterFaster RPM changes and sharper responseSlightly more planted throttle feel
KV Options1950KV / 2020KV for 6SWider 4S and 6S selection
Best BuyerRacer prioritizing minimum weightPilot wanting more KV and voltage choices

Should You Choose 1950KV or 2020KV?

Choose 1950KV if you want strong 6S acceleration with a more manageable throttle range. It is the better all-round option for racing practice, fast freestyle and pilots upgrading from lower-KV motors.

Choose 2020KV when maximum gate-exit acceleration and top-end speed matter more than efficiency or easy throttle control. It is best suited to experienced racers using a high-current ESC, a healthy 6S battery and carefully selected propellers.

Recommended 6S Build Setup

Pair these motors with a quality 55–60A ESC, a high-discharge 6S battery and a lightweight 4.9–5.1-inch tri-blade propeller. The MEPS NEONCORE 60A 4-In-1 FPV ESC provides additional current headroom, while the Tattu R-Line 6S 1400mAh 150C is suitable for demanding racing and freestyle power delivery.

With 2020KV, begin with a moderate-pitch propeller and check motor and ESC temperature after a short test flight. Always confirm motor-screw length, secure each prop nut and perform the first power-up with the propellers removed.

Final Recommendation

Buy the T-Hobby F60PRO V-LV 2207.5 Motor if your priority is a premium, lightweight 6S racing powertrain with rapid response. Select 1950KV for greater control or 2020KV for the most aggressive racing performance.

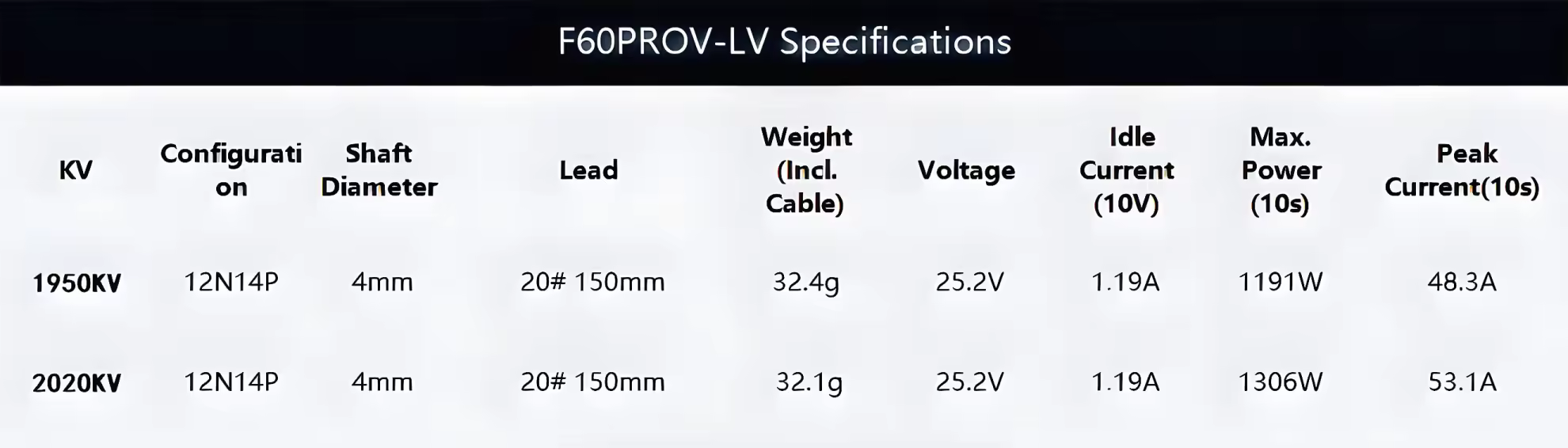

Specification

KVConfigurationShaft DiameterLeadWeight (Incl. Cable)VoltageIdle Current (10V)Max. Power (10s)Peak Current(10s)
1950KV12N14P4mm20# 150mm32.4g25.2V1.19A1191W48.3A
2020KV12N14P4mm20# 150mm32.1g25.2V1.19A1306W53.1A
size of t hobby f60prov lv 2207.5 racing motor
t hobby f60prov lv 2207.5 brushless racing motor for 5 inch fpv drones 7
test report of t hobby f60prov lv 2207.5 motor

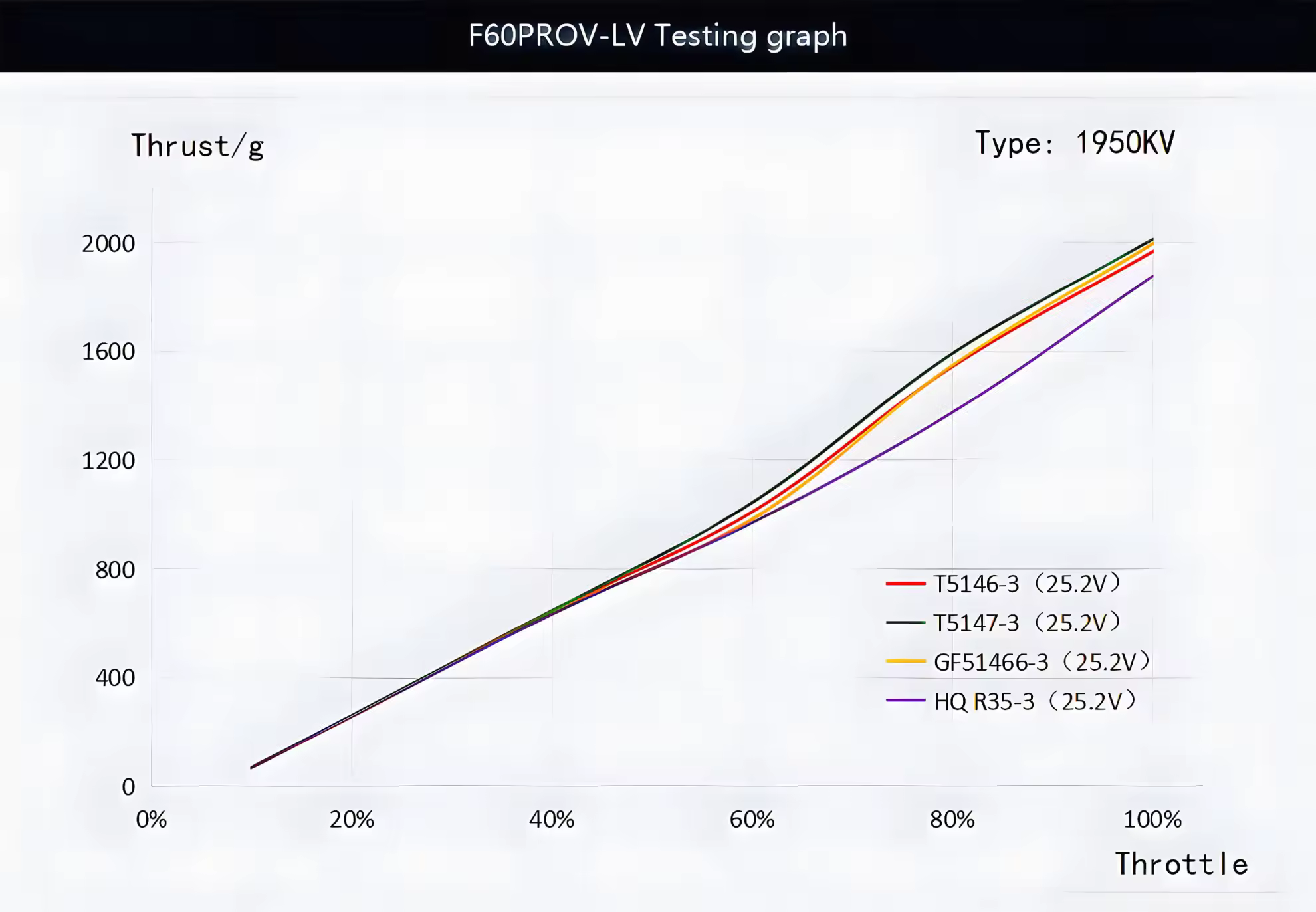

f60 prov lv motor testing graph 1

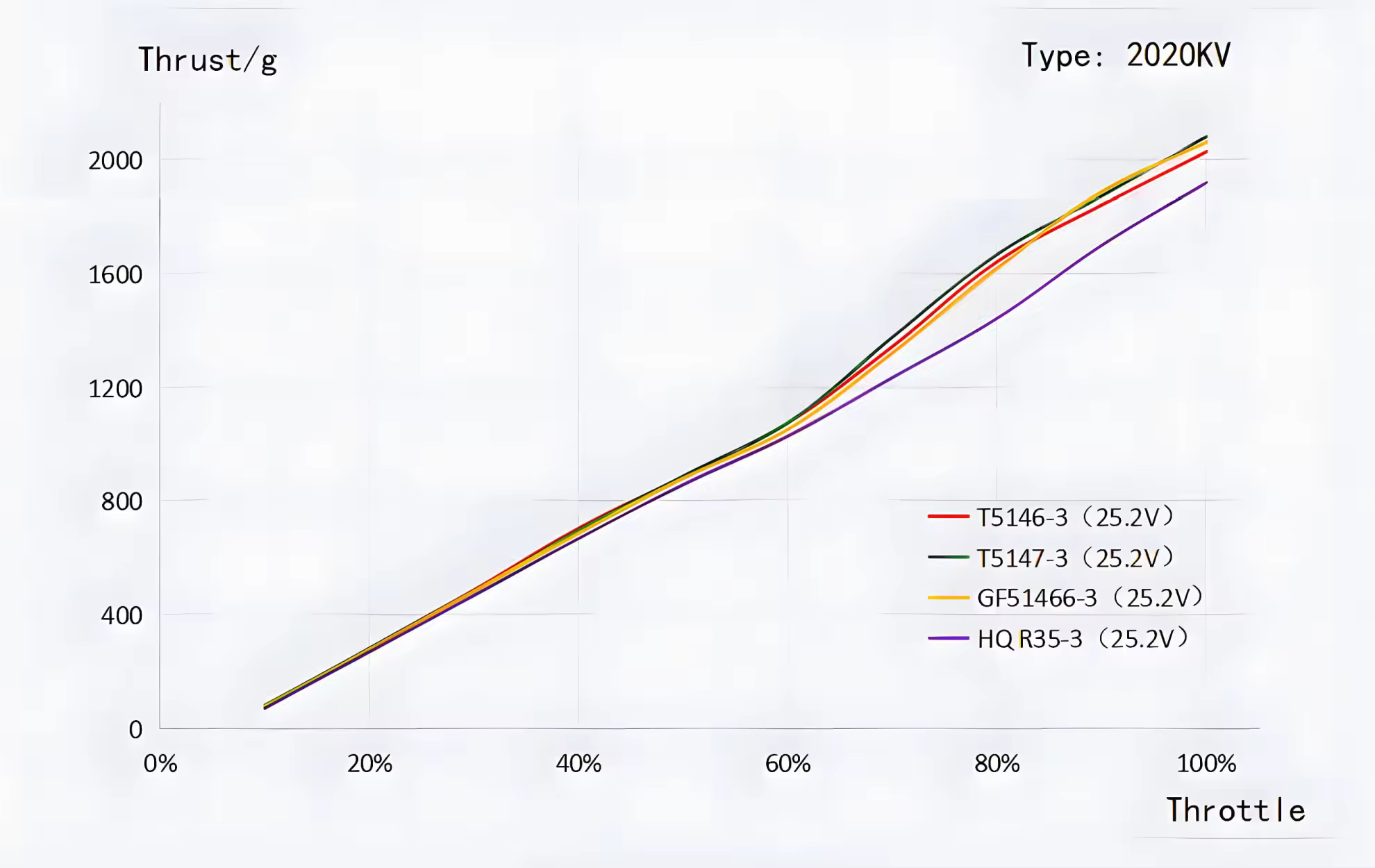

f60 prov lv motor testing graph 2
t hobby f60prov lv 2207.5 motor package lists
