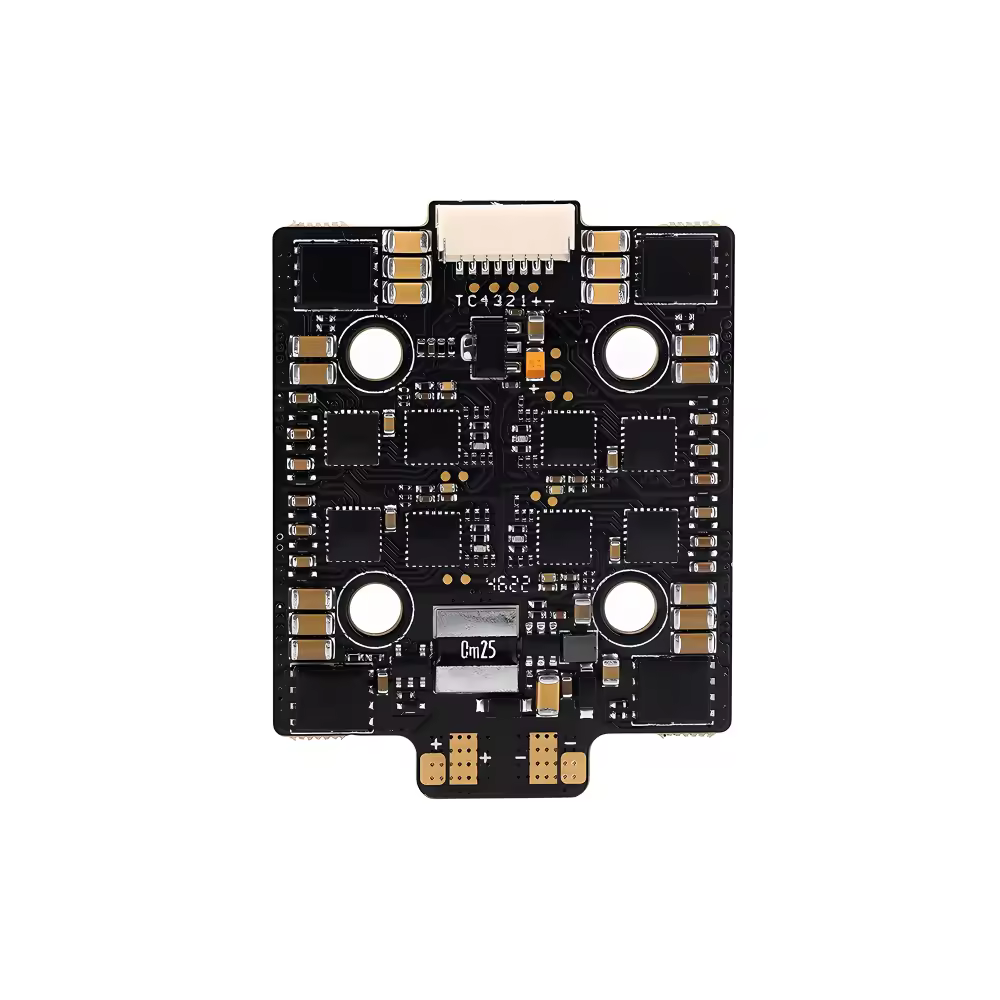

NEWT-HOBBY F60A MINI 20x20 4in1 ESC for FPV Drones

About T-HOBBY F60A 3-8S BLHeli_32 4in1 ESC:

The T-HOBBY F60A 3-8S BLHeli_32 4in1 ESC is designed for serious FPV enthusiasts, featuring a compact 20x20mm mounting pattern that fits seamlessly into your builds. This 60A drone ESC supports up to 8S capability and is equipped with large MOSFETs for superior performance. With high current handling, high withstand voltage, and low internal resistance, it ensures reliable power delivery. Additionally, the T-HOBBY F60A FPV ESC offers real-time temperature monitoring, making it one of the great 8S FPV ESCs on the market. Upgrade your drone with this efficient 4in1 ESC for an unparalleled flying experience.

T-HOBBY
Sales：0Pcs
$89.90
$105.90
-15%

● Highly Consistent Signal Transmission.

● Real-Time Temperature Monitoring.

● Symmetrical MOS Layout Design.

● Telemetry Transmission.

● High Withstand Voltage & Low Internal Resistance.


Learn more
Options (1)
F60A-MINI-8S-ESC-3
F60A MINI 8S 4IN1 20x20 ESC
Quantity
In Stock Expected ship within 48 hours after order.
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 48-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

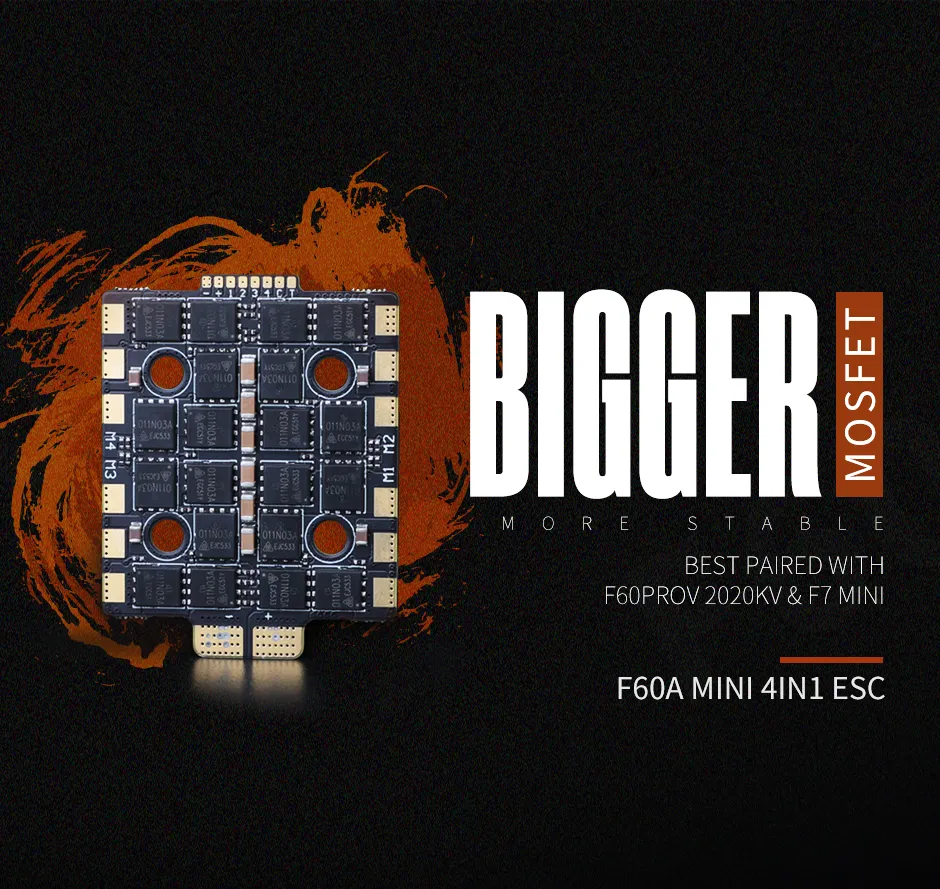

T-Motor f60a 8s 4in1 esc bigger

8S Power

 4in 1 ESC, Mini Footprint

This 20x20mm 4-in-1 ESC packs 60A continuous current and 8S voltage support into a compact frame, delivering full-size performance for lightweight 3-5 inch FPV drones.

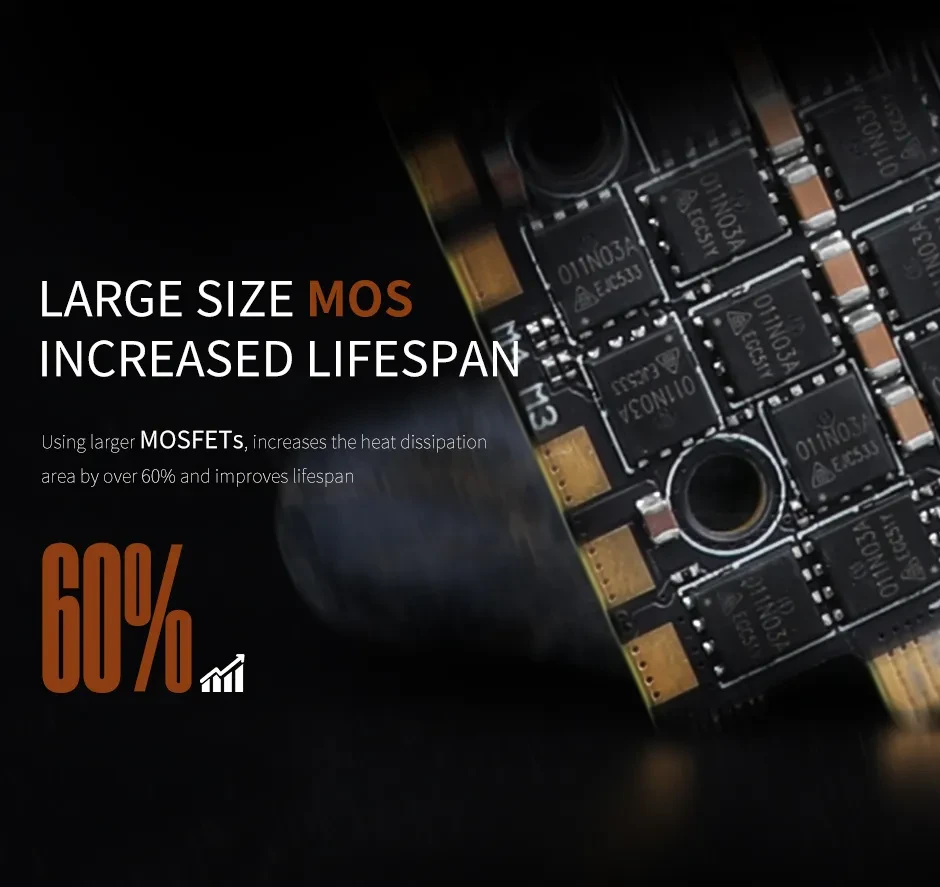

Size for T-Motor f60a 8s 4in1 esc

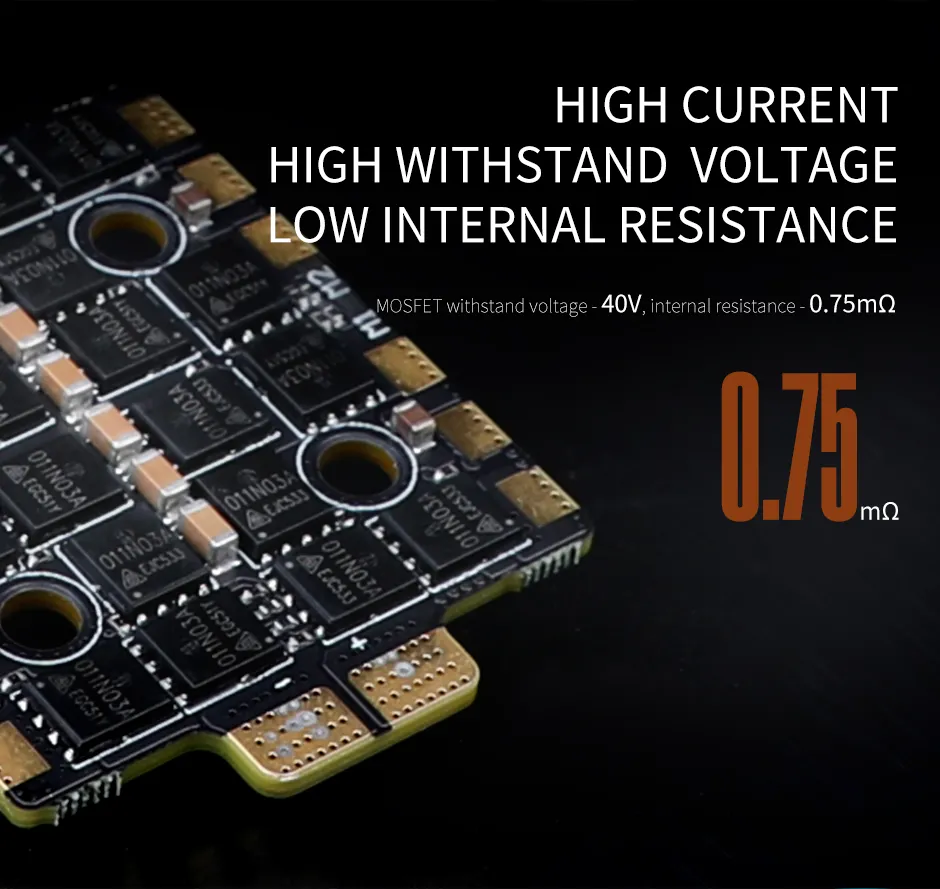

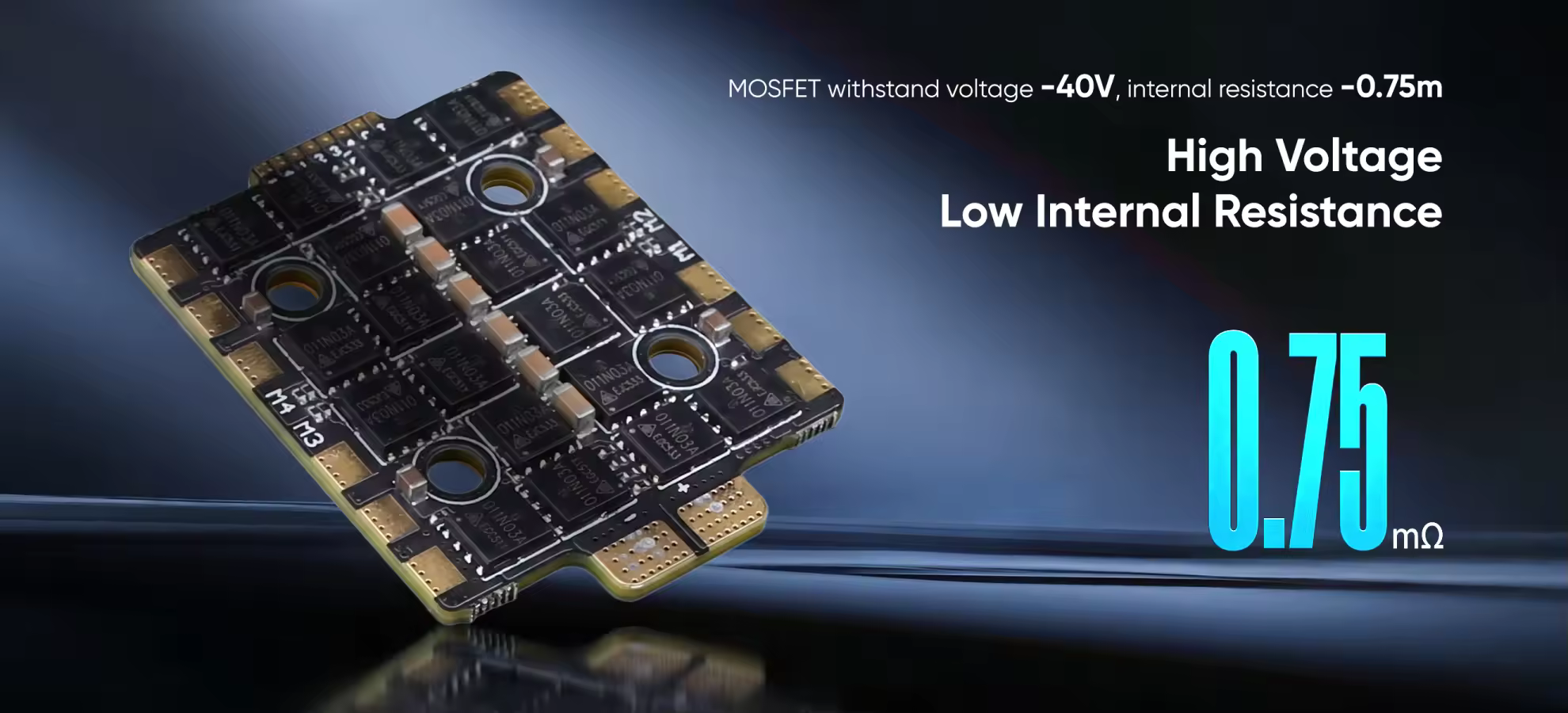

Pro-Level Power Density

Featuring 40V-rated MOSFETs with ultra-low 0.75mΩ resistance, this mini ESC delivers 60A continuous current and 8S voltage support in a compact 20x20mm frame for maximum thrust-to-weight ratio.

T-Motor f60a 8s 4in1 esc is high current

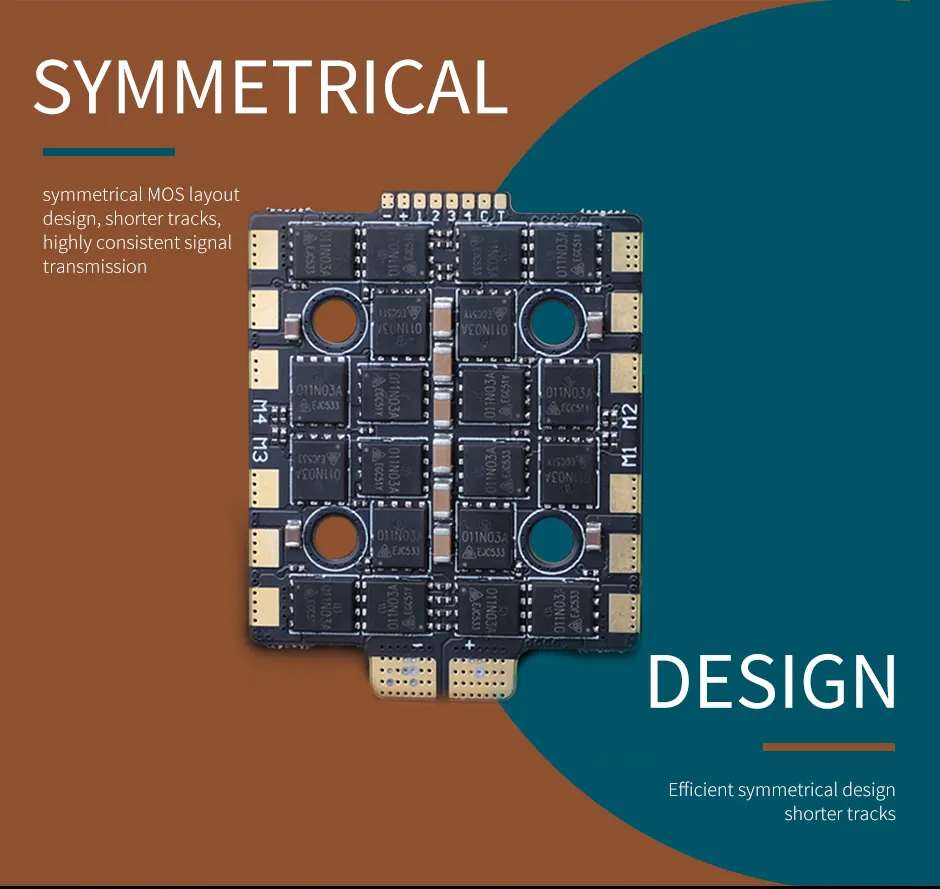

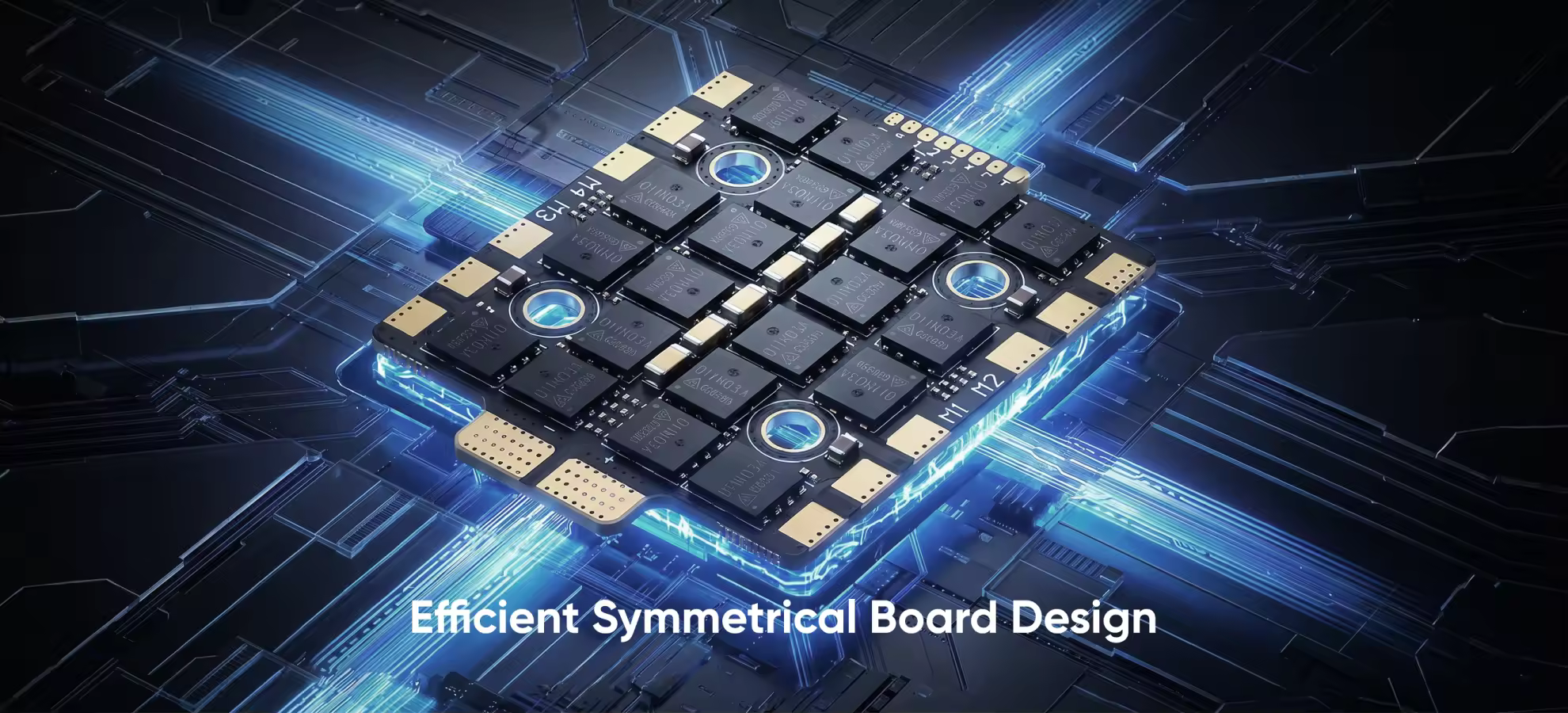

Symmetrical MOS Layout

Shorter, balanced PCB tracks ensure highly consistent signal transmission and reduce EMI, delivering smoother throttle response and enhanced flight stability.

Design for T-Motor f60a 8s 4in1 esc

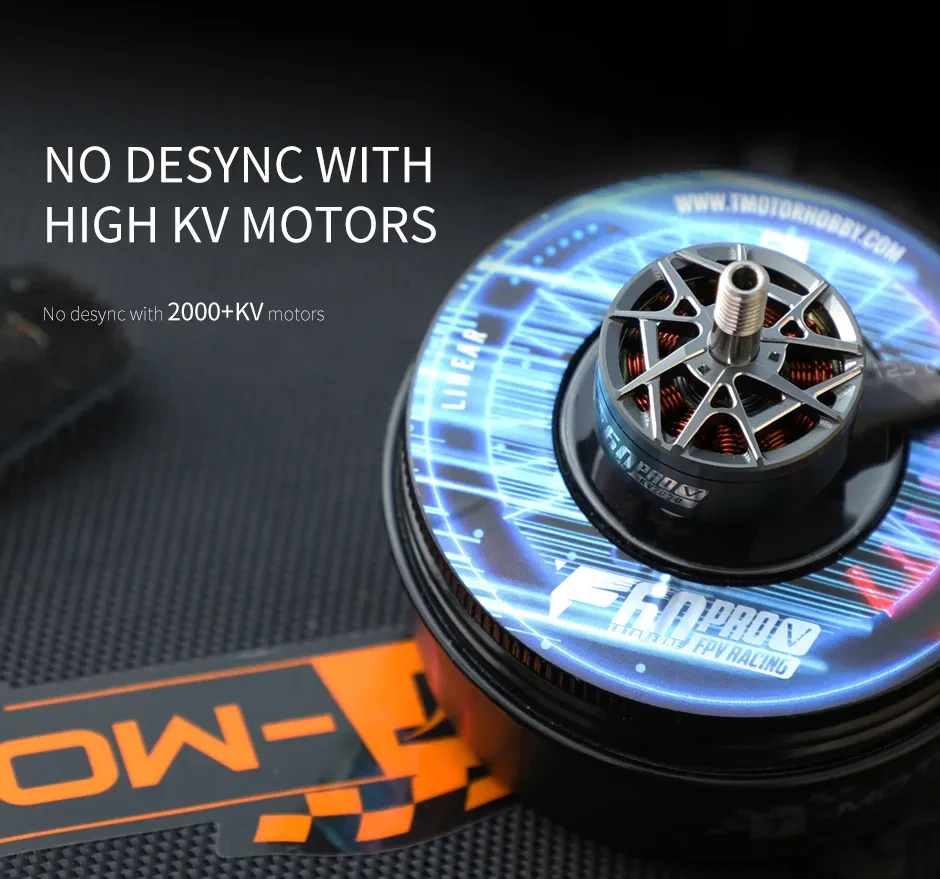

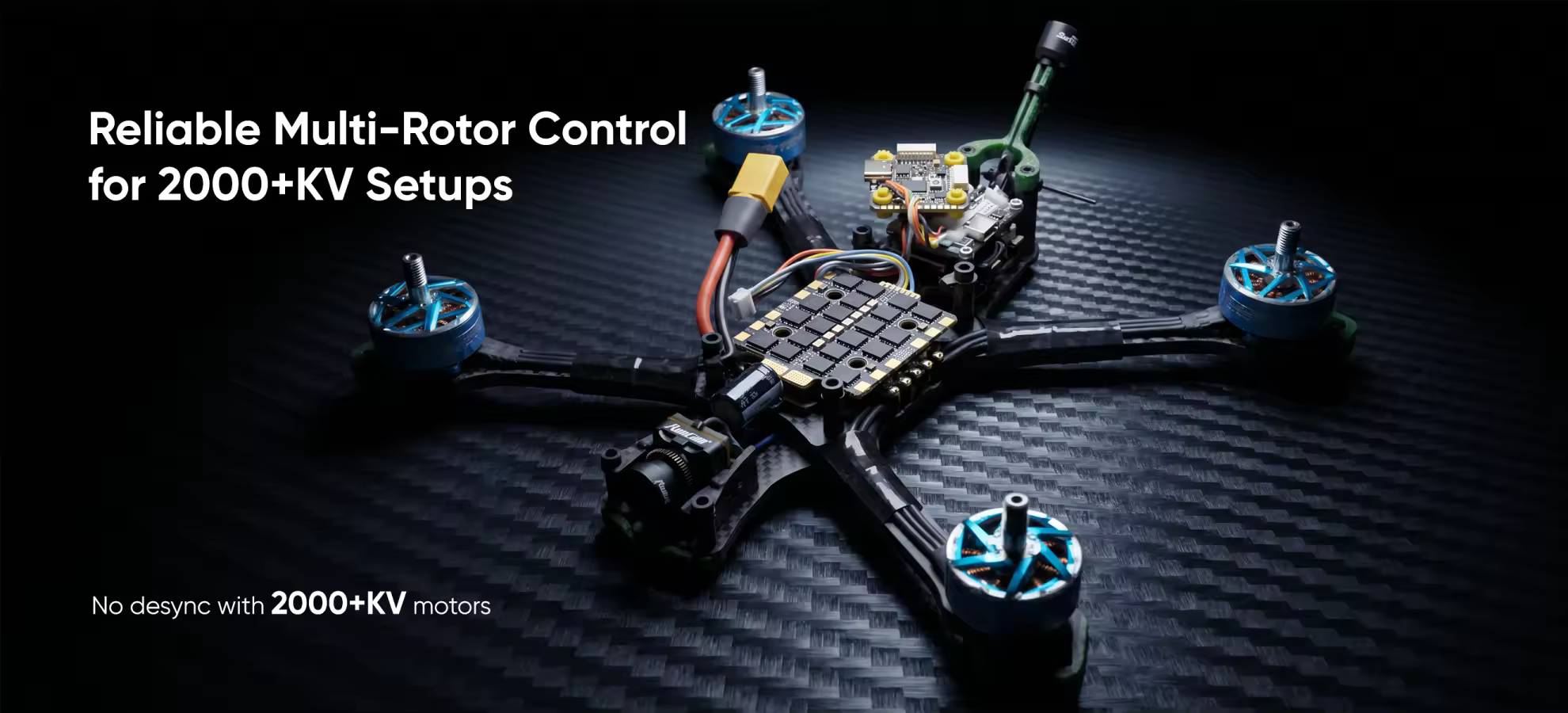

Zero Desync with High-KV Motors

Engineered to eliminate desync issues even with 2000+KV motors, this ESC ensures ultra-smooth and reliable performance for aggressive FPV racing and freestyle flights.

T-Motor f60a 8s 4in1 esc no desync

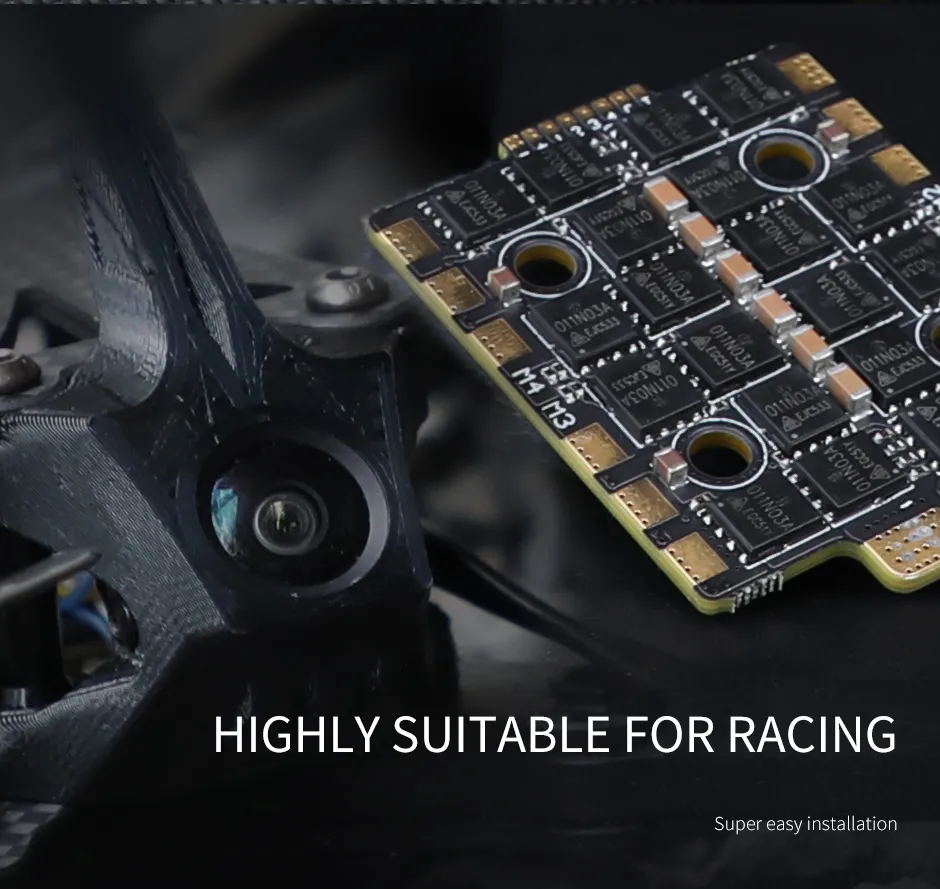

Race-Optimized, Easy Installation

Highly suitable for competitive racing, this 20x20 4-in-1 ESC delivers pro-level performance with super simple setup—get track-ready in minutes.

T-Motor f60a 8s 4in1 esc suitable for racing

Real-Time Telemetry Monitoring

Supports live transmission of temperature, voltage, and current data (e.g., 56°C/23.4V/84.58A), enabling proactive anomaly detection for enhanced flight safety and performance optimization.

Feature for T-Motor f60a 8s 4in1 esc

Features:

●Highly consistent signal transmission

●Real-time temperature monitoring

●real-time temperature monitoring

●Symmetrical MOS layout design

●No desync with high KV motors

●20x20mm mounting pattern

●telemetry transmission

●High withstand voltage

●Low internal resistance

●Shorter tracks

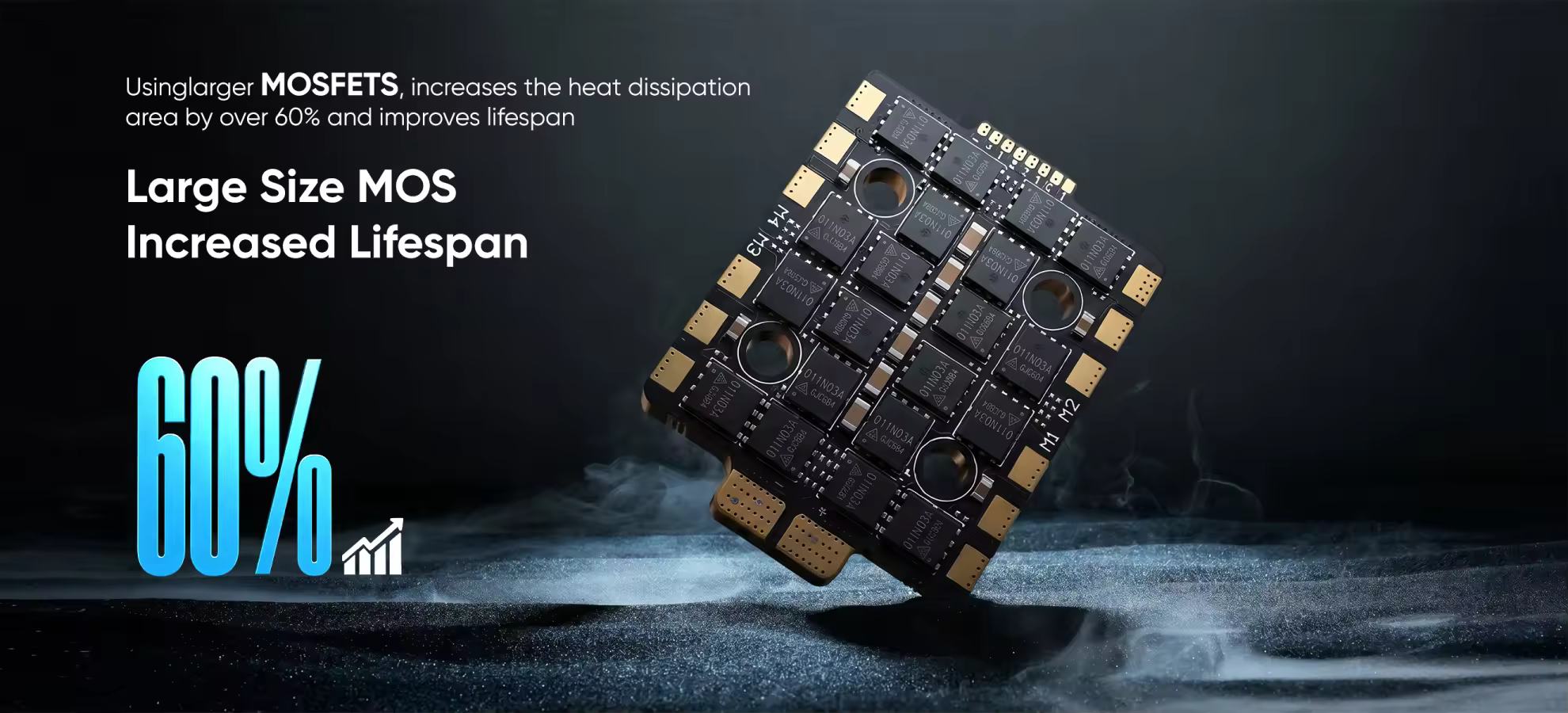

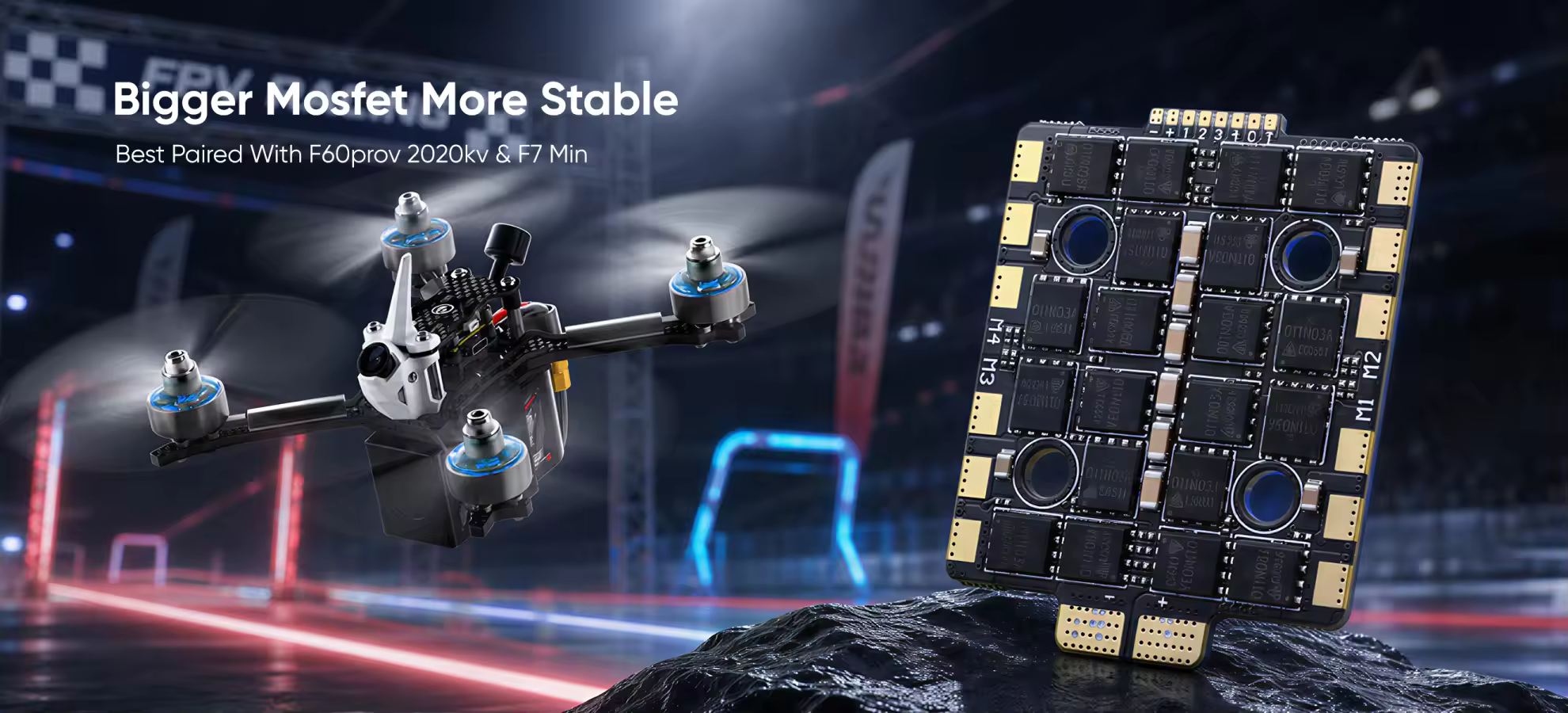

●Big MOSFETs

●High current

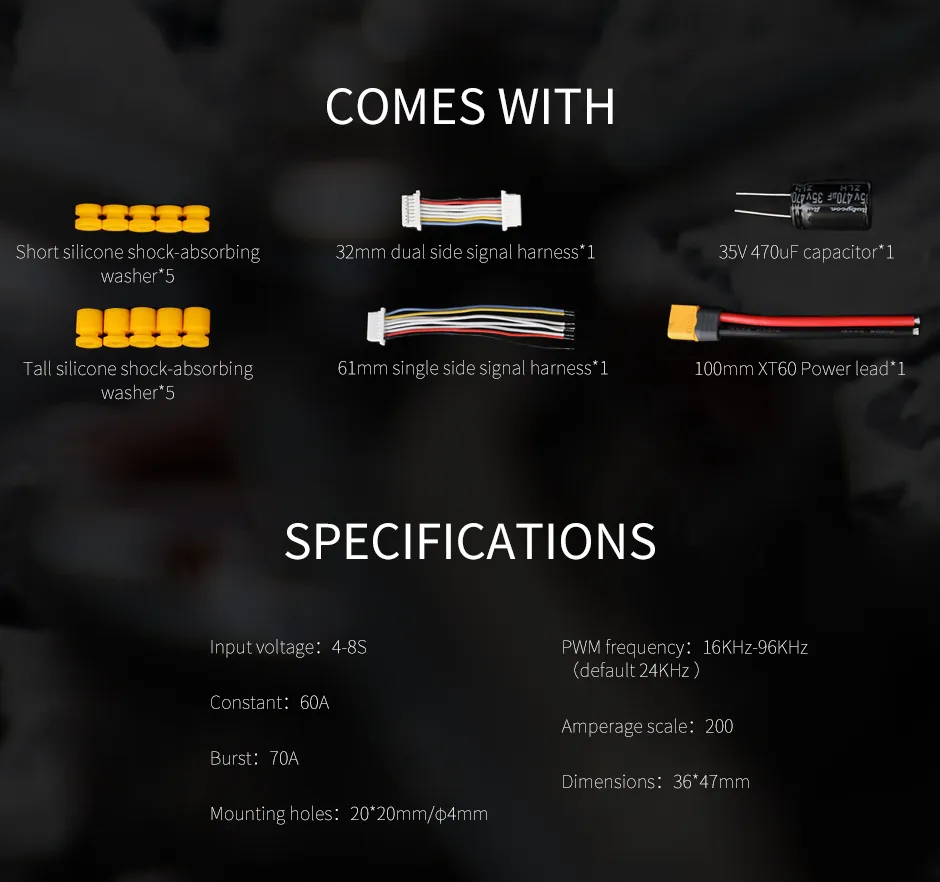

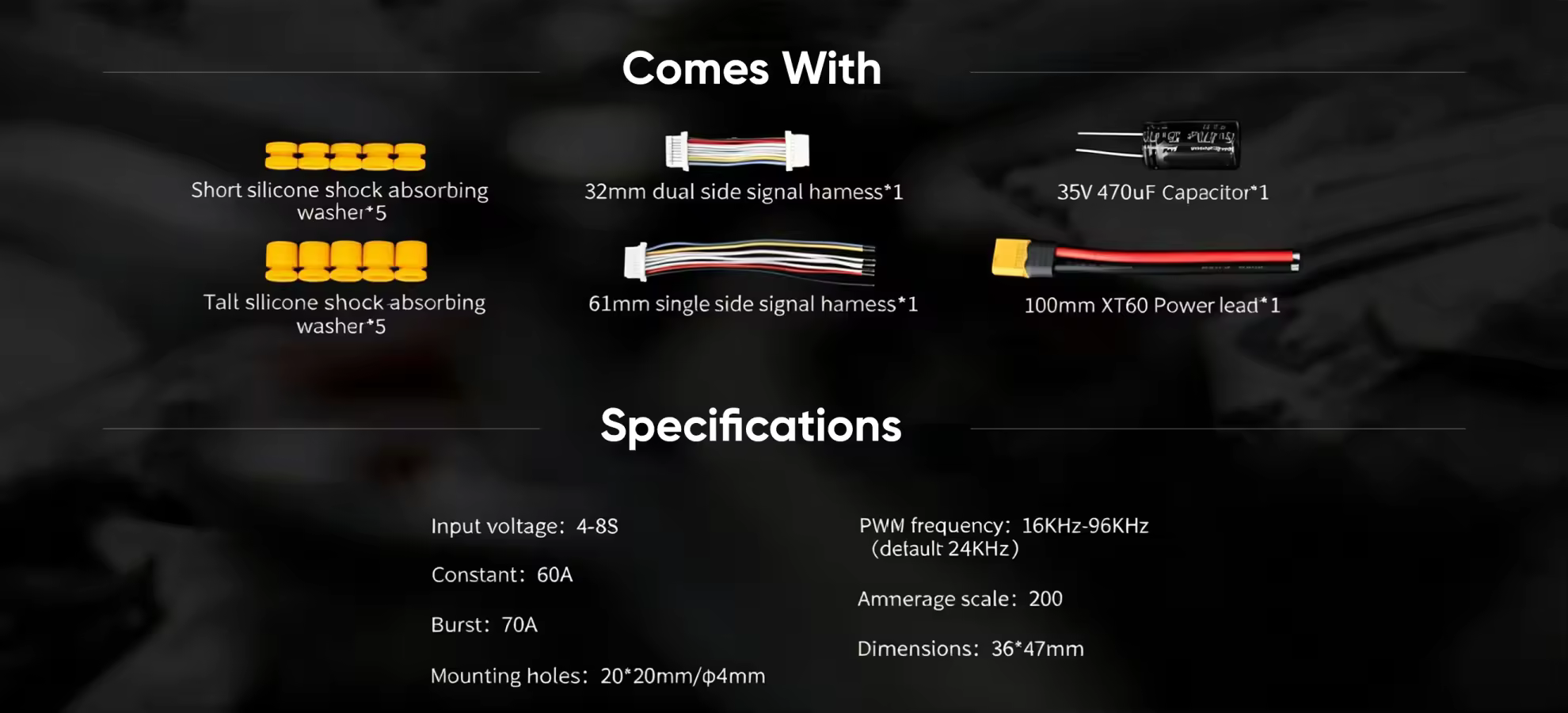

Specifications:

●Input Signal: DShot 150/300/600/1200/MultiShot/OneShot

●Mounting Pattern: 20x20mm M3

●Max. Continuous Current: 60A

●PWM Frequency: 16-96KHz

●Input Voltage: 3-8S LiPo

●Max Burst Current: 70A

●Dimensions: 36x47mm

●Firmware: BLHeli_32

●Telemetry: Yes

●Weight: 14g

Includes:

●1x T-HOBBY F60A 3-8S BLHeli_32 4in1 ESC - 20x20

●1x Amass XT60H-M Cable

●1x FC Connector

●10x Grommets

●1x Capacitor

Spec for T-Motor f60a 8s 4in1 esc
FAQ Feel free to ask us any questions
ASK A QUESTION
Q1: What type of FPV drones is the T-Hobby F60A MINI 4-in-1 ESC suitable for?
Q2: What features does the T-Hobby F60A MINI offer for reliable flight performance?
