1. What is an ESC in an FPV drone?

An ESC (Electronic Speed Controller) controls the speed of brushless motors by converting signals from the flight controller into motor power output. It is a key component that affects throttle response, efficiency, and flight stability.

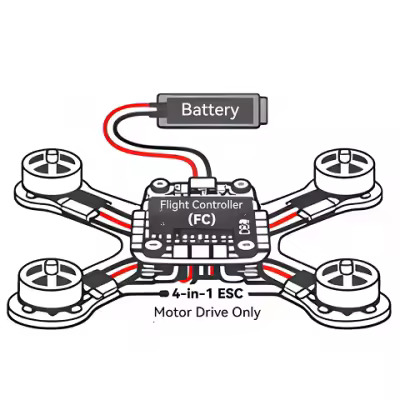

2. What is a 4-in-1 ESC?

A 4 in 1 ESC combines four electronic speed controllers into one board to control all four motors of a quadcopter. It saves space, reduces wiring, and is widely used in modern FPV drones.

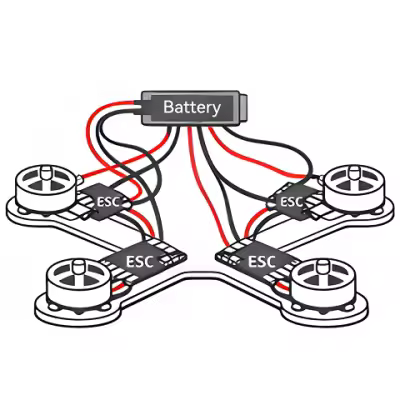

3. What is the difference between a 4-in-1 ESC and a single ESC?

A single ESC controls one motor, while a 4-in-1 ESC controls four motors on a quadcopter. Single ESCs offer more flexibility, but 4-in-1 ESCs provide a cleaner and more compact FPV drone build.

4. How do I choose the right ESC for my FPV drone?

Choose an ESC based on motor current, battery voltage, propeller size, and flying style. A higher-current ESC, such as an 80A 4 in 1 ESC, provides more power capacity for demanding FPV builds.

5. Why do brushless motors need an ESC?

A electronic speed controller for brushless motor converts battery power and flight controller signals into precise motor control. Without an ESC, brushless motors cannot operate properly.

6. Can I use any ESC with my drone motor?

No. The ESC must match your motor current, battery voltage, and propeller load. Choosing the correct ESC helps prevent overheating and improves overall drone reliability.

7. Is a 4-in-1 ESC better for beginners?

For most beginners, a 4-in-1 ESC drone setup is easier to install because it reduces wiring and saves build space. It is the common choice for DIY FPV quadcopters.

8. How do I know if my ESC is powerful enough?

Check the ESC current rating and voltage support against your motor and battery specifications. A properly sized ESC provides enough power while maintaining safe operating temperatures.

9. What is the difference between a 20x20 and 30x30 4-in-1 ESC?

The main differences are mounting size and power capability. 20x20 4-in-1 ESCs are compact and lightweight, ideal for smaller freestyle and racing builds, while 30x30 4-in-1 ESCs offer more space for higher-current designs and are commonly used in 5-inch FPV drones.

10. What is an AM32 4-in-1 ESC?

An AM32 4-in-1 ESC uses the AM32 open-source ESC firmware, offering fast motor response, smooth performance, and support for modern FPV builds. It is an alternative to traditional BLHeli-based ESC firmware.

FPV 4-in-1 ESC

4-in-1 ESC combines four ESCs into one compact board to deliver efficient power control for FPV drones. Designed for brushless motors, 4 in 1 ESC provides cleaner builds, smooth performance, and reliable power for racing, freestyle, and high-performance drone setups.

SimplerOne board instead of four

CleanerLess wiring. More space.

CentralizedPower where your build needs it.

CompatibleFits modern FPV frames

How to Choose Your 4-in-1 ESC？

1.Match Your Motor Power

ESC Continuous Current ≥ Motor

Max Current Example

2.Match Your LiPo Battery

4S → Choose a 4S-compatible ESC

6S → Choose a 6S-compatible ESC

8S → Choose an 8S-compatible ESC

3.Fit Your Drone Build

20×20mm → Compact & lightweight builds

30.5×30.5mm → 5"/6" performance builds

4.Ensure Smooth Control

✓ BLHeli_32 ✓ AM32 ✓ DShot

✓ Bidirectional DShot

4-in-1 ESC Guides & Top Picks

Build Type	Main Priority	Battery Support	Current Selection	Mounting Size	Key Features	Recommended 4‑in‑1 ESC

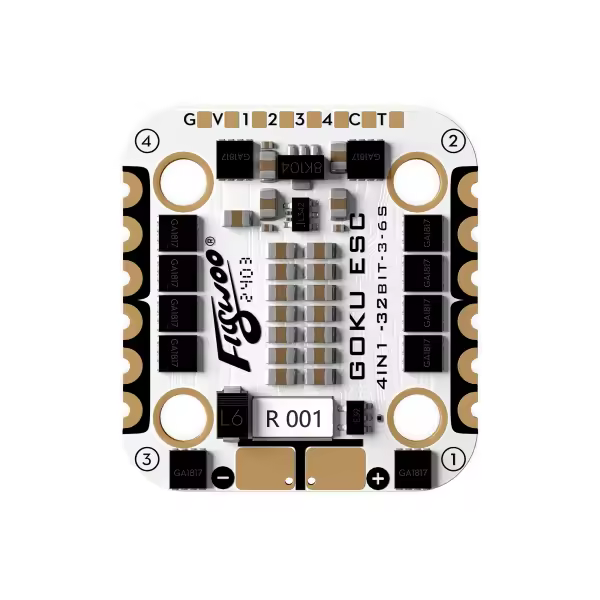

Compact FPV (3–4")	Lightweight design, compact size, smooth motor control	4S–6S	20A–45A	20×20mm	Lightweight Space saving Good for small builds	Flywoo GOKU G45M 45A ESC

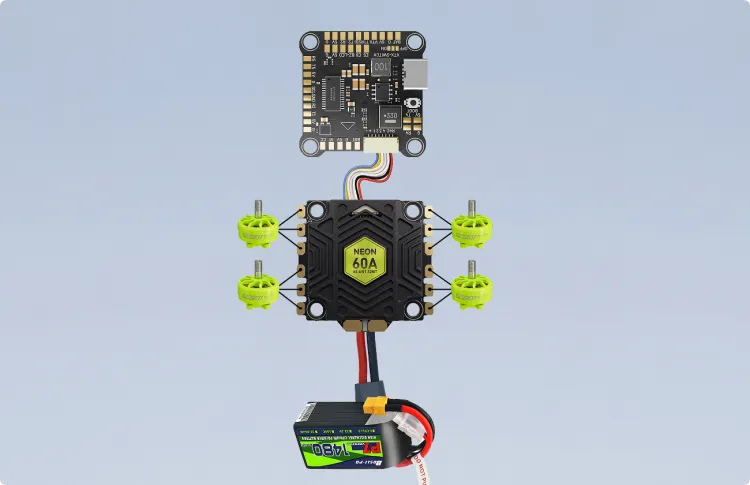

5" Freestyle	Most popular FPV freestyle builds	4S / 6S	45A–60A	30.5×30.5mm	Best overall balance Stable power output Great for 5" builds	MEPS NEON 60A ESC
Racing / Performance	Racing, aggressive freestyle, high‑power setups	4S–6S	45A–60A	20×20mm / 30.5×30.5mm	Higher current headroom Fast motor response Handles aggressive props	iFlight BLITZ E55 55A ESC / iFlight BLITZ Mini E55 4‑IN‑1 ESC / RUSHFPV Rush Blade 60A ESC
Long Range / High Voltage	6–8" long range and high‑voltage builds	6S–8S	60A–80A	30.5×30.5mm	Wide voltage support Reliable long flights Better efficiency	T‑HOBBY C80A 80A ESC / T‑HOBBY C80A‑4IN1‑8S 80A ESC
