MEPS NEONCORE 60A + T-HOBBY Velox F7 SE FPV Stack

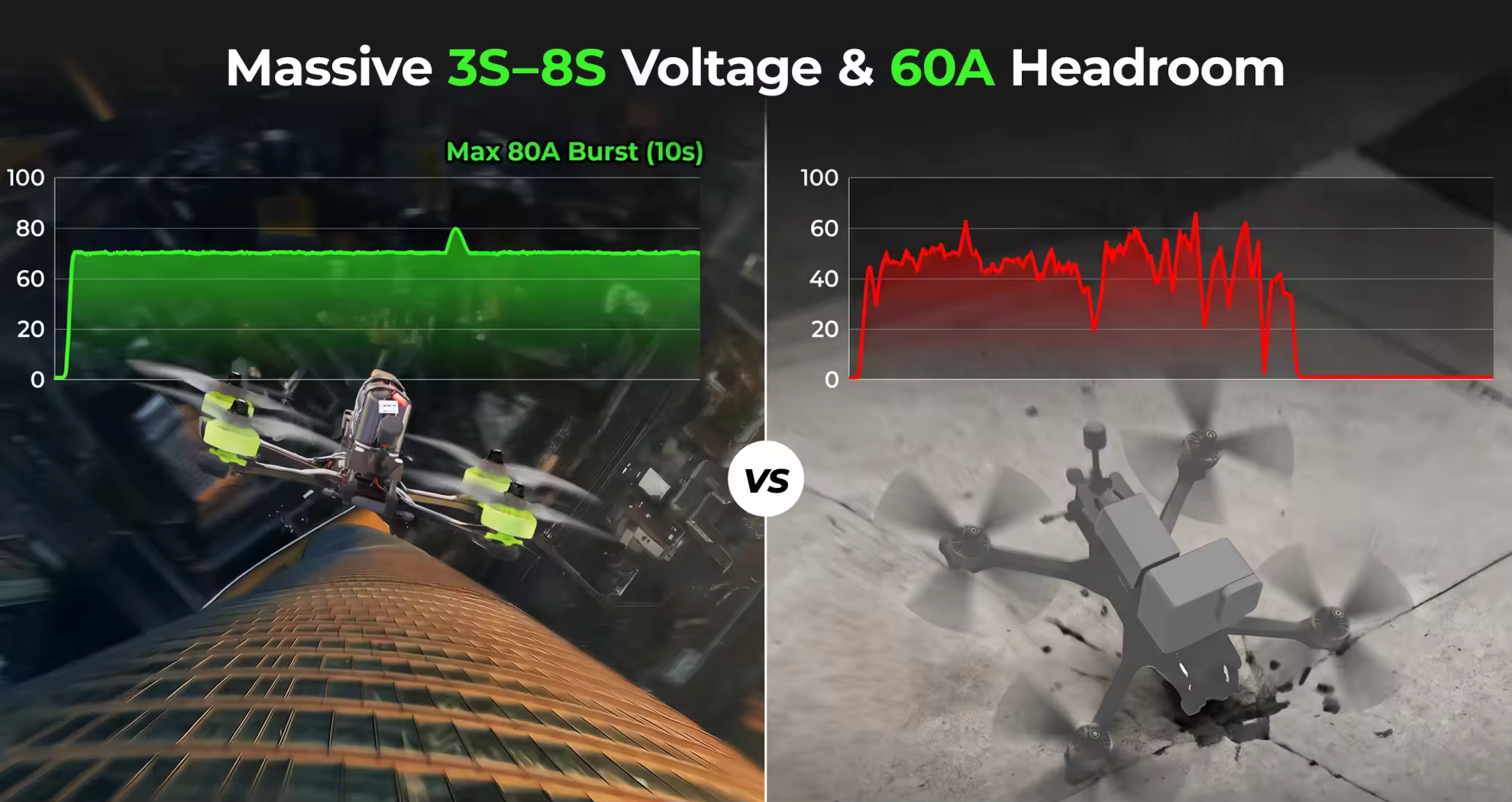

Massive 3S–8S Voltage & 60A Headroom

When learning freestyle moves or recovering from low dives, undersized 45A/50A ESCs overheat and desync. The MEPS NEONCORE 60a esc is built with heavy-duty electrical headroom:

●60A Continuous / 80A Burst (10s): Powers high-KV 2207 and 2306 motors effortlessly, eliminating throttle lag and power sagging.

●3S to 8S LiPo Capability: Supports wide-voltage inputs up to 33.6V. The high-voltage-rated MOSFETs absorb inductive voltage spikes during hard 6S snaps with ease.

●Low-ESR Filtering: Includes a 35V 1000µF low-ESR capacitor to smooth ripple voltage and keep your FPV video feed clean.

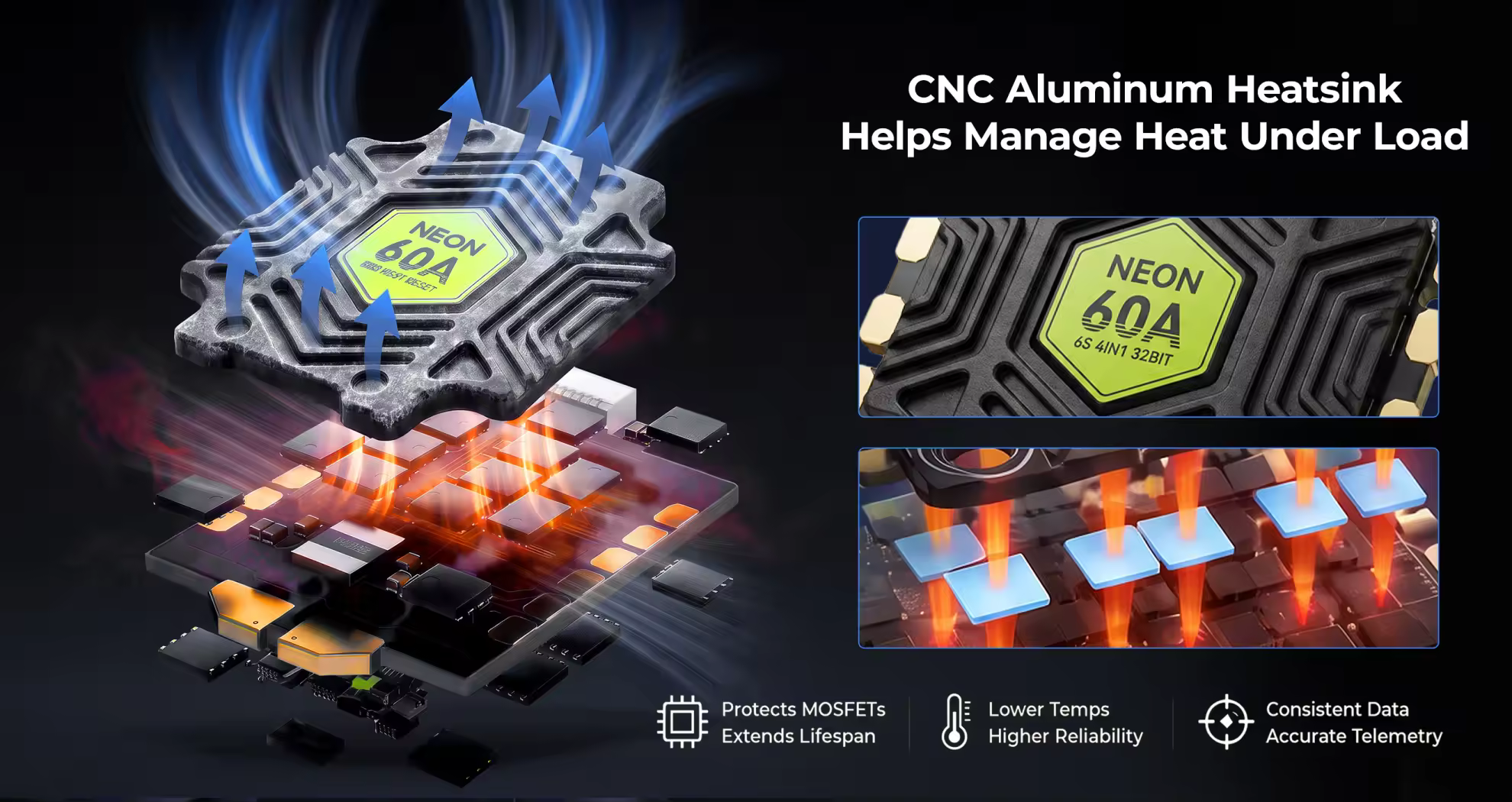

Designed to Manage Heat Under Load

Excessive heat leads to thermal throttling and inaccurate sensor data. This esc fpv board features a custom-machined CNC aluminum alloy heatsink paired with high-efficiency thermal interface pads:

●Active Heat Dissipation: Rapidly transfers heat away from the critical MOSFETs, keeping operating temperatures significantly lower during back-to-back battery rips.

●Precise Telemetry Accuracy: By keeping internal components well below thermal thresholds, the onboard current and voltage sensors maintain rock-solid accuracy. You get reliable, real-time mAh consumption and voltage data on your FPV OSD without temperature-induced drifting.

Give the heatsink room to breathe, and leave enough clearance between the ESC and flight controller when assembling the stack.

Extra Protection for Real-World Practice

Learning new tricks comes with rough landings. From tumbles across dirt to unexpected contact with damp grass, outdoor practice puts your electronics through more than clean flights.

The MEPS NEONCORE combines a CNC aluminum housing with factory-applied conformal coating to give the ESC two layers of protection:

●Added impact protection. The aluminum housing helps shield vulnerable board components from debris and incidental contact during rough landings.

●Added moisture resistance. The protective coating helps reduce exposure to moisture from dew, damp grass, and light splashes.

It’s a practical combination for pilots putting in regular stick time and learning their next move.

The ESC is not crash-proof or waterproof. After a wet or muddy landing, disconnect the battery, then clean, dry, and inspect the quad before powering it again.

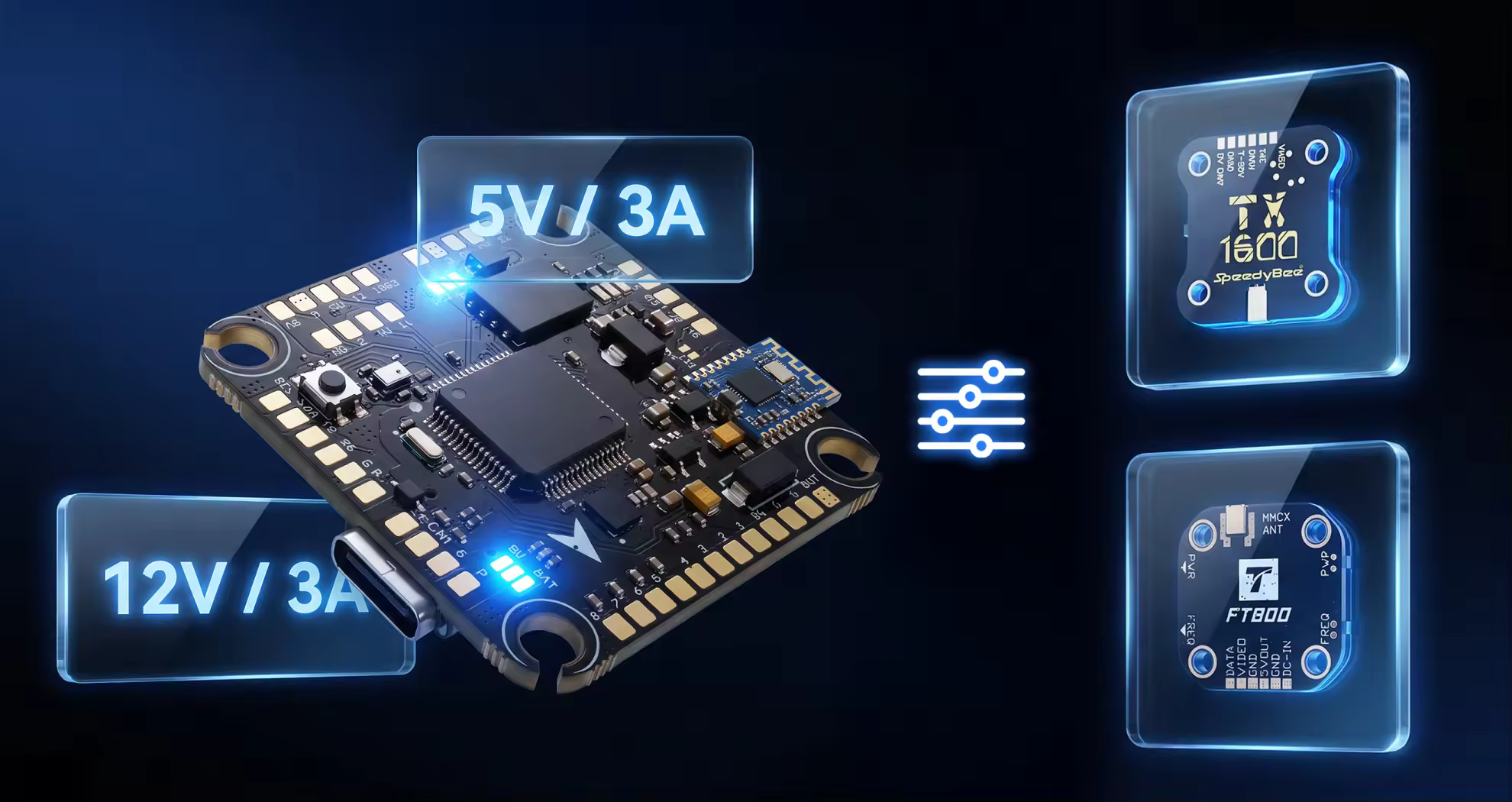

Power Options for Your FPV Gear

Dedicated 5V and 12V outputs give you practical options for powering compatible peripherals. Whether you’re planning an analog or HD build, check each device’s voltage requirements and the available power budget before connecting it.

Learn More from Every Flight

As your flying progresses, you may want to understand a vibration issue or refine your setup. Onboard Blackbox logging gives you flight data to review, so you can investigate what happened instead of relying on feel alone.

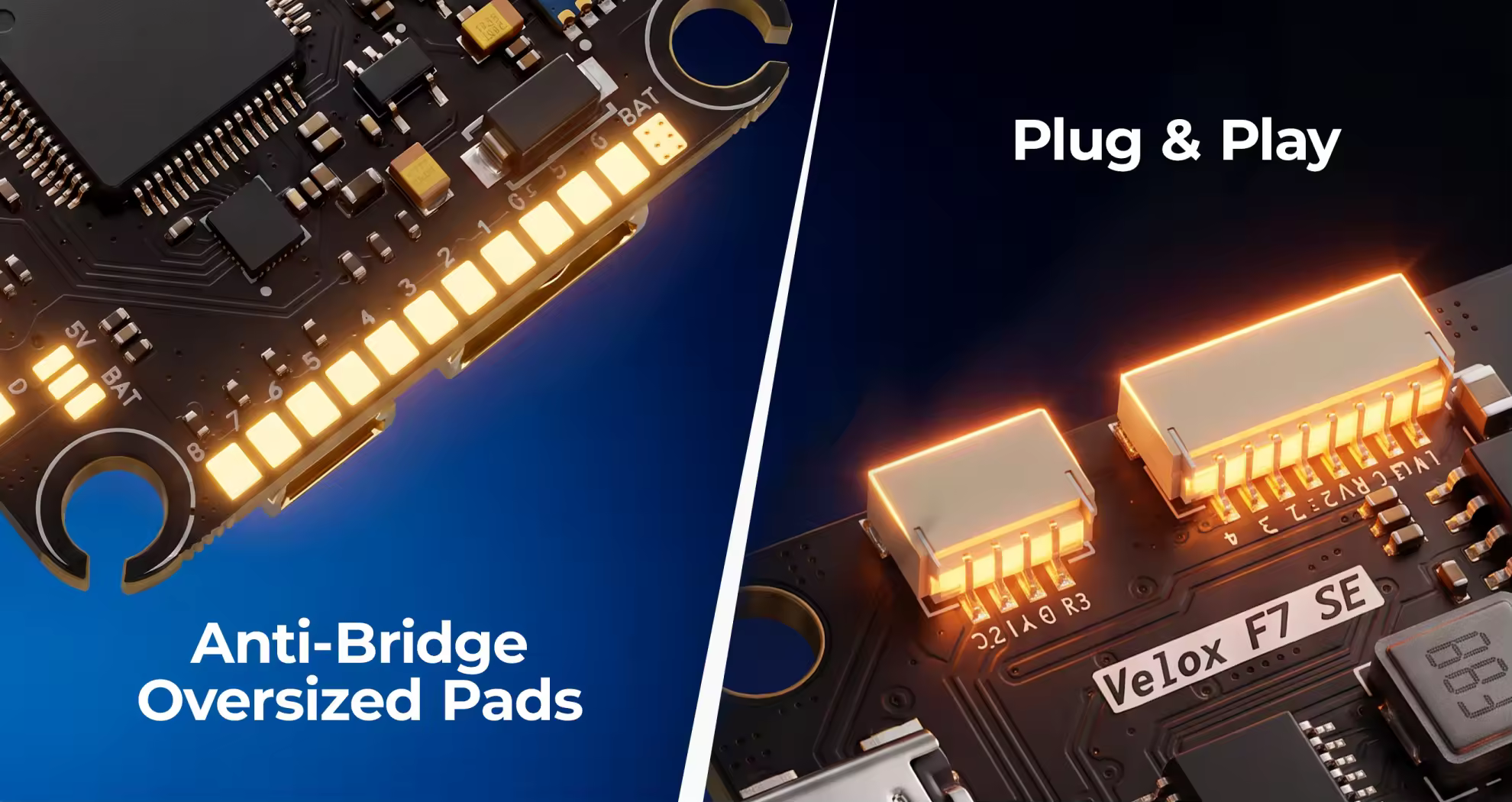

Direct FC Plug & Oversized Beginner-Friendly Solder Pads

Whether you are a beginner looking for a hassle-free setup or a seasoned pilot who demands a custom wired layout, this stack adapts to your building style.

Solder-Free Plug & Play: The stack comes with a built-in DJI digital air unit and HD FPV interface, along with direct receiver plug support, enabling a solder-free setup for faster assembly and cleaner wiring.

Anti-Bridge Traditional Pads: Prefer traditional welding? We've got you covered. The reserved motor and power pads feature oversized spacing and physical isolation, making soldering effortless and completely eliminating the risk of accidental solder bridges.

NEON 60A ESC Wiring Diagram

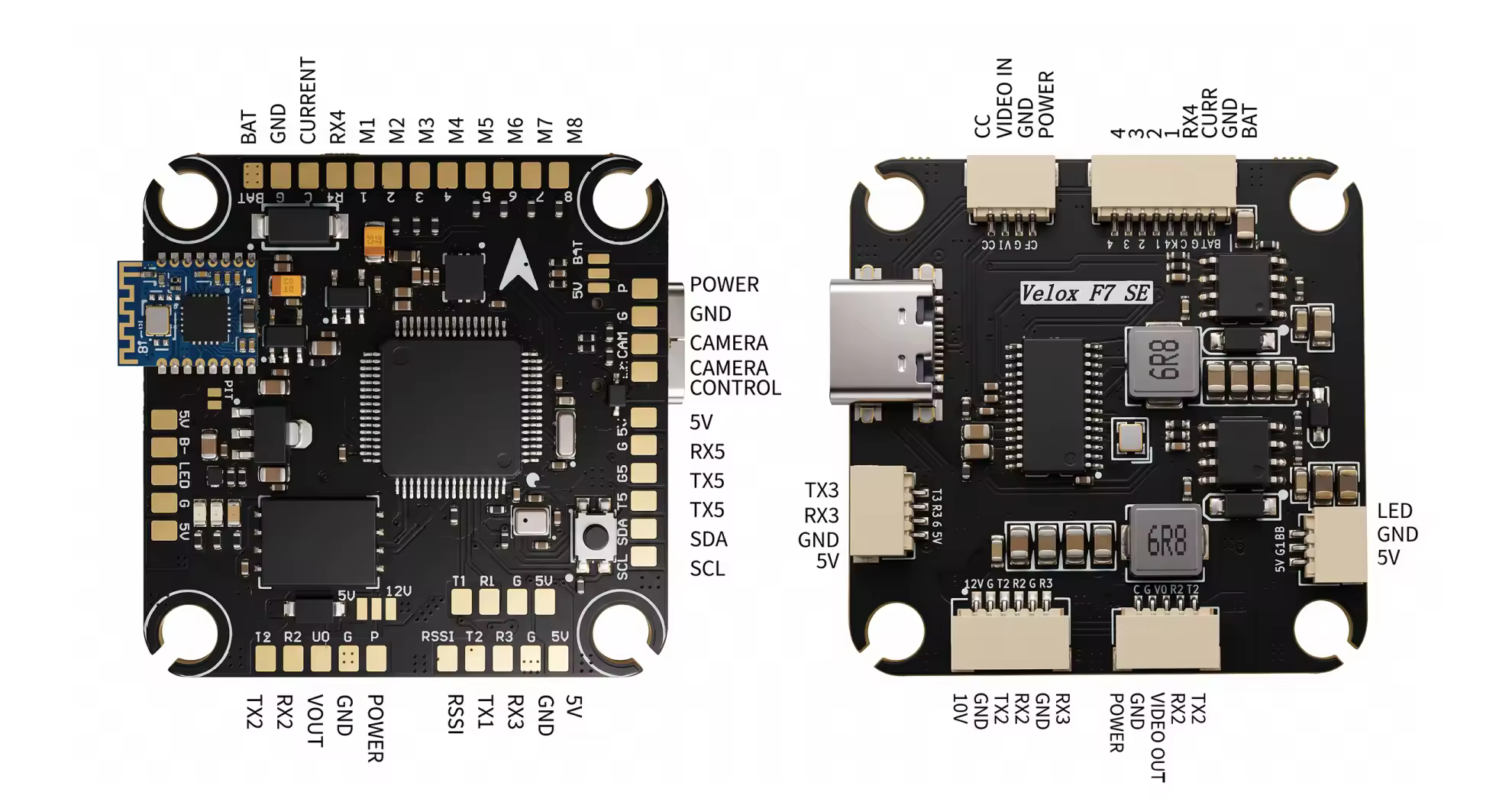

T-Hobby Velox F7 SE Wiring Diagram

⚠️Installation & Setup Guide (Must-Read):

1. Verify Wiring Pinouts Strictly： The ESC and O3/O4 Air Unit cables on this stack feature a redundant multi-pin design, which differs from standard standard pinouts. Always cross-check the wire sequence (pin-to-pin) before plugging them in. DO NOT plug them in blindly, or you risk burning out your Air Unit or Flight Controller.

2. Add Stack Spacers for Clearance: Due to the thick metal heatsink, the FC bottom components may physically interfere with the ESC armor. You MUST install the included spacers or nylon nuts between the ESC and FC to ensure enough clearance and vibration dampening space.

3. Motor Direction Adjustment: If you cannot change the motor direction in Betaflight Configurator after enabling Bidirectional DSHOT, go to the CLI tab, type: set dshot_bitbang = AUTO and press Enter, then type save. Alternatively, temporarily disable Bidirectional DSHOT, change the motor direction, and re-enable it.

Betaflight Setup & Tuning Reference

Copy and paste these verified settings into your Betaflight Configurator for an optimal out-of-the-box flight feel:

# ESC Protocol Configuration

ESC/Motor Protocol: DSHOT600

Bidirectional DShot: Enabled (for RPM Filtering)

Motor Poles: 14 (Standard for 22xx/23xx 5-inch motors)

# Power & Battery Current Meter Settings

Battery Current Scale: 180

Battery Current Offset: 0

Current Sensor Source: Onboard ESC Sensor

ESC Configuration Recommendation

For optimal efficiency and stable flight performance:

●Startup Power: 30%

●Timing: AUTO

●PWM Frequency: 16k–By RPM

Improper ESC settings may result in desync or reduced efficiency.

Specifications

NEON 60A ESC

Velox F7 SE

Size Chart

NEON 60A ESC

Velox F7 SE

Recommendation

Recommendation Parts

● MEPS NEON 2306 V2 High-Efficiency Brushless Motor for 5'' Freestyle FPV Drone

● T-HOBBY Velox F7 SE Flight Controller - 30.5x30.5 F7 FC for FPV Drones

● RadioMaster TX15 Max Radio Controller – STM32 H7 Chip,Dual-Band ELRS (2.4G/900M)

● iFlight Skyviz Analog FPV Goggles with Dual OLED & Built-in Receiver

● MEPS SZ4942 3-Blade Propeller

● Boslipo P7 Version 1300mAh 150C 4/6/8S FPV Battery

Package

1 x MEPS NEONCORE 60A ESC

1 x T-HOBBY Velox F7 SE FC
