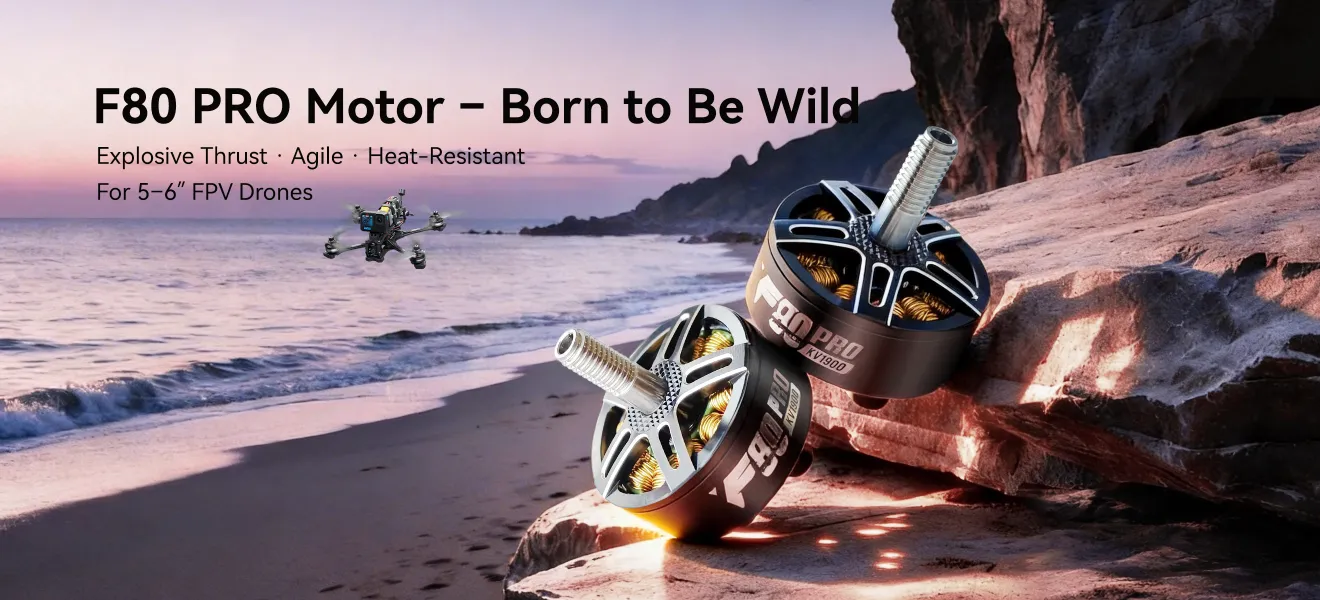

T-HOBBY F80 PRO Explosive Thrust Ultralight Heat-Resistant Brushless Motor for 5-6‘’ Freestyle & Racing FPV Drones

Max Power, Max Control

With up to 2115g of thrust, the F80 PRO motor delivers explosive power and responsive control, allowing freestyle and racing pilots to perform aggressive maneuvers with precision.

Check out our 5 inch FPV motor, all FPV Motor Collection and the rest of our T-HOBBY Products!

Ultra-Light & Fast Response

The F80 PRO motor's ultra-light 39.4g(with cable) design with up to 10% weight reduction enhances acceleration, agility, and reaction speed, allowing pilots to perform sharp maneuvers and quickly compensate in freestyle or racing flights.

Extreme Power – KV Options for Every Flight

The F80 PRO motors deliver insane power for extreme freestyle and racing builds. Available in 1900KV and 2200KV for long-range efficiency, and 2500KV for high-speed freestyle and racing, these motors combine high responsiveness, explosive thrust, and durable performance for maximum control in every flight.

Stay Cool During Aggressive Flights

The F80 PRO features 240°C high-temp silver windings and +33% improved thermal endurance, delivering stable, reliable performance under extreme loads. Designed for continuous high-output 6S flights, it stays cool and avoids thermal throttling even in aggressive freestyle and racing maneuvers.

Built Strong. Runs Smooth

Built with a high-strength titanium alloy shaft for superior impact resistance, the F80 PRO features an anti-slip shaft design to securely lock the propeller under extreme loads. Japanese large-size bearings ensure smooth, quiet operation, while the low-friction system reduces heat buildup and improves overall efficiency for reliable, aggressive flying.

T-Hobby F80 Pro Buying Guide: Is This 2408 Motor Right for You?

The T-Hobby F80 Pro, also widely known as the T-Motor F80 Pro, is a high-torque 2408 motor for pilots who want substantially more propeller authority than a conventional 2207 or 2306 motor. It is best suited to powerful 5-inch racing, heavy freestyle and selected 6-inch builds—not lightweight or efficiency-focused quads.

MEPSKING Expert Performance Assessment

After reviewing the supplied thrust testing and real-flight footage, our MEPSKING expert conclusion is that the F80 Pro’s main advantage is torque rather than simply a higher top speed. The tested 2200KV motor exceeded 2kg of thrust at approximately 90% throttle with suitable 5-inch propellers, while the 1900KV 6S flight setup sounded smooth, maintained good control authority and returned without abnormal motor temperature.

The additional stator volume makes throttle punches, recovery and high-speed direction changes feel authoritative, but it also adds weight and current demand. Older review samples weighed approximately 39–40g with full-length wires, while the current revised listing specifies 36.4g. Pilots building to a strict weight target should verify the actual production batch and trimmed-wire weight.

Which F80 Pro KV Should You Choose?

The safest purchasing rule is straightforward: choose 1900KV for 6S, 2200KV for 4S/5S versatility, and 2500KV for 4S. Do not treat the 2200KV or 2500KV versions as unrestricted 6S motors simply because the product family includes a 6S-compatible option.

F80 Pro vs 2207 and 2306 FPV Motors

Propeller, ESC and Installation Advice

Start with a durable 5-inch tri-blade around 5.1×4.3 and inspect every propeller before flight. The supplied testing showed excellent performance with suitable 5-inch props, but a 2200KV motor burned during an extreme 7-inch-prop test on 4S. Another flight test experienced a propeller failure under the motor’s high load. The F80 Pro should therefore not be purchased as a general-purpose 7-inch motor.

Use a genuine 55–60A ESC, install the supplied low-ESR capacitor and verify the motor screws do not contact the windings. On the first setup, apply a conservative motor-output limit, run a short hover, then check motor and ESC temperature before increasing load. High-KV versions require particular care with heavy or high-pitch propellers.

Final Purchase Recommendation

Buy the T-Hobby F80 Pro 2408 motor when you want an exceptionally powerful 5-inch build and already have the ESC, battery and propellers required to support its current demand. Choose a lighter MEPS SZ2207 V2 for conventional racing agility, or a MEPS SZ2306 V2 when smooth freestyle handling matters more than maximum torque.

Thrust Specification

Recommended Parts

● MEPS NEONCORE 60A 4-In-1 FPV ESC-30.5x30.5mm

● MEPS SZ5145 5-Inch Propellers – Higher-Pitch Freestyle and Racing Option

● Tattu R-Line V5 1300mAh 4S 150C Battery – For 2200KV or 2500KV 4S Builds

● Tattu R-Line V5 1550mAh 6S 150C Battery – For F80 Pro 1900KV 6S Builds
