BETAFPV LAVA Series 1102 Brushless Motor Buying Guide

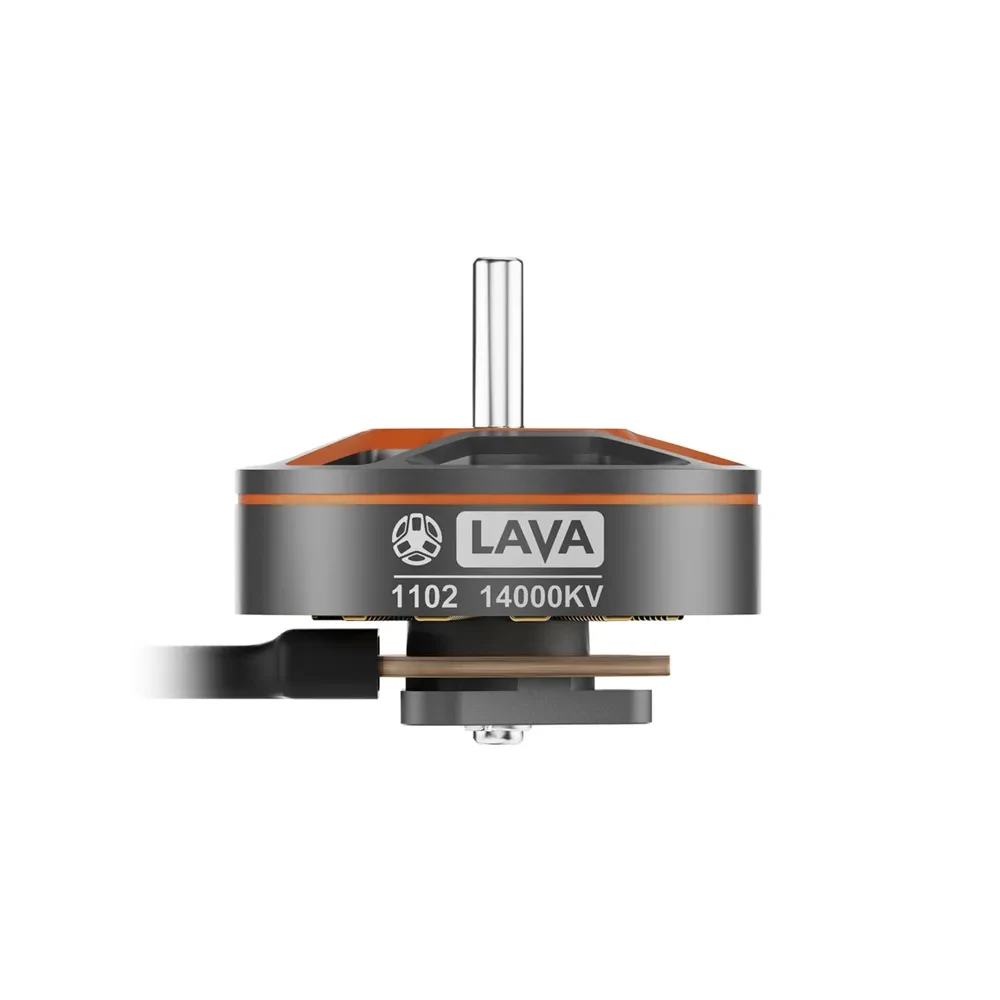

The BETAFPV LAVA Series 1102 14000KV Brushless Motor is a lightweight 2S micro FPV motor designed for the Pavo Femto and other compact DIY builds. With a 1102 stator size, 14000KV rating, approximately 3.4–3.6g weight, and nearly 130g peak thrust under the manufacturer's test conditions, it delivers a strong balance of power, efficiency and agility. Its four M2 propeller mounting holes also give it more flexibility than a typical micro motor, making it suitable for a range of small whoop and open-prop builds.
Why Choose the LAVA Series 1102 14000KV?
The LAVA 1102 is designed around a different performance philosophy from the extremely high-KV motors used on lightweight 1S Tinywhoops.
Its 14000KV rating is optimized for 2S power, allowing the motor to combine higher battery voltage with a compact 1102 stator. Rather than simply chasing maximum RPM, the motor is designed to provide strong thrust while maintaining useful efficiency across the throttle range.
BETAFPV specifies up to approximately 130g peak thrust under its test conditions. At peak thrust, the motor maintains efficiency above 1.5g/W, while the company reports approximately 2.1g/W efficiency during steady flight. These figures help explain why the LAVA 1102 is positioned for both responsive flying and reasonable flight endurance.
| Flying Priority | Recommended Direction |
|---|
| 2S micro FPV | LAVA 1102 14000KV |
| Pavo Femto | LAVA 1102 14000KV |
| Lightweight freestyle | LAVA 1102 14000KV |
| Efficient micro flying | LAVA 1102 14000KV |
| DIY 2S whoop | LAVA 1102 14000KV |
| 1S Tinywhoop racing | Choose a dedicated 1S high-KV motor |
| 3S micro build | Choose a motor specifically rated for 3S |
The key point is that 14000KV should not be judged against 20000KV or 27000KV simply by the KV number. Motor KV must always be considered together with battery voltage, motor size, propeller load and aircraft weight.
For example, a 14000KV motor running from 2S is intended for a very different power system from a 27000KV motor running from 1S.
LAVA 1102 vs Other Micro Motors Available at MEPSKING
| Motor | KV | Recommended Power | Motor Size | Best Platform | Main Character |
|---|
| BETAFPV LAVA 1102 | 14000KV | 2S | 1102 | Pavo Femto / 2S Micro | Power + efficiency balance |
| BETAFPV 1103 | 11000KV | 2S | 1103 | 2–3" Micro / Toothpick | Smooth, lightweight 2S power |
| T-HOBBY M1104 | 7500KV | 2–3S | 1104 | 2–2.5" Toothpick / Whoop | Higher torque and broader voltage range |
Recommended 2S Micro FPV Setup
| Component | Recommended Direction |
|---|
| Motor | BETAFPV LAVA 1102 14000KV |
| Flight Controller | F4 2–3S 20A AIO FC |
| Propeller | Gemfan 1611 3-Blade / Gemfan 1608 3-Blade |
| Battery | BETAFPV LAVA 2S 450mAh / 550mAh |
| Platform | Pavo Femto / compatible DIY Micro FPV frame |
| Flying Style | Lightweight freestyle / micro freestyle / cruising |
Choosing the Right Battery
| Priority | Battery Direction |
|---|
| Maximum agility | 2S 450mAh |
| Balanced flight | 2S 450–550mAh |
| Longer flight time | 2S 550mAh |
| Lightweight freestyle | 450mAh-class |
| Maximum battery endurance | Higher capacity, accepting extra weight |
22mm or 44mm Cable: Which One Should You Choose?
| Version | Weight | Best For |
|---|
| 22mm Cable | 3.4g | Compact frames / short wiring |
| 44mm Cable | 3.6g | Larger micro frames / easier routing |
For a compact Pavo Femto-style build, the 22mm version is usually the cleaner choice if the wiring distance is short.
For a custom frame where the motors are farther away from the FC, the 44mm version can make installation easier and reduce the need for wire extensions.
Final Recommendation
The BETAFPV LAVA Series 1102 14000KV is a well-positioned micro FPV motor for pilots who want to move beyond traditional 1S Tinywhoop performance and build a lightweight 2S Micro FPV platform.
Its biggest strengths are the combination of 1102 stator size, 14000KV, approximately 3.4–3.6g weight, nearly 130g published peak thrust and efficiency-focused motor design. The four M2 propeller mounting holes also make it more interesting for custom builders than a motor designed only as a direct replacement.
For a Pavo Femto or similar 2S micro build, the most straightforward configuration is:
LAVA 1102 14000KV + 2S 450–550mAh battery + 3-blade micro propeller + 2–3S AIO FC
Choose the 22mm version for compact builds where short wiring is preferred, or the 44mm version when longer motor wires make installation easier.
If your priority is lightweight 2S power, responsive handling and efficient micro FPV performance, the LAVA 1102 14000KV is a strong choice.
If your priority is 1S Tinywhoop racing, choose a dedicated 1S high-KV motor instead. If you want a larger 2–3S toothpick or micro freestyle build with more stator volume and torque, a motor such as the T-HOBBY M1104 is a more appropriate direction.
