Skyzone SKY04X PRO 52° OLED 5.8GHz FPV Goggles for RC & Drone Racing

About Skyzone SKY04X PRO FPV Goggles:

The Skyzone SKY04X PRO is the ultimate flagship analogue FPV goggle designed for drone racing and freestyle pilots, combining upgraded 1920×1080 Full HD OLED screens that provide vibrant colors and deep contrast with an expanded 52-degree Field of View (FOV) and smooth 100Hz refresh rate (supporting 720p 100fps HDMI input for digital HD systems like Walksnail Avatar and HDZero) to deliver an unparalleled, tear-free, low-latency immersive flight experience. It features an advanced built-in 5.8GHz SteadyView V3.3 fusion receiver that blends two video signals into one seamless image to significantly reduce screen tearing and rolling in multi-path interference zones, while offering ultimate convenience through a built-in diopter adjustment (-6 to +2) and adjustable IPD (58–71mm) that eliminate the need for extra corrective lenses, an integrated 60fps H.264 DVR supporting up to 128GB Micro SD cards to capture smooth footage, and a lightweight, ergonomic dual-faceplate structure with broad 2S-6S LiPo or USB-C 5V voltage input compatibility for maximum comfort and practicality in any FPV environment.

Skyzone
$30 Off Orders $499+
$15 Off Orders $249+
Collect
$ 595.00 $759.00
-$164
4.8 | 112Sold
Options (4)
Add-ons
Bundle and save up to $0.55 on gear — upgrade your setup for less.
  • neon 2306 v2 1950kv green
    MEPS NEON 2306 V2 High-Efficiency Brushless Motor for 5'' Freestyle FPV Drone
    1950KV / Fluorescent Green
    $10.44 Save $0.55
fall into big savings pc gift
In Stock Expected ship within 5 days after order.
FedEx
USPS
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • 52° Immersive OLED Display — High-resolution 1920×1080 OLED screen delivers rich colors & clarity.
  • SteadyView 5.8GHz Receiver — Built-in 48CH V3.3 analog module for stable FPV signal.
  • Adjustable Optics & IPD — Focus (-6 to +2) and IPD (58–71 mm) customization for comfort.
  • DVR & HDMI Input — Record flights at 60 fps and HDMI support for 720p @100 fps.
  • Head Tracker & Universal Power — Built-in 6-axis sensor + wide voltage input 2–6S LiPo.
Payment | Every order you place with us is safe & secure
Share

Check out our SKY04X PRO Goggles, all FPV Goggles Collection and the rest of our Skyzone Products!

skyzone sky04x pro 52 oled 58ghz fpv goggles 1

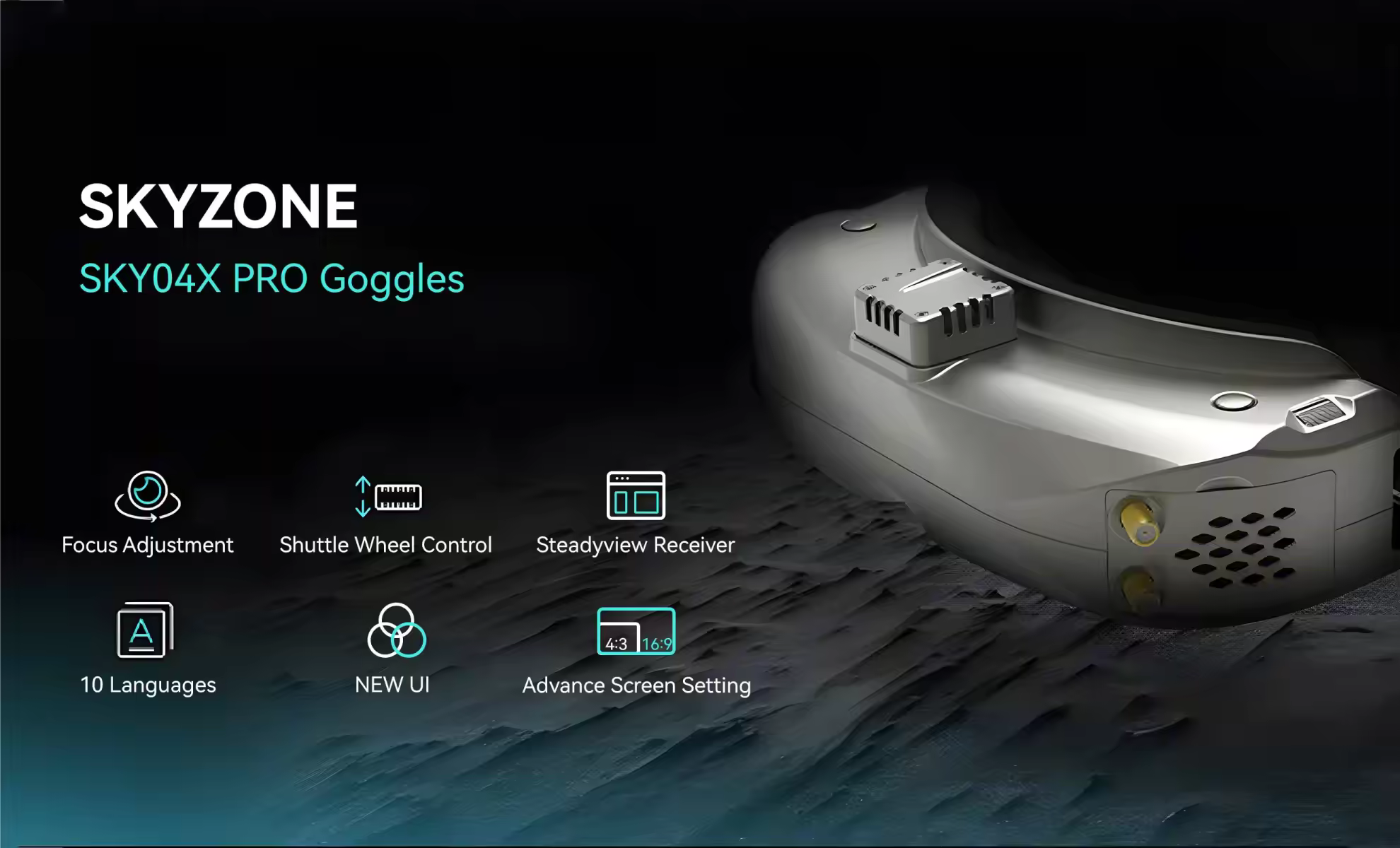

1080p OLED Display—Ultimate Clarity & Zero-Latency Visuals

Upgrade your flight view with premium 1920×1080 Full HD OLED screens that leave traditional, washed-out LCD/LCOS displays behind. Engineered for serious FPV pilots, this high-resolution panel delivers vivid color reproduction and an ultra-high contrast ratio that restores every hidden detail in dark corners or cinematic highlights. By eliminating visual latency and pixelation, it ensures you see sharp, real-time imagery—giving you the split-second precision needed to dodge obstacles, hit tight gates, and experience pure immersion.

skyzone sky04x pro 52 oled 58ghz fpv goggles 2

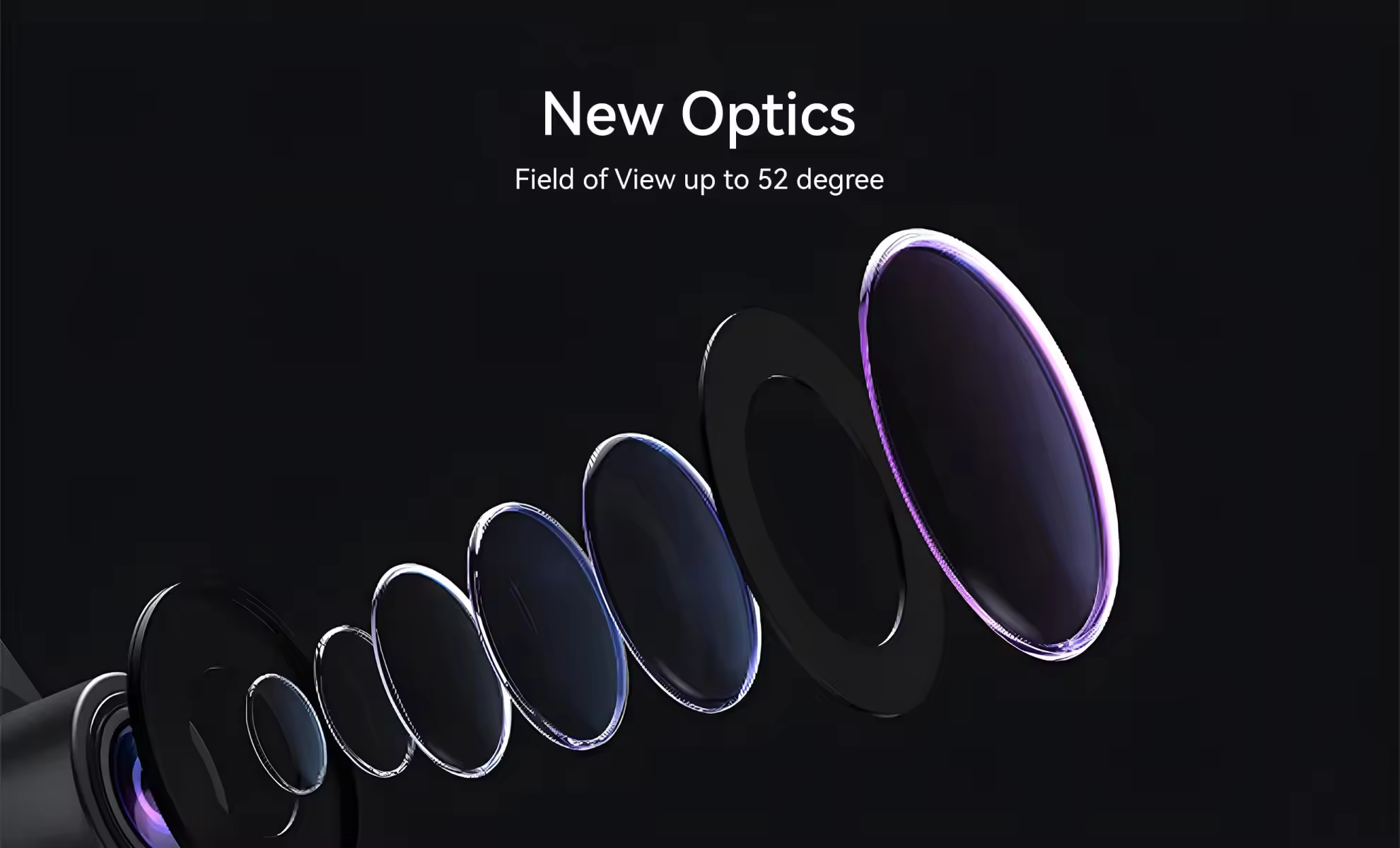

Expansive 52° Wide FOV—Panoramic Views & Total Situational Awareness

Gain a massive tactical edge with an ultra-wide 52° diagonal Field of View (FOV) that pushes the boundaries of standard FPV goggles. By expanding your peripheral vision, this immersive display brings a true cinematic scale to your live feed, allowing you to spot tight racing gates sooner, map out freestyle lines faster, and track obstacles effortlessly. Dive deeper into your flight world with a panoramic, edge-to-edge view that maximizes your awareness and elevates your confidence in the air.

skyzone sky04x pro 52 oled 58ghz fpv goggles 3

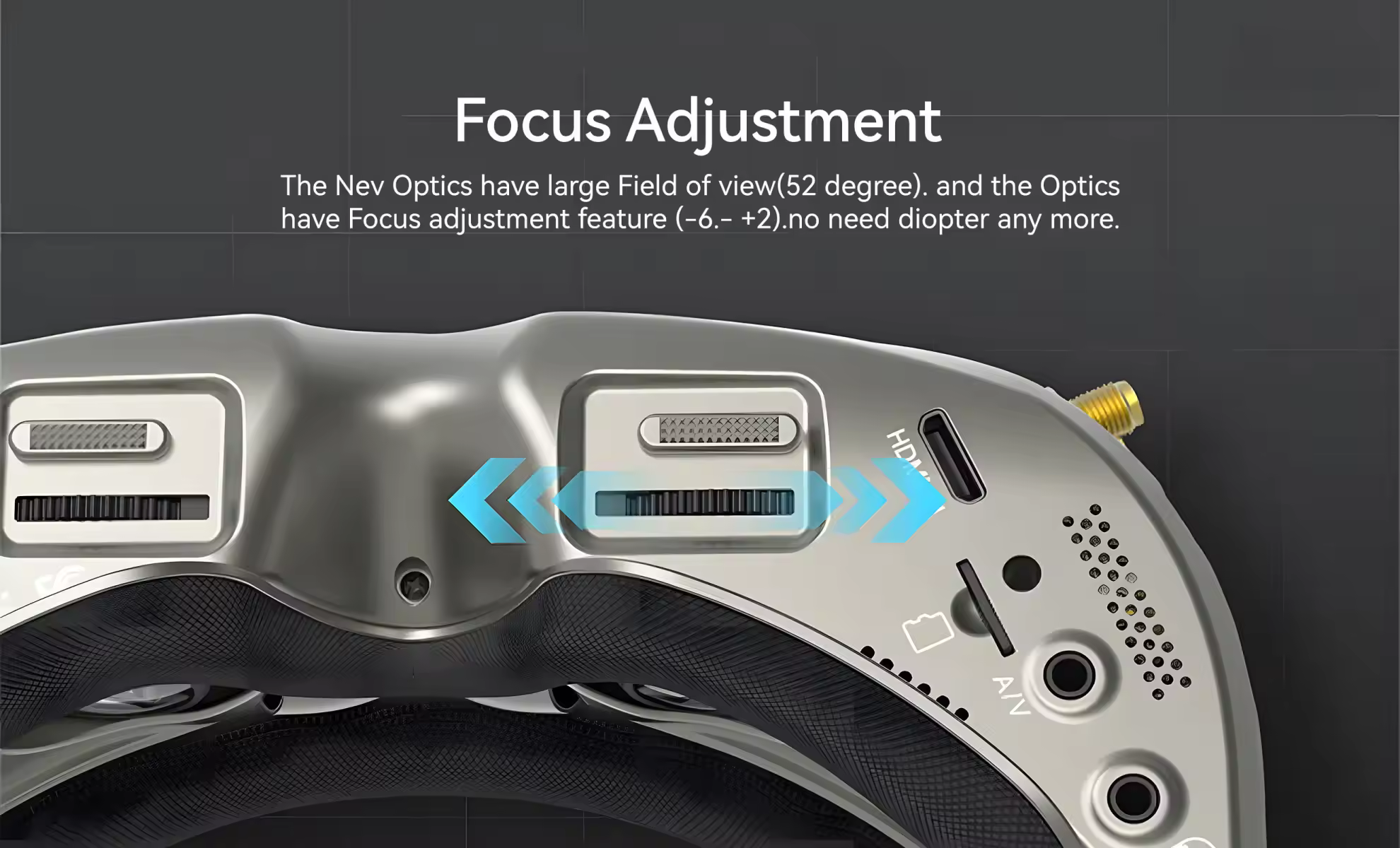

Integrated Diopter Adjustment — Crystal-Clear Focus Without Extra Lenses

Experience custom-tailored vision on the fly. While the expansive 52° wide Field of View (FOV) pulls you deeper into the action, the built-in -6 to +2 focus adjustment ensures you see every detail with absolute sharpness. There is no need to buy, swap, or scratch external corrective diopter lenses—simply adjust the gear wheels to match your exact eyesight. Perfect for nearsighted or farsighted pilots, this feature delivers edge-to-edge clarity and ultimate convenience for a stress-free flight.

skyzone sky04x pro 52 oled 58ghz fpv goggles 4

Advanced Display Presets — Instant Visual Optimization

Take complete control of your field of view with seamless 16:9 and 4:3 aspect ratio switching, paired with powerful smart display presets. Engineered to combat unpredictable outdoor lighting, these goggles feature 4 preset screen modes (Standard, Vivid, Bright, and Soft) and 3 fully customizable user profiles. Whether you are chasing gaps in a dimly lit indoor parking garage, racing under a harsh midday sun, or navigating overcast weather, you can instantly adapt your contrast, brightness, and saturation to lock in maximum visibility and keep your edge.

skyzone sky04x pro 52 oled 58ghz fpv goggles 5

Note: To cool the high-performance OLED panel, the right side bay is installed with a cooling fan, so SKY04 X PRO didn't support quadversity mode.

Buying Guide: Skyzone SKY04X Pro

MEPSKING Expert Review: Who Should Buy It?

Our assessment of independent hands-on reviews favors the SKY04X Pro for analog pilots who prioritize OLED contrast, an immersive image and HDMI flexibility. Try the faceplates and adjust IPD, focus and aspect ratio before deciding whether the optics suit you.

What Should Racing Pilots Check?

A separate hands-on comparison reported increased latency and uneven motion on the tested units. Skyzone now lists latency-related firmware and subsequent image-tearing fixes, but that does not establish the performance of every shipping unit. Our advice: confirm hardware and firmware versions, then test your normal analog setup before competitive racing. Do not choose this model on a “zero-latency” promise.

SKY04X Pro vs SKY04O Pro

The SKY04X Pro offers 1920×1080 OLED panels and a maximum 52° diagonal view, compared with 1280×720 and 42° on the Skyzone SKY04O Pro. Choose the X Pro when the larger display and supported 720p/100fps HDMI input matter. Consider the O Pro if you prefer a smaller image and its lower price. Neither screen resolution alone nor FOV proves lower latency.

Analog and Digital Compatibility

The included SteadyView module receives compatible 5.8GHz analog video. Digital use requires a separate compatible HDMI-output receiver; the goggles do not natively receive DJI video. The 1080p panels do not turn an analog feed into HD, and 100fps requires a supported source and output mode. The right-side cooling fan also rules out a second receiver for quadversity.

Before Your First Flight

Use compatible 2–6S LiPo power through the correct cable, verify polarity and set the battery warning. For an RHCP video setup, consider the SMA version of the SpeedyBee 5.8GHz Antenna V2. Match antenna polarization to the aircraft and check DVR recording before takeoff.

Specifications:

● Screen: OLED
● Resolution: 1920*1080
● FOV (Diagonal): 52°
● Aspect Ratio: 4:3/16:9
● Focus: -6~+2 adjustable
● Interpupillary distance(IPD): 58-71mm
● Receiver: 5.8Ghz 48CH V3.3 Steadyview Receiver
● DVR: H264, 60fps
● Voltage Input: 2~6SLiPo
● HDMI IN: 720P 100FPS
● Head Tracker: 3-axis Accelerometer, 3-axis gyroscope
● Dimensions: 185*75*67mm
● Weight: 267g

Band/Channel Table

BAND/CH table
BAND/CHCH 1CH2CH3CH4CH5CH6CH7CH8
A5865M5845M5825M5805M5785M5765M5745M5725M
B5733M5752M5771M5790M5809M5828M5847M5866M
E5705M5685M5665M5645M5885M5905M5925M5945M
F5740M5760M5780M5800M5820M5840M5860M5880M
R5658M5695M5732M5769M5806M5843M5880M5917M
L5362M5399M5436M5473M5510M5547M5584M5621M
Sensitivity–98dBm±1dBm
Antenna port2 X SMA–K,50ohm

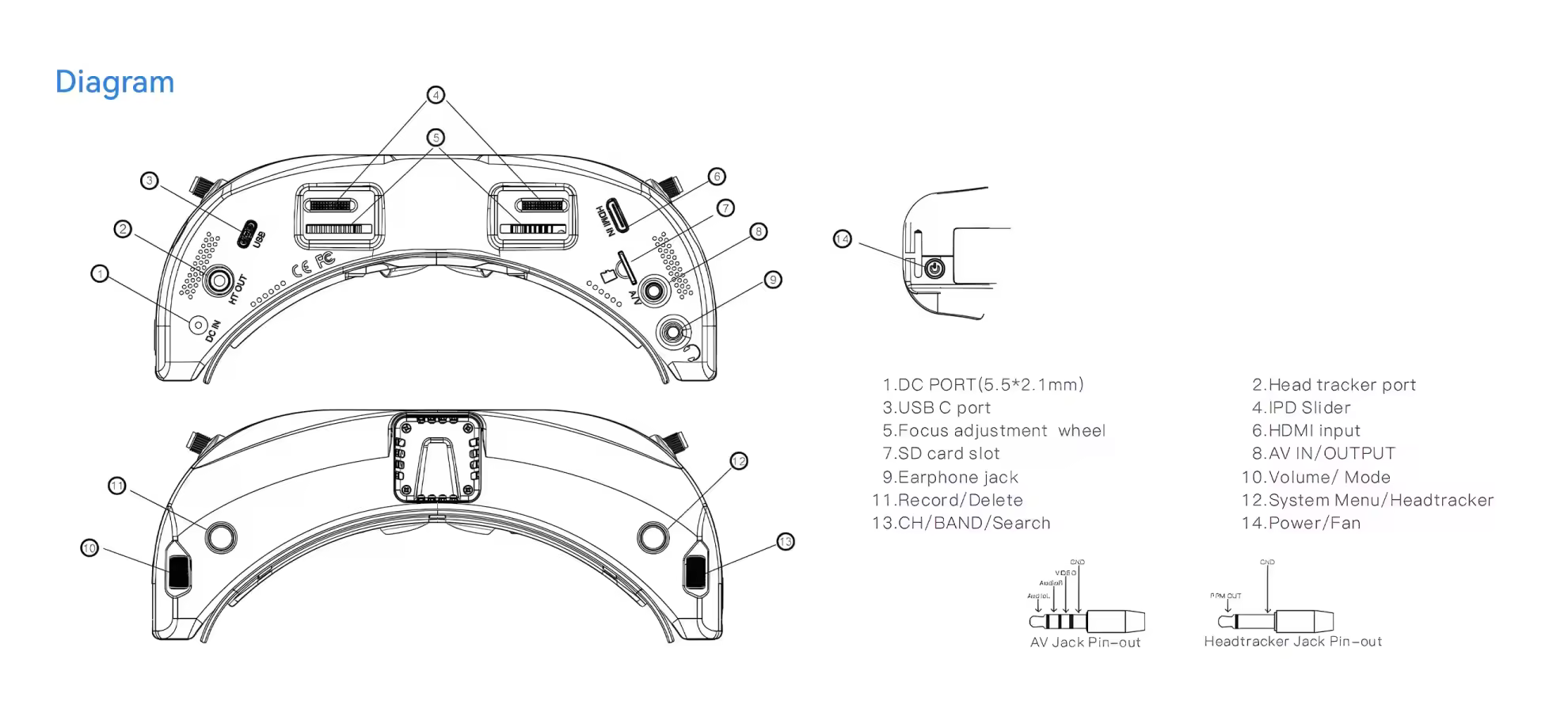

skyzone sky04x pro 52 oled 58ghz fpv goggles pc 7

Recommended Accessories

● Tattu R-Line 850mAh 4S LiPo Battery – XT60 Compact Backup Power

● ToolkitRC Q6AC AC/DC 4-Channel Charger – For Goggle and Flight Batteries

Match antenna polarization to your aircraft. Connect the battery through a compatible XT60-to-DC goggle power cable and verify polarity before use. Charge the battery separately with a balance charger. These accessories are optional if you already own compatible equipment.

Package Included:

● 1x SKY04X Pro Goggles
● 1x Steadyview V3.3 Receiver Module
● 2x Faceplate (wide and narrow)
● 1x Sponge with Velcro
● 1x Zipper case
● 1x Power cable
● 1x Headtracker cable
● 2x 5.8GHz 2dB antennas
● 1x Video/Audio Cable
● 1x USB-C Cable
● 1x SKY04x Pro User Manual
