Buying Guide: RadioMaster TX16S Mark II Max
MEPSKING Expert Review

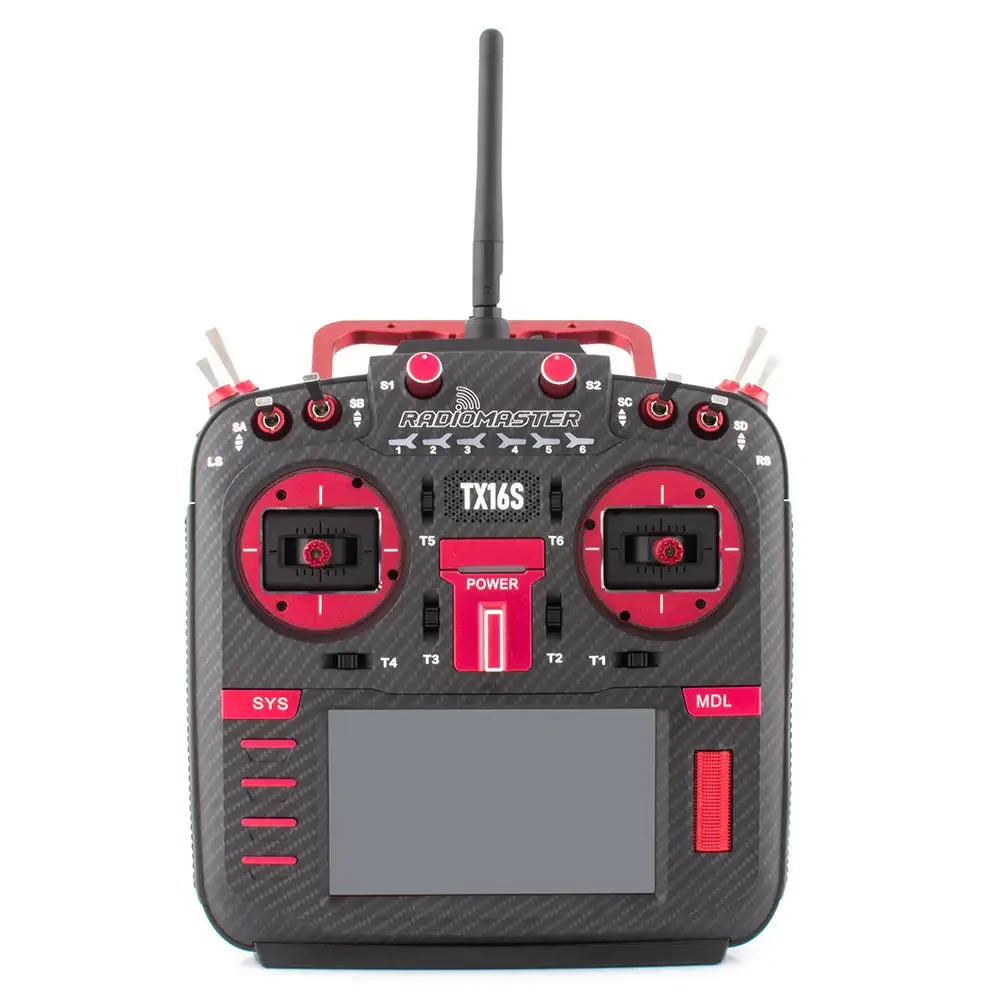

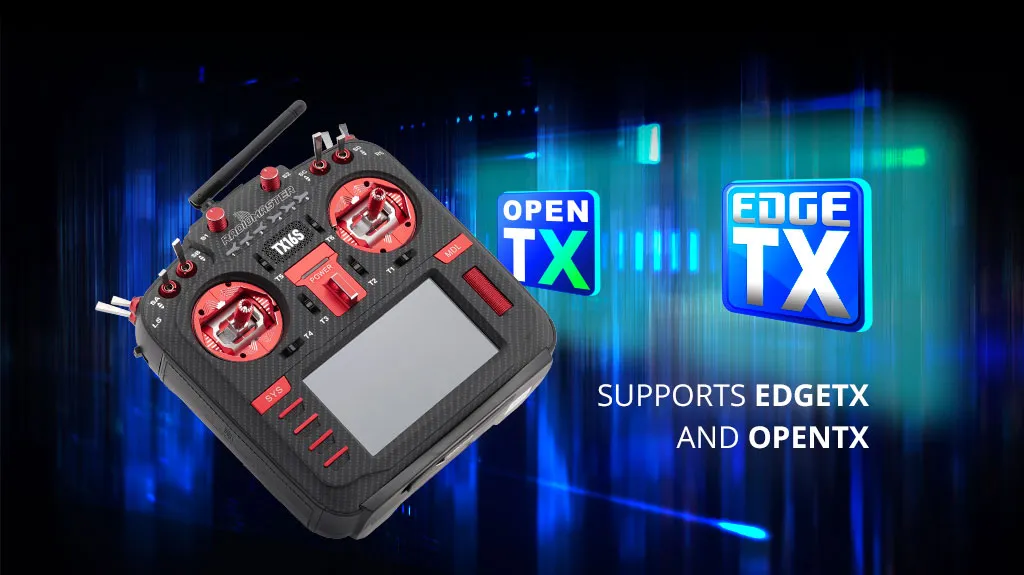

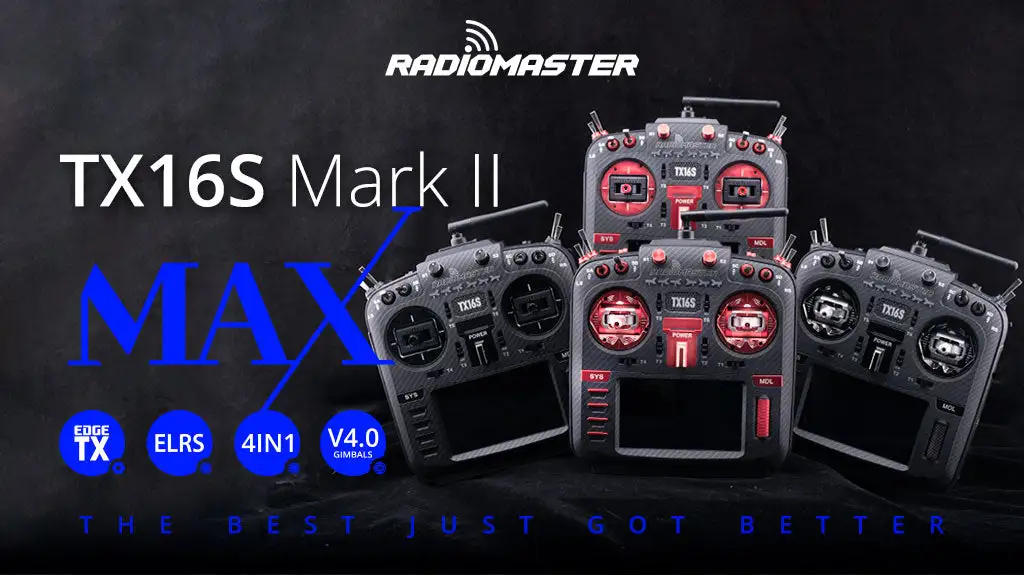

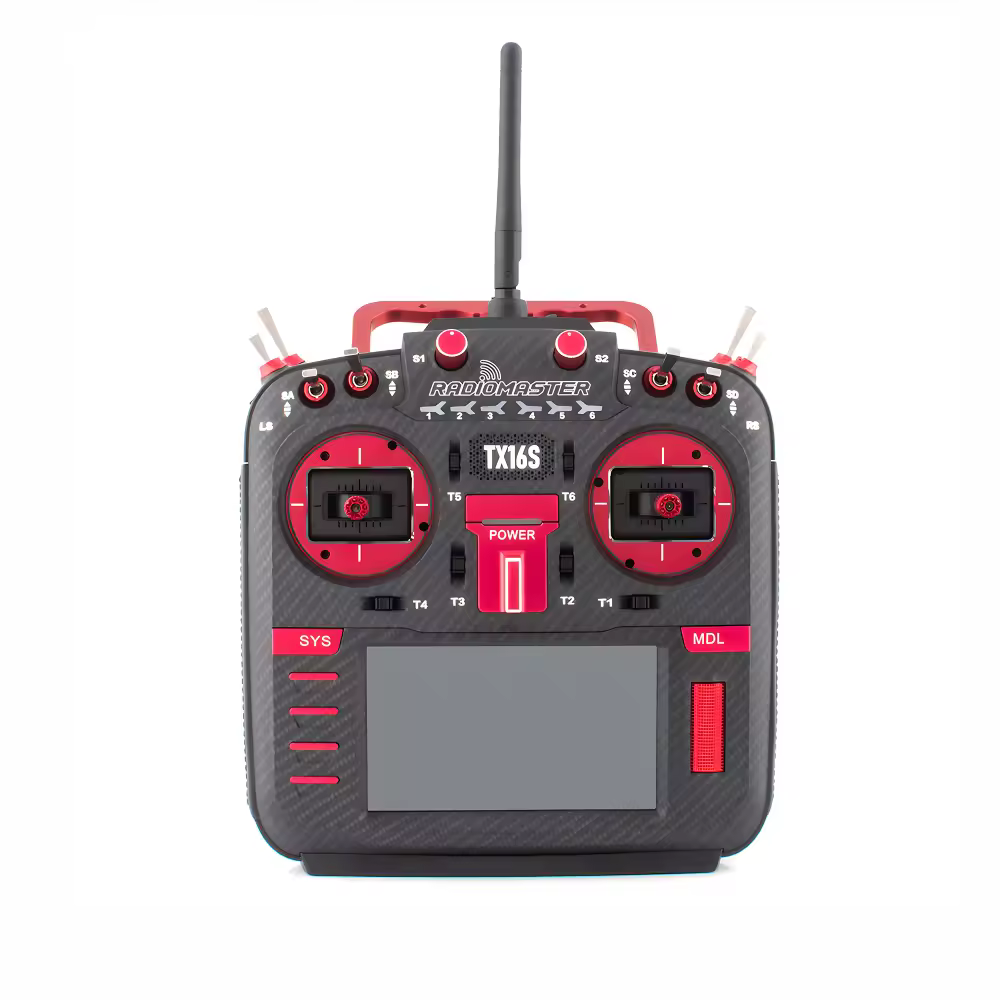

The RadioMaster TX16S Mark II Max is best suited to pilots who want a full-size EdgeTX radio with a large touchscreen, extensive physical controls and support for many different model types. It is particularly useful for pilots managing FPV drones, fixed-wing aircraft, helicopters and other RC models from one transmitter.

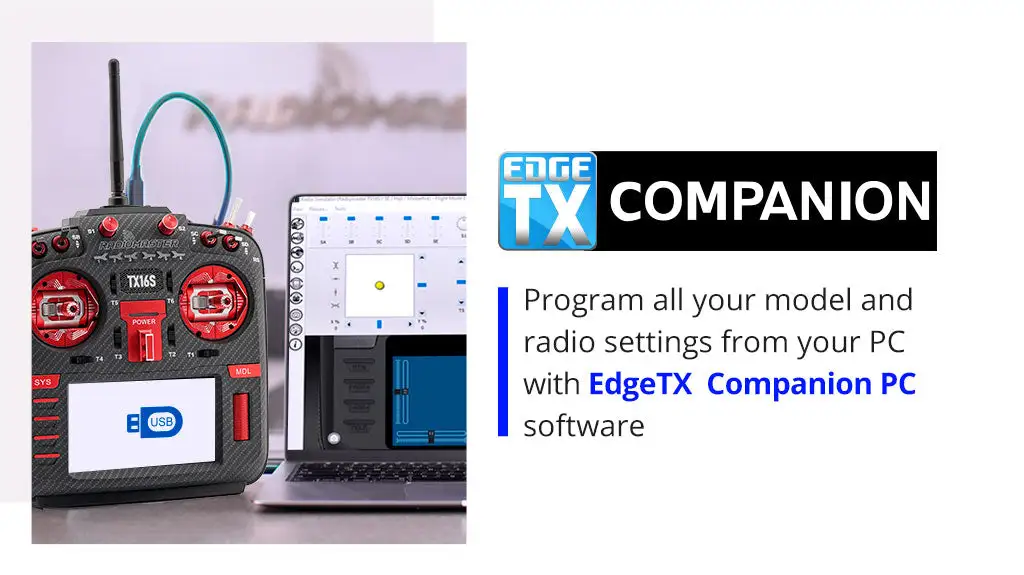

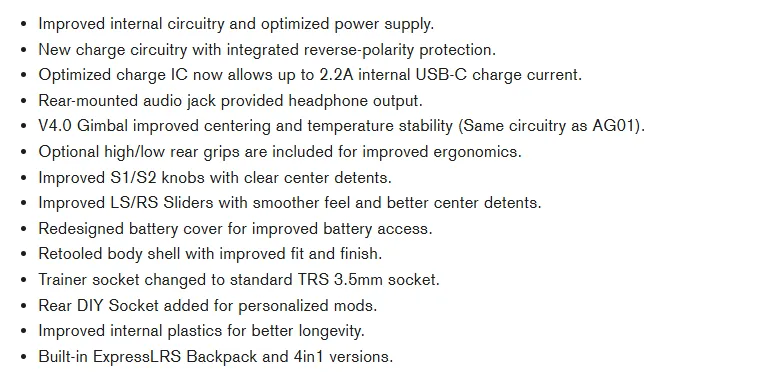

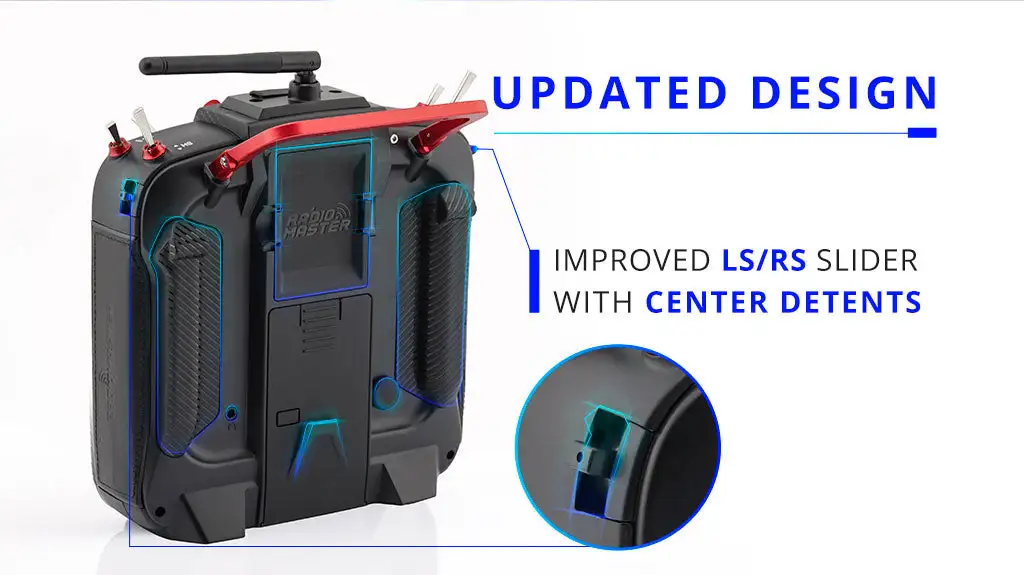

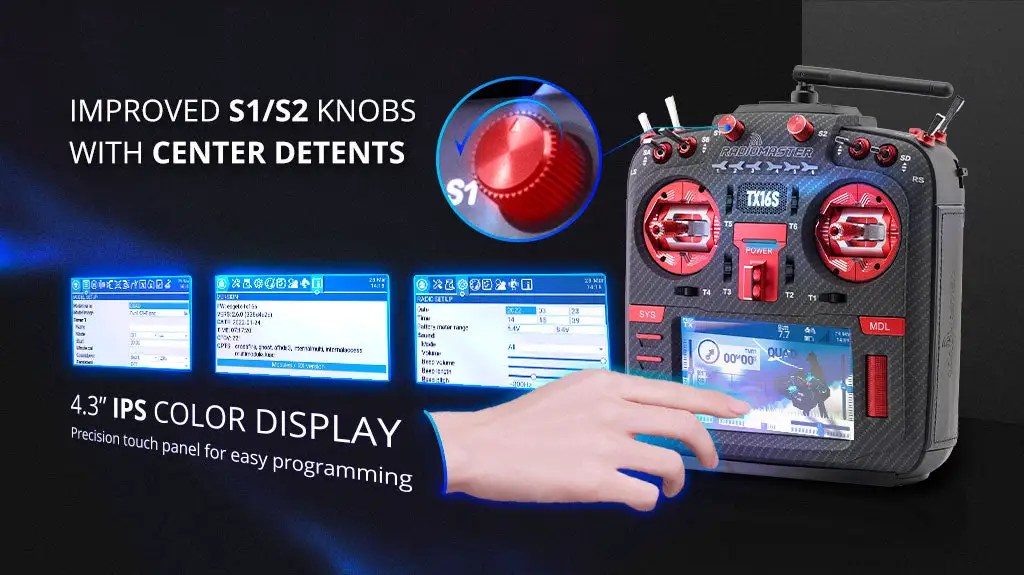

In the hands-on review, the AG01 gimbals felt smooth and controlled during both thumb and pinch operation. The improved knobs and sliders made their center positions easier to identify, while the 4.3-inch touchscreen made EdgeTX model setup more accessible.

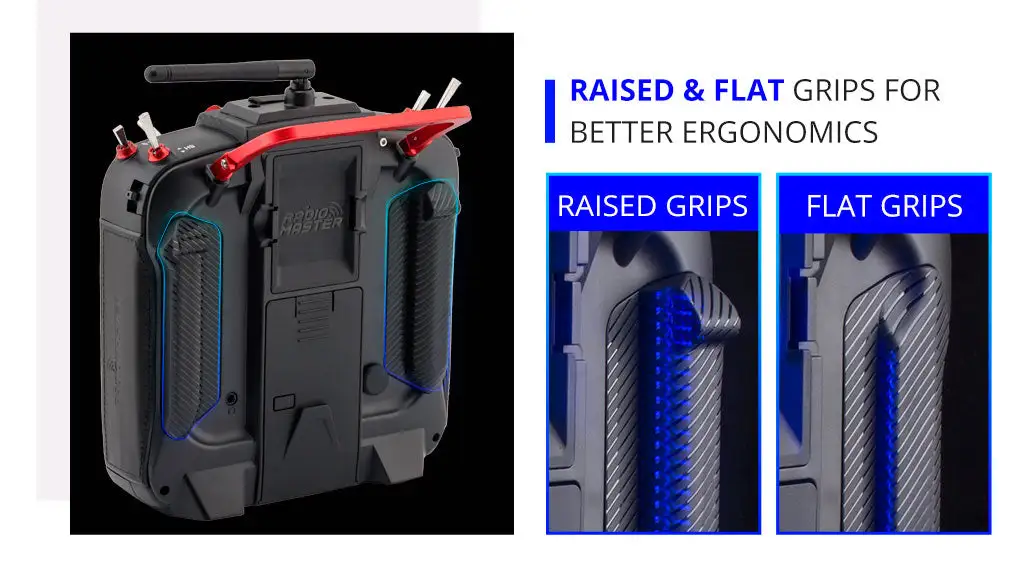

The main physical trade-off is size and weight. Pilots with smaller hands may find the TX16S bulky, and the heavier AG01 version benefits from a neck strap during long sessions. The included flat and raised rear grips allow some adjustment to the holding position.
Owner feedback also highlights a learning curve. New users should expect to spend time learning EdgeTX, receiver binding, mixes and telemetry. It is a radio to grow into rather than the simplest first-day transmitter.

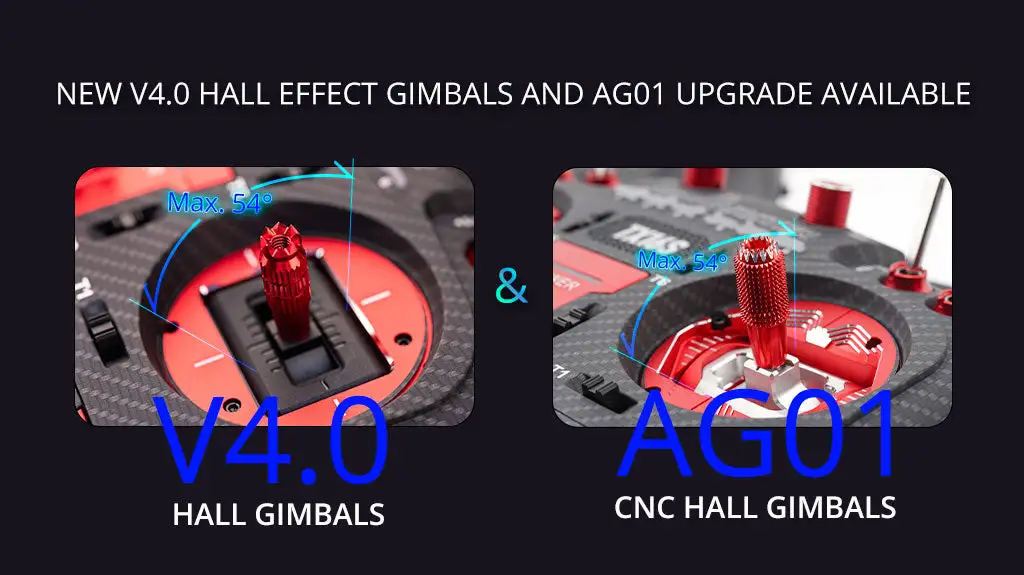

V4.0 Hall vs AG01 Hall Gimbals
| Comparison | V4.0 Hall Gimbals | AG01 Hall Gimbals |
|---|
| Sensor System | Hall sensors using the same chipset platform as AG01 | Hall sensors using the same core chipset platform |
| Construction | Lighter composite mechanism with aluminum fascia | Full CNC aluminum structure with quad bearings |
| Adjustment | External travel, tension and centering adjustment | External travel, tension and centering adjustment |
| Control Feel | Smooth, accurate and lighter in the hands | More solid and mechanically refined feel |
| Best Buyer | Most pilots seeking the best value | Experienced pilots prioritizing premium stick feel |
Choose the V4.0 Hall gimbals if you want reliable centering, external adjustment and lower cost. They are accurate enough for most FPV, fixed-wing and simulator users.
Choose AG01 if the CNC construction, bearing-supported movement and premium mechanical feel justify the additional cost and weight. The practical improvement in flying is subtle, so AG01 should mainly be purchased for feel and construction quality.
Should You Choose ELRS or 4-in-1?
Choose the internal ELRS version when most of your current and future FPV drones use compatible 2.4GHz ExpressLRS receivers. This provides the most straightforward setup for a modern ELRS fleet.

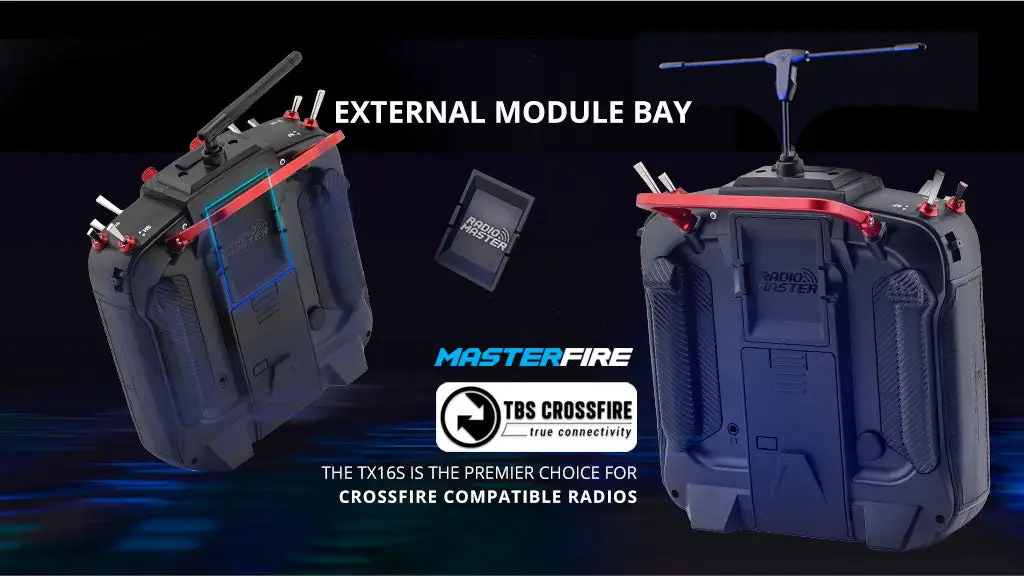

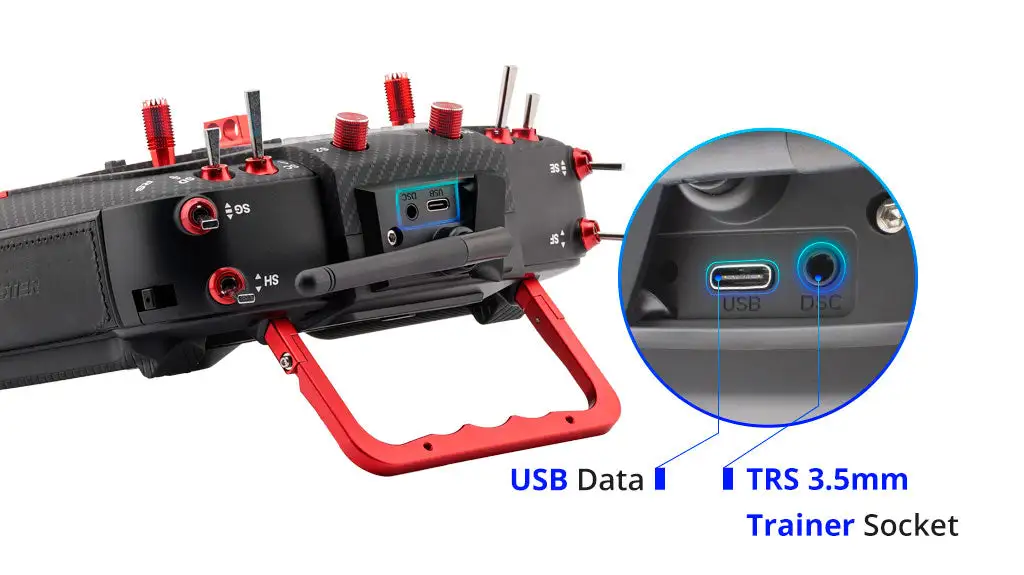

Choose the internal 4-in-1 version when you own models using several supported legacy protocols such as compatible FrSky, FlySky, DSM or other multiprotocol receivers. An external ELRS module can be added through the JR-compatible module bay.
The current MEPSKING options are marked FCC. Buyers in regions using LBT firmware should confirm local requirements and receiver firmware compatibility before ordering.
TX16S Mark II Max or TX16S MK3?
Choose the Mark II Max when you need the internal 4-in-1 module, prefer the established Mark II platform or specifically want AG01 gimbals. It remains useful for pilots managing older and newer models from one radio.

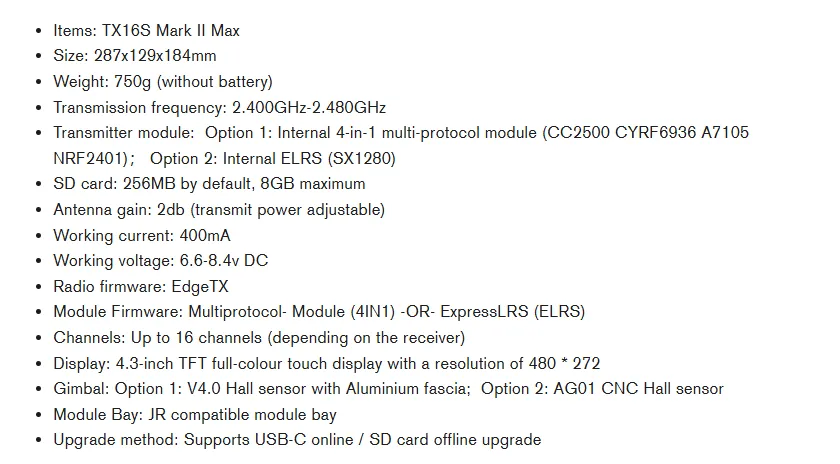

For an ELRS-only flagship radio, compare it with the newer RadioMaster TX16S MK3. The MK3 adds an H7 processor, 5-inch screen and Gemini dual-band ELRS.
Battery Options
Batteries are not included. Use two matched RadioMaster 18650 batteries in the included tray, or choose the RadioMaster 2S 5000mAh battery for longer operating time.
Final Purchase Recommendation
Buy the RadioMaster TX16S Mark II Max if you want a premium full-size transmitter with extensive controls, EdgeTX touchscreen operation, JR module expansion and a choice between ELRS or 4-in-1 receiver compatibility.
For most buyers, V4.0 Hall gimbals provide the better value. Select AG01 when premium mechanical feel is a priority. Pilots wanting a smaller transmitter should compare the models in the MEPSKING radio controller collection.
