Q: What is the MEPS SZ F7 Analog Flight Controller?

A: The SZ F7 is a high-performance analog FPV flight controller with an F7 processor in a standard 30.5×30.5 mounting pattern, built to handle freestyle, racing, and GPS rescue modes.

Q: Is this flight controller compatible with Betaflight?

A: Yes — it runs Betaflight out of the box, supporting all modern Betaflight features including OSD, telemetry and advanced PID tuning.

Q: What frame size is this controller ideal for?

A: It’s ideal for 5-inch to 6-inch freestyle and racing drones using a 30.5×30.5 stack layout.

Q: Can this FC be used with analog FPV systems?

A: Yes — it’s designed to work with analog FPV gear and provides clean OSD integration without digital radios.

Q: Is the MEPS SZ F7 suitable for GPS rescue mode?

A: Yes — multiple UART ports allow GPS modules to be connected, enabling Betaflight GPS rescue and navigation features.

Q: Will this flight controller work with DJI OSD?

A: It works natively with analog OSD in Betaflight; for digital DJI OSD, a compatible module and wiring are required.

Q: Is the SZ F7 flight controller durable?

A: Yes — high-quality components, robust solder pads, and good cooling paths make it reliable under freestyle loads and crashes.

Q: Is this a good upgrade over older F4 flight controllers?

A: Yes — with a faster STM32 F722 processor, higher UART count, and improved filtering, the F7 offers better performance and smoother flight.

Q: What type of wiring layout does this FC use?

A: It uses a standard 30.5×30.5 stack layout, compatible with most FPV frame stacks and ESC boards.

Q: How many UART ports are available?

A: The SZ F7 FC provides multiple UART ports for SBUS/IBUS receivers, telemetry, GPS, SmartAudio/VTX control, and additional peripherals.

Q: Does it support SmartAudio or IRC Tramp VTX control?

A: Yes — it supports SmartAudio and IRC Tramp for VTX power, channel, and band control from OSD/Betaflight.

Q: Is a Betaflight setup wizard provided?

A: Yes — Betaflight’s setup wizard works with the SZ F7 to help configure sensors, filters, and stabilization profiles.

Q: Can this FC handle heavy freestyle cycles?

A: Yes — with good filtering and a powerful MCU, it handles aggressive throttle, quick rolls, and punchouts smoothly.

Q: What are common setup mistakes pilots should avoid?

A: Avoid wrong UART mapping, improper noise filtering settings, and incorrect Betaflight target — these can cause instability or desync.

Q: Can GPS be used with Rescue and Hold features?

A: Yes — connecting a GPS module enables rescue, hold, and navigation modes in Betaflight.

Q: What warranty/support does MEPSKING provide?

A: MEPSKING offers setup support, wiring guidance, OSD tuning tips, and warranty service for manufacturing defects.

MEPSKING F7 Flight Controller For Freestyle Drone

MEPS SZ F7 Analog High-Performance Drone Flight Controller-30.5×30.5

About MEPS SZ F7 Analog FPV Flight Controller:

Introducing the MEPS SPACE F7 flight controller for drone, a full-sized 30.5x30.5mm flight controller designed for analog builds. Powered by the high-performance STM32F722 microcontroller, it ensures precise flight control and integrates the AT7456E chip for real-time OSD data monitoring. Its remote VTX switch, controllable via the UART interface, facilitates maintenance and parameter adjustments while preventing VTX overheating. Designed for efficiency, MEPS SZ F7 Analog FPV drone flight controller features well-sized solder pads and a logical layout for easy assembly. Additionally, comprehensive data logging aids in troubleshooting and performance tuning.

Check out our F7 FC, all FPV Flight Controller Collection and the rest of our MEPS Products!

MEPS

$18 Off Orders $249+

$12 Off Orders $159+

Collect

$ 38.99 ~~$59.90~~

-35%

5 | 464Sold

Options (1)

Quantity

Add-ons

Bundle and save up to $2.25 on gear — upgrade your setup for less.

T-HOBBY F55A ProII 55A 3-6s AM32 4-in-1 ESC w/ BEC for FPV Drone
55A ESC EU ONLY
$72.87 Save $2.25

In Stock Expected ship within 48 hours after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Precise Control & Easier Adjustable Settings.
Perfect for 5-inch Quadcopters.
Integrated OSD enhances flight control and real-time monitoring.
VTX Switch prevents VTX overheating via UART control.
16MB Black box porvides extensive data logging for analysis.

Payment | Every order you place with us is safe & secure

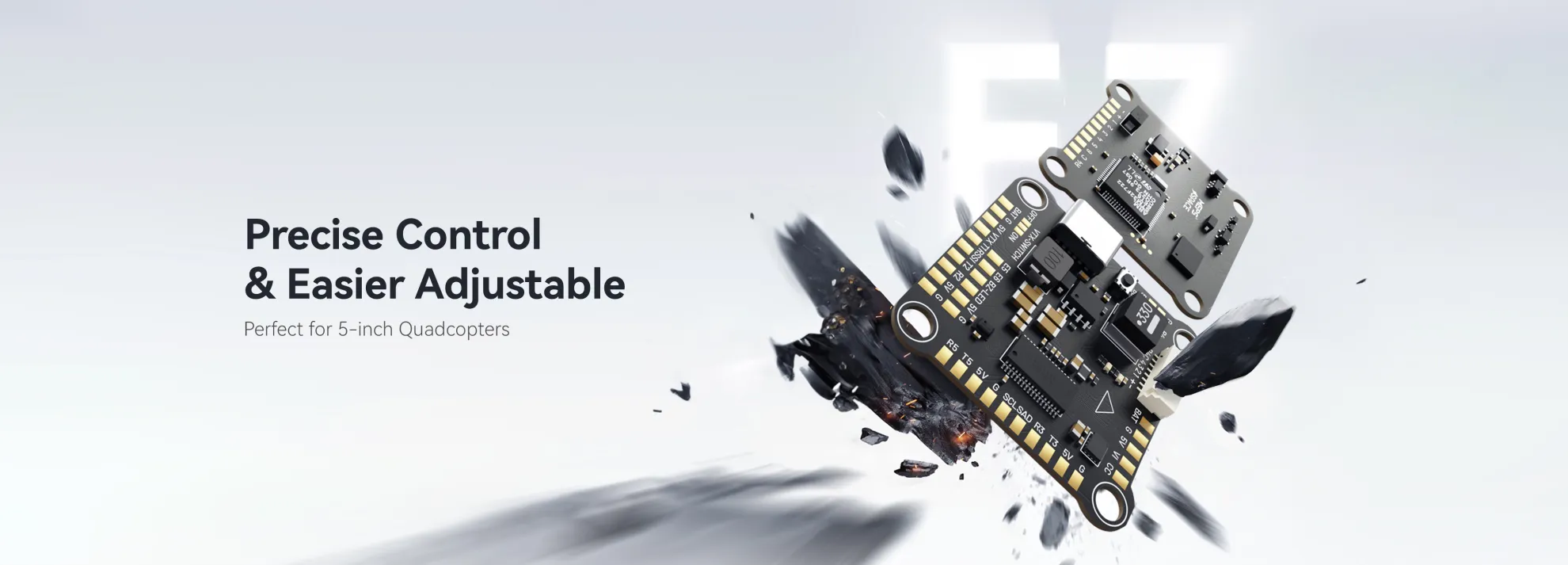

MEPS F7 Flight Controller With Precise Control Show

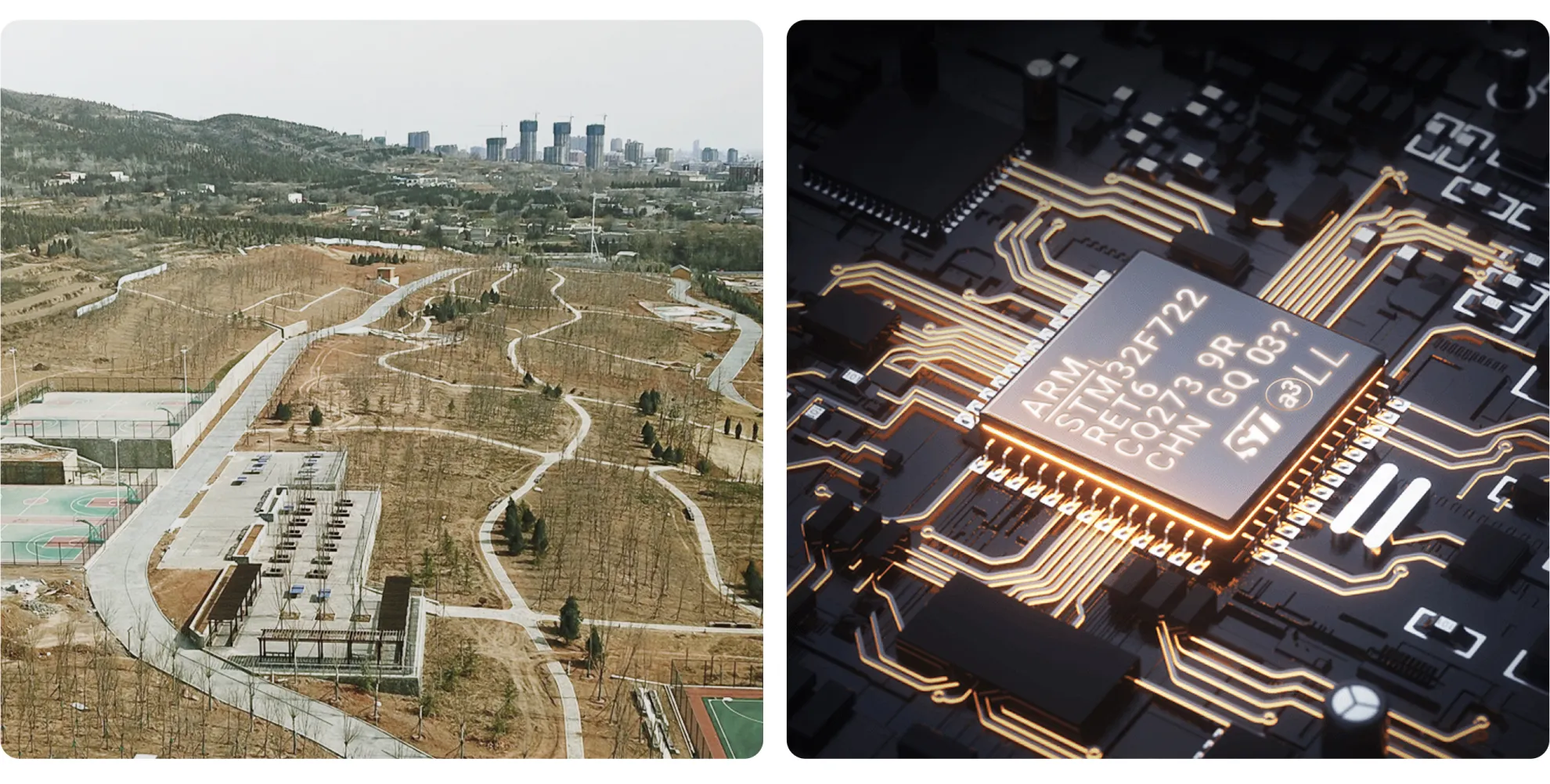

High-Performance STM32F722 Microcontroller

30% faster calculation speed than conventional F4 processors,and more sensitive response. It provides faster and more precise flight control, which is essential for racing and freestyle flying.

MEPS F7 flight controller with STM32F722 chips

MEPS F7 flight controller with high performance

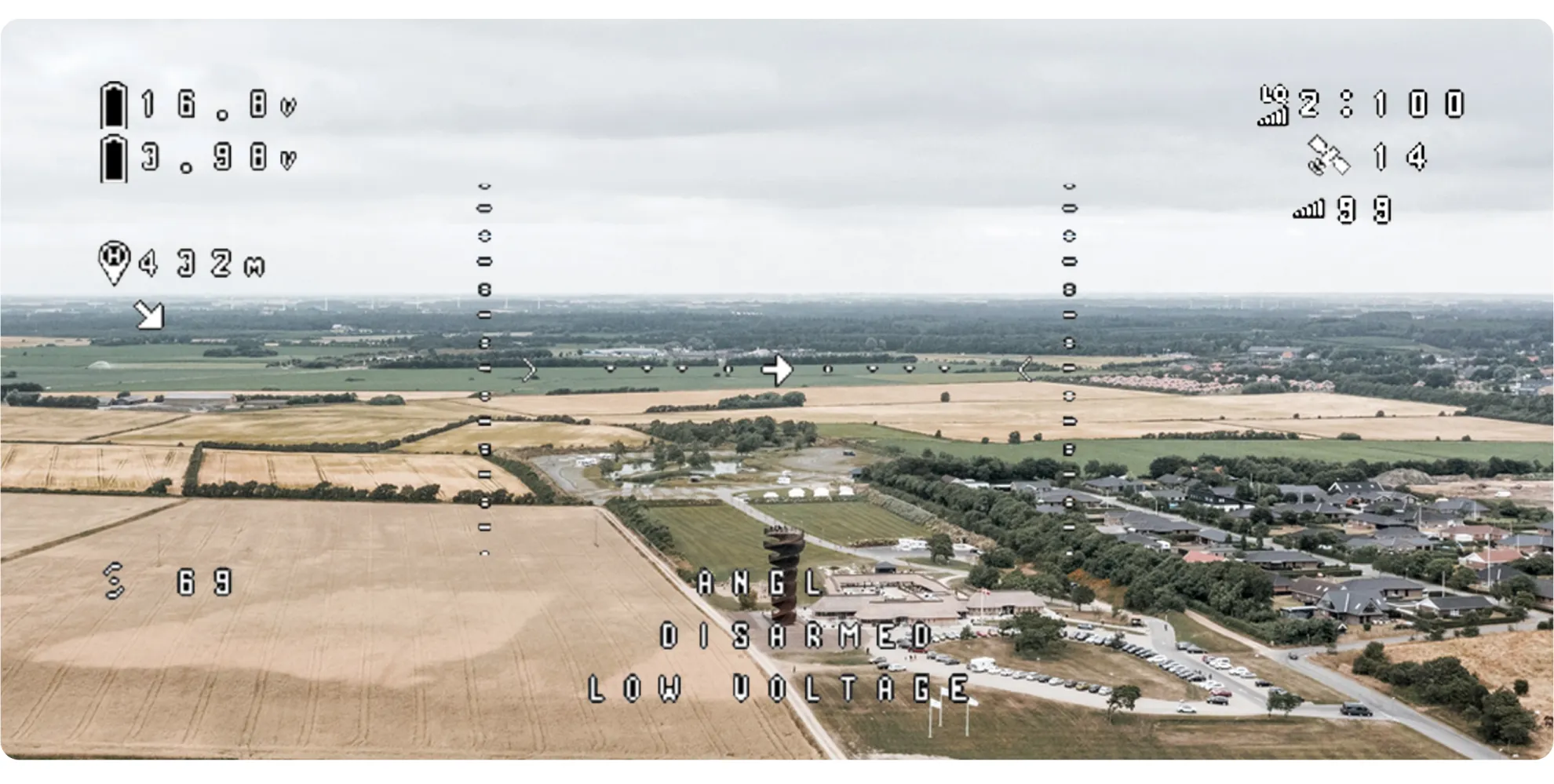

Integrated OSD Functionality

The built-in AT7456E chip generates OSD overlay effects, displaying and adjusting flight data, enhancing flight control and real-time monitoring.

MEPS F7 flight controller with intergrated OSD functionality

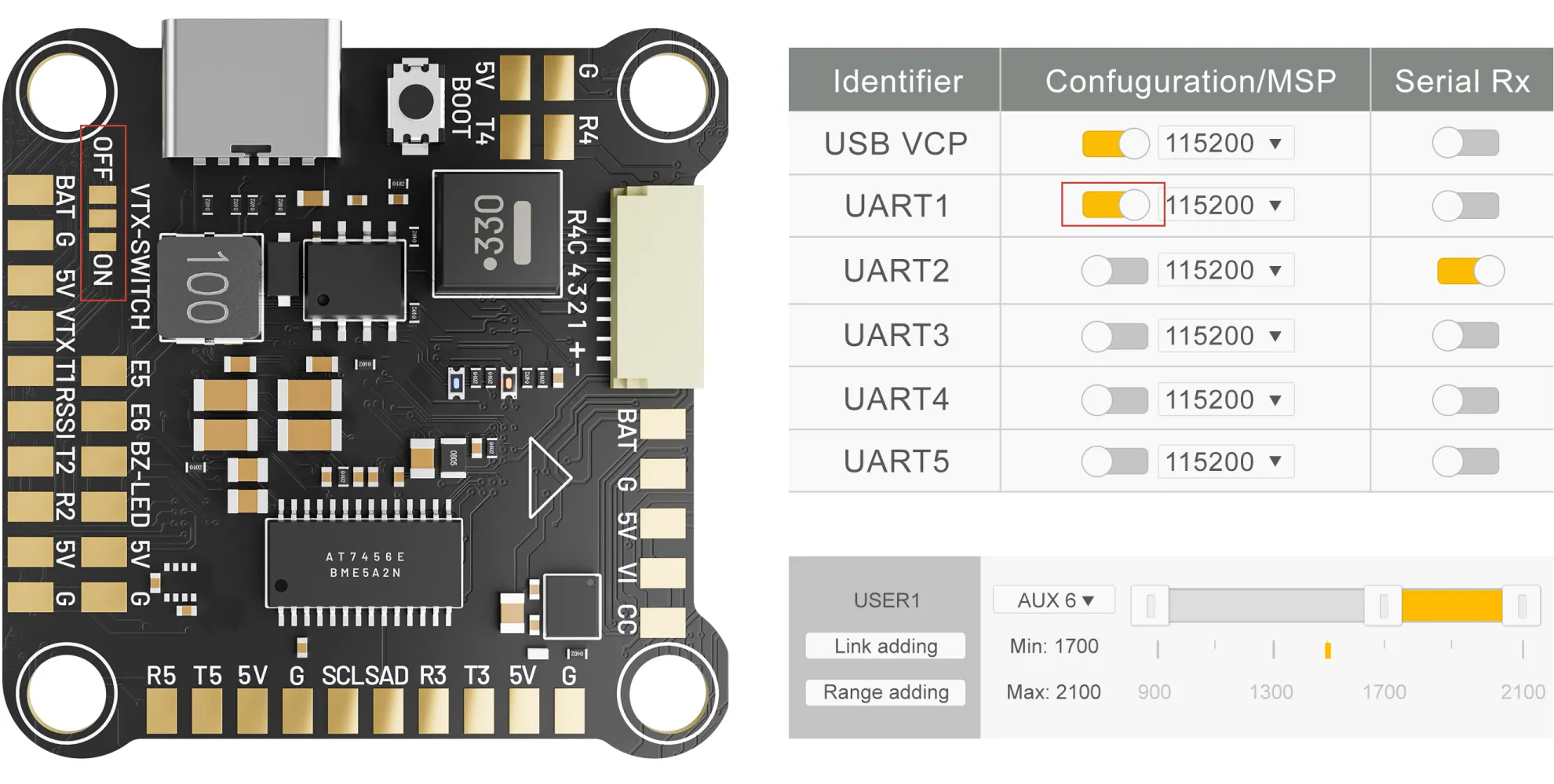

Remote VTX Switch

The VTX switch can be controlled through the corresponding UART interface, facilitating maintenance, aircraft status checks, flight parameter adjustments, and protecting the VTX from overheating.

MEPS F7 Flight Controller With Remote VTX Swith Data

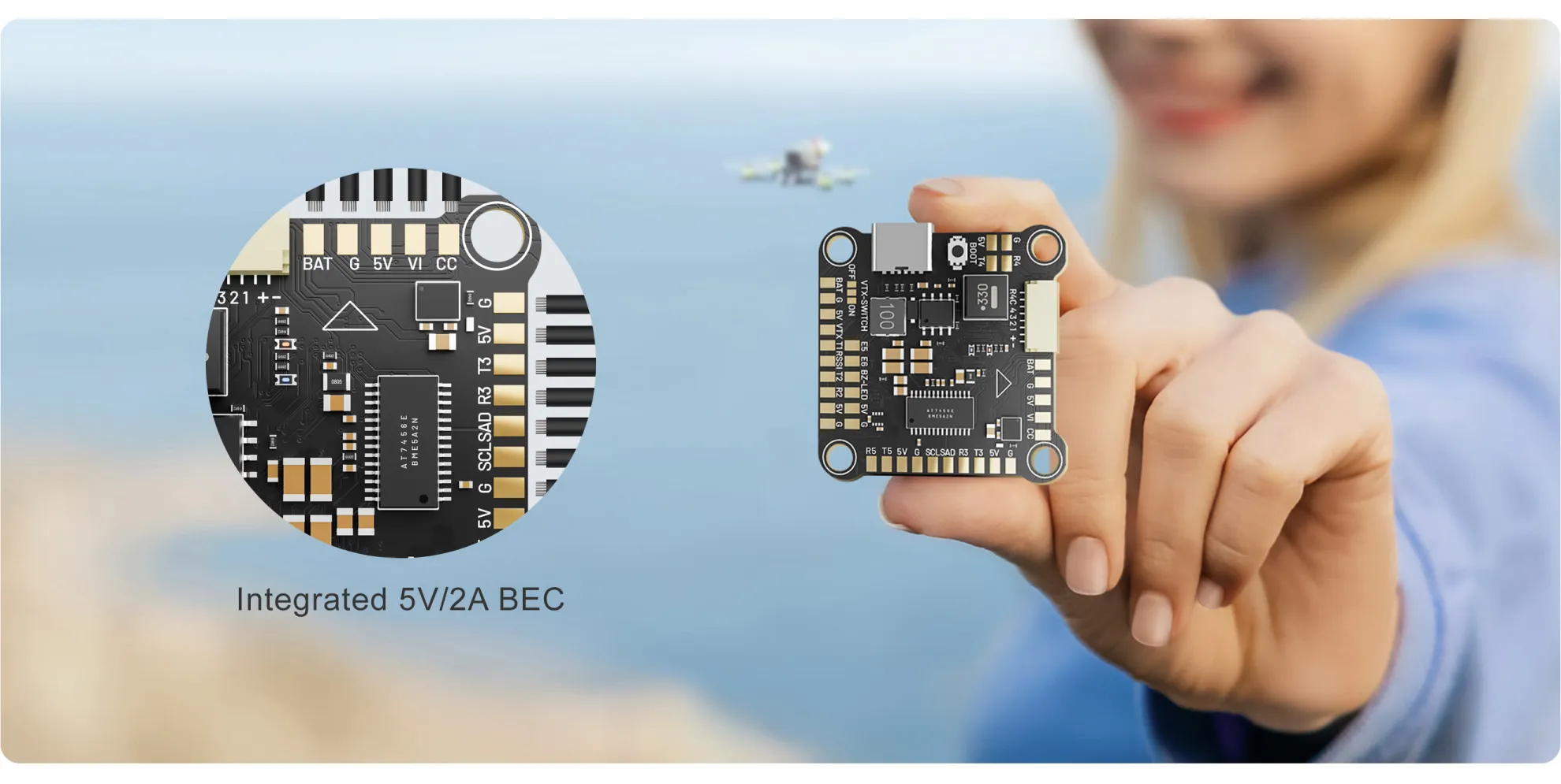

Efficient Flight Control Solution

With moderate solder pad size, a well-organized layout, and easy assembly, it is suitable for various DIY and custom projects, providing a straightforward and efficient flight control solution.

MEPS F7 Flight Controller with Moderate Solder Pad Detail

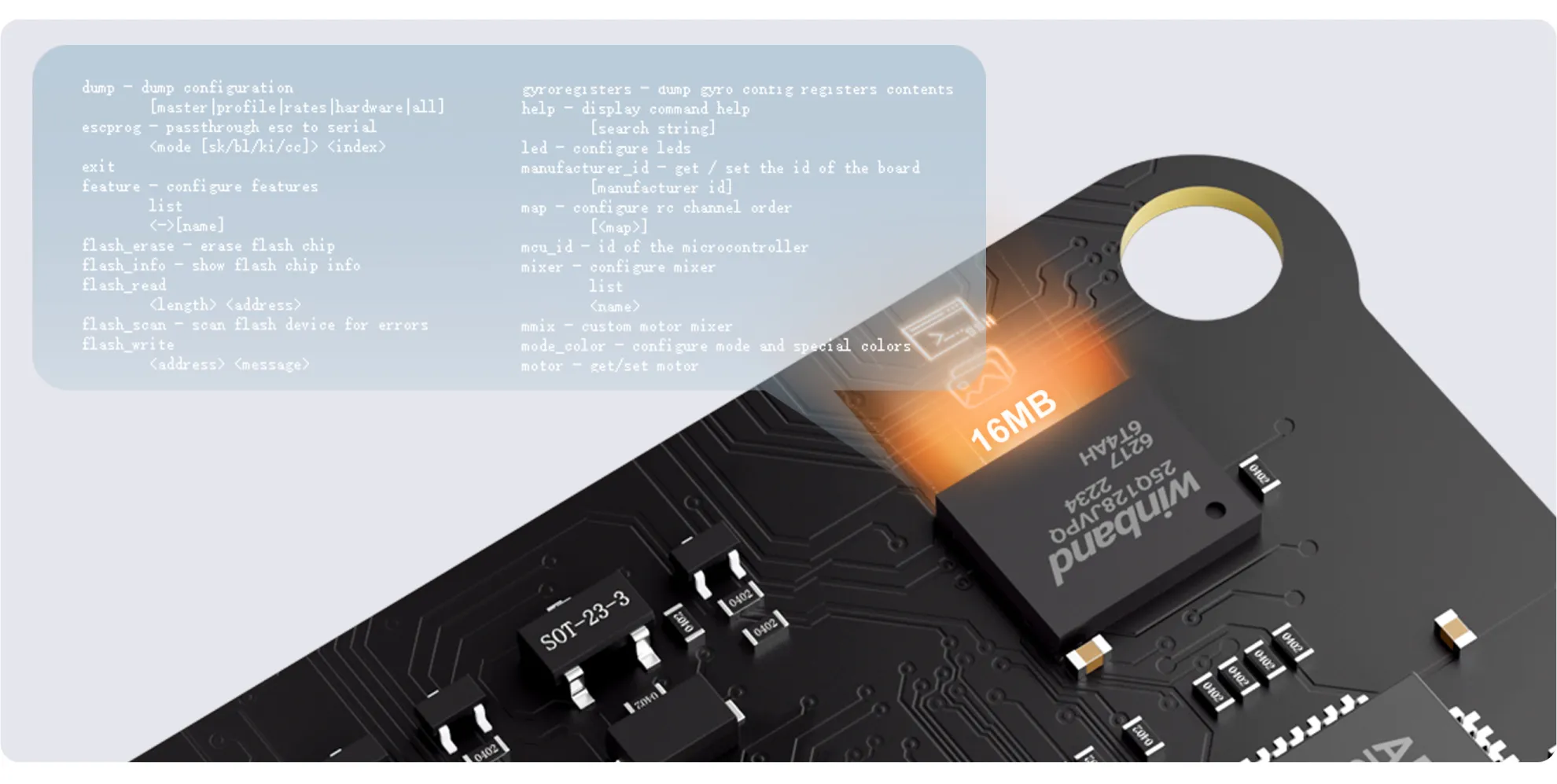

16MB Black Box

Provides comprehensive data logging that aids in troubleshooting, performance tuning, and overall improvement of both the drone's performance and the pilot's skills.

MEPS F7 Flight Controller Review & Comparison

Build Experience: What Actually Matters in an FPV Flight Controller?
After comparing different FPV flight controllers from budget boards to premium F7 platforms, one thing becomes clear:

A flight controller does not directly make a drone faster. The real differences come from processing capability, firmware compatibility, wiring flexibility, peripheral support, and long-term reliability.

The MEPS F7 Flight Controller is designed for pilots building modern 5-inch freestyle, racing, and long-range FPV drones. Instead of focusing only on specifications, experienced pilots usually evaluate an FC by how well it works with the complete drone system.

MEPS F7 vs Popular F7 Flight Controllers

MEPS F7 vs SpeedyBee F7 V3

SpeedyBee F7 V3 is one of the most widely used affordable F7 flight controllers. It is popular among pilots who want strong performance with a reasonable price.

Feature	MEPS F7	SpeedyBee F7 V3
MCU	STM32 F7 Series	STM32 F722
Firmware	Betaflight	Betaflight
UART Support	Multiple UARTs	Multiple UARTs
Digital FPV	Supported	Supported
Best For	Performance FPV builds	Value-focused FPV builds

SpeedyBee's advantage is its popularity and ecosystem. MEPS focuses more on complete FPV system integration with MEPS ESCs and NEON motors.

MEPS F7 vs T-Motor F7 Flight Controller

T-Motor F7 controllers are positioned toward premium FPV builds. The main differences between F7 boards are usually component selection, additional features, and brand positioning rather than basic processing performance.

Feature	MEPS F7	T-Motor F7
Target Market	FPV enthusiasts	Premium FPV users
Performance	F7 platform	F7 platform
Recommended Use	Freestyle / Racing / Long Range	Freestyle / Professional Builds

For most 5-inch freestyle pilots, the flight difference between quality F7 boards is usually small after proper Betaflight tuning. The bigger differences come from hardware design, compatibility, and price positioning.

Why Experienced FPV Pilots Choose F7 Controllers

A modern FPV build often requires more connections than older platforms:

● ELRS Receiver

● DJI Digital VTX

● GPS Module

● Telemetry Devices

Compared with older F4 controllers, F7 boards provide better expansion capability and a more future-proof upgrade path.

The biggest advantage of MEPS is not only the FC itself.

A complete MEPS build: MEPS F7 FC + F55A/F60A ESC + NEON Motors

Allows: Easier wiring Matching firmware configuration Consistent performance

Final Verdict

The MEPS F7 Flight Controller provides the features modern FPV pilots actually need:

● F7 processing platform

● Betaflight compatibility

● Digital FPV support

● ELRS and GPS expansion capability

● Competitive value compared with premium F7 boards

A reliable choice for 5-inch freestyle, racing, digital FPV, and long-range builds.

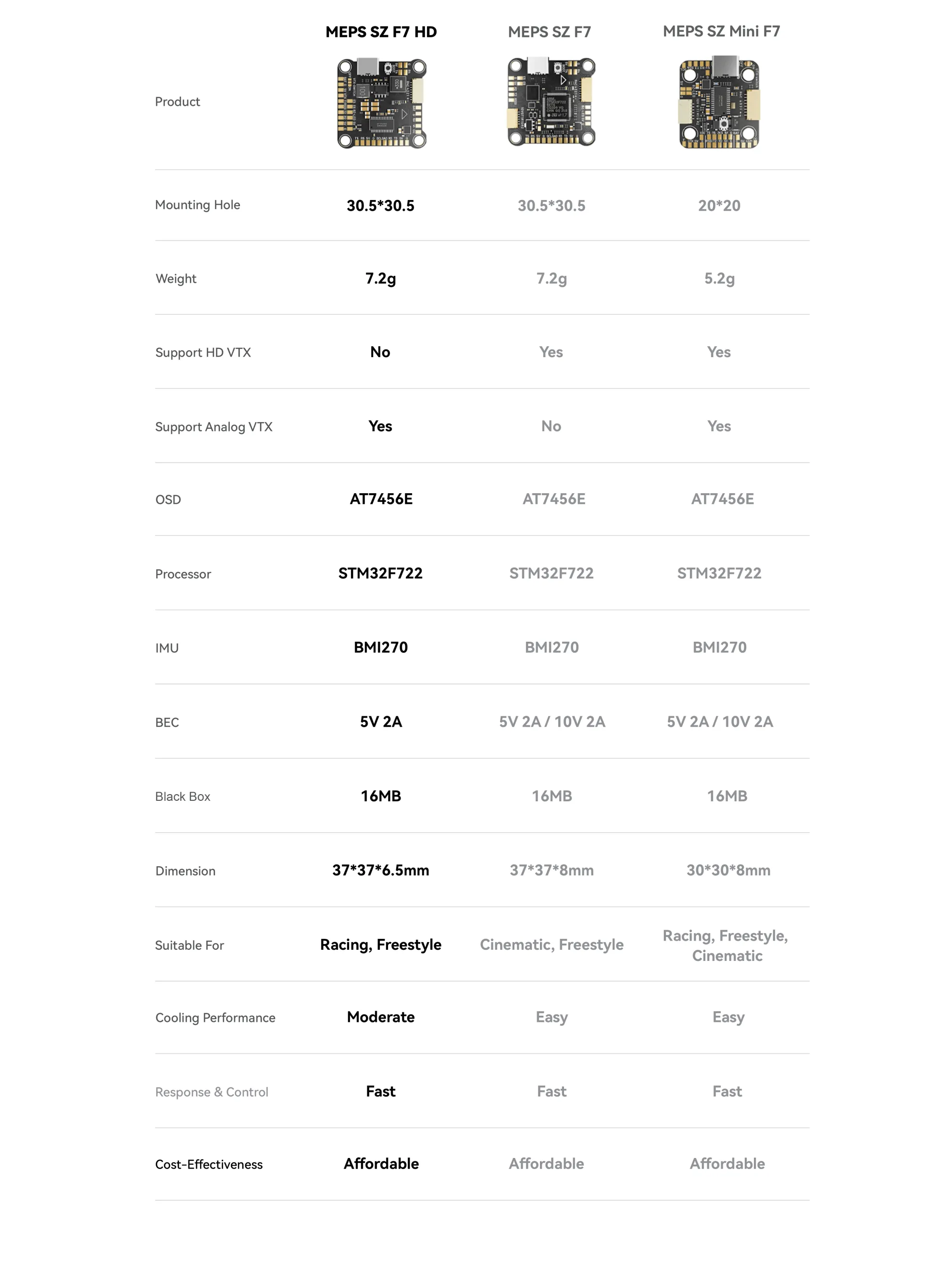

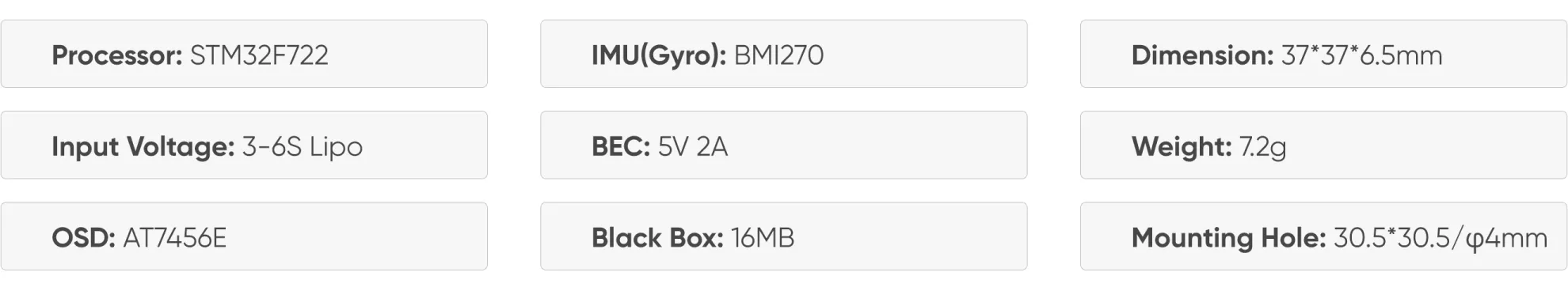

Specifications

Recommended Parts

● T-HOBBY F55A ProII 55A 6S 4-In-1 FPV ESC

● T-HOBBY V50A SE 50A 6S 4-In-1 FPV ESC

● MEPS NEONCORE F405 60A 4-In-1 FPV Stack

Interface Definition Figure

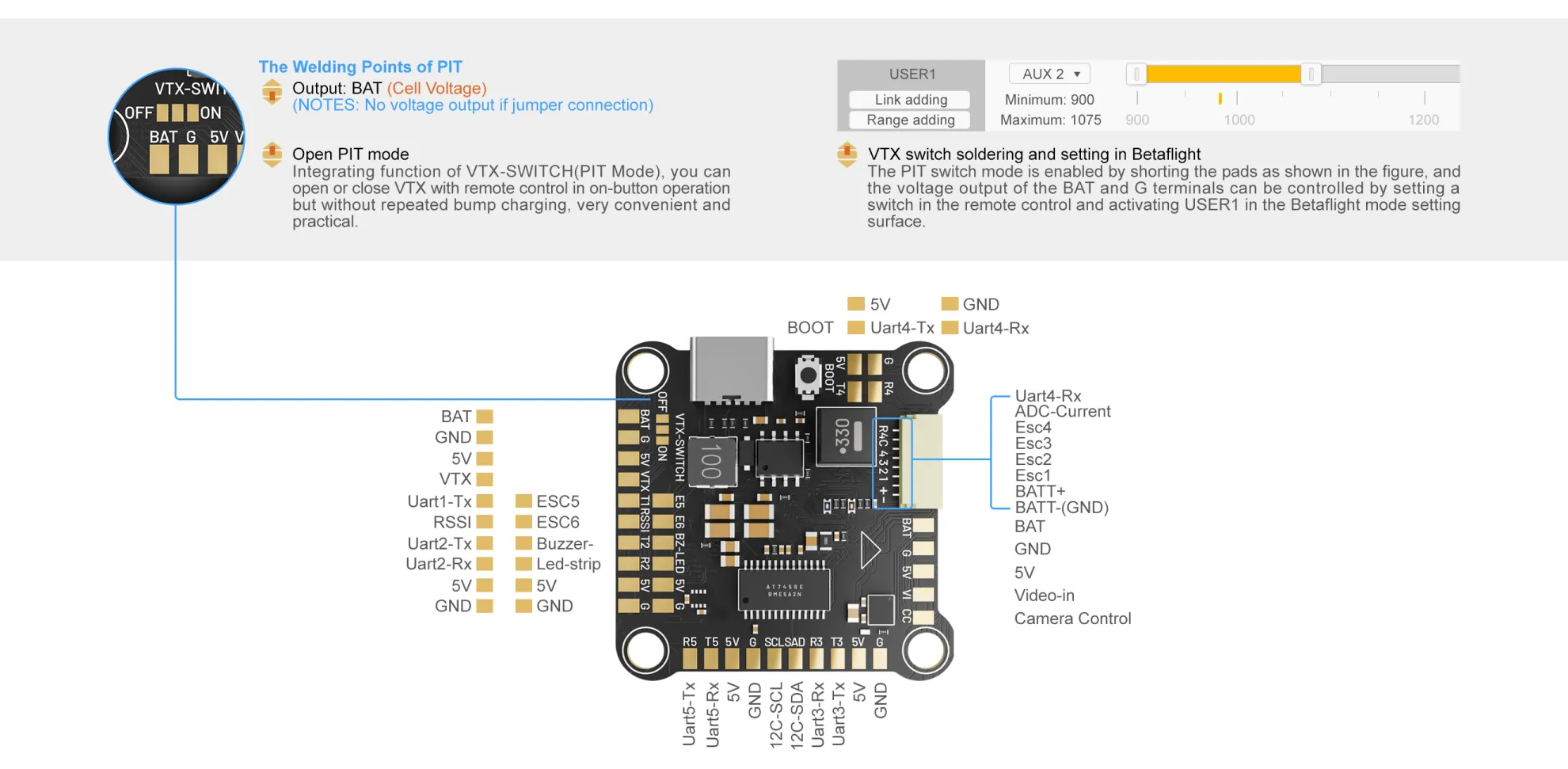

Connection Diagram

MEPS F7 flight controller interface definition figure

Recommendations

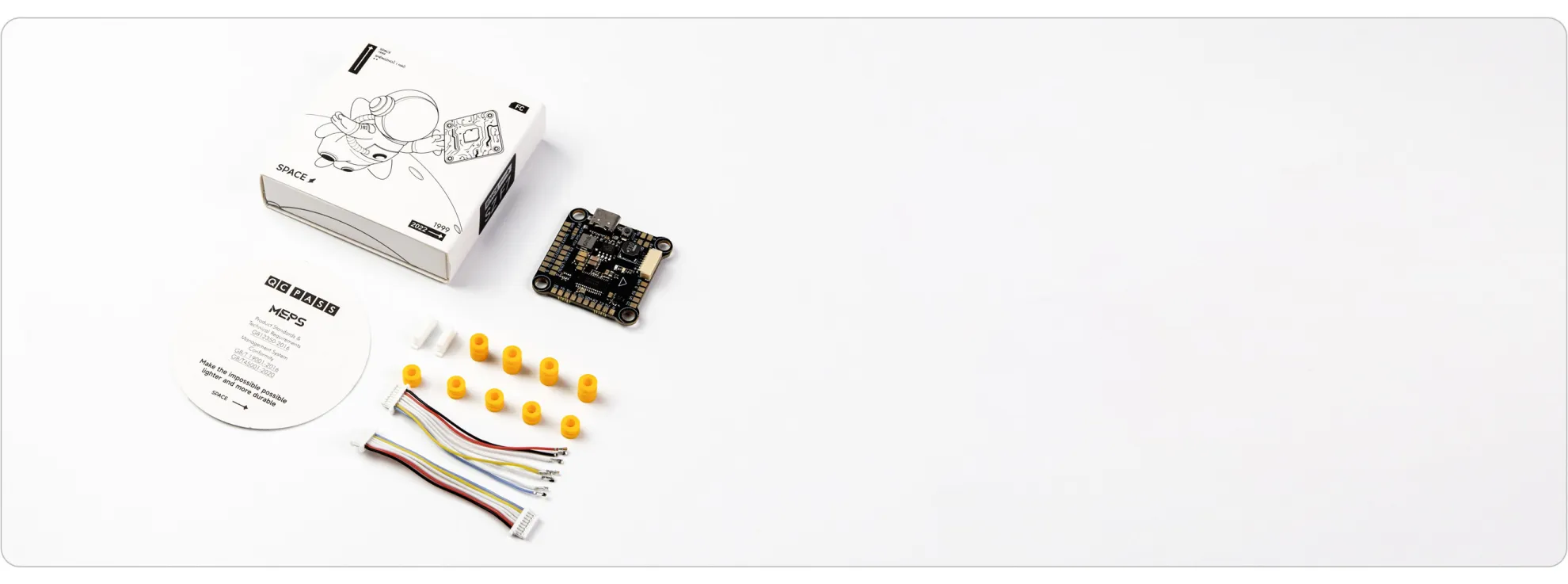

Package Included

1* MEPS FPV F7 Flight Controller

1* 61mm Double-Ended SH1.0-8P Silicone Cable

1* 61mm Single-Ended SH1.0-8P Silicone Cable

4* High Shock Anti-vibration Rubber Dampers

4* Low Shock Anti-vibration Rubber Dampers

1* SH8P Rubber Shell

1* SH10P Rubber Shell

More expert advice

How to Choose FPV Flight Controller？

The Best Flight Controller for FPV Racing.

Fix Flight Controller MCU Overheating Problem.

Mepsking FPV SZ F7 Flight Controller.

Reviews

O***********n
Verified

MEPSKING shipped it safely and the FC arrived clean with no damaged pads. Good value board for an analog freestyle build.

Specification：F7

Replied by MEPSKING:Thank you for choosing MEPSKING. We are glad the package arrived safely and hope the flight controller serves your build well.
M************l
Verified

Sehr gutes Board for analog FPV. Soldering points are clean, receiver signal is stable, and control feels precise in fast turns.

Specification：F7
H*************r
Verified

Proper decent FC. Betaflight setup was straightforward, OSD came up right away, and the quad feels locked in after a basic tune.

Specification：F7

Replied by MEPSKING:Thank you for your review. We are pleased the Betaflight setup and OSD worked smoothly for your build.
W************n
Verified

Works well with my analog VTX and ELRS receiver. Enough UARTs for my setup and the price is fair for an F7 board.

Specification：F7

Purchased 3 times
g*********2
Vine Voice

MEPSKING Vine Customer Review of Free Product

Wow Amazing! Thanks to the vine voice program!!

Specification：F7

Replied by MEPSKING:Thank you for your enthusiastic feedback! We’re glad the Vine Voice Program helped enhance your experience. Wishing you continued enjoyment with our products.
T***********x
Verified

No random resets or weird gyro noise after several packs. The board stays normal temp and feels reliable for freestyle flying.

Specification：F7

Additional reviews after 24 days
Still flying fine after a few more weeks. I added GPS later and the FC handled it without any drama.
D************r
Verified

Ports setup took a little time, but once I matched the UART for my receiver everything worked. OSD is clear and telemetry has been stable.

Specification：F7

Replied by MEPSKING:Thanks for the detailed note. UART matching is an important step, and we are happy to hear your OSD and telemetry are working well.
L**********e
Verified

The solder pads are easy enough to work with and the 30.5x30.5 size fits my frame perfectly. Wiring analog video and ELRS was pretty simple.

Specification：F7
