ToolkitRC M6D Dual Channel DC Charger | 500W 15A 1-6S Smart Balance Charger for FPV Racing Drones and RC LiPo Batteries
About ToolKitRC M6D 500W 15A 1-6S DC Dual Smart Charger
The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat dispersing system to dissipate high power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.
Check out our Smart Battery Chargers, all Battery Chargers Collection and the rest of our ToolkitRC Products!
Bundle and save up to $2.30 on gear — upgrade your setup for less.
CNHL Black Series V2 1300mAh 6S 130C LiPo Battery XT60 for FPV
Options (1)
6S1P 1300mAh XT60
6S1P 1300mAh XT60
$30.71
Save $1.28
Flywoo Explorer 18650 4S/6S 3000mAh Li-Ion FPV Long Range Battery P30B
Options (2)
4S1P 3000mAh XT30UP
6S1P 3000mAh XT60
4S1P 3000mAh XT30UP
$49.97
Save $1.02
In Stock
Expected ship within 7 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
High-Power Output – Delivers up to 500W in synchronous mode to fast-charge high-capacity batteries and get you back in the air instantly.
Dual-Channel Flexibility – Features two independent ports to charge different battery types at once, eliminating the wait for sequential charging.
Compact & Portable – The ultra-slim, pocket-sized design packs massive power into a small footprint, perfect for field charging and travel.
IPS Wide-Angle Screen – A 2.4-inch high-definition color display ensures crystal-clear visibility of battery data even in bright outdoor light.
Versatile Multi-Tool – Integrated signal tester and DC power modes allow you to test servos and receivers without needing extra equipment.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

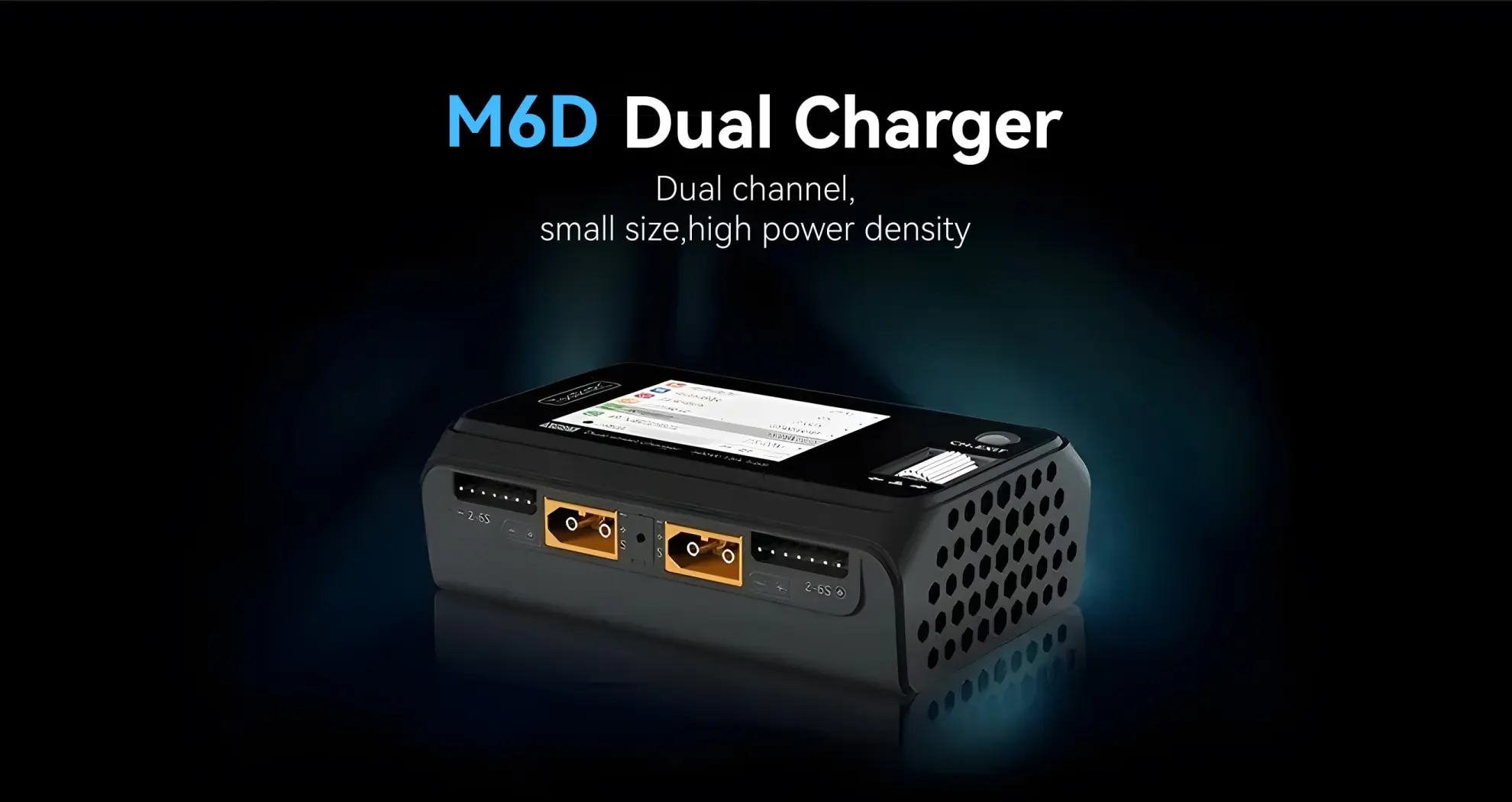

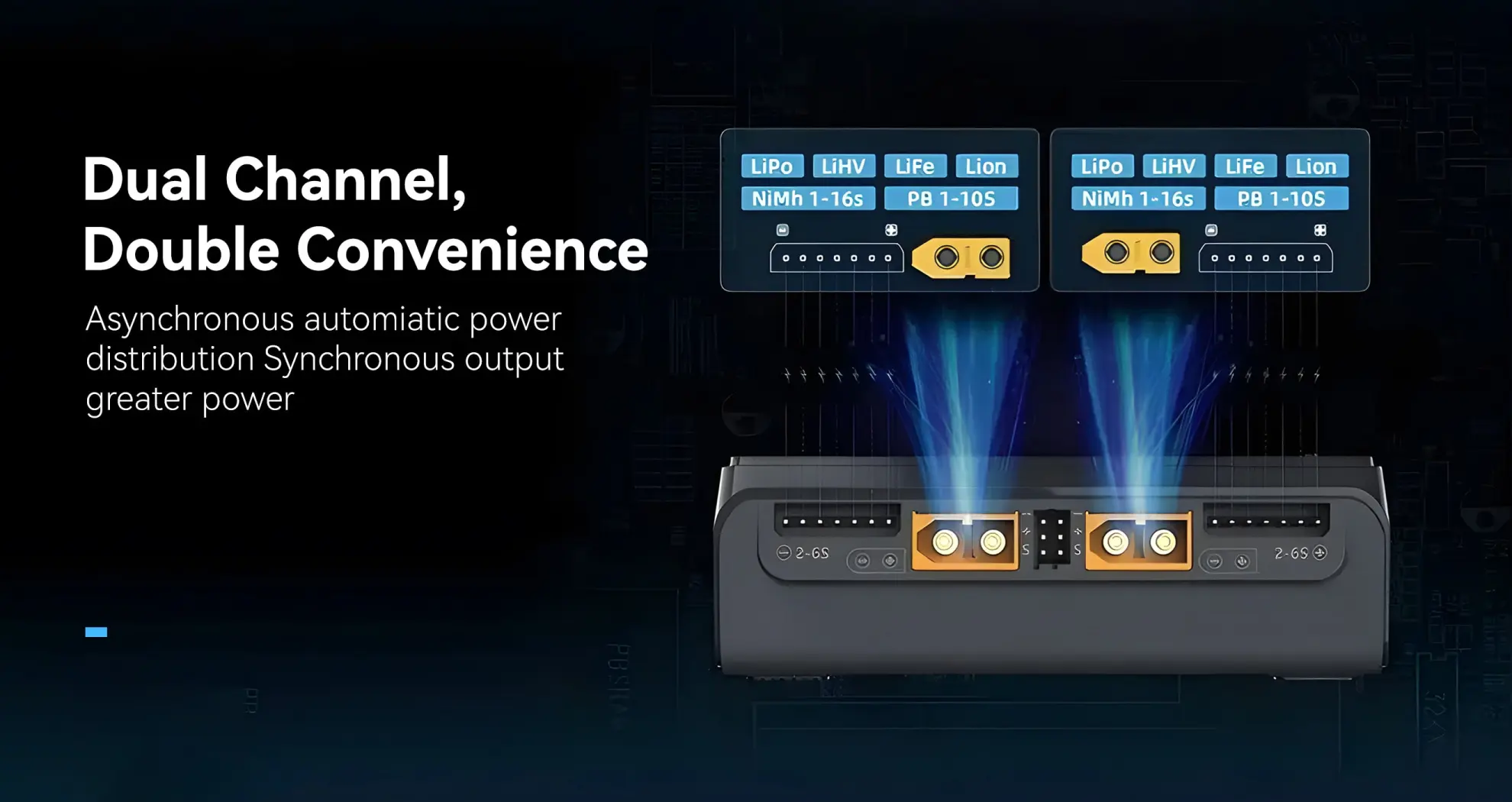

Dual-Channel Smart Power Distribution for Ultra-Fast 1-6S LiPo & LiHV Field Charging
Powered by an intelligent dual-channel architecture, the ToolkitRC M6D seamlessly handles asynchronous dual 250W outputs or combines into a massive 500W synchronous output. It automatically distributes power across independent XT60 ports to charge two 1–6S LiPo/LiHV packs simultaneously, or merge for rapid single-pack parallel charging—eliminating field downtime while delivering precision voltage balancing for LiPo, LiHV, LiFe, Lion, NiMh, and Pb chemistries.

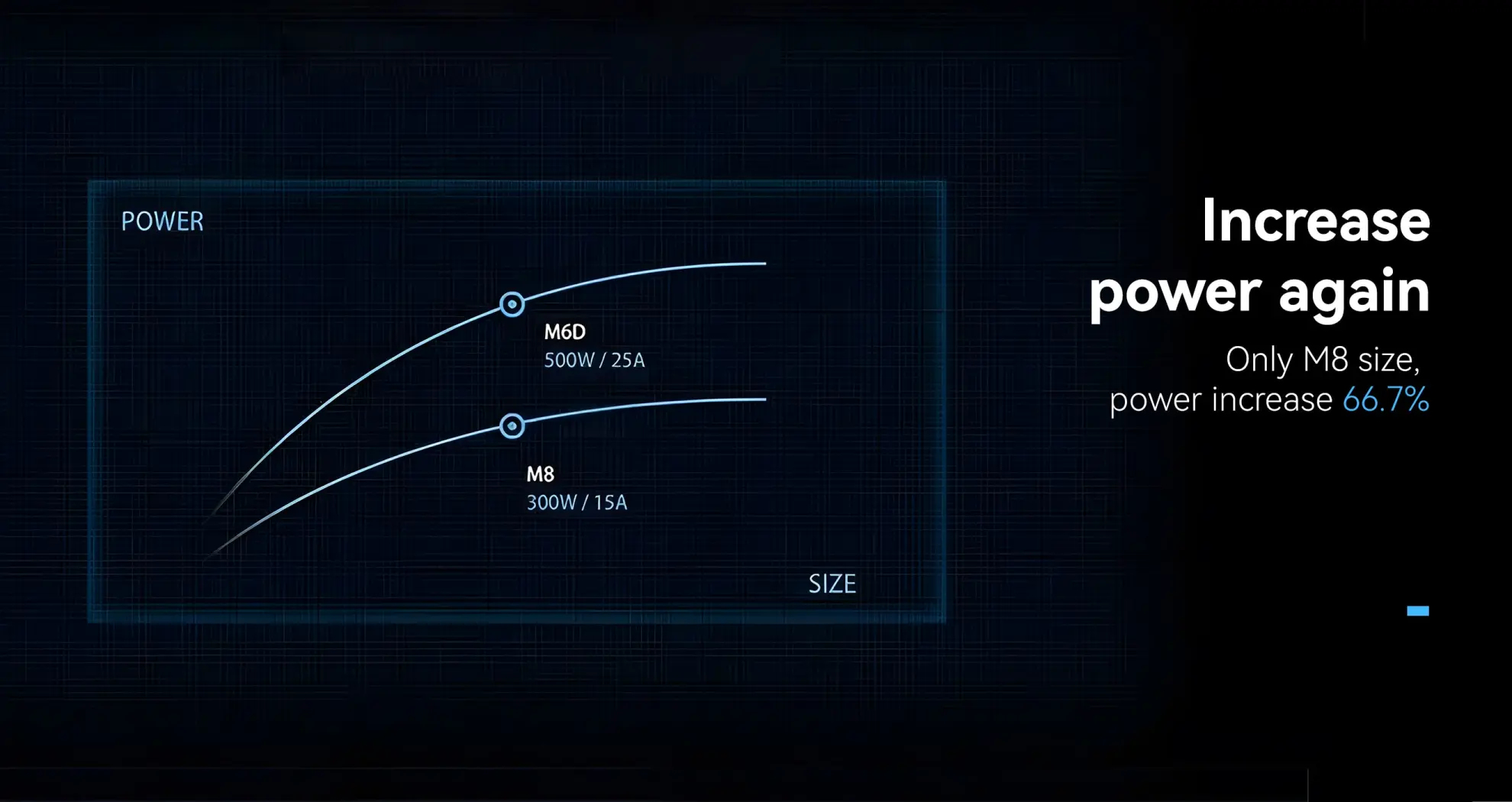

Ultra-Compact Pocket Charger with 66.7% Power Boost & 500W High Output
Maintaining the ultra-portable form factor of the classic M8, the ToolkitRC M6D delivers a massive 66.7% power upgrade—packing up to 500W and 25A charging capacity into a pocket-sized shell. This high-density DC smart charger maximizes field efficiency by supplying rapid, high-current charging for 1–6S LiPo/LiHV batteries without adding bulk or weight to your FPV gear bag.

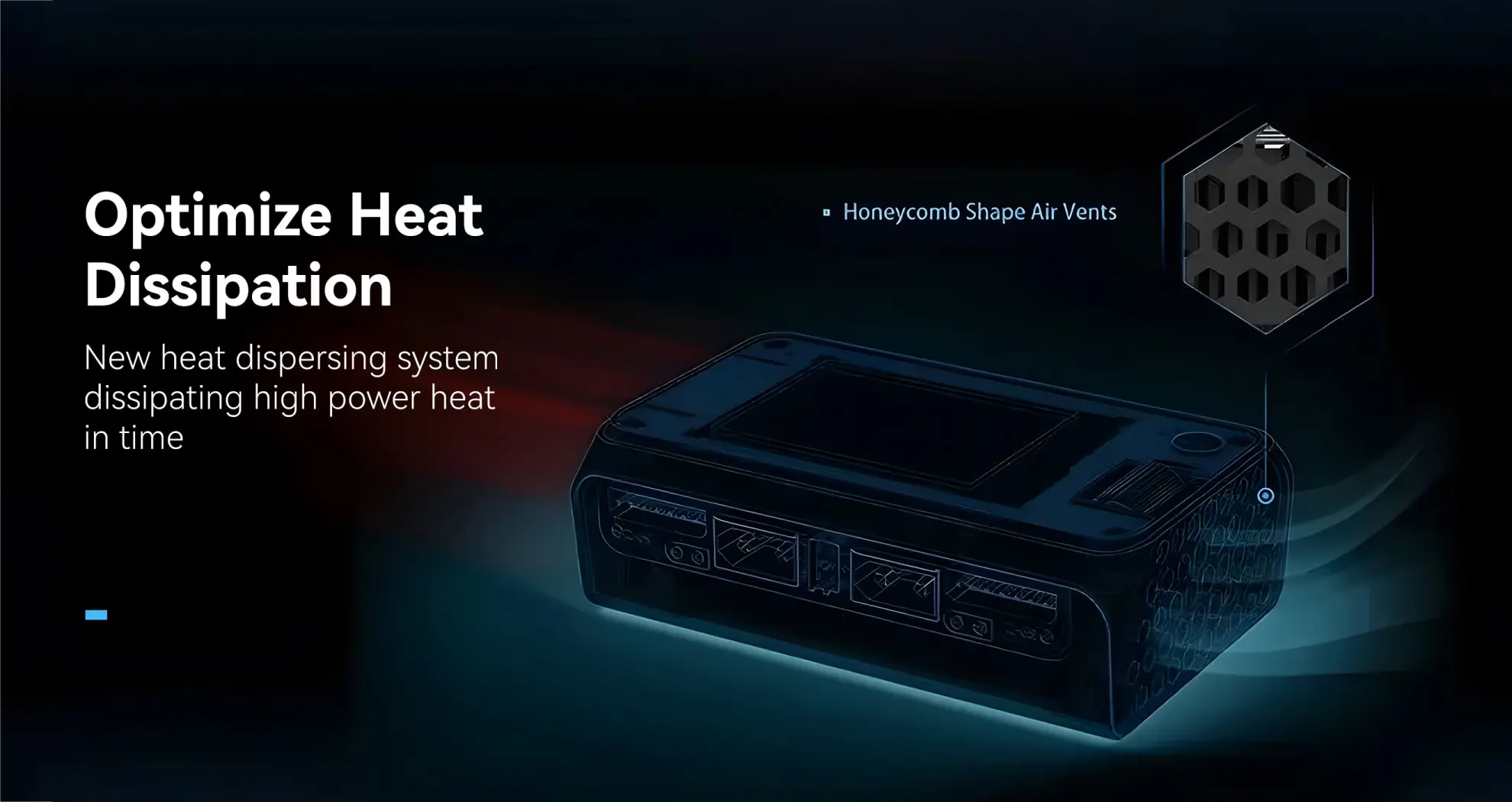

Optimized Thermal Architecture with Honeycomb Vents for Continuous High-Power Charging
Built for sustained high-wattage performance, the ToolkitRC M6D features an advanced heat-dispersing thermal system paired with honeycomb-shaped air vents to rapidly exhaust high-power heat. This optimized airflow design prevents thermal throttling during 500W full-load charging sessions, ensuring stable operating temperatures, maximum component longevity, and safe, reliable outdoor field charging.

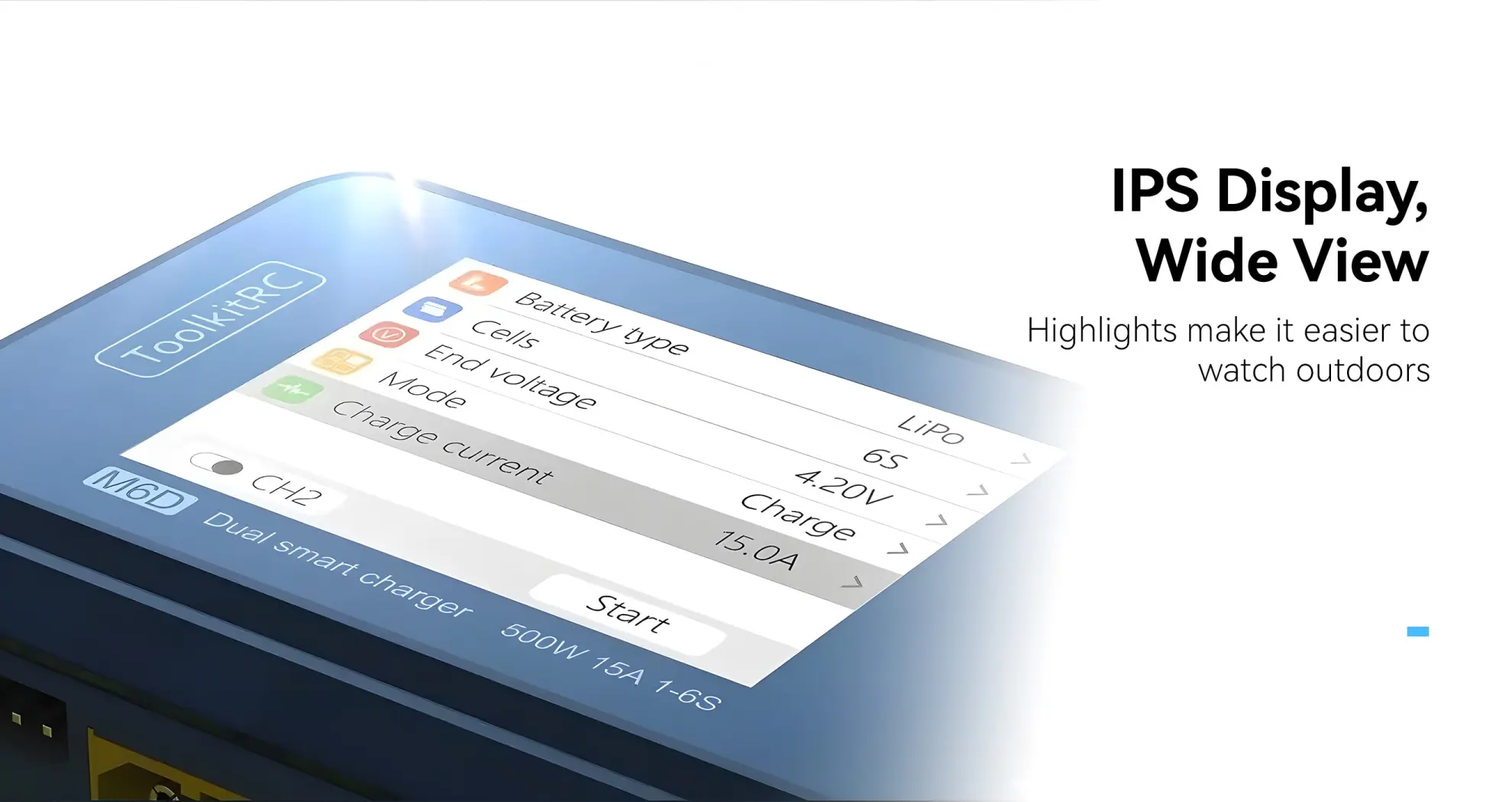

Sunlight-Readable Wide-View IPS Screen for Outdoor Field Operation
Equipped with a bright IPS display with wide viewing angles and high-contrast highlights, the ToolkitRC M6D ensures crystal-clear visibility outdoors under direct sunlight.

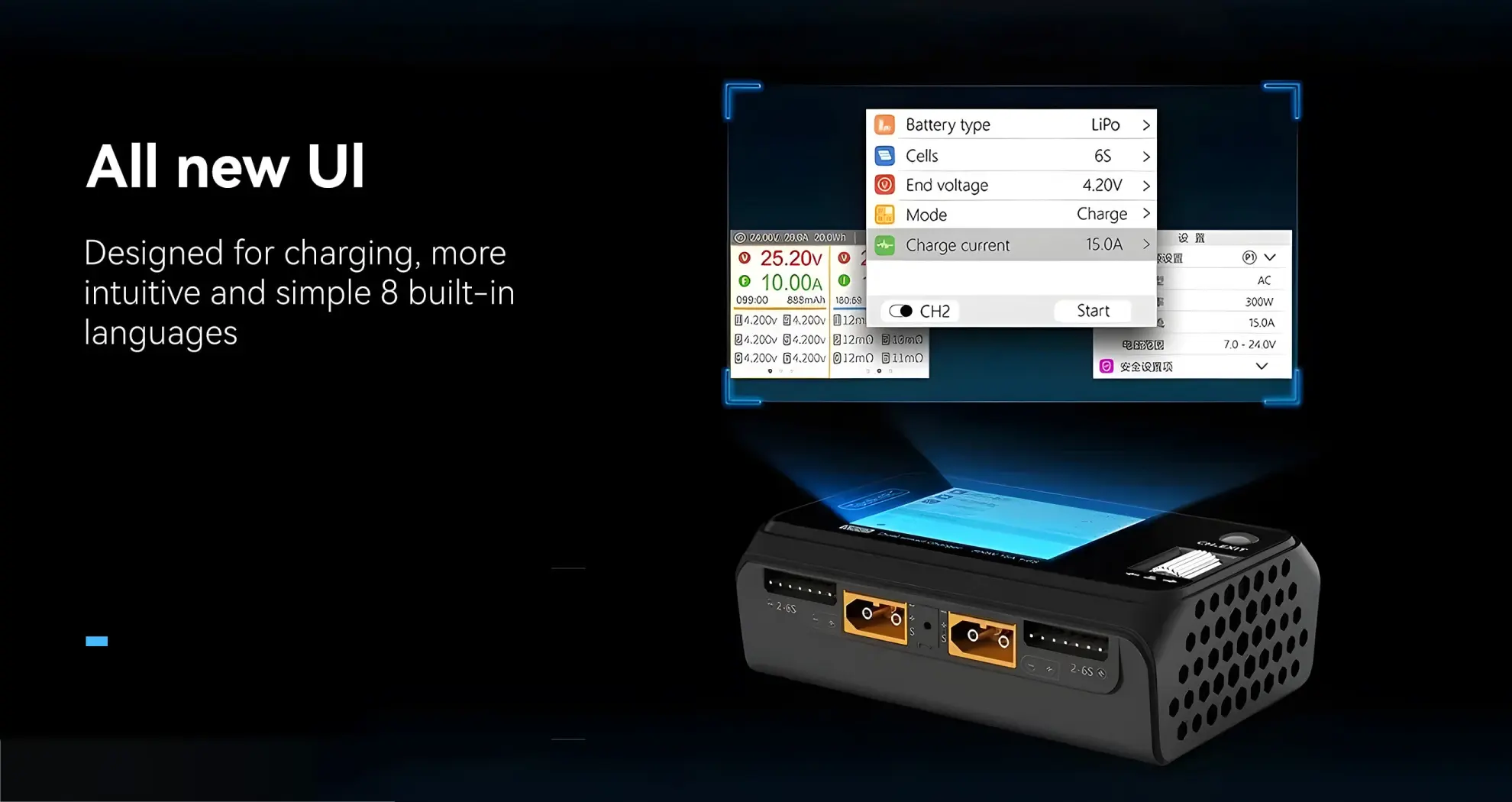

Intuitive Multi-Language Smart UI for Effortless Charging Control
Featuring an all-new UI engineered specifically for streamlined battery management, the ToolkitRC M6D offers an intuitive interface with 8 built-in languages. Pilots can navigate settings, set custom cut-off voltages, and switch charging modes seamlessly, making real-time monitoring and charger configuration fast and hassle-free.

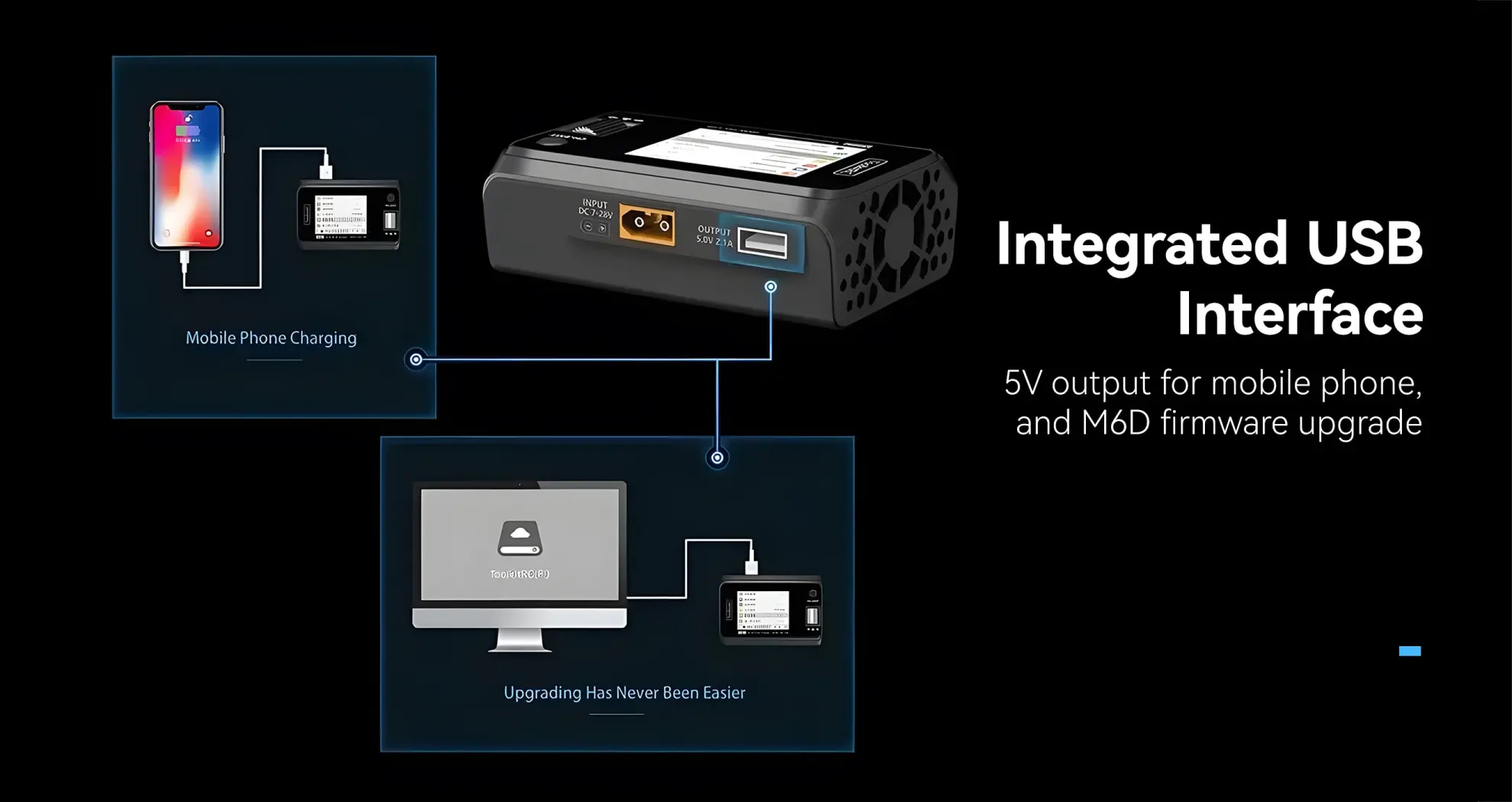

Multi-Function USB Interface for Field Mobile Charging & Easy Upgrades
The ToolkitRC M6D comes equipped with an integrated 5V 2.1A USB port, allowing pilots to power up smartphones and field accessories directly on site. The USB interface also enables quick plug-and-play PC connections for hassle-free firmware updates, ensuring your smart charger always runs on the latest performance software.
Buyer’s Guide: ToolkitRC M6D Dual Channel DC Charger
Real-World Review & Comparison
If you are looking for a powerful, ultra-compact field charger to charge your 2S–6S FPV LiPo batteries on the go, the ToolkitRC M6D is widely considered one of the best budget dual-channel DC chargers on the market. Powered by an external DC source (such as a large LiPo battery or a 12V lead-acid source), it delivers up to 500W of total charging power in a lightweight 220g chassis.
Here is your complete buyer’s guide covering real-world field-test feedback, key hardware specs, and a direct comparison against the ToolkitRC Q4AC.
Key Performance Highlights & Field-Test Insights
Massive Power Density & Energy Recycling
● Dual Output / Synchronous Mode: Supports up to 250W / 15A per channel in Asynchronous Mode (charging two 6S batteries independently) or 500W / 25A in Synchronous Mode.
● Energy Recycling Discharging: Unlike traditional chargers that dissipate energy purely as heat during discharge, the M6D features a recycle discharge mode (up to 250W x2). It feeds power back into your supply battery, preventing excessive thermal buildup inside the charger.
Accurate Battery IR (Internal Resistance) Detection
● Health Monitoring: Accurately measures the internal resistance (IR) of individual battery cells. Monitoring cell IR over time allows pilots to identify degraded cells and safely retire old battery packs before they fail in flight.
● Sun-Readable Screen & User Profiles
2.4" IPS Color Display: Features a bright 320×240 LCD screen with crisp, high-contrast cell voltage monitoring.
● Metal Scroll Wheel & Battery Profiles: Uses a heavy-duty physical metallic scroll wheel for easy menu navigation (avoiding dusty finger-print smears on the screen) and supports custom battery presets for fast 1-click charging.
● 5V / 2.1A USB Charging Port: Includes a USB-A port to charge.
When choosing between the ToolkitRC M6D and the ToolkitRC Q4AC, your primary deciding factor comes down to AC Household Plug-in Convenience vs. Pure Outdoor Field Power.
Choose the ToolkitRC M6D if: You fly 5-inch to 10-inch quads running 6S LiPo batteries, need maximum charging speed (250W×2) in the field, use external DC supply/field batteries, and want advanced battery Internal Resistance (IR) health monitoring in an ultra-portable 220g unit.
Choose the ToolkitRC Q4AC if: You primarily charge at home using a standard household AC wall outlet, fly smaller 1S–4S Whoops/Toothpicks, and want to charge 4 batteries simultaneously without needing a separate DC power supply brick.
