To choose the right LiPo battery for your FPV drone, you need to match the battery’s voltage (S count), capacity (mAh), discharge rate (C rating), and weight to your drone’s motor, ESC, and flight style. For racing and freestyle drones, go for a 4S or 6S LiPo around 1300–1500mAh with a high C rating. For long-range drones, use 6S or Li-ion packs with higher capacity. Cinewhoops and micros fly better with lighter 3S or even 1S–2S batteries.
This guide explains:
- The differences between LiPo, Li-ion and LiHV batteries
- Key features like voltage, capacity, discharge rate, connectors, and weight
- How to balance power and flight time without overloading your drone
- Step-by-step to choose FPV lipo battery
- Safe charging practices and how to extend battery lifespan
- Real-world battery picks for different FPV drone types
If you want smoother flights, longer airtime, and better power delivery, picking the right battery is a must—and this article will help you do just that.
What is a LiPo Battery for FPV Drone?
A LiPo (Lithium Polymer) battery is a rechargeable power source that uses a polymer electrolyte to provide the high discharge rates necessary for FPV drones. Usually composed of lithium polymer (LiPo) cells, these batteries are perfect for drones due to their high energy density and lightweight design. FPV drones use these batteries to fly and operate cameras. The battery provides the energy needed for motors, flight controllers, and other electronics.
Why Do FPV Pilots Use LiPo?
In real FPV builds, power-to-weight ratio is everything. Lipo batteries are preferred because they are lightweight and can be shaped into various sizes to fit compact drone frames. However, they are also chemically volatile, meaning lipo battery safety must be your top priority.
Check the collection of FPV drone batteries to choose one.
Basic Formula of Lipo Battery Voltage
LiPo battery voltage = 3.7V × number of cells (S)
Lipo battery voltage chart:
| Cell Count | Type | Full Charged Voltage | Nominal Voltage | Common FPV Use |
|---|---|---|---|---|
| 1S | LiPo | 4.2V | 3.7V | Tiny whoops, 65mm–85mm micros |
| 2S | LiPo | 8.4V | 7.4V | Micro drones, 2–3 inch toothpicks |
| 3S | LiPo | 12.6V | 11.1V | 3” cinewhoops, lightweight freestyle |
| 4S | LiPo | 16.8V | 14.8V | 5” freestyle, racing, basic performance |
| 6S | LiPo | 25.2V | 22.2V | Modern 5” builds, freestyle, cinematic |
| 8S | LiPo | 33.6V | 29.6V | Long-range, 7–10 inch LR builds, heavy lift |
If you’ve ever searched what a lipo battery is, the short answer is:
A high-discharge rechargeable battery optimized for high-power applications like FPV drones.
Types of FPV Batteries
FPV drones commonly use two main types of batteries: LiPo (Lithium Polymer) and Li-ion (Lithium-Ion). Each has its strengths and ideal use cases. Understanding their differences is key to choosing the right battery for your drone.
LiPo (Lithium Polymer) Batteries
LiPo batteries are the most widely used in FPV drones, especially for freestyle, racing, and cinematic flying.
Advantages:
- High Power Output – Capable of delivering large bursts of power quickly; perfect for high-throttle maneuvers.
- Lightweight – Their lower weight improves speed and agility.
- Flexible Shape Options – Can be manufactured in various shapes and sizes to fit different drone frames.
- High Discharge Rate (C Rating) – Delivers strong and consistent power output for aggressive flight styles.
Drawbacks:
- Lower Safety – More prone to puffing or catching fire if mishandled or over-discharged.
- Shorter Lifespan – Typically lasts 100–200 charge cycles with proper care.
Li-ion (Lithium-Ion) Batteries
Li-ion batteries are popular for long-range and endurance FPV drones.
Advantages:
- Higher Energy Density – Stores more energy per gram, resulting in longer flight times.
- Longer Lifespan – Can survive 300+ cycles, reducing long-term replacement costs.
- Safer Chemistry – Lower risk of combustion or puffing under normal conditions.
Drawbacks:
- Lower Discharge Rate – Not ideal for drones that require sudden bursts of power (like racing quads).
- Heavier – Generally bulkier than LiPo batteries of the same capacity.
Lithium Polymer High Voltage (LiHV)
LiHV batteries can be charged to 4.35V per cell (instead of the standard 4.20V). This provides a slight boost in initial power and reduces weight, but it can shorten the overall lifespan of the battery if not managed correctly.
Safety rule: Only charge LiHV packs in LiHV mode. If you are unsure, treat them as standard LiPos and check the labels first.
Comparison Table: LiPo vs Li-ion vs LiHV for FPV
| Feature | LiPo (Lithium Polymer) | Li-ion (18650/21700) | LiHV (High-Voltage LiPo) |
|---|---|---|---|
| Nominal voltage per cell | 3.7V | 3.6V | 3.8V |
| Max charged voltage | 4.2V | 4.2V | 4.35V |
| Discharge rate (C-rate) | High (25C–100C+) | Low (1C–5C) | High (25C–80C) |
| Weight & density | Light, high power density | Heavier, high energy density | Light, slightly higher than LiPo |
| Flight time | Good | Much longer | Slightly longer than LiPo |
| Performance | Fast response, high power | Smooth, stable, low heat | More power & RPM than LiPo |
| Cycle life | Medium (200–400 cycles) | Very high (500–1000+ cycles) | Medium (200–400 cycles) |
| Cost | Mid-range | Lowest (long-term) | Highest |
| Safety | Requires more caution (fire risk) | Safer and more stable | Similar to LiPo |
| Best for | Racing, freestyle, acro | Long-range, cruising, cinematic | Freestyle, racing, performance builds |
| Charging method | Standard LiPo charger | Li-ion / LiPo charger | LiHV-compatible charger |
LiPo Battery Recommendations
For 5″ Freestyle and Racing Drones
Tattu R-Line
Many elite FPV racers prefer the Tattu R-Line, which is a testament to the battery’s performance and quality. They are renowned for their reliable power delivery and long lifespan. Even though the R-Line is the priciest choice on the list, it’s still worth taking into consideration if you want excellent performance and are prepared to pay more.
BosLipo

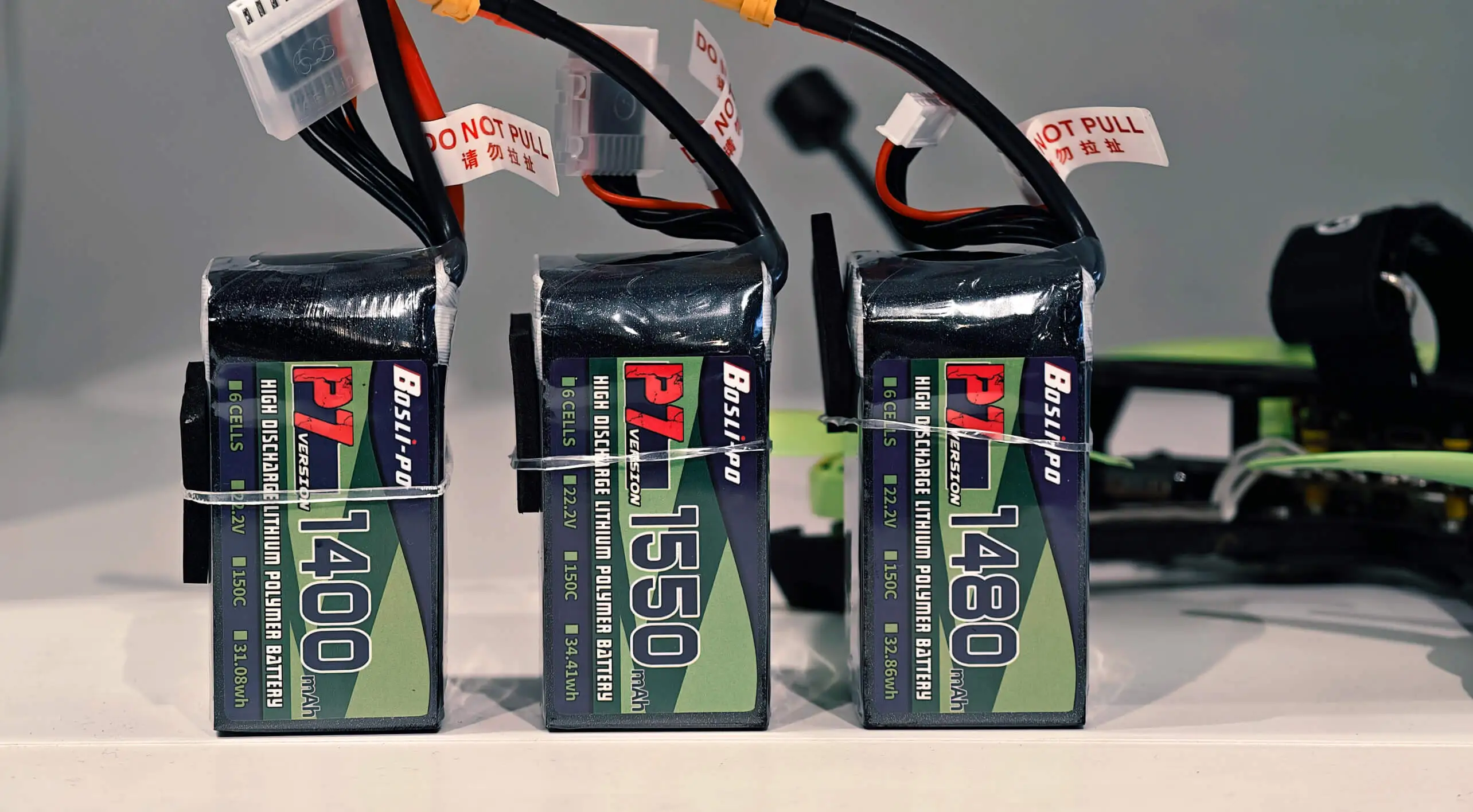

In addition to the Tattu R-Line series, the BosLipo P7 series is also ideal for 5-inch freestyle and racing, offering an excellent balance of performance and reliability. Cheaper than the Tattu R-Line, the BosLipo P7 series is an alternative option.
GNB 8S 1100mAh LiPo
One of the few reliable battery brands offering 8S batteries for 5-inch FPV drones is this one. In terms of watt hours, this 8S 1100mAh pack is comparable to a 6S 1500mAh. It weighs 256.7g, which is comparable to the weight of a 6S 1500mAh pack.
Critical Features of LiPo Batteries?
Battery Voltage (Cell count)
LiPo batteries can have more than one cell. The number of cells connected in series, which raises the battery pack’s overall voltage, is indicated by the battery’s “S” rating. Since the nominal voltage of each cell is 3.7V, the total nominal voltage may be seen on the label:
- 1S: Single cell, 3.7V
- 2S: Two cells, 7.4V
- 3S: Three cells, 11.1V
- 4S: Four cells, 14.8V
- 5S: Five cells, 18.5V
- 6S: Six cells, 22.2V
FPV drones are made for particular voltages. For example, 4S (4 cells in series, ~14.8V nominal) or occasionally 6S (~22.2V nominal) power the majority of racing or freestyle drones. The ideal voltage depends on your drone’s motors, ESCs, and general design.
Capacity
Milliampere-hours (mAh) are the unit of measurement for capacity. It displays the battery’s energy storage capacity. Longer flying durations are possible with larger capacity batteries. It’s not always better to have a bigger capacity, because FPV drones have weight requirements. The bigger the battery capacity, the heavier it is, which adds to the overall weight of the FPV drone. Here would be my recommendations on what mAh batteries to get, assuming you’re flying a 5-inch FPV drone:
- For 4s batteries, look for something around 1300mAh to 1500mAh.
- For 6s batteries, look for something around 1100mAh to 1300mAh.
Discharge Rate (C Rating)
A battery’s discharge rate, often known as its C rating, shows how rapidly it can produce power. A battery with a higher C rating can deliver more power faster.
Formula:
Max Continuous Current = Capacity (Ah) × C Rating
Example:
1300mAh 100C pack
= 1.3Ah × 100
= 130A continuous
It is not advised to draw more current than the C-rating specifies because doing so may cause the battery to overheat, gradually raise internal resistance, limit its lifespan, or, in difficult situations, produce thermal runaway or catch fire. Just look for a battery with a rating of about 100C if all of this is unclear. Higher C ratings can be useful, but if you’re flying 5-inch FPV drones, I wouldn’t advise going much lower than 75c. You should aim for C ratings of 80-100C and higher to get the most out of your quad, especially for racing.
Connector
Connectors link the battery to your drone. Common types include:
- XT60: Popular and reliable, used in many FPV drones
- XT30: Smaller version of XT60, for lighter and smaller drones
- Dean T-Plug: Older but still in use, good for medium-power drones
- EC3/EC5: Used in some specific brands, stable and efficient
Choosing the right connector ensures compatibility and stable power delivery.
Weight
The battery should, in general, weigh about half of the drone’s dry weight (without the GoPro or batteries). For example, a 300g battery is perfect for freestyle, nimble flying if your drone weighs about 600g. The drone will stay lightweight and responsive with this configuration. A one-to-one weight ratio, in which the battery’s weight is closer to the drone’s dry weight, is an option for slower-paced or cinematic flight.
You won’t need to think about anything else if you follow my battery suggestions, which should result in respectable performance. When responsiveness and power are not the top concerns, a larger battery—which may weigh as much as the drone itself—may be utilized for long-range and cinematic FPV drones in order to extend flying time.

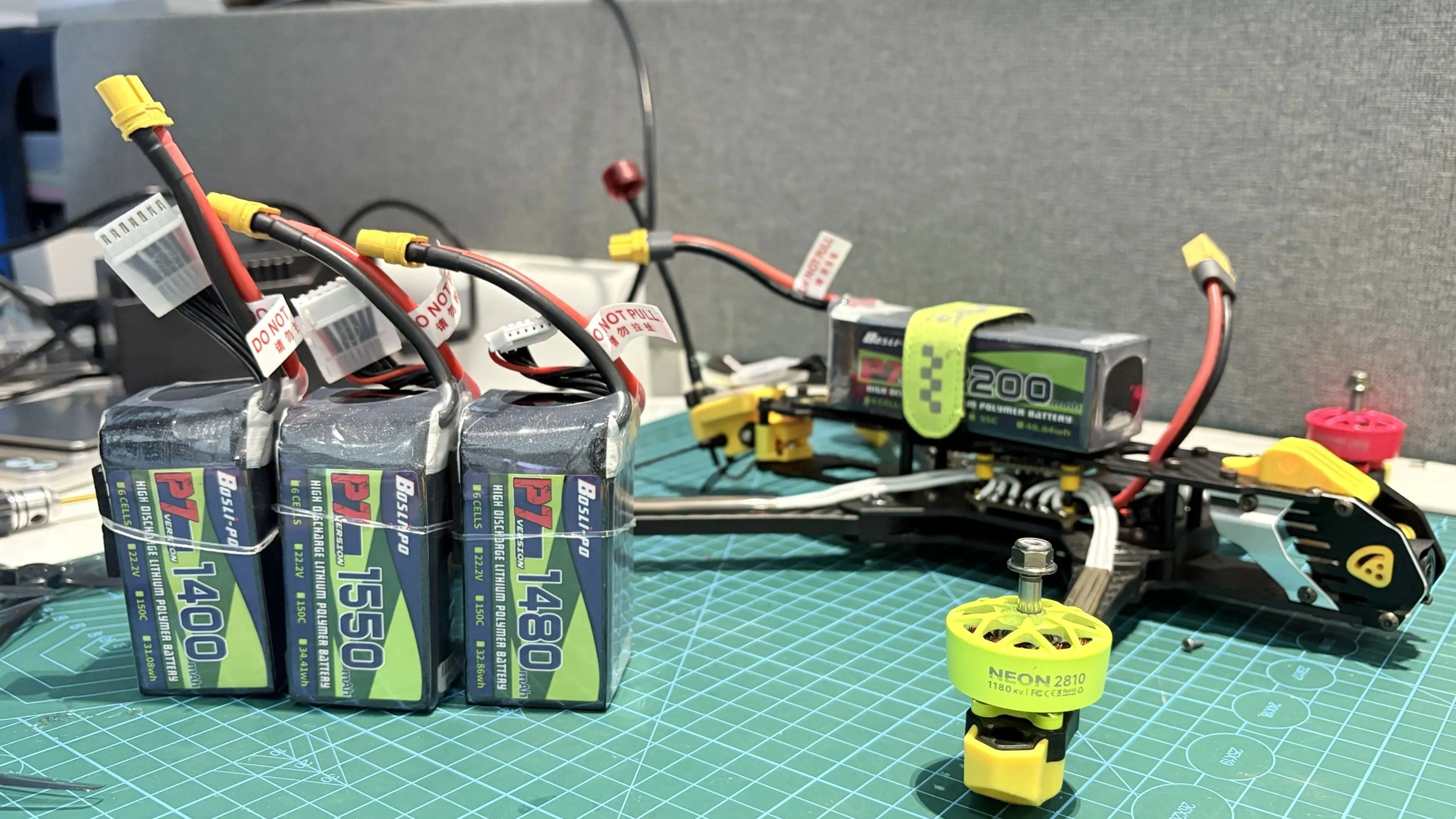

How to Choose LiPo Batteries for FPV Drone?
Choosing the right LiPo battery for your FPV drone is all about balancing power, weight, and compatibility. A mismatch in voltage or size can reduce flight performance—or worse, damage your electronics.
The Steps to Choose a LiPo Battery
Step 1 – Know Your Build Weight (AUW First, Not Battery First)
Before buying any FPV lipo battery, calculate your estimated All-Up Weight (AUW):
Frame + Motors + ESC + FC + Camera + VTX + Receiver + Battery
Why this matters:
Battery weight directly changes:
- Throttle response
- Efficiency
- Motor heat
- Flight feel
Freestyle Target
A good rule for 5” freestyle:
Minimum 5:1 thrust-to-weight ratio
Example:
- Estimated AUW: 650g
- Total motor thrust (4 motors combined): 3500g
3500 ÷ 650 = 5.3:1 → Good power margin
If your battery is too heavy, your quad becomes sluggish and overheats motors.
Step 2 – Match Battery Voltage to Motor & ESC
This is where many beginners make mistakes.
You must match your drone lipo battery voltage (S count) with:
- Motor KV
- ESC voltage rating
- Flight controller rating
Basic Rule
| Motor KV | Recommended Battery |
|---|---|
| 2400KV–2700KV | 4S LiPo battery |
| 1700KV–1900KV | 6S LiPo battery |
| 3000KV+ (micro) | 3S LiPo battery |
Why This Matters
- High KV motors spin faster per volt.
- Low KV motors are designed for higher voltage.
Example:
- 1700KV × 25.2V (6S full) ≈ 42,840 RPM
- 2400KV × 16.8V (4S full) ≈ 40,320 RPM
Both reach similar RPM, but 6S:
- Draws less current
- Runs cooler
- Is more efficient
That’s why most modern 5” builds now use 6S.
Step 3 – Balance Flight Performance and Weight
Now we refine capacity.
Capacity (mAh) determines:
- Flight time
- Battery weight
- Center of gravity
5” 6S Example
| Capacity | Weight | Flight Style |
|---|---|---|
| 1050mAh | Light | Aggressive freestyle |
| 1100–1200mAh | Balanced | Most common |
| 1300–1500mAh | Heavy | Smooth cruising |
For hard freestyle: 6S 1100mAh is the sweet spot.
Why?
- Enough punch
- Doesn’t overweight the quad
- Keeps motors cooler
If you go too big (1500mAh+), you’ll feel:
- Slower flips
- More inertia
- Harder propwash recovery
Step 4 – Choose a Realistic C Rating
Many pilots ask:
What is the C rating on a LiPo battery?
C rating defines how fast the battery can safely discharge.
For 5” freestyle, real-world draw during punch-outs:
- 80A–140A bursts
Practical Recommendation
| Build Type | Recommended C Rating |
|---|---|
| 5” Freestyle | 80C–120C |
| Racing | 100C+ |
| Long Range | 30C–60C |
Important:
Many brands exaggerate C ratings.
A quality 95C pack from a reputable brand often performs better than a “150C” no-name battery.
Step 5 – Consider Connector Type
Your lipo battery connectors must match your ESC power lead.
| Drone Size | Connector |
|---|---|
| 5” | XT60 |
| 3” | XT30 |
| Tiny Whoop | BT2.0 |
Using the wrong connector increases resistance and heat.
Balancing Flight Performance and Weight Considerations
Every FPV pilot faces a trade-off between power and weight.
More Voltage = More Power
Higher cell count (like 6S) gives you more thrust and faster response because motors spin faster at higher voltages. This is ideal for racing or aggressive freestyle flying.
More Voltage = More Weight
However, 6S batteries are heavier than 4S or 3S. This added weight can reduce agility and strain your drone if it’s not built to handle it. For cinewhoops or micro drones, lighter 3S or 4S packs are usually more suitable.
Matching Battery Voltage to Motor and ESC Requirements
Using the wrong battery voltage can damage your gear or cause a crash mid-air.
Understand Motor KV and Voltage
Motors are rated in KV (RPM per volt). More voltage = higher RPM = more thrust.
Example:
- A 2300KV motor on 4S (14.8V) spins slower than the same motor on 6S (22.2V).
- Higher voltage increases speed, but only if your motor and ESC are rated for it.
ESC & Flight Controller Compatibility
ESCs have voltage and current limits. Supplying too much voltage will fry them, while too little voltage will underpower your motors.
Always check:
- ESC input voltage (e.g., 3–6S)
- Motor recommended voltage (from spec sheet)
- Flight controller voltage tolerance (most support 3–6S)
What Battery Should I Get for My FPV Drone?
Let’s look at real-world recommendations based on drone type:
Racing / Freestyle Drones (Typical 5-Inch Builds)
- Battery: 4S or 6S LiPo, 1300–1500mAh
- C Rating: 70C–100C (or higher for punchouts)
- Why: Delivers powerful throttle response and acceleration during freestyle or racing.
Long Range Drones (7–10 Inch)
- Battery: 6S LiPo or Li-Ion, 3000–10000mAh
- C Rating: 25C–35C is sufficient due to smoother throttle use
- Why: Prioritizes extended flight time, not instant power.
Cinewhoops (3–4 Inch Prop Ducted Drones)
- Battery: 3S–4S, 850–1100mAh
- C Rating: 45C–75C
- Why: Light enough to maintain stability while filming, with enough juice for smooth flight.
Micro Drones (Tiny Whoops / Toothpicks)
- Battery: 1S–2S, 300–650mAh
- C Rating: 30C–60C
- Why: Compact, low weight, designed for indoor or gentle outdoor flying.
Summary: Match Your LiPo Battery to Your FPV Drone
| Drone Type | Suggested Battery Specs | Notes |
| Tiny Whoop | 1S 300–450mAh, 30–60C | Indoor, ultra-lightweight |
| Toothpick | 2S–3S 450–850mAh, 60C+ | Lightweight & agile |
| Cinewhoop | 3S–4S 850–1100mAh, 60–75C | Smooth, stable footage |
| Freestyle | 4S/6S 1300–1500mAh, 70–100C or more | Power + agility |
| Racing | 6S 1000–1300mAh, 90–130C | Max speed and responsiveness |
| Long Range | 6S LiPo or Li-Ion 3000–8000mAh, 25–35C | Prioritize endurance over instant thrust |
How to Charge a LiPo Battery?
Always use a dedicated balance charger and never leave a charging battery unattended.
- Select the correct cell count (e.g., 6S).
- Set the current to 1C (e.g., 1.3A for a 1300mAh battery).
- Always use a balanced lead to ensure all the lipo battery cells are equal.
To safely charge a LiPo battery, use a reliable smart LiPo charger. Connect both the main power lead (e.g., XT60) and the balance connector to the charger. Always choose “Balance Charge” mode to ensure each cell is evenly charged, and set the charge current to 1C (1× the battery’s capacity—for example, 1.5A for a 1500mAh battery). Charge the battery in a fire-safe location away from flammable materials, such as inside an ammo box or on a fireproof mat, and never leave it unattended during charging. Avoid fast charging unless your battery specifically supports it, and stop immediately if the battery gets hot or starts swelling. Always let batteries cool down after flights before charging, and never charge damaged or swollen packs.
How to Discharge LiPo Battery?
Knowing how to discharge LiPo battery properly is just as important as charging.
There are two common reasons to discharge:
- You overcharged and won’t fly
- You need to dispose of the battery
Method 1 – Storage Mode (Recommended)
Most chargers have a “Storage” function.
This automatically sets your lipo battery storage voltage to:
3.8V per cell
This is the safest resting voltage.
Method 2 – Charger Discharge Function
You can manually discharge to:
- 3.8V per cell (storage)
- 3.0V per cell (disposal preparation)
Never short-circuit a LiPo to discharge it.
That can cause fire or explosion.
Can You Discharge by Flying?
Yes — many pilots do.
But:
- Don’t go below 3.5V per cell under load
- Resting voltage should not drop below 3.3–3.4V
Over-discharging permanently damages LiPo battery cells.
LiPo Battery Safety
How to Store LiPo Batteries?
Ideal Storage Conditions
- 3.8V per cell
- Cool, dry location
- Fire-resistant container
- Away from direct sunlight
Why 3.8V?
This is called lipo battery storage voltage.
It reduces:
- Internal chemical stress
- Cell swelling
- Long-term degradation
For long-term health, you must bring your packs to a lipo battery storage voltage of 3.80V–3.85V per cell.
- Short-term: If you plan to fly tomorrow, leaving them fully charged is okay.
- Long-term: Use your charger’s “Storage Mode” if you won’t fly for more than 48 hours. Lipo battery storage in a fire-proof bag or “Bat-Safe” is highly recommended.
How to Dispose of Lipo Batteries?
Never throw a LiPo in the regular trash. To safely dispose of a damaged pack, discharge it to 0V (many chargers have a “destroy” mode or use a salt-water bath) and take it to a local battery recycling center.
FAQs
How many packs should beginners buy?
Although you can purchase as many battery packs as you like, if you are new to flying FPV, I believe four packs is a reasonable quantity. With just four packs, you can fly for up to 40 minutes, assuming each flight lasts 5 to 10 minutes (including the time you need to go to pick up your crashed quad, preflight preparation, and brief rest periods in between flights). You can greatly increase your flying time if you have a mechanism to charge your batteries while you’re out in the field.
How long does the drone battery last?
In fact, most freestyle or racing drones running on a 1300mAh–1500mAh 4S LiPo battery will only get about 3 to 5 minutes of flight when flying hard. On the flip side, if you’re flying a cinewhoop or cruising more gently, you could see flight times closer to 8 to 10 minutes.
As for the battery life, a high-quality LiPo battery can survive between 300 and 500 full cycles of charging and discharging before seeing appreciable performance deterioration if it is properly maintained.
If you want to learn more, click on the blog How Long Do FPV Drone Batteries Last?
4s vs 6s, which battery is better?
The power you require is what determines whether to use 4s or 6s batteries. The voltage bump that 6s batteries provide for 5 inch FPV drones allows for extended flight periods and a little extra punch that will make you smile. Therefore, I would advise flying 5 inch FPV in 6s.
Click on the blog to learn more about the differences between the 4s Battery and the 6s Battery.
Can I charge a LiPo battery to LiHV voltage?
No, you should never charge a standard LiPo to 4.35V. According to lipo battery safety guidelines, overcharging a standard 4.2V cell causes chemical instability, leading to “puffing” or fire. Always verify your charger is in LiHV mode only when using high-voltage specific packs.
What is the best voltage to land an FPV drone?
For LiPo, the safest choice is to land when your OSD shows 3.5V per cell. Landing at this voltage ensures the battery bounces back to its “resting voltage” of 3.7V, which is essential for maintaining a long cycle life. For Li-ion, you can safely fly down to 3.0V per cell due to its different discharge characteristics.
Does a higher C-rating mean more flight time?
No, a higher C-rating does not increase flight time; it increases the battery’s ability to deliver current without sagging. If you want more flight time, you need higher capacity (mAh). However, a high C-rating battery (like 150C packs) will stay cooler and feel more powerful throughout the flight.
