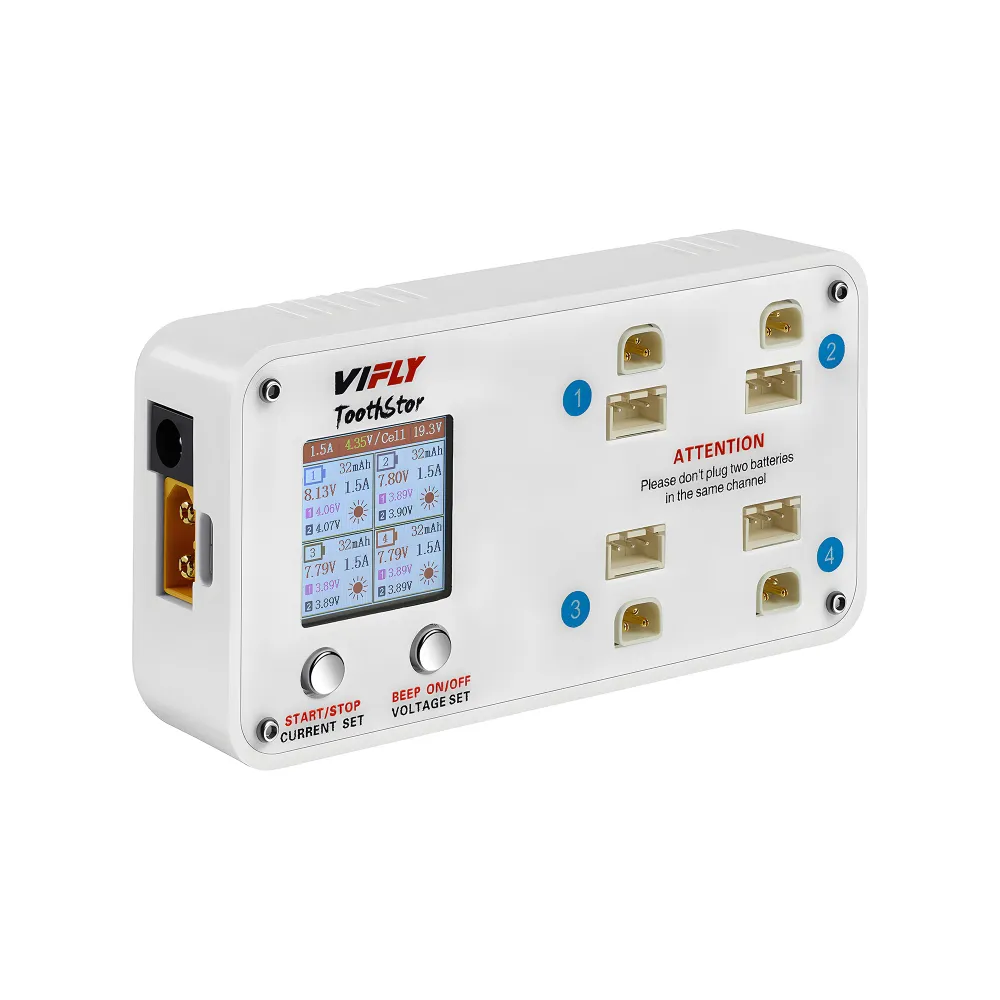

VIFLY ToothStor 4 Port 2S LiPo/LiHV Balance Charger with Storage Mode
About VIFLY ToothStor 4 Port 2S Balance Charger:
Introducing the VIFLY ToothStor 4 Port 2S Balance Charger with Storage Mode. This compact charger handles four 2S batteries simultaneously, featuring a vibrant LCD display for easy monitoring. With efficient heat dissipation, multiple power input options, and memory function, it's reliable and convenient. Plus, the built-in buzzer alerts you when charging is complete, offering both audible and silent operation options. The VIFLY ToothStor: your go-to for efficient and reliable RC battery charging.
Bundle and save up to $2.34 on gear — upgrade your setup for less.
Radiomaster 2S 7.4V 6200mAh Lipo Battery for Boxer TX16S
Options (1)
2S 7.4V 6200mAh Lipo Battery
2S 7.4V 6200mAh Lipo Battery
$36.65
Save $2.34
In Stock
Expected ship within 7 days after order.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
4-Port Independent Charging Charge 4× 2S batteries at once.
Smart Storage Mode Auto storage voltage control.
Balance-Only Charging JST-XH direct charging, no main leads.
Multiple Power Inputs USB-C / XT60 / DC supported.
Compact Smart Design LCD screen with cooling fan.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Features:
●【4 Port 2S Balance Charger with Storage Mode】You can balance charge four 2S batteries at the same time. And they are 4 independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.
●【Colorful LCD Screen, Intuitive Interface】VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.
●【Charge via Standard Balance Lead Only】VIFLY ToothStor charges batteries via the standard balance lead only (JST-XH2.54), that conveniently eliminating the need to connect the power lead like XT30, T-plugs, etc.
●【Strong Heat Dissipation Capability】The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.
●【Multiple Power Input】It supports Type-C, XT60 and DC power input. Type-C supports PD3.0 protocol that requests the input power must be higher than 65W.
●【Memory Function】VIFLY ToothStor had the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
●【Buzzer Indication】VIFLY ToothStor added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.
4 Port 2S Battery Balance Charger with Storage Mode
You can balance charge four 2S batteries at the same time. And they are four independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.

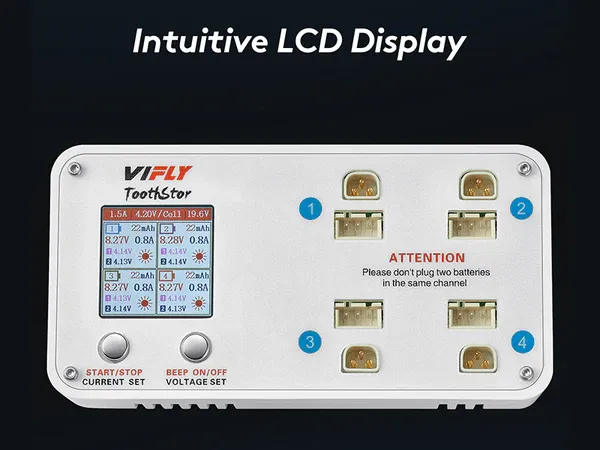

Colorful LCD Screen, Intuitive Interface
VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

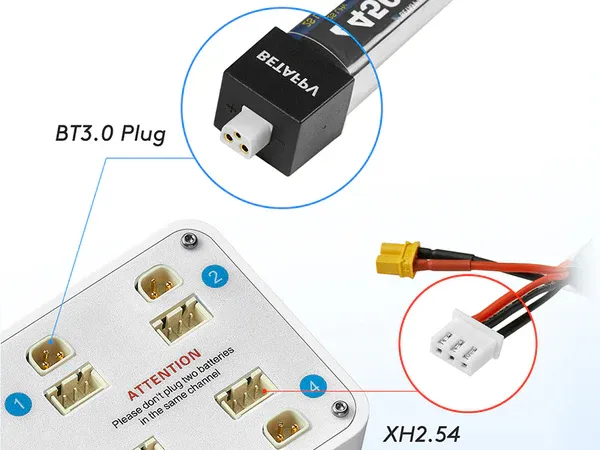

Charge via Balance Port Only
VIFLY ToothStor charges batteries via the standard balance lead only (JST-XH2.54 or BT3.0), that conveniently eliminating the need to connect the power lead like XT30, T-plugs, etc.

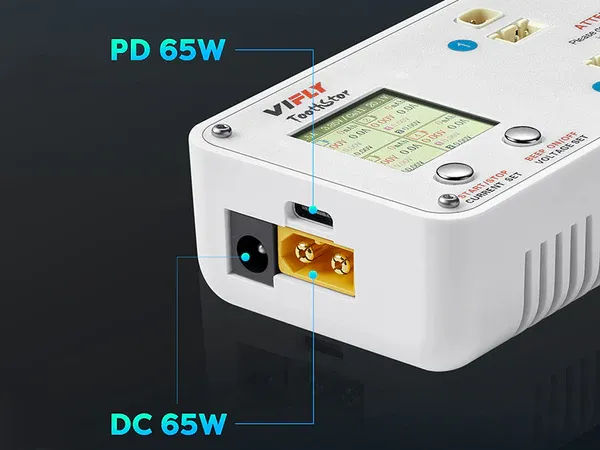

Multiple Power Input
VIFLY ToothStor 2S charger supports Type-C, XT60 and DC power input. Type-C PD3.0 protocol requests the input power must be higher than 65W.

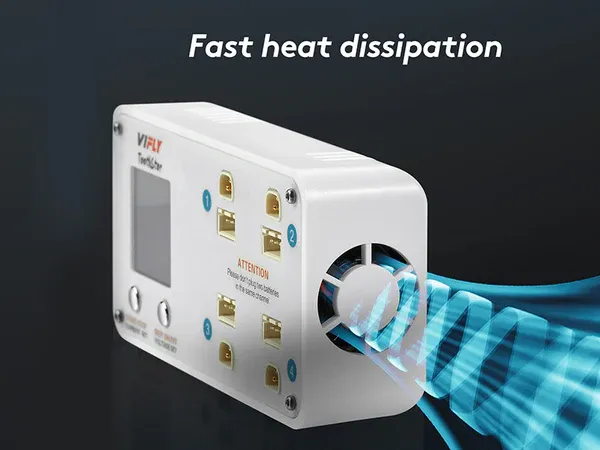

Strong Heat Dissipation Capability
The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.

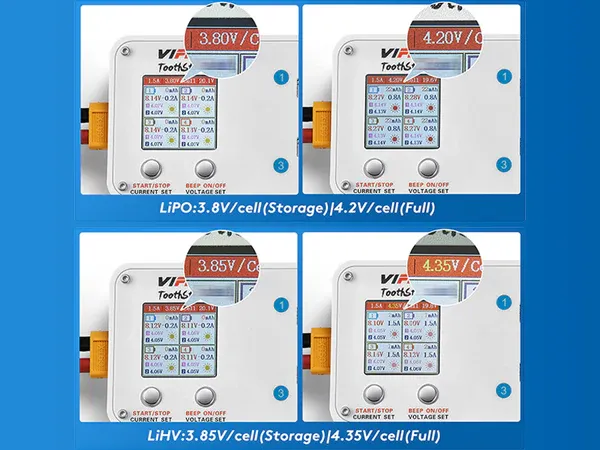

Storage Charger and Discharger
VIFLY ToothStor is a combination of 2S charger and discharger. It has 4 target voltages per cell (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V/cell (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V.
Specifications：
Dimensions
109*56*30mm
Weight
142g
Input connector
XT60, DC(5.5*2.1mm), USB-C(PD3.0)
Input voltage range
10V-26V
Minimum input power
65W
Max charging current
1.5A/port
Support battery connector
XH2.54 3Pin & BT3.0
Battery type
LiHV / LiPo
Storage voltage
3.80V/Cell & 3.85V/Cell
Max discharge current
0.2A/port
Balance Current
0.2A
Recommendation：
FAQFeel free to ask us any questions
ASK A QUESTION
Q1: Can it charge 4 batteries at the same time?
A: Yes, it supports 4 independent 2S channels, each working separately.
Q2: Do all batteries need to be the same?
A: No. Each channel is independent, so batteries can differ in voltage, capacity, or condition.
Q3: Does it support storage charging?
A: Yes. It can automatically charge or discharge batteries to storage voltage (3.80V / 3.85V per cell).
Q4: Do I need XT30 or XT60 connectors?
A: No. Charging is done entirely through the balance port (JST-XH), simplifying operation.
Q5: What power input is recommended?
A: USB-C PD 65W or higher is recommended for best performance. It also supports XT60 and DC input.
