ToolkitRC M8D Dual Channel Smart Charger | 800W 30A DC Output, 1-8S LiPo Support, for FPV Drones & Large RC Models

Features

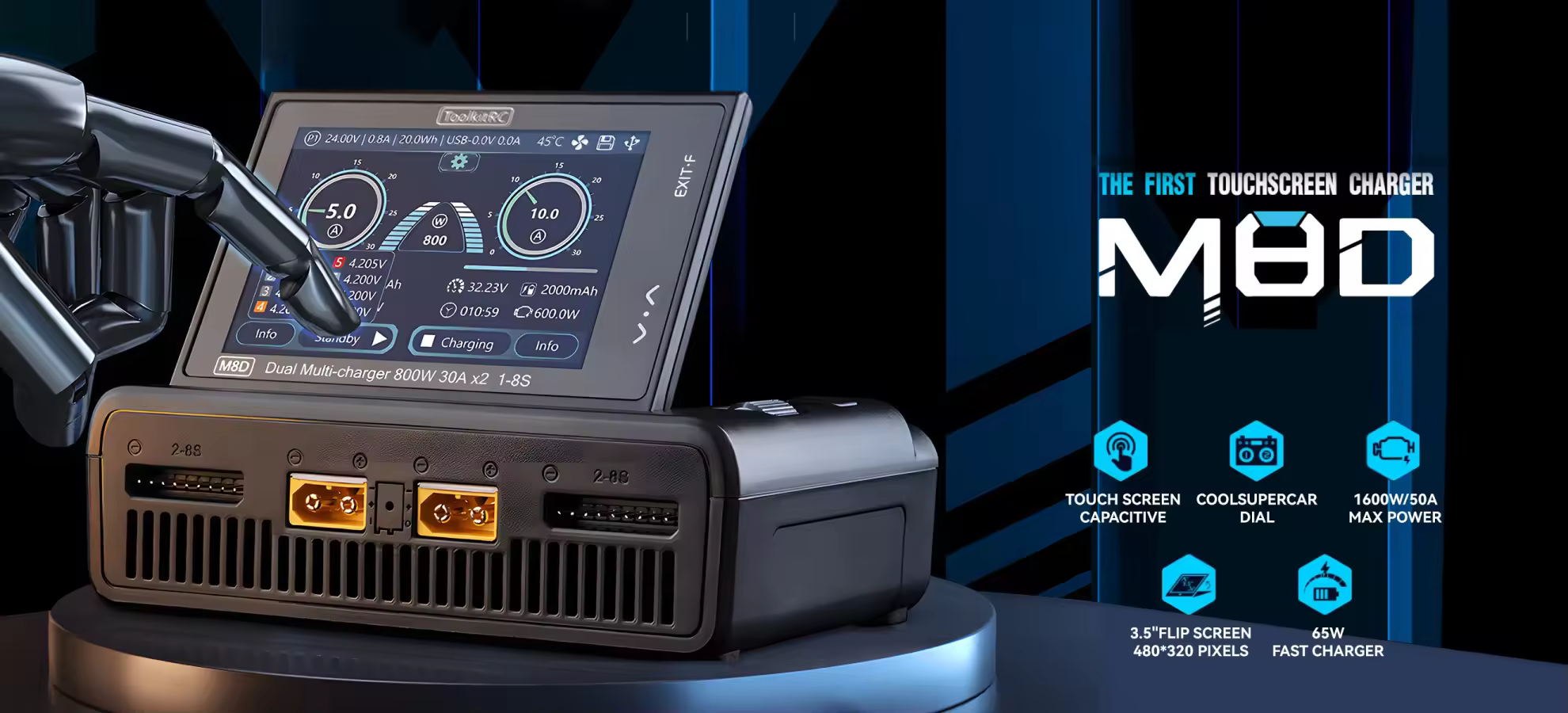

● New UI Design: Highly adapted to the use of touch-screen habits;

● Extra Large Flip Screen Design: 80° adjustable angle, 3.5″ IPS;

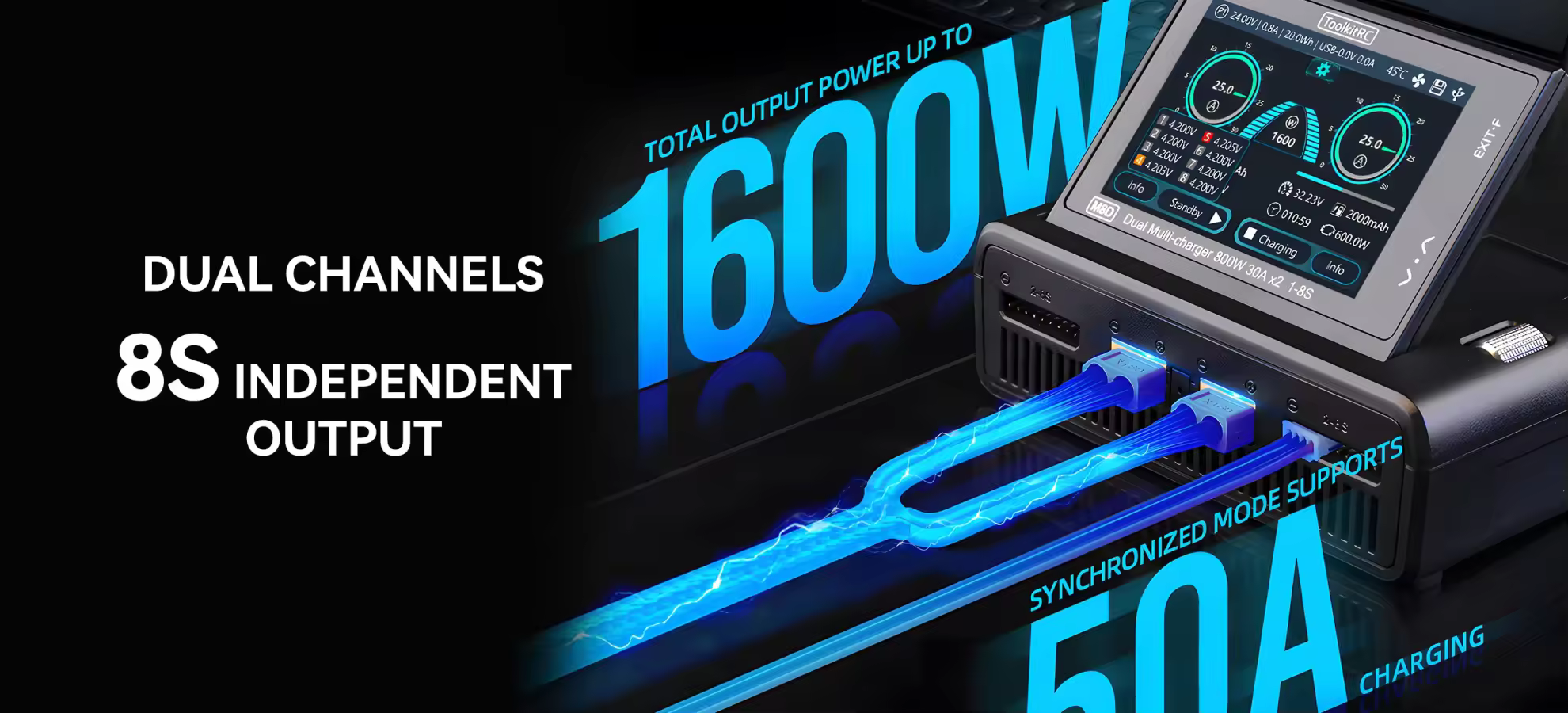

● Dual Channels 8S Independent Output: Total output power up to 1600W, Synchronized mode supports 50A charging;

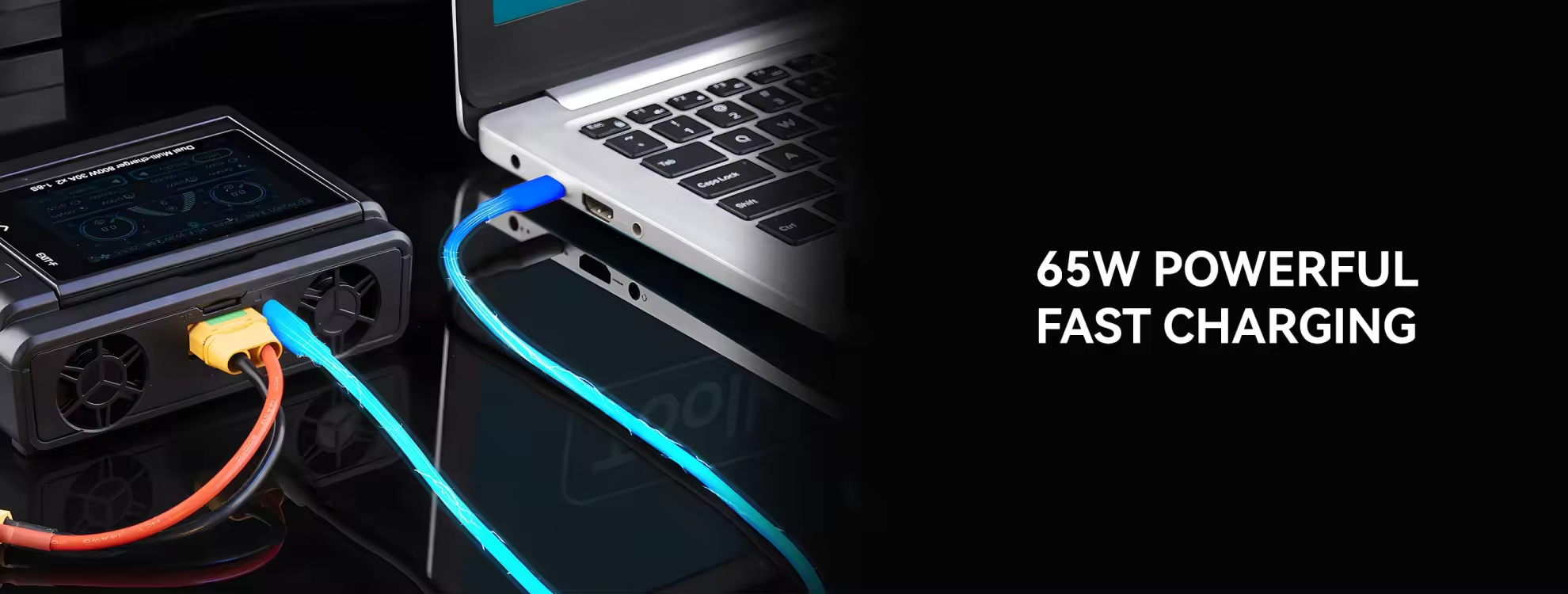

● 65W Powerful Fast Charging;

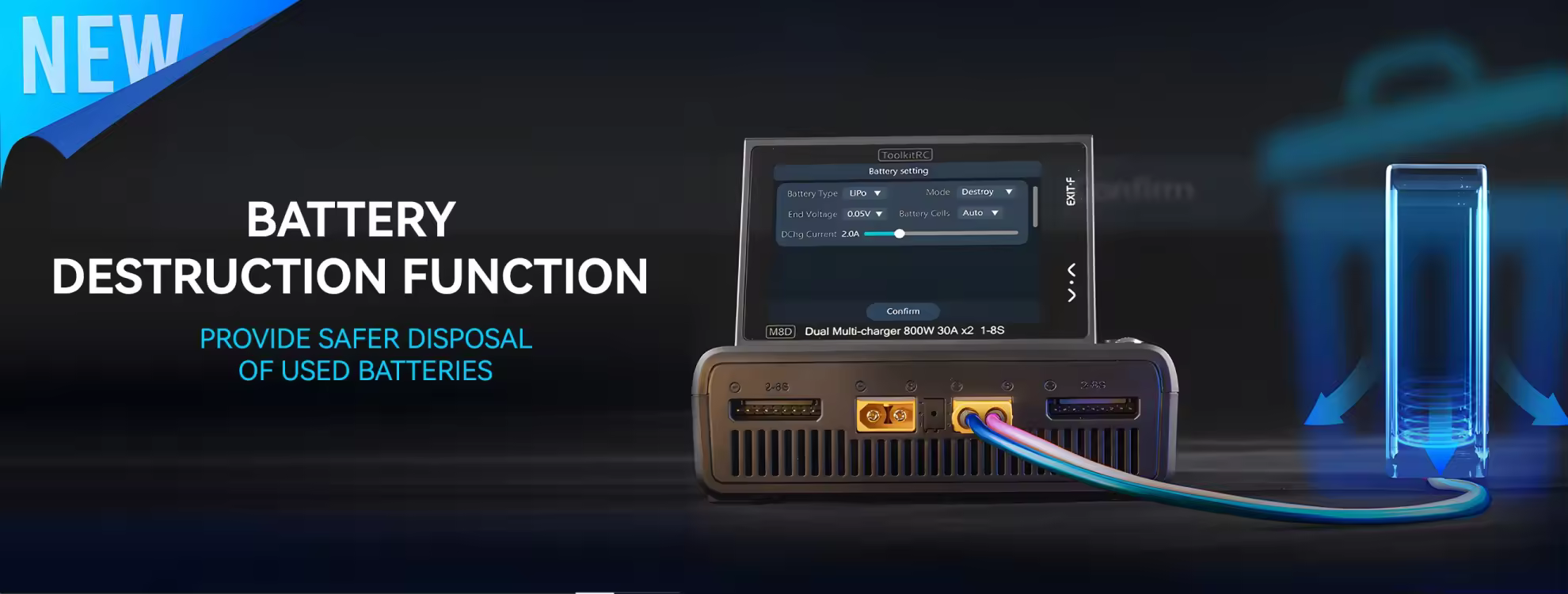

● Battery Destruction Function: Provide safer disposal of used batteries;

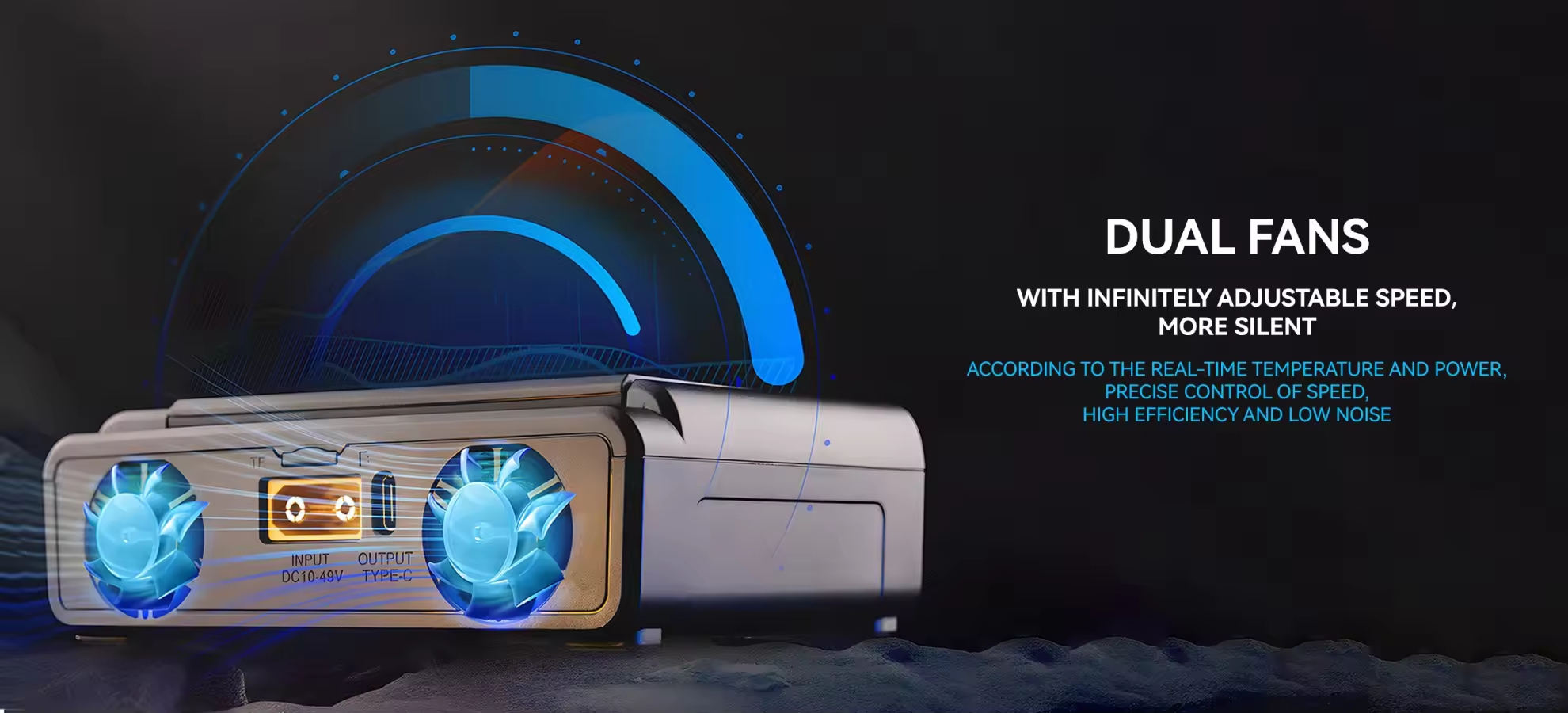

● Dual Fans with Infinitely Adjustable Speed, More Silent:According to the real-time temperature and power, precise control of speed, high efficiency and low noise

● TF Card Logging: Full support for charging and discharging data storage and analysis;

Specifications

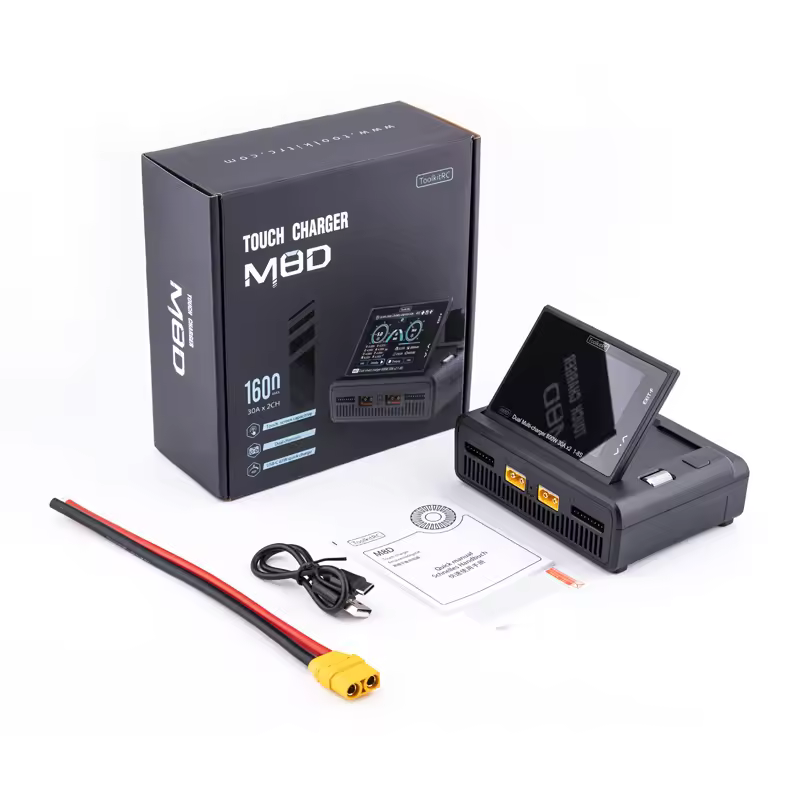

Package Includes

● M8D Charger × 1

● USB-C Cable × 1

● XT90 Input Cable × 1

● Manual × 1

● Screen Protector × 1

Buyer’s Guide: ToolkitRC M8D Dual Channel Smart Charger

Managing large battery rotations for 5-inch freestyle fleets, heavy-lift 8S Cinelifters, or high-capacity long-range Li-ion packs requires a bench charger that delivers high wattage and aggressive balancing speed. The ToolkitRC M8D 1600W 30A Dual-Channel Smart Balance Charger features an asynchronous 800W × 2 (or 1600W synchronized) architecture, an adjustable 3.5-inch IPS capacitive touchscreen, a 2000mA balancing circuit, and native 1–8S chemistry support to significantly reduce bench charge times.

Real Pilot Flight Impressions

"Running high-capacity 6S and 8S packs on heavy-lift rigs used to mean waiting over an hour just for the final balance phase to creep along, but the M8D cuts that wait down dramatically. Powered by an external 48V telecom supply, this unit pumps out an honest 800W per channel without choking, and when I throw unbalanced 6S 4500mAh packs onto it, the 2000mA balance current brings individual cell deltas down to within 0.005V in just a few minutes. Navigating charging profiles with the flip-up 3.5-inch capacitive touchscreen is much faster than spinning clunky mechanical jog wheels, and having an integrated 65W USB-C PD port lets me field-charge my DJI Goggles battery or radio right alongside my flight packs. Despite running dual 20A charge streams simultaneously, the internal cooling fans ramp up smoothly without high-pitched whines, making it a dependable, high-output hub for demanding pilots."

Recommended Ecosystem & Hardware Pairings

● High-Power DC Power Supply: 24V–48V 60A DC Switching / Server Power Supply (required to achieve full 1600W throughput).

● FPV & Cinematic Batteries:

        ● 6S High-C Freestyle LiPos: Boslipo P7 1750mAh 150C 6S, Tattu R-Line V5.0 1800mAh 6S.

        ● 6S/8S Cinema & Long-Range Packs: 6S–8S 4500mAh–6000mAh LiPo packs or GEPRC Storm 6S2P 8000mAh Li-Ion.

● Micro 3S–6S Packs: Boslipo P7 850mAh 95C, Gaoneng GNB 850mAh 5S HV.

● Parallel Charging Boards: 4S–8S Safe Parallel Boards equipped with automotive fuses and XT60/XT90 connectors.

● Field Gear Powered via USB-C: RadioMaster Boxer / Pocket / TX12, DJI Goggles 2 / Integra / 3 battery packs.

ToolkitRC M8D vs. Gens ace iMars D300 G-Tech

Selection Summary

● Choose the ToolkitRC M8D if: You operate 8S Cinelifters, high-capacity long-range Li-ion rigs, or multi-pack parallel charging boards. Its 1600W synchronous potential, 30A per-channel output, 2000mA balancing current, and 65W USB-C output make it the definitive high-power DC charging station.

● Choose the Gens ace iMars D300 if: You want a compact, all-in-one bench charger with an integrated AC power supply that plugs straight into home wall outlets without requiring an external DC transformer. Its native G-Tech battery integration and plug-and-play AC 300W convenience make it well suited for 1S–6S daily freestyle and racing pilots.
