Top highlights
High-Power Output – Delivers up to 500W in synchronous mode to fast-charge high-capacity batteries and get you back in the air instantly.
Dual-Channel Flexibility – Features two independent ports to charge different battery types at once, eliminating the wait for sequential charging.
Compact & Portable – The ultra-slim, pocket-sized design packs massive power into a small footprint, perfect for field charging and travel.
IPS Wide-Angle Screen – A 2.4-inch high-definition color display ensures crystal-clear visibility of battery data even in bright outdoor light.
Versatile Multi-Tool – Integrated signal tester and DC power modes allow you to test servos and receivers without needing extra equipment.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ

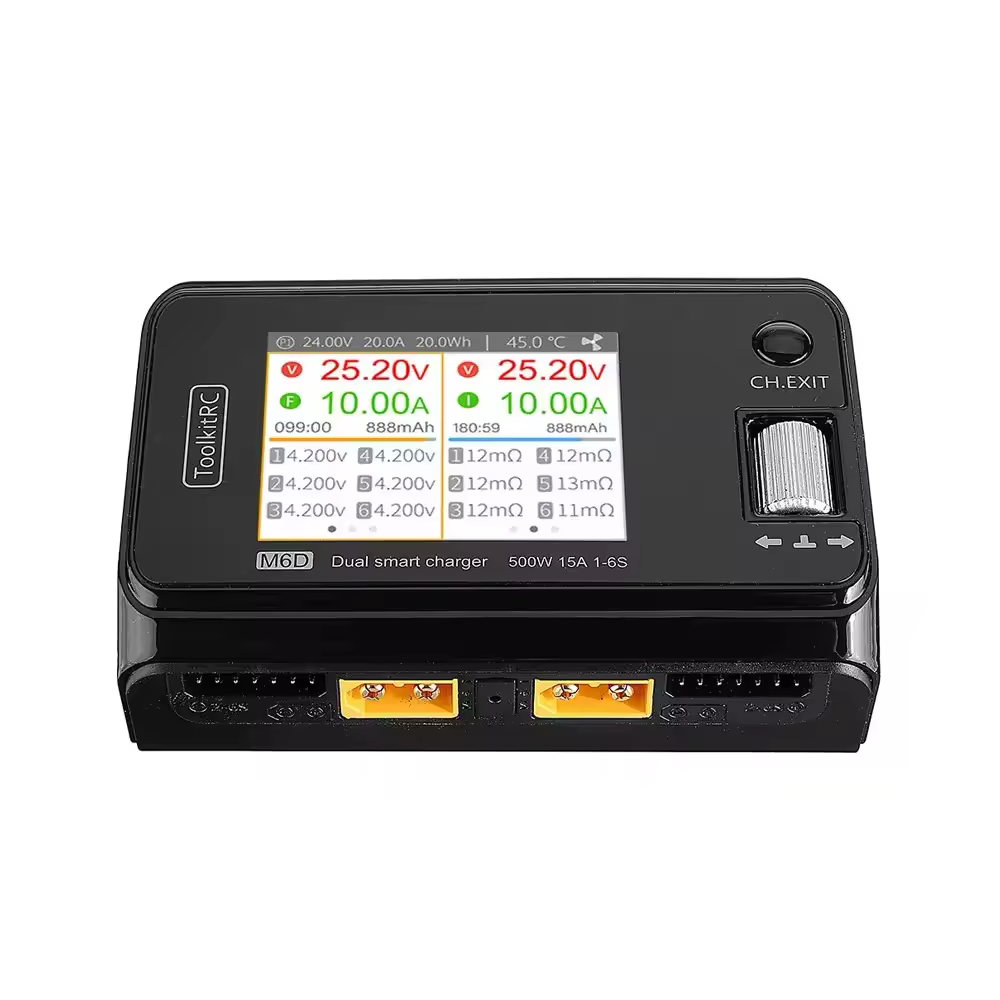

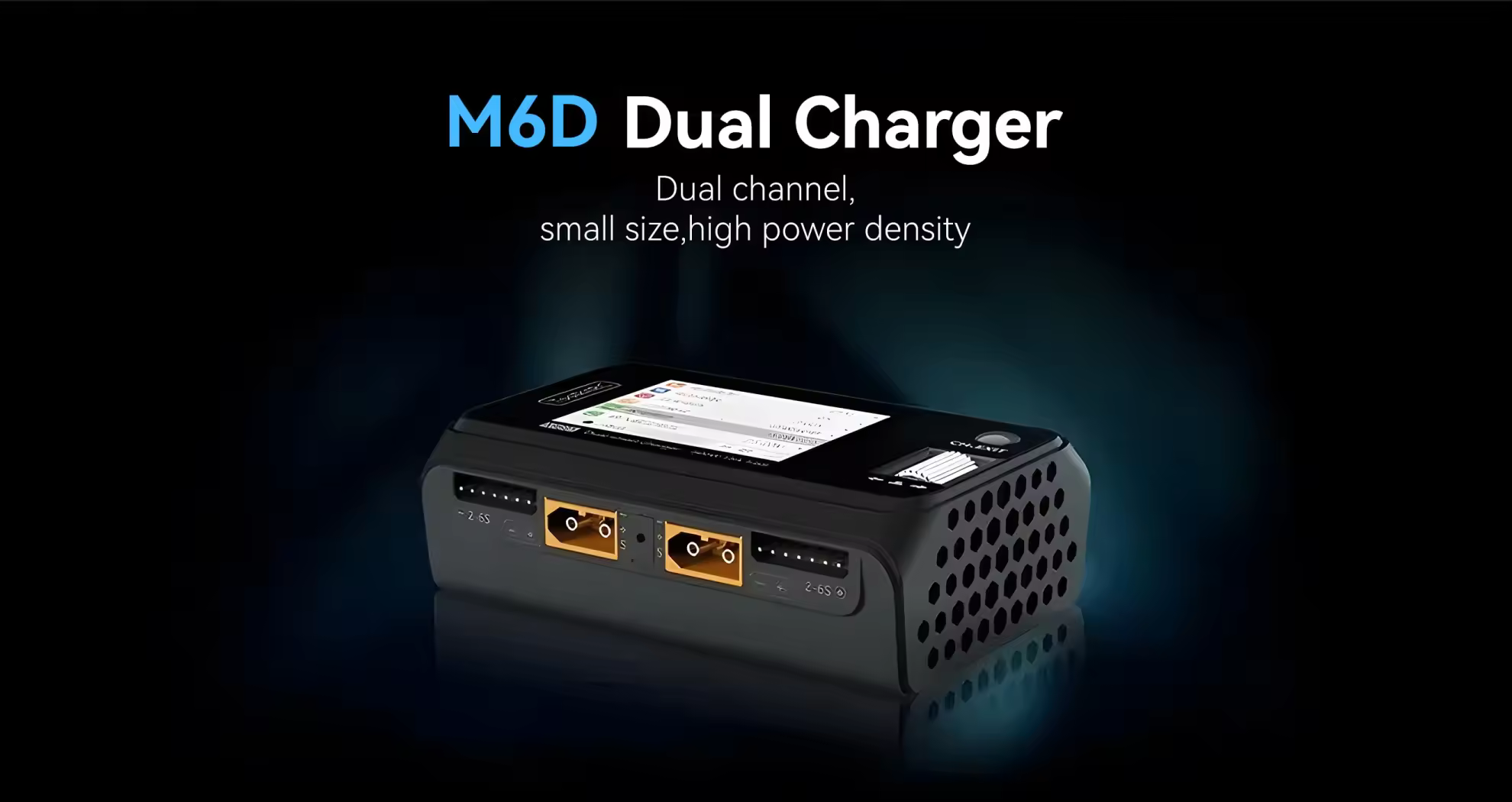

About ToolKitRC M6D 500W 15A 1-6S DC Dual Smart Charger

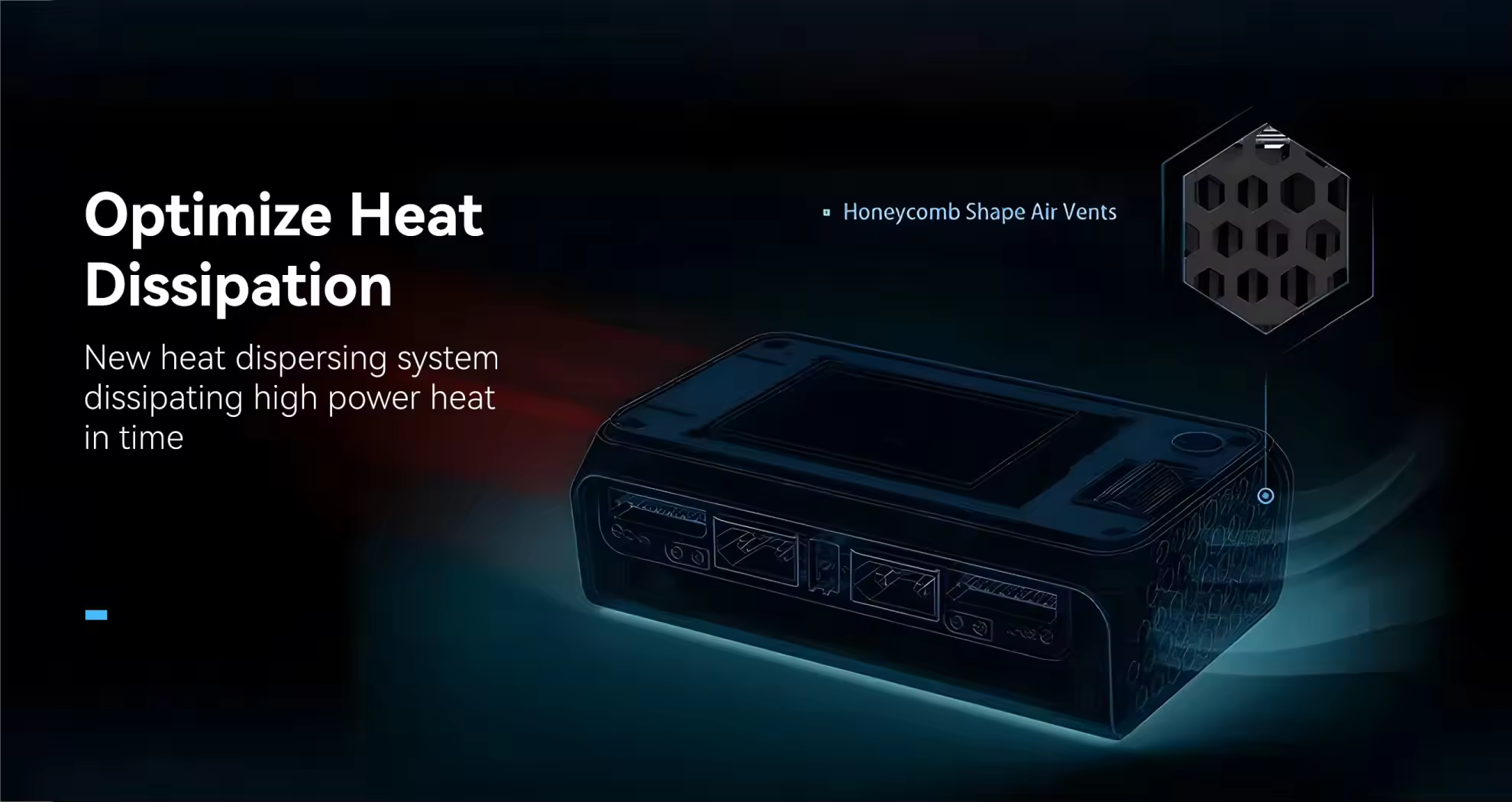

The M6D Dual Smart Charger features asynchronous automatic power distribution and synchronous output for greater power. It includes an optimized heat dispersing system to dissipate high power heat in no time! You will find an easy-to-navigate system, integrated USB interface, and lots of cool features that make the M6D an excellent charger.
Check out our Smart Battery Chargers, all Battery Chargers Collection and the rest of our ToolkitRC Products!
Buyer’s Guide: ToolkitRC M6D Dual Channel DC Charger
Real-World Review & Comparison
If you are looking for a powerful, ultra-compact field charger to charge your 2S–6S FPV LiPo batteries on the go, the ToolkitRC M6D is widely considered one of the best budget dual-channel DC chargers on the market. Powered by an external DC source (such as a large LiPo battery or a 12V lead-acid source), it delivers up to 500W of total charging power in a lightweight 220g chassis.
Here is your complete buyer’s guide covering real-world field-test feedback, key hardware specs, and a direct comparison against the ToolkitRC Q4AC.
Key Performance Highlights & Field-Test Insights
Massive Power Density & Energy Recycling

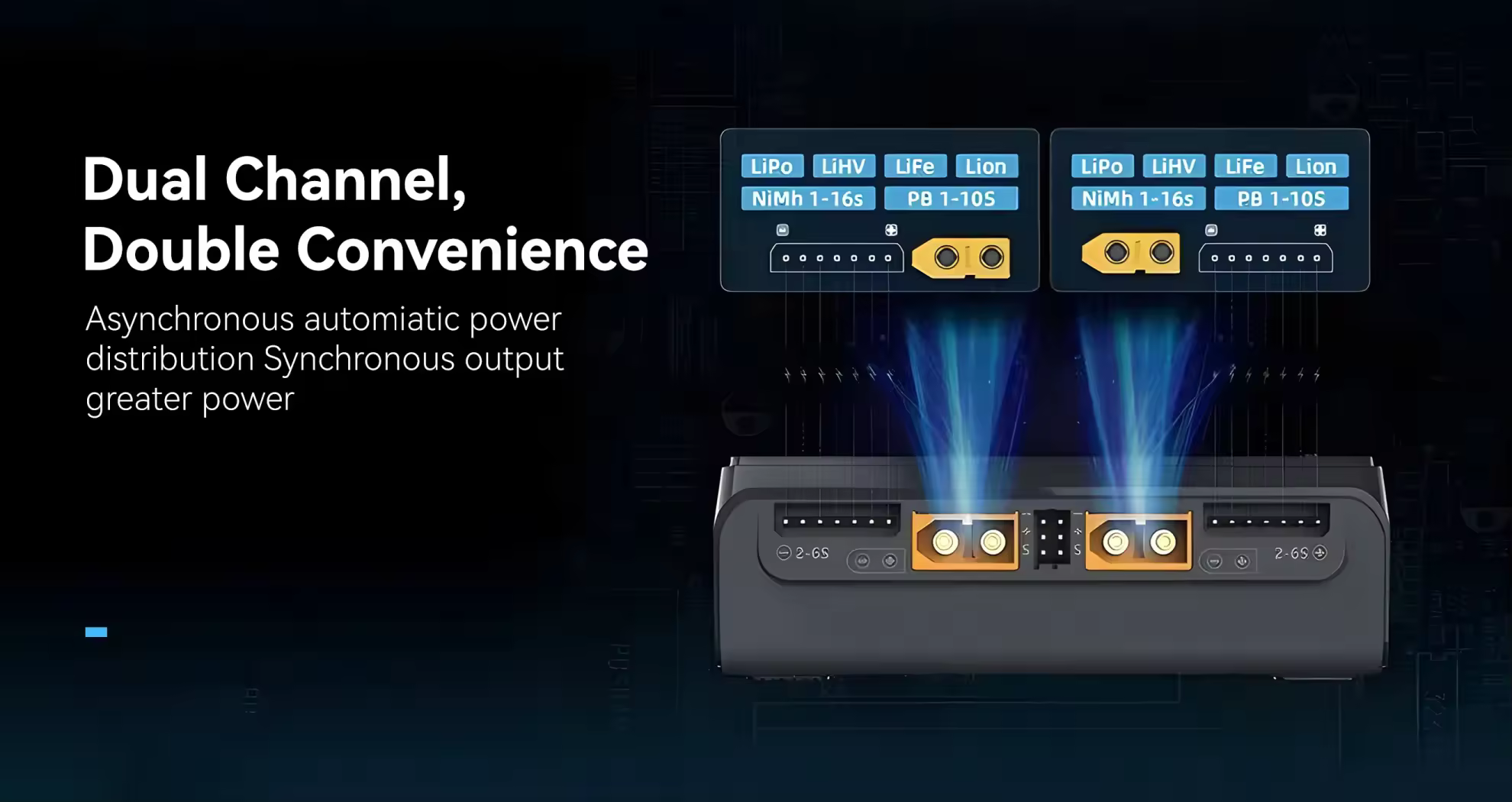

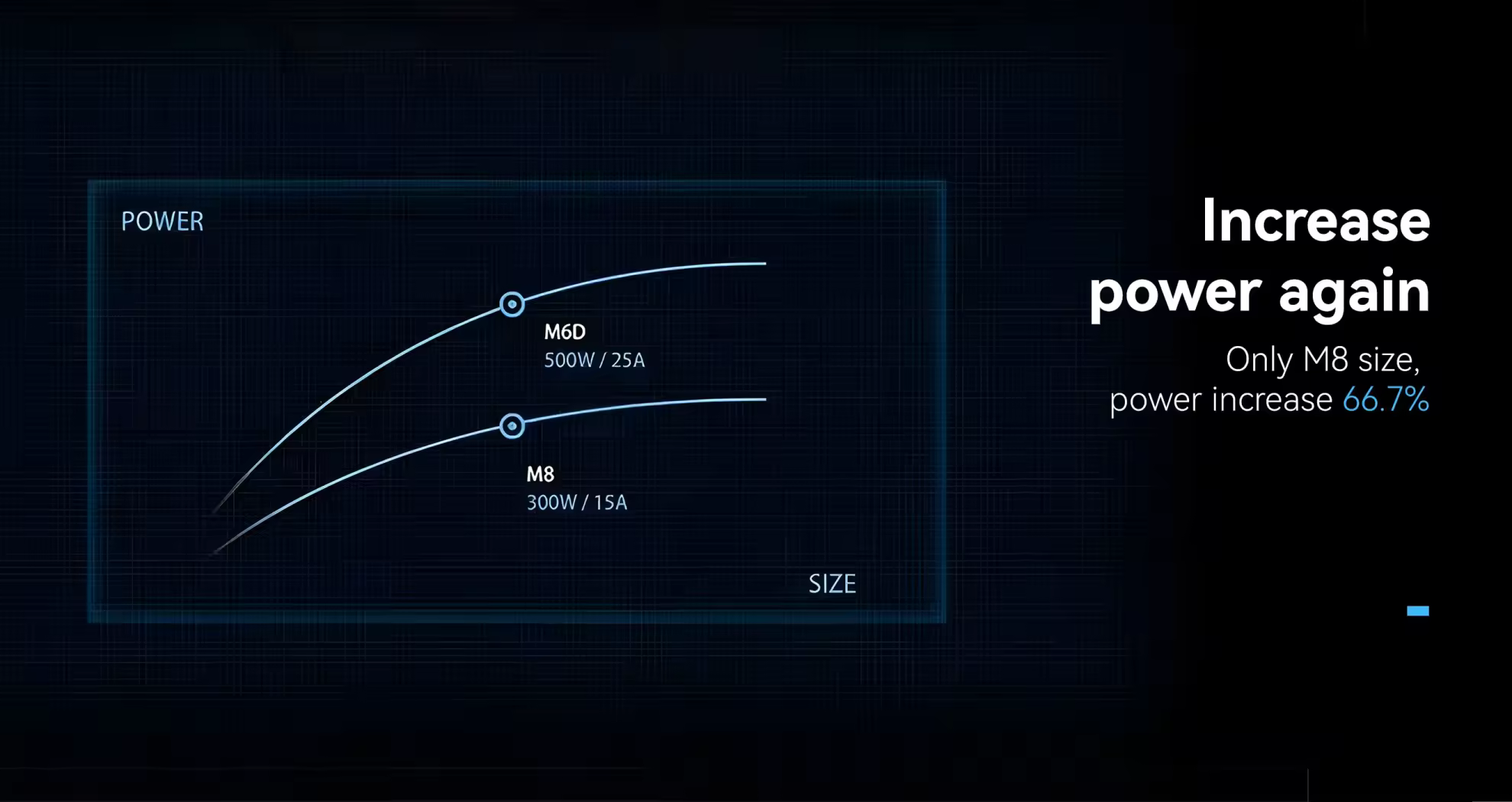

● Dual Output / Synchronous Mode: Supports up to 250W / 15A per channel in Asynchronous Mode (charging two 6S batteries independently) or 500W / 25A in Synchronous Mode.
● Energy Recycling Discharging: Unlike traditional chargers that dissipate energy purely as heat during discharge, the M6D features a recycle discharge mode (up to 250W x2). It feeds power back into your supply battery, preventing excessive thermal buildup inside the charger.
Accurate Battery IR (Internal Resistance) Detection
● Health Monitoring: Accurately measures the internal resistance (IR) of individual battery cells. Monitoring cell IR over time allows pilots to identify degraded cells and safely retire old battery packs before they fail in flight.
● Sun-Readable Screen & User Profiles

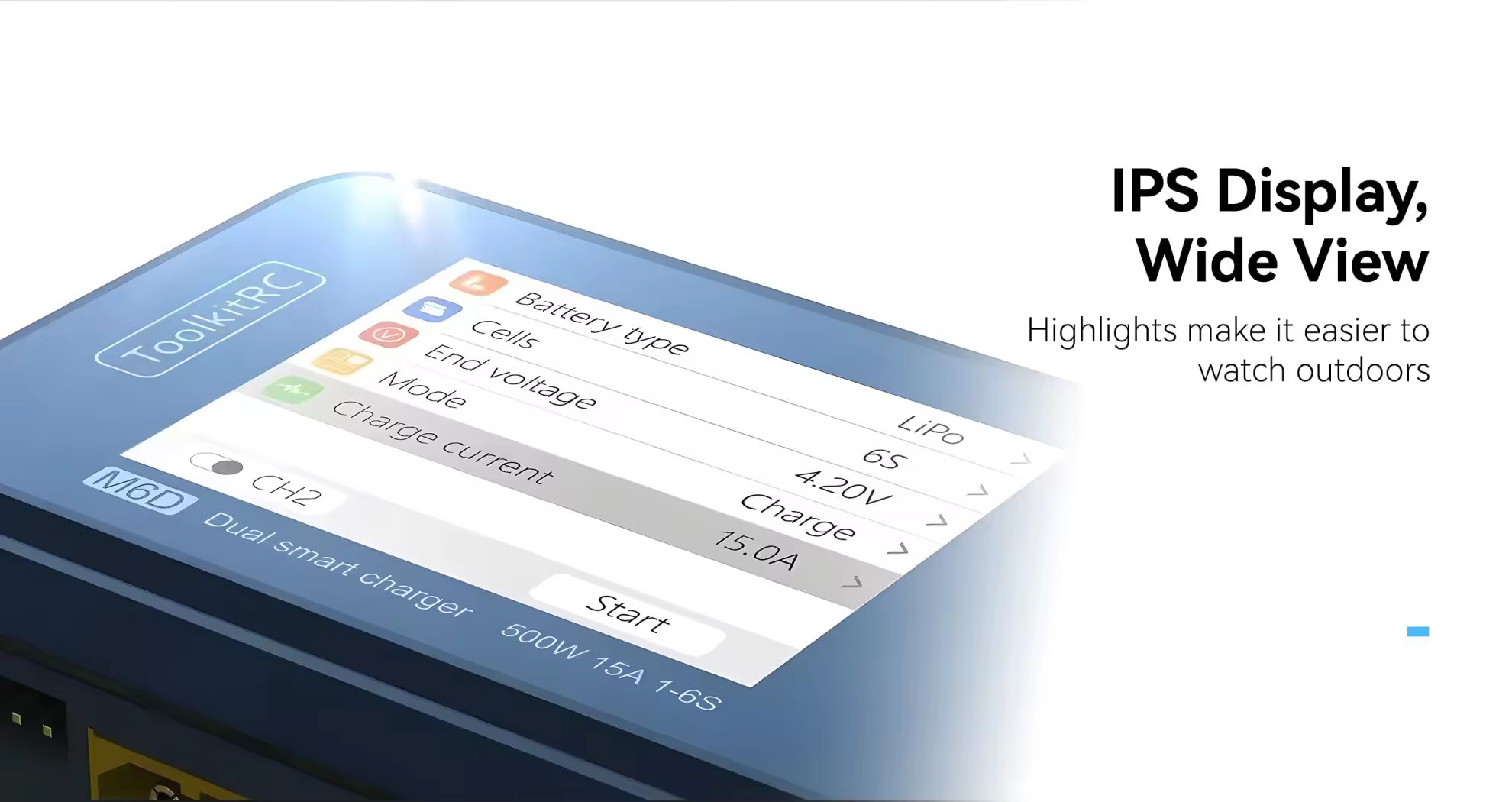

2.4" IPS Color Display: Features a bright 320×240 LCD screen with crisp, high-contrast cell voltage monitoring.

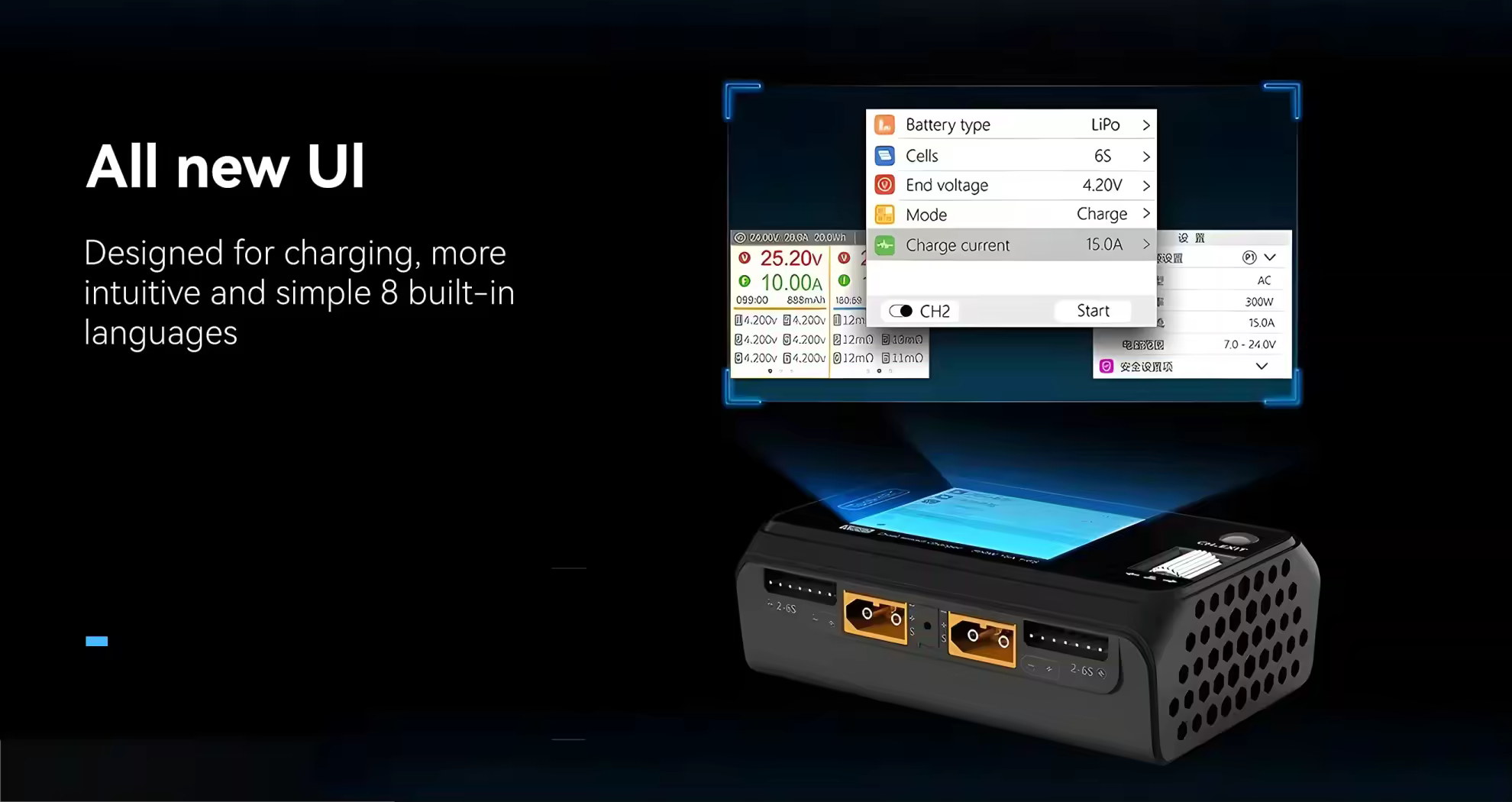

● Metal Scroll Wheel & Battery Profiles: Uses a heavy-duty physical metallic scroll wheel for easy menu navigation (avoiding dusty finger-print smears on the screen) and supports custom battery presets for fast 1-click charging.

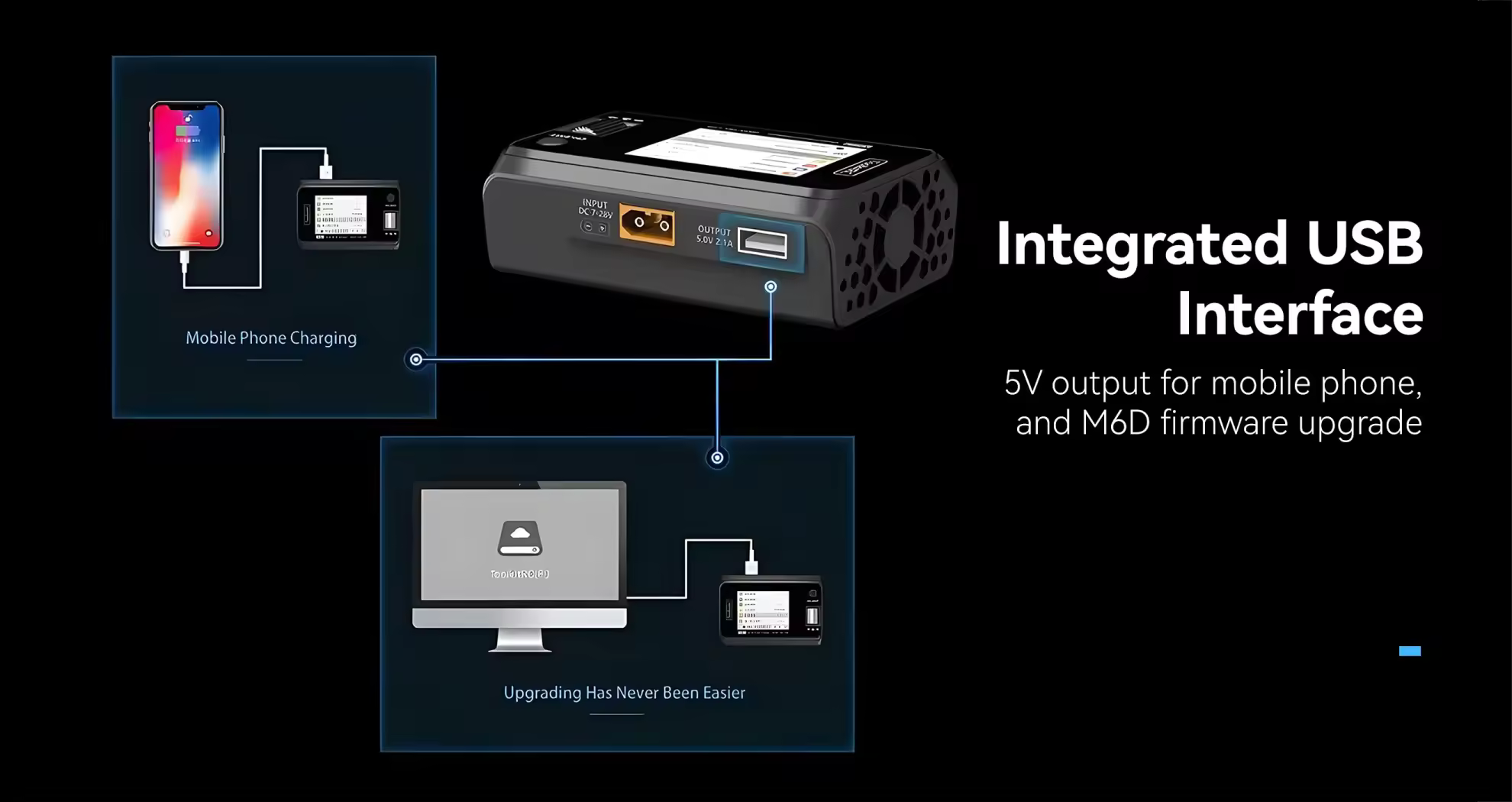

● 5V / 2.1A USB Charging Port: Includes a USB-A port to charge.
When choosing between the ToolkitRC M6D and the ToolkitRC Q4AC, your primary deciding factor comes down to AC Household Plug-in Convenience vs. Pure Outdoor Field Power.
Choose the ToolkitRC M6D if: You fly 5-inch to 10-inch quads running 6S LiPo batteries, need maximum charging speed (250W×2) in the field, use external DC supply/field batteries, and want advanced battery Internal Resistance (IR) health monitoring in an ultra-portable 220g unit.
Choose the ToolkitRC Q4AC if: You primarily charge at home using a standard household AC wall outlet, fly smaller 1S–4S Whoops/Toothpicks, and want to charge 4 batteries simultaneously without needing a separate DC power supply brick.
Recommendations
Package Includes
Reviews
E*********n
Verified
Clean design and compact size. Works great for both home and field use with DC input.
Specification：M6D
Additional reviews after 6
days
Used it on multiple battery types, still very consistent and reliable.
Replied by MEPSKING:Thanks! Happy to hear it's working reliably across setups.
L*********r
Verified
First time using a dual channel charger. Setup was easier than expected and performance is very stable.
Specification：M6D
O************t
Verified
Sehr gute Verarbeitung und klare Anzeige. Funktioniert zuverlässig mit verschiedenen Akkus.
Specification：M6D
Replied by MEPSKING:Danke für Ihr Feedback!
N******m
Verified
Really like the dual channel feature. Charging two batteries at once saves a lot of time during flying sessions.
Specification：M6D
Additional reviews after 9
days
After several sessions, still performs consistently with no issues.
C************z
Verified
Lo uso para cargar baterías 4S, fácil de usar después de aprender un poco. Funciona bien y carga rápido. Llegó antes de lo esperado y bien protegido.
Specification：M6D
M*********i
Verified
Ottimo caricatore, doppio canale molto utile per sessioni FPV lunghe.
Specification：M6D
R*********r
Verified
Using it in the field with a DC power source. Very stable output and both channels run reliably.
Specification：M6D
K*********h
Verified
Packaging was great and the unit feels premium. Tested with 4S and 6S packs, charging speed is impressive.
Specification：M6D
Replied by MEPSKING:Thanks for your feedback! Glad it arrived safely and performs well.
1
2
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What is the M6D used for?
A: It is a dual-channel FPV LiPo charger for 1–6S batteries.
