Q: Is the iFlight BLITZ Mini F7 V1.2 Flight Controller beginner-friendly and easy to install?

A: Yes. The iFlight BLITZ Mini F7 V1.2 Flight Controller features a plug-and-play design with no soldering required, making it easy for beginners to install and build FPV drones quickly.

Q: What devices are compatible with the iFlight BLITZ Mini F7 V1.2 Flight Controller?

A: It supports DShot ESCs, ELRS, Crossfire, SBUS receivers, and DJI O3 digital FPV systems, offering wide compatibility for modern FPV setups.

Q: What type of drones is the iFlight BLITZ Mini F7 V1.2 Flight Controller best for?

A: It is ideal for 3–5 inch FPV drones, including freestyle, racing, and lightweight cinematic builds.

Q: What are the advantages of the F7 processor in the iFlight BLITZ Mini F7 V1.2 Flight Controller?

A: The F7 processor provides faster loop times, smoother flight response, and better support for advanced Betaflight features like RPM filtering.

Q: Does the iFlight BLITZ Mini F7 V1.2 Flight Controller reduce build time?

A: Yes. With plug connectors and a clean layout, it significantly reduces installation time compared to traditional soldered flight controllers.

Q: Will the iFlight BLITZ Mini F7 V1.2 Flight Controller work with my existing setup?

A: It is compatible with most standard FPV components, but you should confirm connector type, voltage range, and 20x20 mounting compatibility before purchase.

Q: What should I check before buying the iFlight BLITZ Mini F7 V1.2 Flight Controller?

A: Check connector compatibility, input voltage (2–6S), and frame mounting size (20x20mm) to avoid installation issues.

Q: What is the mounting size of the iFlight BLITZ Mini F7 V1.2 Flight Controller?

A: It uses a 20x20mm mounting pattern, suitable for compact FPV frames.

Q: What battery voltage does the iFlight BLITZ Mini F7 V1.2 Flight Controller support?

A: It supports 2S to 6S LiPo batteries, covering most FPV drone builds.

Q: Does the iFlight BLITZ Mini F7 V1.2 Flight Controller support Betaflight?

A: Yes. It fully supports Betaflight with advanced tuning features such as RPM filtering and dynamic idle.

Q: How many UART ports does the iFlight BLITZ Mini F7 V1.2 Flight Controller have?

A: It includes 6 UART ports for connecting receiver, GPS, and VTX control.

Q: Does the iFlight BLITZ Mini F7 V1.2 Flight Controller have BEC outputs?

A: Yes. It provides regulated 5V and 9V outputs for powering FPV components.

Q: What are common setup issues with the iFlight BLITZ Mini F7 V1.2 Flight Controller?

A: Common issues include incorrect cable orientation, wrong UART configuration, or improper voltage connection.

New

iFlight BLITZ Mini F7 V1.2 Flight Controller Plug-and-Play / No soldering required for FPV

About iFlight BLITZ Mini Flight Controller:

The iFlight BLITZ Mini F7 Flight Controller is a high-performance 20×20 F7 FC designed for demanding FPV pilots. Powered by an STM32 F722 processor and equipped with the latest ICM42688 gyro and DPS310 barometer, it delivers ultra-smooth flight response and precise stability control. With six UART ports, DJI HD VTX plug-and-play support, and wide peripheral compatibility, this compact flight controller is ideal for mini freestyle, racing, and cinematic builds. Lightweight yet powerful, it provides the reliability and flexibility required for advanced FPV setups.

Check out our Mini Flight Controller, all Flight Controller Collection and the rest of our Iflight Products!

iFlight

$19 Off Orders $269+

$12 Off Orders $159+

Collect

$ 54.99

4.8 | 105Sold

Options (1)

Quantity

Add-ons

Bundle and save up to $4.15 on gear — upgrade your setup for less.

iFlight BLITZ Mini E55 4-IN-1 ESC 2-6S 55A for FPV
Mini E55 ESC
$78.84 Save $4.15

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

STM32 F722 High-Performance Processor for Faster Response and Smoother Flight Control
ICM42688 Gyro & DPS310 Barometer for Precision Stability and Accurate Altitude Data
DJI HD VTX Plug-and-Play Connector for Clean and Easy Installation
Six UART Ports with Full Peripheral Expansion Support
20×20mm Mini Mounting Layout – Perfect for Lightweight FPV Builds

Payment | Every order you place with us is safe & secure

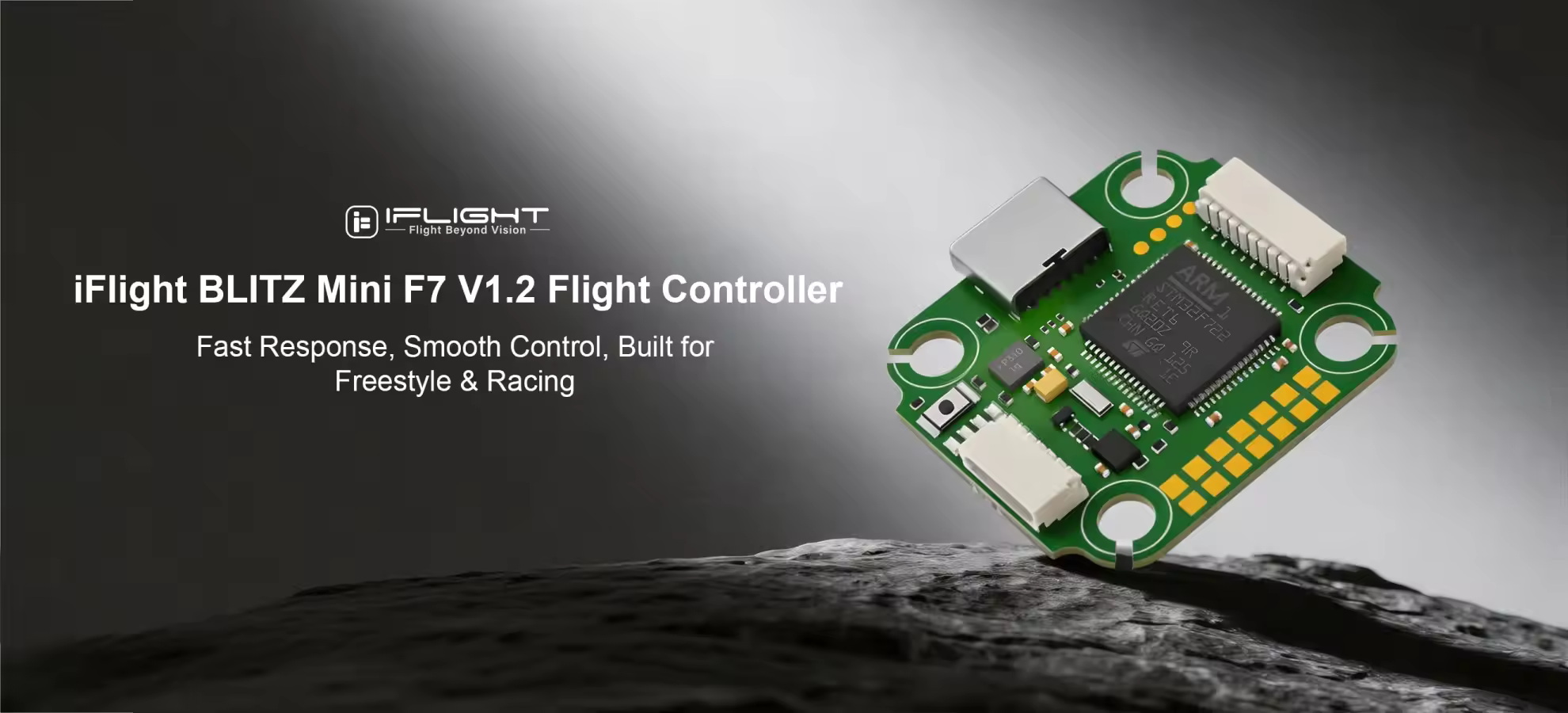

iflight blitz mini f7 v1.2 flight controller pc

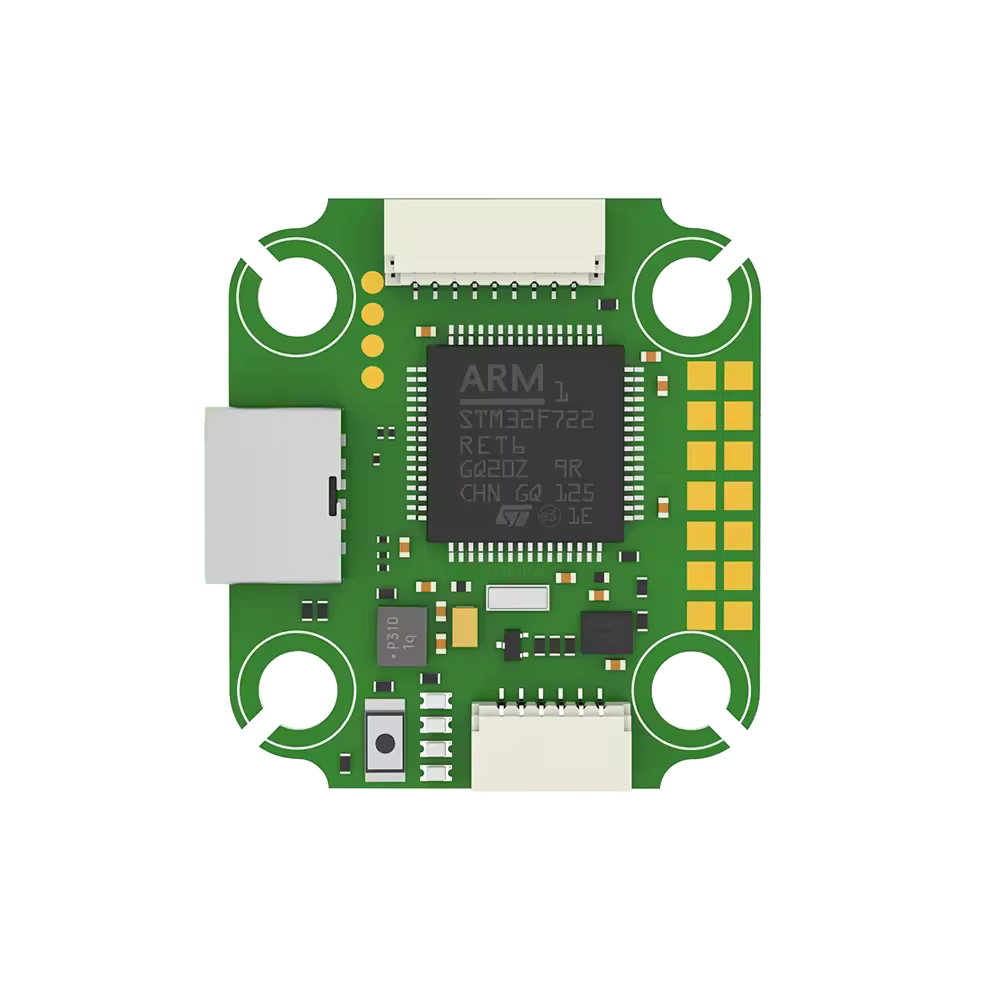

Specifications:

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

Dimensions: 30.5x27 mm

Weight: 5g

Wiring Suggestion:

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

Packing List

● 1 x BLITZ Mini F7 V1.2 Flight Controller

● 1 x FC connectors

● 1 x Silicon grommets

Buying Guide: iFlight BLITZ Mini F7 V1.2 Flight Controller

A Mini Flight Controller for Pilots Who Want Full F7 Features in a 20 × 20 Stack

A compact FPV build does not need to feel limited. For pilots building a lightweight 3-inch racer, a 4-inch long-range quad, or a compact 5-inch freestyle drone, the flight controller still needs enough UARTs, clean video-system integration, Blackbox logging, and reliable peripheral support.

The iFlight BLITZ Mini F7 V1.2 Flight Controller brings an STM32F722 processor, ICM42688 gyro, DPS310 barometer, six UARTs, 8MB Blackbox memory, and a plug-and-play DJI HD VTX connector into a lightweight 20 × 20mm format.

At approximately 5g, it is aimed at builders who want a compact stack without giving up the wiring flexibility normally expected from a larger FPV flight controller.

Pilot-Focused Use and Build Context

The BLITZ Mini F7 V1.2 is most attractive when frame space is limited. The 20 × 20mm mounting pattern helps keep a 3–5 inch build compact, while six UARTs leave room for the essentials: receiver, HD or analog video system, GPS, ESC telemetry, and other peripherals.

The V1.2 revision uses the ICM42688 gyro, replacing the BMI270 used on earlier versions. This is important when selecting firmware or sourcing a replacement FC: use the correct V1.2 firmware target and save a CLI backup before making major Betaflight changes.

In published pilot feedback, the BLITZ Mini F7 has commonly been used as a repair or replacement FC for compact iFlight/Nazgul-style builds, particularly when paired with the matching Mini E55 ESC. One user specifically reported it as a practical FC for Nazgul-family repairs and custom builds. This is community feedback, not a controlled durability test.

For actual builders, the main trade-off is clear: the board is feature-rich for its size, but mini-stack wiring is less forgiving than a 30.5 × 30.5mm stack. Plan wire lengths carefully, verify connector orientation, and leave enough clearance for the USB-C port, VTX cable, and capacitor.

Recommended iFlight BLITZ Mini F7 V1.2 FPV Build

● ESC: iFlight BLITZ Mini E55 4-in-1 ESC — matching 20 × 20mm, 2–6S, 55A ESC.

● Complete stack option: iFlight BLITZ Mini F722 E55S 4-in-1 Stack — suitable when buying the FC and matching ESC together.

● Motors: MEPS NEON 2306 V2 1950KV motors — a practical 6S choice for a compact 5-inch freestyle build.

● Video system: CaddxFPV Walksnail Moonlight Kit — for a digital HD build; use a free UART and verify voltage before wiring.

● Receiver: RadioMaster RP1 V2 2.4GHz ELRS Nano Receiver — compact ELRS control link for 3–5 inch frames.

● Battery: Boslipo P7 Version 1600mAh 150C 6S Battery — suitable for a 6S 5-inch freestyle-oriented setup.

● Propellers: MEPS SZ5145 3-blade propellers — a sensible starting point for a 5-inch 2306 motor configuration.

Why Choose the iFlight BLITZ Mini F7 V1.2?

Choose the BLITZ Mini F7 V1.2 if you want:

● A lightweight F7 flight controller for a 20 × 20mm stack

● Six UARTs for receiver, GPS, video, and telemetry expansion

● DJI HD VTX plug-and-play wiring

● ICM42688 gyro and DPS310 barometer

● 8MB Blackbox logging for tuning and fault finding

● A direct pairing with the iFlight BLITZ Mini E55 or E55S ESC

● A compact 3–5 inch freestyle, racing, or cinematic build

It is especially suitable for pilots who need a small stack but do not want to give up the convenience of HD VTX connectivity and multiple UARTs.

When Should You Choose the iFlight BLITZ Mini F745 Instead?

The iFlight BLITZ Mini F745 Flight Controller is the stronger alternative when firmware flexibility and additional Blackbox capacity are more important than choosing the F722-based board.

The F745 version uses an STM32F745 processor, the same ICM42688 gyro and DPS310 barometer combination, six UARTs, and 20 × 20mm mounting. Its key advantages are 16MB Blackbox memory and official support for Betaflight, INAV, and ArduPilot.

Choose the BLITZ Mini F7 V1.2 for a straightforward Betaflight-focused mini-stack build.

Choose the BLITZ Mini F745 if you need INAV or ArduPilot compatibility, more Blackbox storage, or expect to add navigation-focused features such as GPS-based mission capability.

iFlight BLITZ Mini F7 V1.2 vs iFlight BLITZ Mini F745

Technical Specification	iFlight BLITZ Mini F7 V1.2 Flight Controller	iFlight BLITZ Mini F745 Flight Controller
MCU	STM32F722	STM32F745
Gyro	ICM42688	ICM42688
Barometer	DPS310	DPS310
OSD chip	AT7456	AT7456E
Blackbox memory	8MB	16MB
UARTs	6	6
Motor outputs	4	4
VTX control	SmartAudio / IRC Tramp	SmartAudio / IRC Tramp
DJI HD VTX connector	Yes	Yes
Firmware support	Betaflight	Betaflight, INAV, ArduPilot
Firmware target	IFRC-IFLIGHT_BLITZ_F722	IFLIGHT_BLITZ_F7_AIO
Mounting pattern	20 × 20mm, M3	20 × 20mm, M3
Board dimensions	30.5 × 27mm	30.5 × 27mm
Weight	Approx. 5g	Approx. 4.8g
Best for	Compact Betaflight freestyle, racing, and HD builds	Builds needing larger Blackbox storage and INAV/ArduPilot support
