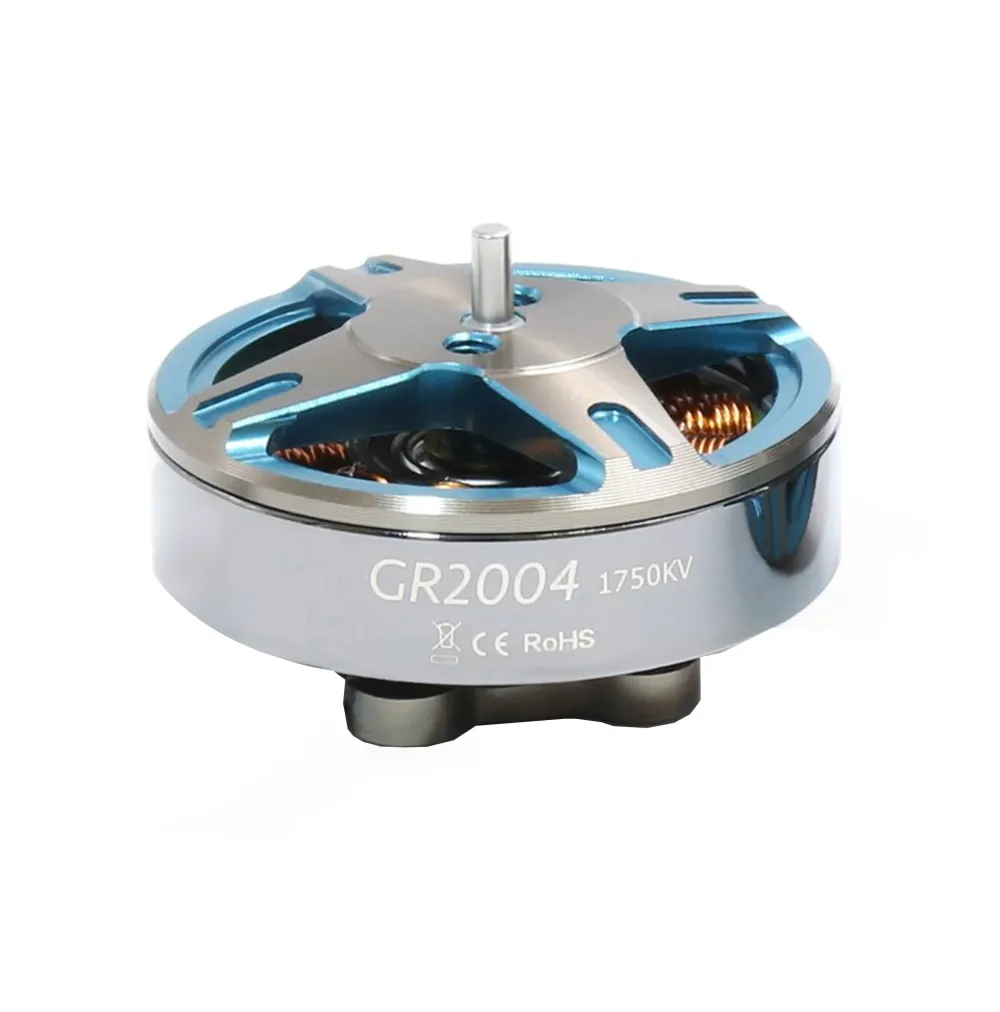

Buying Guide: GEPRC GR2004 SpeedX FPV Motor
The GEPRC GR2004 SpeedX FPV Motor is designed for pilots who want lightweight power, high efficiency, and smooth performance for Toothpick, micro long-range, and lightweight 4-inch to 5-inch FPV drones. With a compact 2004 stator size, only 16.8g weight, and optimized motor structure, the GR2004 provides an excellent balance between flight time, power output, and handling performance.
Unlike traditional larger motors that focus mainly on maximum thrust, the GR2004 is designed for lightweight FPV builds where efficiency and smooth control are equally important. It features a 12N14P electromagnetic structure, N52H magnets, dynamic balancing, and dual-bearing design to deliver stable operation and excellent heat dissipation.
Available KV options include 1750KV and 2550KV. The 1750KV version is suitable for efficient 6S long-range and cinematic builds, while the 2550KV version is optimized for responsive 4S freestyle and lightweight high-performance drones.
How to Choose the Right KV Version?
| Version | Recommended Battery | Best For |
|---|
| 1750KV | 4S-6S | Long-range FPV, cinematic builds, CineLog35 |
| 2550KV | 3S-4S | 4-inch freestyle, lightweight 5-inch builds |
Choose GR2004 1750KV if:
● You want maximum efficiency and longer flight time
● You are building a lightweight long-range FPV drone
● You prefer smooth cinematic flight performance
The 1750KV version is ideal for pilots who prioritize endurance and smooth control. Combined with a 6S battery, it provides efficient cruising performance while keeping motor temperature under control during longer flights.
Choose GR2004 2550KV if:
● You want faster throttle response and stronger acceleration
● You are building a lightweight 4S freestyle drone
● You use 4-inch or lightweight 5-inch propellers
The 2550KV version provides a more energetic flight feeling with higher RPM capability. It is suitable for pilots who want lightweight freestyle performance without using larger and heavier motors.
Real Flight Performance Review of GEPRC GR2004
The GEPRC GR2004 focuses on efficiency and flight quality rather than simply producing maximum thrust. For lightweight FPV drones, reducing motor weight can significantly improve responsiveness, flight time, and overall handling.

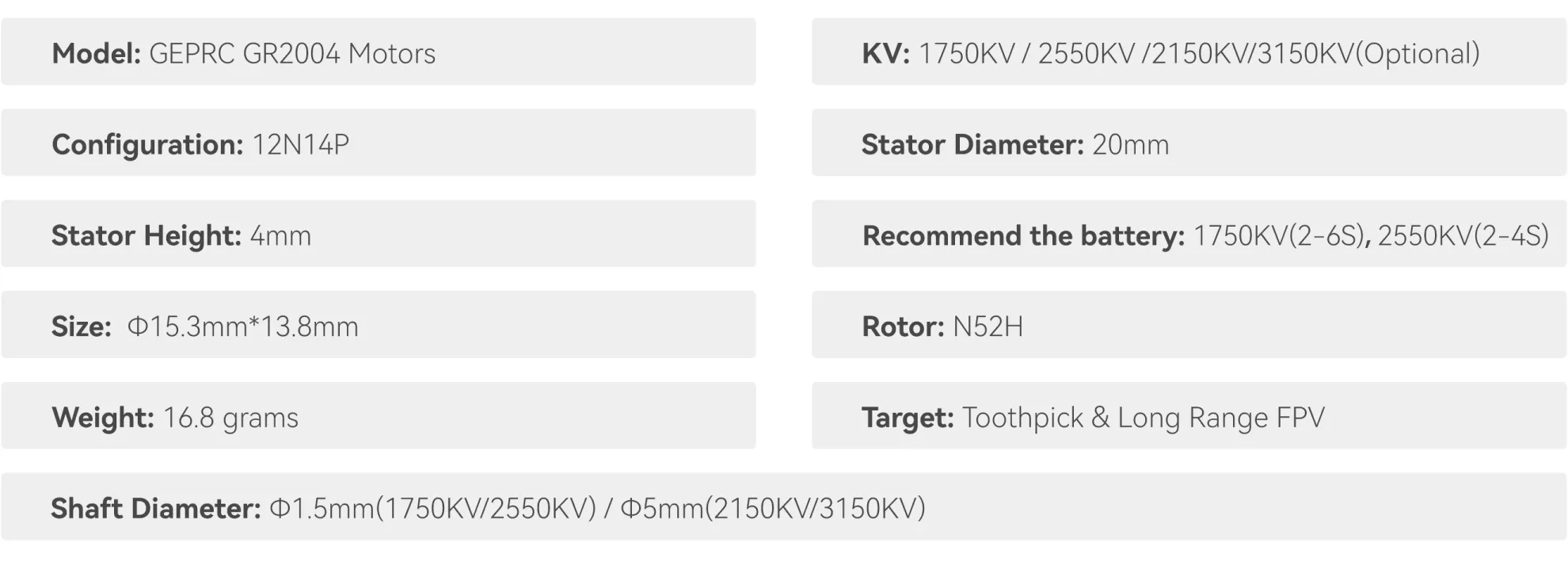

With a 20mm stator diameter and 4mm stator height, the GR2004 provides enough torque for 4-inch and lightweight 5-inch propellers while maintaining a compact and efficient design. The 12N14P configuration combined with N52H magnets improves motor response and smoothness.
The dual-bearing structure and dynamic balancing help reduce vibration during high-speed operation. This is especially important for cinematic FPV builds where smooth footage and stable control are required.
Why Choose a 2004 Motor for Lightweight FPV Builds?
Motor size directly affects the flight characteristics of an FPV drone. Compared with larger 2205, 2207, or 2306 motors, a 2004 motor focuses on reducing weight while maintaining enough power for modern lightweight builds.
The GEPRC GR2004 provides several advantages:
● Only 16.8g weight for improved overall drone efficiency
● Smooth throttle response for precise control
● Excellent heat dissipation for longer flight sessions
● Suitable power output for 4-inch and lightweight 5-inch drones
For pilots building lightweight long-range drones, Toothpick FPV, or cinematic platforms, the GR2004 offers a better balance between flight time and performance compared with traditional heavy freestyle motors.
GEPRC GR2004 vs Traditional 2205 Motor
| Feature | GEPRC GR2004 | 2205 Motor |
|---|
| Motor Size | 2004 | 2205 |
| Weight | 16.8g | Usually heavier |
| Flight Style | Efficient freestyle / long range | Power-focused freestyle |
| Efficiency | Higher efficiency | Higher thrust demand |
| Recommended Pilot | Long-range and lightweight FPV pilots | Aggressive freestyle pilots |
The GEPRC GR2004 is not designed to replace every larger freestyle motor. Instead, it provides a lightweight alternative for pilots who value efficiency, smooth handling, and longer flight time.
Choose GR2004 if you are building a lightweight FPV platform. Choose a larger motor if your priority is maximum thrust and aggressive high-speed freestyle.
Application Scenario and Compatible Builds
Lightweight Long Range FPV Drone
The GR2004 1750KV version is an excellent choice for lightweight long-range builds. It provides efficient cruising performance and helps maximize flight time when paired with a high-capacity LiPo battery.
Recommended setup:
● 4-inch or lightweight 5-inch frame
● 1750KV motor
● 4S-6S LiPo battery
● Efficient low-pitch propellers
4-Inch Toothpick FPV
For Toothpick pilots, weight reduction is extremely important. The GR2004 provides enough power for agile flight while keeping the drone lightweight and efficient.
Recommended setup:
● 4-inch Toothpick frame
● 2550KV motor
● 4S LiPo battery
● Lightweight FPV electronics
Cinematic FPV Build
The smooth motor response and efficient operation make the GR2004 suitable for cinematic FPV drones that require stable movement and longer recording time.
Installation and Compatibility
Before installing the GEPRC GR2004 motor, make sure your frame, propeller size, battery voltage, and ESC current rating are matched correctly. Although the motor is lightweight and compact, proper system matching is important to achieve the best efficiency and reliability.

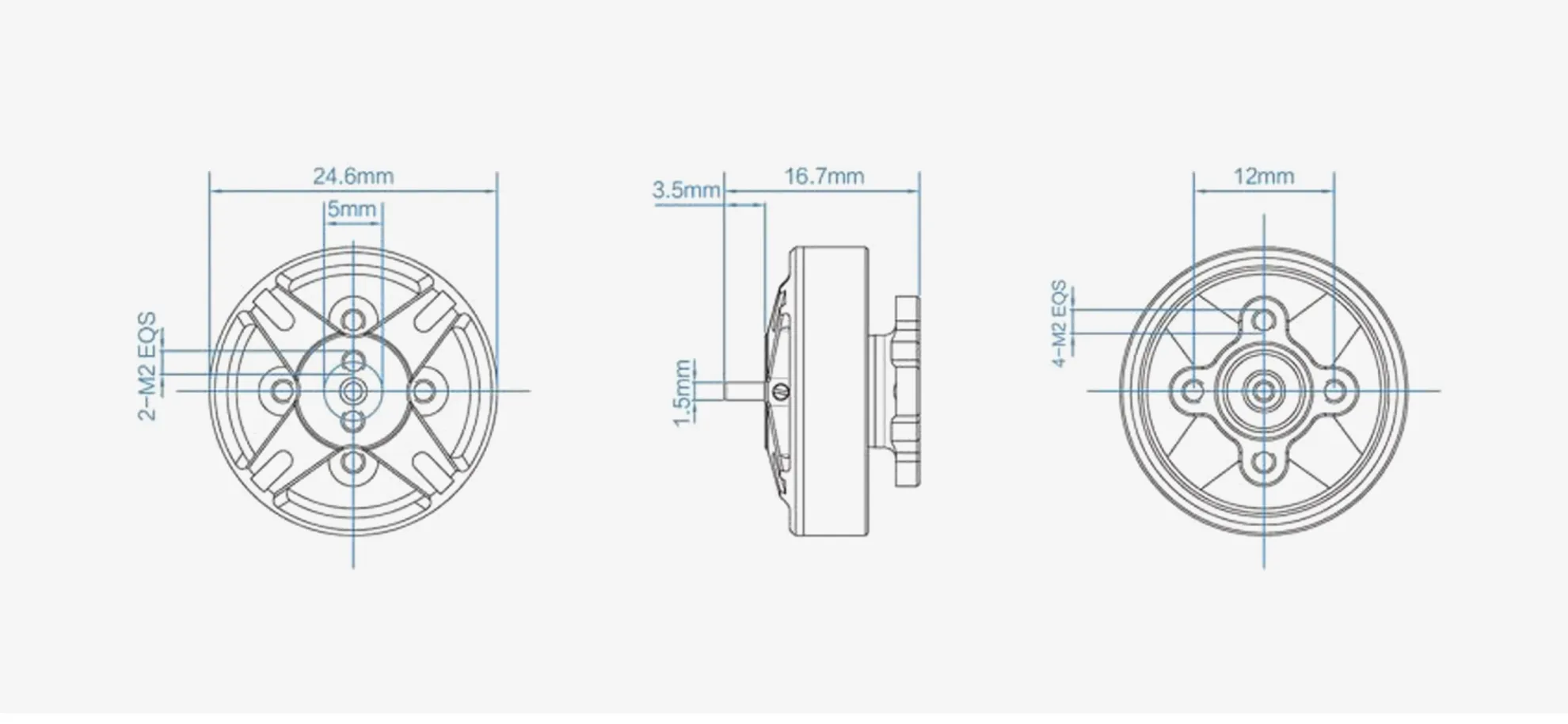

The GR2004 features a 12N14P motor structure, N52H magnets, a 1.5mm shaft diameter, and a dual-bearing design. The compact size makes it compatible with many lightweight FPV platforms, including Toothpick drones, micro long-range builds, and lightweight 4-inch to 5-inch FPV drones.
Frame and Propeller Compatibility
The GEPRC GR2004 is mainly designed for lightweight FPV builds using 4-inch and lightweight 5-inch propellers.
Recommended compatibility:
● 4-inch Toothpick FPV drones
● Lightweight 5-inch freestyle drones
● Long-range micro FPV platforms
● Cinewhoop-style lightweight builds
When selecting propellers, lightweight and efficient designs are recommended. Oversized or high-pitch propellers may increase current demand and reduce the efficiency advantage of this motor.
ESC and Battery Matching
The correct ESC and battery combination is essential for safe and stable operation. The required setup depends on the selected KV version and propeller configuration.
For the GR2004 1750KV:
● Recommended for 4S-6S LiPo systems
● Suitable for efficiency-focused builds
● Use an ESC with sufficient voltage support for your battery choice
For the GR2004 2550KV:
● Recommended for 3S-4S LiPo systems
● Suitable for lightweight freestyle builds
● Requires an ESC capable of handling higher RPM operation
