Flywoo GOKU F722 Pro V2 55A 32Bit 128K 30X30 Stack

About Flywoo GOKU F722 Pro V2 55A 32Bit 128K 30X30 Stack:

The new generation F722 PRO V2 flight controller from FLYWOO not only offers a standard 30.5mm size, high-performance STM32 F722 main control, and ICM42688 gyroscope, but it also supports 8 motor outputs and reserves dual 4-in-1 ESC sockets.

It features a user-friendly socket design for all ports, which significantly simplifies the process of connecting devices, thereby enhancing installation efficiency and making maintenance and fault inspection more convenient. This design effectively lowers the threshold for building drones.

Moreover, all solder pads are retained, providing customers with the flexibility to choose their preferred method of device connection.

Furthermore, it includes a plug-and-play feature, specifically designed for the DJI O3 Air Unit, which streamlines the integration process for pilots looking to utilize DJI's advanced digital transmission system with their builds.

Flywoo
Pilot RecommendedCommunity FavoriteTrusted PerformanceBuilt to Last
$5 Off Orders $99+
$25 Off Orders $369+
Collect
$ 89.99 $99.99
-10%
4.9 | 200+Sold
Options (1)
flywoo goku f722 pro v2 55a 32bit 128k 30x30 stack
F722 PRO V2 55A AM32 128K Stack
Quantity
Add-ons
Bundle and save up to $11.09 on gear — upgrade your setup for less.
sz 2207 v2 drone motor 1750kv green
MEPS SZ2207 V2 FPV Motor – Smooth Linear Power & Stable Thrust | 1750KV/1950KV/2750KV for 5'' Racing Drones
1750KV / Fluorescent Green
$12.51 Save $0.39
tx15 max red radio controller radiomaster
RadioMaster TX15 Max Radio Controller – STM32 H7 Chip,Dual-Band ELRS (2.4G/900M)
Red / ELRS / FCC
$203.30 Save $10.70
pilot week kickoff gift pc
In Stock Expected ship within 5 days after order.
Estimated Transit Time: 5-15 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee
Top highlights
Ultra fast response with F722 and ICM42688 for precise control.
Plug and play design makes building easier and faster for every pilot.
128K ESC with 55A output delivers smoother throttle and stronger burst power.
8 motor outputs with dual 4-in-1 ESC sockets for flexible builds.
Stable BEC and built in blackbox help you fly smoother and tune like a pro.
Payment | Every order you place with us is safe & secure
Share
Copy
flywoo goku f722 pro v2 55a stack main features

High-Performance Flight Control System

Powered by STM32F722 with ICM42688 gyroscope, delivering stable, low-noise signal processing and up to 8KHz gyro/loop refresh. Equipped with 6 UARTs for flexible expansion, ensuring ultra-smooth response and locked-in control for freestyle and racing.

flywoo goku f722 pro v2 55a stack STM32F722 fast compute

55A Power. 128K Smooth Control

High-current 55A ESC with 128K PWM delivers powerful punch, ultra-smooth throttle curve, and stable output under aggressive load.

flywoo goku f722 pro v2 55a stack 128k strong burst

Plug and Play. No Soldering Needed

Plug-and-play design with no soldering required, making builds faster, easier, and more accessible for every pilot, while supporting DJI O3 Air Unit.

flywoo goku f722 pro v2 55a stack easy installation

Built-In 16MB Blackbox for Tuning

Record and store flight data for detailed tuning and performance optimization, helping you achieve smoother, more stable, and more controlled flights.

flywoo goku f722 pro v2 55a stack 16mb box memory

Durable Power & Smart 10V Control

Immersion gold PCB ensures high-temp, high-current durability. Built-in 10V BEC with Betaflight switchable pad power provides stable output and helps reduce VTX overheating.

flywoo goku f722 pro v2 55a stack no power anxiety

Highlights：

1. High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.

2. Precision gyroscope: Features the ICM42688  gyroscope for improved control precision and enhanced flight stability.

3. Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.

4. Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.

5. Stable current output: Onboard 10V/3A and 5V/3A BEC to provide stable current output for VTX and various peripherals.

6. Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.

7. Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.

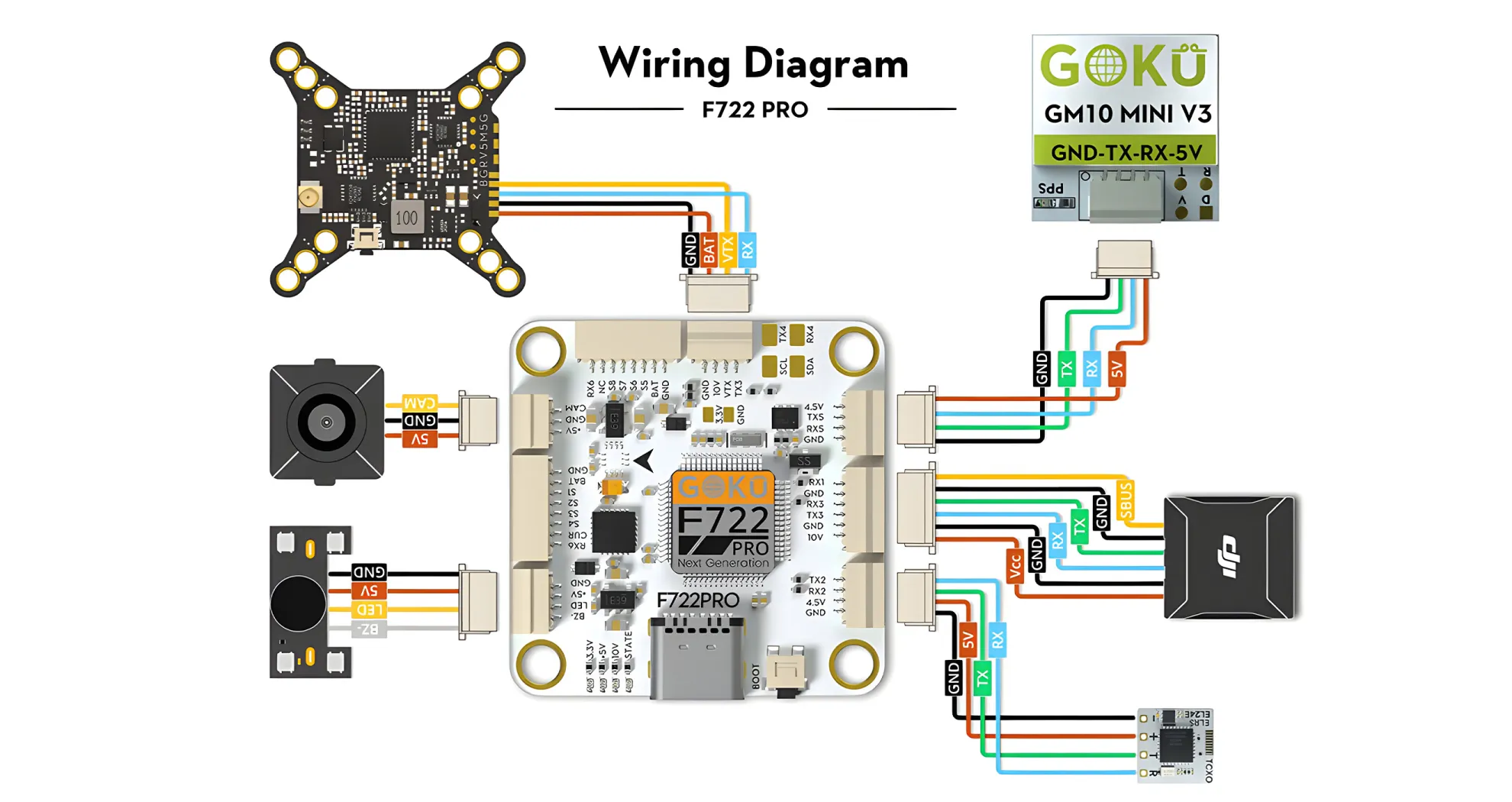

flywoo f722 55a wiring diagram pc

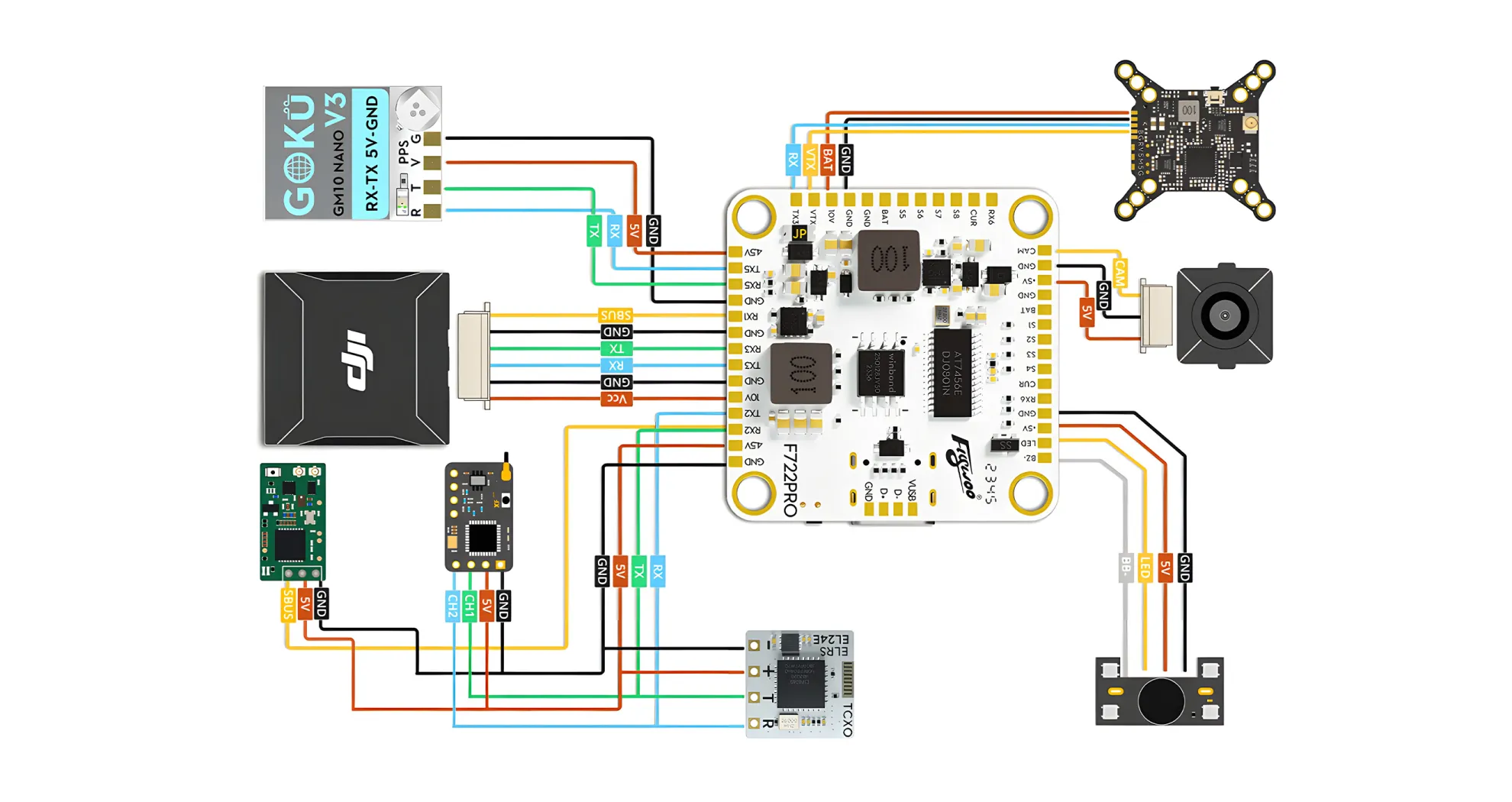

flywoo f722 55a wiring diagram dji pc

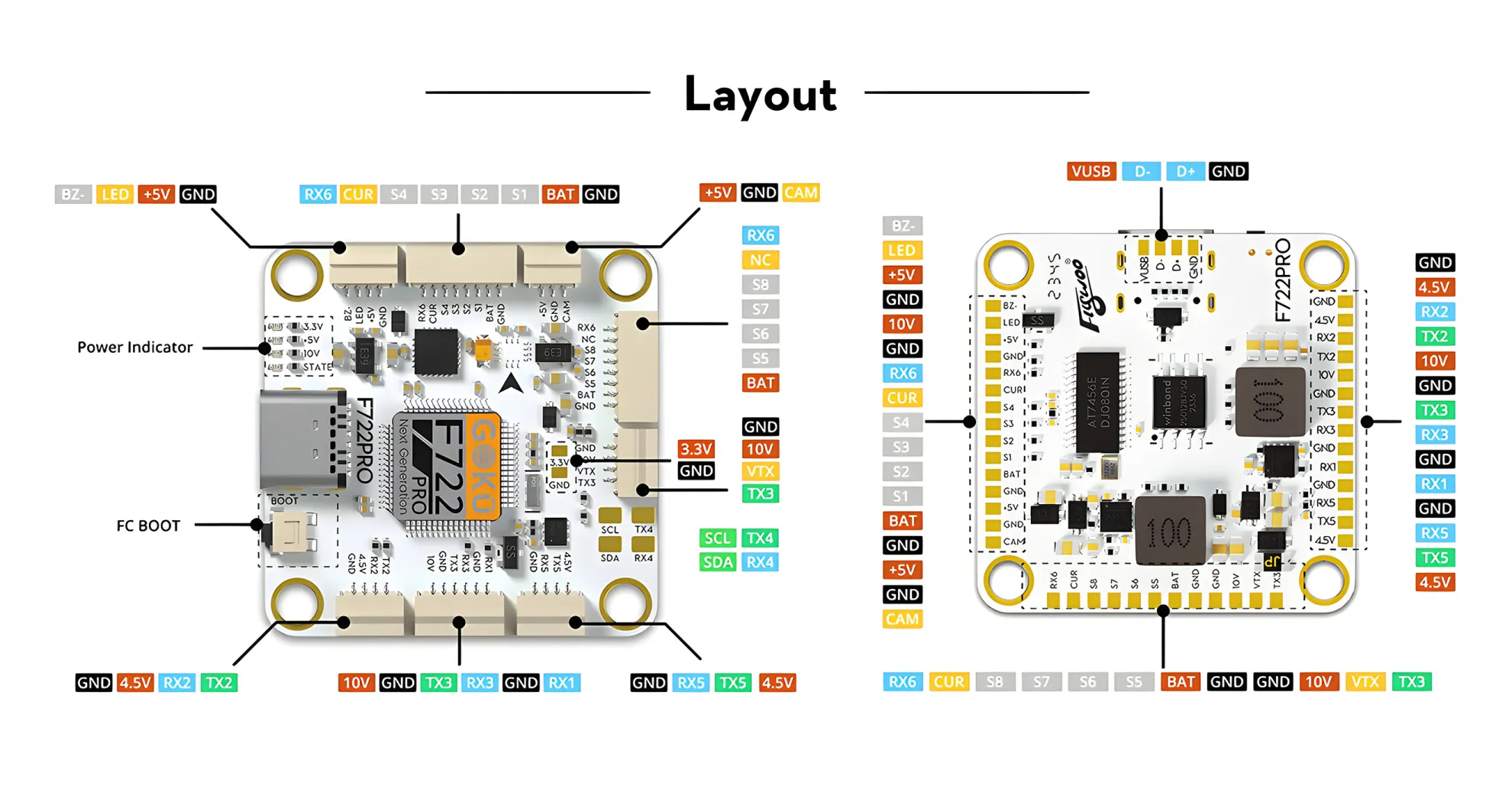

flywoo f722 55a layout diagram pc

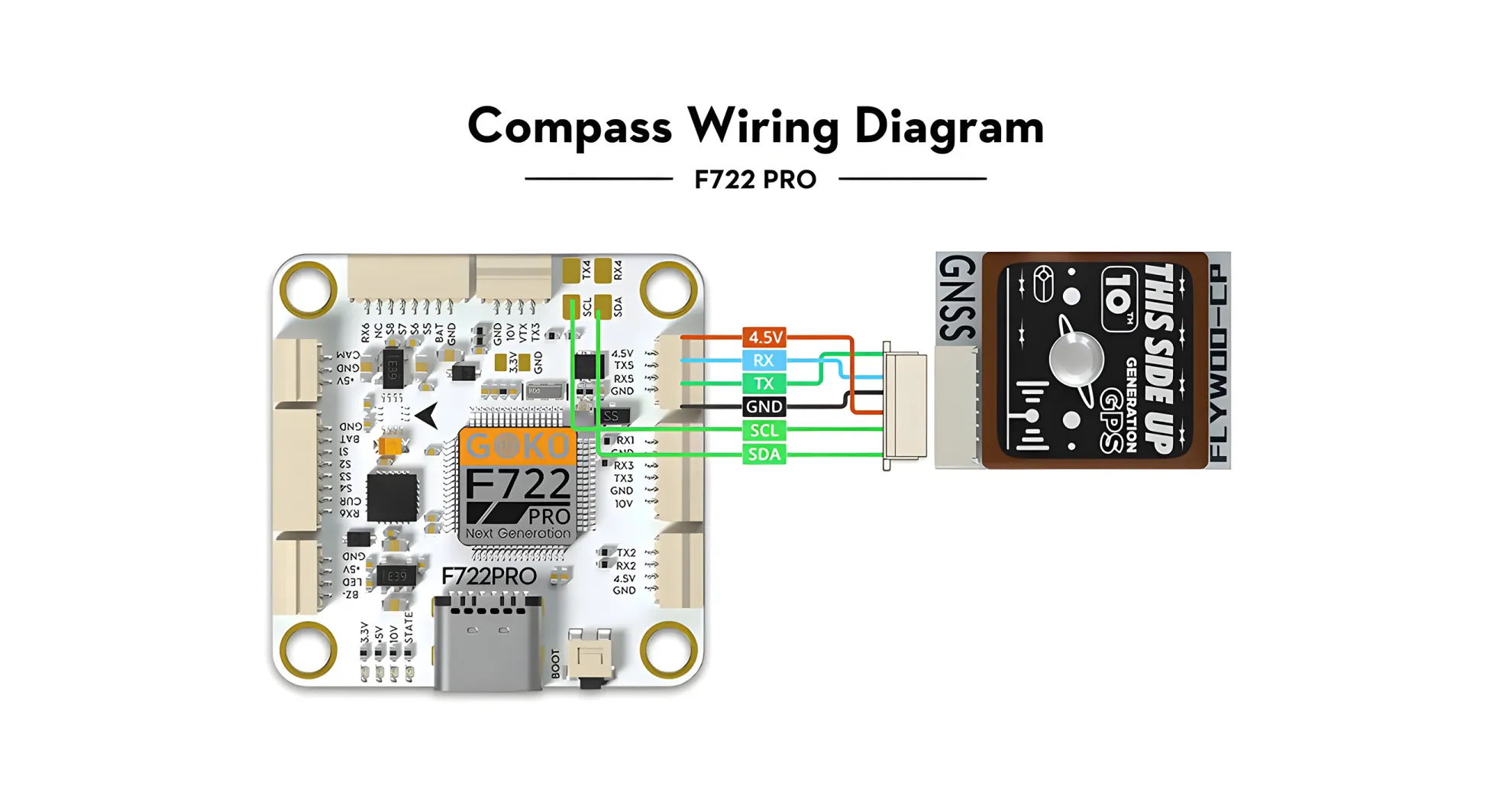

flywoo f722 55a compass wiring diagram pc

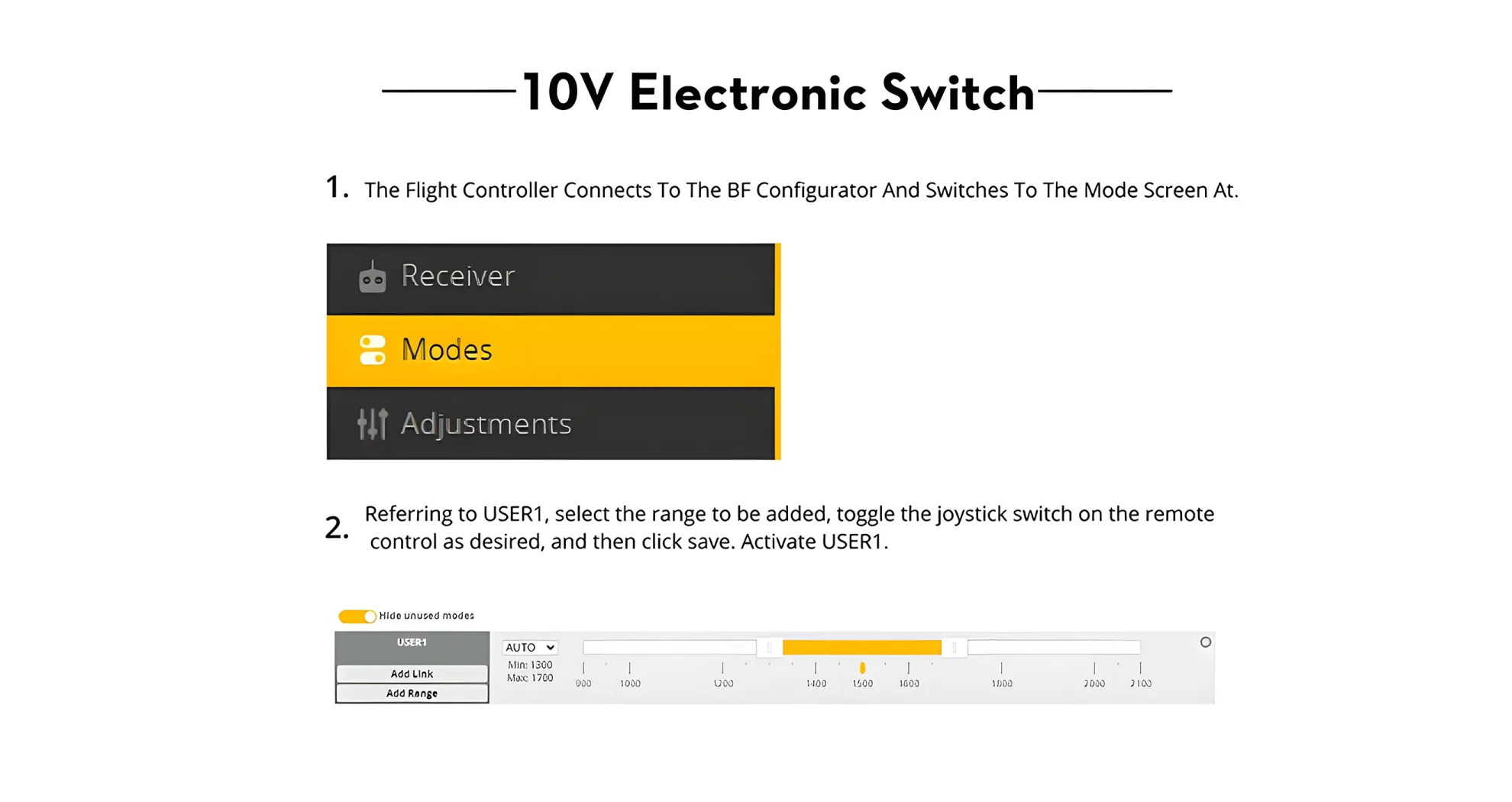

flywoo f722 55a 10v electronic switch pc

Specifications

GOKU F722 PRO V2 Flight Controller

● BF Flight Controller Firmware: FLYWOO F722PRO

● INAV Firmware: FLYWOO F722PRO

● MCU: STM32F722

● Gyroscope: ICM42688

● OSD: AT7456E

● Barometer: DP310

● Black Box: 16MB

● UARTS: 1/2/3/4/5/6

● Input Voltage: 7.4V-26V/2-6S LiPo

● BEC: 10V3A/5V3A

● Flight Controller Size: 37mm x 37mm x 8mm

● Mounting Holes: M3 30.5x30.5mm

● Weight: 9.9g


GOKU G55M BL32\ AM32 4in1 ESC

● Support BL32 \ AM32 (Depends on which version you ordered)

● Support Dshot300, Dshot600,Dshot1200

● PWM frequency: 24k-128k

● Input Voltage: 3-6S Lipo

● Continuous Current: 55A

● Firmware:
BL32 ： GOKU_F4A32_PRO

AM32：AT32DEVF421

● Weight: 15g

Recommendations

Package Included

● 1 x FC&ESC Connection Cable

● 1 x Buzzer Connection Cable

● 1 x GPS Connection Cable

● 1 x DJI O3 Connection Cable

● 1 x Receiver Connection Cable

● 4 x M3 Shock-Absorbing Ball

● 7 x M3 Rubber Ring

● 1 x Analog VTX Connection cable

● 1 x Camera Connection Cable
