How to Choose the Right Motor for Your 7–9 Inch FPV Build?
Choosing the right motor for a 7–9 inch FPV drone is fundamentally different from selecting a standard 5-inch freestyle
motor. When scaling up to larger
prop sizes, raw KV and top speed take a backseat to low-end torque, motor responsiveness, thermal efficiency, and moment of inertia.
The THOBBY VELOX V2812 was specifically developed for pilots building heavy-payload or long-range platforms that demand uncompromising torque and butter-smooth power delivery. However, bigger isn't always better for every quad. The ideal choice comes down to your frame geometry, prop pitch, battery choice, and flight mission.
Is the THOBBY VELOX V2812 Right for Your Build?
The V2812 is engineered for high-load, high-stability applications. It is optimal for:
7.5–9 Inch Long-Range FPV Rigs
Heavy weight Cinematic Platforms (CineLifers)
Heavy-Pitch Prop Rigs (e.g. 7.5x4.6x3 or 8–9")
High-altitude & wind-resistant setups

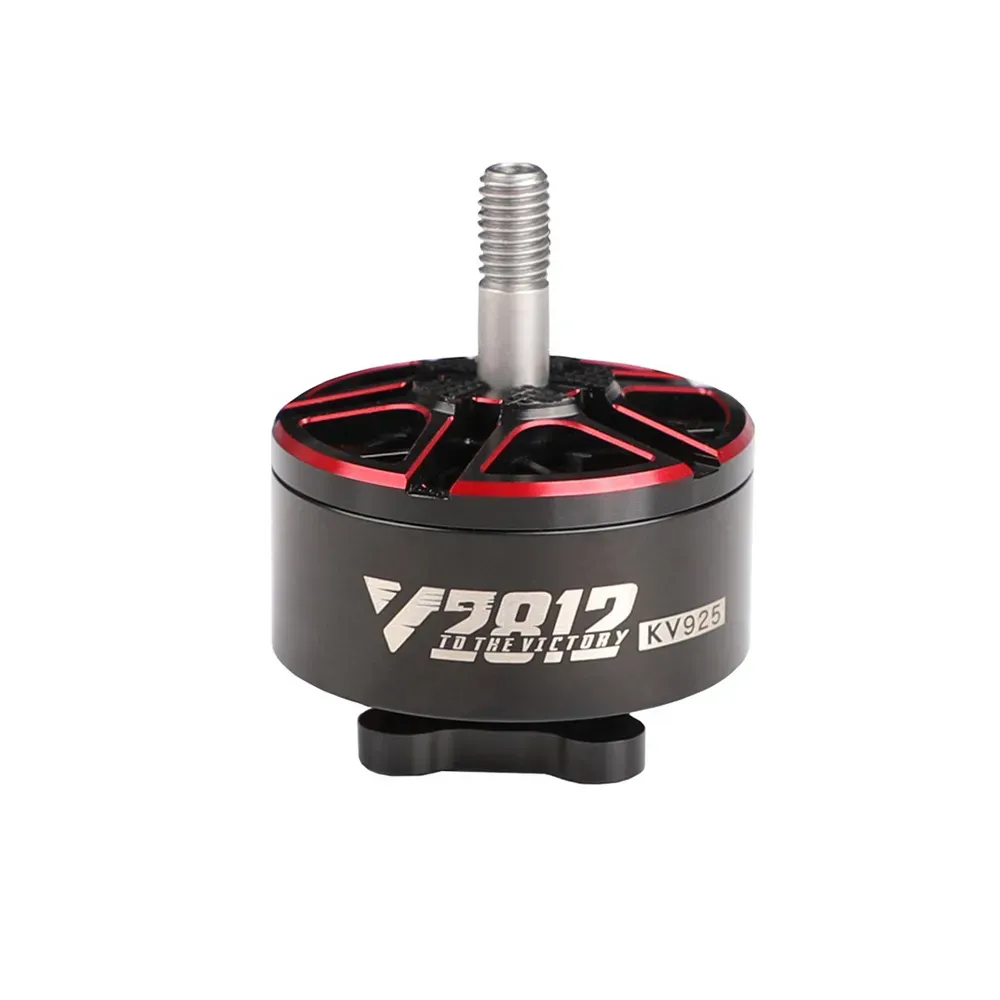

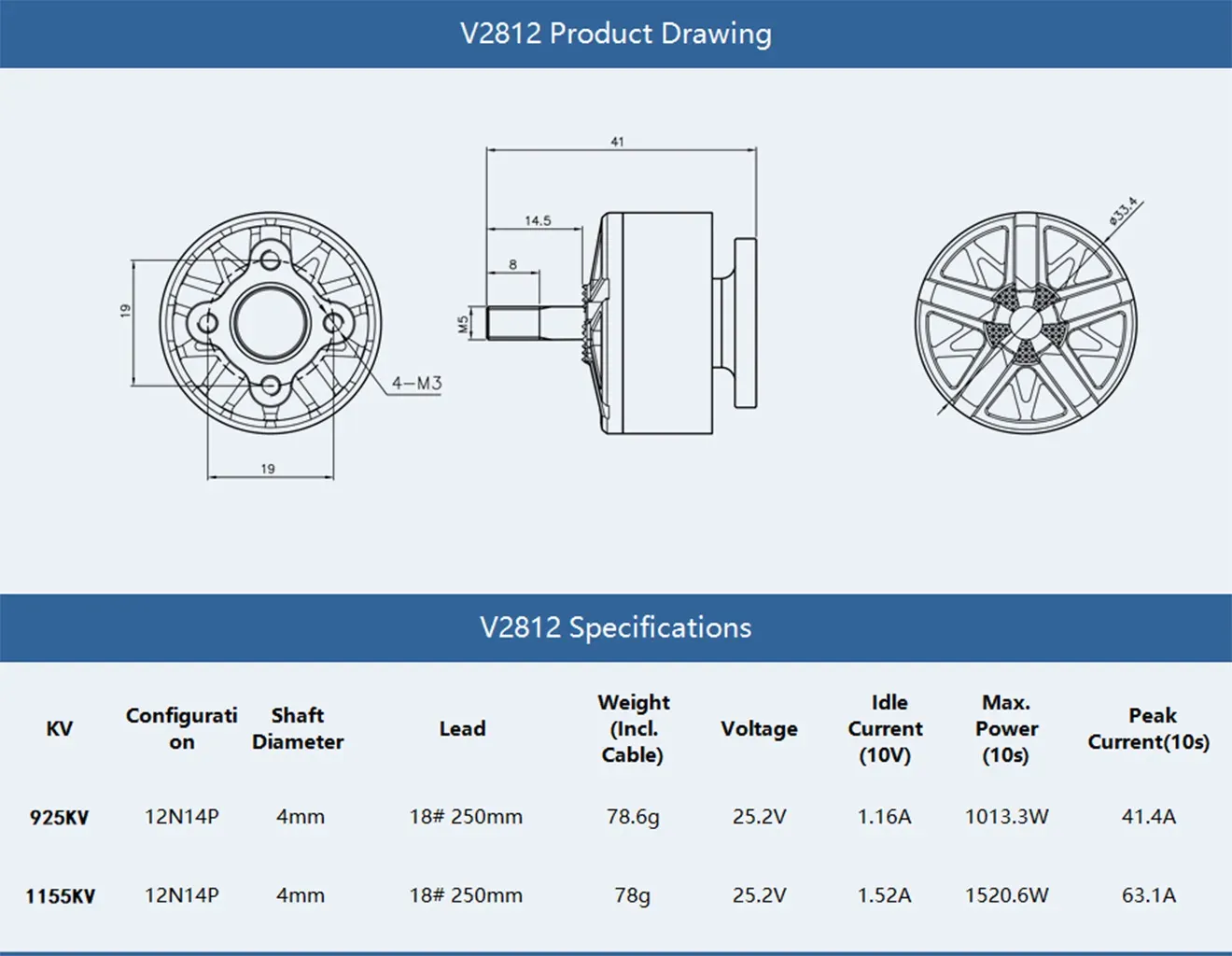

Featuring a robust 19x19mm M3 mounting pattern, an 11mm heavy-duty bearing, and a 4mm fixed internal shaft, the V2812 is built to endure immense structural stress. Its tight magnetic air gap and two-piece bell design with a ferrous flux ring ensure maximum magnetic containment, maintaining precise prop control during fast maneuvers.
When to look elsewhere? If you are building an ultra-light 7-inch cruiser or want a snappy, aggressive freestyle feel, a smaller stator motor (like the V2808) will shave off critical arm weight and offer better mid-throttle agility.
Head-to-Head Comparison: V2812 vs. V2808 vs. V3008
The VELOX series offers multiple stator options to match different performance profiles. Understanding the physical differences helps prevent buying the wrong motor for your frame:
| Motor Model | Weight | Stator Profile | Low-RPM Torque | Dynamic Response | Best For |
|---|
| V2808 | ~61g | Balanced | Moderate | Fast & Agile | Lightweight, responsive 7-inch long-range & freestyle builds |
| V3008 | ~70g | Wide / Short | High | Smooth / Flat Curve | High-speed 7-8" cruising, top-end power |
| V2812 | ~78g | Tall / Narrow | Maximum | Ultra-Fast Acceleration & Braking | Heavy 7.5-9" propellers, CineLifers, heavy-payload builds |
Tall-Stator Advantage (2812 vs 3008): While the 3008 has a wider stator, its mass is distributed further from the center, resulting in higher rotational moment of inertia. The V2812’s taller, narrower design delivers lower moment of inertia with superior acceleration and braking response, significantly reducing prop wash and camera Jello.

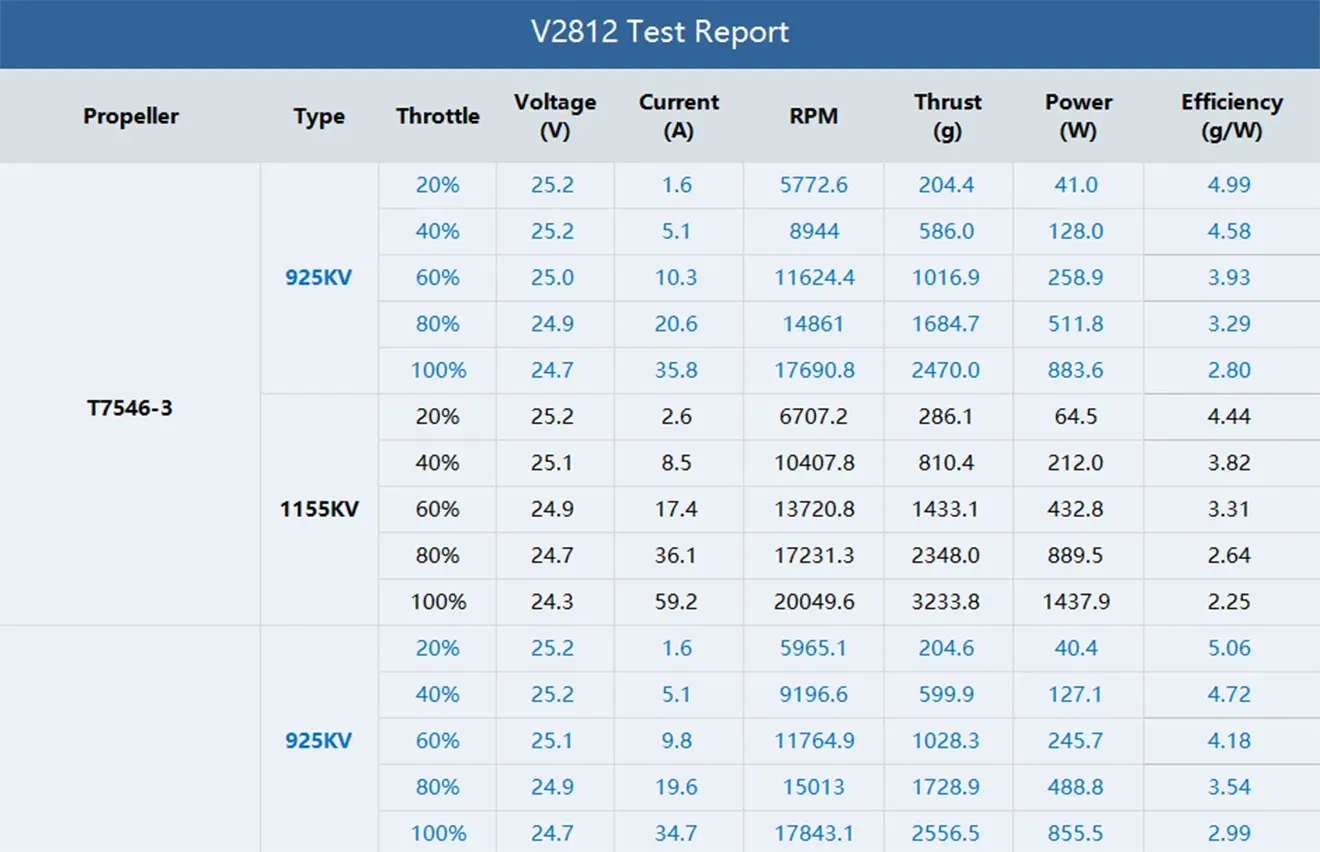

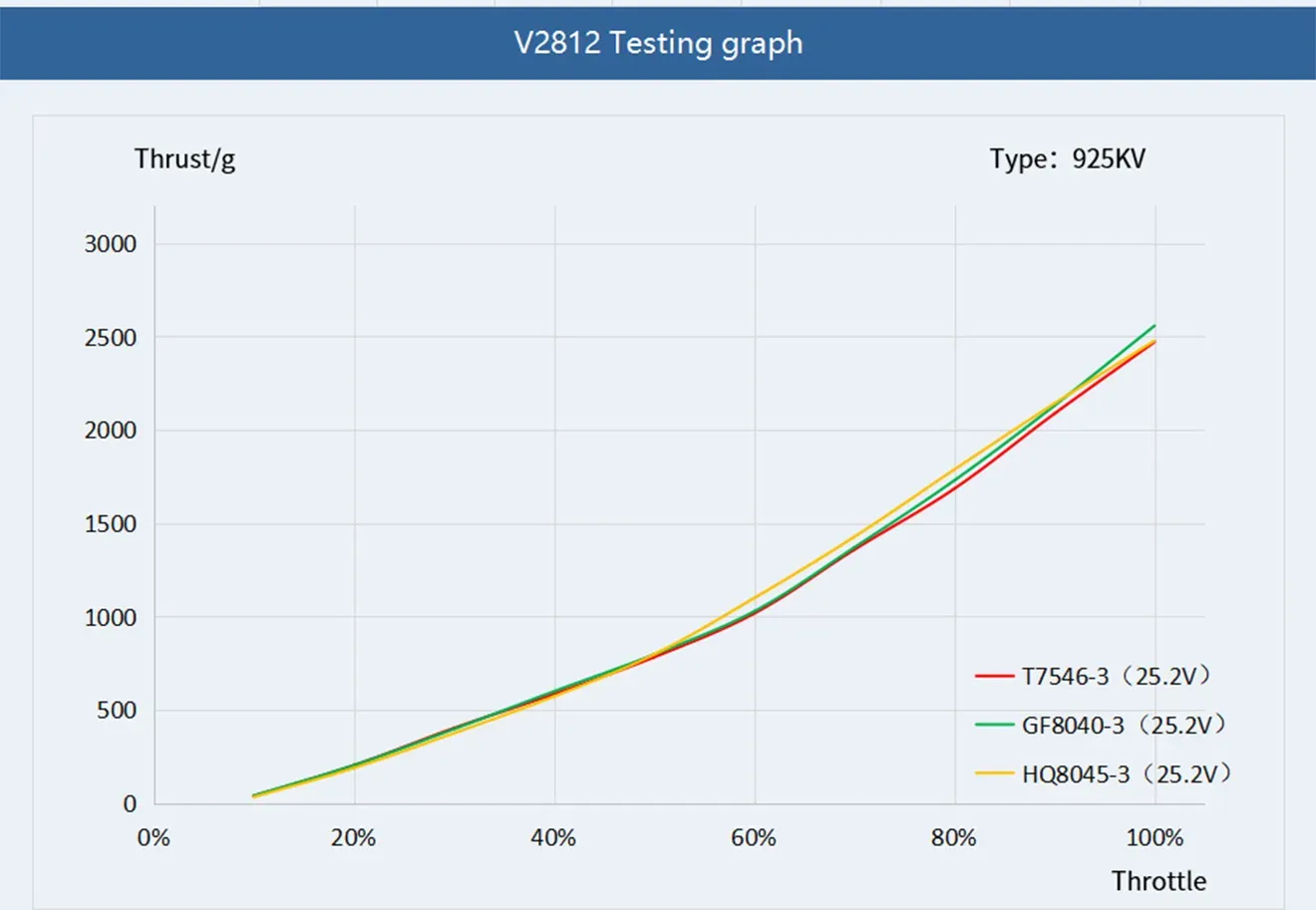

Unmatched Efficiency: In thrust stand tests, lower-KV variants of the V2812 achieved outstanding efficiency ratings of up to 2.9–2.98 g/W on heavy 7.5" props, ensuring maximum flight time from your LiIon or LiPo packs.
How to Choose Between 925KV and 1155KV?
Matching KV to your battery voltage and propeller size is critical to avoid motor overheating or ESC desync.
VELOX V2812 925KV
Voltage: 6S LiPo / 6S LiIon | Recommended Props: 8" – 9"
Maximum Endurance & Cruising: Ultra-smooth throttle resolution, lowest amp draw, and ideal for efficiency-focused long-range endurance flights.

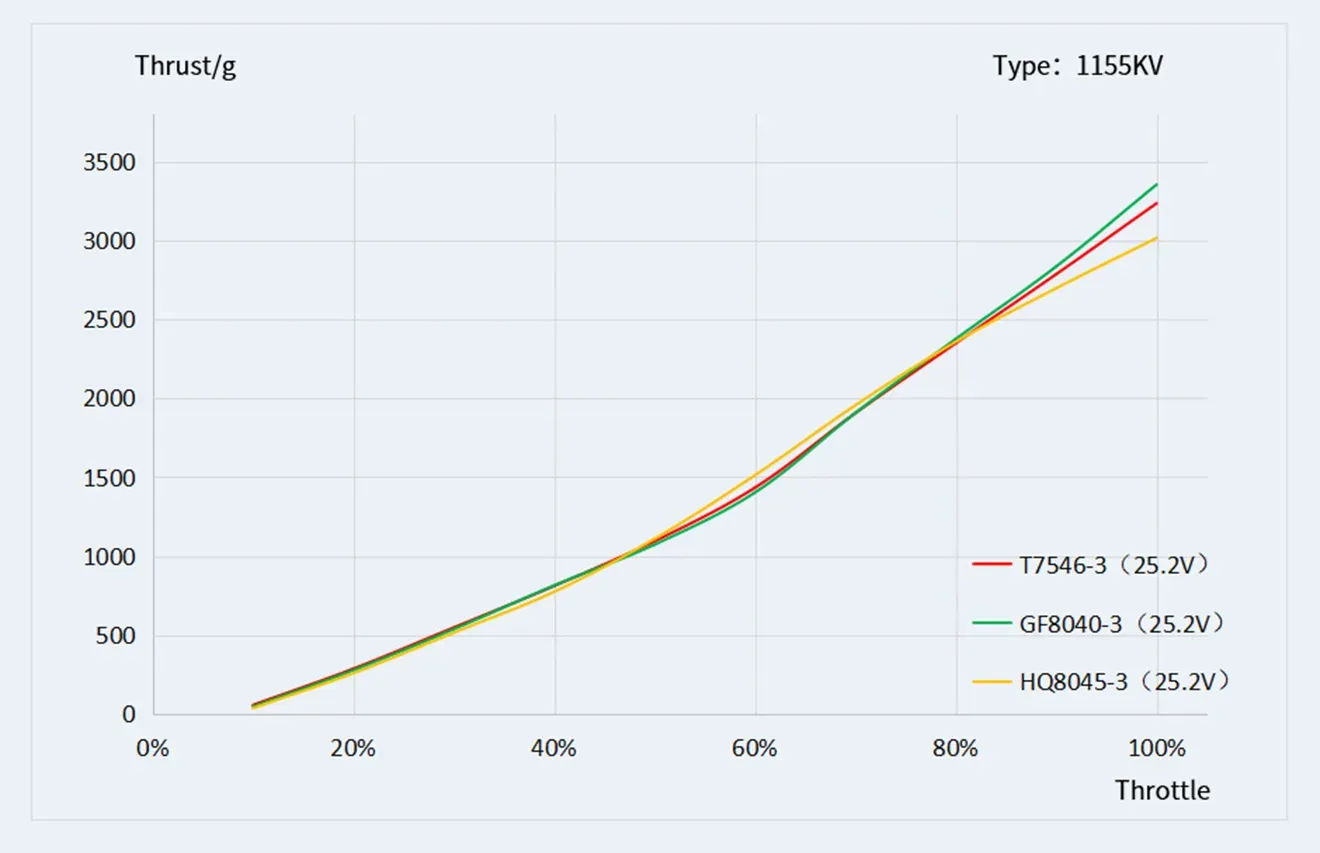

VELOX V2812 1155KV
Voltage: 6S LiPo | Recommended Props: 7.5" – 8" Heavy Props
Punchy & Responsive: Delivers immediate torque, rapid throttle recovery, and excellent pitch/roll control for heavy CineLifers.
Propeller & Setup Recommendations
To get the most out of the THOBBY VELOX V2812’s massive torque, pair it with the correct hardware components:
7.5-Inch Class Propellers: THOBBY 7.5x4.6x3 or similar high-chord triblades.
8 to 9-Inch Class Propellers: HQ / Gemfan 8x4x3, 9x4.5x2 long-range props.
ESC Requirement: 60A – 70A 6S BLHeli_32 or AM32 ESC (to safely handle burst currents from high-torque maneuvers).
Long Range Battery Setup: 6S 21700 / 18650 LiIon Pack (4000mAh - 8000mAh).
CineLifer Battery Setup: 6S High-C LiPo Pack (1800mAh - 3300mAh).
Final Recommendation
The THOBBY VELOX V2812 isn't just "more motor"—it is a specialized tool built for heavy lifting, rock-solid stability, and aggressive torque demands:
925KV → Choose if your goal is maximum flight time, cruising efficiency, and ultra-smooth long-range exploration.
1155KV → Choose if you need instant throttle response, snappy attitude control, and power reserves for high-payload CineLifers.
