● Dual Connectivity - WiFi & Bluetooth

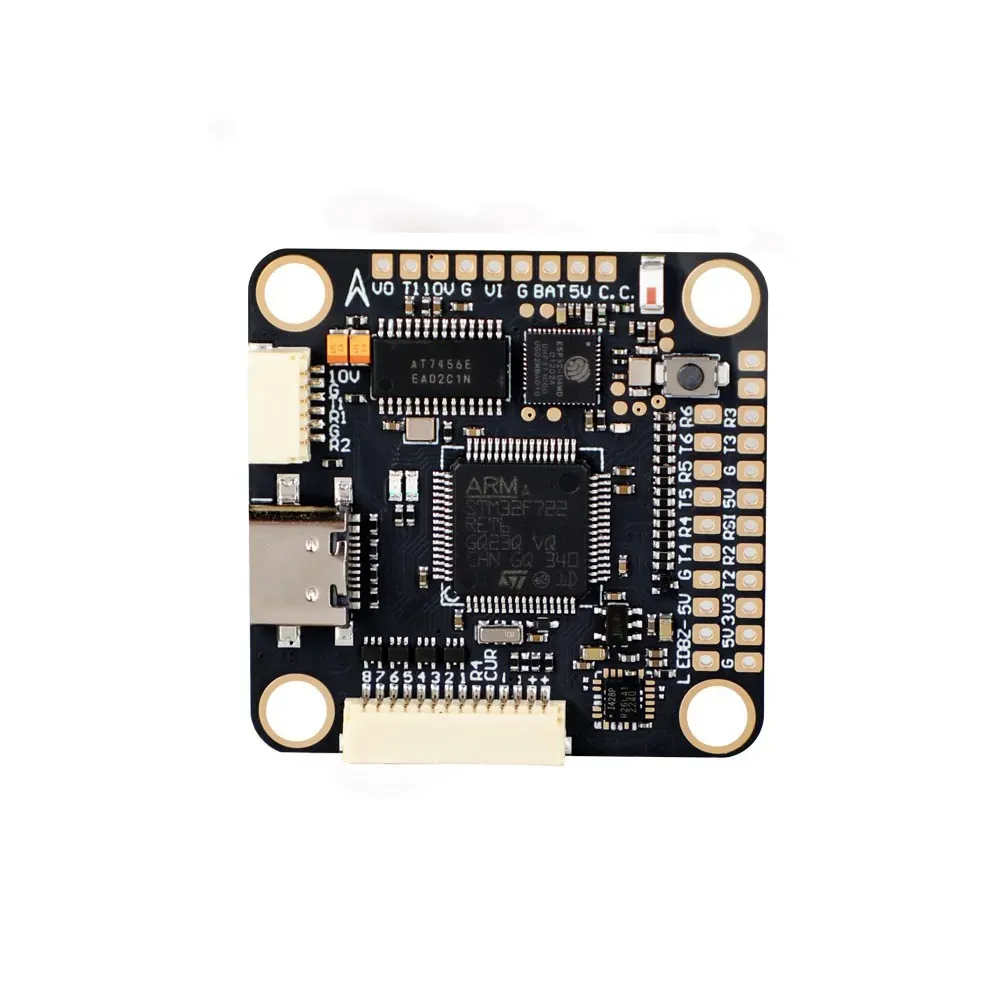

● STM32F7 chip delivers 216MHz clock speed for ultra-responsive flight control and advanced filtering.

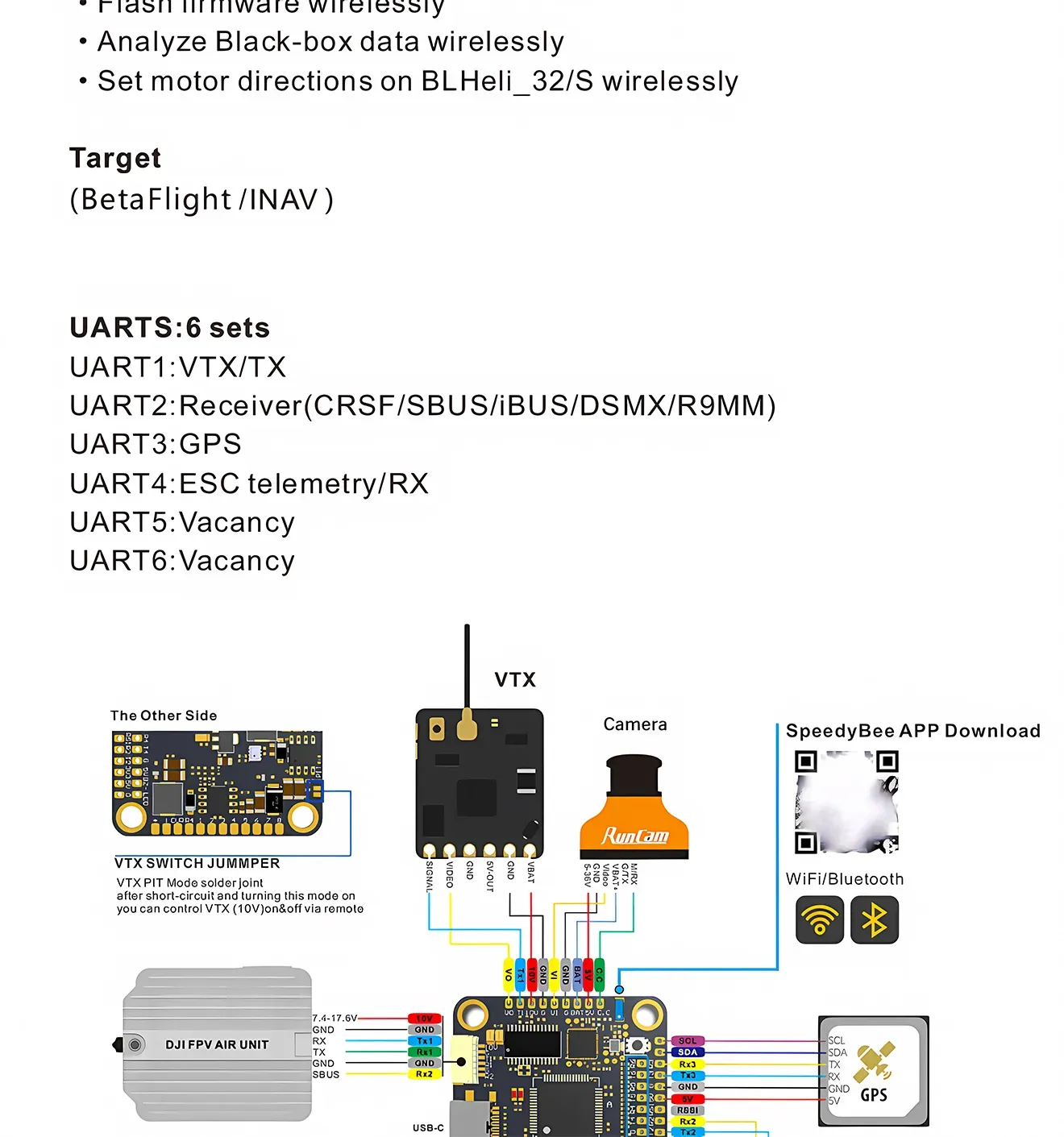

● Supports Betaflight/INAV/ArduPilot with pre-soldered connectors for ESC, GPS, and peripherals.
● Shock-absorbing silicone mounts and conformal coating protect against vibrations and moisture.

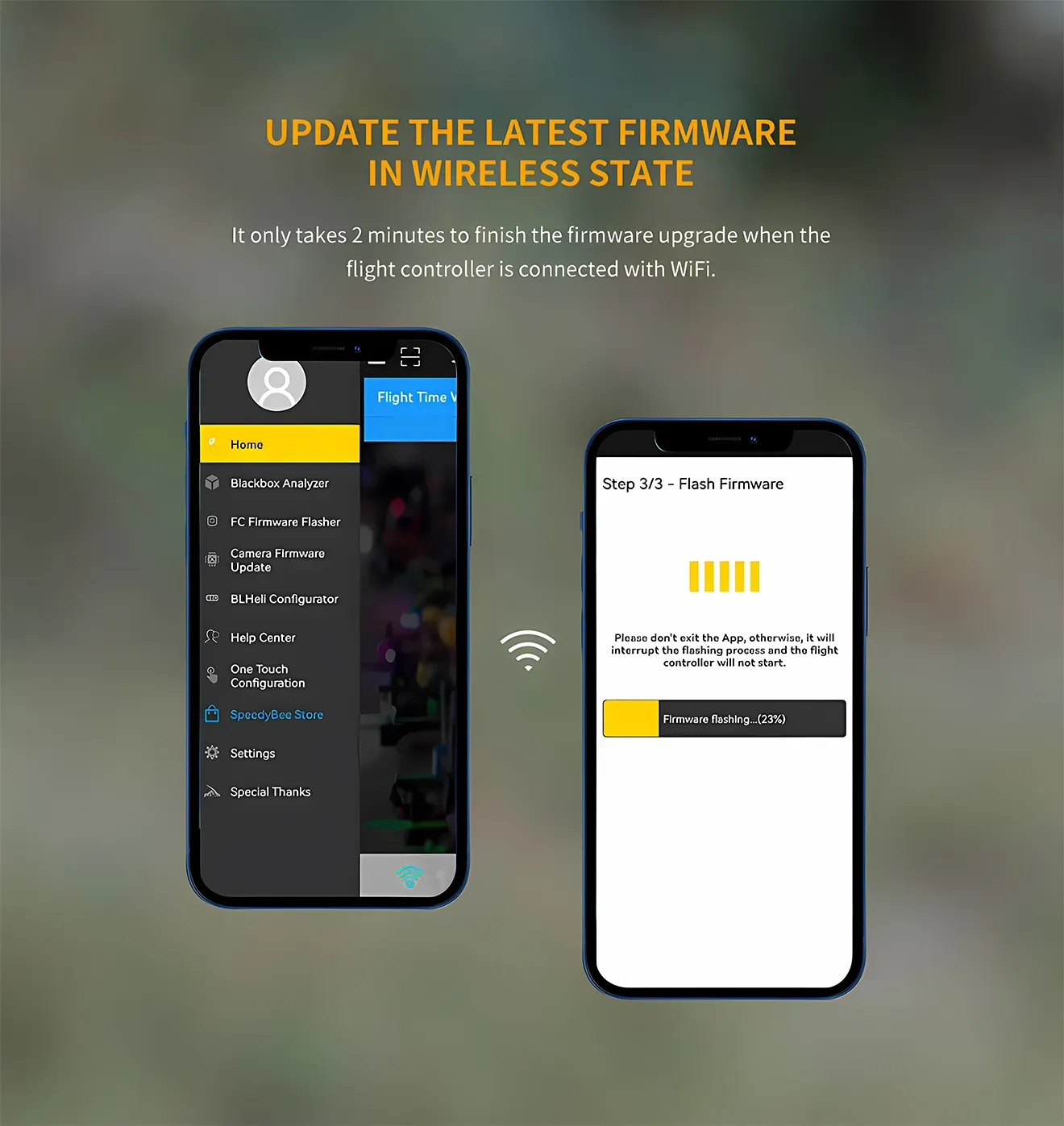

● Firmware updates via WiFi in 90 seconds - stay ahead with latest features without disassembly.

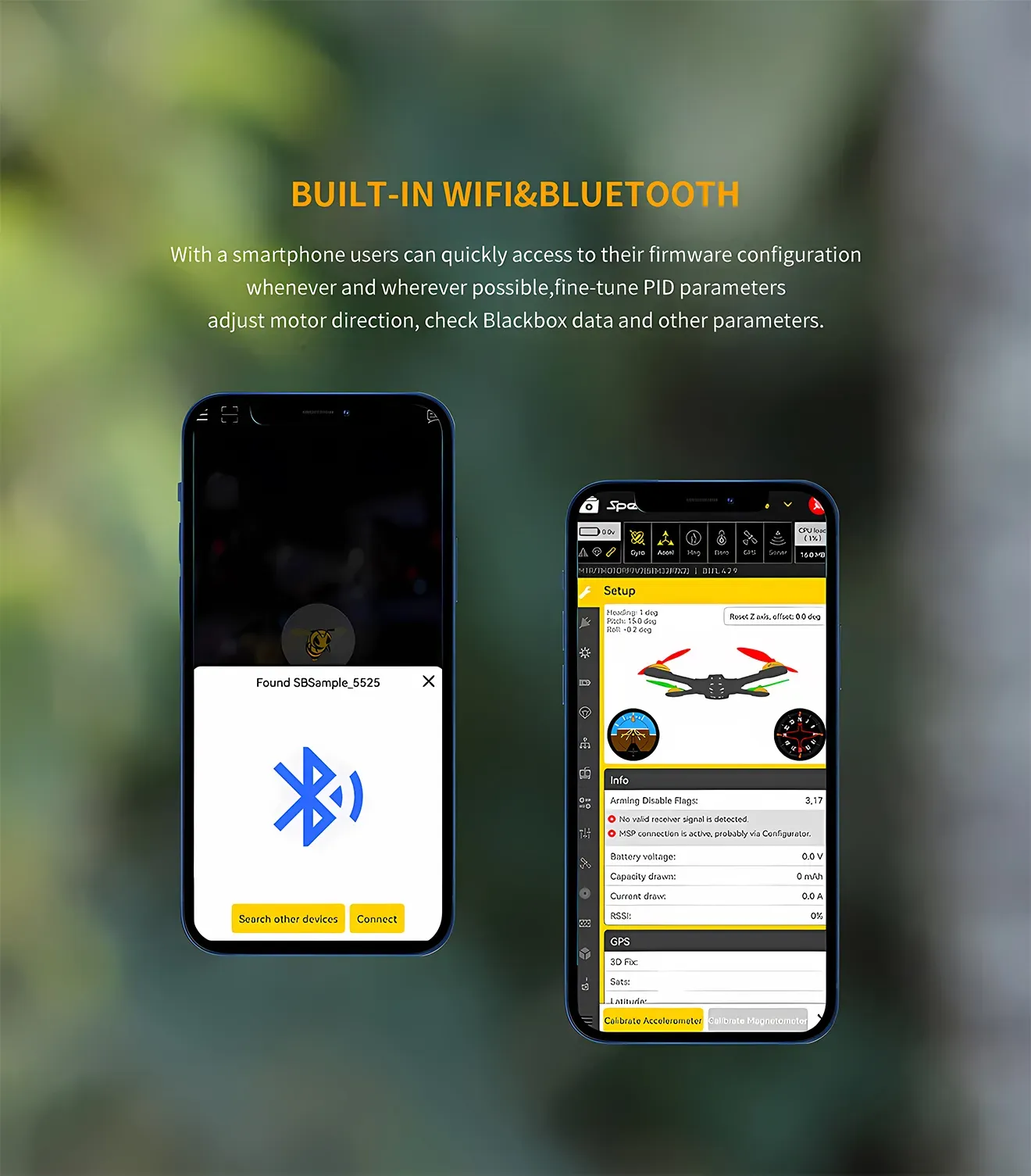

Forget the laptop forever! Our revolutionary integrated dual-band connectivity (Wi-Fi 5 GHz/Bluetooth 5.0) transforms your smartphone into a powerful FPV control center: ① Real-time PID tuning during flight ② Instant motor direction adjustment ③ Anywhere black box data analysis. The intuitive app interface (see image) offers professional control with beginner-friendly simplicity. Never miss a perfect flight moment again – 90% faster setup than via USB cable, with a rock-solid connection up to 150 m range. Your ultimate plug-and-fly experience starts here.

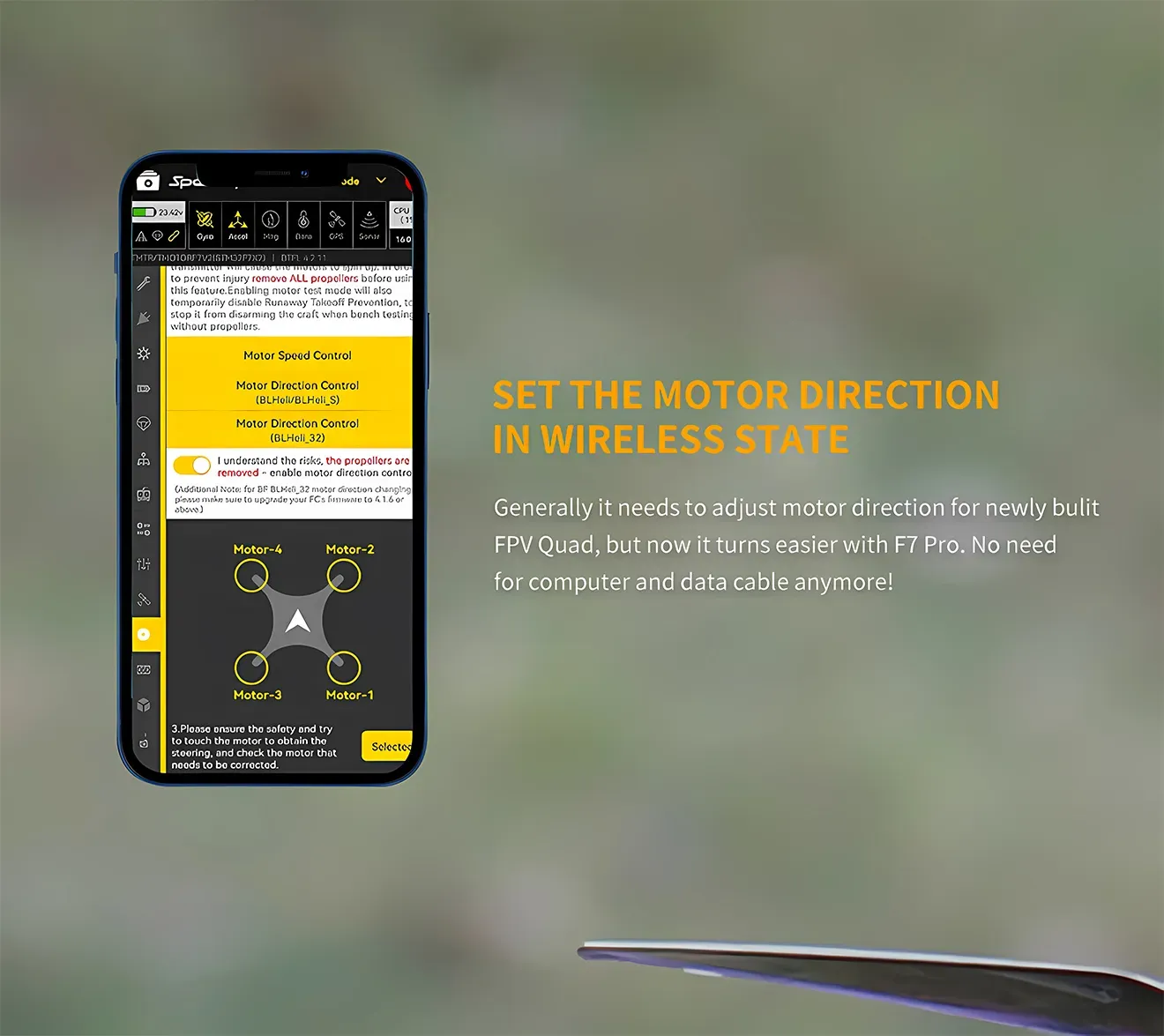

The F7 Pro's groundbreaking wireless technology eliminates the need for cumbersome USB connections – motor direction can now be adjusted via smartphone in less than 30 seconds (compared to over 5 minutes with traditional methods). Our app's intuitive, arrow-guided interface (shown) prevents installation errors, while the instant "save" function securely locks settings. Ideal for on-site repairs or new builds, this feature reduces setup time by 80% and works reliably within a range of 50 m. Fly faster, tinker less!

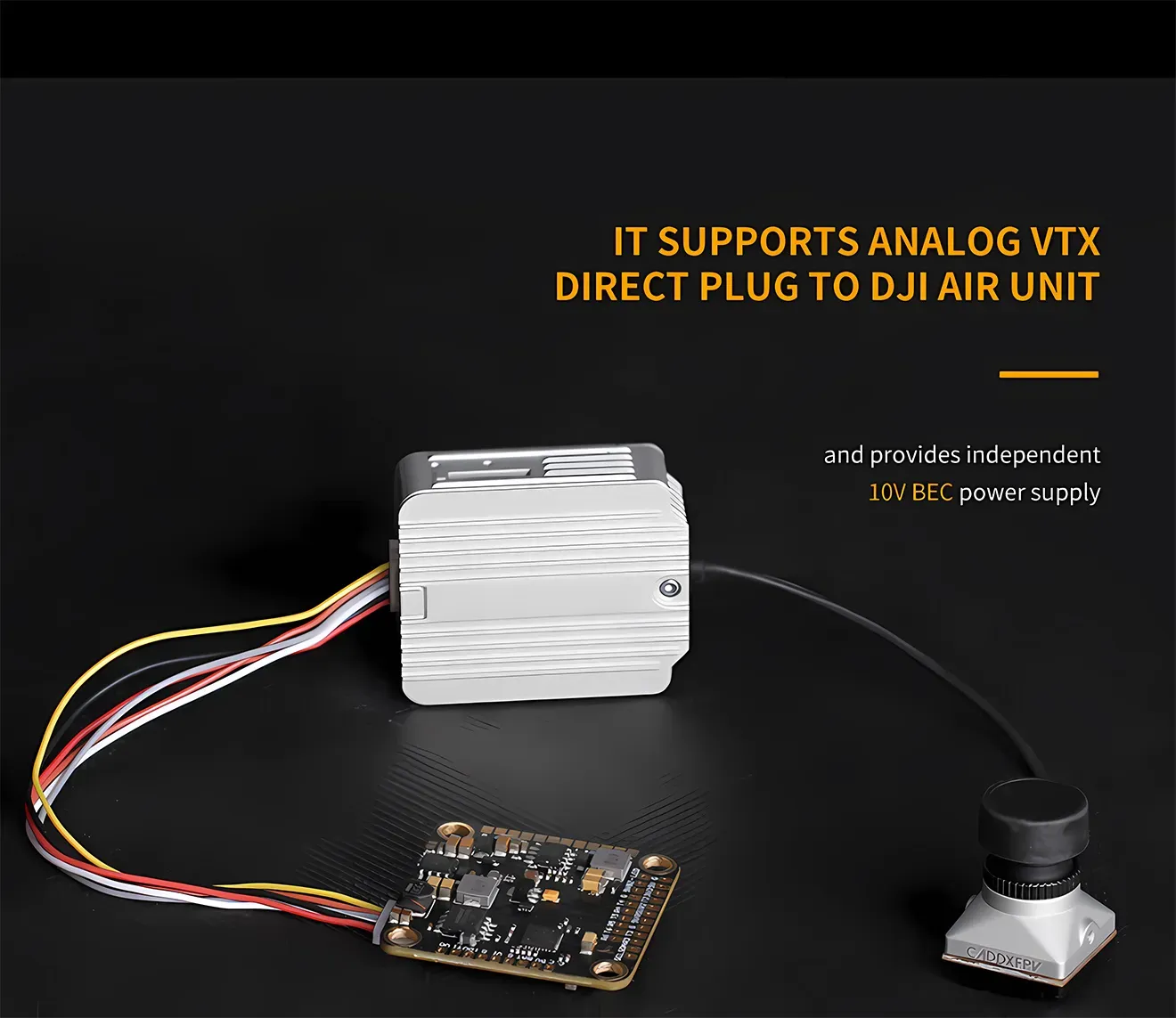

Seamless Analog/Digital Hybrid Setup – Unlock dual video systems with plug-and-play DJI/Analog VTX integration

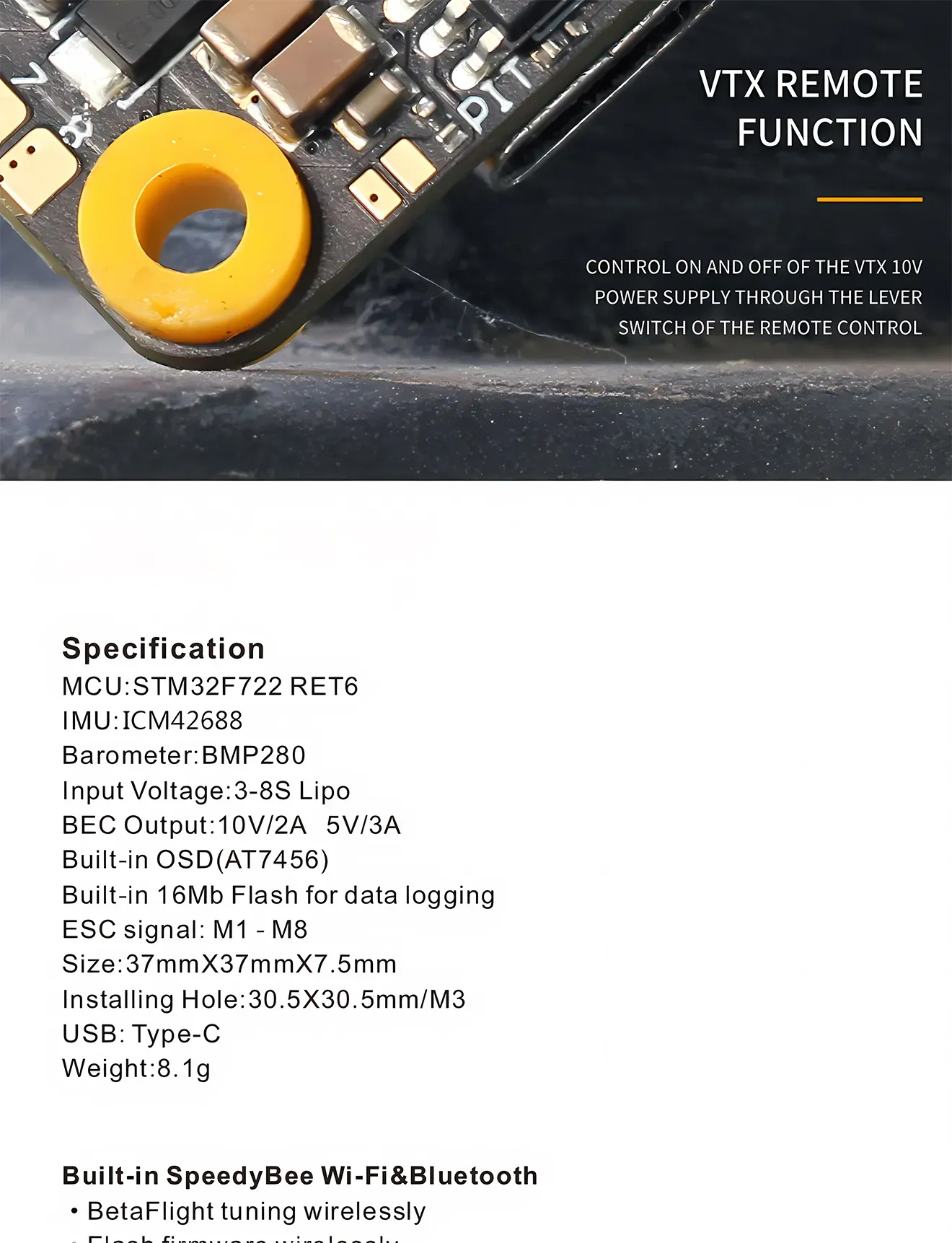

Specification
Recommendations
Reviews (2)
j******************2
Vine Voice
MEPSKING Vine Customer Review of Free Product
Great FC! Packs quite a punch in terms of computing power, dealing seamlessy with lots of RPM and notch filters with no problems. The gyro is the ICm-type one, that has very good performance and became the industry standard. It has bluetooth for speedybee and up to 8 motor outputs, so it can be used also for cinelifters. It has 6 uarts, with the 4 reserved for the ESC telemetry (mandatory for INAV RPMfilter). Great FC, with plug and play for dji air units!
Model：F7 Pro Full Function 30x30Replied by MEPSKING:Thank you for the detailed review and for being part of our Vine Voice program! We're glad to hear the F7 Pro FC performs well in your build. The ICM gyro and powerful processing are designed exactly for setups like yours. Thanks for sharing your experience with the community! 🚀
J***n
Love the WiFi & Bluetooth feature! Setup is so much easier without a cable. Super stable FC, highly recommend.
Model：F7 Pro Full Function 30x30
FAQFeel free to ask us any questions
ASK A QUESTION
How does this adapter simplify hybrid FPV setups compared to DIY solutions?
Eliminates complex soldering and voltage regulation - just plug your analog VTX into the DJI Air Unit port. The built-in 10V BEC automatically handles power distribution, reducing setup time from 30+ minutes to under 2 minutes.
Will this work with my DJI O3 Air Unit or just older models?
Fully compatible with all DJI FPV systems including O3 Air Unit, Vista, and original Air Unit (2019). The universal plug design future-proofs your investment.
What's the max power output for the 10V BEC? Can it run my analog VTX + camera?
Delivers 3A continuous current (30W total) - enough to power most analog VTX (200-800mW) plus cameras like RunCam Phoenix or Foxeer Toothless simultaneously.
Does the metal housing actually help with heat dissipation?
Yes! Stress tests show the aluminum casing keeps components 18°C cooler than plastic housings during prolonged use, critical for maintaining stable VTX performance.
Can I use this to add analog backup to my digital-only drone?
Absolutely! The pass-through design lets you keep your HD feed while adding analog - just connect any 5.8GHz VTX to the dedicated port for failsafe redundancy.
