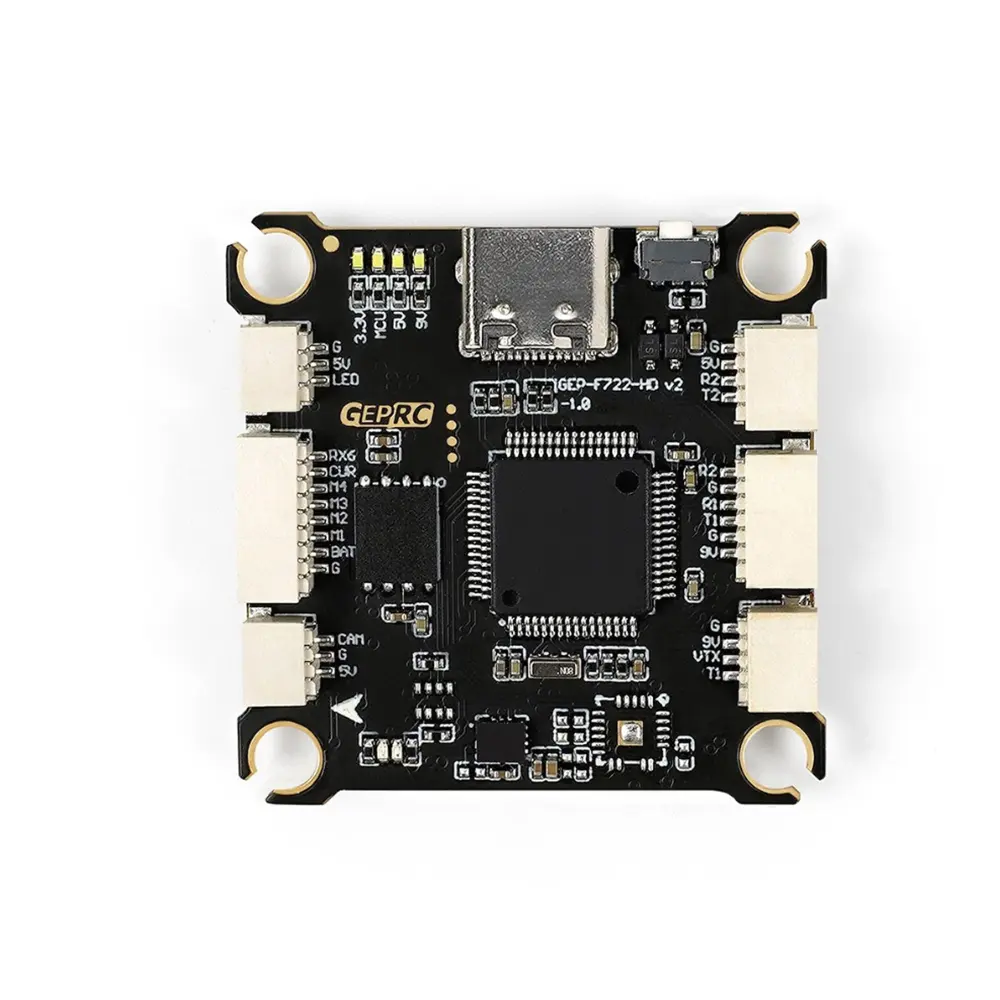

gep f722 hd v2 fc front
gep f722 hd v2 fc side

NewGEPRC GEP-F722-HD V2 Flight Controller for 5″ FPV & Digital FPV Builds

About GEPRC GEP-F722-HD V2 FC:

GEPRC GEP-F722-HD V2 flight controller with 6 UARTs, barometer, OSD, and Betaflight support, optimized for 5″ freestyle, racing, and HD FPV drone builds.

GEPRC
Best SellerTop RatedBest Value
$20 Off Orders $299+
$6 Off Orders $99+
Collect
$ 33.99
5.0 | 100+Sold
Options (1)
gep f722 hd v2 fc back
F722 HD V2 FC
Quantity
In Stock Expected ship within 5 days after order.
Estimated Transit Time: 15-20 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● Powerful F722 Processor – Fast 32-bit MCU for responsive, smooth flight control.

● Built-in Barometer & OSD – Enhanced flight stability and easy on-screen telemetry.

● 6 UART Ports – Flexible peripheral and receiver connectivity for modern FPV setups.

● Supports Digital HD – Ready for integration with HD systems like DJI / HDZero (via UART).

● Betaflight & Blackbox – Full software support and logging for tuning and analysis.

Specifications:


  • ● MCU: STM32F722

  • ● IMU: ICM42688-P(SPI)

  • ● Air Unit Connection: Direct plugging into DJI Air Unit

  • ● Black Box: 16M onboard

  • ● Baro: Built-in Barometer

  • ● USB Interface: Type-C

  • ● OSD: BetaFlight OSD w/ AT7456E chip

  • ● BEC: 5V@3A,9V@2.5A dual BEC

  • ● Firmware Target: GEPRCF722

  • ● Size: 36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.

  • ● Input Voltage: 3-6S LiPo

  • ● UART: 5

  • ● Power Filter: Integrated LC filter

  • ● Weight: 8.1g

Recommendations:

FAQ Feel free to ask us any questions
ASK A QUESTION
What voltage input does this FC support?
Can I use this with digital FPV gear like DJI?
Does it include OSD?
Is this suitable for racing drones?
