What battery voltage does this ESC support?

The Aikon AK32 ESC supports 2S to 6S LiPo battery input (7.4 V–22.2 V).

How much current can it handle?

It delivers 35A continuous with up to 45A burst to match aggressive throttle demands.

What firmware does it use?

This ESC uses the BLHeli_32 32-bit firmware, which offers modern features like programmable PWM and auto-timing.

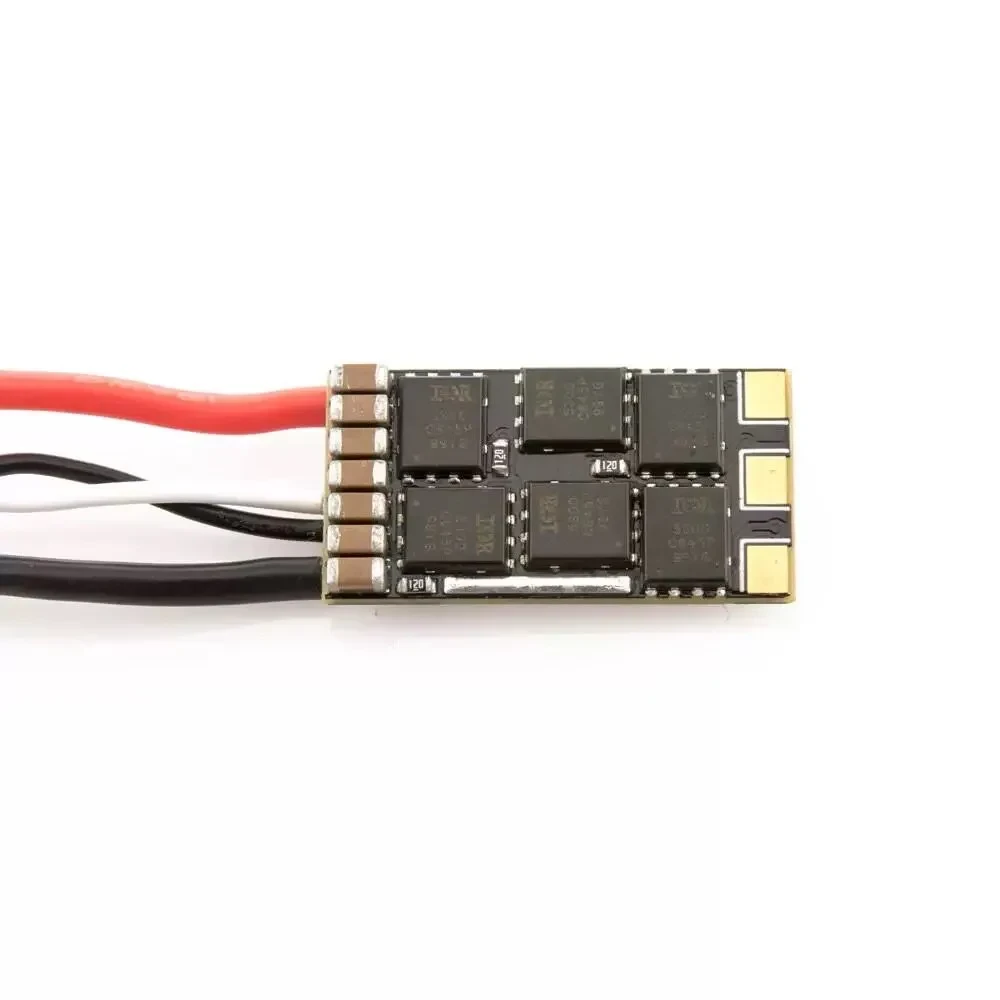

Aikon AK32 32-bit 35A ESC 2-6S for FPV Racing & Freestyle Drones

About Aikon AK32 32-bit ESC:

High-performance Aikon AK32 32-bit ESC with BLHeli_32 firmware, 35A continuous, 45A burst, 2-6S support, programmable PWM, auto-timing & telemetry for racing and freestyle FPV builds.

Pilot RecommendedBuilt to LastBest Value

$ 49.99 ~~$64.98~~

-23%

5.0 | 0Sold

Options (2)

AK32 32_bit 35A 2_4S

AK32 32_bit 35A 2_6S

$6 Off Orders $169+

$10 Off Orders $269+

Get

Quantity

In Stock Expected ship within 7 days after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● BLHeli_32 Firmware – Advanced 32-bit firmware delivers smooth throttle and efficient motor control with PWM up to 48kHz.

● 2-6S LiPo Support – Works with 2–6S LiPo packs, ideal for flexible FPV performance.

● 35A Continuous, 45A Burst – Provides sustained power with headroom for aggressive flight bursts.

● ESC Telemetry & DShot Configurable – Sends real-time data to FC and adjusts settings through DShot commands.

● Auto-Timing & IRC Braking – Self-adjusting timing and adjustable brake boost flight responsiveness and reliability.

Features

● New BLHeli_32 code base

● Programmable PWM frequency of up to 48KHz

● Auto-timing for higher efficiency and reliability

● Voltage/Current limiting

● Adjustable “Brake on Stop” force

● Improve direction change in Bidirectional mode

● ESC Telemetry

● Configuring from FC using DShot commands

Specifications

● Battery: 2-6s

● Constant Current: 35A

● Burst Current: 45A

● Size: 18*30mm

● Firmware: Aikon_AK32_35A_Multi

● MCU: ST32F0

● Bootloader: Yes

● Weight( with/wire): 12g

● Signal wire length: 150mm

● Battery wire length: 100mm

Includes

● 1x Aikon AK32 35A 6S
