Q: What equipment is needed to use this VTX?

A: The RunCam Link Phoenix HD Kit is compatible with MEPS 2306 motor or MEPS 2207 motor, MEPS 60A ESC, and SZ F7 flight controller.

Q: What are the key features of this video transmitter?

A: The RunCam Link Phoenix HD Kit is an advanced video transmission system that supports 5.8 GHz digital video signals and delivers 1280 x 720 resolution at 60fps. It offers a transmission range of up to 4 km with minimal end-to-end latency of 32 ms. The RunCam Phoenix HD Camera features a 1/2" ultra-high sensitivity sensor with up to 10650 mv/lux-sec, providing excellent night vision performance.

Q: What should be noted when using this VTX?

A: This video transmission system supports dual mounting hole designs (30x30 and 20x20) for compatibility with various frames. It operates with an input voltage range of 7.4V-26.4V.

Q: What is the maximum signal transmission distance for this system?

A: The maximum signal transmission distance is up to 4 km. This distance can vary based on surrounding interference, input and output signal sources, and antenna factors.

RunCam Link Phoenix HD FPV Camera Kit Digital FPV VTX

About RunCam Link Phoenix HD FPV Camera Kit:

The Runcam Link Phoenix HD FPV Camera Kit is an advanced video transmission system that supports a 5.8 GHz digital video signal and 1280 x 720 60fps image transmission, with a transmission range of up to 4 km and a minimum end-to-end latency within 32 ms*. The RunCam Phoenix HD FPV Camera uses a 1/2", up to 10650 mv/lux-sec ultra-high sensitivity sensor - making this FPV camera kit excellent for night vision. It is a nice FPV camera and transmitter combination.

RunCam

$ 115.99 ~~$160.90~~

-28%

5 | 100+Sold

Options (1)

RunCam Link Phoenix HD Kit

Quantity

In Stock Expected ship within 5 days after order.

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Description

FAQ

● 1280x720 60fps HD Video Output

● 5.8 GHz Digital Video Signal with up to 4 km transmission range and latency under 32 ms

● High Sensitivity Sensor (10650 mv/lux-sec), excellent for night vision

● Integrated Remote Receiver

● ●Supports Up to 8 Drones Flying Simultaneously

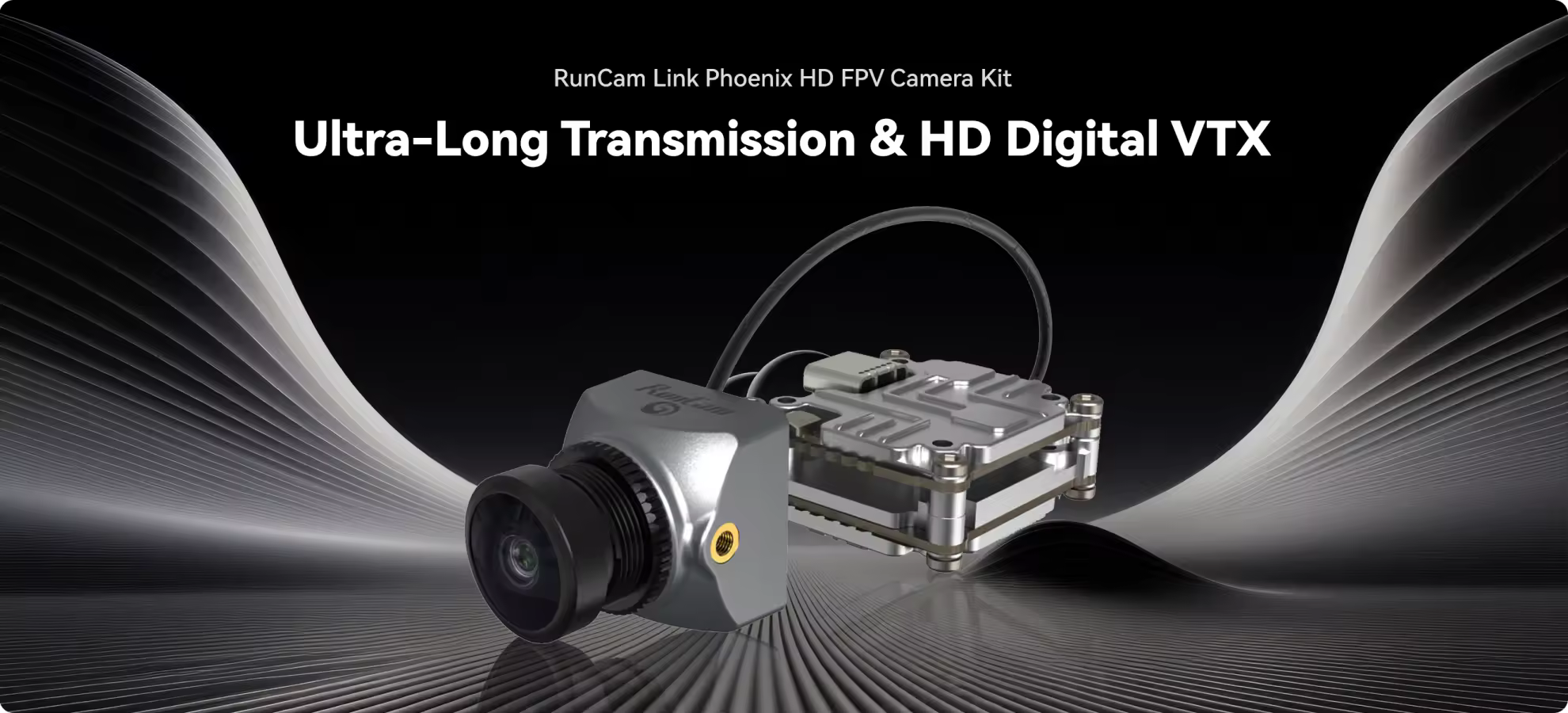

Runcam Link Phoenix Hd Fpv Camera Kit Show

32ms Latency & 4km Range

The RunCam Link Phoenix HD FPV Camera Kit supports 5.8 GHz digital video signals and 1280 x 720 60fps image transmission, with a range of up to 4 kilometers and an end-to-end latency of under 32 milliseconds.

Runcam Link Phoenix Hd Fpv Camera Kit 32MS 4KM

RUNCAM Phoenix HD Camera

Use 1/2 inch, up to 10650 mV/Lux-sec ultra-high sensitivity sensor, excellent night vision effect

With 16:9 aspect ratio supported, enjoy the full view in goggles.

Runcam Link Phoenix Hd Fpv Camera Kit View

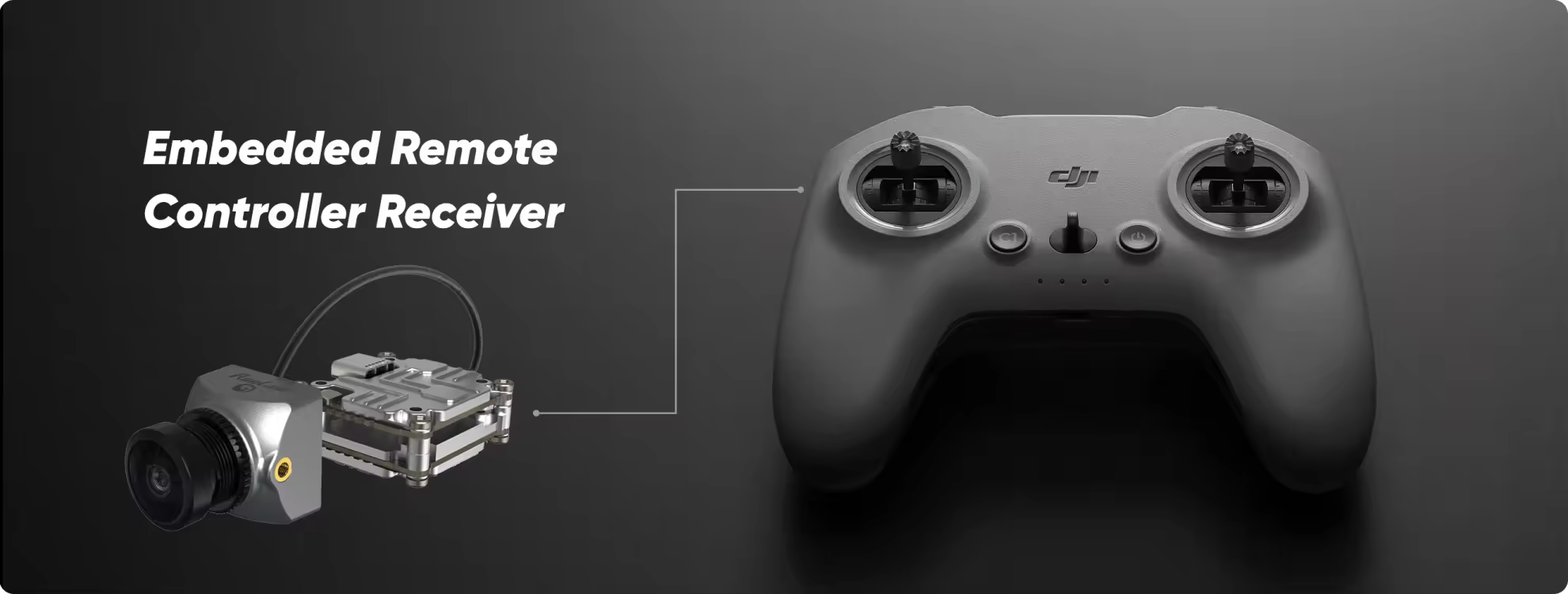

Embedded Remote Controller Receiver

Users can wirelessly connect their DJl FPV Air Unitto the DJl FPV Remote Controller without havingto purchase additional receivers. This reducesflight preparation time significantly.

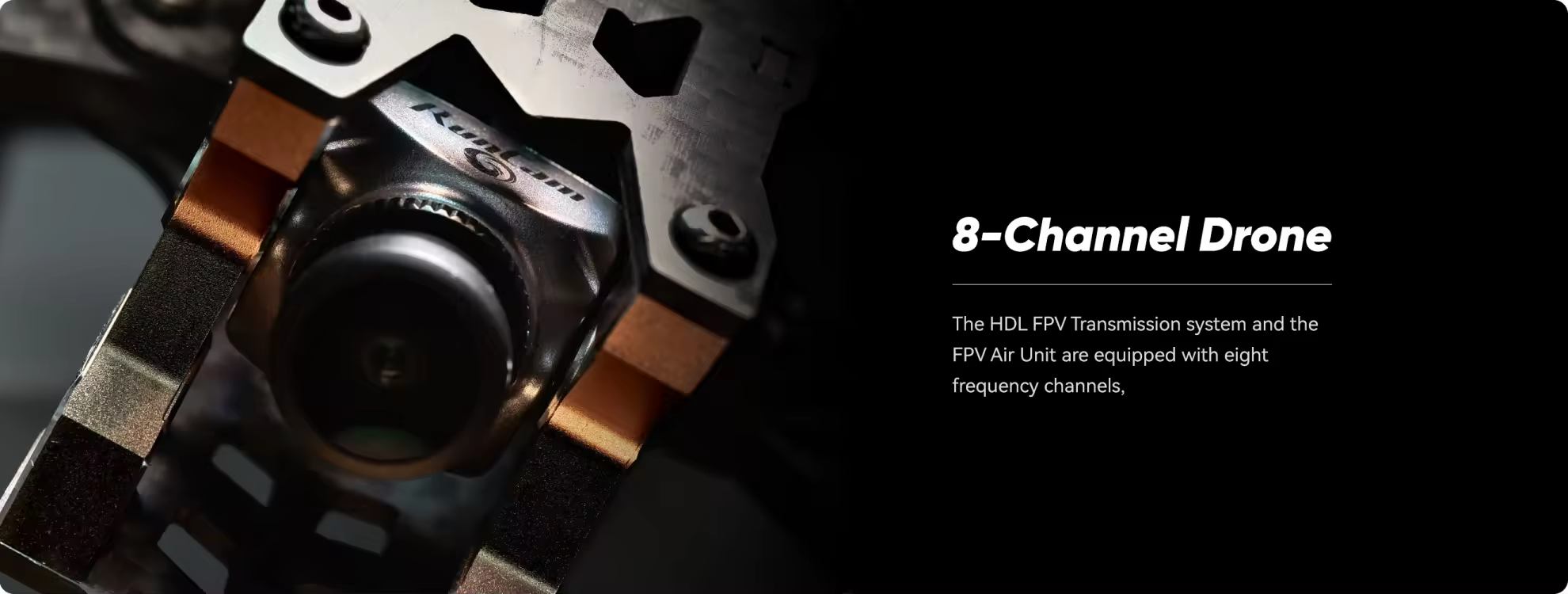

8-Channel Drone

The HDL FPV Transmission system and the FPV Air Unit are equipped with eight frequency channels, which allow up to eight drones to fly simultaneously. Each operator has an exclusive channel. This helps to reducecross-interference and provide an optimal racing experience.

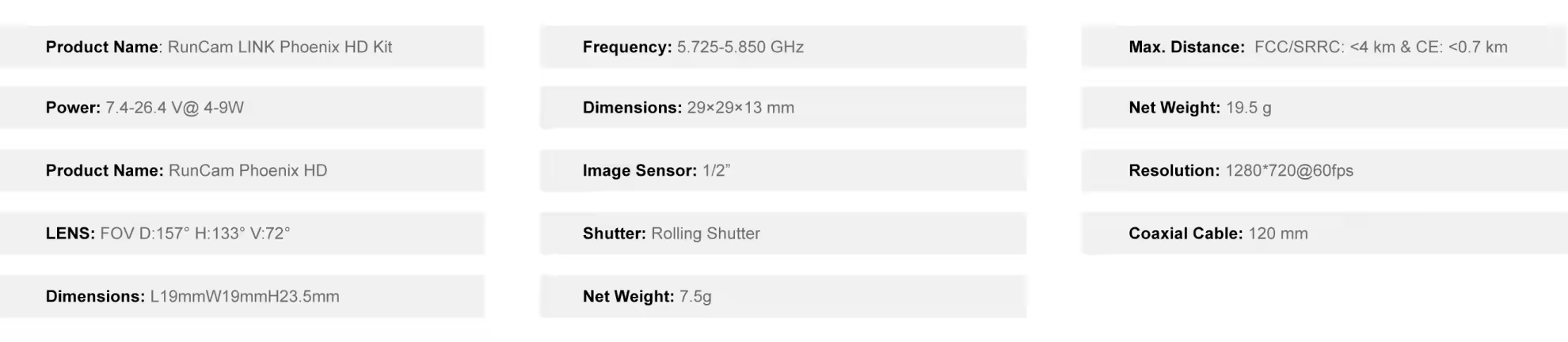

Parameter

Recommendations

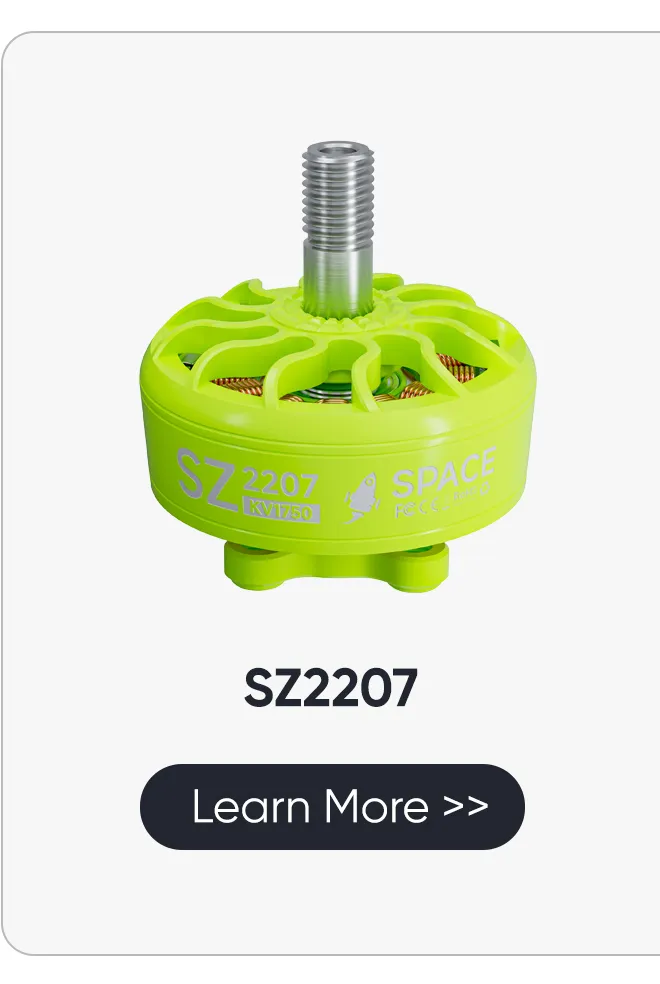

Runcam Link Phoenix HD Kit recommend motor

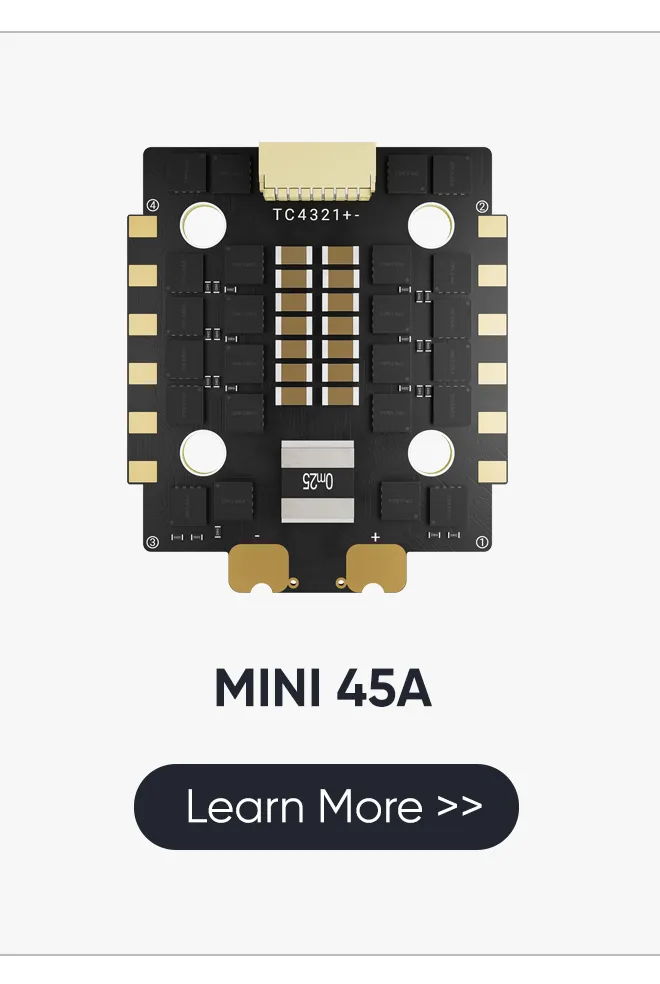

Runcam Link Phoenix HD Kit recommend ESC

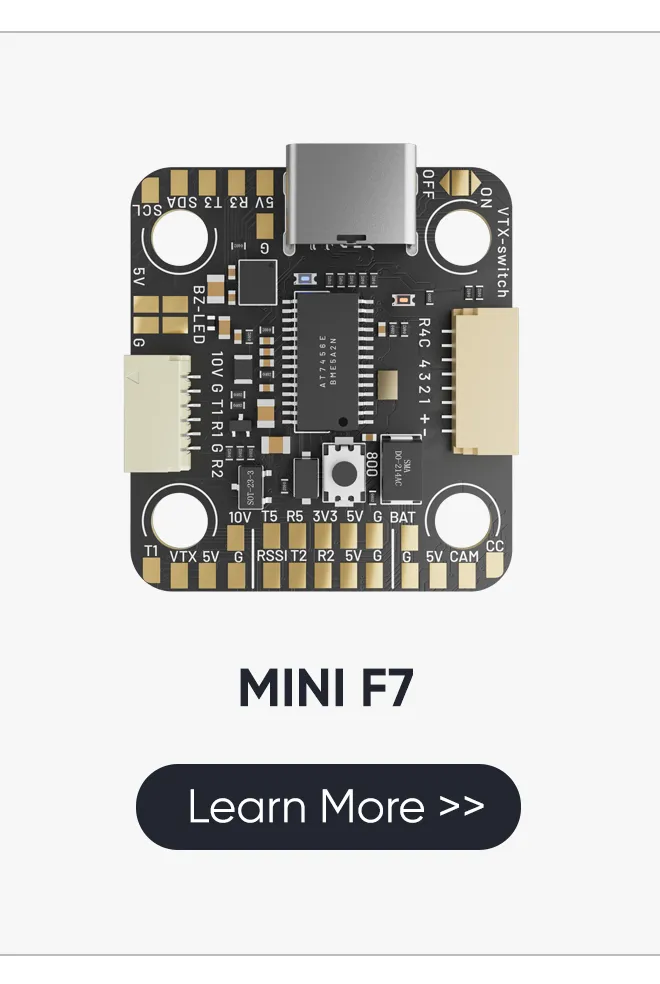

Runcam Link Phoenix HD Kit recommend flight controller

Runcam Link Phoenix HD Kit recommend props

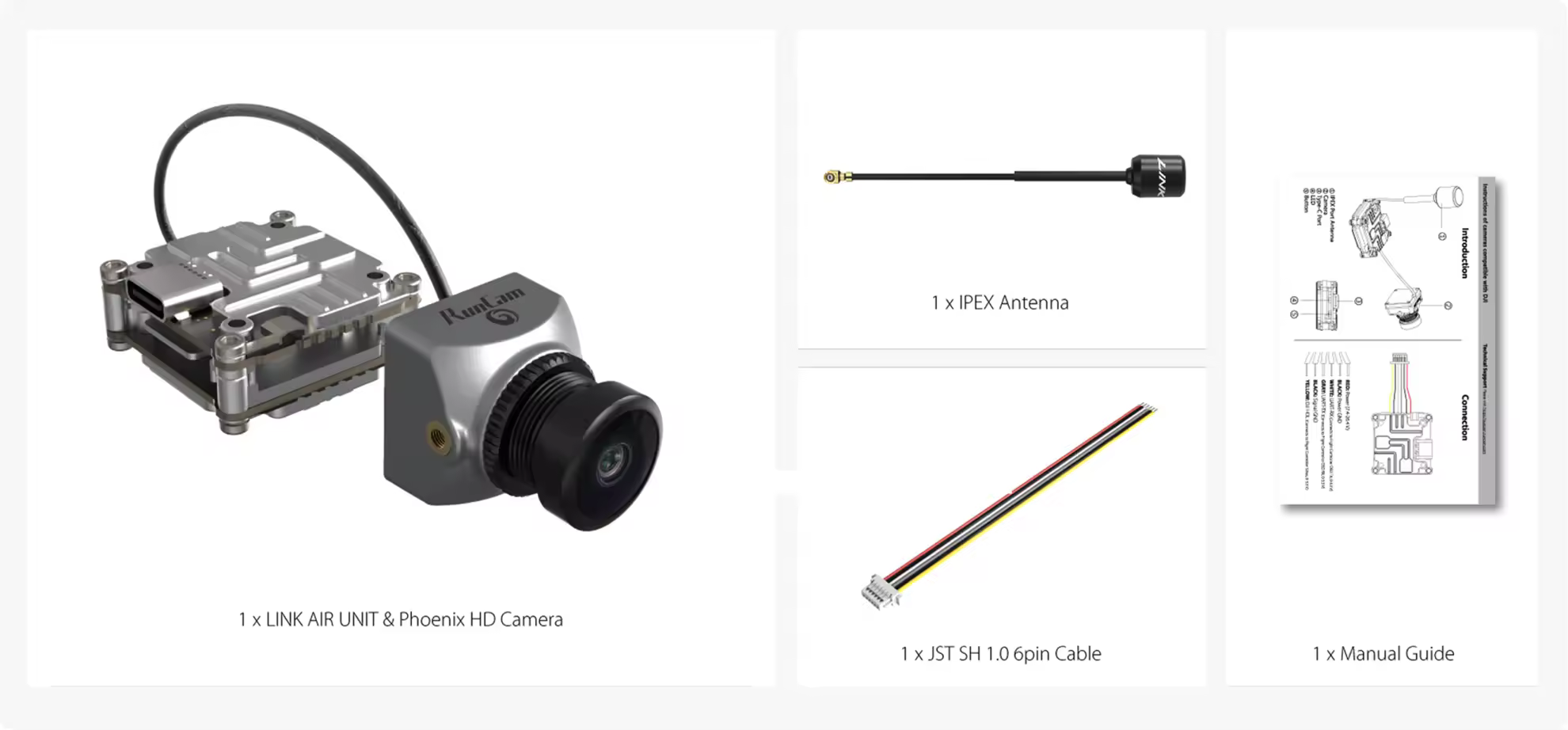

Package Included

Runcam Link Phoenix Hd Fpv Camera Kit Package

Size Chart

Runcam Link Phoenix Hd Fpv Camera Kit Size

Reviews (9)

E**********d

The RunCam Link Phoenix HD FPV Camera Kit is a well-made product that delivers on its promises. The low-light performance is outstanding, and the transmission range is impressive. The customer service team was also very helpful.
Model：RunCam Link Phoenix HD Kit
Q********x

As an FPV enthusiast, I appreciate the low-latency and long-range capabilities of this camera kit. The 5.8 GHz signal is strong, and the 4 km range is more than enough for my needs. The customer service is also top-notch.
Model：RunCam Link Phoenix HD Kit
Y********f

I'm very satisfied with the performance of this FPV camera kit. The image quality is great, and the transmission is smooth with minimal latency. The ability to support 8 drones flying simultaneously is a huge plus. Excellent product!
Model：RunCam Link Phoenix HD Kit
