RCINPOWER SmooX 1507 Plus FPV Motor 2680KV/3800KV/4200KV for 3" Ducted & Lightweight

1507 High Torque Stator Upgrade

Upgraded from 1506 to a larger 1507 stator, significantly improving magnetic efficiency and torque output.
Supports stronger thrust demand for 3-inch ducted high-speed drones and lightweight 5-inch freestyle platforms.

Reinforced Integrated Rotor Structure

Adopts a newly designed one-piece high-strength rotor, improving structural rigidity and impact resistance.
Ensures stable performance even under high RPM and aggressive freestyle flight conditions.

260°C Military-Grade Copper Winding

Built with single-crystal oxygen-free copper thick wire winding rated for high temperature operation.
Enhances thermal resistance and ensures stable power output under continuous high load, reducing risk of overheating or burnout.

Optimized Vibration Control System

Precision dynamic balancing combined with improved damping structure significantly reduces vibration.
Results in smoother flight performance, improved gyro stability, and extended bearing lifespan.

Precision KV Tuning & Linear Throttle Response

Available in multiple KV options (2680 / 3800 / 4200KV), optimized for different flight styles.
Maintains the signature SmooX ultra-smooth and linear throttle feel, delivering precise and predictable control.

Buying Guide: RCINPOWER SMOOX 1507 PLUS FPV Motor

Is the RCINPOWER SMOOX 1507 PLUS Worth Buying?

Choosing the right motor is essential when building a lightweight FPV drone. The motor size affects acceleration, efficiency, flight characteristics, and the overall feeling of your drone.

The RCINPOWER SMOOX 1507 PLUS FPV Motor is designed for pilots who need a compact motor with a good balance of power, efficiency, and responsive control. Its 1507 motor size makes it suitable for small FPV builds where weight saving and smooth performance are important.

Compared with smaller lightweight motors, the SMOOX 1507 PLUS provides stronger torque and improved handling for compact freestyle and cinematic FPV drones. It is a great choice for pilots looking for reliable performance in a lightweight setup.

This guide explains who should choose the RCINPOWER SMOOX 1507 PLUS, how it compares with other small FPV motors, and what type of builds can benefit from this motor.

Three KV Options for Different Builds

       The RCINPOWER SmooX 1507 Plus is available in 2680KV, 3800KV, and 4200KV versions. This gives pilots more flexibility when matching the motor to their preferred battery and flying style.

       ●  2680KV — A lower-KV option suited to efficiency-focused and longer-flight setups.

       ●  3800KV — A balanced option for pilots looking for a combination of response and efficiency.

       ●  4200KV — A higher-KV option for pilots who prefer a more responsive setup.

       The motor supports a wide 3–6S voltage range, giving pilots additional flexibility when building their FPV setup.

Which KV Should You Choose?

What Builds Is the SmooX 1507 Plus Best For?

       The product is specifically positioned for 3-inch ducted drones and lightweight 5-inch freestyle platforms. Its 1507 stator, low 16.8g weight, and multiple KV options allow pilots to configure the motor around different build requirements.

       Choose the SmooX 1507 Plus if you need:

       ●  A lightweight 1507-class motor

       ●  Stronger torque than a smaller 1506 motor

       ●  Smooth and linear throttle response

       ●  Multiple KV choices from 2680KV to 4200KV

       ●  A motor suitable for both 3-inch ducted and lightweight 5-inch freestyle applications

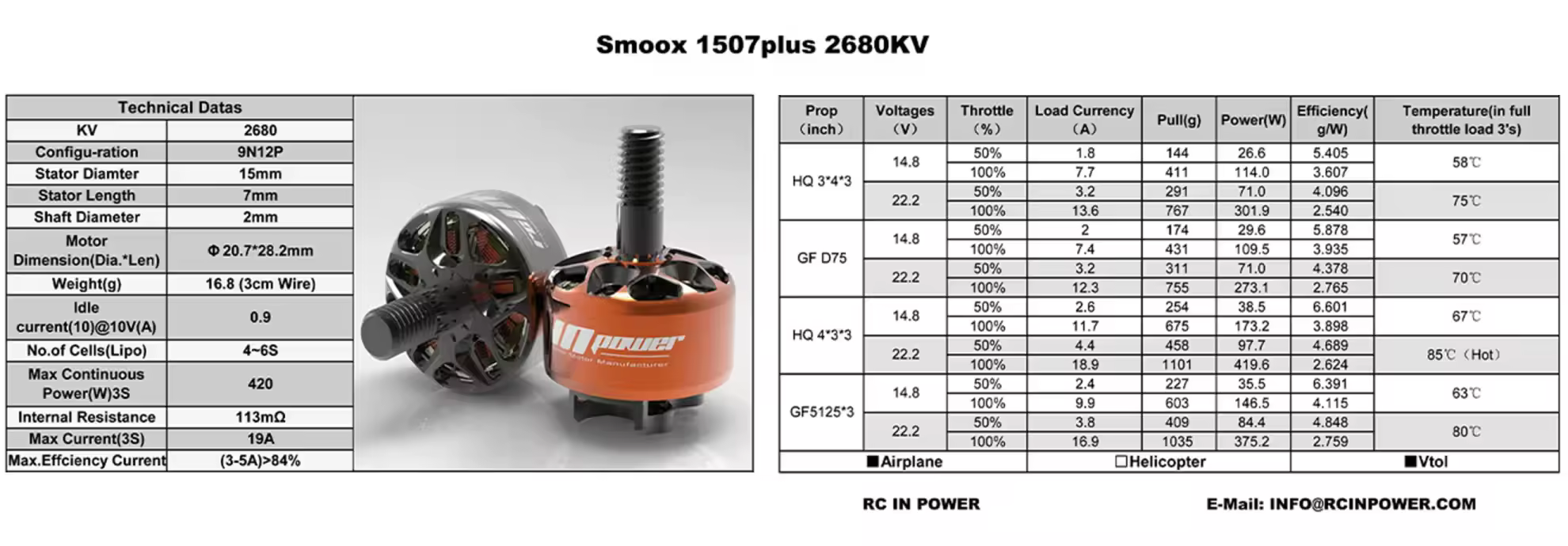

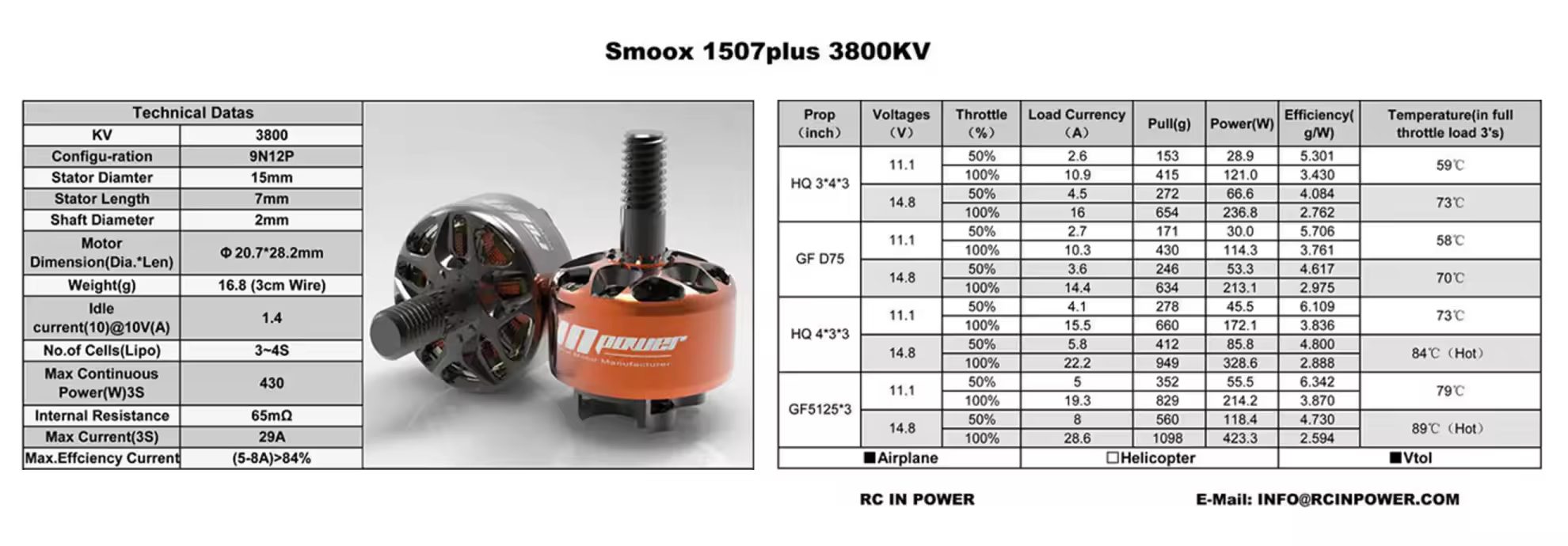

RCINPOWER SmooX 1507 Plus Specifications

Final Recommendation: Is the SmooX 1507 Plus Right for You?

       The RCINPOWER SmooX 1507 Plus is a strong choice for pilots who want a lightweight 1507 motor without giving up torque, control, or durability.

       Its 15×7mm stator, 16.8g weight, 9N12P configuration, reinforced rotor structure, high-temperature copper winding, and optimized vibration control make it a well-rounded option for compact FPV builds.

       The three available KV options also make it easier to select a motor according to your desired flight characteristics. Whether your priority is efficiency, balanced performance, or a more responsive setup, the SmooX 1507 Plus provides a flexible motor platform.

       For pilots building a 3-inch ducted FPV drone or a lightweight 5-inch freestyle platform, the RCINPOWER SmooX 1507 Plus is worth considering when low weight, smooth throttle control, and reliable high-load performance are important.

Recommendation Parts：

● T-HOBBY F7 35A/45A Aio For Cinewhoop Toothpick

● iFlight Skyviz Analog FPV Goggles with Dual OLED & Built-in Receiver

● RadioMaster TX15 Max Radio Controller

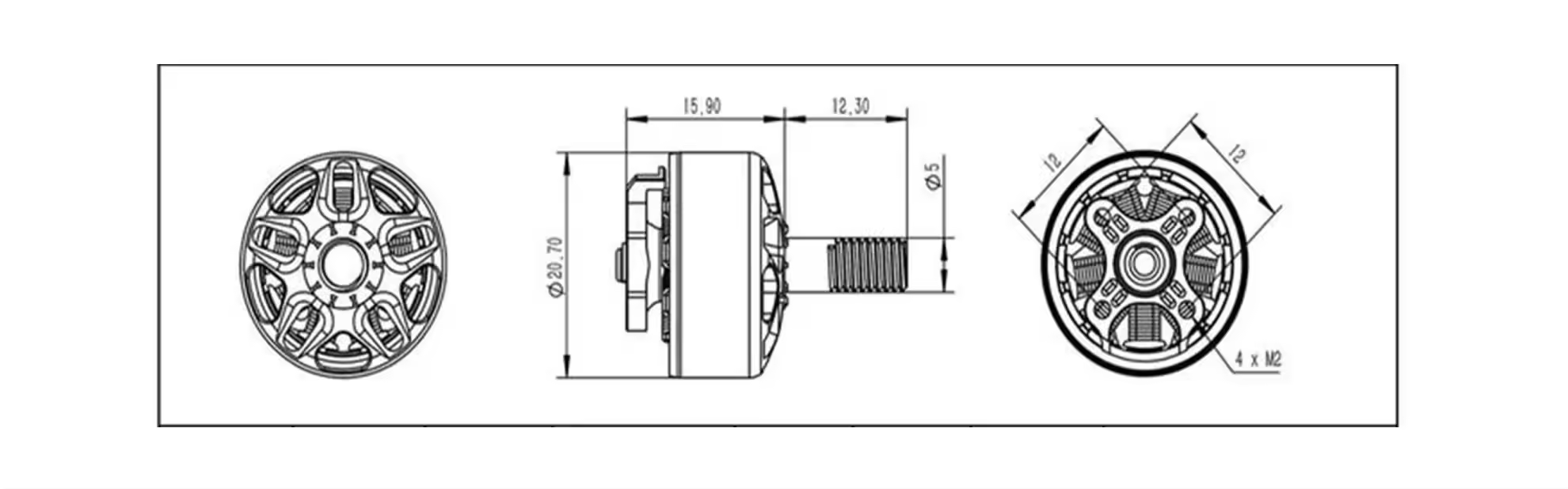

Chart Size

Recommendations:

Includes

● 1 x RCINPOWER Smoox Plus 1507 3800KV FPV Drone Motor
