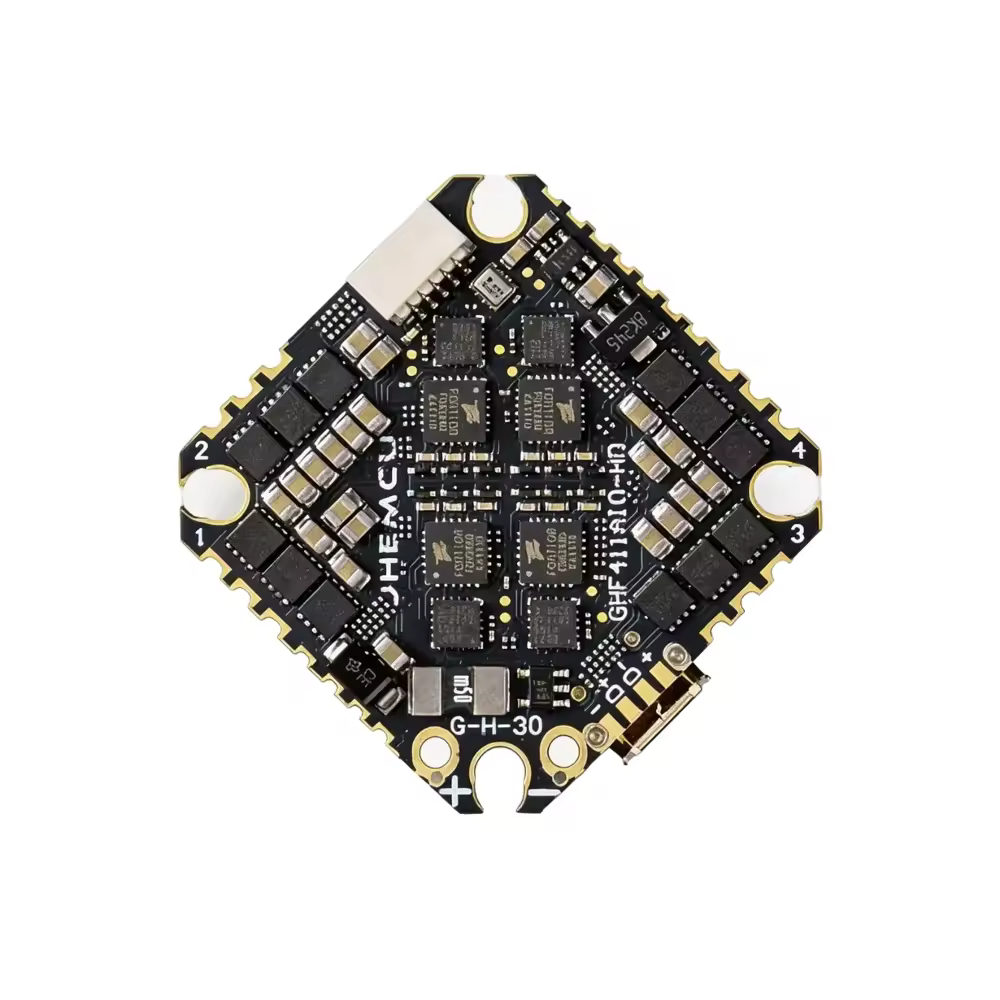

JHEMCU Updated GHF411-HD AIO Flight Controller F4 & 40A Bluejay 4in1 ESC
About GHF411-HD AIO Flight Controller:
This is the Updated HD version of JHEMCU GHF411 AIO Flight Controller with higher 40A rating and 6S capability! GHF411AIO-HD uses STM32F411+ICM-42688-P gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, OSD module, barometer, and black box. The brushless electrical adjustment part adopts BLHELI-S 8-bit MCU with built-in TVS module, eliminating the need for external welding of TVS module.
Check out our GHF411 AIO, all FPV Flight Controller Collection and the rest of our JHEMCU Products!
Features:
● Higher 40A Rating and 6S Capability
● Stable Flight Performance
● Integrated BEC and OSD
● BLHELI-S 8-bit MCU
● Built-in TVS Module
Specifications:
● Model: GHF411AIO-HD
● MCU: STM32F411/100MHZ
● IMU: ICM-42688-P/Gyro/Accel
● OSD: AT7456E
● Baro: YES
● Blackbox: 16MB
● Input voltage: 3S-6S(11.5V-26V)
● 5V-BEC: 5V/2.5A ±0.1V
● 10V-BEC: 10V/2A ±0.1V
● Receiver: ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
● GPS: YES
● Compass: YES
● HD O3: YES
● USART: UART1,UART2,Softserial
● IIC: IIC1
● Led_Strip: YES
● Buzzer: 5V
● USB: Micro USB
● Current port: YES
● Voltage sensor: YES
● DFU button: YES
● FC Firmware: betaflight_4.4.2 JHEF411HD.HEX
● Size: 33*33MM
● Mounting Hole: 25.5*25.5*3MM / 26.5*26.5*3MM
● Weight: 7.6g
● Model: ESC
● ESC Current: 40A
● ESC MCU: EFM8BB21
● ESC TYPE: Blheli_S
● ESC Firmware: G_H_30_48_v0.19.2.HEX（bluejay）
● ESC signal: Dshot150，Dshot300，Dshot60
Product recommendation:
Package included:
● 1* JHEMCU Updated GHF411-HD AIO
