SpeedyBee 2306.5-1800KV Motor Master 5V2 5 inch FPV

About SpeedyBee 2306.5 Brushless Motor:

The SpeedyBee 2306.5 1800KV motor is a high-performance brushless motor designed for FPV drones, offering a balance of power, efficiency, and durability. Its specifications make it suitable for both 3.5-inch and 5-inch drone builds, providing smooth and responsive flight characteristics.

SpeedyBee
$30 Off Orders $499+
$15 Off Orders $249+
Collect
$ 17.99 $24.90
-28%
5 | 187Sold
Options (1)
fall into big savings pc gift
In Stock Expected ship within 5 days after order.
FedEx
USPS
  • Free Shipping Over $79 | Save on Orders $79+
  • 24-Month Warranty | 2 Years Full Protection
  • 30-Day Returns From Shipment | 7-Day No-Reason Returns
  • 24h Support Response | 24h Fast Support Guarantee
Top highlights
  • High Power Output – 721W burst power and smooth throttle for aggressive freestyle or racing.
  • Durable 4mm Shaft – Survives hard crashes, perfect for demanding FPV flights.
  • Optimized for 6S – Efficient KV rating for extended flight time and top-end control.
  • Dual Frame Support – Ideal for both 3.5" and 5" builds, offering build flexibility.
  • Low Vibration Design – 12N14P configuration ensures smooth, stable footage.
Payment | Every order you place with us is safe & secure
Share

High Power Output

Delivers up to 721.97W of power with a maximum current of 30.76A, ensuring robust performance for demanding maneuvers.

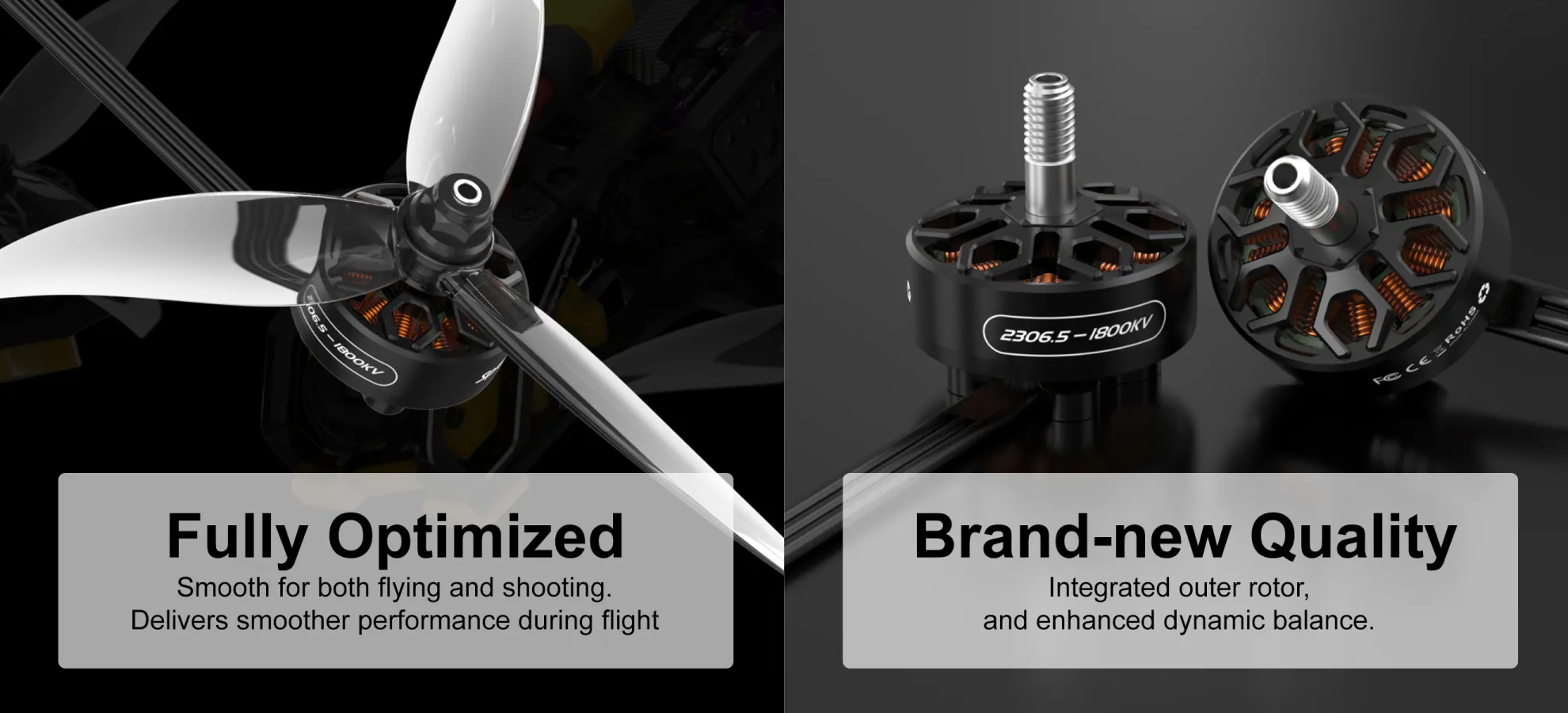

SpeedyBee 2306.5 motor

Durable Construction

Features a 4mm shaft and high-quality materials, enhancing durability and resistance to crashes.

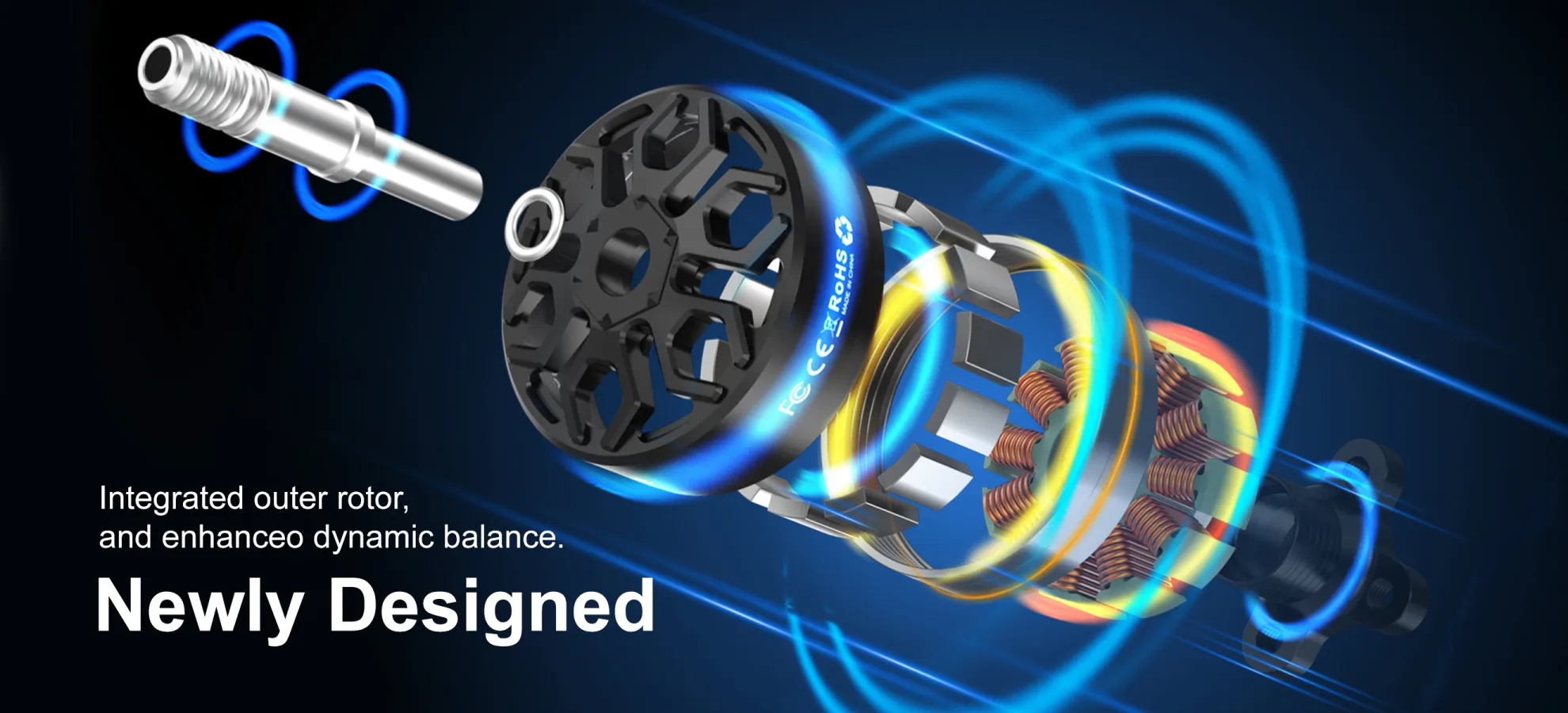

SpeedyBee 2306.5 newly designed

Versatile Compatibility

Suitable for both 3.5-inch and 5-inch FPV drones, offering flexibility in drone builds.

motor SpeedyBee 2306.5

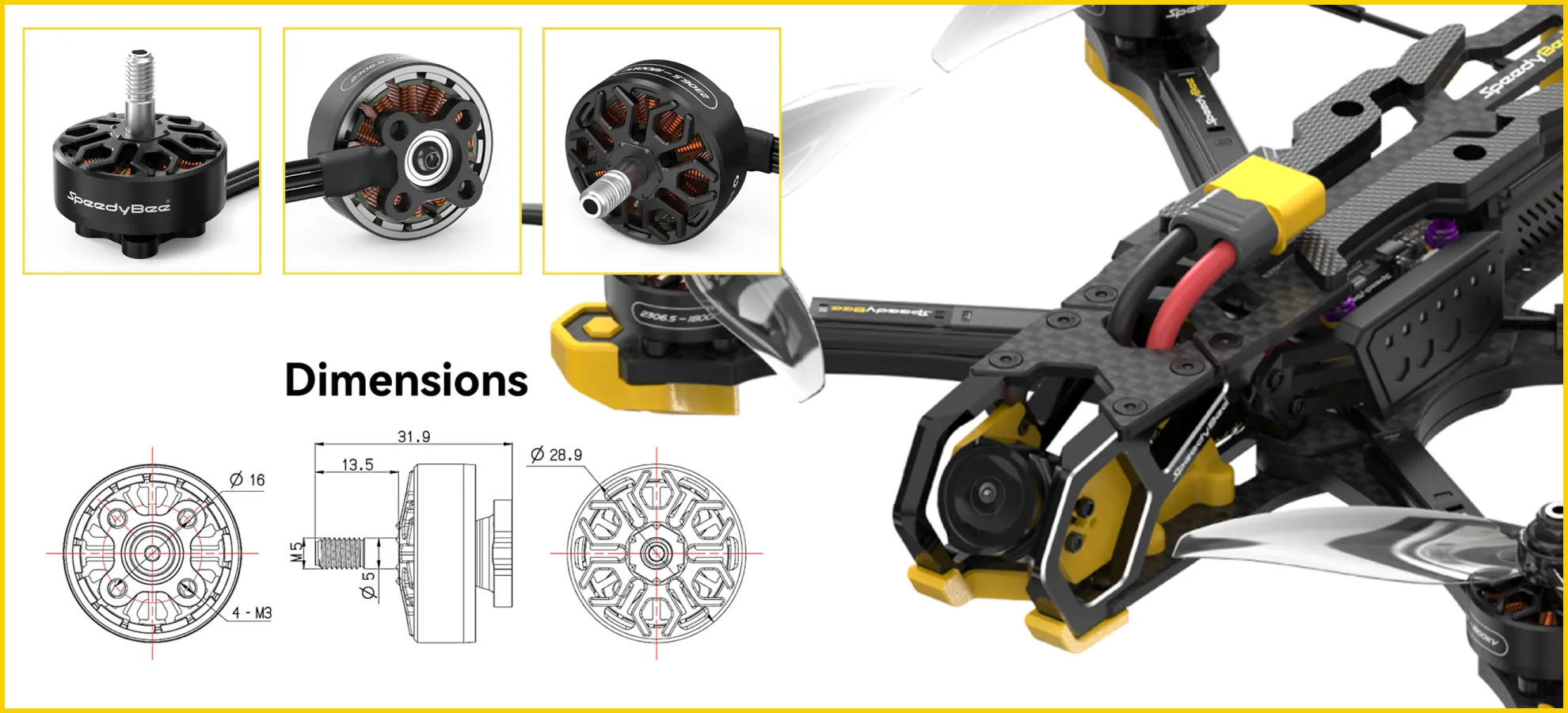

Size Chart

SpeedyBee 2306.5 size

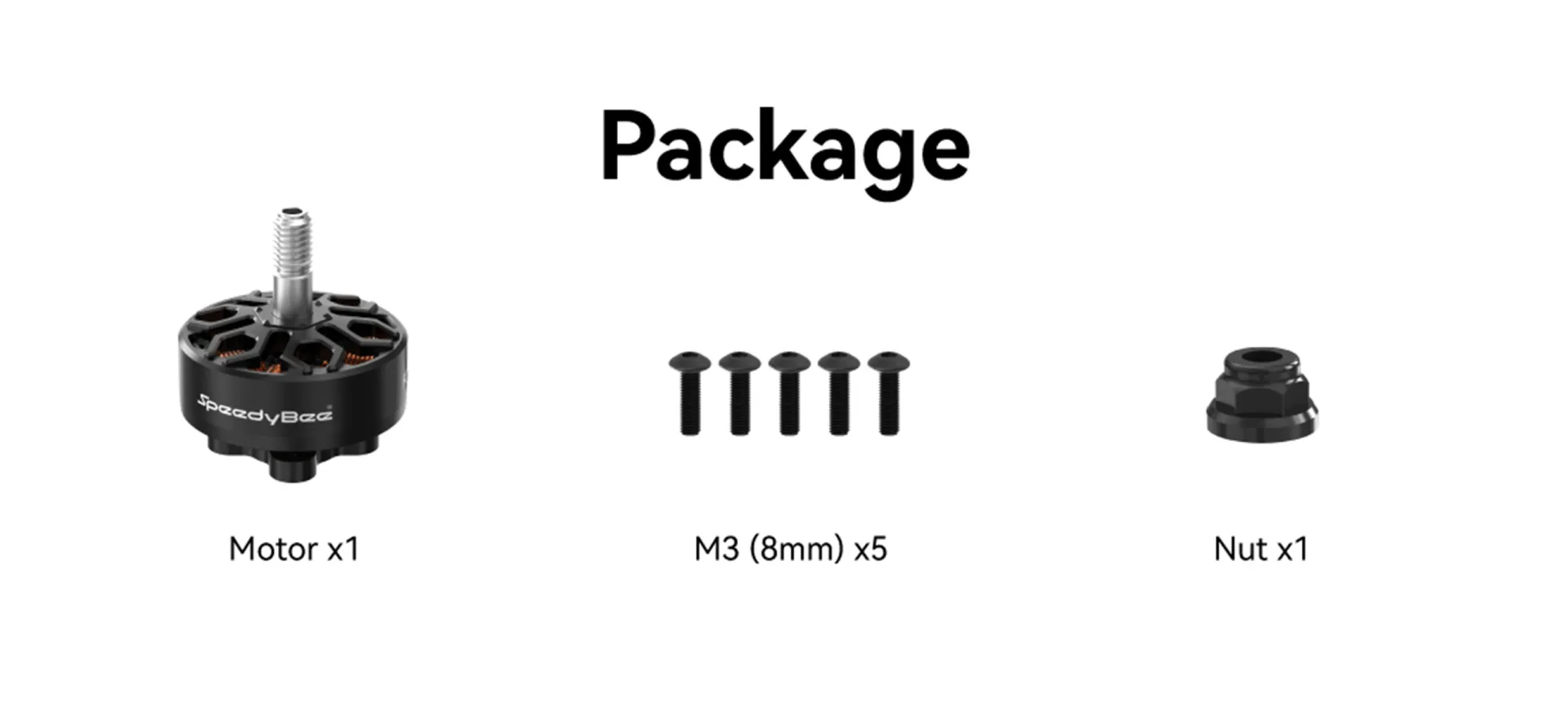

Package Included

SpeedyBee 2306.5 package

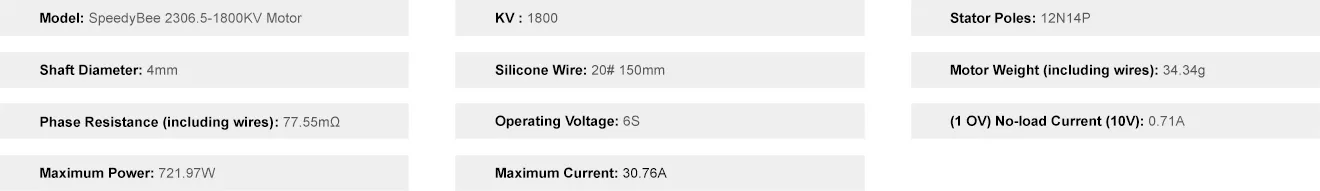

Specifications

SpeedyBee 2306.5 data

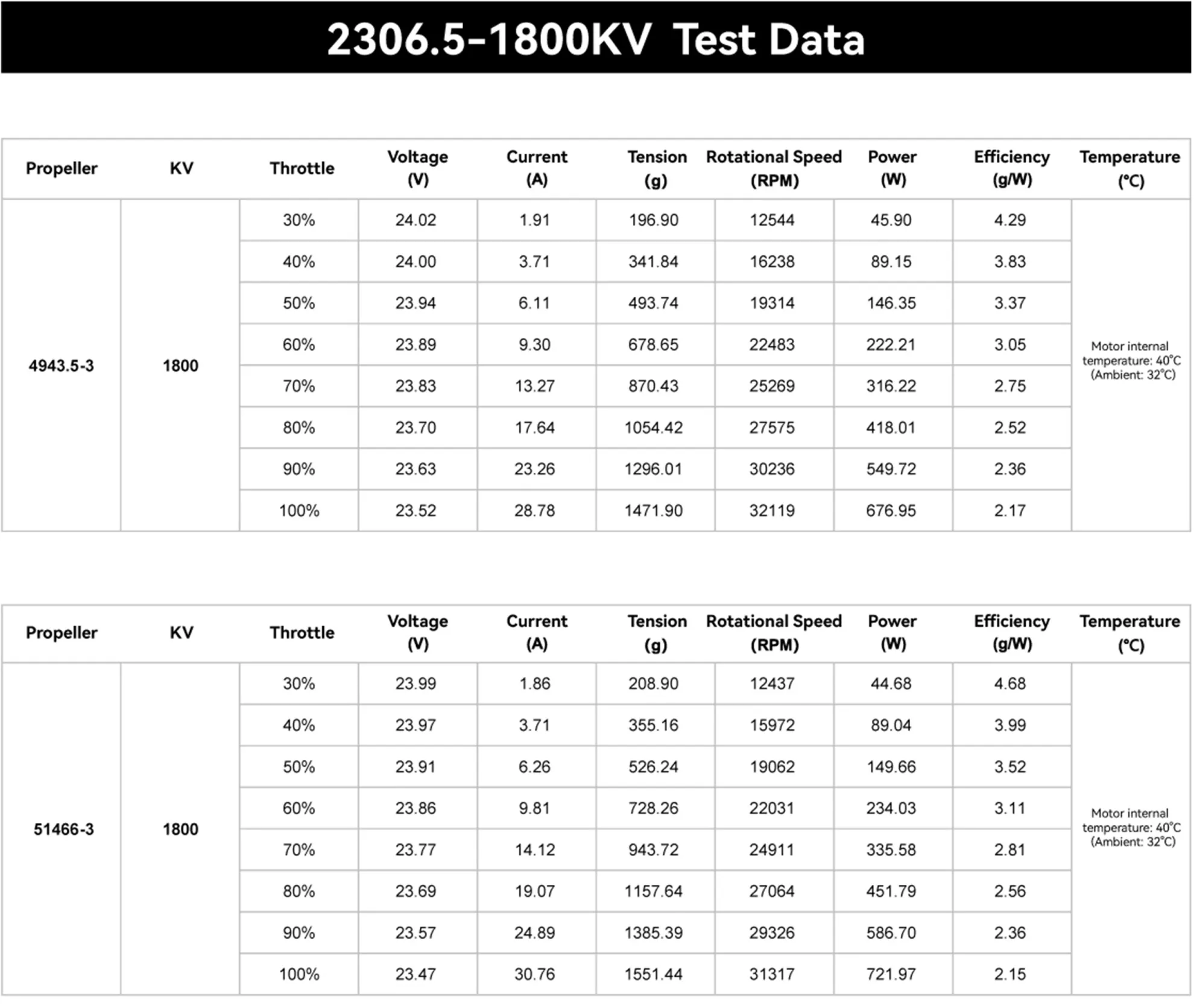

Data Test

SpeedyBee 2306.5 text data

Recommendations

Reviews
  • F******.
    Verified

    Nutze die Motoren auf meinem leichten 4-Zoll Freestyle-Rig. Die Power ist direkt da, kein Durchdrehen, keine Hitzeprobleme. Selbst bei Vollgasflug bleibt alles stabil. Super verarbeitet, und sie sehen richtig cool aus mit dem offenen Bell-Design.

    Model：1800KV
  • Y***********a
    Verified

    Running these on my cinewhoop, they’re remarkably smooth and vibration-free—even with GoPro Hero10 mounted. Flight times extended by 10–15 %. Build quality is high, and the bell feels solid. I’ll order another set for my backup frame.

    Model：1800KV
    Purchased 2 times
  • E**********n
    Verified

    I installed these on a 5″ freestyle quad with 6S battery. The SpeedyBee 2306.5 deliver solid punch and reliable mid-throttle control. They’re a bit heavier than my old 2207’s, but the increased torque is worth it—my flips are more responsive now.

    Model：1800KV
  • F**********k
    Verified

    Smooth throttle control, plenty of punch when needed, and they stayed cool even after several full-throttle packs.

    Model：1800KV
    Purchased 2 times
FAQ Feel free to ask us any questions
Q: Can this motor be used with 3.5-inch and 5-inch drones?
Q: What battery is best for this motor?
Q: Is this motor suitable for freestyle or racing?
Q: Does it come with mounting hardware?
