iFlight BLITZ Mini ATF435 Stack with E55S Mini 4in1 ESC Real-World Test & Complete Build Guide
Real-World Flight Test & Hands-On Pilot Feedback

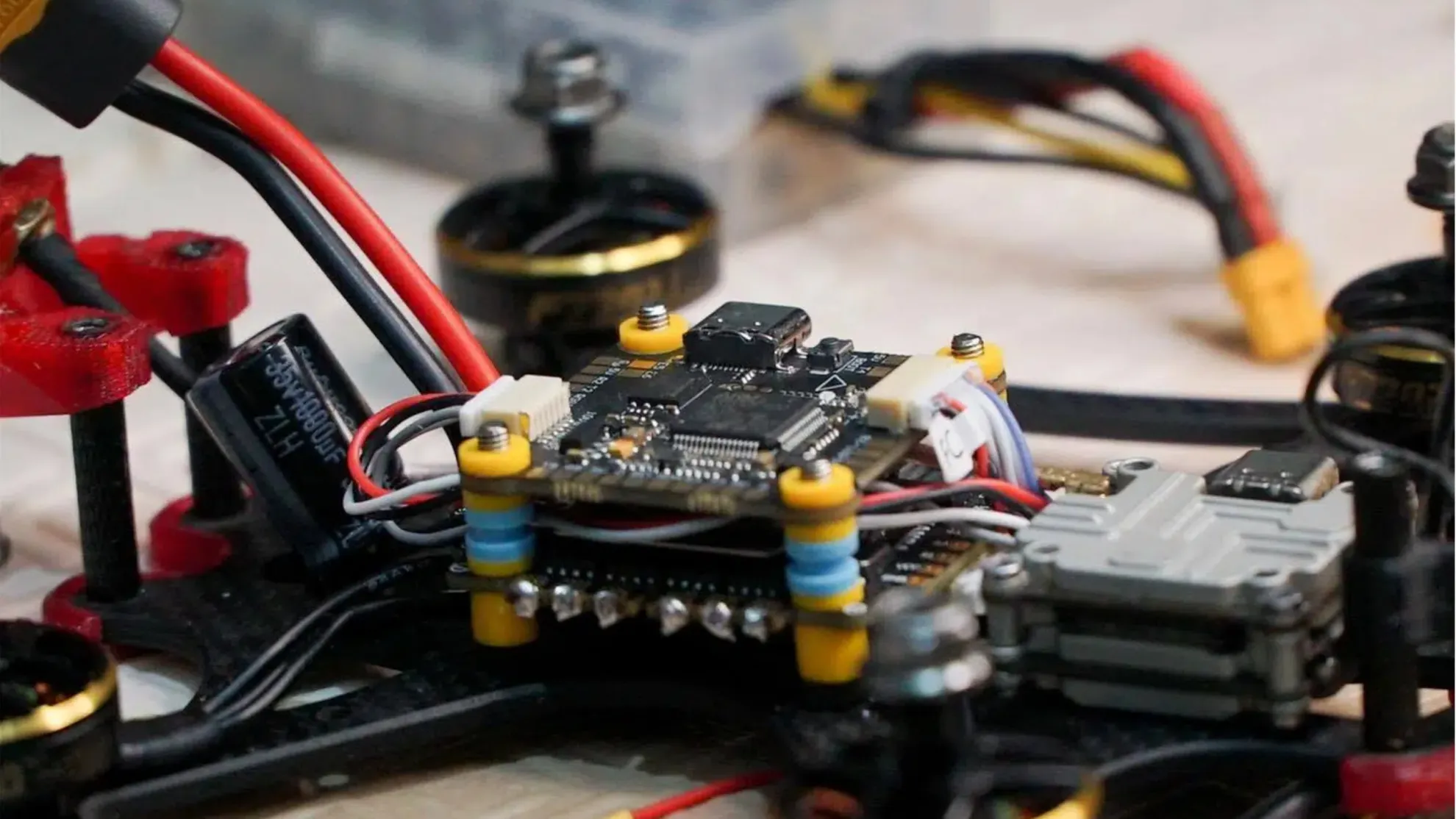

I have collected abundant flight test footage from overseas FPV creators and real feedback from numerous pilots to fully evaluate the iFlight BLITZ Mini ATF435 Stack with E55S Mini 4in1 ESC. This compact 20×20mm flight stack adopts the AT32F435 flight controller instead of traditional STM32 chips, paired with E55S Mini 55A four-in-one ESC, designed for lightweight 3/4/5-inch Cinewhoop and tiny racing drones.
Side-by-side flight tests prove that the AT32F435 platform delivers nearly equivalent response performance at a more competitive cost. It stably runs 8K loop frequency and supports DShot600 protocol, without signal jitter during aggressive throttle manipulation and continuous curved racing maneuvers. The E55S Mini ESC comes pre-flashed with Bluejay firmware out of factory, bidirectional DShot telemetry works directly without manual flashing. Compared with old BLHeli_S ESCs, it provides smoother throttle linearity during low-speed hovering and tight technical freestyle movements.

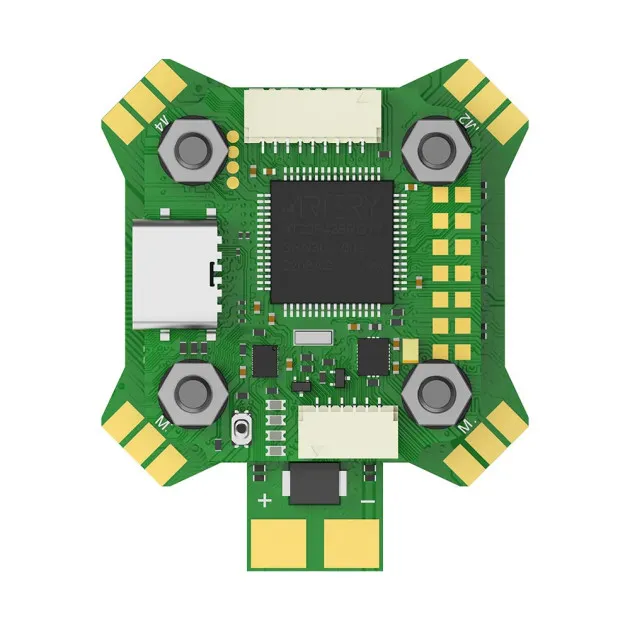

The flight controller is equipped with BMI270 high-precision gyroscope and DPS310 barometer. Clean raw sensor data greatly reduces PID tuning difficulty. Multiple pilots mentioned one noticeable detail: the built-in current sensor value will slightly drift with battery voltage. You need to fine-tune relevant parameters inside Betaflight to achieve accurate current reading. The integrated direct interface for DJI HD VTX simplifies wiring layout for compact narrow-frame aircraft.
Applicable Scenarios & Full Hardware Compatibility
Featuring compact 20×20mm mounting holes, this flight stack fits most narrow-body compact FPV frames, satisfying four core groups of pilots and compatible with various FPV power components sold at MEPSKING:
● 3/3.5-inch Tiny Racing Pilots: Ultra-lightweight design reduces overall aircraft weight, bringing faster acceleration and more flexible gate maneuvering.
● 4/5-inch Slim Cinewhoop Builders: Reserved dedicated HD digital VTX direct plug port, keep internal wiring neat and orderly.
● Budget-Focused Freestyle Pilots: AT32 solution controls hardware cost while maintaining high loop frequency flight performance.
● New Custom Build Enthusiasts: 6 independent UART ports, support simultaneous connection of GPS, ELRS receiver, digital or analog VTX.
To match suitable power motors for this stack, browse all FPV motors available in our store.
Voltage & Power Configuration Reference Guide
Refer to the matching suggestions below based on battery cell count, frame size and flight style. New pilots can avoid power mismatch and overheating issues:
| Supported Battery | Compatible Frame | Flight Purpose |
|---|
| 2S - 3S | 3/3.5-inch Tiny Drone | Indoor lightweight racing, casual freestyle flight |
| 4S - 6S | 4/5-inch Cinewhoop / Racing Quad | Outdoor high-speed racing, intensive technical freestyle |
MEPSKING Product Comparison: Mini ATF435 Stack vs Similar Flight Stacks
If you are selecting integrated flight stacks sold in our store, this comparison table sorts out product positioning to help you make faster purchasing decisions:
| Stack Model | Core Strengths | Best For |
|---|
| BLITZ Mini ATF435 Stack | 20×20 compact mounting, lighter weight, built-in DJI HD VTX direct port, AT32 high frequency FC, Bluejay ESC firmware | 3~5-inch narrow-frame Cinewhoop, tiny compact racing drones |
| Standard BLITZ ATF435 Stack | 30.5mm standard hole spacing, larger blackbox storage area, enhanced heat dissipation surface | Standard 5-inch freestyle quads, medium-long range drones with sufficient internal space |
| MEPS NEONCORE F405 Stack | STM32 F4 flight controller, conformal coating, 60A high current ESC, factory pre-tuned PID | General 5-inch freestyle & cinematic drone builders pursuing stable protection |
Installation Guide & Common Pitfalls to Avoid
1. Check motor rotation direction inside Betaflight after wiring, incorrect rotation will cause unstable hovering.
2. The onboard 5V 2.5A BEC cannot supply high-power HD VTX. Use external BEC for high-power peripherals.
3. Calibrate current sensor offset value in Betaflight to fix voltage-related current reading deviation.
4. Select firmware target IFLIGHT_BLITZ_ATF435 during flashing to ensure all hardware functions work normally.
5. The widened pre-tinned solder pads effectively reduce risks of cold solder joints and short circuits for novice builders.
Final Purchase Recommendation
Choose the iFlight BLITZ Mini ATF435 Stack with E55S Mini 4in1 ESC if you are building compact 3–5-inch Cinewhoop or tiny racing drones. The 20×20mm mini footprint, high-performance AT32 platform and factory Bluejay ESC firmware balance smooth flight experience and cost efficiency. The dedicated DJI HD VTX direct port greatly simplifies assembly wiring and saves building time.
If you mainly fly standard 5-inch freestyle or long-range drones and require larger blackbox capacity and better heat dissipation, upgrade to the standard full-size ATF435 flight stack. If you need waterproof conformal coating and higher continuous current, check out our MEPS NEONCORE flight stack series.
