Looking for the best 20×20 flight controller stack for your drone build in 2025? You’re in the right place. This article directly compares three of the most popular mini FPV stacks: the MEPS AeroCore 20 F722 Mini 45A, SpeedyBee F405 Mini BLS 35A, and T-Motor Mini F7 + Mini F45A Stack. We’ll break down specs, real-world flight performance, and use-case suitability to help you decide which one is best for your build.
Quick Answer:
- Choose SpeedyBee if you want easy tuning and app integration.
- Pick MEPS AeroCore 20 for high-performance freestyle or racing builds.
- Go with T-Motor if reliability and brand trust are your priorities.
20×20 Flight Controller Stack Comparison Table: Specs at a Glance
| Feature | MEPS AeroCore 20 F722 45A | SpeedyBee F405 Mini 35A | T-Motor Mini F7 + Mini F45 |
| FC Processor | STM32F722 | STM32F405 | STM32F722 |
| ESC Firmware | BLHeli_32 | BLHeli_S | BLHeli_32 |
| ESC Rating | 45A | 35A | 45A |
| Gyro | BMI270 | ICM42688P | MPU6000 |
| Built-in Bluetooth | No | Yes | No |
| DJI Plug-n-Play | Yes | Yes | Yes |
| Price Range | $62.99 | $59.99 | $136.90 |
Individual Reviews
MEPS AeroCore 20 F722 Stack – Best for Performance
Specs & Features:
- FC: STM32F722 high-speed MCU with 96 kHz PWM
- ESC: 45A BLHeli_32 ESC capable of handling 6S input
- Gyro: BMI270
- 20x20mm mounting
- Supports 3–6S LiPo input
- DJI plug-n-play support and lightweight 20×20 form factor
- No Bluetooth

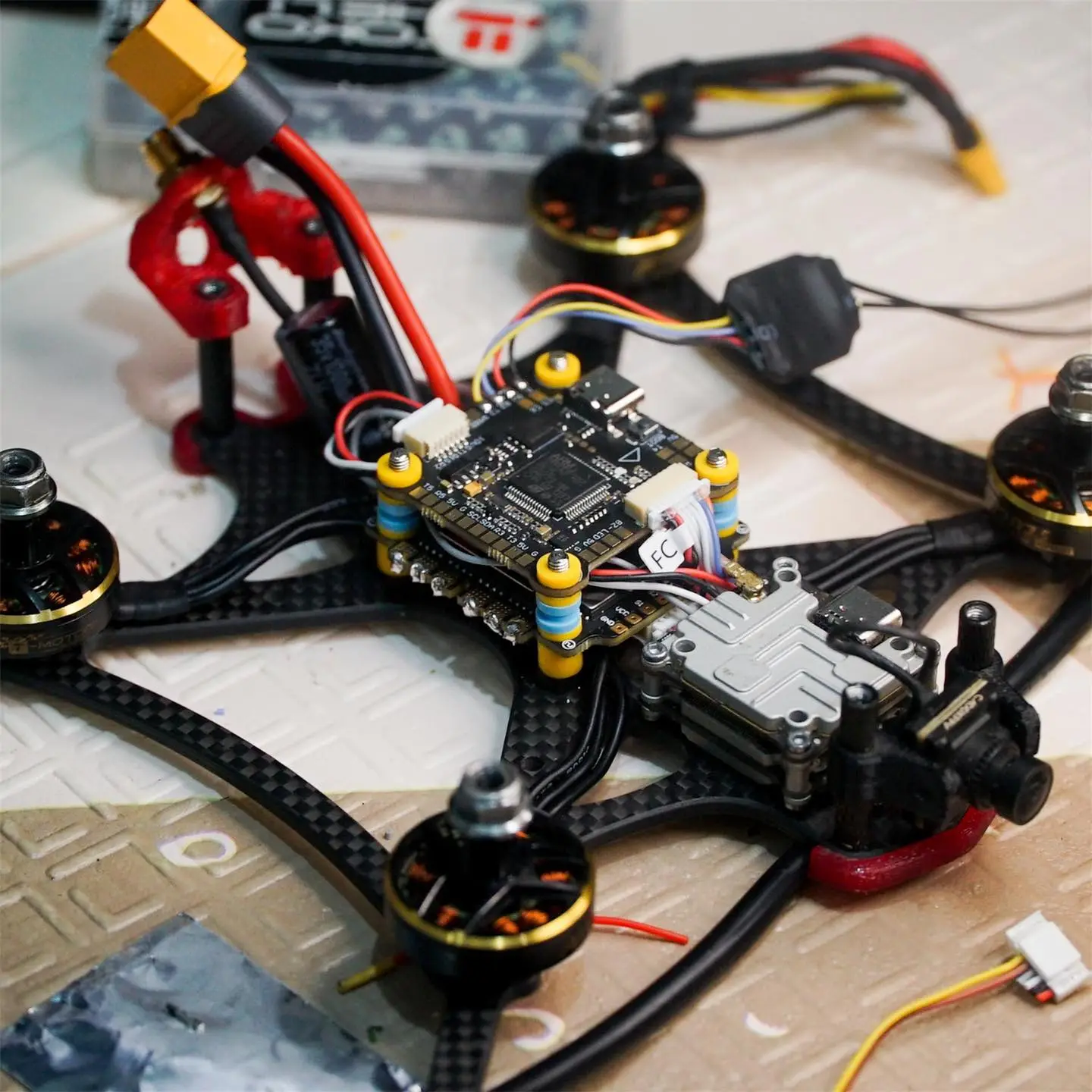

Real Flight Experience: Installed on a 5-inch freestyle quad with a DJI O4 air unit, the MEPS AeroCore 20 stack delivered clean power, ultra-responsive PID loops, and minimal gyro noise. The BLHeli_32 ESC ensured fast throttle response and RPM filtering compatibility.
Pros:
- Strong 45A ESC with excellent heat handling
- Clean signal processing and low-noise gyro
- Great for high-speed maneuvers and freestyle
Cons:
- No Bluetooth — tuning requires a USB cable
- Slightly more advanced to set up than plug-and-play stacks
Ideal For: Experienced builders and freestyle pilots who want precision, clean response, and power.

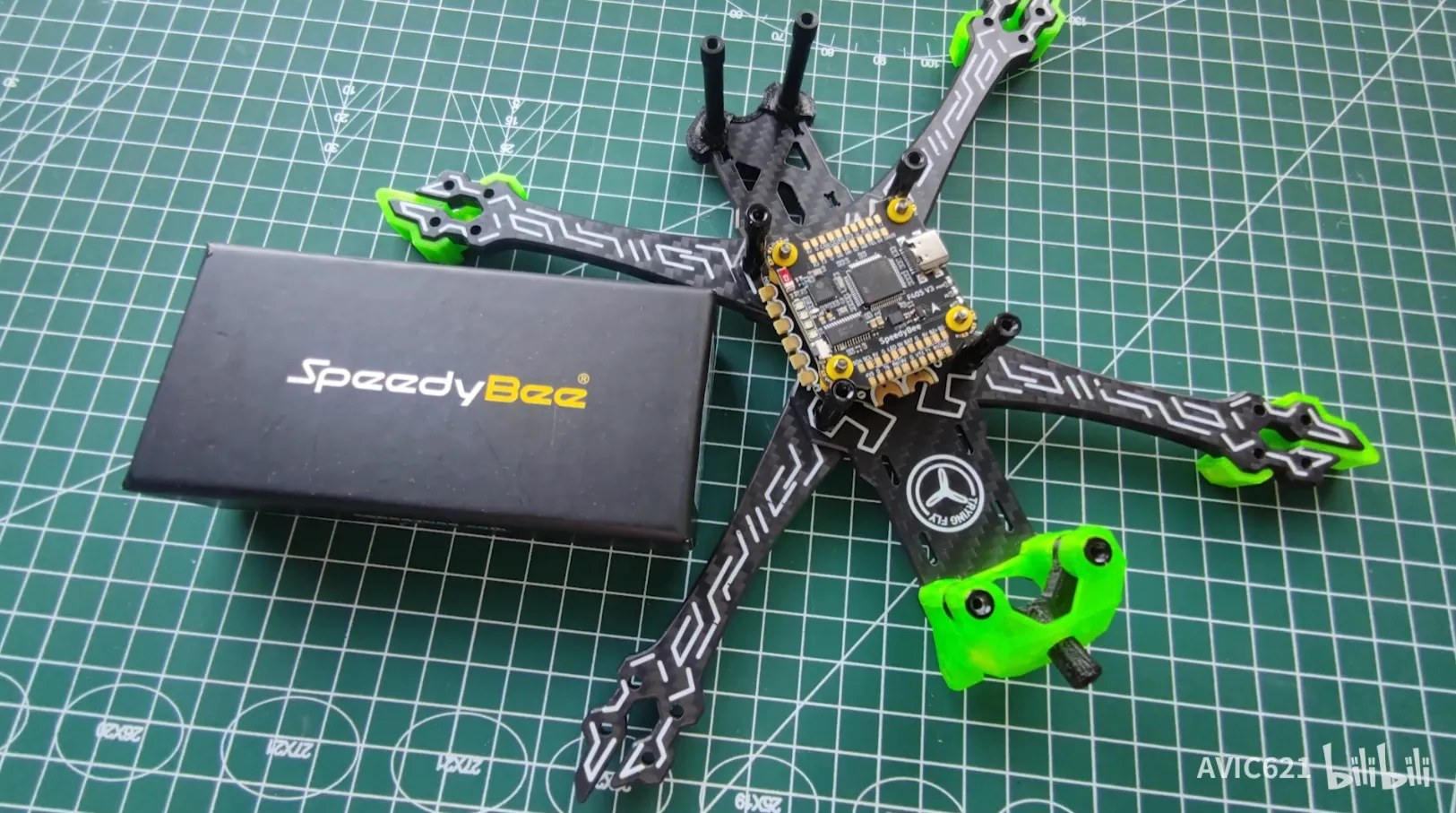

SpeedyBee F405 Mini Stack – Best for Convenience
Specs & Features:
- FC: STM32F405 FC with ICM42688P gyro
- ESC: 35A BLHeli_S ESC with BlueJay firmware
- Gyro: ICM42688P
- Built-in Bluetooth, USB-C port, mobile config via SpeedyBee app
- 20x20mm mounting
- Plug-and-play for DJI
- Real-time Blackbox over the app
Real Flight Experience: Perfect for a lightweight 3-4 inch quad. On a 4S build, SpeedyBee F405 Mini Stack delivered stable performance, and tuning was incredibly fast via the SpeedyBee app. Ideal for on-the-field adjustments without a laptop.
Pros:
- Full mobile tuning via app
- Great documentation and beginner-friendly
- Solid value for money
Cons:
- Only 35A ESC (limits high throttle current)
- No RPM filtering (BLHeli_S limitation)
Ideal For: New pilots, lightweight builds, and those who want easy field tuning.

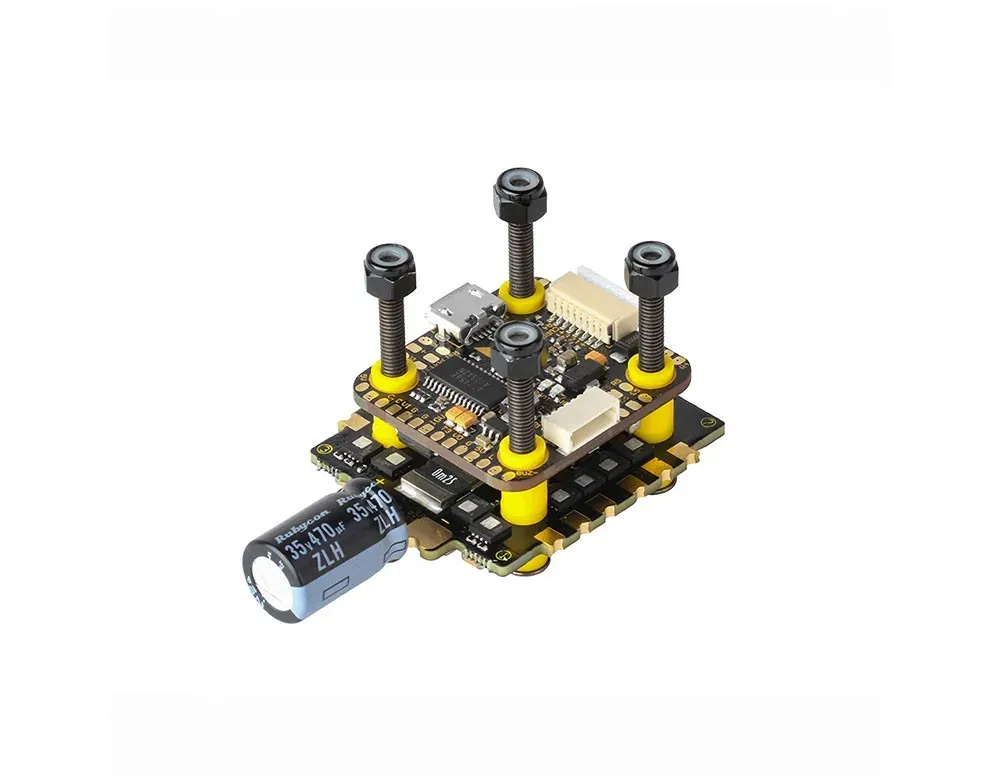

T-Motor Mini F7 + Mini F45A Stack – Best for Reliability
Specs & Features:
- FC: STM32F722 processor
- ESC: 4-in-1 45A BLHeli_32
- Gyro: MPU6000 (highly trusted in the community)
- 20x20mm form factor
- DJI digital system compatibility
- Quality capacitors and components
Real Flight Experience: Paired with T-Motor 2806.5 motors in a 6S long-range rig, the T-Motor Mini stack showed excellent voltage stability and ESC thermal performance. Clean video feed and minimal desyncs during full-throttle climbs.
Pros:
- Top-quality build and components
- Plug-and-play with DJI O3
- Stable flight characteristics
Cons:
- Most expensive of the three
- No Bluetooth or wireless tuning
Ideal For: Pilots who prioritize build quality, long-term reliability, and ready-to-fly performance.
If you want to see more, you can check the collection of flight controller stacks.
Key Differences Between These Stacks
When comparing these three stacks, the differences mainly lie in performance, ease of use, and target user level:
| Feature | MEPS AeroCore 20 | SpeedyBee F405 Mini | T-Motor Mini F7 |
| Performance | ⭐⭐⭐⭐⭐ | ⭐⭐ | ⭐⭐⭐⭐ |
| Ease of Use | ⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐⭐ |
| ESC Current Capacity | 45A(6S safe) | 35A(limited to 4S) | 45A(highly capable) |
| Gyro Quality | BMI270 – good | ICM42688P – great | MPU6000 – legendary |
| Wireless Setup | ❌ | ✅ Bluetooth + App | ❌ |
| Price-to-Performance | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ | ⭐⭐ |
| Best For | Advanced freestyle/race | Beginners/small builds | Reliable plug & fly builds |
Summary of Differences
- MEPS AeroCore 20 offers top-tier performance with a 45A BLHeli_32 ESC but lacks Bluetooth.
- SpeedyBee F405 Mini wins in setup convenience and mobile configurability, though it’s less powerful.
- T-Motor Mini F7 blends strong performance with brand stability but at a premium price.
Stack Selection Guide Based on Drone Type
| Drone Type | Recommended Stack | Reason |
| 3” Toothpick | SpeedyBee F405 Mini | Lightweight + mobile tuning |
| 4” Long-Range | MEPS AeroCore 20 | 6S ready + high-frequency filtering |
| 5” Freestyle | MEPS / T-Motor | Powerful ESC + clean signal |
| Cinewhoop (3-4”) | SpeedyBee / T-Motor | Smooth throttle + reliability |
Expert Tips: What to Consider Before Buying
Mounting Pattern Compatibility
All three stacks follow the 20x20mm mounting pattern, suitable for most modern mini and micro frames.
Firmware Support
- BLHeli_32 (MEPS, T-Motor) offers RPM filtering and future-proofing
- BLHeli_S (SpeedyBee) lacks some advanced filtering, but works well for lightweight quads
Motor Pairing
Estimate the max current draw of your motor and compare it with the ESC rating. For example, a 2306 2450KV motor on 6S can pull over 35A under load—safe for MEPS or T-Motor, risky for SpeedyBee.
Final Verdict – Which Stack Is the Best for You in 2025?
- On a budget or building a 3-4 inch quad? SpeedyBee F405 Mini
- Want clean performance and strong ESC support for 5-inch freestyle? MEPS AeroCore 20 F722
- Prefer out-of-the-box stability and brand trust? T-Motor Mini F7
- Snippet Answer: Choose SpeedyBee for convenience, MEPS AeroCore 20 for raw power, and T-Motor for long-term reliability.
FAQs – FPV Stack Comparison
Is BLHeli_32 better than BLHeli_S for freestyle?
Yes. BLHeli_32 supports RPM filtering and smoother motor control, ideal for freestyle flying.
Can these stacks handle 6S power?
MEPS AeroCore 20 and T-Motor Mini stacks can. SpeedyBee is better suited for 4S builds.
Which stack is the most beginner-friendly?
SpeedyBee F405 Mini, thanks to mobile app tuning and good documentation.
Do these stacks support the DJI O4 Air Unit?
Yes, all three have plug-and-play connectors for DJI digital systems.
How do I know if my ESC supports RPM filtering?
Only stacks with BLHeli_32 (MEPS, T-Motor) support RPM filtering. SpeedyBee with BLHeli_S does not.
