Q: Who is the RadioMaster Boxer Crush M2 suitable for?

A: It is perfect for beginner-to-advanced FPV pilots, especially for freestyle, racing, and long-range flying.

Q: Is the Boxer Crush M2 beginner-friendly? Is it hard to use?

A: Beginners can use it, but there is a learning curve due to the EdgeTX system. Basic setup is easy, while advanced tuning requires time.

Q: What are the advantages of ELRS 2.4GHz on this radio controller?

A: The built-in ExpressLRS system supports up to 1000Hz refresh rate, offering ultra-low latency, strong signal stability, and excellent long-range FPV performance.

Q: What kind of gimbals does the Boxer Crush M2 use?

A: The Boxer Crush M2 is equipped with CNC Aluminum AG01 Hall-effect gimbals, offering high durability, smooth movement, and precise control for serious pilots.

Q: How long does the battery last on the Boxer Crush M2, and does it support fast charging?

A: The oversized battery compartment fits a 2S 6200mAh pack, delivering up to 20 hours of usage time. It also supports QC3.0 fast charging (up to 2.0A) via USB-C for efficient power management.

Q: How is the ergonomics and comfort for long FPV sessions?

A: The compact ergonomic design ensures a comfortable grip, balanced weight, and excellent usability for long flying sessions.

Q: How long is the battery life of the Boxer Crush M2?

A: With a 2S high-capacity battery (up to 6200mAh), it can deliver up to around 20 hours of runtime.

Q: Does it support external RF modules and upgrades?

A: Yes, it features a standard JR module bay, allowing expansion with Crossfire, FrSKY modules, and future upgrades.

Q: How does it compare to smaller radios like the Pocket?

A: The Boxer is larger, more ergonomic, and features full-size gimbals, making it better for precise control and long sessions.

Q: Is it worth upgrading from an entry-level FPV transmitter?

A: Yes, it offers a significant upgrade in control precision, signal reliability, and overall flight experience.

Q: What operating system does the Boxer Crush M2 use?

A: It comes pre-installed with EdgeTX and ExpressLRS firmware, offering powerful customization and advanced features.

Q: How many channels does it support?

A: It supports up to 16 channels, depending on the receiver configuration.

Q: What battery types are supported?

A: It supports 2S LiPo batteries or two 18650 lithium-ion cells (not included).

Q: Does it support fast charging?

A: Yes, it supports QC3.0 fast charging up to approximately 2A for efficient charging.

Q: Does it have a cooling system?

A: Yes, it includes a built-in cooling fan to maintain stable performance during high-power output.

Q: Can it be used with FPV simulators like Liftoff or Velocidrone?

A: Yes, it supports USB connection to PC for simulator training such as Liftoff and Velocidrone.

radiomaster boxer crush radio controller m2 mint mist front

RadioMaster Boxer Crush Radio Controller M2 - ELRS 2.4GHz

About RadioMaster Boxer Crush Radio Controller (M2):

RadioMaster proudly presents the new Boxer Crush! Available in seven stunning colors—' Iron Grey,' 'Frost White,' 'Mint Mist,' 'Hot Pink,' 'Cherry Red,' 'Iceberg Blue,' and 'Lemon Twist Yellow'—each designed to inspire and excite. Equipped with our famous AG01 hall effect gimbals, the Boxer Crush is perfect for those who want to make a bold statement and infuse their flying experience with vibrant color. Stand out and add a touch of personality to your RC adventures with the Boxer Crush from RadioMaster!

Radiomaster

$25 Off Orders $399+

$16 Off Orders $249+

Collect

$ 204.99 ~~$208.99~~

-2%

4.9 | 274Sold

Options (6)

Quantity

Add-ons

Bundle and save up to $2.93 on gear — upgrade your setup for less.

RadioMaster 18650 3200mAh 1S 3.7V Li-ion Battery (2pcs) for TX16S / Boxer / TX12/ Pocket / MT12 Radios
1S 3200mAh
$12.21 Save $0.78
Radiomaster 2S 7.4V 6200mAh Lipo Battery for Boxer TX16S
2S 7.4V 6200mAh Lipo Battery
$40.84 Save $2.15

In Stock Expected ship within 5 days after order.

Free Shipping Over $79 | Save on Orders $79+
24-Month Warranty | 2 Years Full Protection
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

Top highlights

Bold Aesthetic: Stand out with 7 vibrant colors like Hot Pink and Iceberg Blue. Add a unique personality to your professional FPV setup.
AG01 CNC Gimbals: Experience ultra-precise, smooth control with premium aluminum Hall-effect gimbals designed for maximum durability and feel.
1000Hz ExpressLRS: Integrated ELRS module delivers ultra-low latency and top-tier signal stability, perfect for high-speed racing and long-range.
Ergonomic & Portable: Lightweight, compact design with improved grips and a fabric handle ensures comfort for pilots on the move.
20-Hour Battery: Supports up to 6200mAh 2S batteries and QC3.0 fast charging to maximize flight time and minimize downtime.

Payment | Every order you place with us is safe & secure

Check out our Boxer Crush Radio Controllers, all Radio Controllers Collection and the rest of our RadioMaster Products!

RadioMaster Boxer Crush Radio Controller M2 01

Multiple Color Options

Choose from Iron Grey, Frost White, Mint Mist, Hot Pink, Cherry Red, Iceberg Blue, and Lemon Twist Yellow.

RadioMaster Boxer Crush Radio Controller M2 08

Customizable Design & Ergonomic Comfort

Available in seven stylish colors, featuring an industry-first fabric handle and interchangeable ergonomic grips. Compact, ergonomic design ensures comfortable handling and easy portability.

RadioMaster Boxer Crush Radio Controller M2 02

Precision Gimbals & Powerful Performance

Equipped with CNC aluminum AG01 Hall-effect gimbals and a powerful STM32F407 processor (1MB Flash, 192KB RAM). Built-in ExpressLRS module supports up to 1000Hz refresh rate for ultra-responsive and precise control.

RadioMaster Boxer Crush Radio Controller M2 03

RadioMaster Boxer Crush Radio Controller M2 04

Long Battery Life & Fast Charging

Oversized battery compartment fits 2S 6200mAh packs for up to 20 hours of use. Supports QC3.0 fast charging up to 2.0A for quick power-ups.

RadioMaster Boxer Crush Radio Controller M2 05

Modular Expansion & Advanced Cooling

Includes a standard JR module bay and built-in ExpressLRS backpack. Features adjustable, removable T-shape antenna, internal cooling fan, and external module power ports for versatile customization and stable operation.

RadioMaster Boxer Crush Radio Controller M2 06

Smart Storage & Portable Protection

Preinstalled with EdgeTX firmware, redesigned SD card slot with preloaded 512MB card. Features versatile 6-position switches, low-profile buttons, and comes with a signature carry case and gimbal protector for safe transport.

RadioMaster Boxer Crush Radio Controller M2 07

RadioMaster Boxer Crush Radio Controller (M2) Buying Guide

Who Is the RadioMaster Boxer Crush M2 For?

The RadioMaster Boxer Crush M2 is designed for FPV pilots who want a serious radio controller without moving to a larger full-size transmitter. With CNC aluminum AG01 Hall-effect gimbals, built-in ExpressLRS 2.4GHz, EdgeTX, and a compact ergonomic body, it sits between lightweight beginner radios and larger feature-heavy transmitters.

Best For Freestyle Pilots

For freestyle flying, precise stick control matters more than having a large touchscreen or dozens of switches. The Boxer Crush M2's AG01 CNC Hall-effect gimbals provide smooth, precise stick movement, while the compact body is comfortable to hold during longer flying sessions.

A Strong Choice for FPV Racing

The built-in ExpressLRS 2.4GHz system supports high refresh rates, including up to 1000Hz, making the Boxer Crush M2 suitable for pilots who prioritize responsive control and low latency.

Suitable for Long-Range FPV

ELRS 2.4GHz is also a strong option for long-range FPV when paired with a compatible ELRS receiver and an appropriate RF configuration. The radio also supports an external JR-compatible module, giving experienced pilots additional flexibility.

Good for Pilots Who Travel

At 235 × 178 × 77mm and approximately 617g, the Boxer Crush M2 is considerably more compact than a traditional full-size transmitter. Its removable antenna, fabric handle, ergonomic grips, and included carrying case make it easier to take to the field.

Beginner-Friendly, but Built to Grow

The Boxer Crush M2 can be used by beginners, but EdgeTX has a learning curve. New pilots can start with basic model setup and gradually explore more advanced features as their skills develop.

Choose the Boxer Crush M2 if you want:

-Premium AG01 Hall-effect gimbals

-Built-in ELRS 2.4GHz

-A compact but full-featured radio

-EdgeTX flexibility

-Long battery runtime

-A controller suitable for freestyle, racing and long-range FPV

Consider a different radio if you want:

-A large touchscreen and maximum physical controls

-The smallest possible radio for travel

-A lower-cost entry-level transmitter

Boxer Crush M2 vs Pocket Crush vs TX16S MK3

Feature	Boxer Crush M2	Pocket Crush	TX16S MK3
Position	Premium compact	Budget / ultra‑portable	Full‑size flagship
Internal RF	ELRS 2.4GHz	ELRS 2.4GHz	Dual‑band ELRS
Gimbals	AG01 CNC Hall	Hall gimbals	V6 Hall gimbals
Display	128×64 LCD	Compact LCD	5" 800×480 IPS touchscreen
Size	235×178×77mm	Much smaller	Full‑size
Weight	617.1g	Lighter	Larger/heavier
Battery	2S LiPo / 2×18650	2×18650	2S battery
Module Bay	JR	External module support	Modular
Best For	Freestyle / Racing / Long Range	Beginners / Travel	Advanced / Professional
Main Advantage	Gimbals + ergonomics	Price + portability	Features + screen

RadioMaster Boxer Crush M2 Compatibility & Setup Guide

The Boxer Crush M2 uses an internal ExpressLRS 2.4GHz RF system, so the most important compatibility check is the receiver installed on your FPV drone.

What Receivers Are Compatible?

The simplest setup is: Boxer Crush M2 → ELRS 2.4GHz → ELRS 2.4GHz Receiver → Flight Controller

If your drone uses an ELRS 2.4GHz receiver, the Boxer Crush M2 can be used without adding another external transmitter module.

Compatible receiver types commonly include:

-ELRS 2.4GHz Nano receivers

-ELRS 2.4GHz receivers integrated into compatible flight controllers

-Compact ELRS receivers for 5-inch FPV drones

-ELRS receivers used in freestyle and racing builds

-ELRS receivers used in long-range FPV builds

What If My Drone Uses Another Protocol?

The Boxer Crush M2 includes a standard JR-compatible external module bay. This provides additional flexibility for pilots who need a different RF system.

However, the receiver and transmitter must use the same compatible protocol. Before purchasing, check the receiver installed on your drone rather than choosing a radio based only on the drone brand.

Basic ELRS Setup

-Power on the Boxer Crush M2.

-Create or select the appropriate model in EdgeTX.

-Set the RF system to ExpressLRS.

-Bind the transmitter with the compatible ELRS receiver.

-Confirm that the receiver is communicating with the flight controller.

-Check channel mapping and arm/safety settings in Betaflight.

-Perform a range and failsafe check before flying.

Important Compatibility Tip

The drone brand does not automatically determine radio compatibility. A BETAFPV, SpeedyBee, Foxeer or other FPV drone can work with the Boxer Crush M2 if the aircraft uses a compatible ELRS 2.4GHz receiver.

Always verify the receiver protocol and frequency before ordering.

Specifications

● Item: Boxer Crush Radio

● Color: Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow

● Size: 235*178*77mm

● Weight: 617.1g

● Frequency: 2.400GHz-2.480GHz

● Internal RF: ExpressLRS 2.4GHz

● Supported protocols: Module dependent

● Cooling fan: Built-in

● Voltage Range: 6.6-8.4V DC

● Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)

● Channels: Max 16 channels (Receiver dependent)

● Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

● Display: 128*64 Monochrome LCD display

● Gimbal: AG01 CNC Hall Gimbal

● External module: JR / FrSKY / Crossfire compatible

● Upgrade Method: USB / SD card & EdgeTX Companion PC software

Recommendation

● RadioMaster 18650 3200mAh 1S 3.7V Li‑ion Battery (2pcs)

● Radiomaster 2S 7.4V 6200mAh Lipo Battery for Boxer TX16S

EdgeTX Operating System and ExpressLRS RF System Pre-installed

Preinstalled with EdgeTX and ExpressLRS, the BOXER Crush Radio has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

Size Chart

radiomaster boxer crush radio controller m2 size

Recommendations

More expert advice

How to Choose an FPV Radio Controller

Top 5 RadioMaster FPV Controllers in 2026

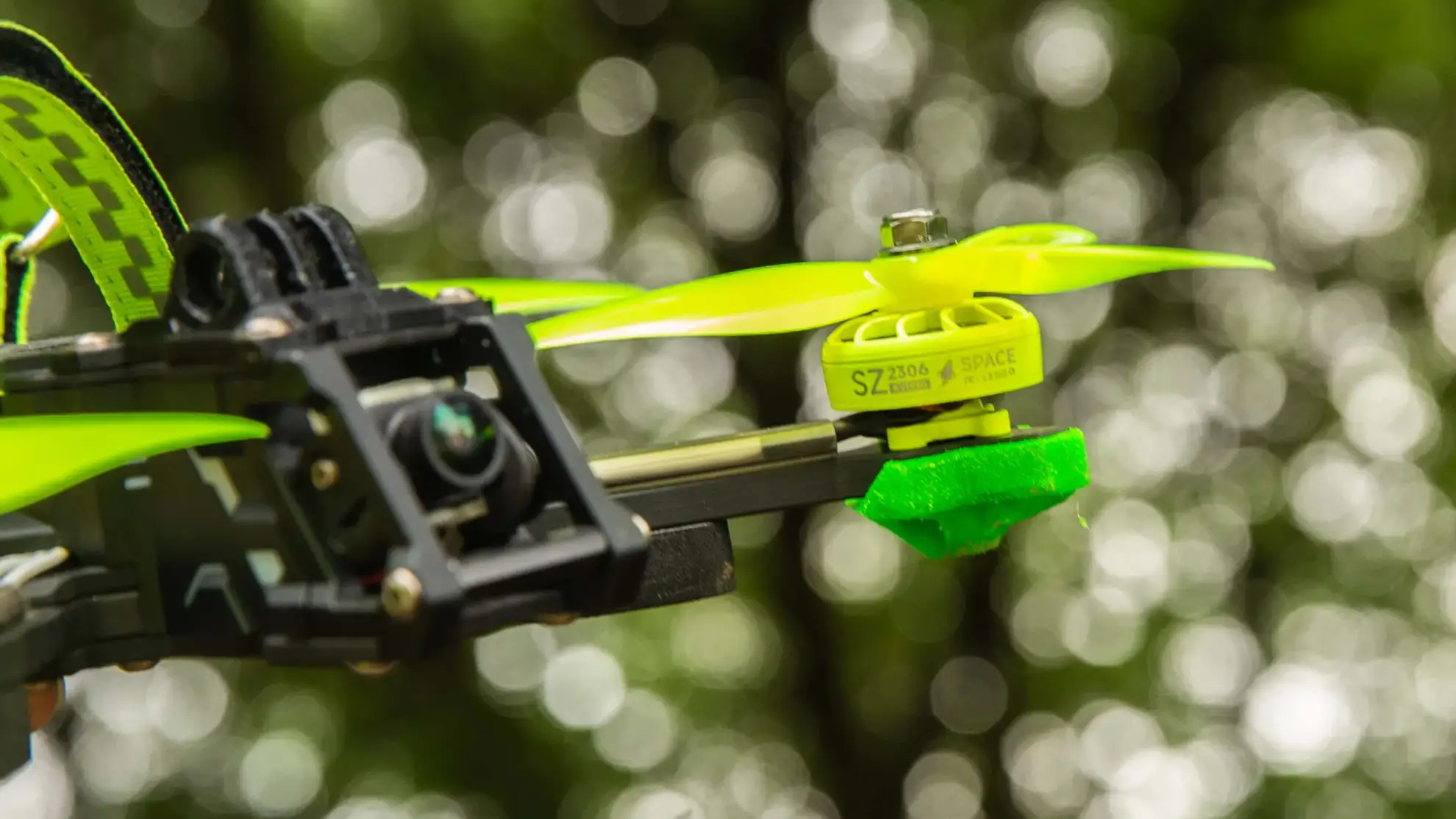

FPV Freestyle Tricks Tutorial
