MEPS SZ1103 FPV Brushless Motor for Whoop Drone 8000KV/11000KV
About MEPS SZ1103 FPV Brushless Motor:
Compact, ultra-smooth, and ultra-quiet, the MEPS SZ1103 FPV brushless motor features a uni-bell design with a sleek aluminum shell weighing only 3.8 grams. The 1103 brushless motor is available in both 8000KV and 1100KV options, suitable for whoop drones, 85-120mm toothpick drones, and tiny whoops. The 1103 tinywhoop motor delivers high explosive power and thrust, reaching up to 246g with 2-inch propellers. Its durable design and robust construction, including a solid stainless steel shaft and NMB bearings, ensure extended motor life and smooth flight at any throttle level. This 1103 1-2S brushless motor caters to a variety of flight needs while maintaining stable performance in a wide range of temperature environments.
In Stock
Expected ship within 48 hours after order.
Estimated Transit Time: 5-15 Days.
Free Shipping Over $99 | Save on Orders $99+
24-Month Warranty | 2 Years Full Protection
7-Day Easy Returns | 7-Day No-Risk Return
24h Support Response | 24h Fast Support Guarantee
Top highlights

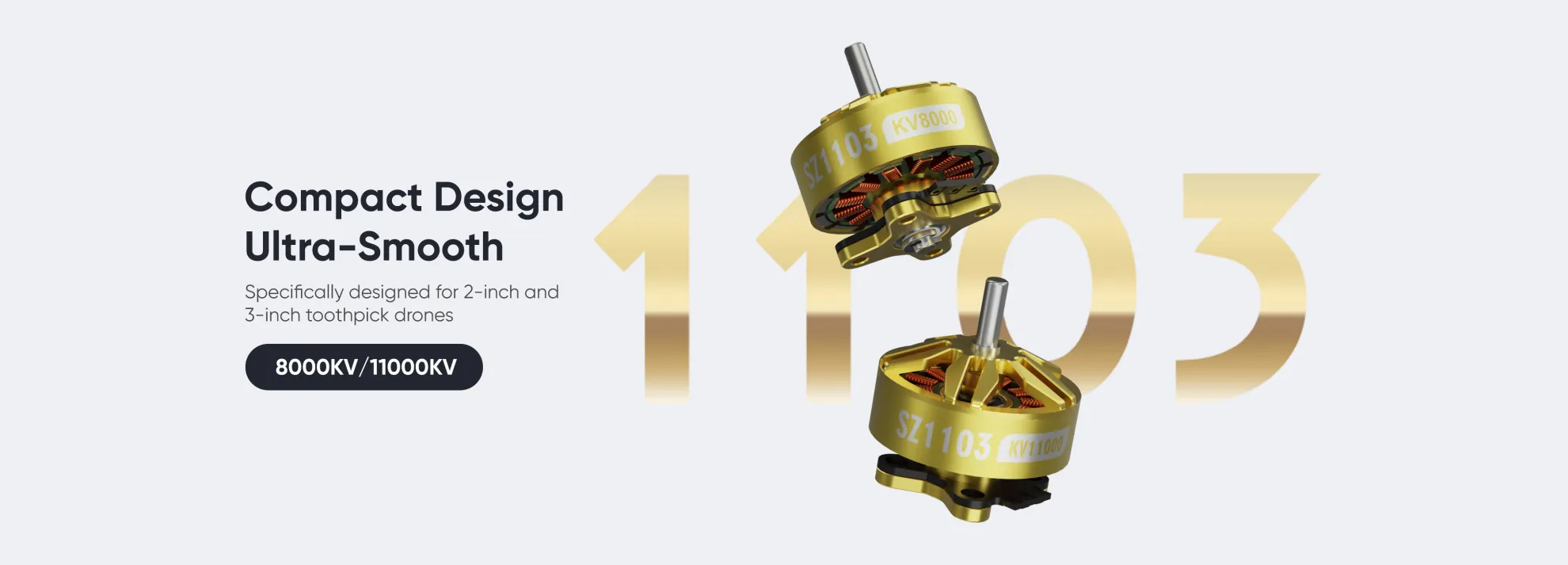

Compact design, ultra-smooth.
Specifically designed for 2-inch and 3-inch toothpick drones to meet a variety of needs.
Uni-bell design weighing only 3.8g ensures stable, low-noise, and quiet flight.
Crafted from high-quality materials for extended flight times and smooth operation across all throttle levels.
Maintains stable flight in a wide range of temperature environments.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Silky Flight & Effortless Glide
Seamless operation, instant usability, and an unparalleled flight experience.

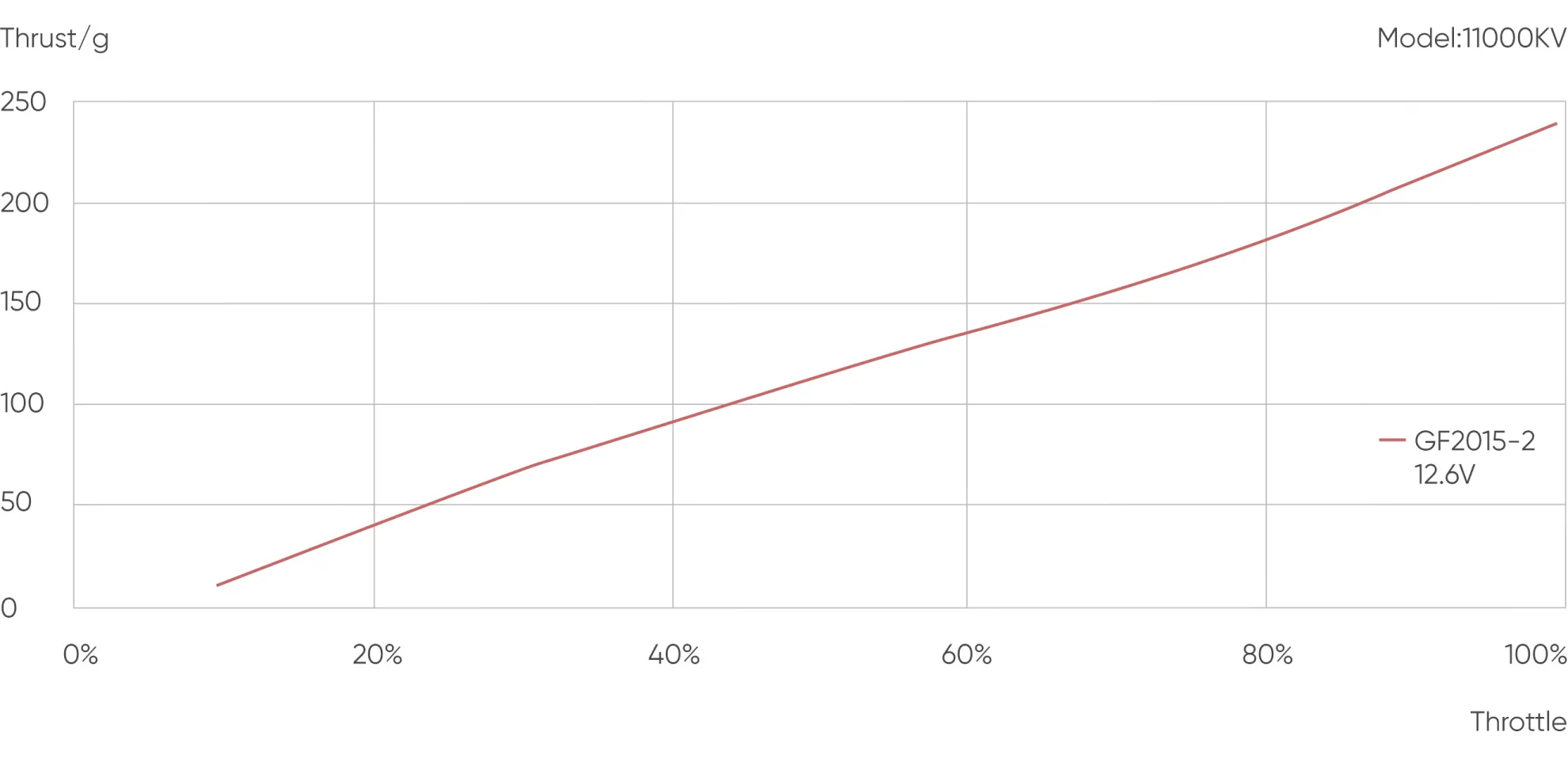

Smooth flight at any throttle.
Explore Limitless Possibilities
The lower the balance value, the higher the stability.

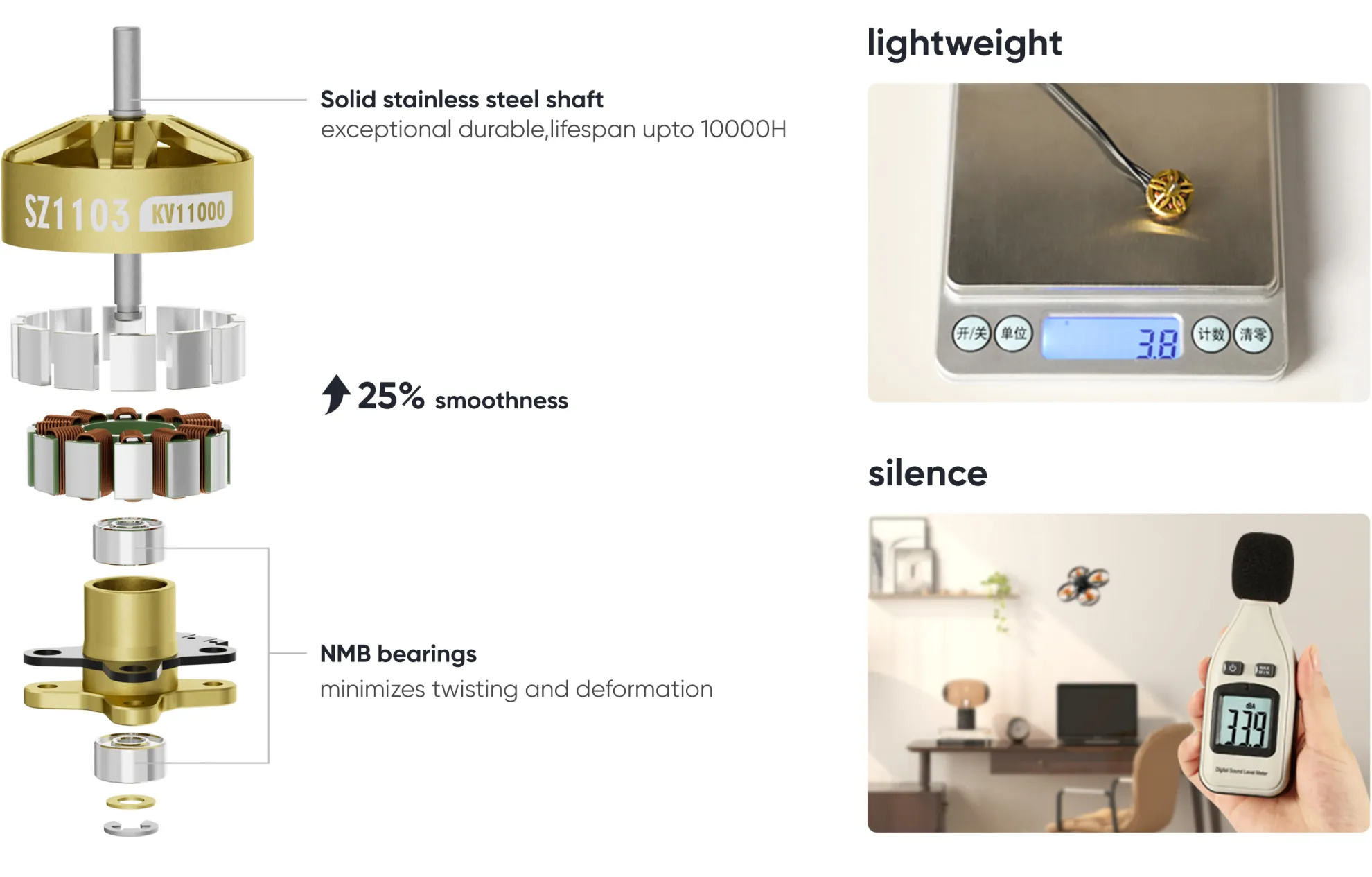

Outstanding Design
Constructed with a Uni-bell design, weighing only 3.8g, this motor ensures a stable and ultra-low-noise flight experience.

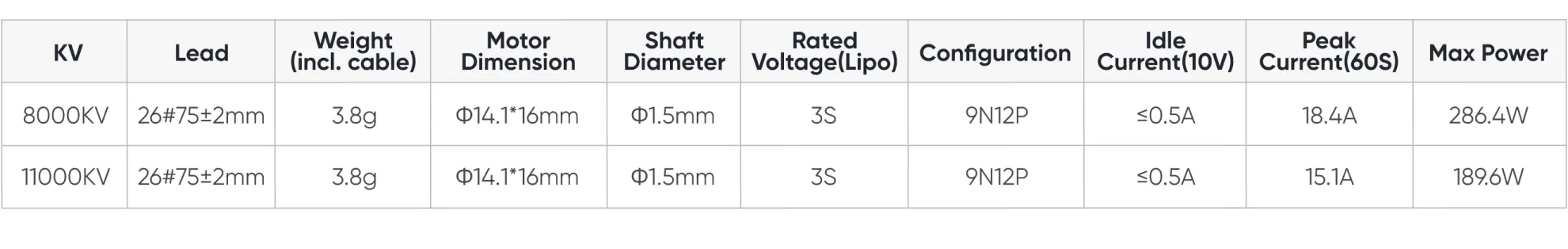

Specifications

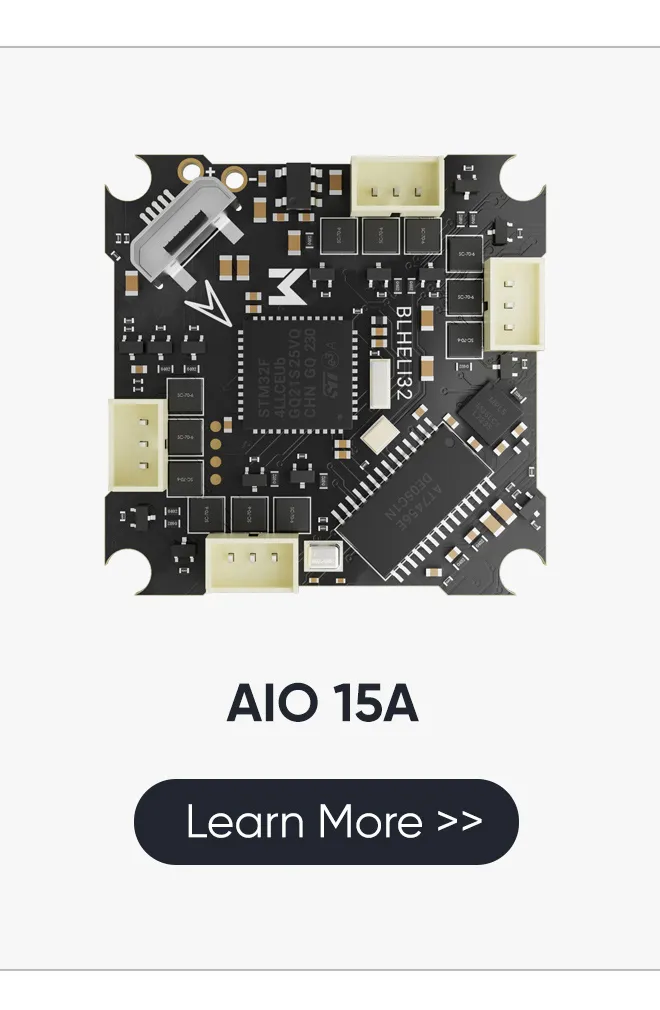

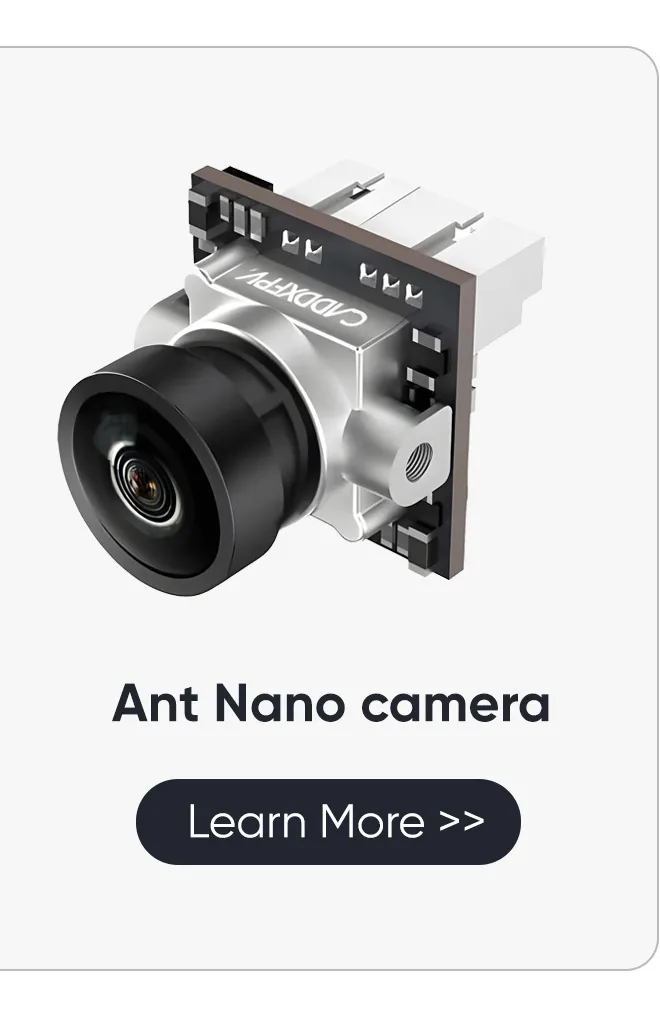

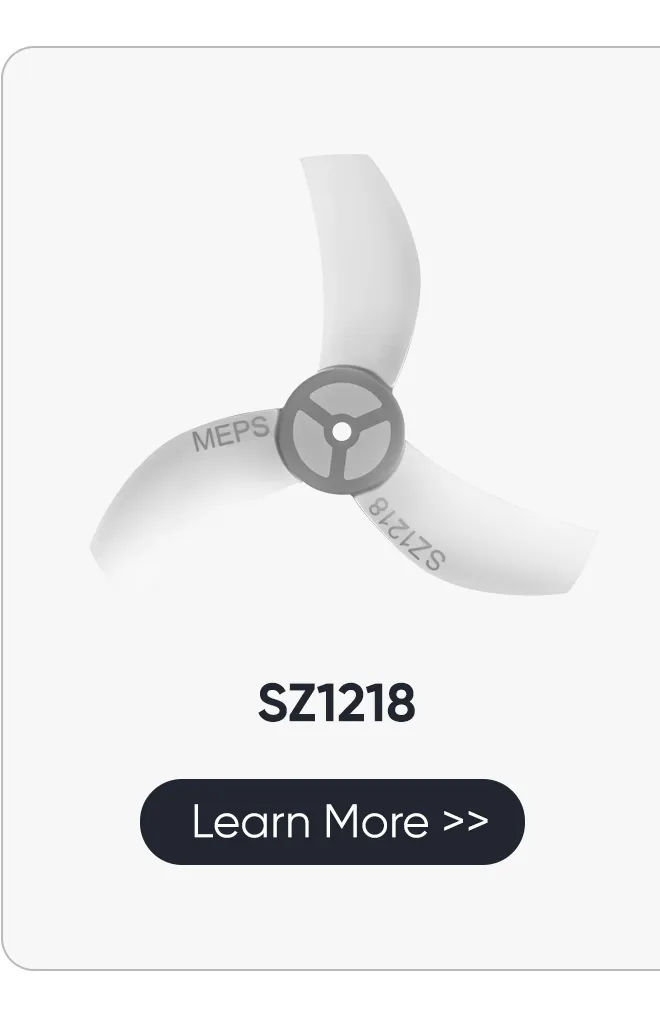

Recommendations

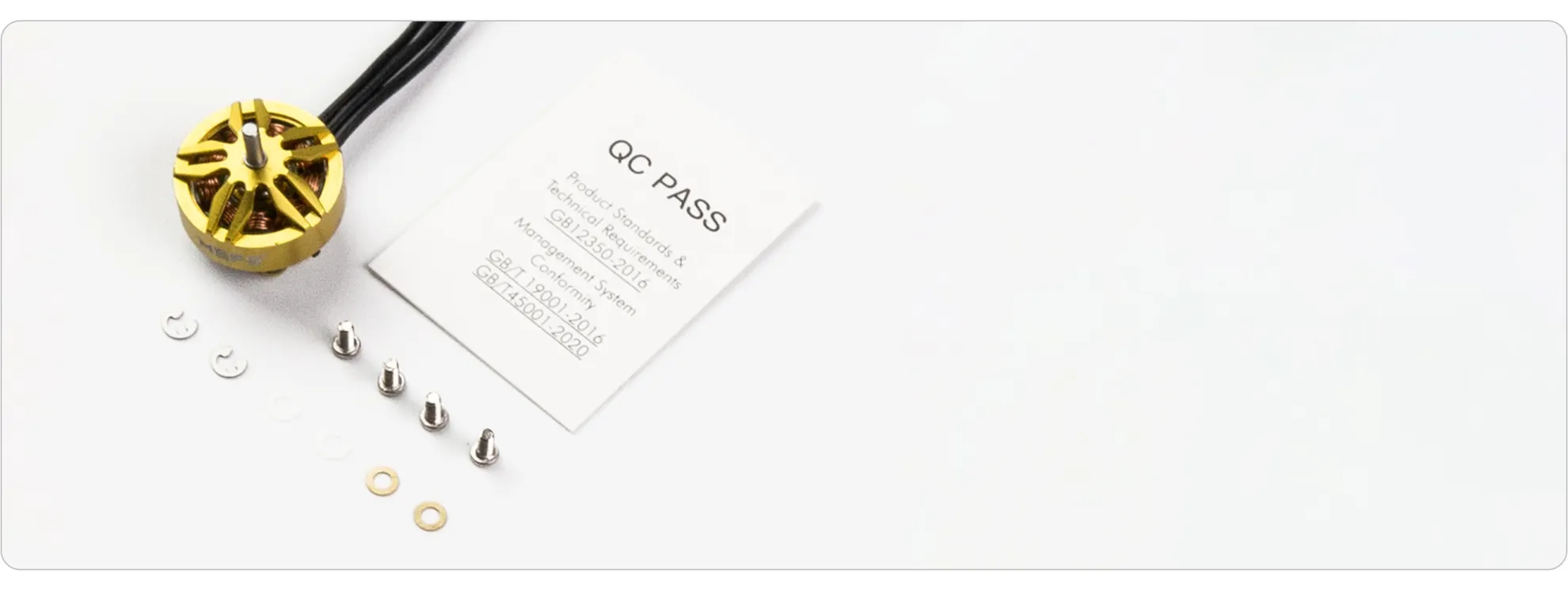

Package Included
1* MEPS 1103 FPV Motor
4* M1.4x4 Flathead Phillips Screws
Reviews
h**d
Verified
Great durability. Great value for the money. Great quality of material.
KV：8000Color：Golden
F*****.
Verified
Replaced 0703s: DOUBLE thrust at same 1S voltage! Motor wires pre-tinned = saved 20min build time. Wish all micro motors had this QC. Chef's kiss!
KV：8000KVColor：Golden
Purchased 4 times
A*****.
Verified
Crashed into bookshelf 10x? Still spins true! Gold bearings > cheaper brass ones. Packed in anti-static tubes (smart!). Nephew's first drone = success!
KV：8000KVColor：Golden
Purchased 3 times
J*******.
Verified
Perfect for my 1S toothpick build! 0.9g weight is legit. Silent hover in living room.
KV：8000KVColor：Golden
Purchased 2 times
K****.
Verified
Gift for drone-obsessed dad. He cried seeing weight-to-thrust ratio! PCB plugs = no soldering.
KV：8000KVColor：Golden
Purchased 9 times
F*****.
Verified
Perfect centering - ZERO jitters at 0% throttle. Reverse threaded nuts stayed put after 50+ crashes. Saved my cinewhoop footage. Worth every penny!
KV：8000KVColor：Golden
Purchased 8 times
A*****.
Verified
Whoop races in garage: these outlasted 3 competitors! Heat sinks actually work (tested w/ thermal cam). Mad respect for Mepsking!
KV：8000KVColor：Golden
Purchased 7 times
J*******.
Verified
Built micro racer for little bro's science project. Teachers stunned by 5min flight time! Magnets survived fridge drop test. Packing foam cut like Swiss cheese.
KV：8000KVColor：Golden
Purchased 6 times
1
2
3
4
5
FAQFeel free to ask us any questions
ASK A QUESTION
Q: What kind of ESC and flight controller does this SZ1103 motor fit?
A: The SZ1103 motor can fit 13A AIO.

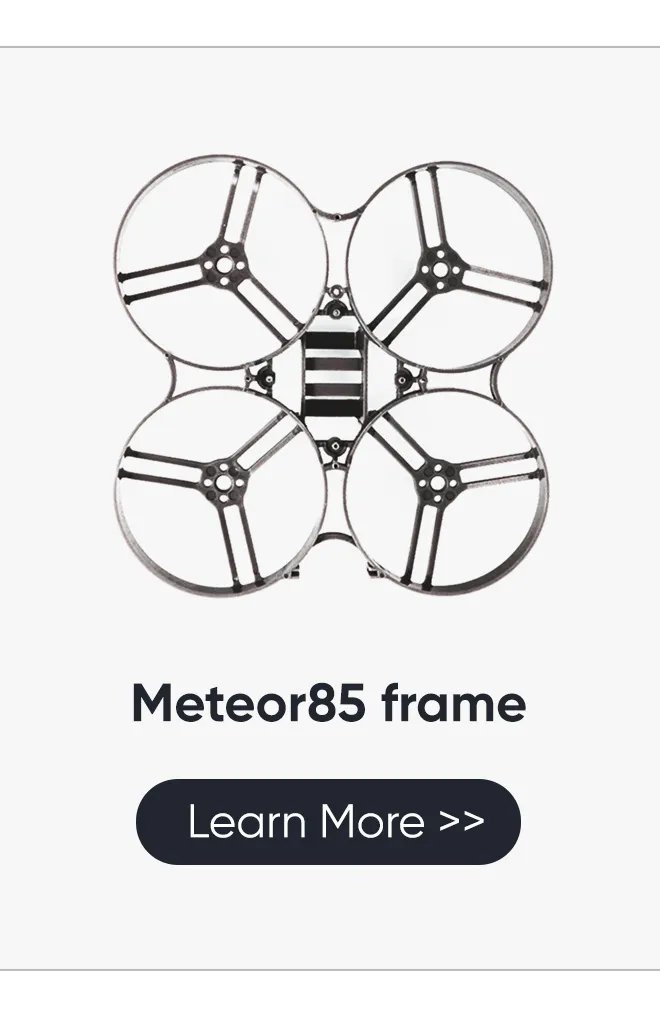

Q: What kind of frame can this SZ1103 motor be suitable for?
A: SZ1103 motor can be installed on the hoop rack with a wheelbase of 85-95mm.

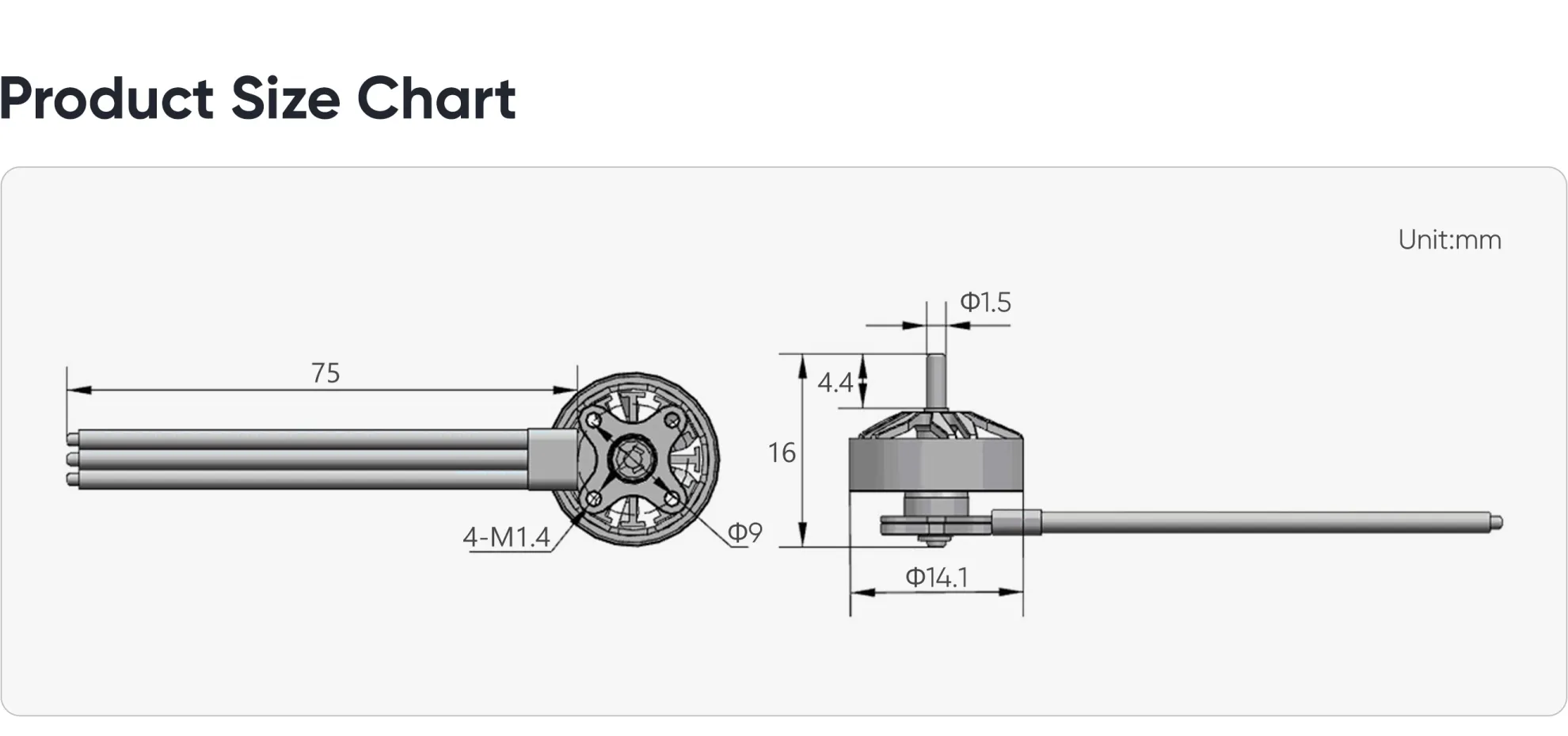

Q: SZ1103 What is the installation size of the motor?
A: SZ1103 Motor base screw hole size 9 * 9mm.

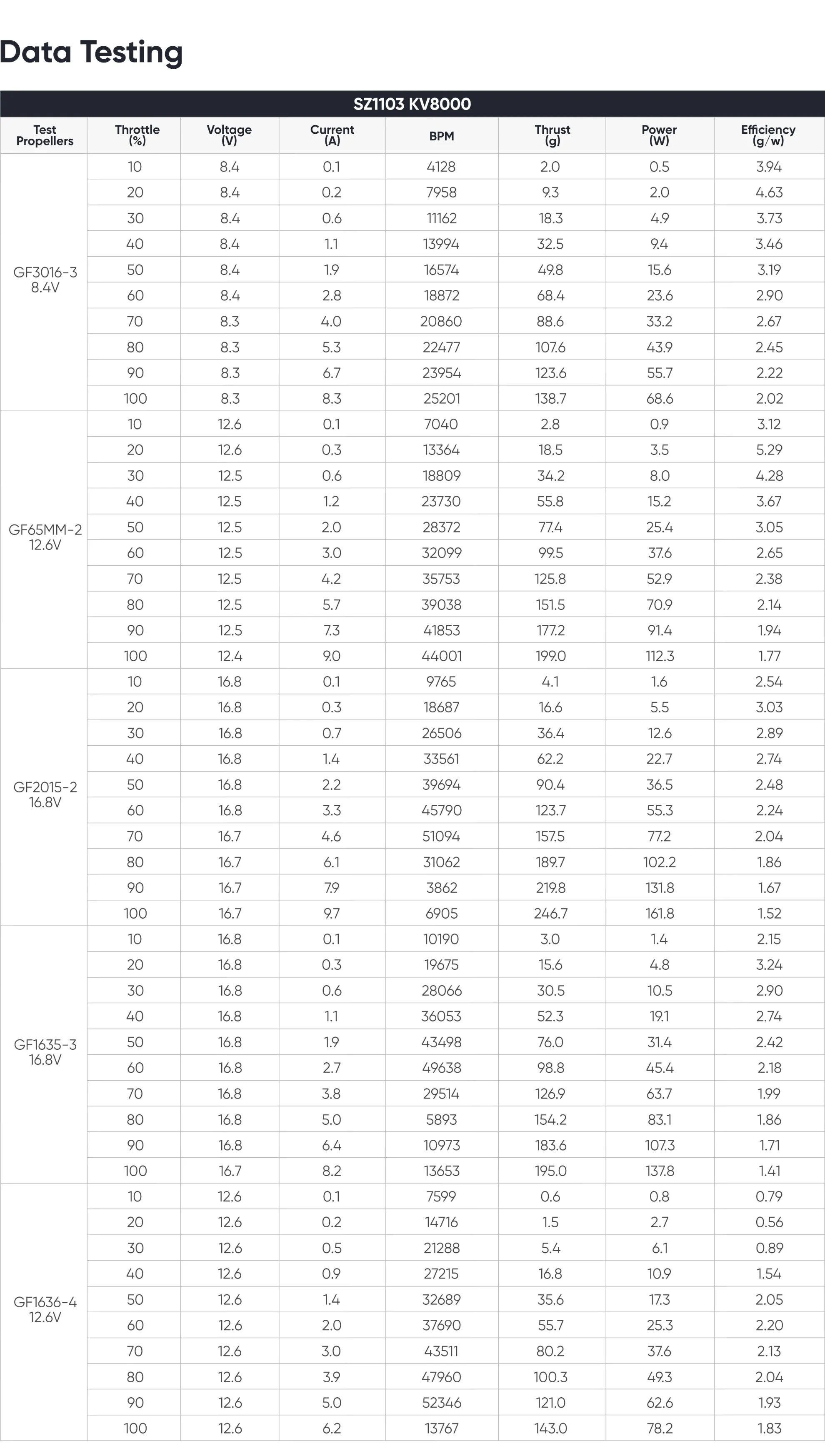

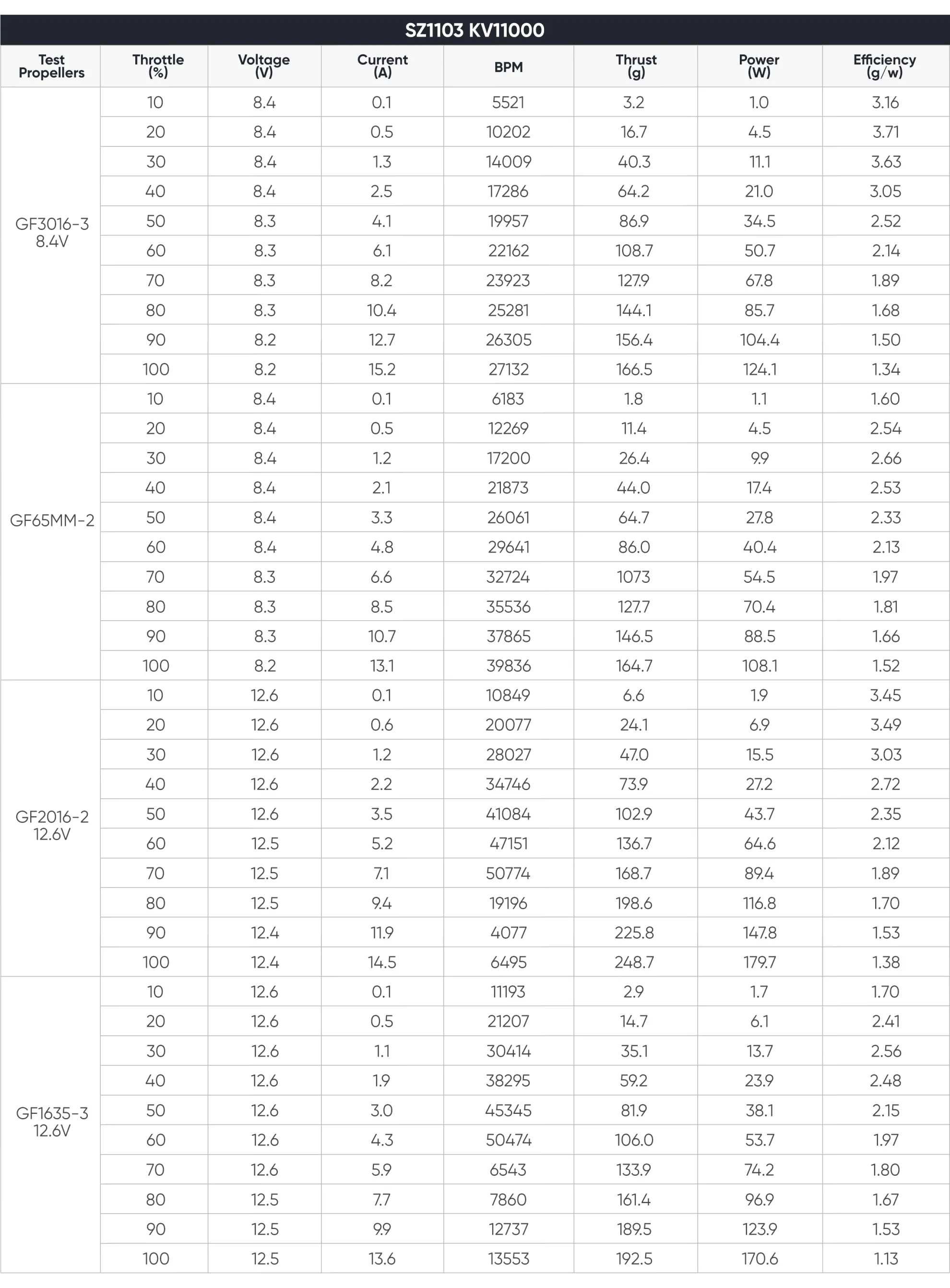

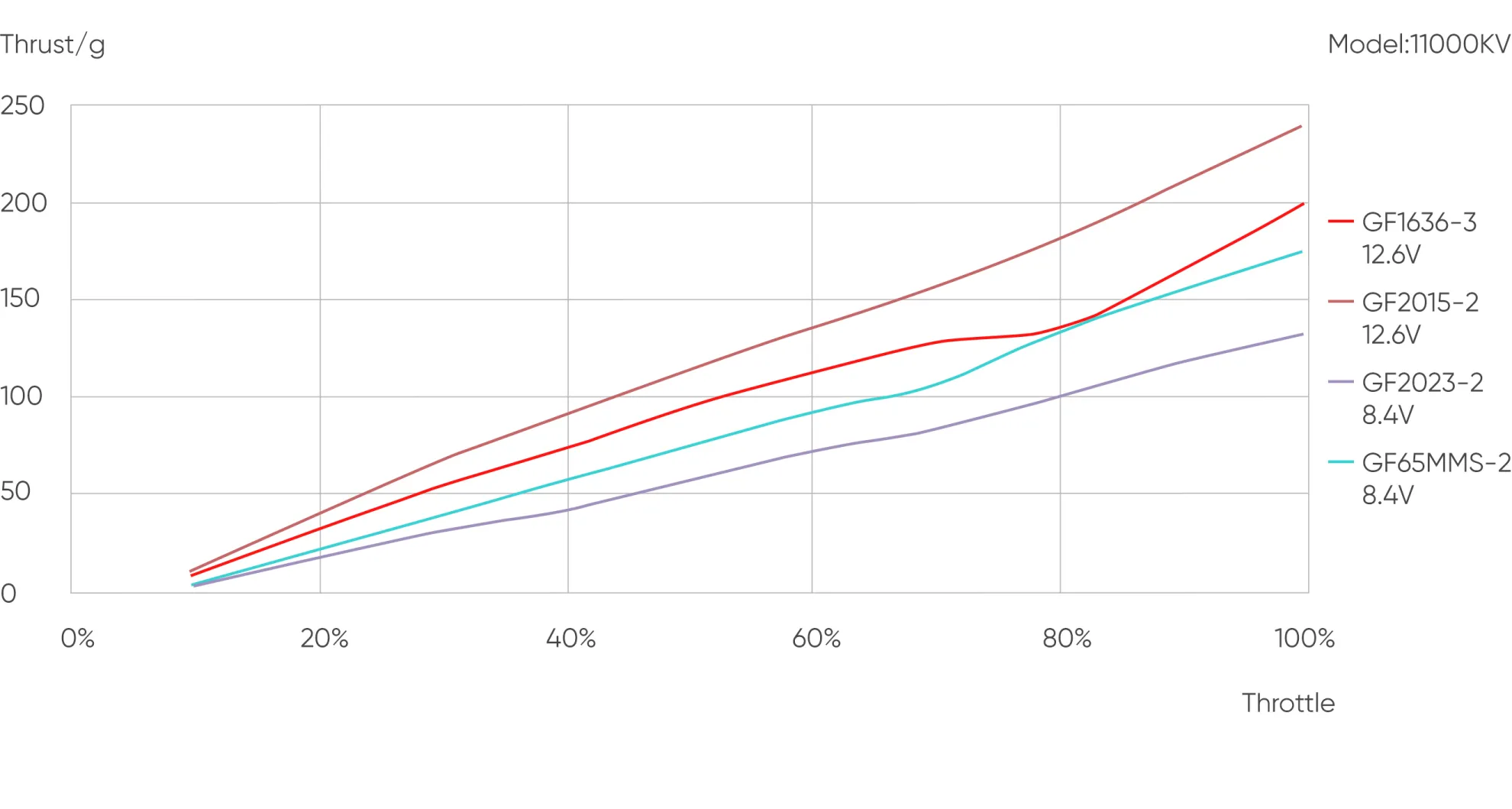

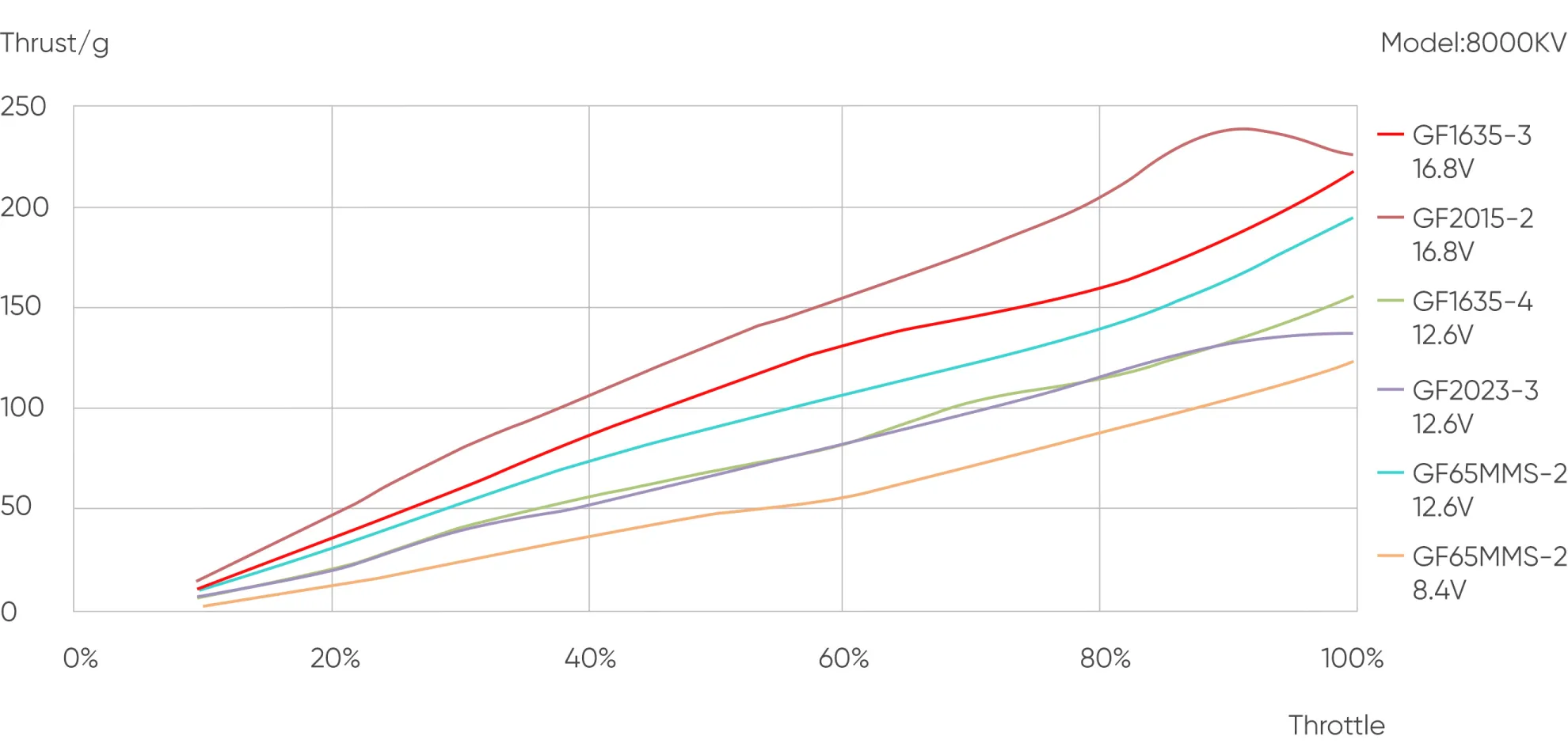

Q: According to the SZ1103 8000KV motor test data, what is the most suitable battery blade matching?
A: It can be seen from the chart that the tension growth of GF1635-3 blade with 4S battery SZ1103 8000KV motor is the most stable.
Q: If the 85-95mm uav wants the fastest flight speed, how to choose the 1103 motor and propeller?
A: SZ1103 11000KV with GF1635-3 using 3S battery power.
