Local warehouseBetaFPV C04 FPV Camera and VTX Module 1200TVL for the Cetus X

BetaFPV C04 FPV Camera and VTX Module 1200TVL for Cetus X:


The BetaFPV C04 FPV Camera and VTX Module is a compact, high-resolution video system designed specifically for the Cetus X quadcopter, offering a seamless plug-and-play installation. With an ultra-lightweight design at just 4.14g, and a powerful 1200TVL resolution, this camera and VTX combo delivers sharp, vibrant, and wide-angle visuals—perfect for micro FPV flying.


Built for convenience and performance, the C04 module features a 1/3" CMOS image sensor and a wide 160° field of view (FOV), ensuring immersive and detailed aerial footage. The integrated VTX supports up to 400mW transmission power, allowing for longer range flights and stronger signal penetration, ideal for both beginner and advanced FPV pilots.


Whether you’re replacing a damaged unit or upgrading for better performance, the C04 Camera and VTX Module is an essential backup to keep your Cetus X in the air with minimal downtime.

BETAFPV
$ 59.99
5 | 20Sold
Options (2)
BetaFPV C04 Camera and VTX Module easy installation
Sold Out
M04
BetaFPV C04 Camera and VTX Module with 2 optionas available
Sold Out
Cetus V2
$6 Off Orders $169+
$10 Off Orders $269+
Get
Quantity
In Stock Expected ship within 5 days after order.
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● The modular design allows for easy installation and use, without the need for professional soldering skills. Simply plug and play directly.

● The max output power is up to 350~400mW, so pilots can fly longer, and farther explore more possibilities, and have fun.

● Miniature, and lightweight design, weight at only 4.14g with antenna and adjustable output power for longer-distance flying.

● 1200TVL resolution and 1/3" CMOS sensor ensure good quality and a clear image.

● With a wider 160° FOV, it can record wide and beautiful scenes.

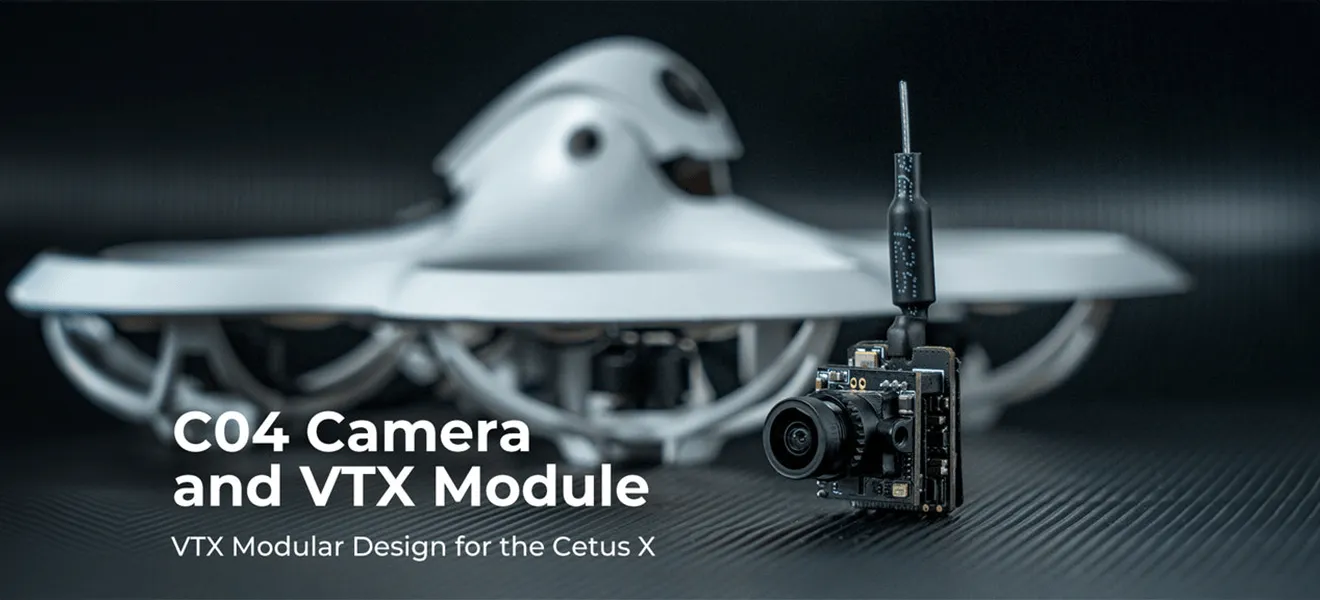

BetaFPV C04 Camera VTX module is designed for cetus x

Features:

● Plug-and-Play Modular Design-No soldering required. Quick and easy installation for all skill levels.

● 1200TVL High Resolution-Crisp image quality with vibrant colors, perfect for immersive FPV experiences.

● 1/3" CMOS Sensor-Captures detailed visuals even in low-light conditions.

● 160° Ultra-Wide Field of View-Record broad and dynamic footage with a wide-angle lens.

● Adjustable Output Power-Up to 400mW (M04 version), offering long-distance flight capability.

● Ultra Lightweight-Weighs only 4.14g with antenna; optimized for micro quads like the Cetus X.

● Multiple Channel Support-M04: 5 bands, 40 channels with Raceband / Cetus VTX V2: 8 channels on B band.

● Compatible Options-Select the M04 Version if your Cetus X uses Betaflight; otherwise, choose the Cetus V2 Version.

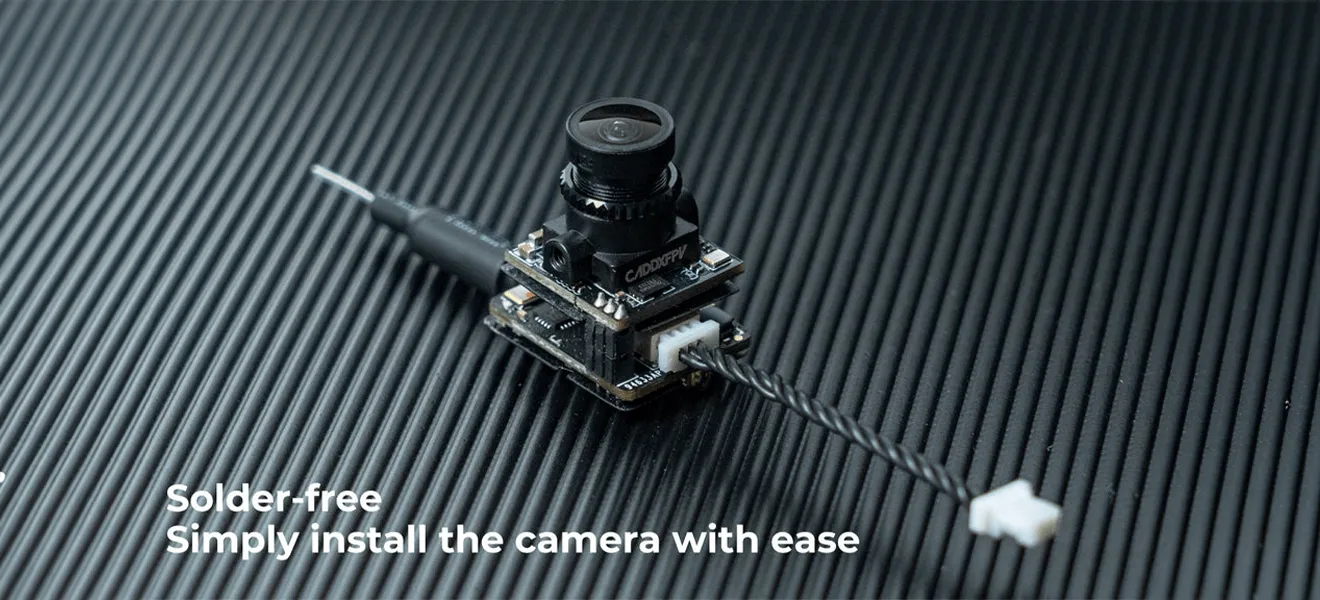

BetaFPV C04 Camera VTX module solder free

Specifications:

● Model: C04 Camera and VTX Module(M04 VTX/Cetus VTX V2)

● Camera: C04 FPV Micro Camera

● Image Sensor: 1/3" CMOS Sensor

● Horizontal Resolution: 1200TVL

● FOV: 160°

● Video System: NTSC (4:3)

● Output power: 25-400mW(M04 VTX)/ 25-350mW(Cetus VTX V2)

● Supply Voltage: 5V

● Size: 14.5*21*23.5mm(without antenna)

● Weight: 4.14g(with antenna)

● Frequency: 5 bands 40 channels with Raceband(M04 VTX)，1 band 8 channels(B band)(Cetus VTX V2)

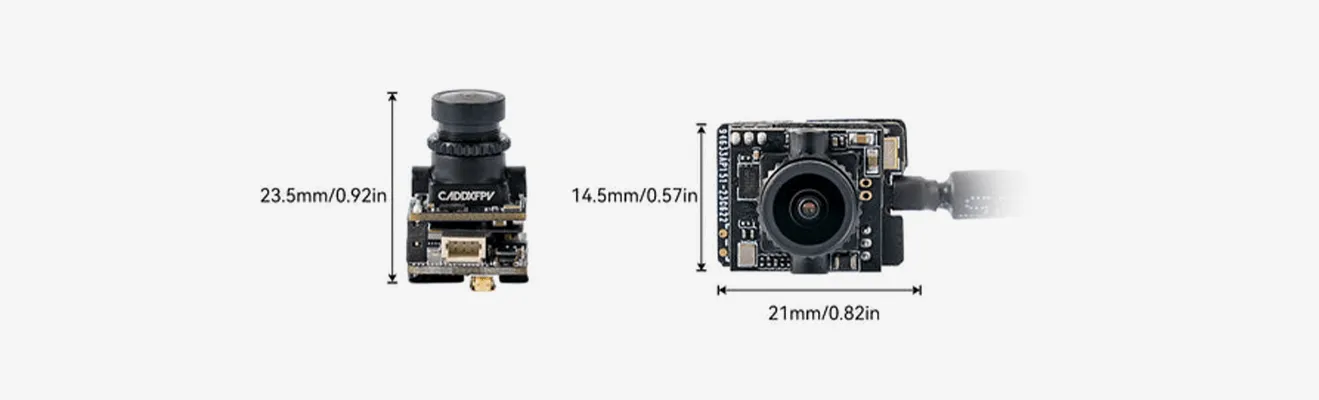

BetaFPV C04 Camera VTX module dimension

Parameter

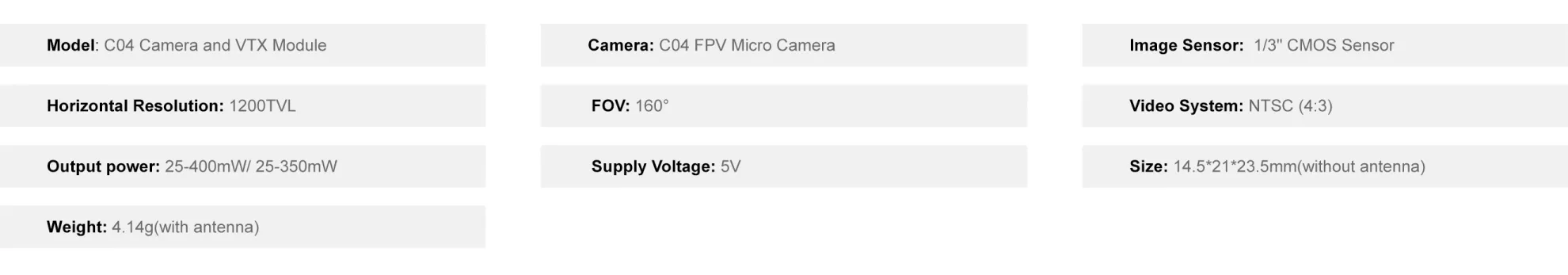

BetaFPV C04 Camera VTX module specification

Recommendations

Package Included：

1* BetaFPV C04 Camera and VTX Module
