Q: What are the advantages of SZ1804 motor over SZ1404 motor?

A: The SZ1804 motor is larger, heavier, and more efficient than the SZ1404 motor, which can prolong the flight time.

Q: What kind of LiPo batteries can be used on this SZ1804 motor?

A: The recommended battery is 6S LiPo for 2450kv, 4S LiPo is for 3500kv.

Q: SZ1804 Motor matching frame size range?

A: The 1804 motor can be matched in 3 to 3.5in.

Q: SZ1804 Motor with different frame sizes, what will be the differences in its use scenarios?

A: Indoor flight, you can choose 3in frame; if you need to fly long distances, you can choose 3.5in frame.

Q: SZ1804 Can the motor be used with a 5-inch propeller?

A: Can not be used, the KV value is the ratio of the motor speed to the voltage. The higher the KV value, the higher the speed of the motor. SZ1804 Motor KV value 2450,3500 speed is too high, causing the motor to burn out.

MEPS SZ1804 High-efficiency FPV Brushless Motor for 3inch Drone 2450KV/3500KV

About MEPS SZ1804 FPV Brushless Motor

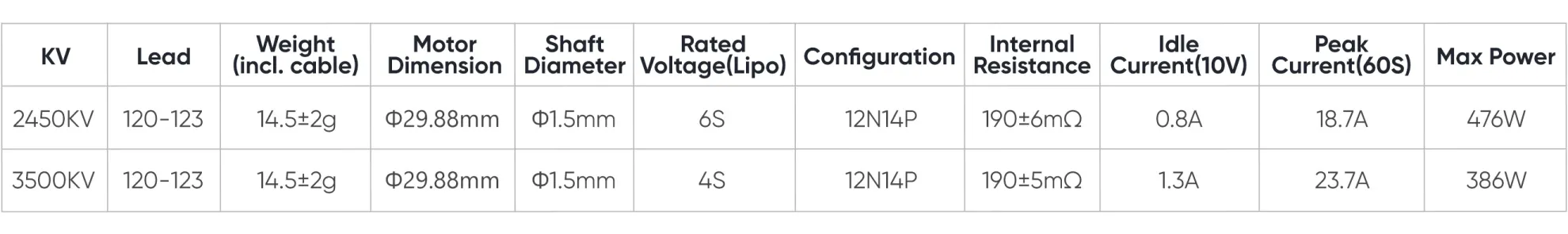

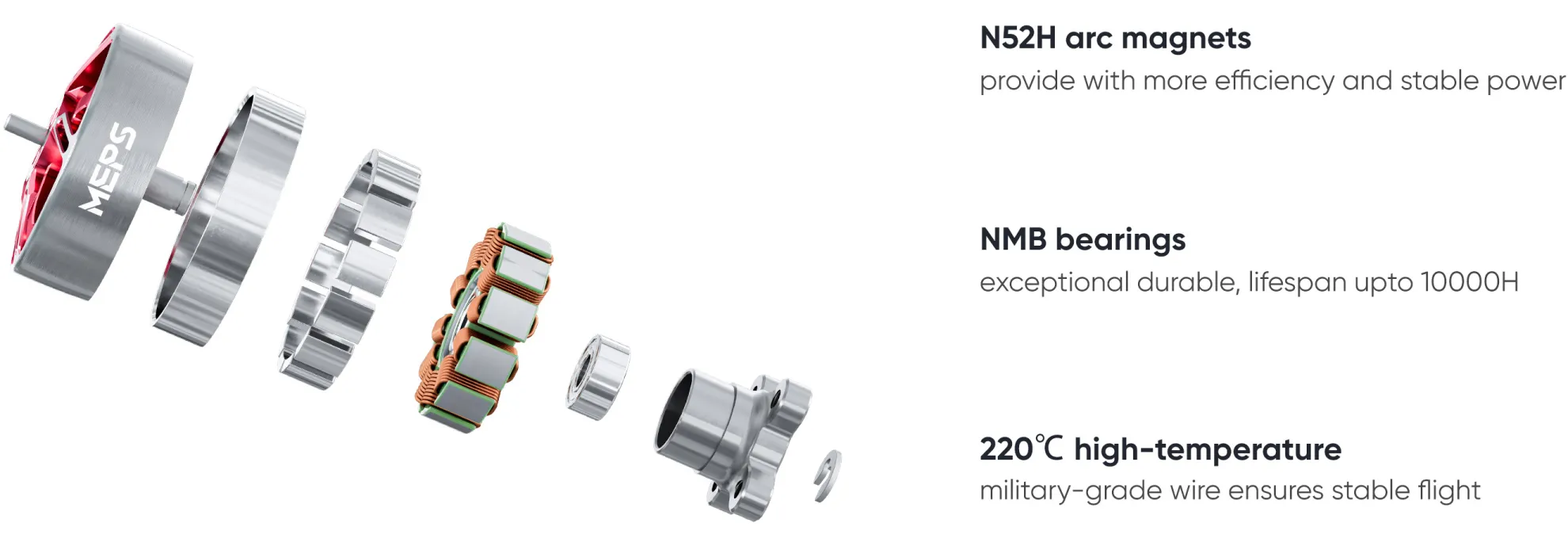

Experience responsive flight with MEPS SPACE 1804 brushless motor, available in 2450KV for 6S Lipo and 3500KV for 4S Lipo. Designed with a lightweight 1.5mm stainless steel shaft, these SZ1804 fpv drone motor offer superb agility and high thrust up to 731g. It is ideal for indoor flights, and compatible with 3 inch fpv drone and 3.5 inch cinewhoop. The durable Uni-Bell structure provides high crash resistance without added weight. Constructed with 6061 aluminum alloy, N52H arc magnets, 220°C enamel-coated wire, and NMB ball bearings for a reliable performance and extended lifespan.

MEPS

Buy 1 Set, Get 1 Set FREE

$ 15.90 ~~$25.90~~

-39%

5 | 300+Sold

Options (3)

2450KV / Red

2450KV * 4pcs / Red

3500KV * 4pcs / Red

$6 Off Orders $169+

$10 Off Orders $269+

Get

Quantity

Free Shipping | For orders over $99

2 Years Warranty | Hassle-free 24-month warranty

Easy Return and Exchange | Return within 15days

Professional Support | 24-hour response

Payment | Every order you place with us is safe & secure

Copy

Reviews (18)

p*******l

Vine Voice

MEPSKING Vine Customer Review of Free Product

motors are a great match for a heavier 3.5-inch setup. They have plenty of power, run smoothly, and handle the extra weight without any trouble. Really solid performance for this size of drone!!
KV：2450KV*4pcsColor：Red Replied by MEPSKING:Thank you for your feedback! 😊 We’re glad these motors perform so well on your 3.5-inch build. We’ll keep striving to provide high-quality, cost-effective products! 🛩️✨ Wishing you happy flying!
d***********0

Woow!! Unos motores espectaculares! Me llegaron súper rápido, muy bien empaquetado, y unos detalles alucinantes, volveré a comprar sin dudar. Probé los MEPS SZ1804 2450KV y la verdad van súper bien. Tienen muy buena potencia para drones de 3 pulgadas, sin gastar tanta batería. Se sienten suaves, responden rápido y el vuelo es bien estable. Además, son livianos y no se calientan mucho. La calidad se nota —los rodamientos van finos y el acabado está muy bien para el precio. En general, me sorprendieron bastante, rinden más de lo que esperaba y son una opción muy buena si querés algo equilibrado entre potencia, eficiencia y precio. I’ve been flying the MEPS SZ1804 2450KV motors and honestly, they perform great. Tons of power for a 3-inch setup without draining the battery too fast. They feel super smooth, responsive, and keep the drone really stable in the air. They’re lightweight, don’t heat up much, and the build quality is solid — the bearings run smooth and the finish looks nice for

KV：2450KVColor：Red Additional reviews after 10 days
Una maravilla! Son preciosos, ya subiré fotos en el drone por qué no he tenido tiempo de sacarle fotos y tenía estas de antes de montarlo jajaja

Replied by MEPSKING:Muchas gracias por tu apoyo y comentarios 😊 Nos alegra que disfrutes los motores MEPS SZ1804 2450KV. Su rendimiento, suavidad y calidad son nuestra prioridad. ¡Esperamos verte de nuevo y seguir acompañando tus aventuras de vuelo! 🚀
m********s

Ordered the 1804 and realized they were too heavy for my setup. After a few messages they change it and sent the motors I wanted. Took less than 2 weeks from meps to USA. Will order again!

KV：2450KVColor：Red

MEPS SZ1804 High-efficiency FPV Brushless Motor for 3inch Drone 2450KV/3500KV

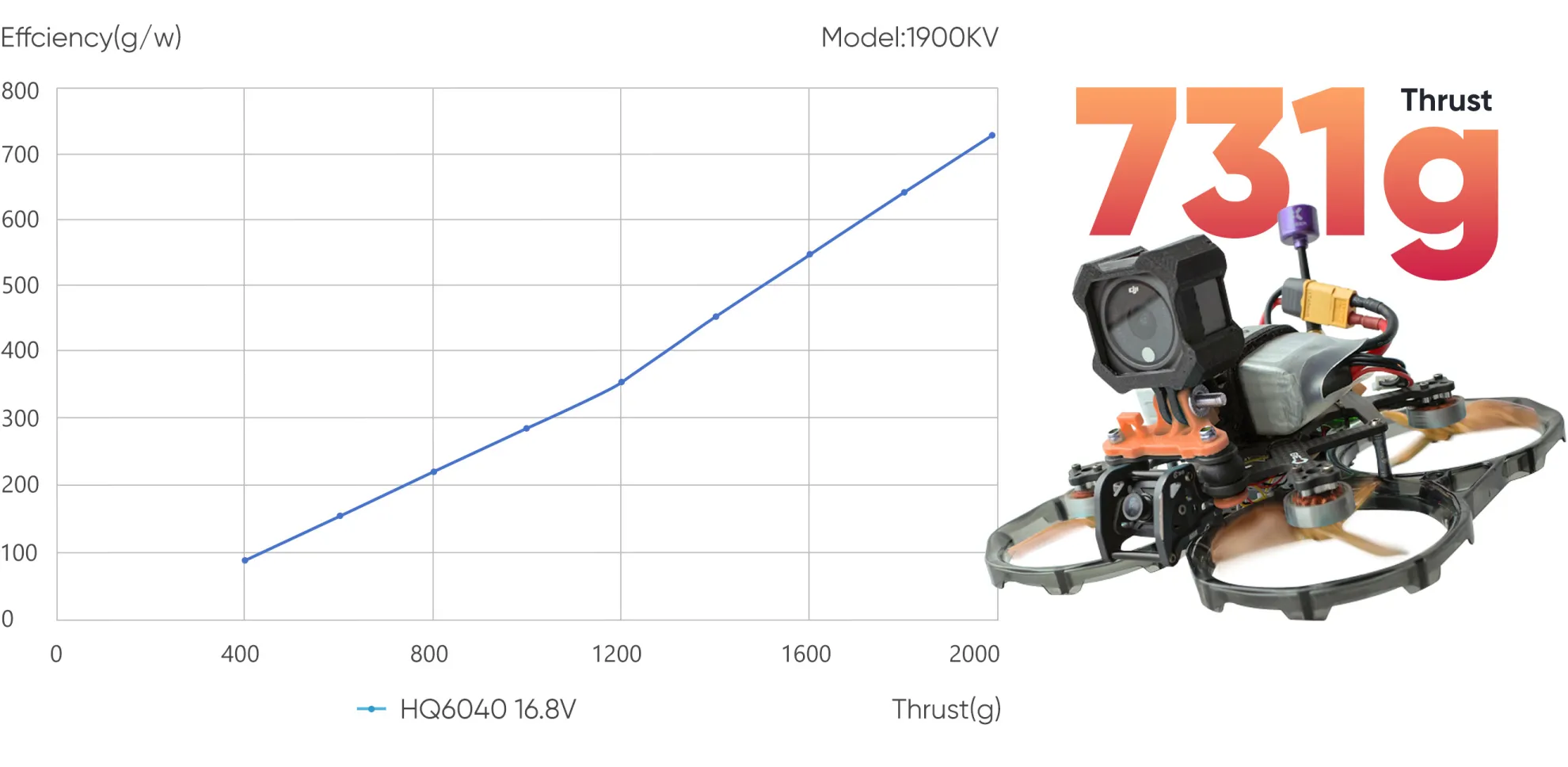

Small Size, Massive Thrust & Efficiency

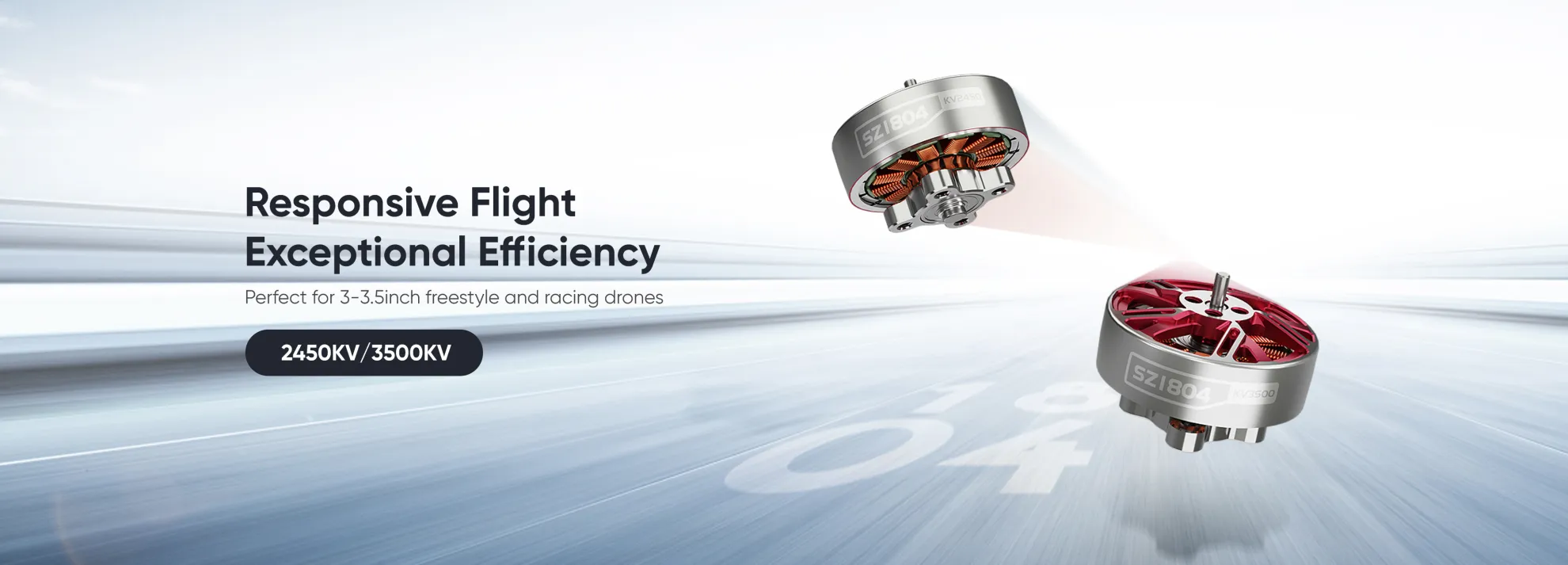

Agile Maneuverability & Instant Response

Built for Tight Spaces & Dynamic Flights

Unibell Design with Premium Durability

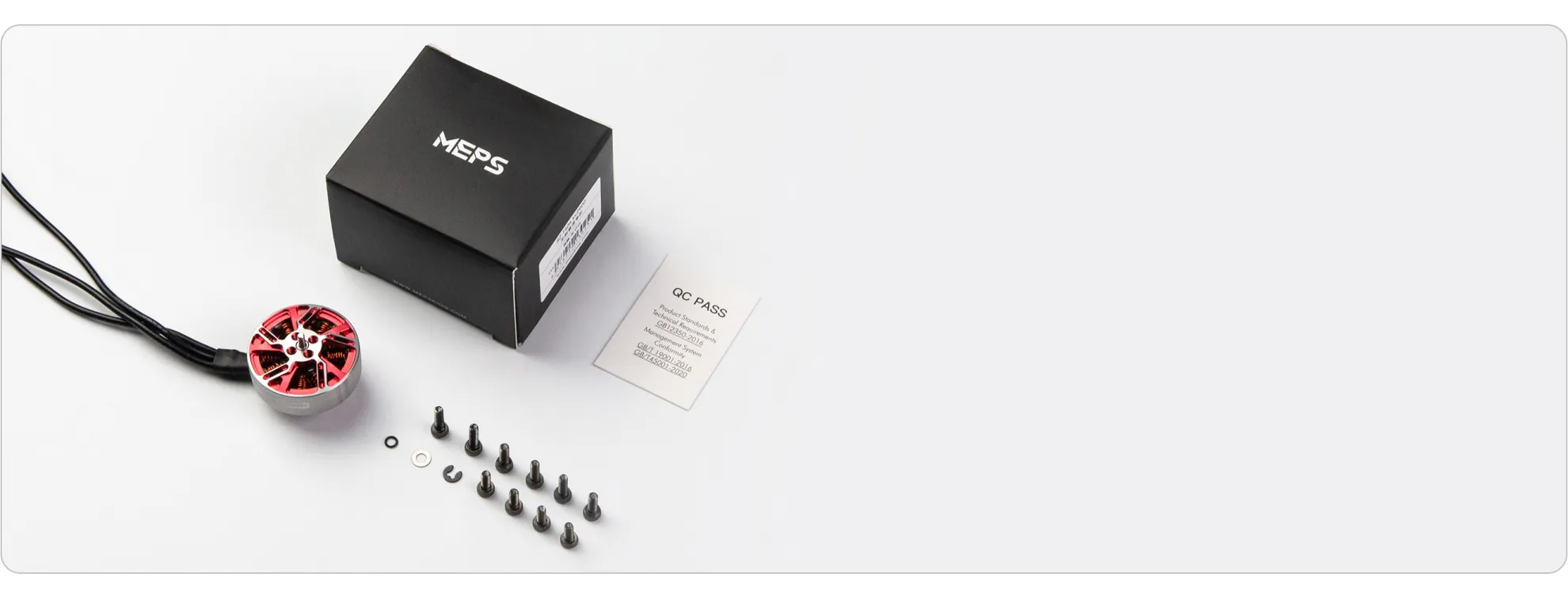

Package Included
