About SpeedyBee Nano 2.4G TCXO 915M ExpressLRS Receiver:
Ultra-light 2.4GHz ELRS receiver with TCXO for stable long-range FPV flights. Compact, OTA-ready, and perfect for micro drones. Built for speed, precision, and reliability.
Payment | Every order you place with us is safe & secure
Share
Copy
Description
FAQ
Ultra-Compact & Lightweight Design

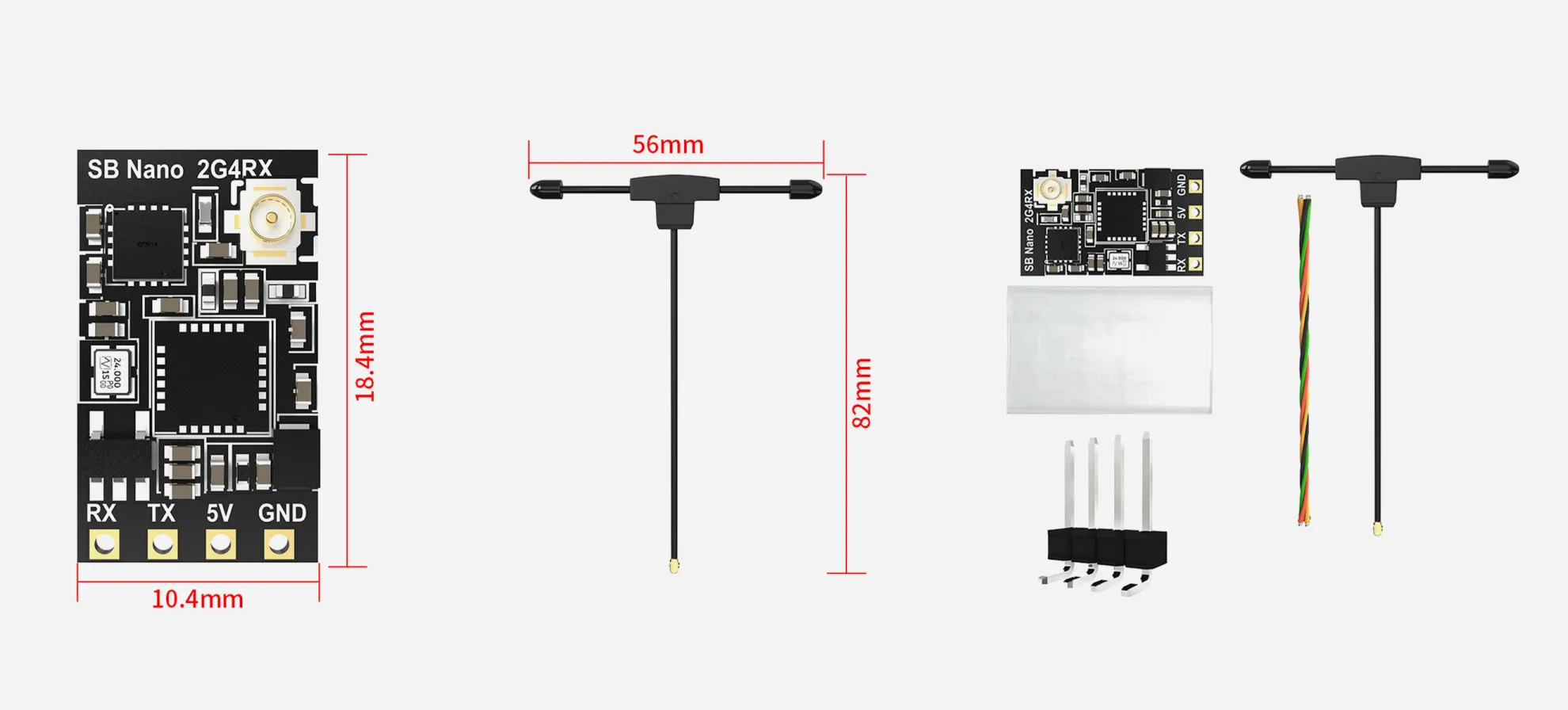

Weighing only 0.7g (without antenna) and measuring 10.4mm x 18.4mm, this receiver is ideal for micro drones, toothpicks, and space-constrained builds.
Stable Performance with TCXO
Equipped with a Temperature Compensated Crystal Oscillator (TCXO), it ensures precise frequency stability across varying temperatures, enhancing link reliability.
High-Power Transmission

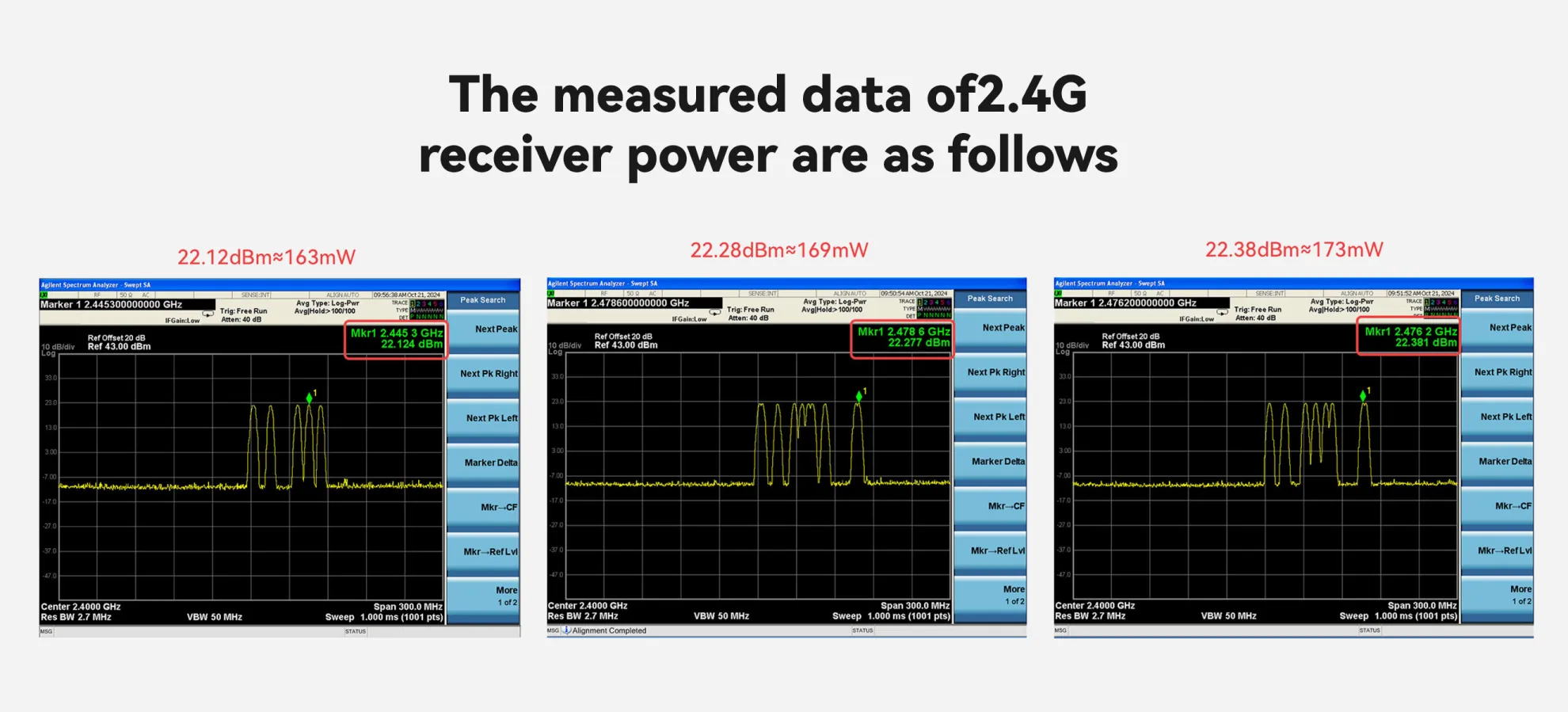

Features a 100mW transmission power (measured up to 120mW), providing robust signal strength for extended range and reliable control.
ExpressLRS Compatibility
Built on the ExpressLRS 2.4GHz protocol with SX1280 + ESP8285 chipset, offering ultra-low latency and high refresh rates for responsive control.
User-Friendly Binding & Firmware Updates
Supports easy binding and over-the-air (OTA) firmware updates via Wi-Fi, simplifying setup and maintenance processes.

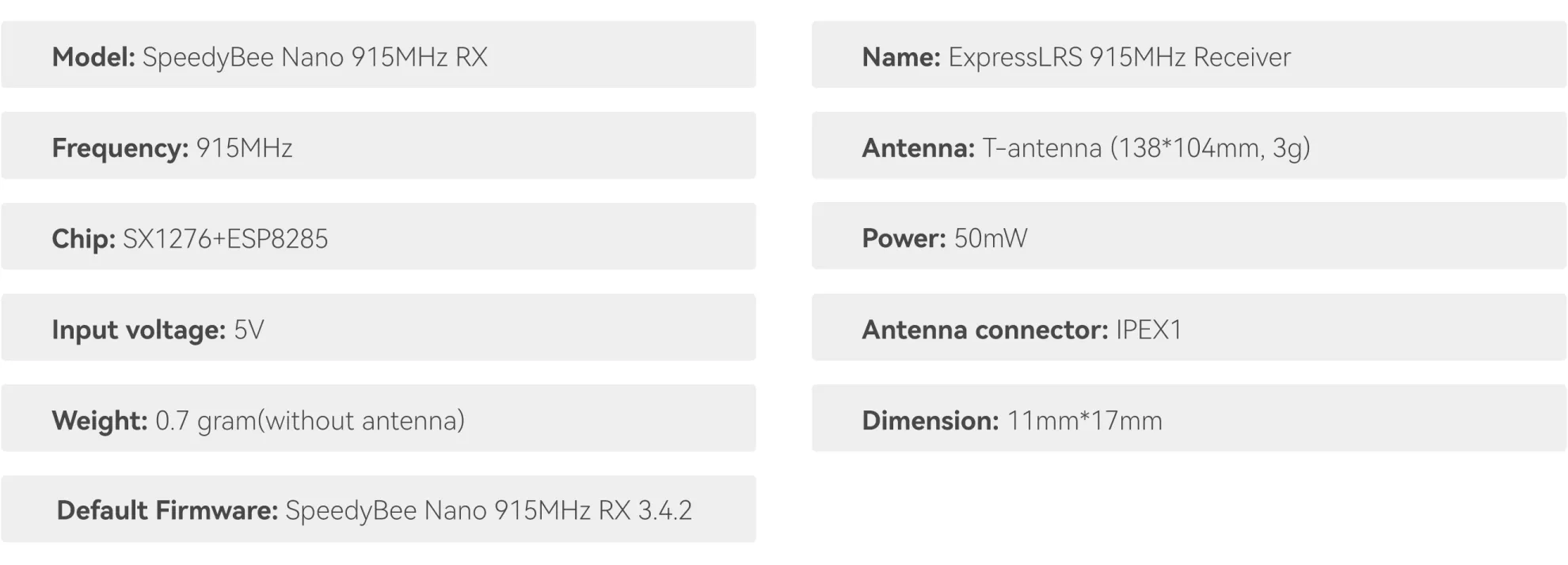

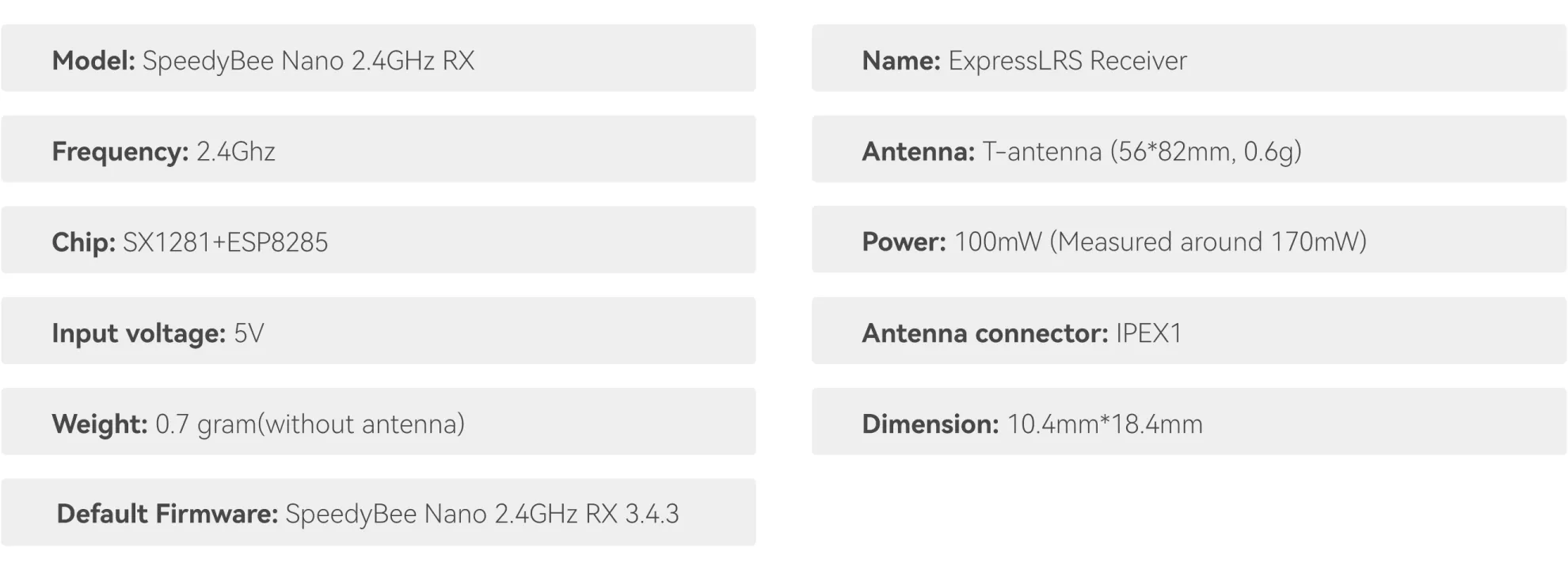

Specification
Size
Recommendation
Reviews
c**************7
Verified
Good
Model：ELRS 2.4GHz
Additional reviews after 1
day
Good!
v******t
Verified
SpeedyBee Nano 2.4G 2.4G-TCXO is a perfect fit for any drone build regardless of the flight controller model. It works reliably with many radio controllers including Jumper T-Pro V2 and various Radiomaster models.
Model：ELRS 2.4GHz
Purchased 2 times
Additional reviews after 1
day
SpeedyBee Nano 2.4G 2.4G-TCXO works perfectly with SpeedyBee F7 V3 50A Stack.
S***h
Verified
Great little receiver! Binds quickly and holds signal well. Would buy again.
Model：915M
M****z
Verified
One-touch binding works like magic!
Model：ELRS 2.4GHz
A*********r
Verified
Fast shipping and great price! The receiver works perfectly with my drone. Easy to install and bind.
Model：915M
K******i
Verified
Works as described. No problems so far.
Model：ELRS 2.4GHz
J******.
Verified
915M ELRS version works flawlessly with my drone
Model：915M
e*********y
Verified
Highly satisfied with the product, the buyers gave it a 5-star rating.
Model：ELRS 2.4GHz
1
2
3
FAQFeel free to ask us any questions
ASK A QUESTION
Does the SpeedyBee Nano Receiver support both 2.4GHz and 915MHz frequencies at the same time?
No, the SpeedyBee Nano Receiver is available in two separate versions: 2.4GHz (with TCXO) and 915MHz. You must select your preferred frequency version during purchase.
What is the benefit of the TCXO in the 2.4GHz version?
The TCXO (Temperature-Compensated Crystal Oscillator) ensures superior frequency stability, making it ideal for long-range operations and environments with temperature fluctuations. This feature is exclusive to the 2.4GHz version.
Is this receiver compatible with all ExpressLRS transmitters?
Yes, the SpeedyBee Nano Receiver works with any ExpressLRS transmitter. Ensure your transmitter’s firmware is updated to the latest version for optimal compatibility.
