SpeedyBee Master 5 V2 Frame DJI O4 Antenna 3D parts
SpeedyBee Master 5 V2 Frame DJI O4 Antenna 3D parts

SpeedyBee Master 5 V2 Frame Kit for 5 inch FPV Drone

About SpeedyBee Master 5 V2 Frame:


The SpeedyBee Master 5 V2 Frame is designed for both cinematic and freestyle flying, featuring Deadcat geometry to center the flight controller. Its anti-vibration stack reduces motor noise impact on the gyro, ensuring stability. The quick-release design, with an average of 1.5 screws per arm, simplifies assembly. The honeycomb-shaped aluminum alloy CNC drone head enhances strength and aesthetics, while the H-FOV 130° section provides a wide field of view. This 5-inch freestyle frame supports the DJI O4 Air Unit with ND filters and customizable side plates. A TPU side plate dampens camera vibration, and the honeycomb aluminum alloy heat sink improves FPV and analog VTX stability.

Additional note: The DJI O4 Air Unit needs to be paired with compatible 3D-printed parts to ensure perfect integration with the SpeedyBee Master 5 V2 frame. These 3D-printed parts provide better mounting and protection for the Air Unit, ensuring its stability and reliability during flight.

SpeedyBee
$5 Off Orders $79+
$10 Off Orders $139+
Collect
$ 5.59 $6.99
-20%
5 | 200+Sold
Options (3)
SpeedyBee Master
Sold Out
Master 5 V2
SpeedyBee Master 5 V2 Frame DJI O4 Lens 3D parts
Sold Out
O4 Pro Lens 3D Parts
SpeedyBee Master 5 V2 Frame DJI O4 Antenna 3D parts
Sold Out
O4 Pro Antenna 3D Print
Quantity
In Stock Expected ship within 5 days after order.
Estimated Transit Time: 15-20 Days.
MEPSKING FPV store with YunExpress shipping
Free Shipping | For orders over $99
2 Years Warranty | Hassle-free 24-month warranty
Easy Return and Exchange | Return within 15days
Professional Support | 24-hour response
Payment | Every order you place with us is safe & secure
Share
Copy

● Multi-functional design: The excellent Deadcat geometry is designed for video and free flight.

● Anti-vibration structure: Anti-vibration stacking structure effectively minimizes the impact of motor noise on the gyroscope.

● Convenient Disassembly: 1.5 screws quick-release structure on each arm makes assembly and disassembly easier.

● Enhanced Vision: Honeycomb aluminum CNC nose design not only provides better strength and appearance, but also features a 130° H-FOV to expand the field of view.

● High Compatibility: The integrated DJI 04 Air Unit supports ND filters and replaceable side panels, internal TPU side panels for shock absorption, and multiple mounting holes.

SpeedyBee Master 5 V2 Frame

Low center of gravity, enhanced image quality, and extended flight time without the extra weight

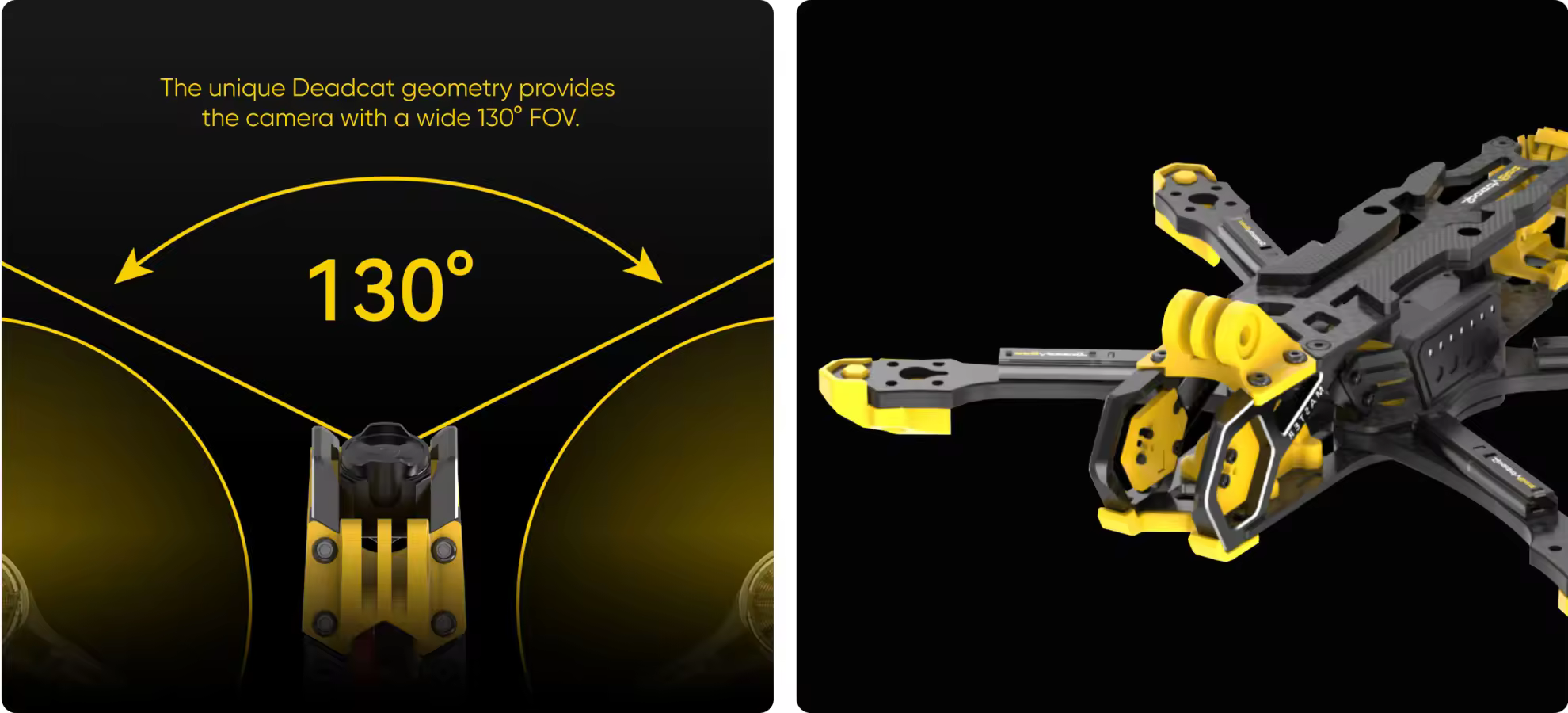

H-FOV130°

130° FOV HD lmage Without Vignetting

Speedybee master 5 v2 frame 130° FOV

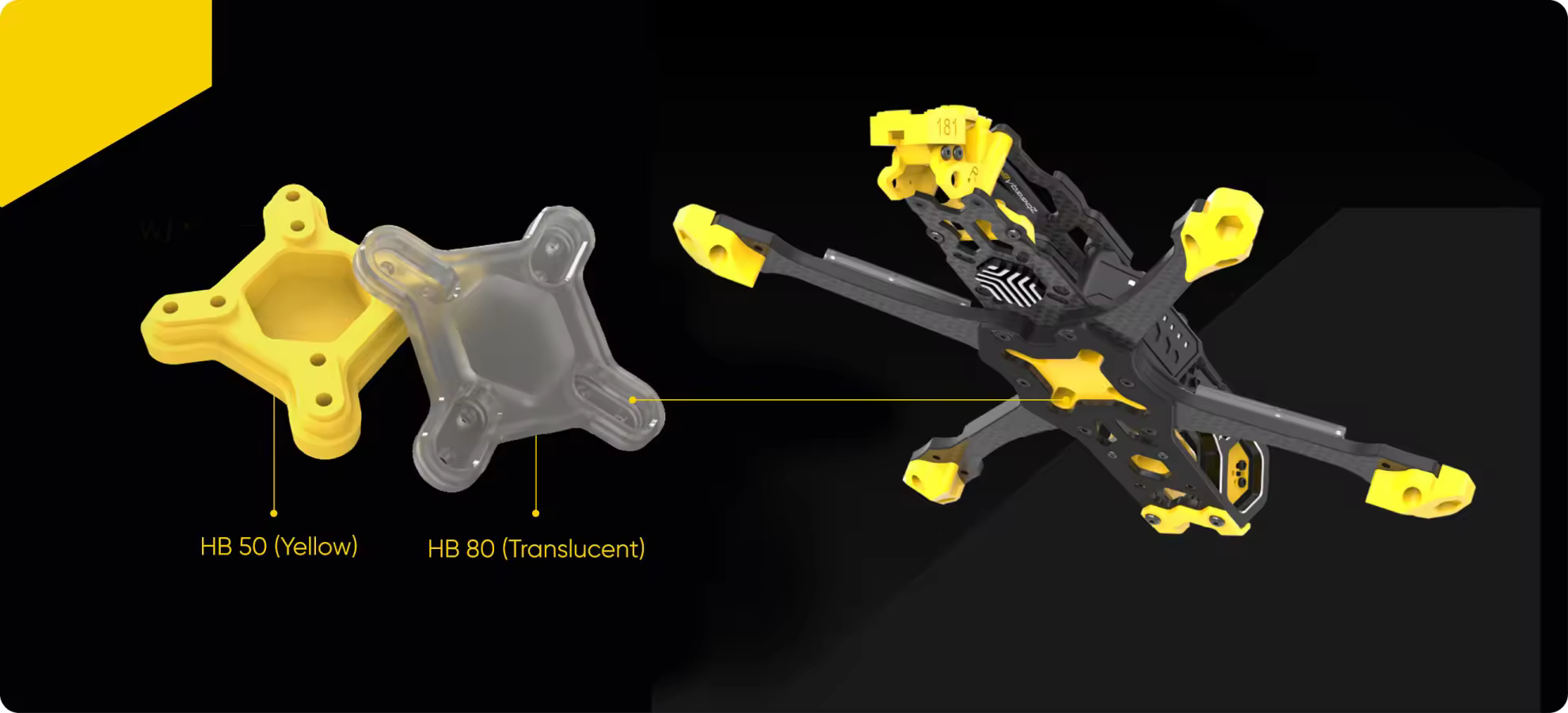

Stabilizes the FC Gyroscope Environment

SpeedyBee Master 5 V2 applies the anti-shock fixed stack structure. It uses injection molding via TPU rubber of HB80 and HB50, further stabilizing the running environment for the Gyro of FC, offering two kinds of mounting holes: 20mm*20mm(M3) and 30.5mm*30.5mm(M3).

Speedybee master 5 v2 frame conservation

Quick Detach - Effortless Assembly

With an average of just 1.5 screws per arm, the stack installation remains undisturbed throughout any assembly or disassembly process.

Speedybee master 5 v2 frame release structure

Perfect Balance Between Function and Fashion

The honeycomb-shaped aluminum alloy heatsink speeds up the heat dissipation from beneath the VTX, improving the operational stability of DJI FPV and high-power analog VTX. Compared to the 3D printed surround, which can obstruct heat dissipation, this approach dissipates heat more rapidly, significantly improving the cooling effect and contributing to a more enjoyable flight experience.

Speedybee master 5 V2 frame function and fashion

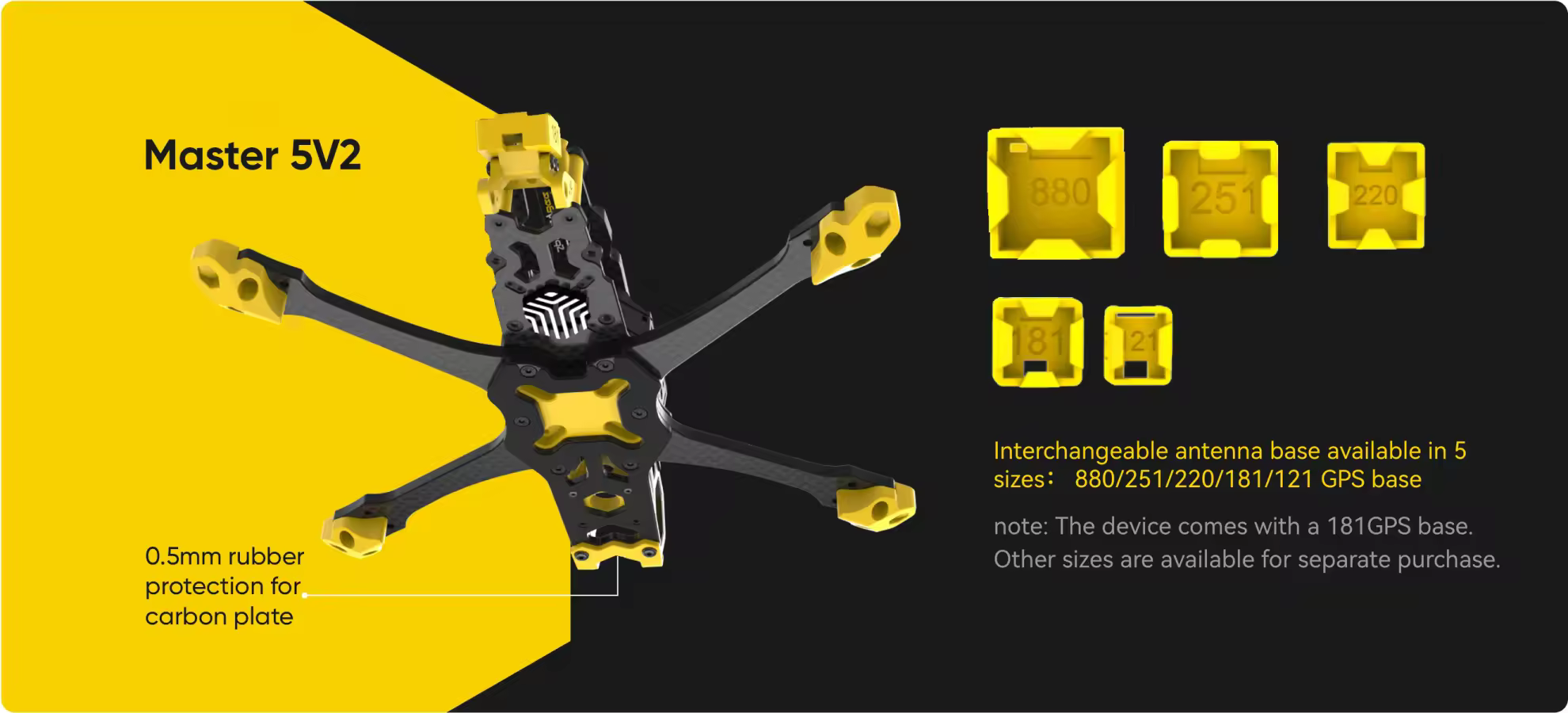

Soft protection for bottom plate


0.5mm soft rubber protection is attached to the bottom carbon plate of Master 5 V2, protecting drone from landing on uneven places.

Speedybee master 5 v2 frame soft protection

Innovative Design, Comprehensive Accessories


Everything You Need for Seamless Equipment Installation.

Speedybee master 5 v2 frame accessories

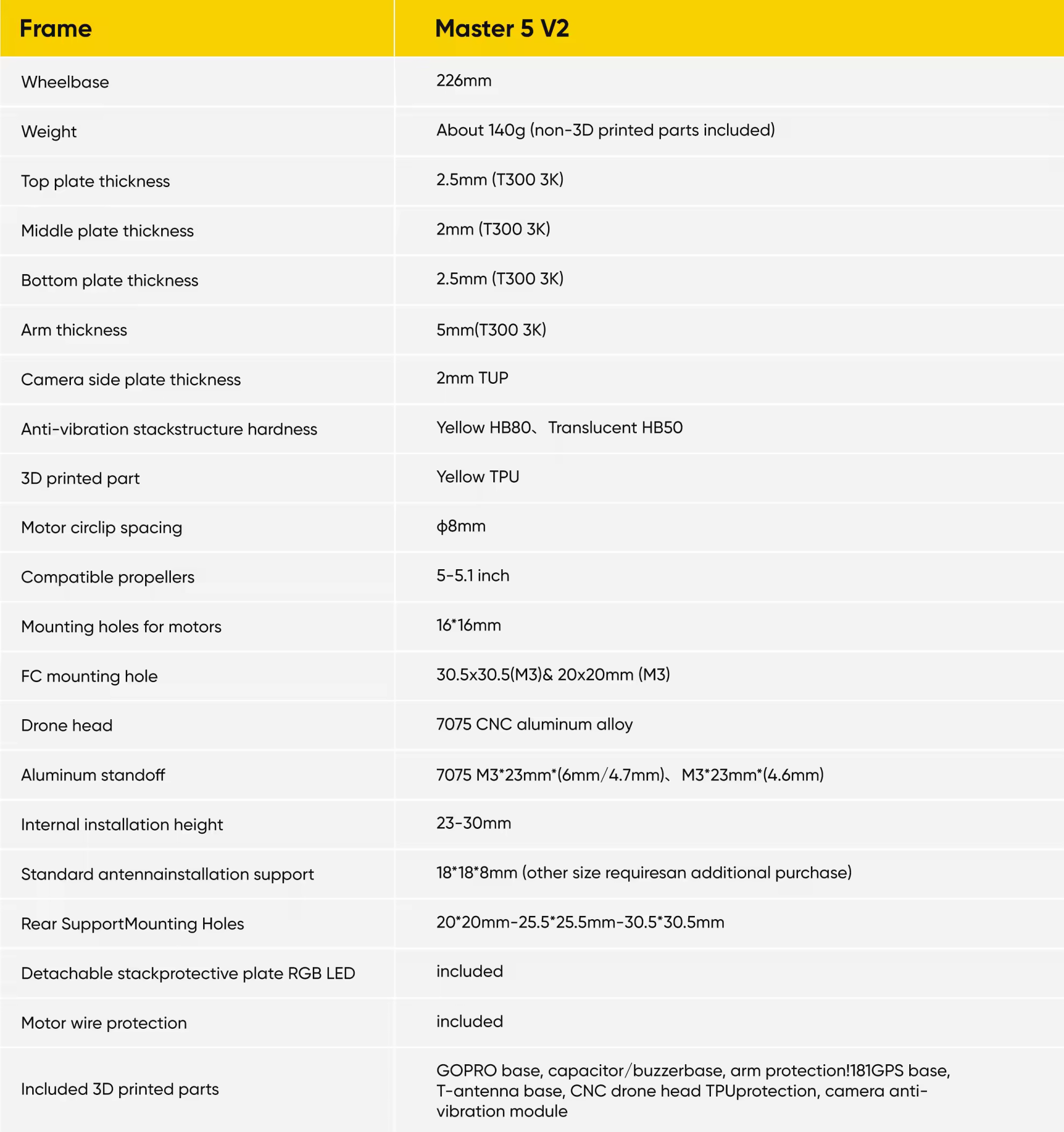

Parameter

Speedybee master 5 v2 frame specifications
SpeedyBee Master 5 V2 Frame v1 vs v2
SpeedyBee Master 5 V2 Frame v1 vs v2

Recommendations

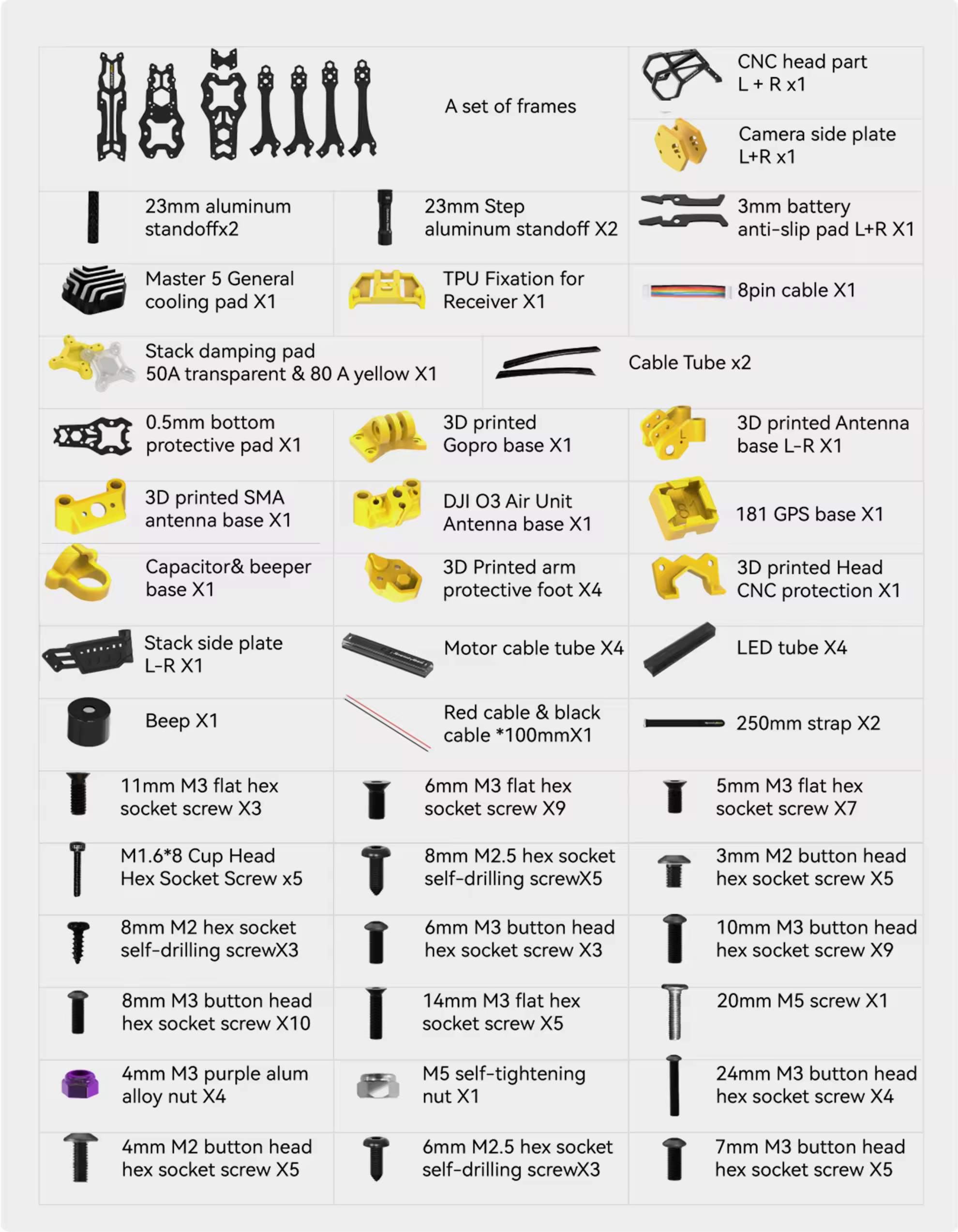

Package Included

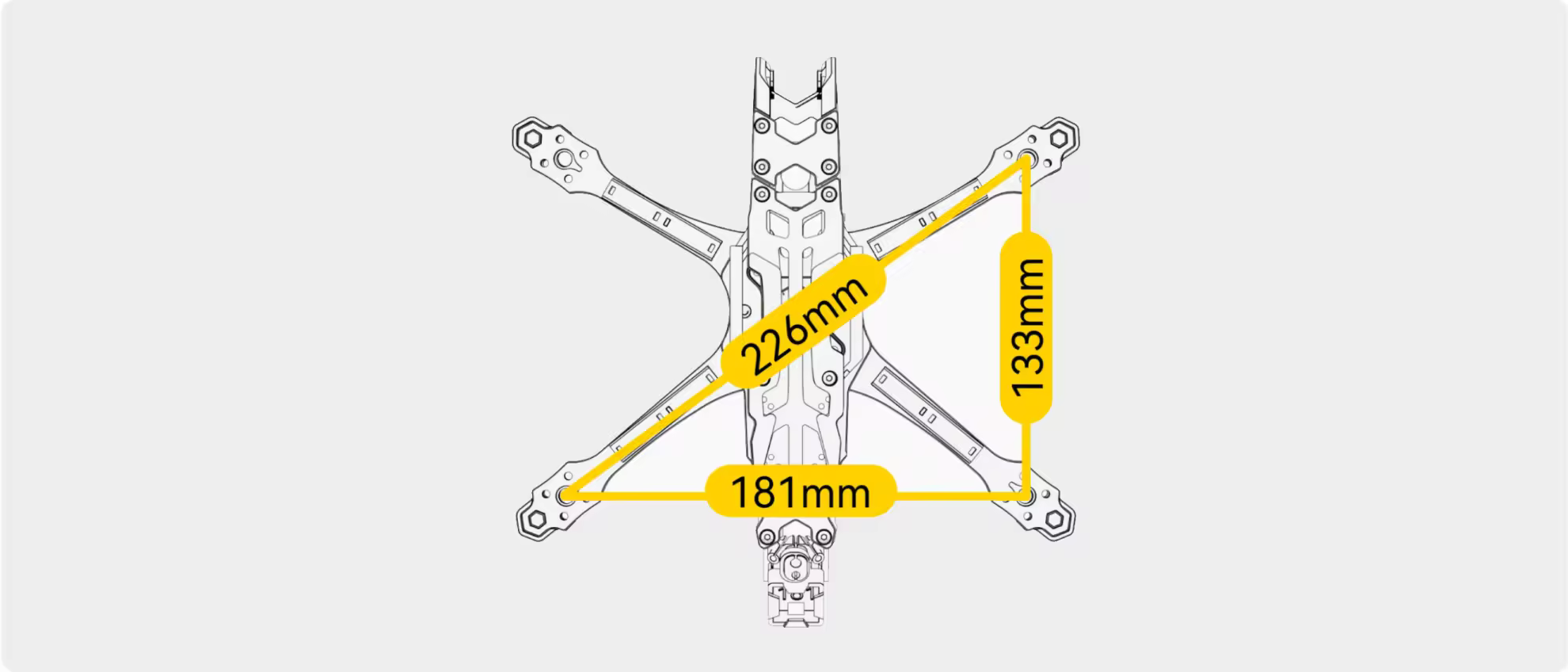

Size Chart

Speedybee master 5 v2 frame size
Reviews (6)
  • r************g
    Purchased 2 times
    AWESOME PRODUCT! THANK YOU MEPS! WILL DEFINITELY BUY AGAIN
    Specification：Master 5 V2
  • r************g
    Purchased 2 times
    AWESOME PRODUCT! THANK YOU MEPS! WILL DEFINITELY BUY AGAIN
    Specification：O4 Pro Lens 3D Parts
  • r************g
    Purchased 2 times
    AWESOME PRODUCT! THANK YOU MEPS! WILL DEFINITELY BUY AGAIN
    Specification：O4 Pro Antenna 3D Print
  • 1
  • 2
FAQ Feel free to ask us any questions
ASK A QUESTION
Q: What components are recommended for the SpeedyBee Master 5 V2 frame?
Q: What are the key features of the SpeedyBee Master 5 V2 frame?
Q: What applications is the SpeedyBee Master 5 V2 frame suitable for?
Q: What should be considered when assembling this frame?
