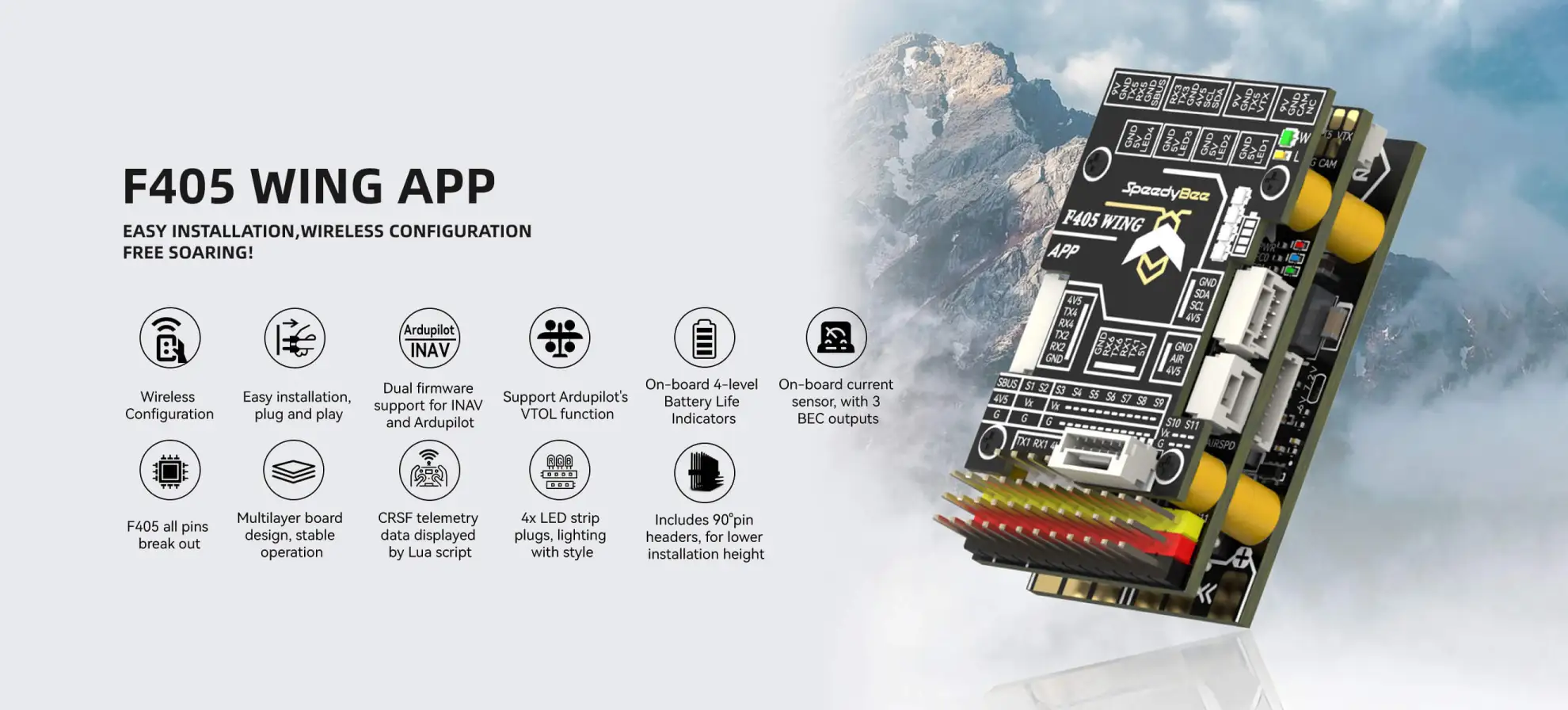

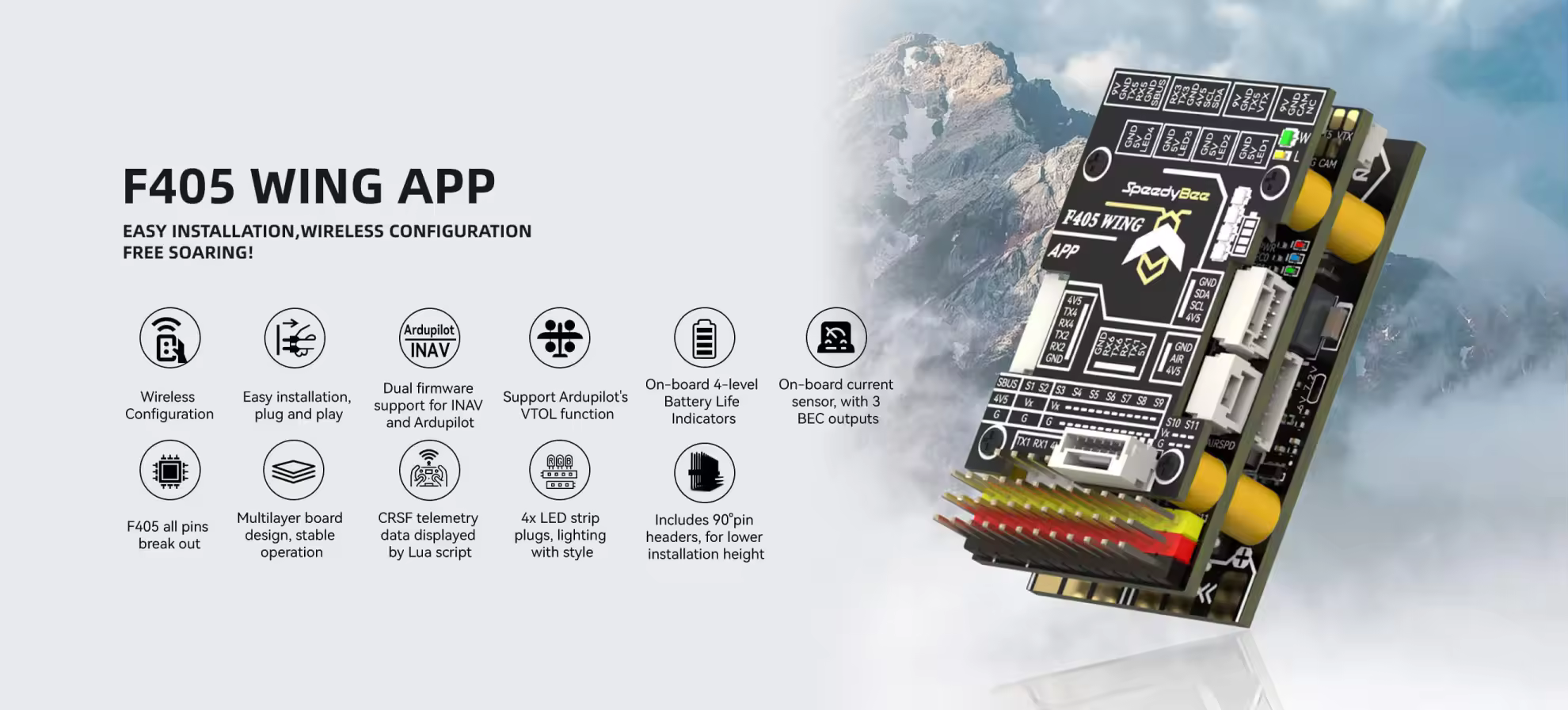

Features:

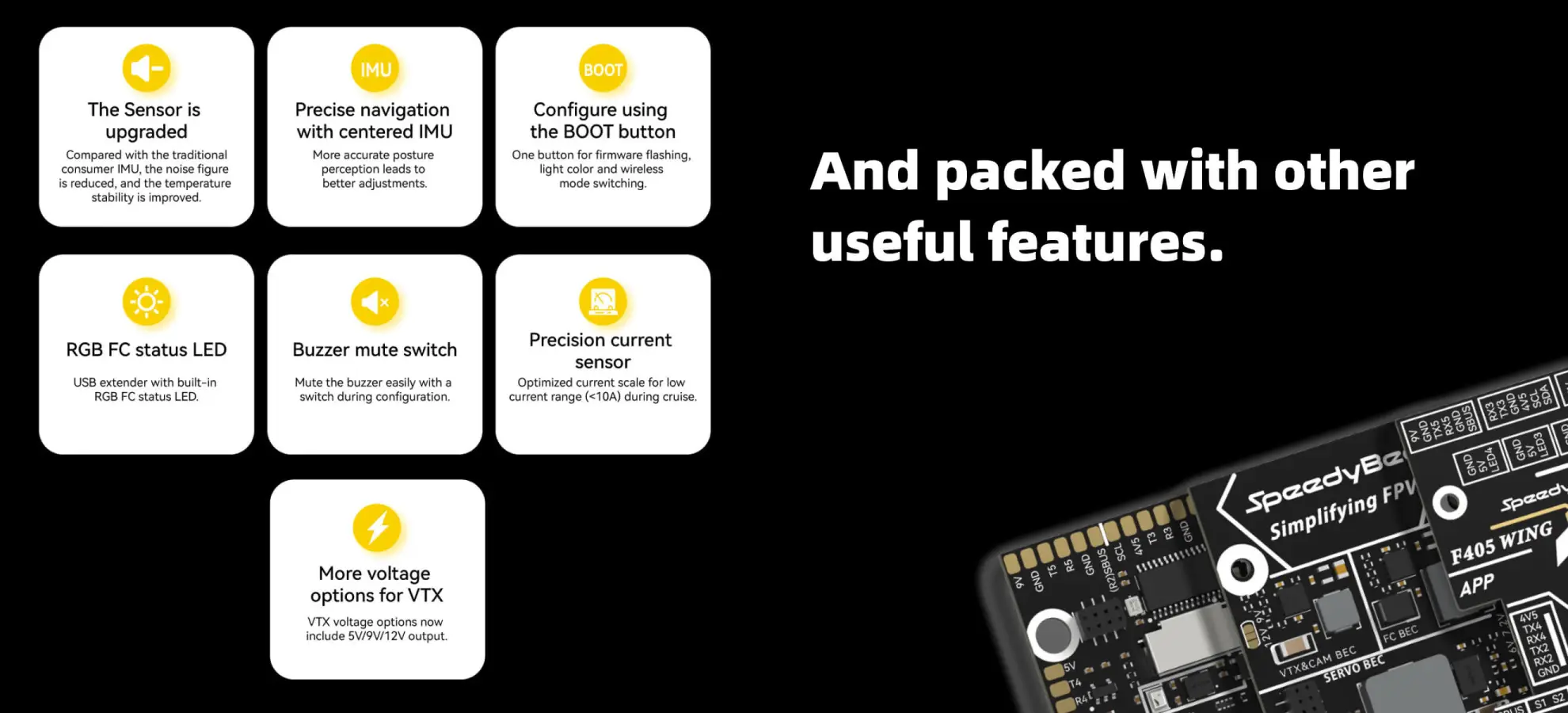

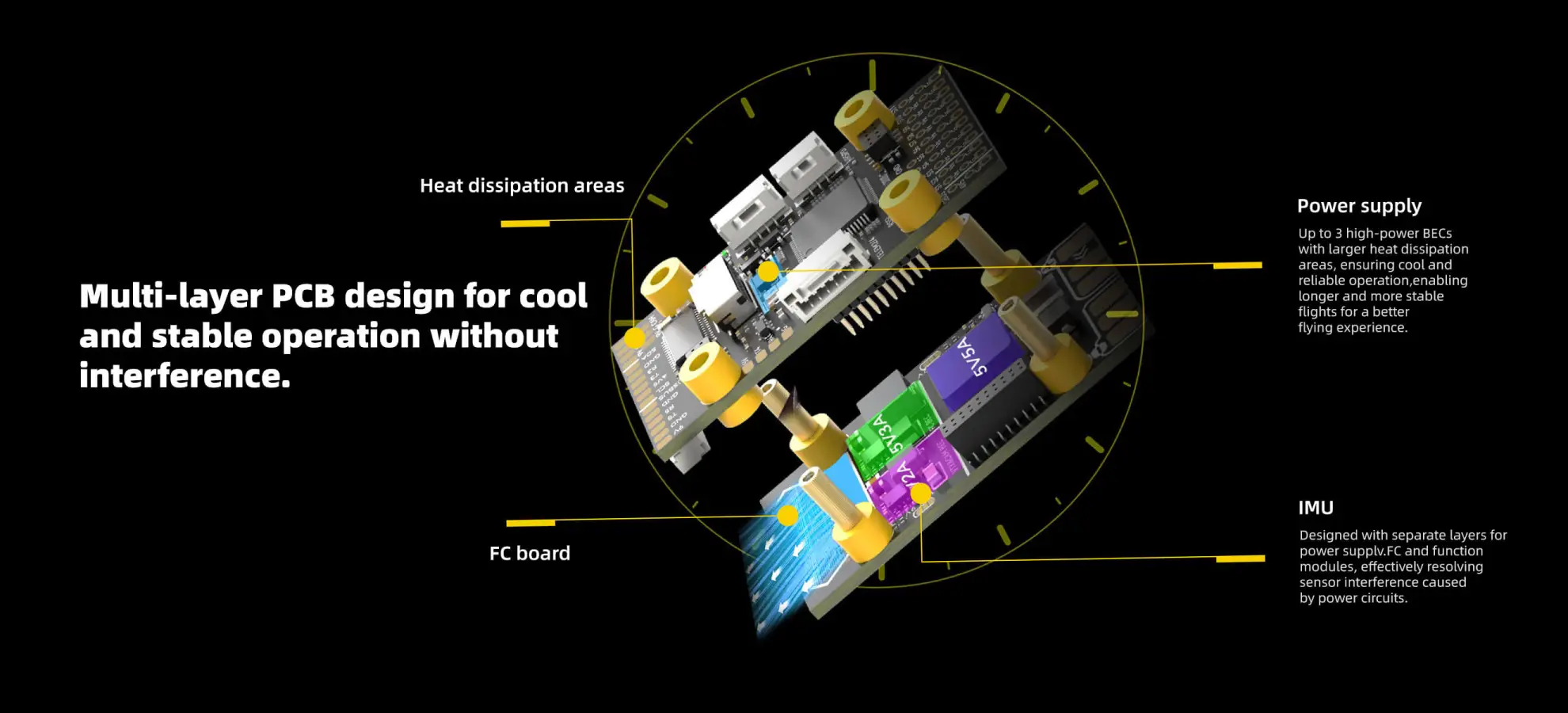

● Upgraded Sensor: Beyond the traditional consumer IMUs, this controller offers reduced noise and improved temperature stability combined with a centralized IMU for accurate navigation and adjustments.

● Seamless Configuration: The BOOT button provides easy configuration, allowing for firmware flashing, light color changes, and wireless mode switching. Additionally, the buzzer mute switch ensures a quiet setup process.

● Battery Monitoring: The 4-level LED battery indicator facilitates quick battery level checks, making separate LiPo checkers unnecessary. Additionally, the precision current sensor is optimized for monitoring low current ranges, particularly those below 10A.

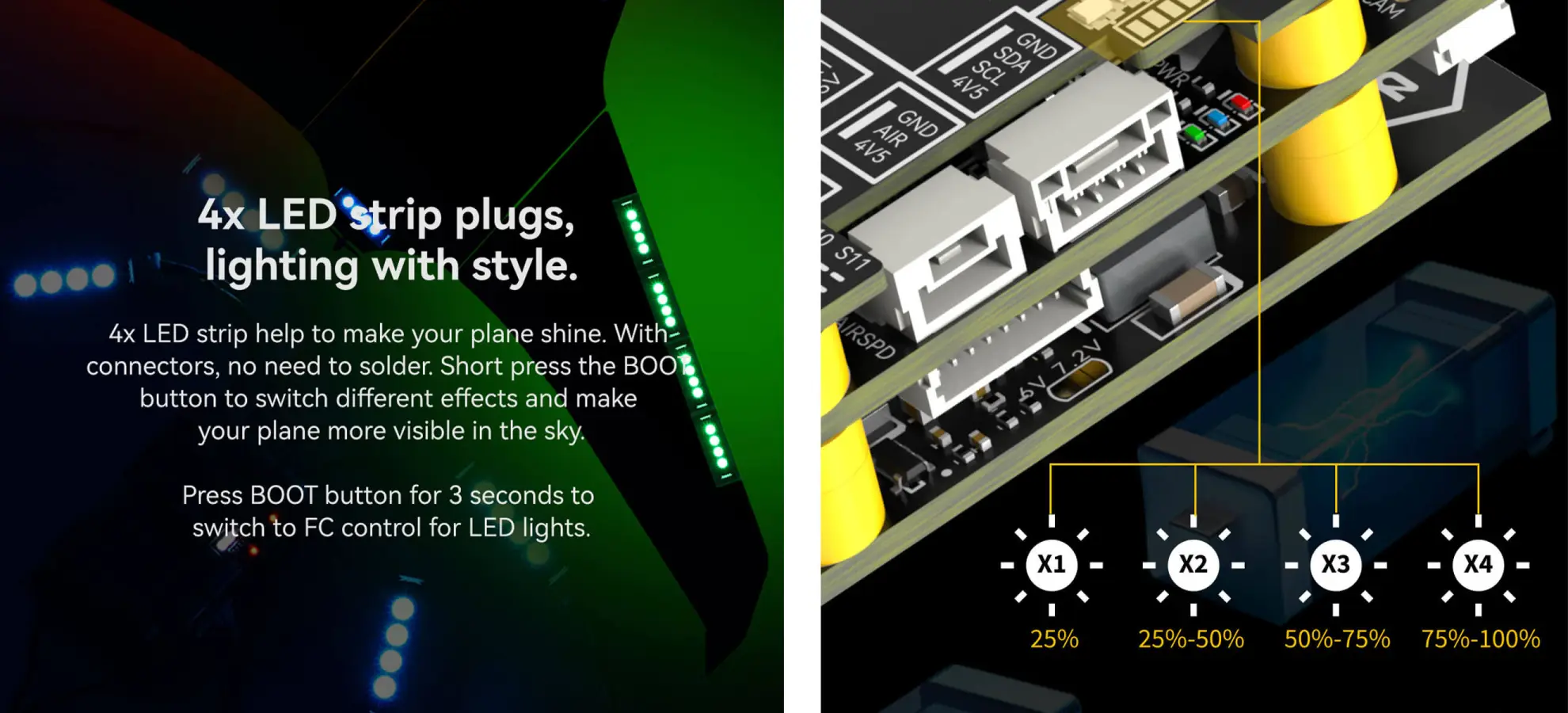

● LED Features: Four LED strip plugs enhance visibility and aesthetics in the sky, with the BOOT button simplifying the management of lighting effects.

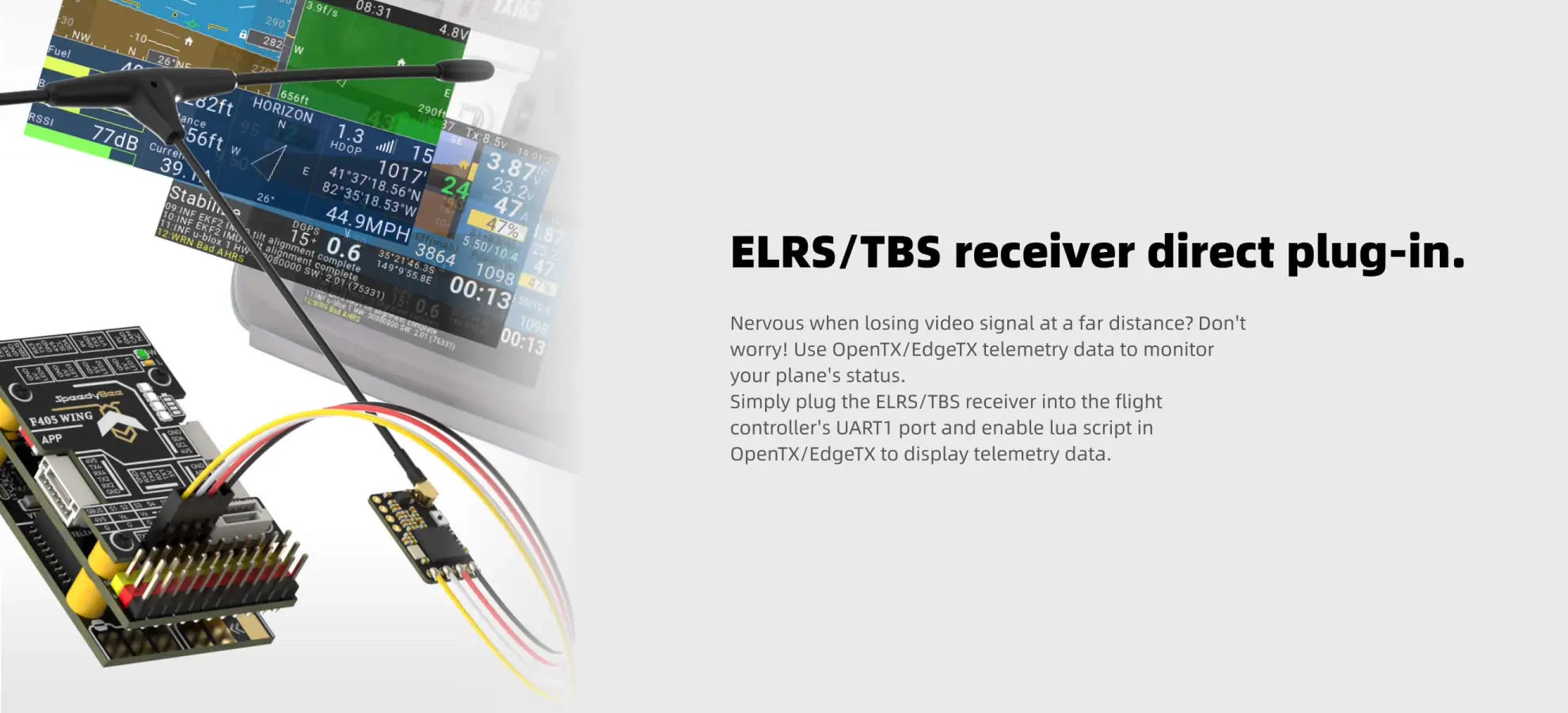

Telemetry & Receivers: The controller is designed for straightforward integration with ELRS/TBS receivers, delivering telemetry data through OpenTX/EdgeTX platforms for real-time monitoring.

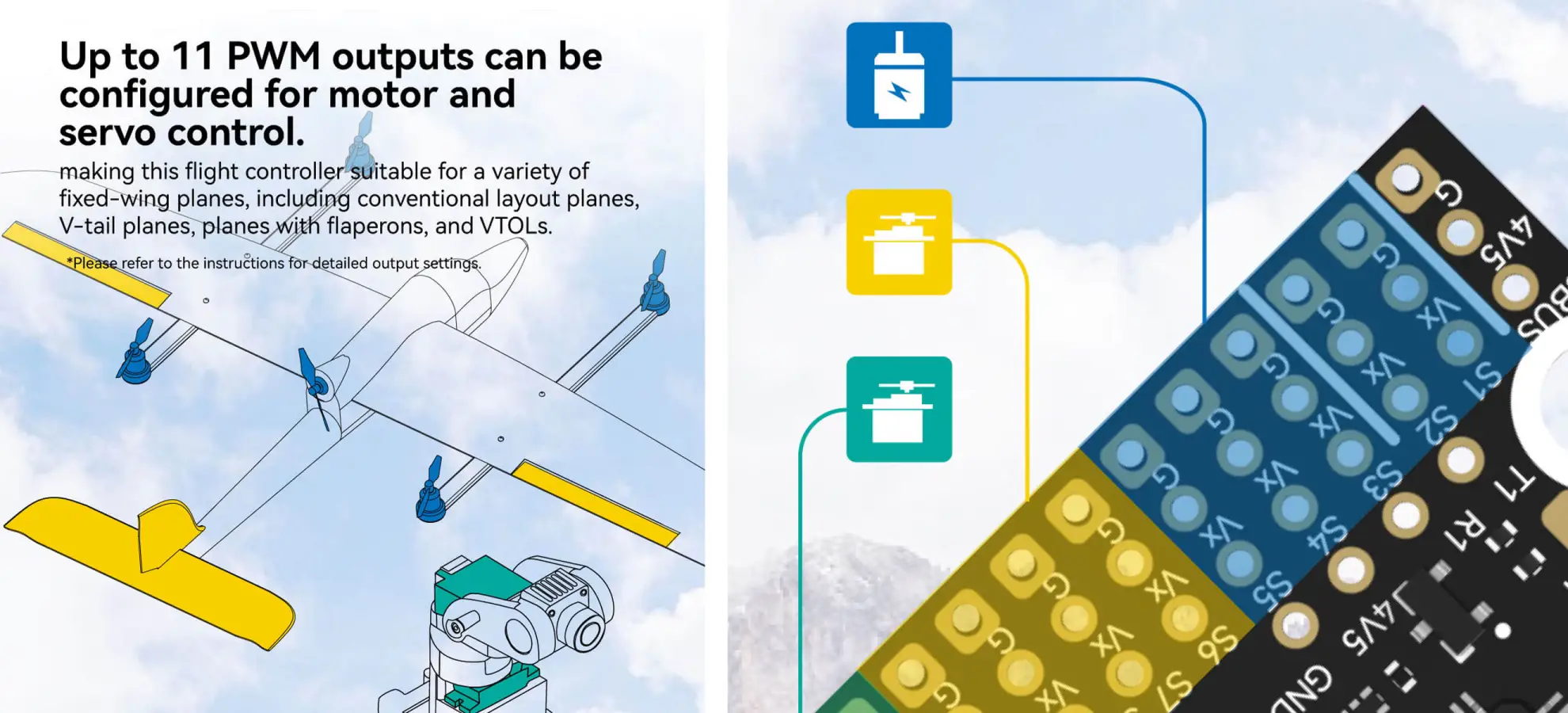

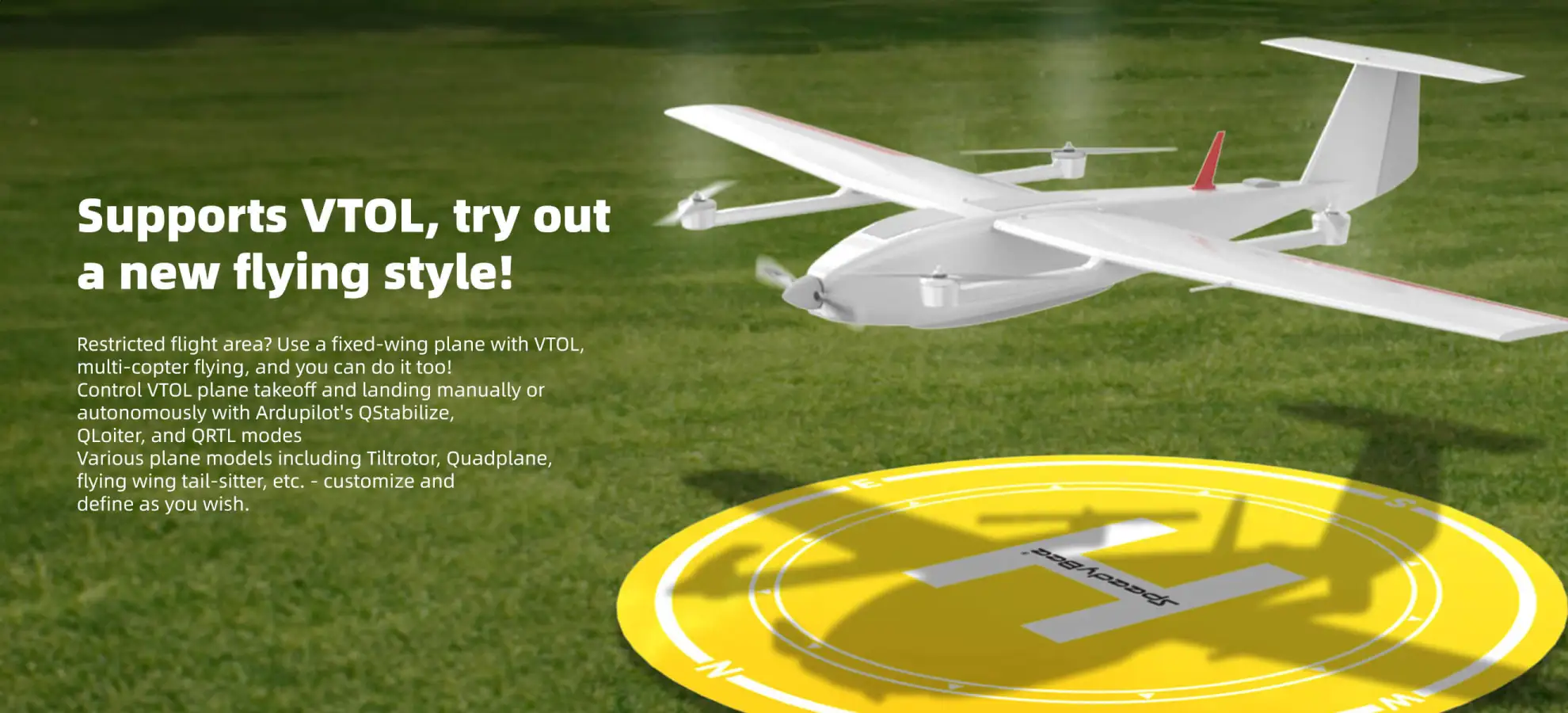

● Flight Modes & Versatility: Support for various flight modes, including Tiltrotor and Quadplane, is integrated. With its 11 PWM outputs, it's adaptable to a diverse range of fixed-wing planes.

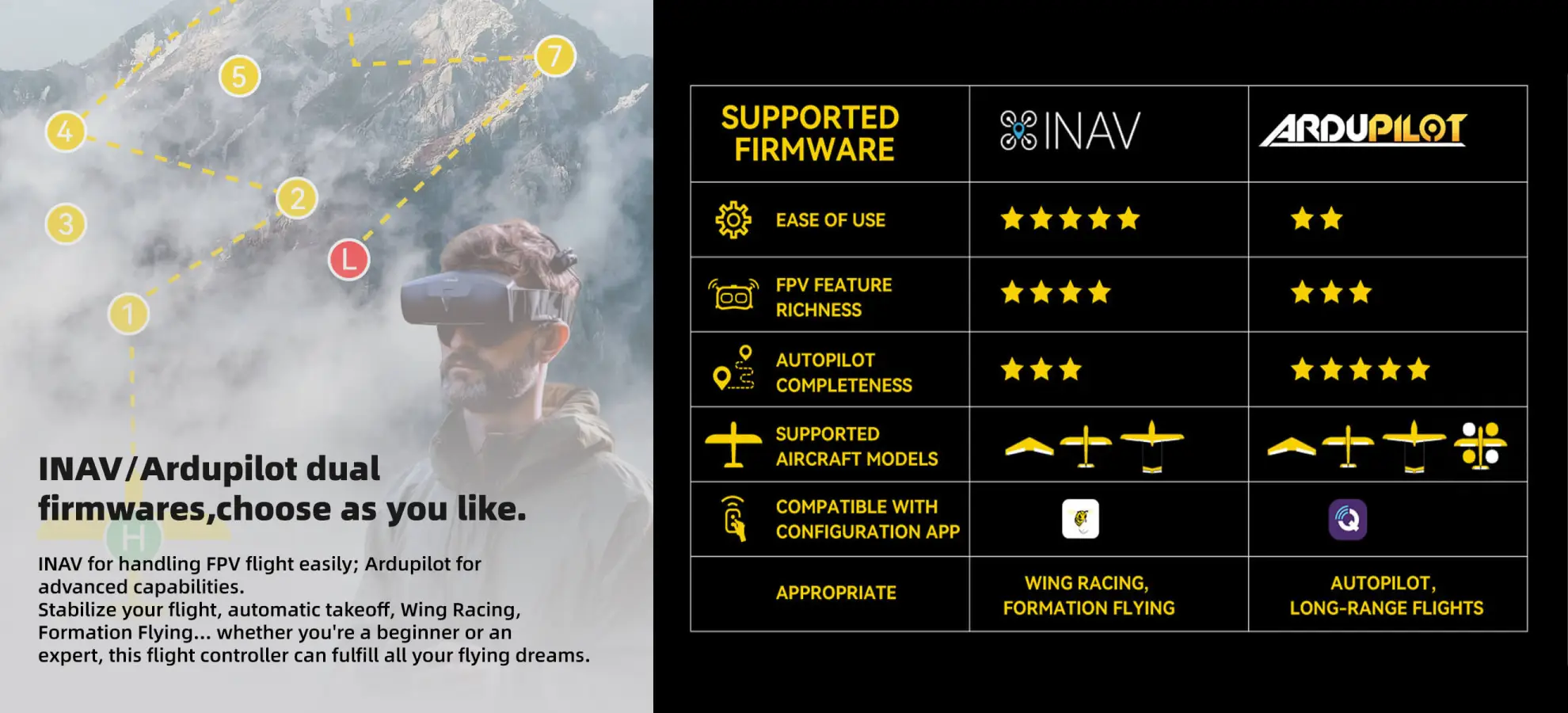

● Firmware Choices: Choose between the INAV and Ardupilot firmware based on your flight needs, whether straightforward FPV flight or more advanced functionalities.

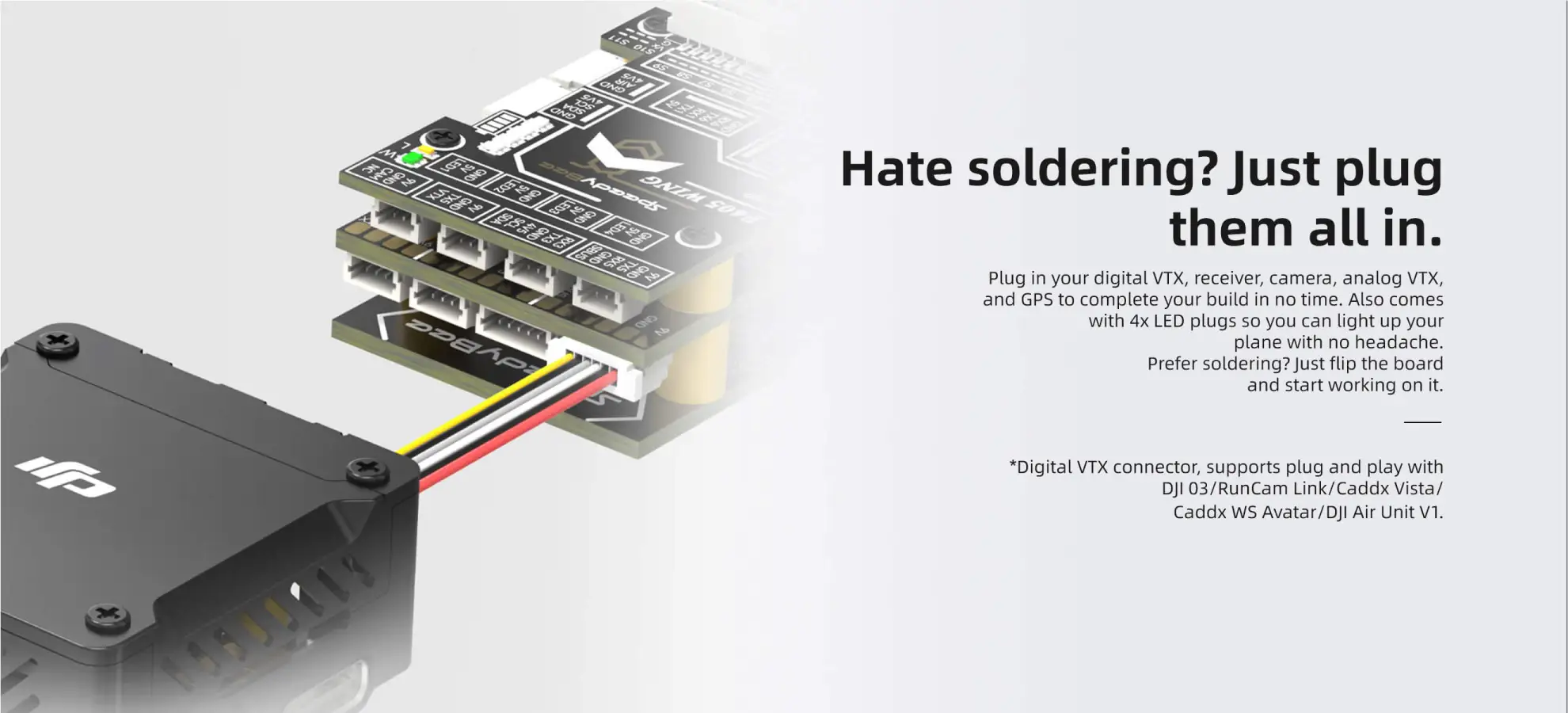

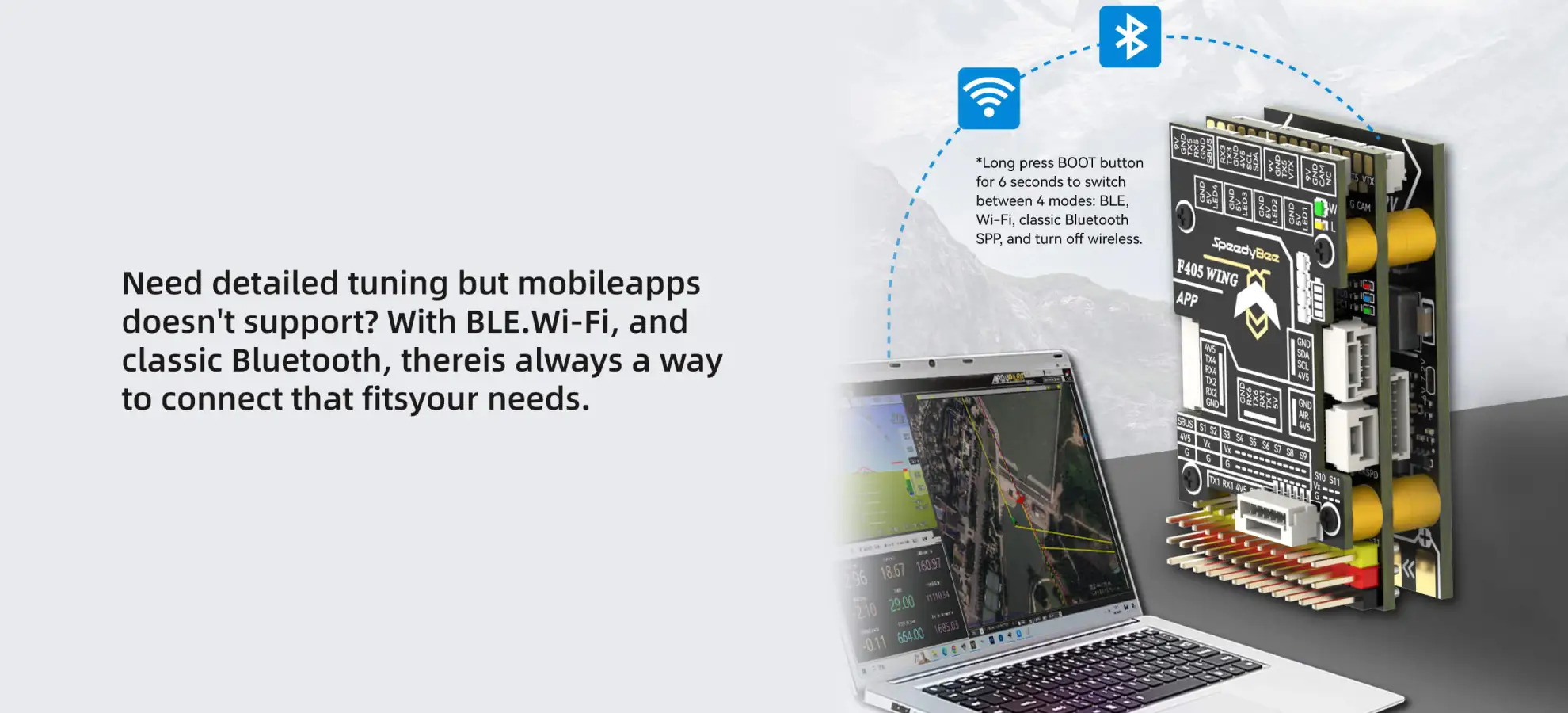

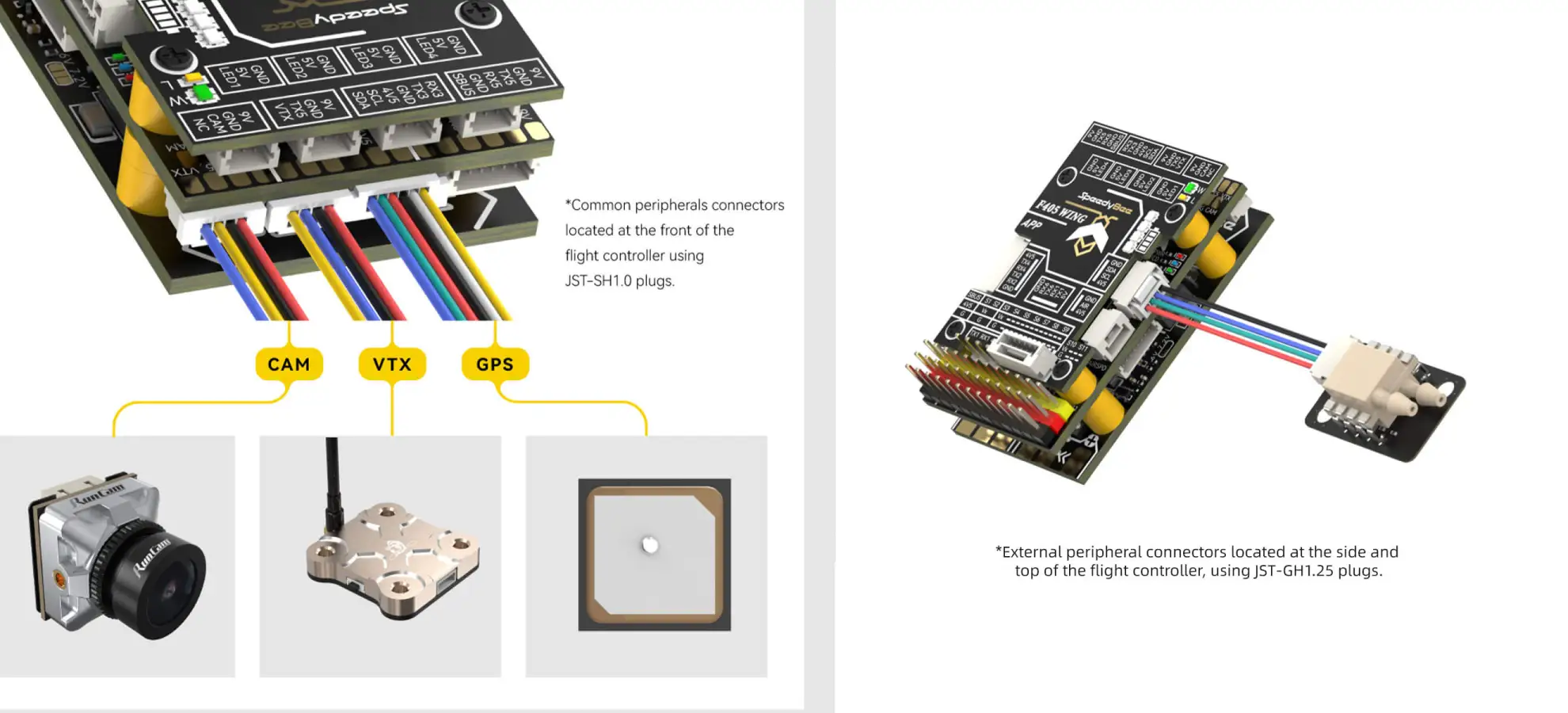

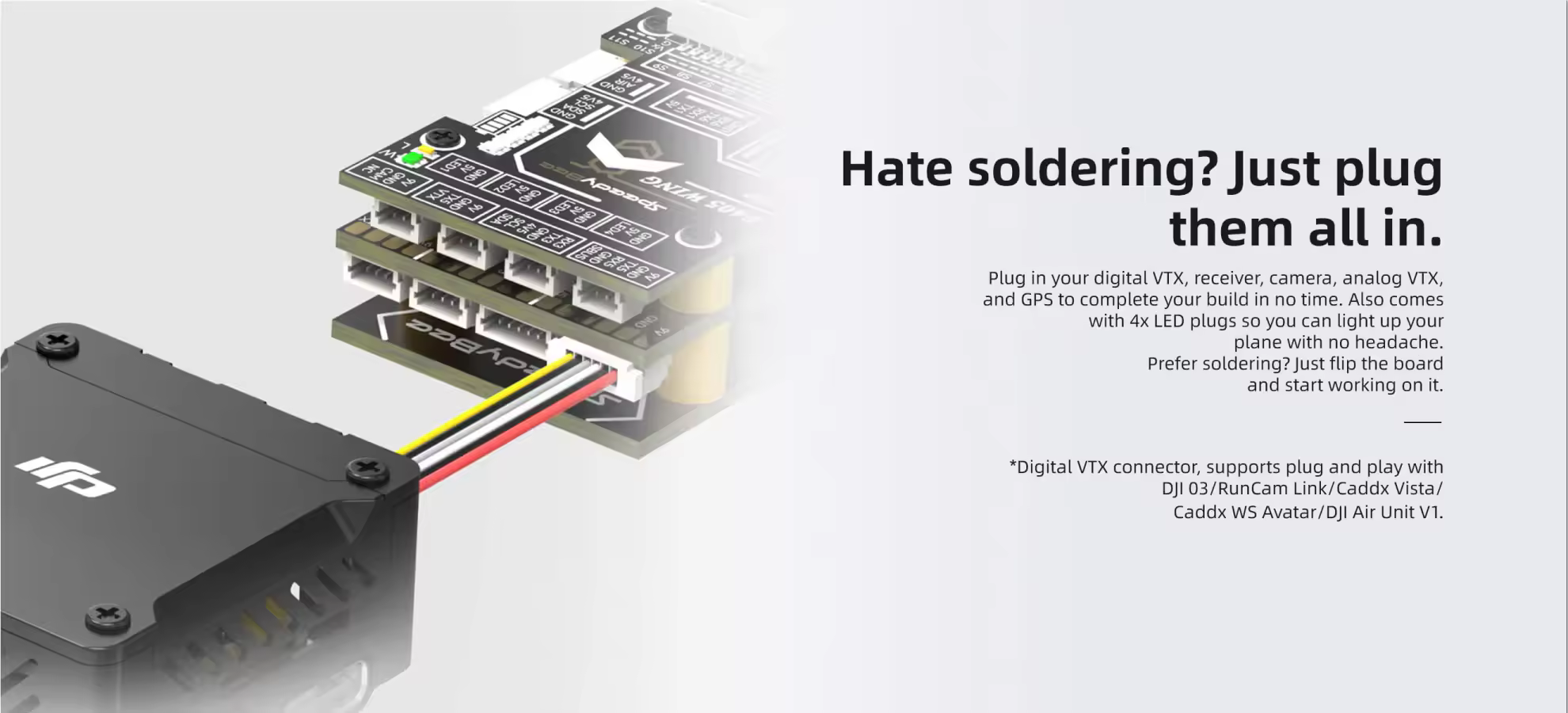

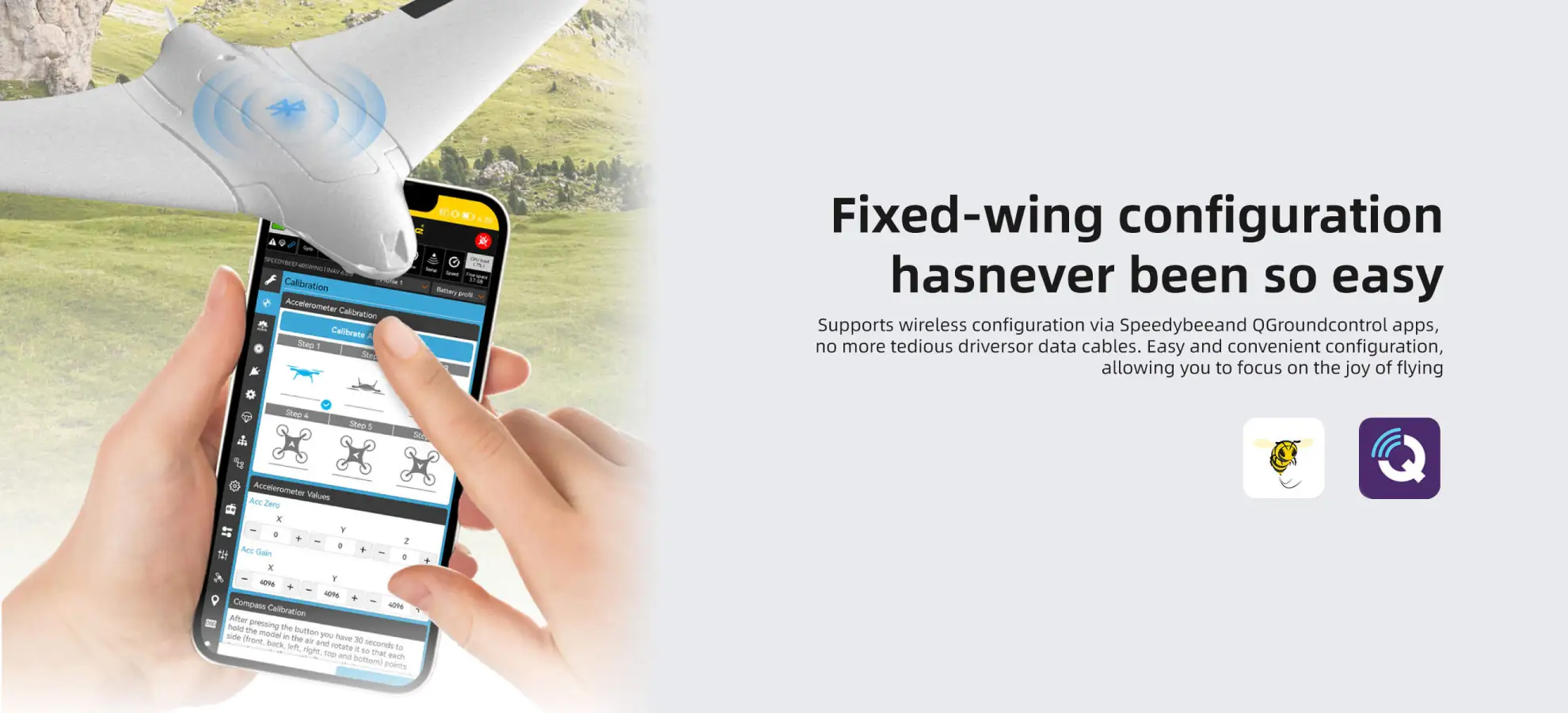

● Connection Options: The controller promotes a user-friendly approach with plug-and-play connectors for elements like digital VTX, receivers, cameras, and more. Those who prefer soldering also find it accommodating. Multiple connection channels, including BLE, Wi-Fi, and classic Bluetooth, ensure flexibility in setup and monitoring.

Specifications

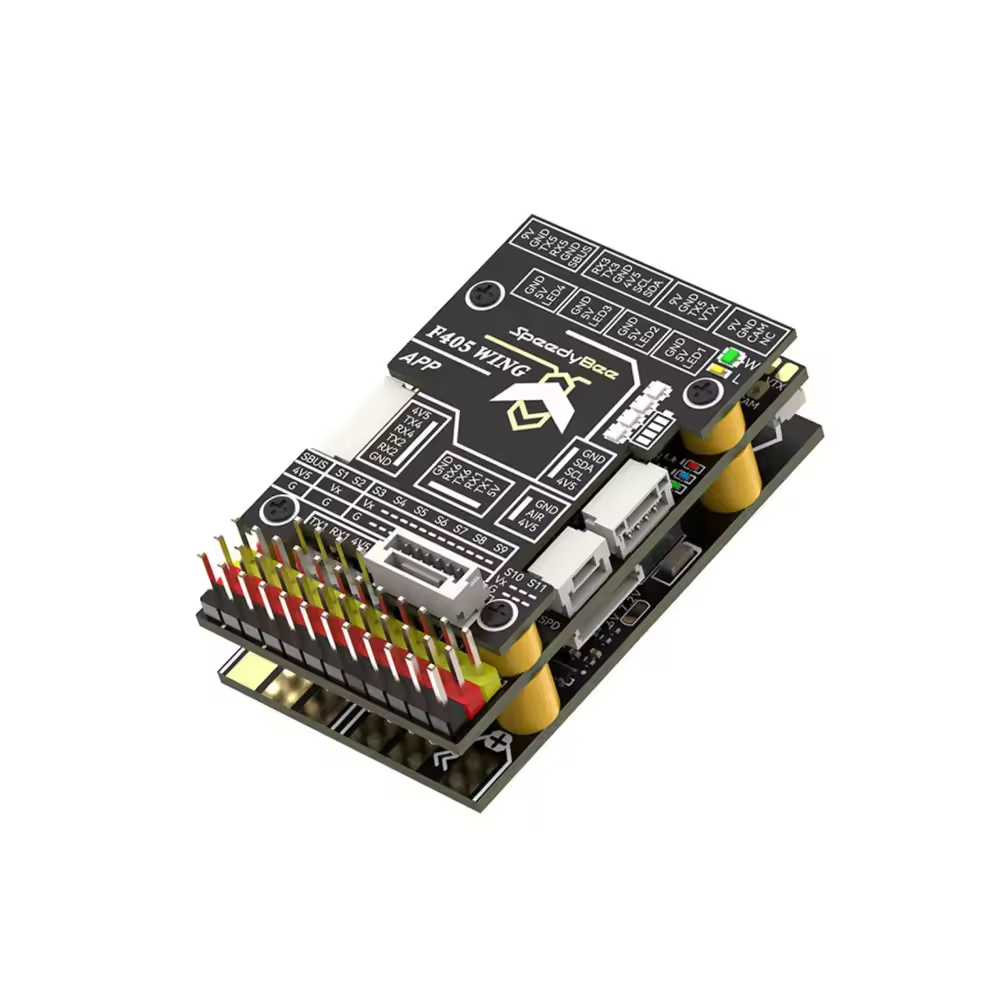

SpeedyBee F405 WING FC board

● MCU: STM32F405, 168MHz, 1MB Flash

● IMU (Gyro & Accelerometer): ICM-42688-P

● Barometer: SPL006-001

● OSD Chip: AT7456E

● Blackbox: MicroSD Card Slot

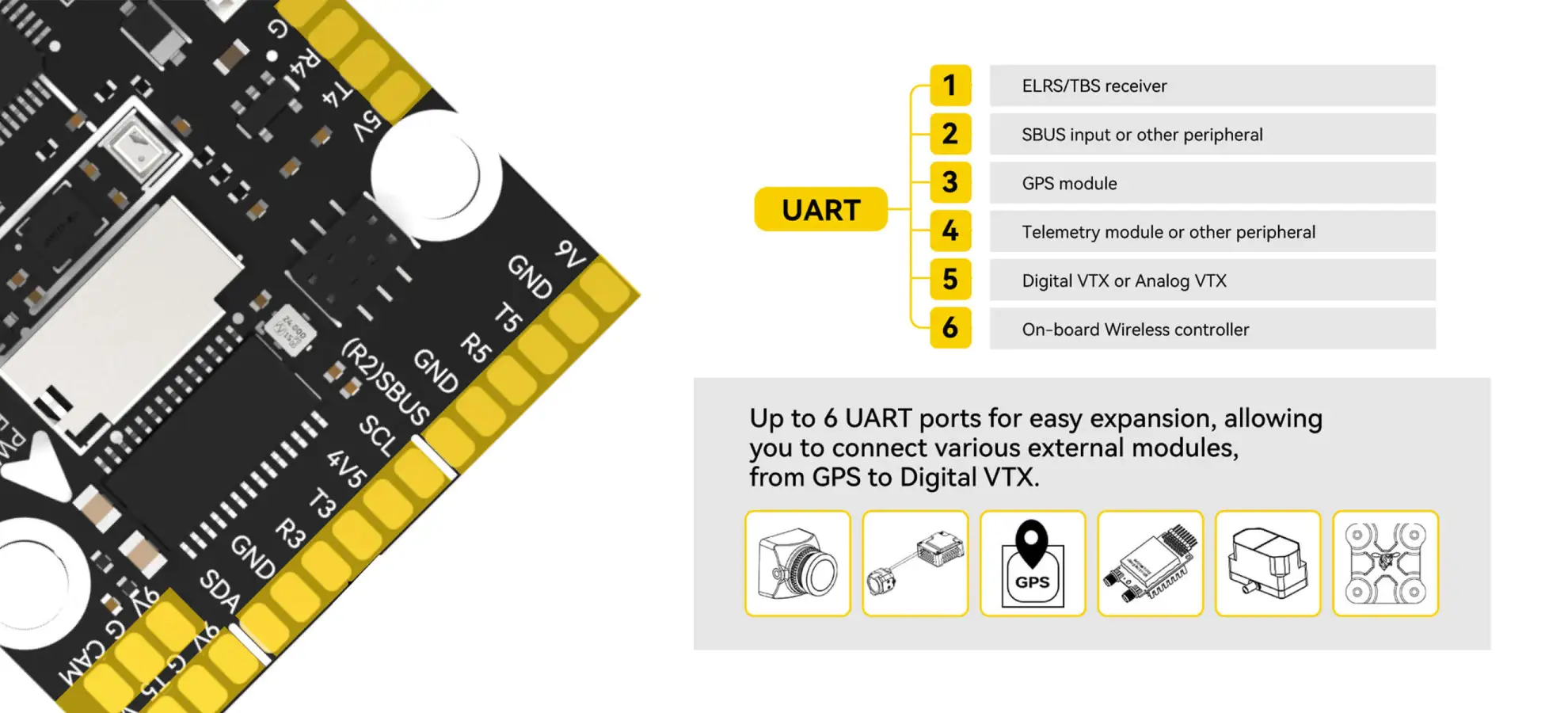

● UART: 6 sets, specific for various functions including wireless board telemetry connection

● I2C: Used for magnetometer, digital airspeed sensor

● ADC: 4 types (VBAT, Current, RSSI, Analog AirSpeed)

● PWM: 12 types (11 regular and 1 “LED” pad)

● ELRS/CRSF receiver: Supported, connected to UART1

● SBUS: Built-in inverter for SBUS input (UART2-RX)

● LED: 3 for FC STATUS and 1 RGB

● RSSI: Supported, named as RS

● Supported FC Firmware: INAV and ArduPilot for SpeedyBeeF405WING

● Weight: 8.9g

SpeedyBee F405 WING PDB board

● Input voltage range: 736V (26S LiPo)

● Battery Voltage Sensor: Connects to FC board VBAT

● Battery Current Sensor: 90A continuous, 215A peak connection to FC board

● TVS Protective diode: Included

● FC BEC output: Designed for multiple components, including FC, Receiver, and GPS module

● VTX BEC output: Designed for video transmitter and camera

● Servo BEC output: Designed for servos

● Weight: 11.4g

SpeedyBee F405 WING Wireless board

● Wireless Configuration: Multiple modes, including BLE, Wi-Fi, and Classic Bluetooth SPP

● LED strip controller: 4x WS2812 LED strip connectors

● On-board battery level indicator: 4x RGB LED for battery level display

● Weight: 4.2g

Package Includes

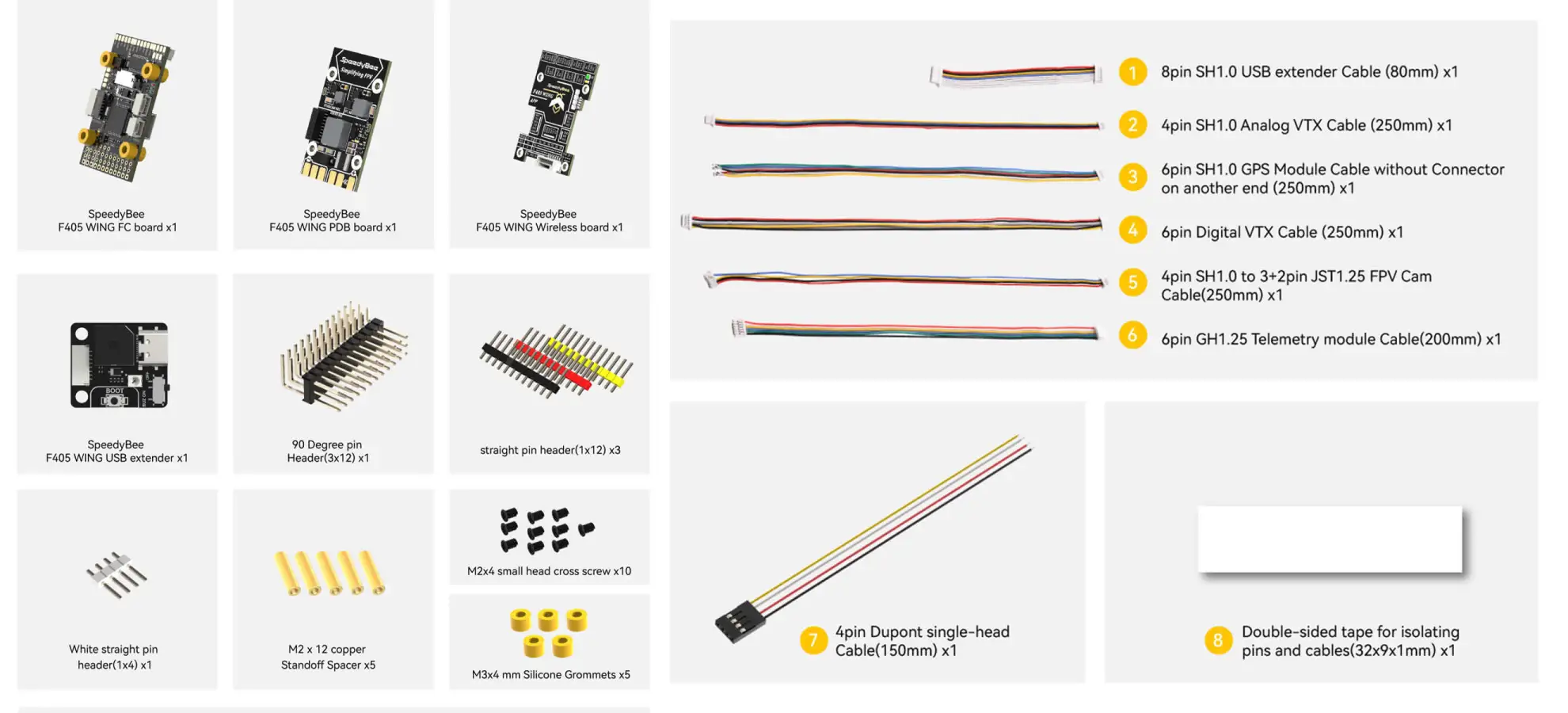

● 1 x F405 WING FC board

● 1 x F405 WING PDB board

● 1 x F405 WING Wireless board

● 1 x F405 WING USB extender

● 1 x 90 Degree pin Header(3x12)

● 3 x straight pin header(1x12)

● 0 x M2x4 small head cross screw

● 1 x White straight pin header(1x4)

● 5 x M2 x 12 copper Standoff Spacer

● 5 x M3x4 mm Silicone Grommets

● 1 x 8pin SH1.0 USB extender Cable (80mm)

● 1 x 4pin SH1.0 Analog VTX Cable (250mm)

● 1 x 6pin SH1.0 GPS Module Cable without Connector on another end (250mm)

● 1 x 6pin Digital VTX Cable (250mm)

● 1 x 4pin SH1.0 to 3+2pin JST1.25 FPV Cam Cable(250mm)

● 1 x 6pin GH1.25 Telemetry module Cable(200mm)

● 1 x 4pin Dupont single-head Cable(150mm)

● 1 x Double-sided tape for isolating pins and cables(32x9x1mm)
