About SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC Stack:
SpeedyBee F405 V4 BLS 60A Stack is a powerful and feature-rich 30x30 FC/ESC combo designed for 8–10 inch FPV drones. It features a true 60A 4-in-1 ESC with heatsink, upgraded F405 V4 processor, dual gyros, built-in barometer, and wireless configuration via the SpeedyBee app-including motor direction changes.
With 5V/9V 3A BECs, 1000uF filtering capacitor, 4-level battery indicators, and support for up to 8 motors and 4 LED strips, it offers rock-solid performance. It's also DJI Air Unit plug-and-play ready. High performance, unbeatable value-perfect for serious FPV builds.
30-Day Returns From Shipment | 7-Day No-Reason Returns
24h Support Response | 24h Fast Support Guarantee

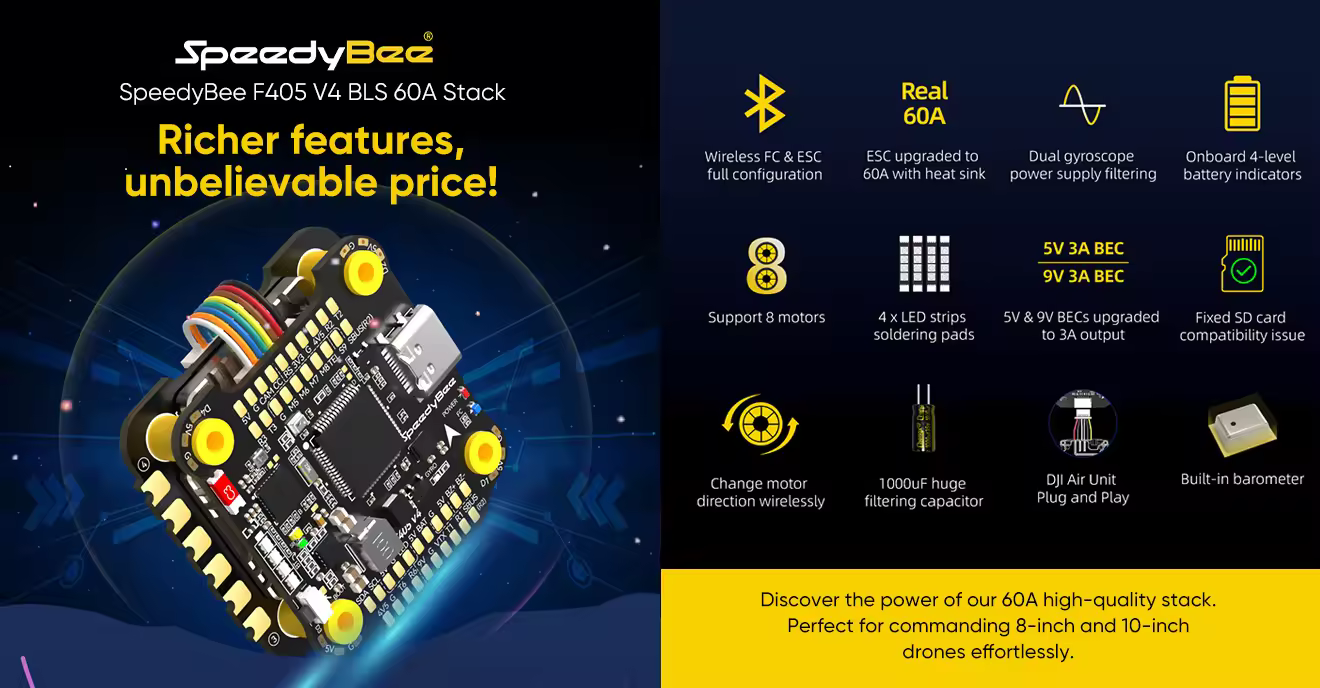

Top highlights
Integrated FC/ESC Stack: Compact 30x30 design for streamlined installation.
60A Power Output: Robust ESC delivering 60A per channel for demanding flights.
Upgraded F405 V4 Processor: Enhanced processing for superior FPV performance.
Efficient Cooling: Optimized heat dissipation for extended durability.
Wide Compatibility: Supports multiple firmware for racing and freestyle builds.
Payment | Every order you place with us is safe & secure
Share
Wireless Power & Smart Performance for FPV Drones

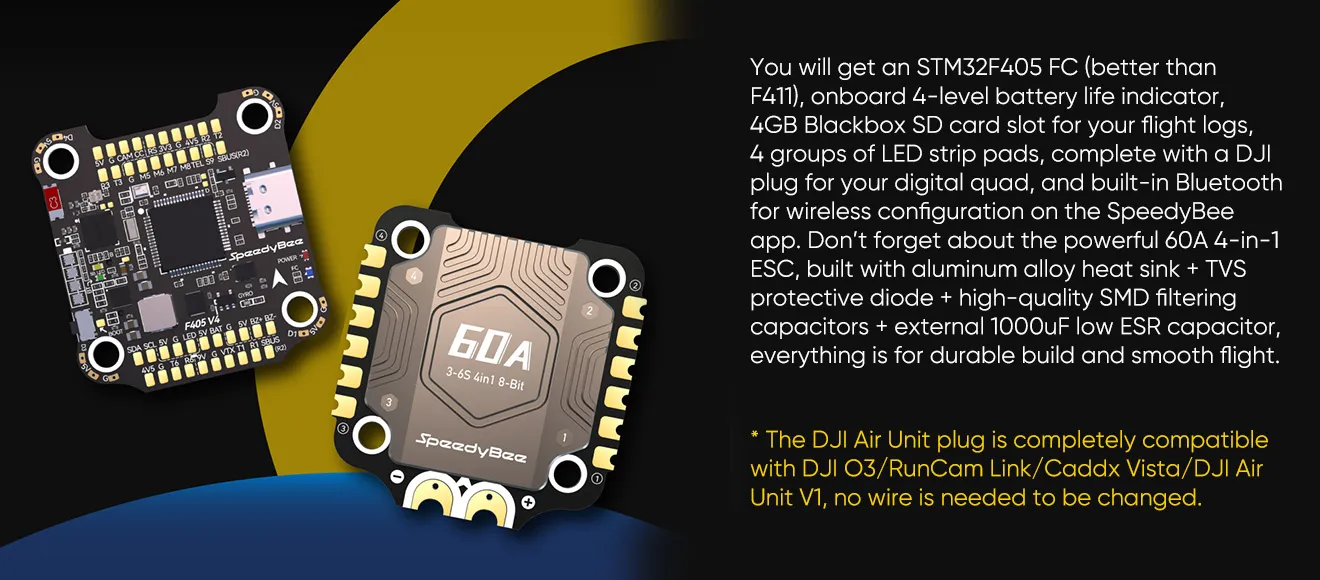

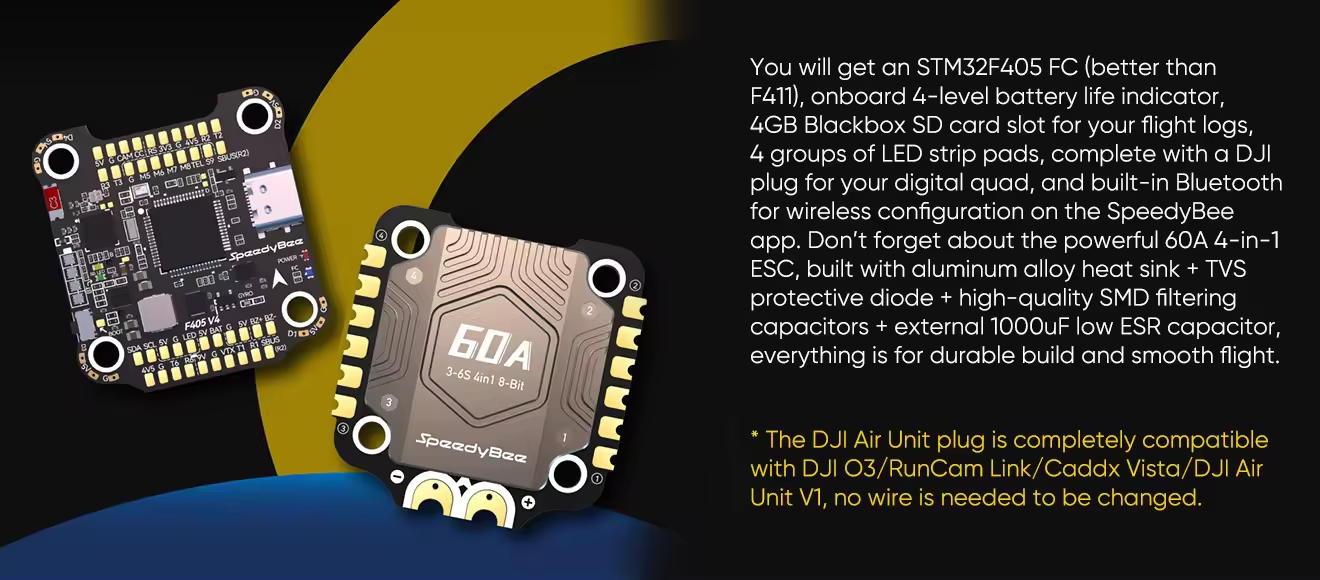

An STM32F405 flight controller with onboard Bluetooth for wireless configuration via the SpeedyBee app, a 4-level battery indicator, and 4GB Blackbox SD card slot. The robust 60A 4-in-1 ESC includes a durable aluminum heatsink, TVS protection, and high-quality filtering capacitors, including an external 1000uF low ESR capacitor for clean power delivery. With plug-and-play support for DJI O3, Vista, and Air Unit V1, it's a powerful and convenient solution for modern FPV drone builds.

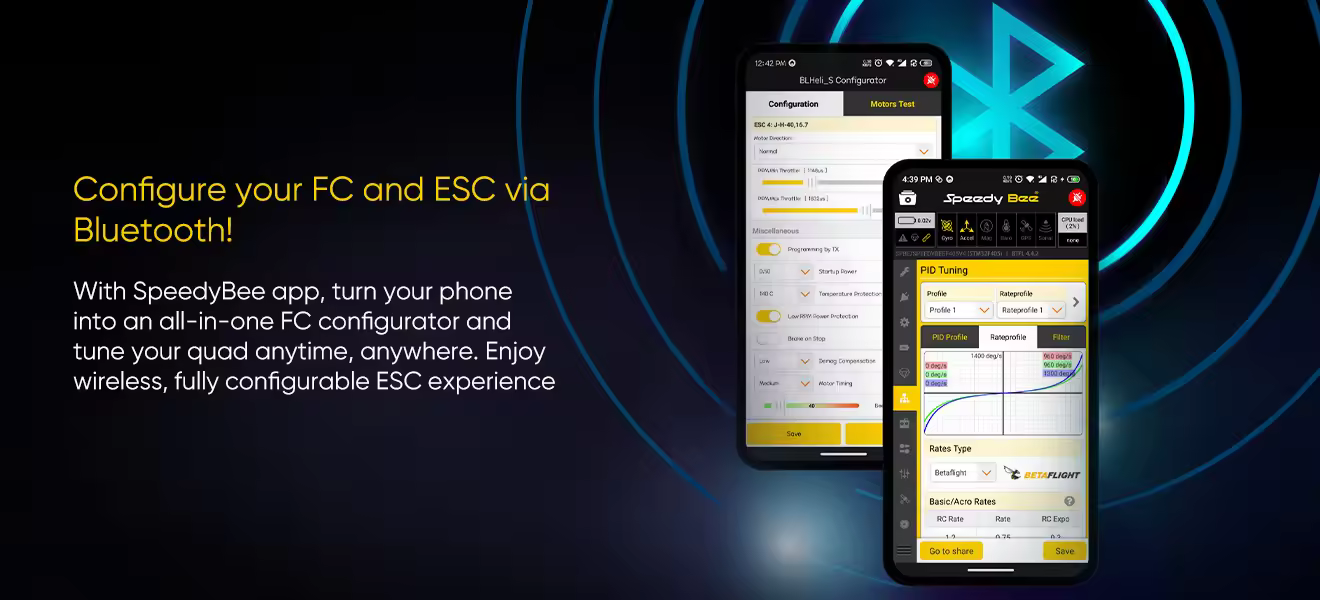

Wireless FC & ESC Tuning with the SpeedyBee App
Easily configure your flight controller and ESC anytime, anywhere-no cables needed. With built-in Bluetooth, the SpeedyBee F405 V4 60A Stack lets you wirelessly connect to the SpeedyBee app, transforming your phone into a powerful all-in-one configurator. Adjust PID tuning, motor direction, and ESC settings effortlessly for a fully mobile FPV setup experience.

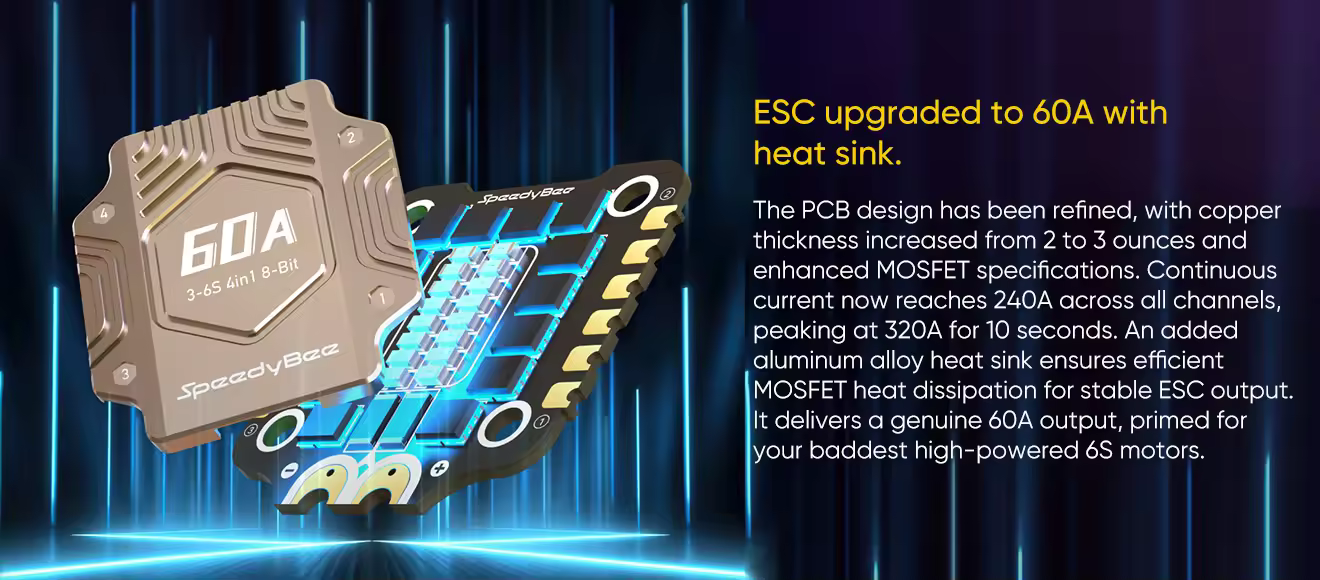

Upgraded 60A ESC with Heat Sink
The ESC has been upgraded to a real 60A continuous output, reinforced with a 3oz thickened PCB and improved MOSFETs. It supports up to 240A total continuous current and 320A bursts for 10 seconds. An integrated aluminum alloy heat sink ensures efficient cooling, keeping your ESC stable even under high load. Built to handle the most demanding 6S motors with confidence.

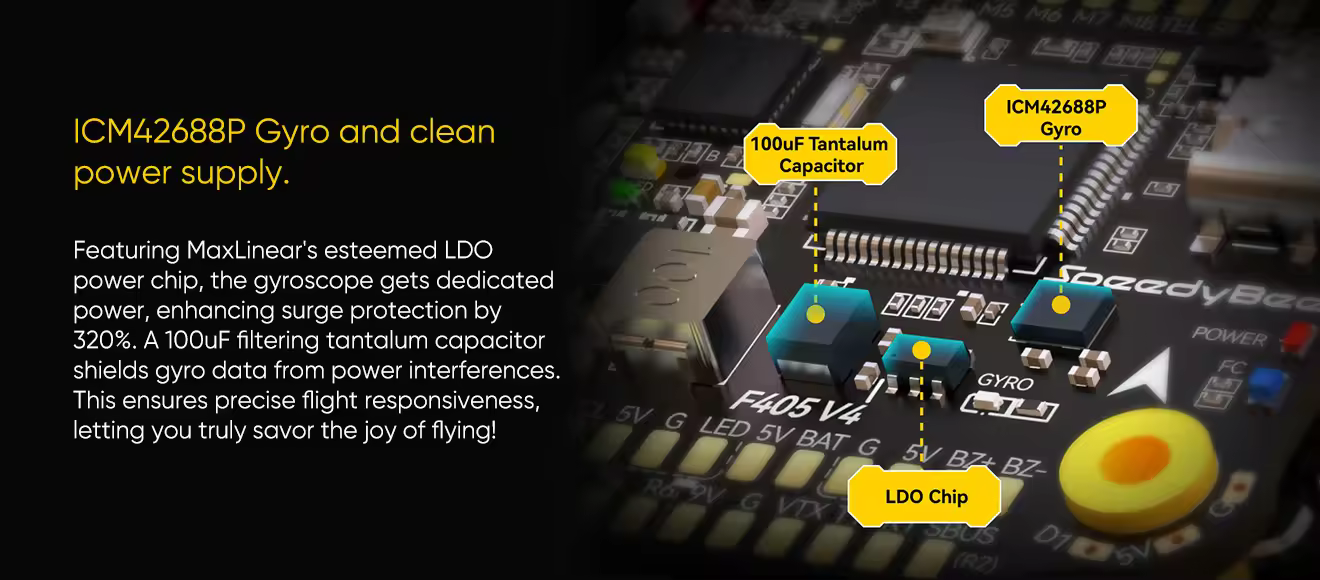

Precision Gyro Performance with Clean Power
The SpeedyBee F405 V4 60A features the high-performance ICM42688P gyroscope powered by a dedicated MaxLinear LDO chip, delivering clean and stable voltage. With 320% improved surge protection and a 100uF tantalum capacitor for power filtering, gyro data stays interference-free, ensuring ultra-precise flight control and a smooth flying experience.

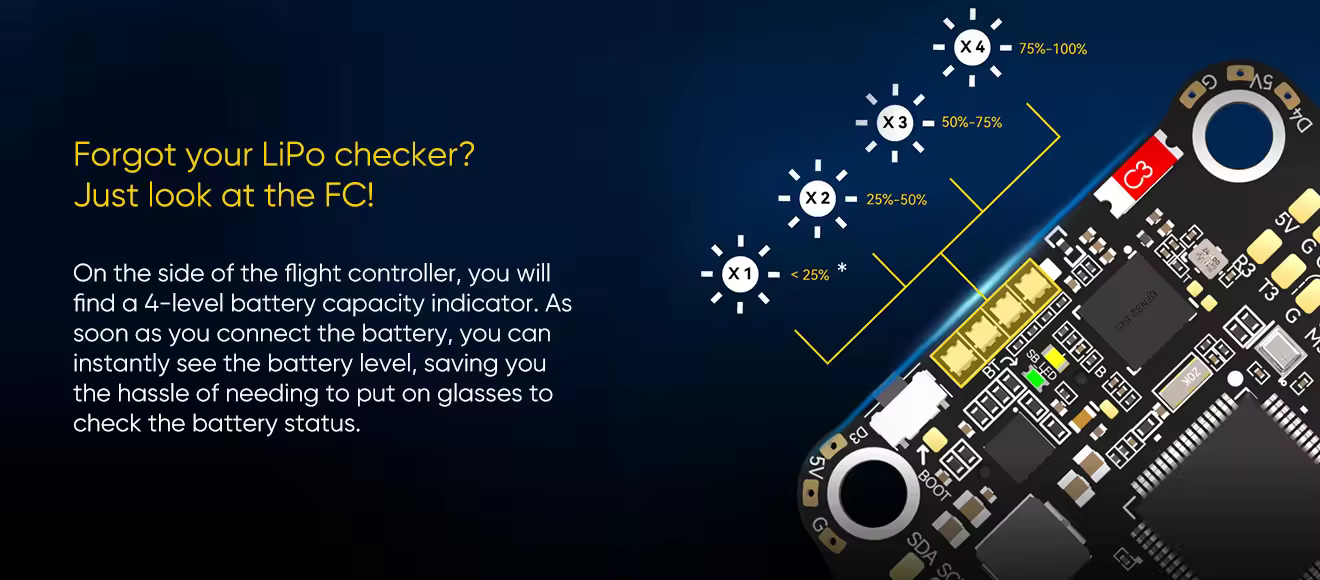

Quick Battery Check, No Tools Needed
No LiPo checker? No problem! The flight controller features a built-in 4-level battery indicator on its side. Just plug in the battery and instantly see the power level—no need for extra gear or reading glasses.

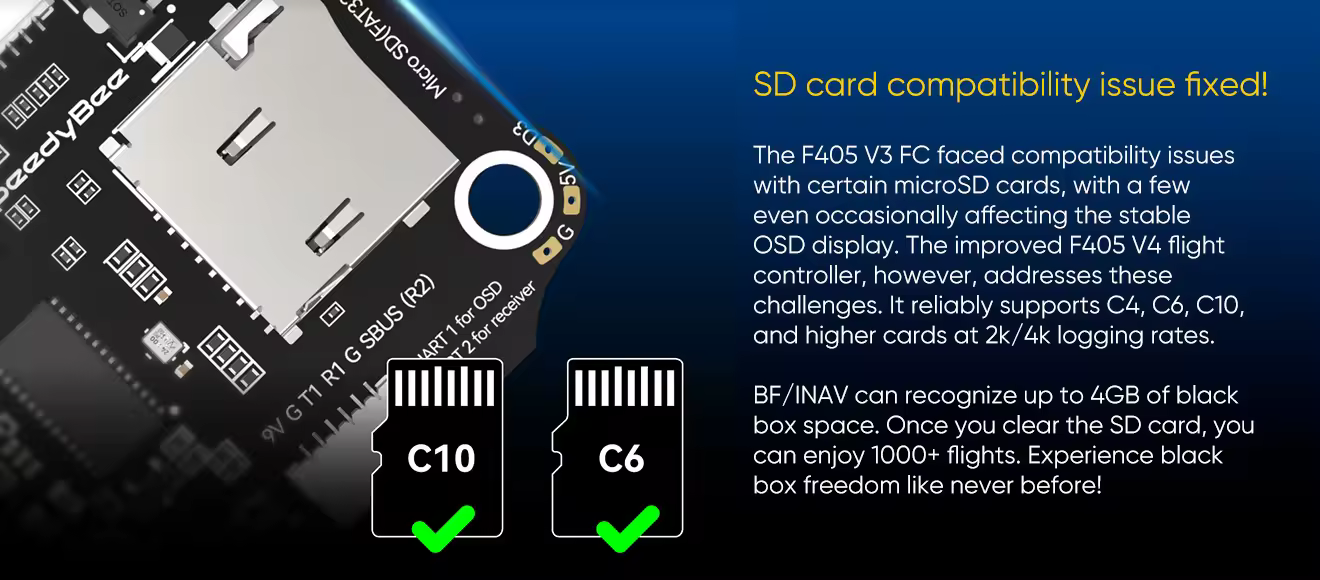

Enhanced SD Card Support for Seamless Logging
The F405 V4 flight controller solves the SD card compatibility issues found in the V3, which sometimes disrupted OSD stability. Now, it reliably supports C4, C6, C10, and higher-rated cards at 2K/4K logging speeds. With up to 4GB blackbox support in BF/INAV and storage for over 1000 flights after clearing, you get smoother performance and true logging freedom.

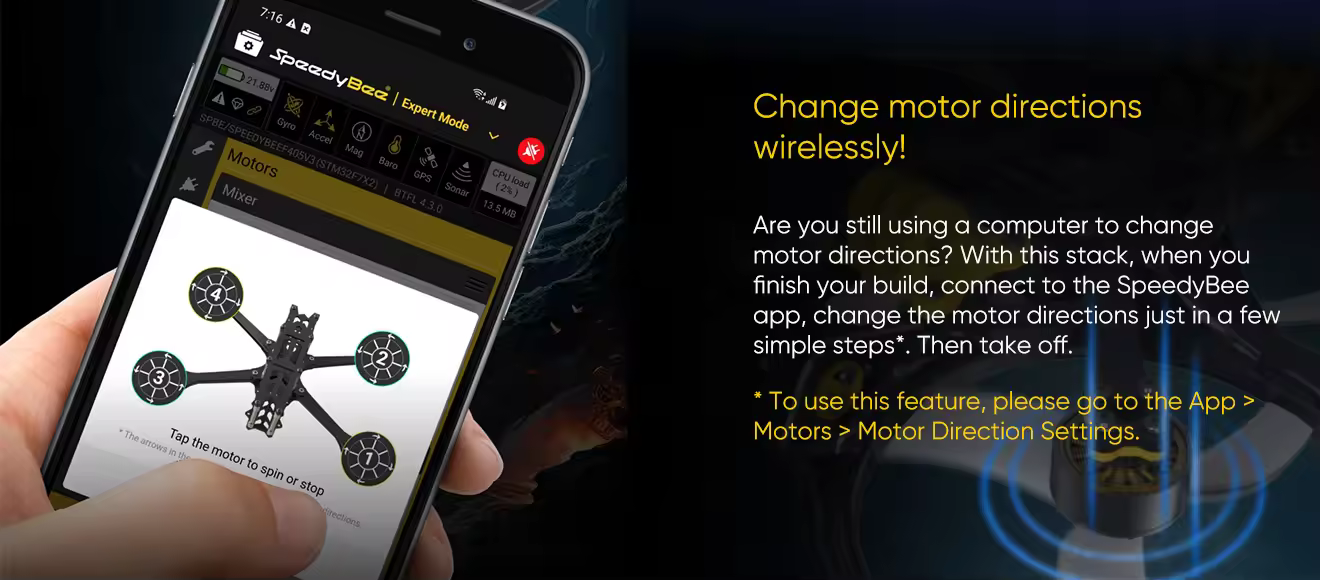

Wireless Motor Direction Setup Made Easy
Forget the hassle of using a computer to reverse motor directions. With this stack, simply connect to the SpeedyBee app after your build and change motor directions in just a few taps. fast, easy, and ready for take off.
*Find it in the app under: Motors > Motor Direction Settings.

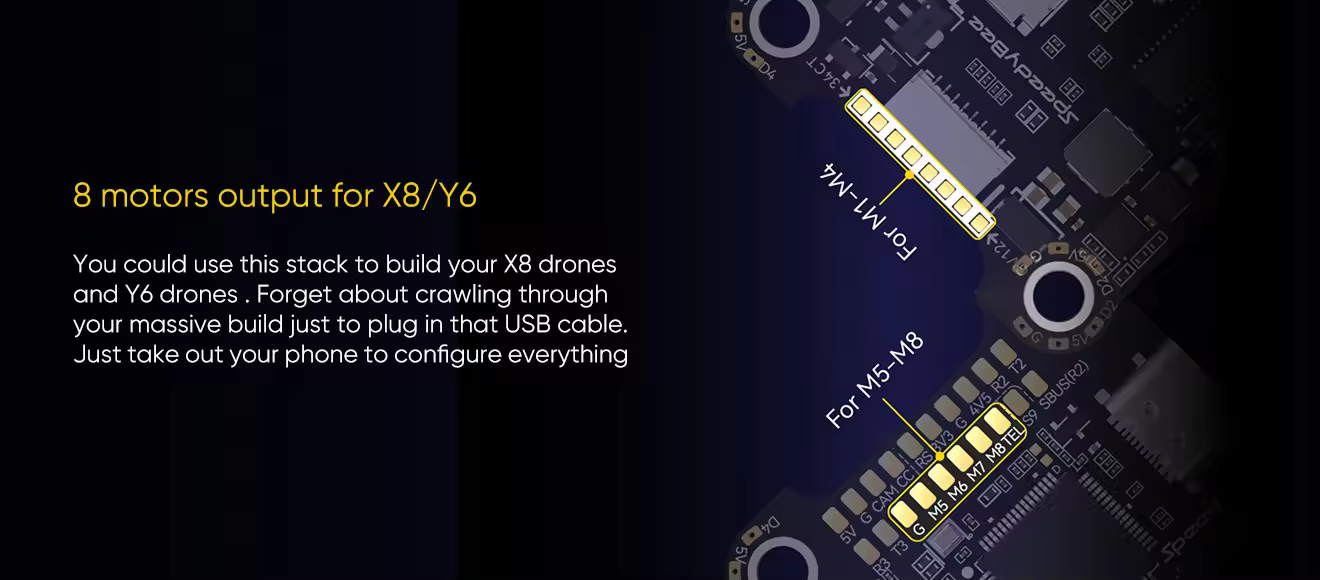

Effortless X8/Y6 Drone Configuration
Building an X8 or Y6 drone? This stack supports 8 motor outputs, perfect for advanced setups. No need to dig through your build to find the USB port-just connect via your phone and configure everything with ease.

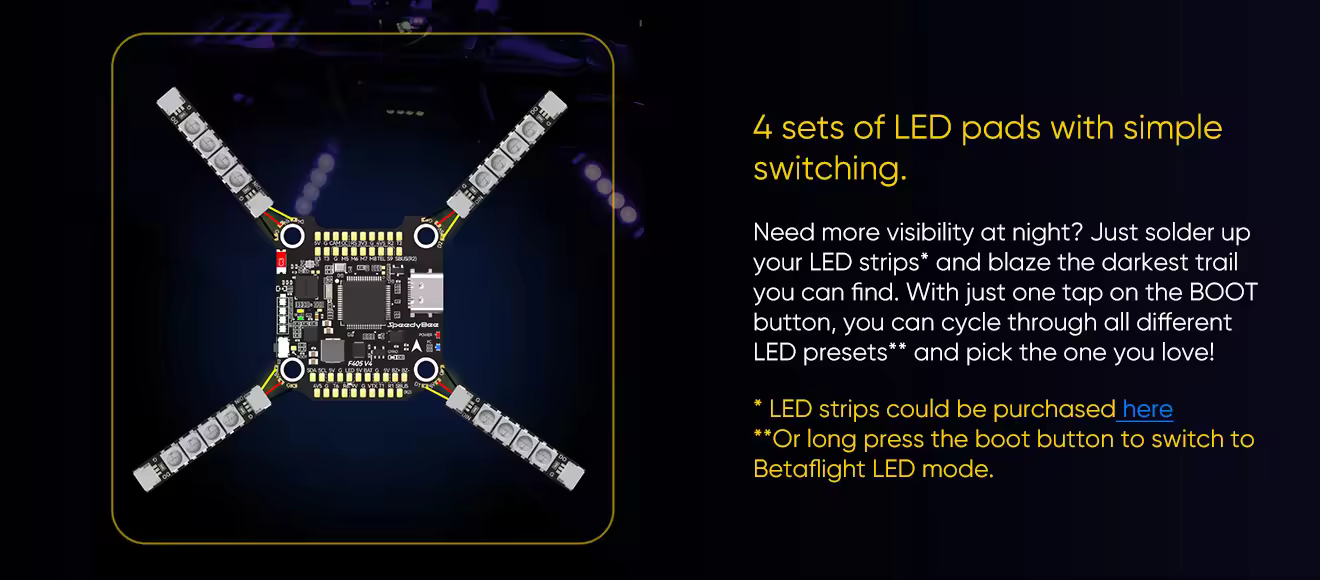

Light Up the Night with One-Tap LED Control
This speedybee F405 V4 60A stack features 4 sets of LED pads- just solder your LED strips and you're ready to go. With a single press of the BOOT button, you can cycle through various LED presets to match your style or boost visibility during night flights.

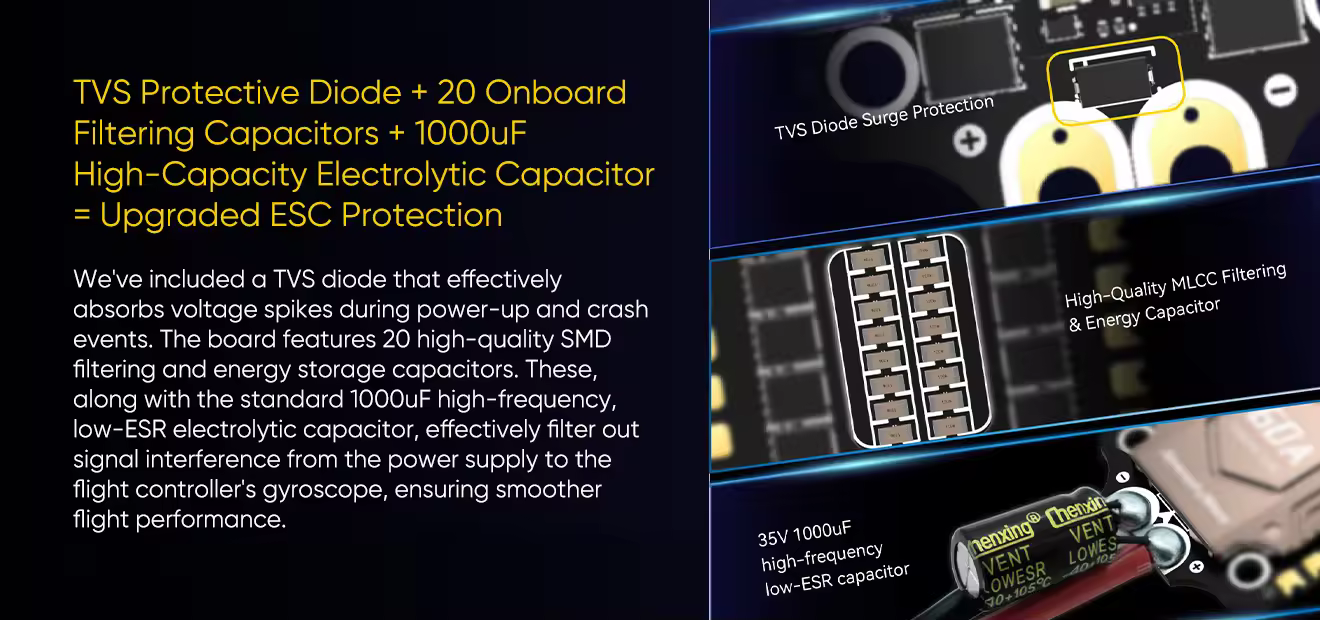

Robust Power Filtering for Smoother Flights
Enjoy upgraded ESC protection with a combination of a TVS diode to absorb voltage spikes and 20 onboard SMD filtering capacitors. Paired with a 1000uF low-ESR electrolytic capacitor, this setup minimizes power noise and signal interference-delivering cleaner power to the flight controller's gyro for more stable, reliable flight performance.

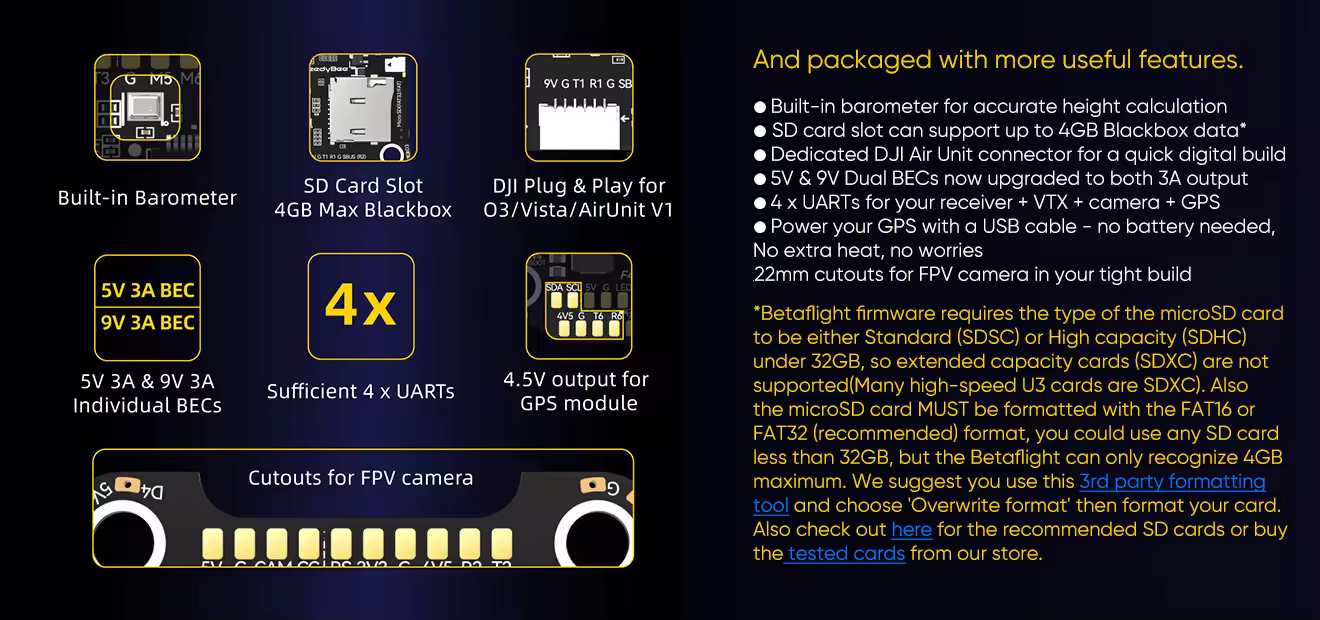

Packed with Practical Upgrades for a Smoother Build
This stack includes everything you need for an easier build: built-in barometer, 4GB Blackbox support, DJI Air Unit connector, upgraded 5V/9V 3A BECs, 4 UARTs, USB-powered GPS, and 22mm camera cutouts—all designed for a cleaner, cooler, and more efficient FPV setup.

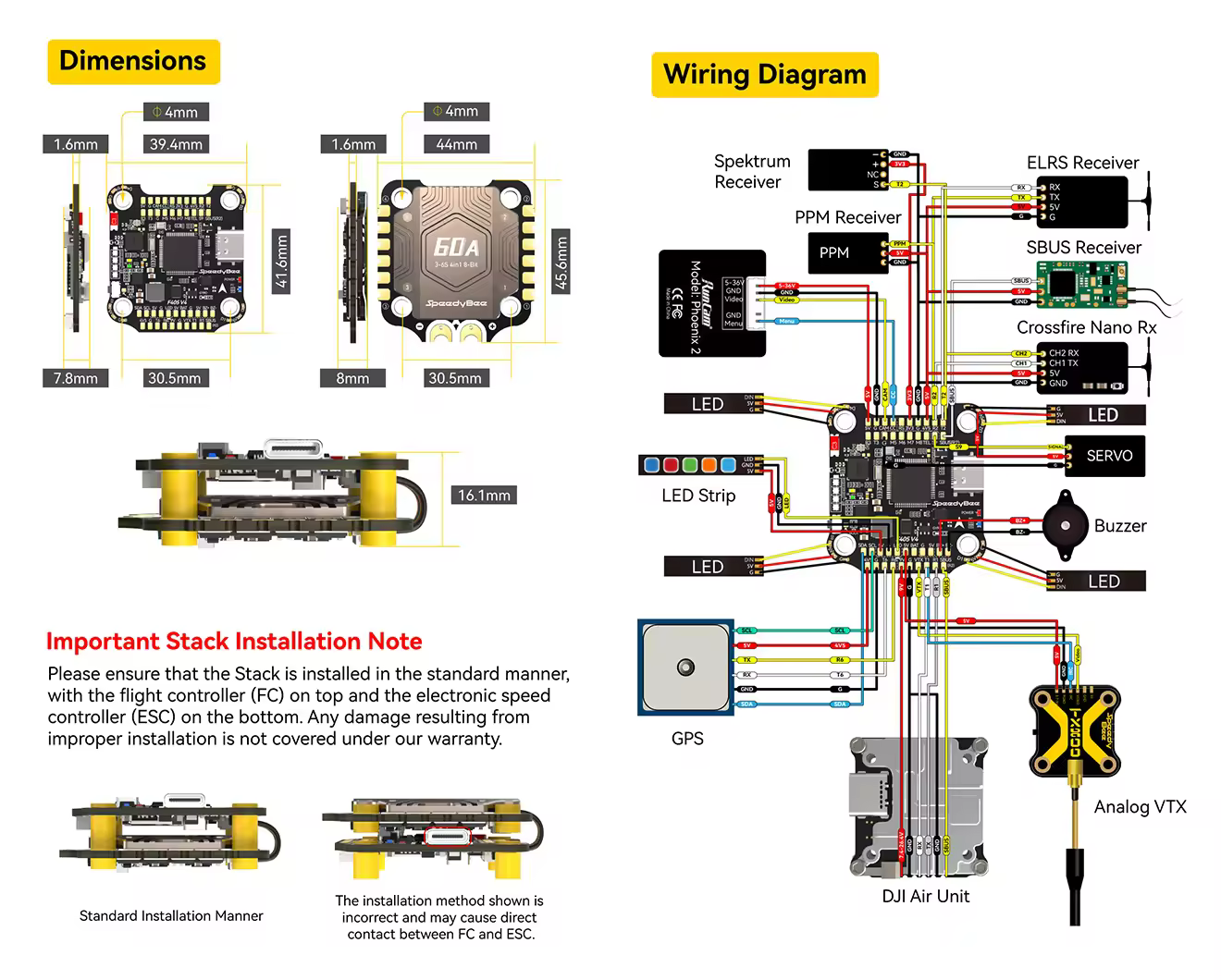

Size Chart

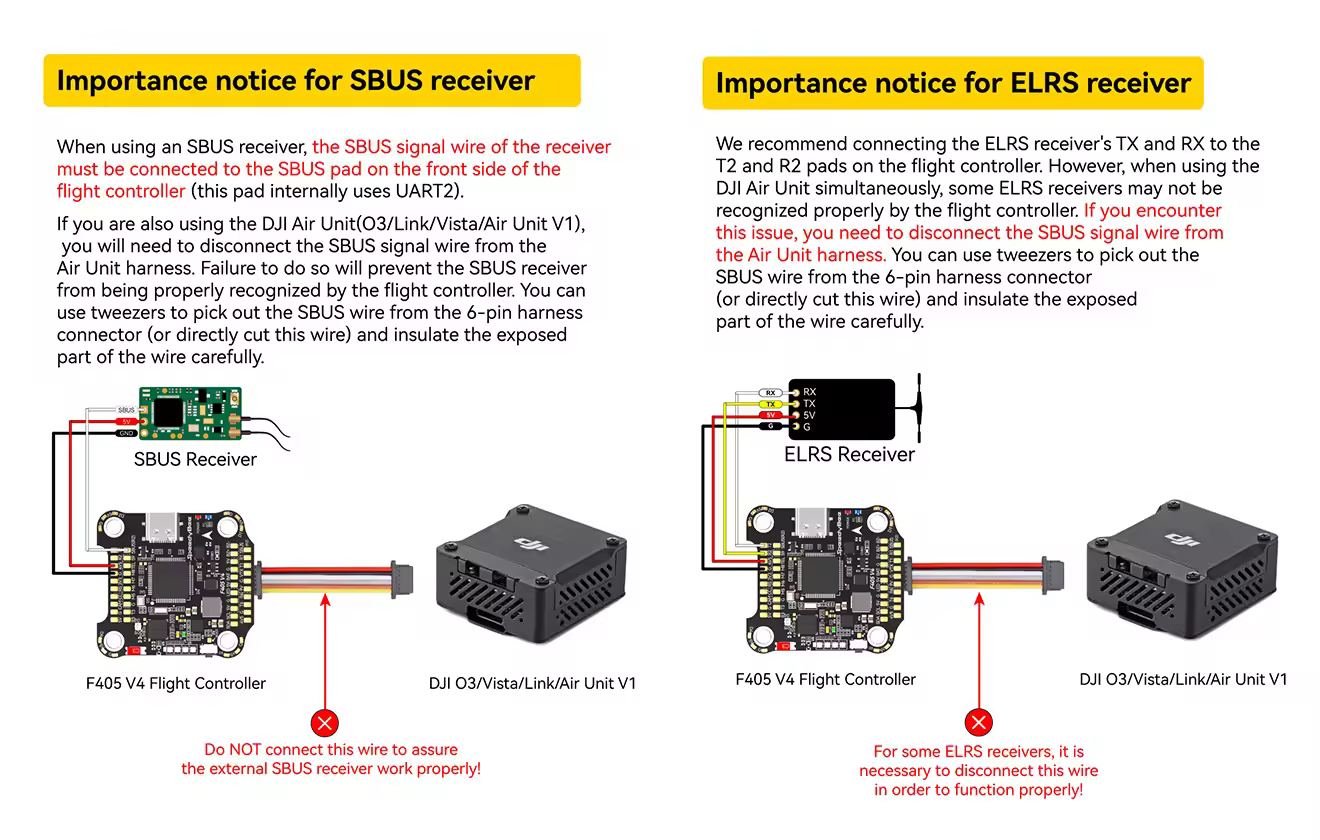

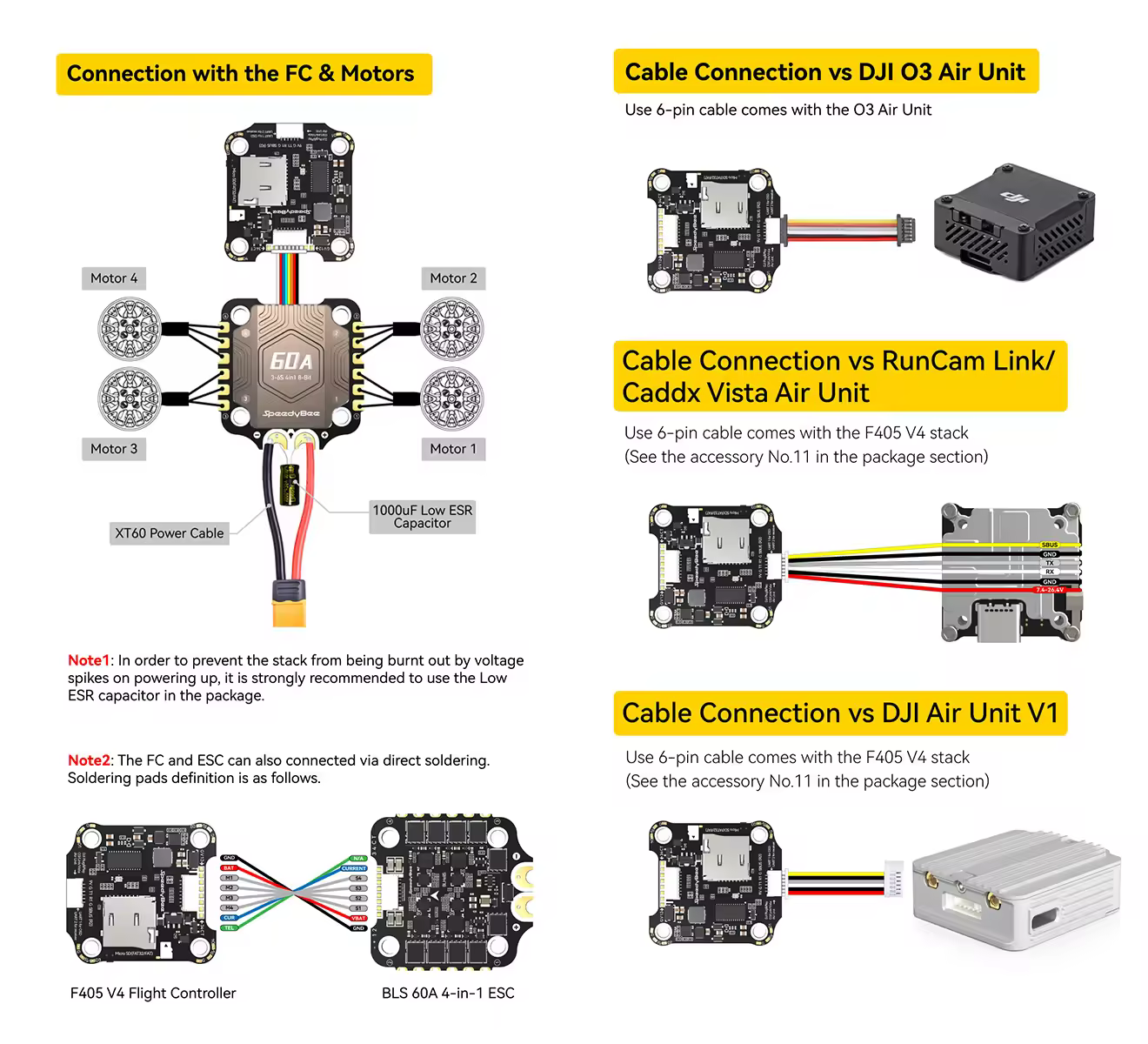

Speedybee F405 V4 60A Wiring Diagram

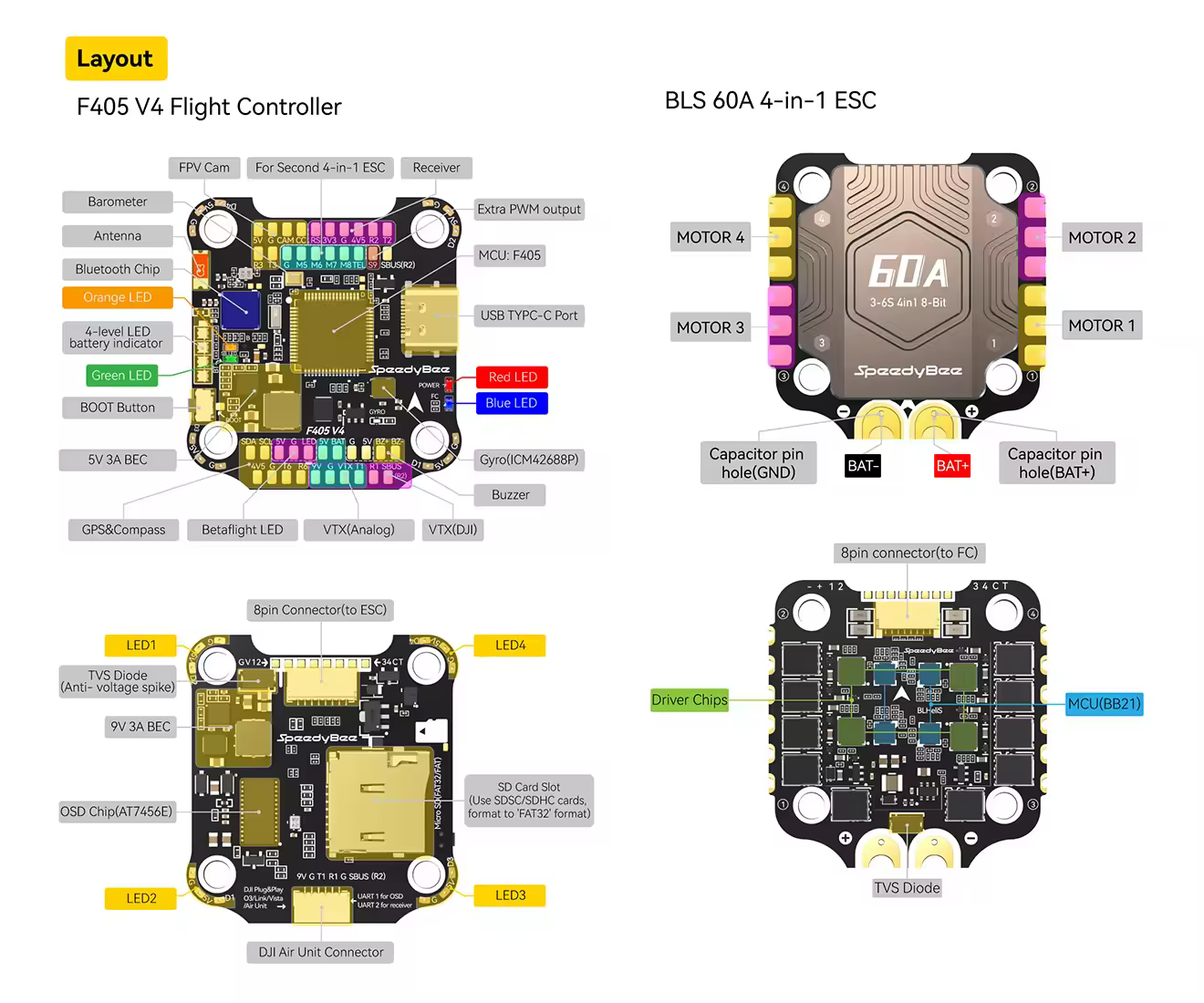

Layout

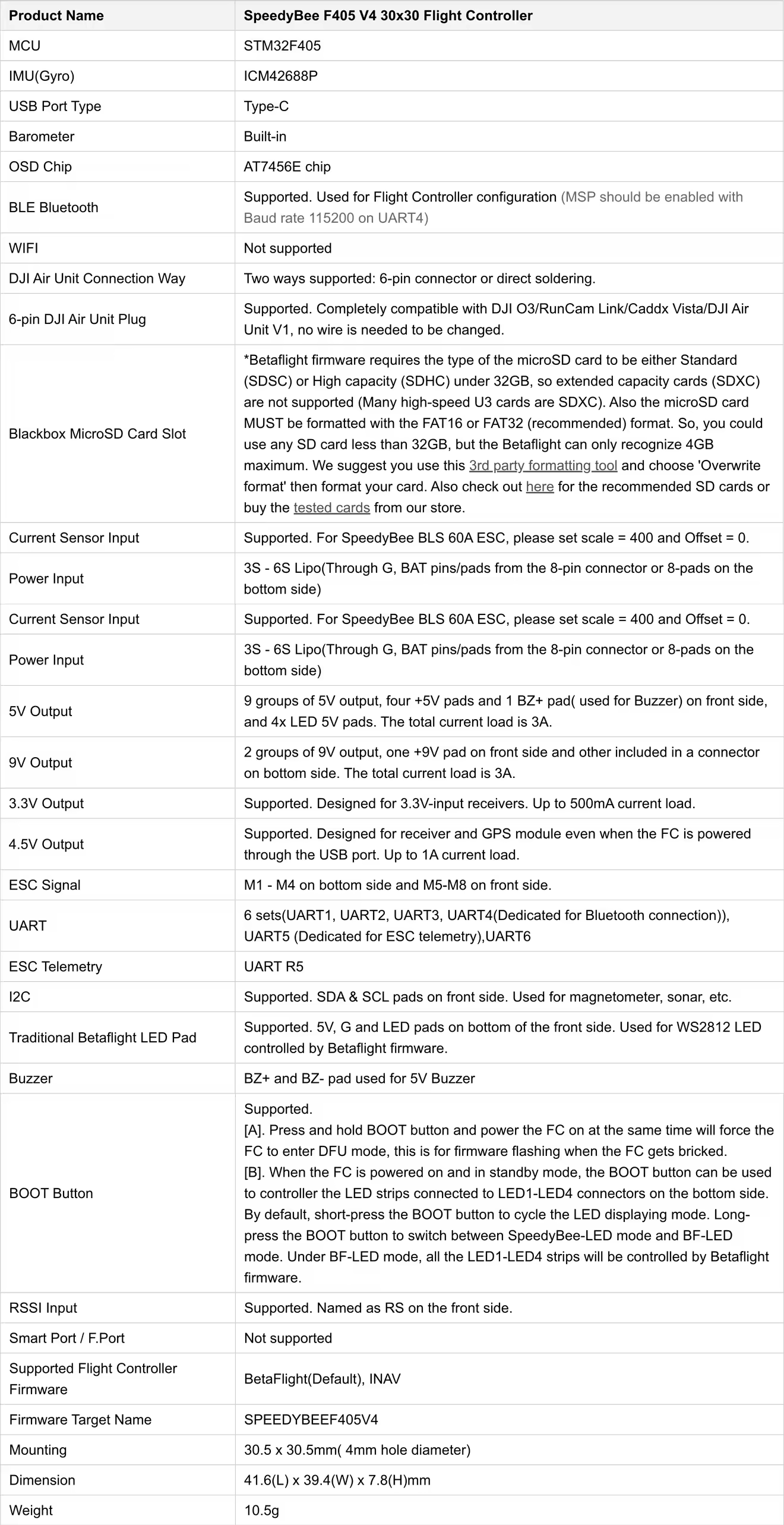

Specifications
Recommendation
Package
Reviews
b*********8
Verified
Fast delivery, caring customer service, good deal for the product.
Specification：F405 V4 60A Stack
s*************2
Verified
Prodotto ottimo
Specification：F405 V4 60A Stack
Additional reviews after 1
day
Facile da collegare
D*************n
Verified
Amazing value for a full F405 stack! Setup was easy, and I love that it works with both analog and digital systems. Flight performance is smooth and responsive. Definitely one of the best stacks in its price range.
Specification：F405 V4 60A Stack
A*********n
Verified
The 60A ESC handles my powerful 6S build without breaking a sweat. Temperature stays low even after aggressive freestyle sessions. I would definitely recommend this combo for mid to high-power quads.
Specification：F405 V4 60A Stack
P************t
Verified
Solid FC & ESC stack. I like the built-in Bluetooth feature for quick tuning in the field. No more lugging around a laptop! The stack feels premium, especially at this price point.
Specification：F405 V4 60A Stack
J*************r
Verified
I’ve used several F4 and F7 stacks, but this one from SpeedyBee really surprised me. Super intuitive to configure with the app, and soldering was a breeze. MEPSKING shipped it fast and well-packaged—reliable store.
Specification：F405 V4 60A Stack
c*************9
Verified
Great items thank you for the propellers gifts.
Specification：F405 V4 60A Stack
Additional reviews after 1
day
Great items thank you for the propellers gifts.
A**x
Verified
Flight performance is smooth and responsive. I especially appreciate the built-in 1000uF cap and TVS diode, no need to add external filtering.
Specification：F405 V4 60A Stack
1
2
FAQFeel free to ask us any questions
Q: What flight firmware does the SpeedyBee F405 V4 60A support?
A: The SpeedyBee F405 V4 FC supports Betaflight, INAV, and EmuFlight, giving users flexibility for freestyle, racing, or GPS-based navigation builds.
Q: Is the SpeedyBee F405 V4 Flight Controller compatible with DJI digital FPV systems?
A: Yes, it features a dedicated DJI Air Unit plug-and-play connector, making it easy to set up with DJI FPV systems for crystal-clear digital video transmission.
Q: How many motor outputs does the SpeedyBee F405 V4 BLS 60A stack support?
A: The stack supports up to 8 motor outputs, making it ideal for X8 and Y6 drone configurations.
Q: Can I change motor direction without a computer?
A: Yes! With the SpeedyBee app, you can wirelessly reverse motor directions after your build—no computer or USB cable needed.
Q: What SD card types are supported for Blackbox logging?
A: The stack supports Class 4, 6, 10, and higher-rated microSD cards, with logging speeds up to 4K and up to 4GB of Blackbox data.
